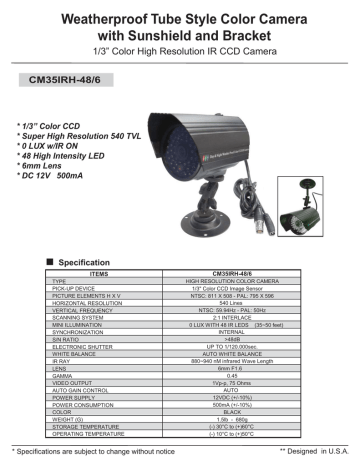

Weatherproof Tube Style Color Camera with Sunshield and Bracket CM35IRH-48/6

Weatherproof Tube Style Color Camera with Sunshield and Bracket CM35IRH-48/6
Weatherproof Tube Style Color Camera
with Sunshield and Bracket
1/3” Color High Resolution IR CCD Camera
CM35IRH-48/6
* 1/3” Color CCD
* Super High Resolution 540 TVL
* 0 LUX w/IR ON
* 48 High Intensity LED
* 6mm Lens
* DC 12V 500mA
Specification
ITEMS
TYPE
PICK-UP DEVICE
PICTURE ELEMENTS H X V
HORIZONTAL RESOLUTION
VERTICAL FREQUENCY
SCANNING SYSTEM
MINI ILLUMINATION
SYNCHRONIZATION
S/N RATIO
ELECTRONIC SHUTTER
WHITE BALANCE
IR RAY
LENS
GAMMA
VIDEO OUTPUT
AUTO GAIN CONTROL
POWER SUPPLY
POWER CONSUMPTION
COLOR
WEIGHT (G)
STORAGE TEMPERATURE
OPERATING TEMPERATURE
* Specifications are subject to change without notice
CM35IRH-48/6
HIGH RESOLUTION COLOR CAMERA
1/3" Color CCD Image Sensor
NTSC: 811 X 508 - PAL: 795 X 596
540 Lines
NTSC: 59.94Hz - PAL: 50Hz
2:1 INTERLACE
0 LUX WITH 48 IR LEDS (35~50 feet)
INTERNAL
>48dB
UP TO 1/120.000sec.
AUTO WHITE BALANCE
880~940 nM infrared Wave Length
6mm F1.6
0.45
1Vp-p, 75 Ohms
AUTO
12VDC (+/-10%)
500mA (+/-10%)
BLACK
1.5lb - 680g
(-) 30°C to (+)60°C
(-) 10°C to (+)50°C
** Designed in U.S.A.
