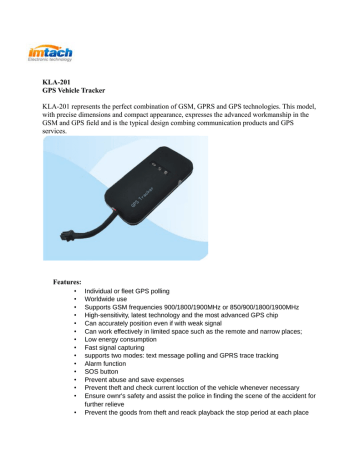

KLA-201
KLA-201
GPS Vehicle Tracker
KLA-201 represents the perfect combination of GSM, GPRS and GPS technologies. This model,
with precise dimensions and compact appearance, expresses the advanced workmanship in the
GSM and GPS field and is the typical design combing communication products and GPS
services.
Features:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Individual or fleet GPS polling
Worldwide use
Supports GSM frequencies 900/1800/1900MHz or 850/900/1800/1900MHz
High-sensitivity, latest technology and the most advanced GPS chip
Can accurately position even if with weak signal
Can work effectively in limited space such as the remote and narrow places;
Low energy consumption
Fast signal capturing
supports two modes: text message polling and GPRS trace tracking
Alarm function
SOS button
Prevent abuse and save expenses
Prevent theft and check current locction of the vehicle whenever necessary
Ensure ownr's safety and assist the police in finding the scene of the accident for
further relieve
Prevent the goods from theft and reack playback the stop period at each place
•
•
•
A key to emergency calls,SMS location tips;
Ensure the safety of the driver and venhicle and reduce maintenance and repair
cost
For family care,let the family rest assured
Specifications
Content
GSM Frequenccy
GPS Chips
GPRS GPS Sensitivity GPS Accuracy GSM Accuracy Speed Accuracy Cold Status
Warm Status Hot Status
Maximum Altitude
Highest speed
Acceleration of gravity
Dimensions
Weight
Working Temperature
Humidity
Voltage Current
Stuandy Average current LED Specification
900/1800/1900MHz or
850/900/1800/1900MHz
SIRF Star IV
Class 12, TCP/IP build in GSM
Module
-160dBm
10m(2D RM)
50-200m
0.1m/s
-38s
-32s
-2s
18000m
515m/s
<4g
90.0(L) x 45.0(W) x12.0(H) mm
45g
-20°C--+70°C
20%---80%RH
7--30v DC
60mA(12v DC) --35mA(24v DC)
<80MA
LED indicate GPS/GSM working
status or other condition
