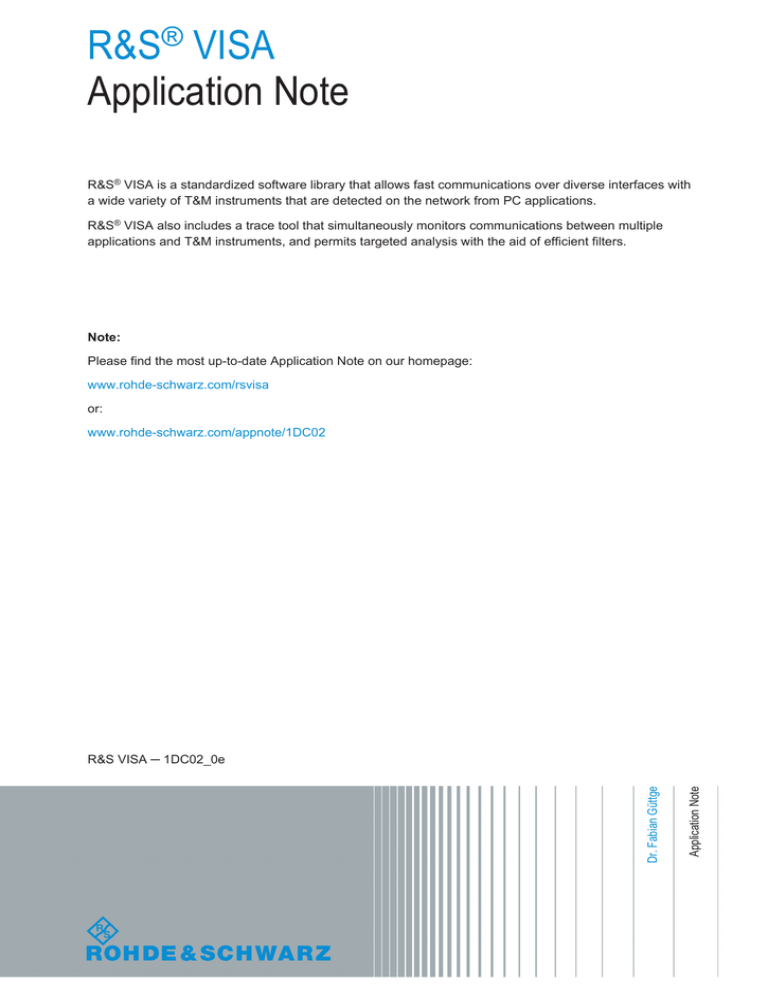

R&S® VISA
Application Note
R&S® VISA is a standardized software library that allows fast communications over diverse interfaces with
a wide variety of T&M instruments that are detected on the network from PC applications.
R&S® VISA also includes a trace tool that simultaneously monitors communications between multiple
applications and T&M instruments, and permits targeted analysis with the aid of efficient filters.
Note:
Please find the most up-to-date Application Note on our homepage:
www.rohde-schwarz.com/rsvisa
or:
www.rohde-schwarz.com/appnote/1DC02
Application Note
Dr. Fabian Güttge
R&S VISA ─ 1DC02_0e
Contents
Contents
1 Overview................................................................................................. 3
2 Installation.............................................................................................. 4
3 Compatibility.......................................................................................... 7
4 Rohde & Schwarz...................................................................................8
Application Note R&S VISA ─ 1DC02_0e
2
Overview
1 Overview
Maintained by the IVI Foundation (ivifoundation.org), Virtual Instruments Software
Architecture (VISA) is a multi-vendor, standardized I/O software interface for T&M
instruments. Applications based on this interface remain flexible and fit for future
requirements. Core features are:
●
Communications via TCP/IP (HiSlip, VXI-11, RSIB, Raw Socket) and USBTMC
●
Support for all Windows versions from XP Service Pack 2
●
Available for 32-bit and 64-bit applications
●
Switching between VISA implementations at runtime
●
Integrated, automatable search algorithms for detecting T&M instruments in the
network
●
Efficient trace tool for communications analysis
●
Compact, fast, and free-of-charge under the R&S terms and conditions for royaltyfree products
Besides the VISA library, this product contains three utility applications:
R&S VISA trace tool
●
Logs all communications between the R&S VISA library and applications
●
Long-term logging to file along with quick display of all VISA remote control commands
●
Filters permit targeted monitoring of individual processes, threads or sessions
●
Configurable color coding facilitates analysis
●
Clear visual highlighting of VISA commands called simultaneously from different
threads
●
Reduction of a series of identical commands into a single log entry
●
Automatic pause at VISA errors
●
Multiple instances of R&S VISA trace tool can be launched independently
R&S VISA tester
●
Call of common VISA commands for a quick connection check
●
Automated test sequences for testing the performance and reliability of a connection
●
Query and definition of VISA attributes
●
Support of VISA event and locking mechanism
●
Switching between active VISA implementations at runtime
●
Search for instruments in the network via mDNS and VXI-11
R&S VISA configuration tool
●
Definition of alias names for resources
●
Manual entry of LAN resources
●
Configuration of VISA conflict manager: assignment of channels to VISA implementations
Application Note R&S VISA ─ 1DC02_0e
3
Installation
Installation Procedure
2 Installation
2.1 System Requirements
Operating System: Microsoft Windows XP / SP2 or higher, Windows 7, Windows 8.1,
Windows 10.
2.2 Installation Procedure
●
Start the Setup executable SetupRsVisa<version>.exe
●
Click Next
●
Read the license agreement carefully. If you agree to the terms of the agreement
click on "I accept the license agreement" and then click Next.
●
Use the Verify button to verify that the setup executable is not compromised.
●
Depending on your system either only the 32-bit library or the 64-bit package are
selectable for installation. Note that the 64-bit package contains the 32-bit VISA
library as well.
Application Note R&S VISA ─ 1DC02_0e
4
Installation
Uninstallation
Figure 2-1: Rohde & Schwarz Software distributor screenshot.
●
If the IVI Shared Components are either not already available on your system or
have a lower version number, this component is installed along with the R&S VISA.
Click Install to start the installation of all required components.
●
If requested, read the license agreement of the IVI Shared Components carefully
and accept these if you agree.
●
After a successful installation click Exit to finish the setup.
2.3 Uninstallation
Open the uninstall manager in the control panel. Select R&S VISA and click Uninstall.
When uninstalling R&S VISA from your system all R&S VISA components are removed
along with all user settings (e.g. the resource identifier and alias list). The IVI Shared
Components remain installed, but can be uninstalled separately.
Application Note R&S VISA ─ 1DC02_0e
5
Installation
Repair, Update and Downgrade
2.4 Repair, Update and Downgrade
If a file of the R&S VISA is missing (e.g. by accidently deleting it) rerun
SetupRsVisa<version>.exe. The missing files are copied to your system. The
user settings are not modified. To initiate the update or downgrade process run
SetupRsVisa<version>.exe of the newer or older version and follow the installation steps given above. All R&S VISA components are replaced by the components of
the new version. The user settings are not modified. Note, the R&S VISA setup only
updates and never downgrades the IVI Shared Components.
Application Note R&S VISA ─ 1DC02_0e
6
Compatibility
3 Compatibility
The R&S VISA can be installed along with VISA implementations by other vendors.
However, 32-bit applications linked against the generic visa32.lib and not the R&S
specific RsVisa32.lib use the library visa32.dll at runtime. This library merely
redirects all exported functions to a vendor specific VISA library. Usually if along with
the R&S VISA another VISA is installed, this file is overwritten. Hence, applications
importing visa32.dll no longer use the R&S VISA. A visa32.dll file redirecting
all exported functions to the R&S VISA can be found at
%VXIPNPPATH%WinNT\RsVisa\bin.
Furthermore, because the visa32.dll file is installed by other VISA implementations
as well, uninstalling such a VISA implementation might delete the file visa32.dll. In
this case the R&S VISA should be repaired (cf. Section 2.4). The R&S VISA uninstaller
never deletes the file visa32.dll if still needed by another VISA implementation.
These problems do not persist with 64-bit applications. Here applications link against
visa64.dll. This file is not installed by the VISA, but by the IVI Shared Components,
hence uninstalling a VISA implementation does not change the installation state of the
visa64.dll file. Furthermore, the visa64.dll library does not redirect all exported
functions to the same VISA implementation, but the user may decide at runtime which
VISA should be used. For further details see the R&S VISA Manual section 6.4.
Application Note R&S VISA ─ 1DC02_0e
7
Rohde & Schwarz
4 Rohde & Schwarz
