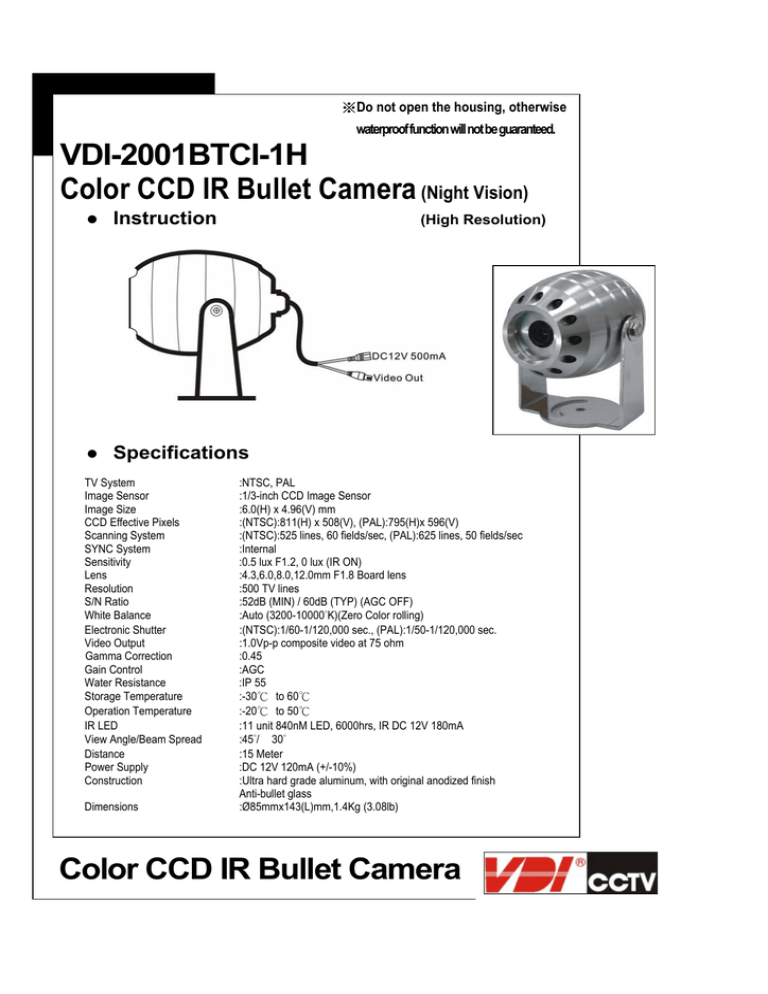

VDI-2001BTCI-1H Color CCD IR Bullet Camera (Night Vision)

VDI-2001BTCI-1H Color CCD IR Bullet Camera (Night Vision)
※Do not open the housing, otherwise
waterproof function will not be guaranteed.
VDI-2001BTCI-1H
Color CCD IR Bullet Camera (Night Vision)
z
Instruction
z
Specifications
TV System
Image Sensor
Image Size
CCD Effective Pixels
Scanning System
SYNC System
Sensitivity
Lens
Resolution
S/N Ratio
White Balance
Electronic Shutter
Video Output
Gamma Correction
Gain Control
Water Resistance
Storage Temperature
Operation Temperature
IR LED
View Angle/Beam Spread
Distance
Power Supply
Construction
Dimensions
(High Resolution)
:NTSC, PAL
:1/3-inch CCD Image Sensor
:6.0(H) x 4.96(V) mm
:(NTSC):811(H) x 508(V), (PAL):795(H)x 596(V)
:(NTSC):525 lines, 60 fields/sec, (PAL):625 lines, 50 fields/sec
:Internal
:0.5 lux F1.2, 0 lux (IR ON)
:4.3,6.0,8.0,12.0mm F1.8 Board lens
:500 TV lines
:52dB (MIN) / 60dB (TYP) (AGC OFF)
:Auto (3200-10000°K)(Zero Color rolling)
:(NTSC):1/60-1/120,000 sec., (PAL):1/50-1/120,000 sec.
:1.0Vp-p composite video at 75 ohm
:0.45
:AGC
:IP 55
:-30℃ to 60℃
:-20℃ to 50℃
:11 unit 840nM LED, 6000hrs, IR DC 12V 180mA
:45°/ 30°
:15 Meter
:DC 12V 120mA (+/-10%)
:Ultra hard grade aluminum, with original anodized finish
Anti-bullet glass
:Ø85mmx143(L)mm,1.4Kg (3.08lb)
Color CCD IR Bullet Camera
