PMU 5K TP2
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com

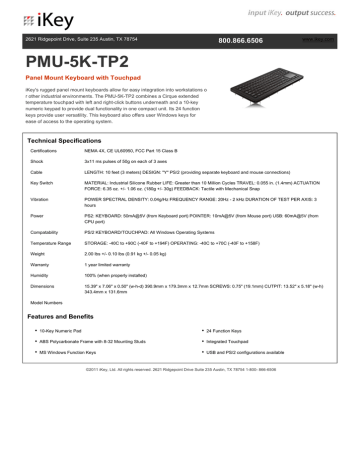

PMU-5K-TP2
Panel Mount Keyboard with Touchpad
iKey's rugged panel mount keyboards allow for easy integration into workstations o
r other industrial environments. The PMU-5K-TP2 combines a Cirque extended
temperature touchpad with left and right-click buttons underneath and a 10-key
numeric keypad to provide dual functionality in one compact unit. Its 24 function
keys provide user versatility. This keyboard also offers user Windows keys for
ease of access to the operating system.
Technical Specifications
Certifications
NEMA 4X, CE UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 (providing separate keyboard and mouse connections)
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION
FORCE: 6.35 oz. +/- 1.06 oz. (180g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3
hours
Power
PS2: KEYBOARD: [email protected] (from Keyboard port) POINTER: [email protected] (from Mouse port) USB: [email protected] (from
CPU port)
Compatability
PS/2 KEYBOARD/TOUCHPAD: All Windows Operating Systems
Temperature Range
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Weight
2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)
Warranty
1 year limited warranty
Humidity
100% (when properly installed)
Dimensions
15.39" x 7.06" x 0.50" (w-h-d) 390.9mm x 179.3mm x 12.7mm SCREWS: 0.75" (19.1mm) CUTPIT: 13.52" x 5.18" (w-h)
343.4mm x 131.6mm
Model Numbers
Features and Benefits
10-Key Numeric Pad
24 Function Keys
ABS Polycarbonate Frame with 8-32 Mounting Studs
Integrated Touchpad
MS Windows Function Keys
USB and PS/2 configurations available
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
