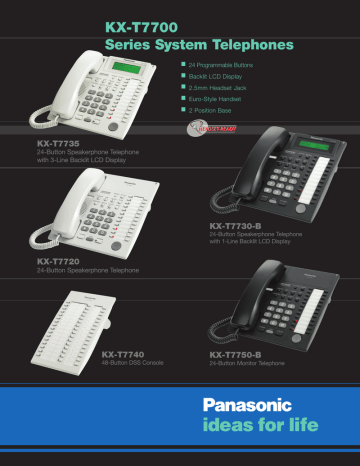

KX-T7700
Series System Telephones
 24 Programmable Buttons
 Backlit LCD Display
 2.5mm Headset Jack
 Euro-Style Handset
 2 Position Base
KX-T7735
24-Button Speakerphone Telephone
with 3-Line Backlit LCD Display
KX-T7730-B
24-Button Speakerphone Telephone
with 1-Line Backlit LCD Display
KX-T7720
24-Button Speakerphone Telephone
KX-T7740
48-Button DSS Console
KX-T7750-B
24-Button Monitor Telephone
KX-T7700 Series Proprietary Telephone
The KX-T7700 series includes 4 telephone models and one DSS
console, all available in white and charcoal/black, providing
numerous options to suit each individuals needs and budget.
The KX-T7720, KX-T7730, KX-T7740 and KX-T7750 are all
designed for use with the Panasonic Advanced Hybrid Telephone
Systems and our Digital Super Hybrid systems, allowing you to
upgrade the system without changing out the telephones. The top
of the line, 24-button, 3-line backlit display KX-T7735 telephone
was designed to work exclusively with our KX-TA624-5,
KX-TA1232-2 and TDA100 and 200 systems.
duration of external calls. On intercom calls the caller’s extension
will appear on the LCD display before the phone is answered.
Name and Number Caller ID*
When connected to a KX-TA624-5 or KX-TA1232-2 Advanced
Hybrid System equipped for Caller ID* the KX-T7735’s 3-line
Backlit LCD display will show the outside caller’s name and
number simultaneously. The KX-T7730 has a 1-line LCD display,
which will show the caller’s name and number alternately.
Additionally, all Panasonic KX-T7700 Series phones come with
a euro-style handset. Sleek and stylish with a low-profile design,
this type of handset is comfortable and easy to use. For an
efficient communication system with the flexibility to adapt as
your needs change, choose Panasonic KX-T7700 Series phones.
Programmable CO and Feature Buttons
Each of the four telephone models in this series are equipped with
24 programmable buttons that can be programmed for one touch
access to features and automatic dialing. In addition, 12 of the
24 programmable buttons are also equipped with LED’s and can
be programmed to direct select a Central Office line or a Direct
Station Select (DSS)/Busy Lamp Field (BLF).
 The base can be adjusted to two different positions for
ease of use on the desk,or it may be mounted on the wall.
 All Models are Equipped with a 2.5mm Headset Jack
 The KX-T7730 and KX-T7735 both have a navigation key to
Auto-Answer Speakerphone
An Auto-Answer Speakerphone is a valuable asset when it comes
to increasing efficiency. Featured on the KX-T7720, KX-T7730
and KX-T7735, this handy speakerphone lets you set the phone
for automatic hands-free answering of intercom calls. The phone
will no longer be an annoying interruption! You can now take calls
without putting your work on hold.
adjust the LCD contrast, handset/headset volume and speaker
volume.
*Requires subscription to name-and-number Caller ID service offered by certain
telephone companies for a fee.
Multi-Purpose, Backlit, Alphanumeric Display
The KX-T7730 and KX-T7735 both feature a backlit LCD display.
The display shows the time, day, month, dialing number and call
Model
KX-T7750
KX-T7720
KX-T7730
KX-T7735
12
12
12
12
12
12
12
12
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Programmable CO Keys
Programmable Feature Keys
Fixed Keys with LED Indicators
Auto Answer/Mute
Auto Dial/Store
Conference
FWD/DND
Intercom
Fixed Keys without LED Indicators
Flash/Recall
Message
Program
Redial
Pause
Large Fixed Keys
Monitor
Speakerphone Key with LED Indication
Transfer Key
Hold Key
Navigation Key
Speakerphone
Speaker Volume Control
3-Position Ringer Volume Switch
Message/Ringer Lamp
3-Line, 16-Character Backlit LCD Display
1-Line, 16-Character Backlit LCD Display
LCD Contrast Adjustment
J Type Handset
2.5mm Headset Jack
**48-Button DSS Console
Panasonic Consumer Electronics Company
Division of Matsushita Electric Corporation of America
Executive Offices: One Panasonic Way, Secaucus, NJ 07094
(201) 348-7000
www.panasonic.com
Design and specifications subject to change without notice.
