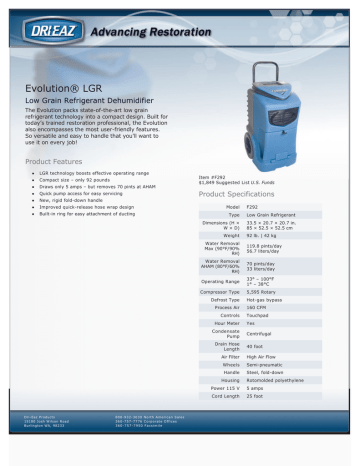

Dehumidifier Specifications Document

Dehumidifier Specifications Document
 Evolution® LGR
Low Grain Refrigerant Dehumidifier
The Evolution packs state­of­the­art low grain
refrigerant technology into a compact design. Built for
today’s trained restoration professional, the Evolution
also encompasses the most user­friendly features.
So versatile and easy to handle that you'll want to
use it on every job!
Product Features
LGR technology boosts effective operating range
Item #F292
$1,849 Suggested List U.S. Funds
Compact size – only 92 pounds
Draws only 5 amps – but removes 70 pints at AHAM Quick pump access for easy servicing
Product Specifications
New, rigid fold­down handle
Improved quick­release hose wrap design
Built­in ring for easy attachment of ducting
Model F292
Type Low Grain Refrigerant
Dimensions (H ×
33.5 × 20.7 × 20.7 in. W × D)
85 × 52.5 × 52.5 cm
Weight 92 lb. | 42 kg
Water Removal
119.8 pints/day Max (90°F/90% 56.7 liters/day
RH)
Water Removal
70 pints/day AHAM (80°F/60% 33 liters/day
RH)
Operating Range 33° – 100°F 1° – 38°C
Compressor Type 5,595 Rotary
Defrost Type Hot­gas bypass
Process Air 160 CFM
Controls Touchpad
Hour Meter Yes
Condensate
Centrifugal
Pump
Drain Hose
40 foot
Length
Air Filter High Air Flow
Wheels Semi­pneumatic
Handle Steel, fold­down
Housing Rotomolded polyethylene
Power 115 V 5 amps
Cord Length 25 foot
Dri­Eaz Products
15180 Josh Wilson Road
Burlington WA, 98233
800­932­3030 North American Sales
360­757­7776 Corporate Offices
360­757­7950 Facsimile
