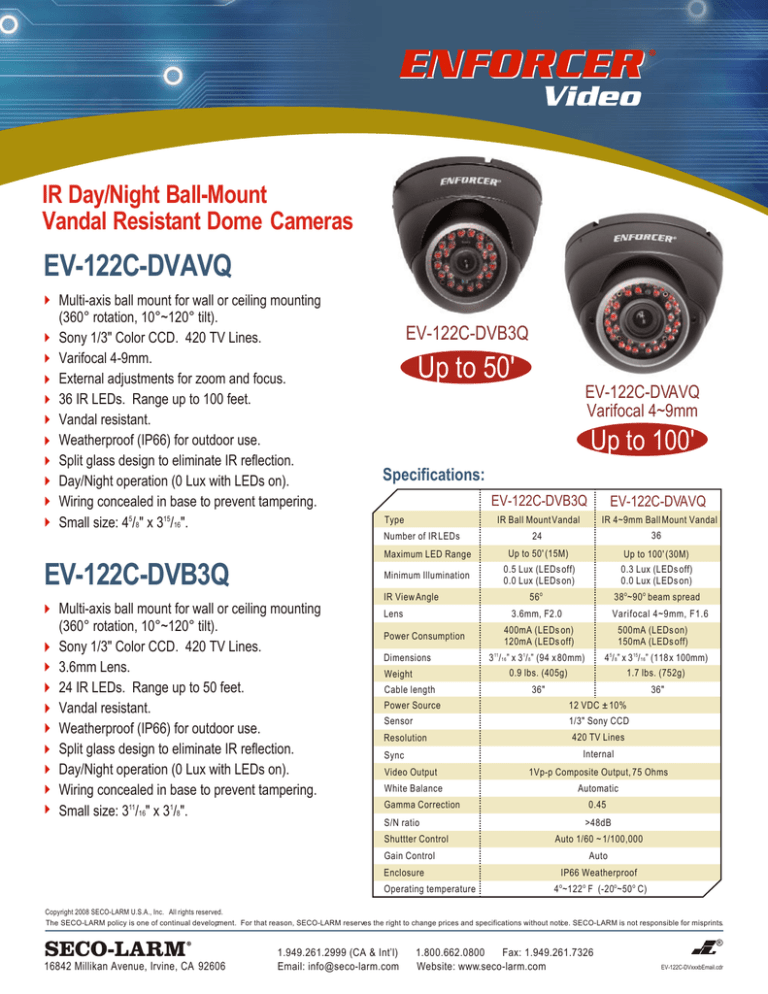

EV 122C VWA3
IR Day/Night Ball-Mount
Vandal Resistant Dome Cameras
EV-122C-DVAVQ
Multi-axis ball mount for wall or ceiling mounting
(360° rotation, 10°~120° tilt).
Sony 1/3" Color CCD. 420 TV Lines.
Varifocal 4-9mm.
External adjustments for zoom and focus.
36 IR LEDs. Range up to 100 feet.
Vandal resistant.
Weatherproof (IP66) for outdoor use.
Split glass design to eliminate IR reflection.
Day/Night operation (0 Lux with LEDs on).
Wiring concealed in base to prevent tampering.
Small size: 45/8" x 315/16".
EV-122C-DVB3Q
Up to 50'
EV-122C-DVAVQ
Varifocal 4~9mm
Up to 100'
Specifications:
Type
Number of IR LEDs
EV-122C-DVB3Q
EV-122C-DVAVQ
IR Ball Mount Vandal
IR 4~9mm Ball Mount Vandal
36
24
Maximum LED Range
Up to 50' (15M)
Up to 100' (30M)
Minimum Illumination
0.5 Lux (LEDs off)
0.0 Lux (LEDs on)
0.3 Lux (LEDs off)
0.0 Lux (LEDs on)
IR View Angle
Multi-axis ball mount for wall or ceiling mounting
(360° rotation, 10°~120° tilt).
Sony 1/3" Color CCD. 420 TV Lines.
3.6mm Lens.
24 IR LEDs. Range up to 50 feet.
Vandal resistant.
Weatherproof (IP66) for outdoor use.
Split glass design to eliminate IR reflection.
Day/Night operation (0 Lux with LEDs on).
Wiring concealed in base to prevent tampering.
Small size: 311/16" x 31/8".
EV-122C-DVB3Q
56 o
38 o~90 o beam spread
3.6mm, F2.0
Lens
Power Consumption
Dimensions
Weight
Cable length
Varifocal 4~9mm, F1.6
400mA (LEDs on)
120mA (LEDs off)
500mA (LEDs on)
150mA (LEDs off)
3 11/ 16” x 3 1/ 8” (94 x 80mm)
4 5/ 8” x 3 15/ 16” (118 x 100mm)
0.9 lbs. (405g)
1.7 lbs. (752g)
36"
36"
Power Source
12 VDC ± 10%
Sensor
1/3" Sony CCD
Resolution
420 TV Lines
Internal
Sync
Video Output
1Vp-p Composite Output, 75 Ohms
White Balance
Automatic
Gamma Correction
S/N ratio
Shuttter Control
Gain Control
Enclosure
Operating temperature
0.45
>48dB
Auto 1/60 ~ 1/100,000
Auto
IP66 Weatherproof
4 o~122 o F (-20o~50 o C)
Copyright 2008 SECO-LARM U.S.A., Inc. All rights reserved.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
®
16842 Millikan Avenue, Irvine, CA 92606
1.949.261.2999 (CA & Int’l)
Email: [email protected]
1.800.662.0800
Fax: 1.949.261.7326
Website: www.seco-larm.com
EV-122C-DVxxxbEmail.cdr
