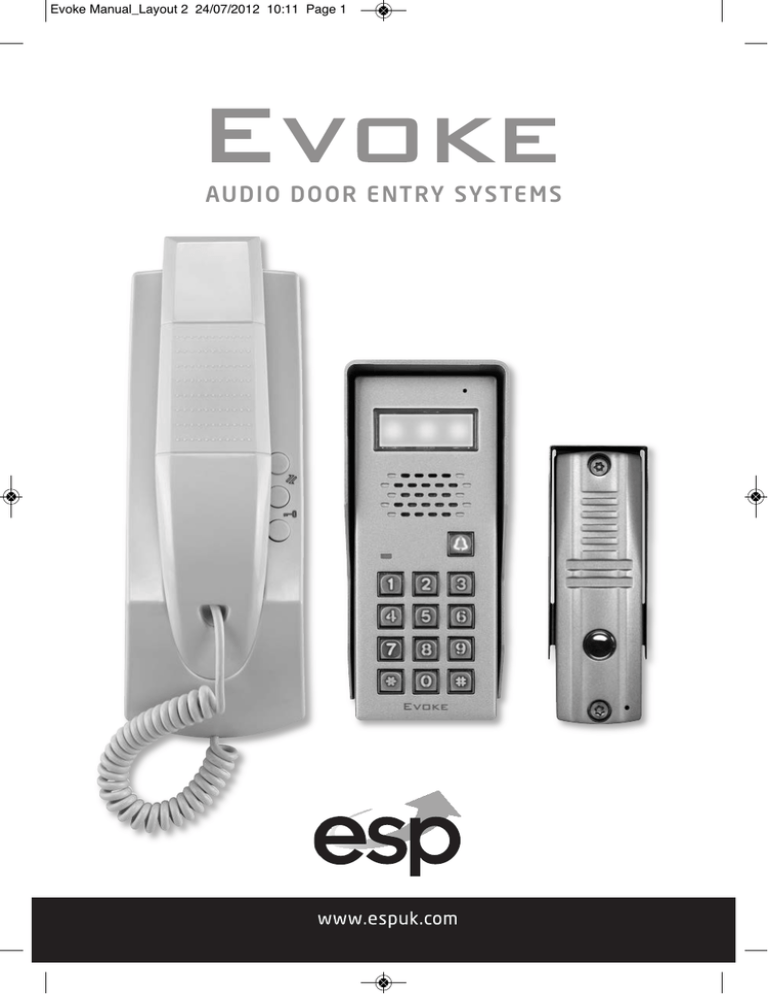

AUDIO DOOR ENTRY SYSTEMS
Evoke Manual_Layout 2 24/07/2012 10:11 Page 1
AUDIO DOOR ENTRY SYSTEMS
Evoke Manual_Layout 2 24/07/2012 10:11 Page 2
Please note this manual covers both the
Evoke and Evoke KP models.
Contents
Product Descriptions and Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Evoke Call Point and Evoke Handset Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Evoke Call Point and Evoke Handset Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Evoke KP Call Point and Evoke Handset Installation . . . . . . . . . . . . . . . . . . . . . . . . . 6
Evoke KP Call Point and Evoke Handset Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating Evoke / Evoke KP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Evoke KP Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2
Evoke Manual_Layout 2 24/07/2012 10:11 Page 3
Product Descriptions and Technical Specifications
Handset
Calling
Button
Extension
call
transferring
Unlock
Keypad
Calling
Button
Evoke KP Call Point
(Requires 12 VDC PSU - EVBPS)
Clear 2-way audio
Easy lock-release facility
2 handsets require 1 PSU
Distinctive ring tone
Call transfer facility
Operating voltage 14 VDC
(transformer supplied)
 Internal use only
 Keypad door access
 Up to 30 programmable
pin codes
 Up to 10 latching pin codes
 Voltage free change-over
contacts
 Quick grip cable termination
 Push-to-exit input
 Blue backlit keypad
 Weather shield
 Metal finish
 IP55
 High-gain microphone
 Clear 2-way audio
 4 core required to indoor
handset
Technical Specification
Technical Specification
Input range
DC12V
Input range
DC12V
Output power
<=0.6W
Output power
<=1.56W
Evoke/KP Handset






Working current <=50mA
Working current <=130mA
Dimension
Speaker output
0.5W
IP rating
55
Dimension
190 x 78 x 60mm
225 x 83 x 60mm
Evoke Call Point







Clear 2-way audio
Single call button
Weather shield
Metal finish
IP55
High-gain microphone
2 core required to indoor
handset
Technical Specification
Input range
DC12V
Output power
<=0.6W
Working current <=50mA
IP rating
55
Dimension
128 x 43 x 40mm
3
Evoke Manual_Layout 2 24/07/2012 10:11 Page 4
Evoke Call Point Installation
1. Distance of each fixing screws as shown below. Mark fixing screw positions and cable entry hole.
2. Drill fixing and cable entry holes and mount steel wall plate.
Connect incoming cable to the red/black on camera.
113 mm
3. Fit hood and door call unit and secure to wall using the enclosed security fixing screws.
Fig. 2
Evoke Handset Installation
1. Fasten the steel mounting bracket on the wall.
Then connect incoming cable to the 4 core brown plug.
2. Hang the indoor handset on the steel mounting bracket.
Fig. 1
4
Evoke Manual_Layout 2 24/07/2012 10:11 Page 5
Evoke Call Point System Wiring
Evoke Handset(s) with Call Point
Additional accessories required for door control
240V AC
EV-BPS
2 Core
4 Core
2 Core
2 Core
2 Core
2 Core
2 Core
2 Core
EV-EBG
EV-ML250
240 AC
EVBPS wiring
LOCK
Lock selector switch
N.O = Yale
N.C = Mag Lock
EV-EXIT
1
2
3
From Handset +
Push to Exit Button - EVEXIT
4
5
6
Evoke Handset to Evoke Call Point Wiring
Evoke Handset with Evoke Call Point
Handset 1
Handset 1
Red
Red
P2
Black
P2
LOCK
Lock selector switch
N.O = Yale
N.C = Mag Lock
Black
Black
White
240V AC
Red
Red
P1
Black
P1
1
White
2
3
4
Purple
Purple
5
6
5
Evoke Manual_Layout 2 24/07/2012 10:11 Page 6
Evoke KP Call Point Installation
(Requires 12 VDC PSU - EVBPS)
1. Select a suitable location to mount the outside
door station. Mark the fixing and cable entry
holes, the shroud can be used as a template for
this. Once all holes are drilled feed cable
through the wall
Water cover
Screws
2. Place the raw-plugs into the drilled holes, and
fix the water cover to the wall using the screws.
3. Connect incoming cable to the terminal strip on
the rear of the keypad.
4. Fit the keypad to the water cover and secure
using the bottom securing screw.
Screw
Fig. 4
Evoke KP Handset Installation
1. Fasten the steel mounting bracket on the wall.
Then connect incoming cable to the 4 core brown plug.
2. Hang the indoor handset on the steel mounting bracket.
Fig. 3
6
Evoke Manual_Layout 2 24/07/2012 10:11 Page 7
Evoke KP Call Point System Wiring
Evoke Handset(s) with Keypad
Additional accessories required for door control
240V AC
4 Core
2 Core
EV-BPS
2 Core
2 Core
4 Core
2 Core
2 Core
2 Core
2 Core
EV-EBG
EV-ML250
240 AC
EVBPS wiring
LOCK
EV-EXIT
Lock selector switch
N.O = Yale
N.C = Mag Lock
1
2
3
From Handset +
Push to Exit Button - EVEXIT
4
5
6
Evoke Handset to Evoke KP Wiring
Evoke Handset with Evoke Keypad
Handset
Terminals
Keypad
Terminals
Red
P2
Black
Red
Black
P1
White
Purple
1
240V AC
2
3
4
5
6
LOCK
Lock selector switch
N.O = Yale
N.C = Mag Lock
7
8
9
1
2
3
4
10
5
6
7
Evoke Manual_Layout 2 24/07/2012 10:11 Page 8
Operating Evoke / Evoke KP
Calling:
Press the call button to call the indoor monitor.
The speaker of the indoor monitor sounds and
the indicator light flashes.
Talking/listening
Pick up the handset to talk with the visitor.
Pick up the handset to listen to the outside or
talk to the outside door station
Replace the handset to end the call.
Unlocking:
Press the
button to unlock the door
Extension call transfering:
To transfer an incoming call to another handset
press
this will call all other handsets
on the system.
Evoke KP Programming
Default Programming Code: 1234
Before the keypad will work to open the
door a user pin will be needed to be
programmed in to the system.
Delete user PIN numbers
1. Enter the programming mode first.
2. Enter the allocation number you want to
delete from 01 - 40.
3. Press # to delete the PIN number stored
allocation number 01- 40.
4. After “bleep” is heard three times, this
confirms PIN number has been deleted and
returns to the programming mode.
Delete user PIN numbers directly
1. Enter to the programming mode first.
2. Press #. After “bleep” is heard twice, then
enter the 4-digit PIN number for deletion.
3. After “bleep” is heard three times, this
confirms PIN number has been deleted and
returns to the programming mode.
Delete all settings
1. Enter the programming mode first.
2. Press #. After “bleep” is heard twice, press #
again. Another “bleep” is heard twice.
3. Then, press # for a further seven times, the
system deletes all the setting. The unlocked
time changes to 1 second, and the
programming PIN number does not change.
After hearing “bleep” for five times, the
system is now reset, and all the user PIN
numbers are deleted.
Enter the programming mode
1. Press “bleep” should be heard twice, then
enter the 4-digit programming PIN number,
“bleep” should be heard three times with LED
light flashing. This indicates that entry to the
programming mode has been successful.
2. Press to exit the programming mode the
“bleep” will sound five times.
*
*
Add user PIN numbers
1. Enter the programming mode first.
2. Enter 01 - 40 (location 31 - 40 are for latching
PIN numbers only).
3. Enter the new 4 digit PIN number, if
successful the “bleep” will sound three times.
If when entering the new 4 digit PIN number a
long “bleep” is heard twice, this indicates that
this number is already in use on the system.
The keypad will now return to the
programming mode.
Telephone: 01527 515150
Set unlocked time
Factory default setting is 5 seconds.
1. Enter the programming mode first.
2. Enter code 00, and the “bleep” should be heard
twice.
3. Enter the unlocked time: 2 digits (01 - 99
seconds); 00 is not valid in this mode.
4. After “bleep” is heard for three times, it will
return to the programming mode.
5. Press to exit the programming mode.
*
Set programming code
1. Switch off the power, press and hold,
switch on the power. After hearing a long
“bleep”, release .
2. After the long “bleep” stops, another “bleep” is
heard, now you can enter the new 4-digit
programming PIN number.
3. After entering the new PIN number, a “bleep”
will be heard for 5 times.
*
*
www. e s p u k . com
