Chief-LSMVU
Video wall mounts

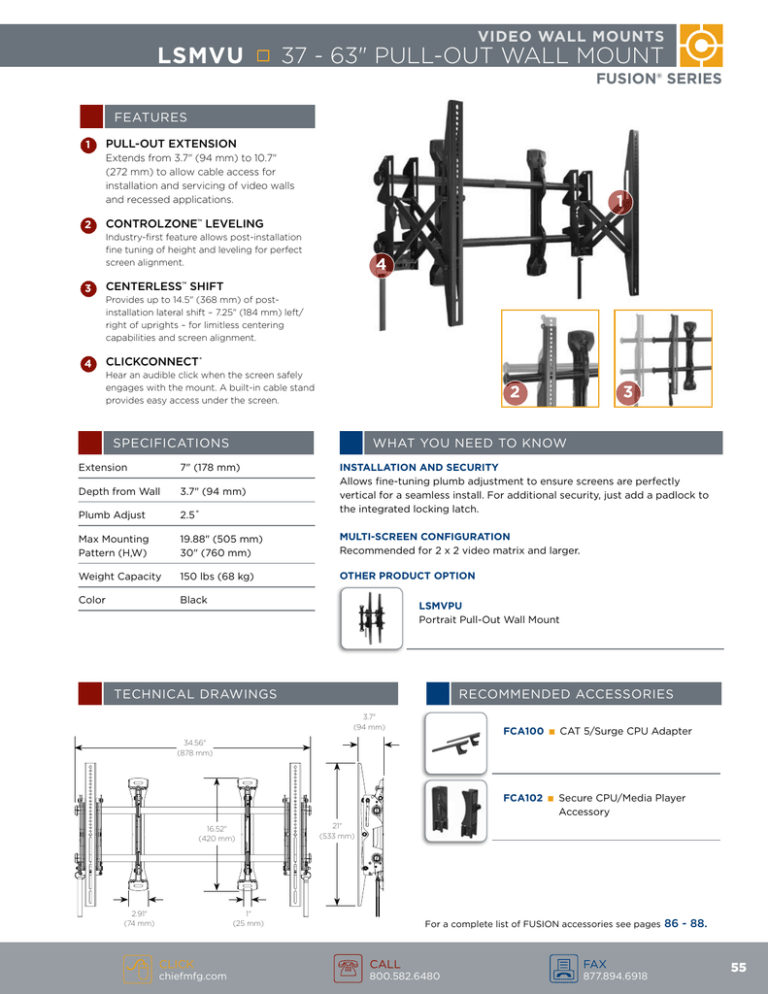

LSMVU 37 - 63" Pull-out Wall mount
FUSION® SERIES
FEATURES
1
Pull-out extension
Extends from 3.7" (94 mm) to 10.7"
(272 mm) to allow cable access for
installation and servicing of video walls
and recessed applications.
2
1
Controlzone Leveling
™
Industry-first feature allows post-installation
fine tuning of height and leveling for perfect
screen alignment.
3
Centerless™ Shift
4
ClickConnect ®
4
Provides up to 14.5" (368 mm) of postinstallation lateral shift – 7.25" (184 mm) left/
right of uprights – for limitless centering
capabilities and screen alignment.
Hear an audible click when the screen safely
engages with the mount. A built-in cable stand
provides easy access under the screen.
2
SPECIFICATIONS
3
WHAT YOU NEED TO KNOW
Installation and security
Allows fine-tuning plumb adjustment to ensure screens are perfectly
vertical for a seamless install. For additional security, just add a padlock to
the integrated locking latch.
Extension
7" (178 mm)
Depth from Wall
3.7" (94 mm)
Plumb Adjust
2.5˚
Max Mounting
Pattern (H,W)
19.88" (505 mm)
30" (760 mm)
Multi-screen configuration
Recommended for 2 x 2 video matrix and larger.
Weight Capacity
150 lbs (68 kg)
other product option
ColorBlack
LSMVPU
Portrait Pull-Out Wall Mount
TECHNICAL DRAWINGS
RECOMMENDED ACCESSORIES
3.7"
(94 mm)
FCA100 n CAT 5/Surge CPU Adapter
34.56"
(878 mm)
FCA102 n Secure CPU/Media Player
Accessory
16.52"
(420 mm)
2.91"
(74 mm)
21"
(533 mm)
1"
(25 mm)
Click
chiefmfg.com
For a complete list of FUSION accessories see pages
CALL
800.582.6480
FAX
877.894.6918
86 - 88.
