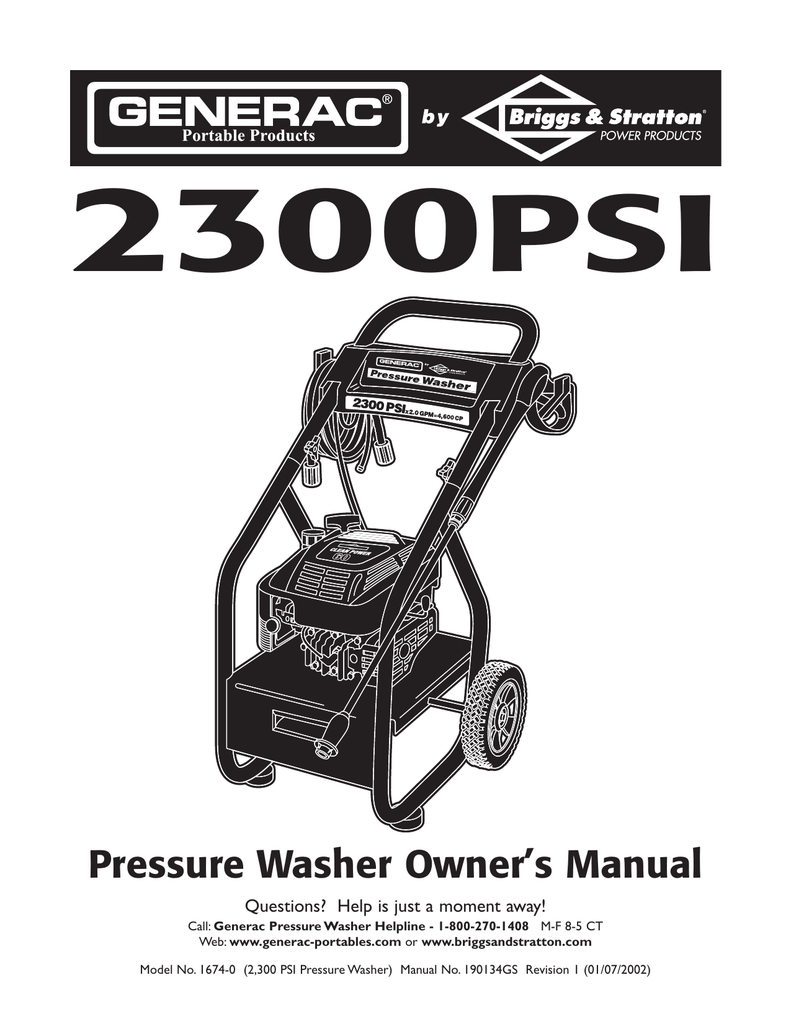

2300 PSI
Pressure Washer Owner’s Manual
Questions? Help is just a moment away!
Call: Generac Pressure Washer Helpline - 1-800-270-1408 M-F 8-5 CT
Web: www.generac-portables.com or www.briggsandstratton.com
Model No. 1674-0 (2,300 PSI Pressure Washer) Manual No. 190134GS Revision 1 (01/07/2002)
Generac 2,300 PSI Pressure Washer
TABLE OF CONTENTS
Safety Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Know Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . 4
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Last Page
EQUIPMENT
DESCRIPTION
Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations and any hazards involved.
Every effort has been made to ensure that information in this manual is accurate and current. However, Generac reserves the right to change, alter or otherwise improve the product and this document at any time without prior notice.
WARNING
The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
In the State of California a spark arrester is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply on federal lands. If you equip the muffler with a spark arrester, it must be maintained in effective working order.
WARNING
Gasoline and its vapors are extremely flammable and explosive.
Fire or explosion can cause severe burns or death.
WHEN ADDING FUEL
• Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap.
• Fill fuel tank outdoors.
• Do not overfill tank. Allow space for fuel expansion.
• Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Do not light a cigarette or smoke.
WHEN OPERATING EQUIPMENT
• Do not tip engine or equipment at angle which causes gasoline to spill.
• Do not spray flammable liquids.
WHEN TRANSPORTING OR REPAIRING EQUIPMENT
• Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF.
WHEN STORING GASOLINE OR EQUIPMENT WITH
FUEL IN TANK
• Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite gasoline vapors.
SAFETY RULES
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION,WARNING), a pictorial and/or a safety message to alert you to hazards. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury. CAUTION, when used
without the alert symbol, indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death.
WARNING
Spray contact with electrical wiring can result in electrocution.
• Keep water spray away from electric wiring or fatal electric shock may result.
WARNING
The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.
• Never aim the spray gun at people, animals or plants.
• Do not allow CHILDREN to operate the pressure washer.
• Never repair high pressure hose. Replace it.
2
Generac 2,300 PSI Pressure Washer
WARNING
The high pressure spray could also cause you to fall if you are too close to the cleaning surface.
Pressure in a running washer builds as you climb.When you press the trigger, the recoil from the initial spray could cause you to fall.
Use of pressure washer can create puddles and slippery surfaces.
• Keep spray nozzle between 8 to 24 inches away from cleaning surface.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location.
• The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.
• Operate this unit on a stable surface.
WARNING
Starter and other rotating parts can entangle hands, hair, clothing, or accessories.
• Do not wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
WARNING
High pressure spray can cause paint chips or other particles to become airborne.
• Always wear eye protection when you use this equipment or when you are in the vicinity where the equipment is in use.
DANGER
Running engine gives off carbon monoxide, an ordorless, colorless, poison gas.
Some chemicals or detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning.
Breathing carbon monoxide will cause nausea, fainting or death.
• Operate pressure washer ONLY outdoors.
• Use a respirator or mask whenever there is a chance that vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors.
WARNING
Unintentional sparking can result in fire or electric shock.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
HIGH PRESSURE WASHER
• Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
CAUTION
Excessively high or low operating speeds increase risk of injury and damage to pressure washer.
• Do not tamper with governed speed.
• Do not operate the pressure washer above the rated pressure.
WARNING
Running engines produce heat.Temperature of muffler and nearby areas can reach or exceed
150°F (65°C).
Severe burns can occur on contact.
• Do not touch hot surfaces.
• Allow equipment to cool before touching.
CAUTION
High pressure spray may damage fragile items including glass.
• Do not point spray gun at glass when in the jet spray mode.
• Never aim the spray gun at plants.
3
Generac 2,300 PSI Pressure Washer
KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.
Accessory Tray
High Pressure Hose
Spray Gun
Recoil Starter
Throttle Control Lever
Air Filter
Chemical Injection
Siphon/Filter
Oil Fill/Dipstick
Water Inlet
Choke Lever
Adjustable Nozzle
High Pressure Outlet
Pump equipped with Automatic
Cool Down System
Accessory Tray — Provides convienant storage for standard and optional accessories, such as brushes, turbo wands, ect.
Adjustable Nozzle — Always attached to nozzle extension. Adjustable nozzle allows you to adjust spray pressure and spray pattern.
Air Filter — Dry type filter element limits the amount of dirt and dust that gets in the engine.
Automatic Cool Down System — Cycles water through pump when water reaches 140°-145°F.Warm
water will discharge from pump onto ground.This system prevents internal pump damage.
Chemical Injection Siphon/Filter — Use to siphon detergent or other pressure washer chemicals into the low pressure stream.
Choke Lever — Prepares a cold engine for starting.
High Pressure Hose — Connect one end to water pump and the other end to spray gun.
High Pressure Outlet — Connection for high pressure hose.
Oil Fill/Dipstick — Check and fill with oil here.
Pump — Develops high pressure.
Recoil Starter — Used for starting the engine manually.
Spray Gun — Controls the application of water onto cleaning surface with trigger device. Includes safety latch.
Throttle Control Lever — Sets engine in starting mode for recoil starter and stops a running engine.
Water Inlet — Connection for garden hose.
4
Generac 2,300 PSI Pressure Washer
IMPORTANT: Read entire owner’s manual before you attempt to assemble or operate your new pressure washer.
REMOVE PRESSURE
WASHER FROM
CARTON
• Remove the parts bag, accessories, and insert included with pressure washer.
• Slice two corners at the end of carton from top to bottom so the panel can be folded down flat, then remove all packing material.
• Roll pressure washer out of carton.
Carton Contents
Items in the carton include:
• Main Unit
• Goggles
• Handle
• Plastic Accessory Tray
• High Pressure Hose
• Spray Gun
• Nozzle Extension
• Oil Bottle
• Parts Bag (which includes the following):
• Nozzle Cleaning Kit
• Owner’s Manual
• Engine Manual
• Owner’s Registration Card
• O-Ring Maintenance Kit
• Handle Fastening Hardware Kit (which includes):
• Carriage Bolts (2)
• Plastic Knobs (2)
• “J” Hook
• Chemical Hose Clip
• Self Tapping Screws (5)
If any of the above parts are missing or damaged, call the pressure washer helpline at 1–800–270–1408.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your pressure washer or if parts are missing or damaged, call the pressure washer helpline at 1-800-270-1408.
To prepare your pressure washer for operation, you will need to perform these tasks:
• Fill out and send in registration card.
• Attach accessory tray to handle, then attach handle to main unit.
• Add oil to engine crankcase.
• Add fuel to fuel tank.
• Connect high pressure hose to spray gun and pump.
• Connect water supply to pump.
Attach Handle and Accessory Tray
NOTE: All assembly operations given in this section will be described from the perspective of assembling the pressure washer from the rear.
• Slide the plastic accessory tray onto the handle and align the holes in the accessory tray with the holes on the handle (Figure 1).
Figure 1 — Attach Accessory Tray
• Secure tray to handle with self tapping screws using a
#2 phillips screwdriver. Ensure screws are tight but not crushing the plastic accessory tray.
5
Generac 2,300 PSI Pressure Washer
• Place the handle onto the handle supports already connected to the main unit. Make sure the holes in the handle align with the holes on the handle supports
(Figure 2).
Figure 2 — Attach Handle to Base
Handle
Figure 5 — Slide Chemical Hose into Metal Clip
Align Holes
Handle
Supports
NOTE: It may be necessary to move the handle supports from side to side in order to align the handle so it will slide over the handle supports.
• Insert the carriage bolt through the holes from the outside of the unit and attach a plastic knob from the inside of the unit.Tighten by hand (Figure 3).
Figure 3 — Secure Handle
• Tilt the unit up by the handle and attach the metal clip to the rib on the left underside of the accessory tray
(Figure 6). Slide the chemical hose through the metal clip so that it is tight but not kinked.
Figure 6 — Slide Metal Clip onto Accessory Tray
• Insert the “J” hook into the second from the left slot in the accessory tray (Figure 4).
Figure 4 — Place “J” Hook on Accessory Tray
• Pinch the chemical hose that comes out of a hole in the unit’s base and slide it into the metal clip, as shown in
Figure 5.
Add Engine Oil
IMPORTANT: Any attempt to crank or start the engine before it has been properly serviced with the recommended oil may result in an engine failure.
• Place pressure washer on a level surface.
• Refer to the engine owners manual to add recommended oil to engine.
NOTE: Check oil often during engine break–in. Refer to engine owner’s manual for recommendations.
Add Gasoline
WARNING!
Never fill fuel tank indoors. Never fill fuel tank when engine is running or hot. Do Not smoke when filling fuel tank.
WARNING!
Never fill fuel tank completely full.
Provide space for fuel expansion.Wipe away any fuel spillage from engine and equipment before starting.
6
Generac 2,300 PSI High Pressure Washer
• Use fresh, clean unleaded automotive gasoline and store in approved, clean, covered containers. Use clean fill funnels.
Never use “stale” gasoline left over from last season or gasoline stored for long periods.
• Clean area around fuel fill cap, remove cap.
• Slowly add “UNLEADED” regular gasoline to fuel tank.
Use a funnel to prevent spillage. Slowly fill tank to about
1/2” below the bottom of the filler neck (Figure 7).
Figure 7 — Add Gasoline to Fuel Tank
1/2” Air
Space
Tank
Fuel
• Before you connect your garden hose to the water inlet, inspect the inlet screen (Figure 10). Clean the screen if it contains debris, replace it if it is damaged. DO NOT RUN
THE PRESSURE WASHER IF THE SCREEN IS DAMAGED.
Figure 10 — Connect Garden Hose to Water Inlet
Inspect inlet screen. Do Not use if damaged; clean if dirty.
• Install fuel cap and wipe up any spilled gasoline.
Connect Hose and Water Supply to
Pump
IMPORTANT: You must attach all hoses before you start the engine. Starting engine without all hoses connected and water supplied will damage the pump.
• Attach one end of the high pressure hose to the high pressure outlet on the pump (Figure 8).Tighten by hand.
Figure 8 — Connect High Pressure Hose to Water Outlet
• Attach the other end of the hose to the base of the spray gun (Figure 9).Tighten by hand.
Figure 9 — Connect High Pressure Hose to Spray Gun
Connect High
Pressure Hose
Here
• Run water through the garden hose for 30 seconds to clean out any debris.Turn off water.
IMPORTANT: Do Not siphon standing water for the water supply. Use ONLY cold water (less than 100°F).
• Connect the garden hose to the water inlet.Tighten by hand (Figure 10).
CAUTION!
There MUST be at least ten feet of unrestricted garden hose between the pressure washer inlet and any flow shut off device, such as a ‘Y’ shut-off connector or other convenience-type water shut-off valve.
Damage to pressure washer resulting from disregarding this caution will not be covered by the warranty.
• Turn ON the water and squeeze the trigger on the spray gun to purge the pump system of air and impurities.
CAUTION!
Before starting the pressure washer, be sure you are wearing adequate eye protection.
Checklist Before Starting Engine
Review the unit’s assembly to confirm you have performed all of the following:
• Make sure the handle is in place and secure.
• Check that oil has been added to the proper level in the engine crankcase.
• Add the proper gasoline to fuel tank.
• Check for properly tightened hose connections.
• Check to make sure that there are no kinks, cuts, or damage to the high pressure hose.
• Provide a proper water supply at an adequate flow.
• Be sure to read “Safety Rules” and “How To Use Your
Pressure Washer” before using the pressure washer.
7
Generac 2,300 PSI Pressure Washer
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure washer, please call the pressure washer helpline at
1-800-270-1408.
To Start Your Pressure Washer
To start your pressure washer for the first time, follow these instructions step-by-step.This starting information also applies if you have let the pressure washer sit idle for at least a day.
• Place the pressure washer in an area close enough to an outside water source capable of supplying water at a flow rate greater than 2.2 gallons per minute.
• Check that the high pressure hose is tightly connected to the spray gun and to the pump. See “Preparing Pressure
Washer For Use” for illustrations.
• Make sure unit is in a level position.
• Connect the garden hose to the water inlet on the pressure washer pump. Turn ON the water.
CAUTION!
Do Not run the pump without the water supply connected and turned on.You must follow this caution or the pump will be damaged.
• Squeeze trigger on gun until you have a steady stream of water.This purges the pump of air and impurities.
• Attach nozzle extension to spray gun (Figure 11).Tighten
by hand.
Figure 11 — Connect Nozzle Extension to Spray Gun
Figure 12 — Spray Gun with Safety Latch Engaged
Safety Latch
• Move the throttle lever to “Fast” position, shown here as a rabbit (Figure 13).
Figure 13 — Throttle and Choke Controls
Throttle Lever
Choke Lever
• Move the choke lever to the “Choke” position
(Figure 13).
NOTE: For a warm engine, be sure the choke lever is in the “Run” position.
• Place your left foot on the lower frame and grasp the handle as shown (Figure 14).Your unit may appear slightly different from that shown here.
Figure 14 — Recommended Engine Starting Posture
• Position the nozzle in the low pressure mode (slide nozzle forward) and squeeze the trigger on the spray gun to relieve pressure caused by turning ON the water.
Water will flow out of the gun in a thin stream. Continue to hold trigger until there is a steady stream of water and no air remains in the system. Release the trigger.
• Engage the safety latch to the spray gun trigger
(Figure 12).
• Pull the starter grip handle lightly with your right hand until you feel some resistance, then pull briskly.
8
Generac 2,300 PSI Pressure Washer
• Return the starter grip handle slowly. Do Not let rope
“snap back” against starter.
• When engine starts, slowly move choke lever to the
“Run” position. If engine falters, move choke lever to the
“Choke” position, then to the “Run” position.
• If engine fails to start after six pulls, move choke lever to the “Run” position. If engine fires, but does not continue to run, move choke lever to the “Choke” position, then to the “Run” position.
NOTE: If the recoil starter is hard to pull, it may be necessary to squeeze the gun trigger to relieve internal pump pressure.
How to Stop Your Pressure Washer
• Move throttle lever on engine to “Stop” position.
• Squeeze trigger on the spray gun to relieve pressure in the hose.
NOTE: A small amount of water will squirt out when you release the pressure.
How to Use Accessory Tray
The unit is equipped with an accessory tray with places to store your nozzle extension, and slots to hold the cleaning solution bottle and the detergent siphoning filter.There are also two hooks at the ends of the accessory tray to hold your spray gun and high pressure hose.
NOTE: The extra holes in the tray are for storing a brush and a turbo wand.The brush and turbo wand are NOT included with your pressure washer.You can buy these items as optional accessories.
• Place the nozzle extension through the hole on the accessory tray, as shown in Figure 15.
Figure 15 — Accessory Tray
• Hang your chemical solution bottle on the “J” hook and place the detergent siphoning filter in the last slot on the left (Figure 15).
• Hang the high pressure hose on the hook on the right side of the accessory tray (Figure 15).
• Place the spray gun on the hook on the left side of the accessory tray as shown on page 4.
How to Use the Adjustable Nozzle
You now should know how to START your pressure washer and how to STOP it.The information in this section will tell you how to adjust the spray pattern and apply detergent or other cleaning chemicals.
CAUTION!
Never adjust spray pattern when spraying. Never put hands in front of nozzle to adjust spray pattern.
The adjustable nozzle affixed to the nozzle extension permits you to adjust the spray pattern and the spray pressure, as follows:
9
Generac 2,300 PSI Pressure Washer
• Slide the nozzle forward to adjust the spray to low pressure mode (Figure 16). Slide the nozzle backward to achieve high pressure.
Figure 16 - Adjusting Spray Pressure
Slide nozzle backward for high pressure mode.
Slide nozzle forward for low pressure mode and detergent application.
• Point the nozzle down towards a firm surface and press the trigger to test the pattern (Figure 17).
Figure 17 — Test the Spray Pattern
• For most effective cleaning, keep the spray nozzle between 8 to 24 inches away from cleaning surface.
• If you get the spray nozzle too close, especially using high pressure mode, you may damage the surface being cleaned.
• Do Not get closer than 8 inches when cleaning tires.
Applying Detergent with the
Adjustable Nozzle
CAUTION!
You must attach all hoses before you start the engine. Starting the engine without all the hoses connected and without the water turned ON will damage the pump.
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could damage the pump.
To apply detergent, follow these steps:
• Review the use of adjustable nozzles.
• Prepare detergent solution as required by the manufacturer.
• Hang the detergent solution on the “J” hook attached to the accessory tray, as shown in Figure 19.
Figure 19 — Insert Filter into Container
• Twisting the nozzle adjusts the spray pattern from a narrow pattern to a fan pattern (Figure 18).
Figure 18 - Adjusting Spray Pattern
Twist nozzle counterclockwise for fan spray pattern.
Twist nozzle clockwise for narrow spray pattern.
• Place the small filter end of the detergent siphoning tube into the detergent container.
CAUTION!
Keep the detergent siphoning tube from coming in contact with the hot muffler.
• Slide the adjustable nozzle forward to low pressure mode. Detergent cannot be applied with the nozzle in high pressure position.
10
Generac 2,300 PSI Pressure Washer
• Make sure the garden hose is connected to the water inlet. Check that the high pressure hose is connected to the spray gun and the pump. Start the engine.
• Apply the detergent to a dry surface, starting at lower portion of area to be washed and work upward, using long, even, overlapping strokes.
• Allow the detergent to “soak in” for 3-5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying. Do Not allow the detergent to dry on (prevents streaking).
IMPORTANT: You must flush the chemical injection system after each use by placing the filter into a bucket of clean water, then run the pressure washer in low pressure for 1-2 minutes.
Pressure Washer Rinsing
WARNING!
Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location. Pressure in a running washer builds as you climb.When you press the trigger, the recoil from the initial spray could cause you to fall.The high pressure spray could also cause you to fall if you are too close to the cleaning surface.
For Rinsing:
• Slide the nozzle backward to high pressure and press the trigger. It will take a few seconds for the detergent to clear.
NOTE: You can also stop detergent from flowing by simply removing detergent siphon tube from bottle.
• Keep the spray gun a safe distance from the area you plan to spray.
• Apply a high pressure spray to a small area, then check the surface for damage. If no damage is found, it is okay to continue rinsing.
• Start at the top of the area to be rinsed, working down with same overlapping strokes as you used for cleaning.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach a temperature between 140–145°F.When the water reaches this temperature, the automatic cool down system engages and cools the pump by discharging the warm water onto
the ground. This system prevents internal damage to the pump.
SPECIFICATIONS
Rated Pressure . . . . . 2,300 psi
Flow Rate . . . . . . . . . . 2.0 gallons per minute (gpm)
Detergent . . . . . . . . . . Use detergent approved for pressure washers
Water Supply Temp . Not to exceed 100°F
Automatic Cool . . . . Will cycle when water
Down System . . . . . . . reaches 140°-145°F
Shipping Weight . . . . 77 lbs.
11
Generac 2,300 PSI Pressure Washer
GENERAL MAINTENANCE
RECOMMENDATIONS
The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence.To receive full value from the warranty, the operator must maintain the pressure washer as instructed in this manual.
• Some adjustments will need to be made periodically to properly maintain your pressure washer. Check the spray gun and adjustable nozzle extension assembly for wear.
• All maintenance in this manual and the engine owner’s manual should be made at least once each season.
• Once a year you should clean or replace the spark plug, clean or replace the air filter.A new spark plug and clean air filter assure proper fuel-air mixture and help your engine run better and last longer. Please refer to your engine owner’s manual for more details.
BEFORE EACH USE
• Check engine oil level.
• Check water inlet screen for damage.
• Check in-line filter for damage.
• Check high pressure hose for leaks.
• Check detergent siphoning tube and filter for damage.
• Check spray gun and adjustable nozzle extension assembly for leaks.
• Rinse out garden hose to flush out debris before connecting to pressure washer.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine the screen on the water inlet. Clean it if the screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks from wear, kinking, or abuse. Inspect the hose each time before using it. Check for cuts, leaks, abrasions or bulging of cover, damage or movement of couplings. If any of these conditions exist, replace the hose immediately.
CAUTION!
Water spraying from a leak is capable of injecting material into skin. Inspect hose each time before using it. Never repair a high pressure hose. Replace it with another hose that exceeds the maximum pressure rating of your pressure washer.
Check Detergent Siphoning Tube
Examine the filter on the detergent tube and clean if clogged.The tube should fit tightly on the barbed fitting.
Examine the tube for leaks or tears. Replace the filter or tube if either is damaged.
Cleaning Detergent Siphoning Tube
If you used the detergent siphoning tube, you must flush it with clean water before stopping the engine.
• Place the chemical injection siphon/filter in a bucket full of clean water.
• Slide the adjustable nozzle extension forward to the low pressure mode.
• Flush for 1-2 minutes.
• Shut off the engine.
IMPORTANT: Simply shutting OFF engine will not release pressure in the system. When the engine has shut down, squeeze the trigger on the spray gun to relieve the pressure in the hose.
Check Gun and Adjustable Nozzle
Extension
Examine the hose connection to the spray gun and make sure it is secure.Test the trigger by pressing it and making sure it “springs back” into place when you release it. Put the safety latch in the ON position and test the trigger.You
should not be able to press the trigger.
Check In-Line Filter
Refer to Figure 20 and service the in-line filter if it becomes clogged, as follows:
Figure 20 — Clean In-Line Filter
Nozzle Extension
Filter Screen
O-ring
12
Generac 2,300 PSI Pressure Washer
1.
Detach spray gun and nozzle extension from high pressure hose. Detach nozzle extension from spray gun and remove o-ring and screen from nozzle extension.
Flush the screen, spray gun, and adjustable nozzle extension with clean water to clear debris.
2.
If the screen is damaged, the o-ring kit contains a replacement in-line filter screen and an o-ring. If undamaged, reuse screen.
3.
Place the in-line filter screen into the threaded end of the nozzle extension. Direction does not matter. Push the screen in with the eraser end of a pencil until it rests flat at the bottom of the opening.Take care to not bend the screen.
4.
Place the o-ring into the recess. Push the o-ring snugly against the in-line filter screen.
5.
Assemble the nozzle extension to the spray gun, as described earlier in this manual.
Purge Pump of Air and
Contaminants
To remove air from the pump, follow these steps:
• Set up the pressure washer as described in “Preparing
Pressure Washer For Use”. Connect the water supply and turn water on.
• Pull the trigger on the spray gun and hold.
• When the water supply is steady and constant, engage the safety latch.
To remove contaminants from the pump, follow these steps:
• Set up the pressure washer as described in “Preparing
Pressure Washer For Use”. Connect the water supply and turn water on.
• Start the engine according to instructions in “To Start
Your Pressure Washer”.
• Remove nozzle extension from spray gun.
• Squeeze the trigger on the spray gun and hold.
• When the water supply is steady and constant, engage the safety latch and attach the nozzle extension.
Nozzle Maintenance
A pulsing sensation felt while squeezing the spray gun trigger may be caused by excessive pump pressure.The
principal cause of excessive pump pressure is a nozzle clogged or restricted with foreign materials, such as dirt, etc.To correct the problem, immediately clean the nozzle using the tools included with your pressure washer and follow these instructions:
1.
Shut off the engine and turn off the water supply.
2.
Detach the nozzle extension from the spray gun.Twist
the nozzle clockwise to the stream position. Using the supplied 2mm (5/64) allen wrench, remove the nozzle from the end of the nozzle extension (Figure 21).
Figure 21 — Removing and Cleaning Nozzle
Nozzle
3.
Remove the in-line filter from the other end of the nozzle extension.
4.
Use the wire included in the kit (or a small paper clip) to free any foreign material clogging or restricting the nozzle (Figure 21).
5.
Using a garden hose, remove additional debris by back flushing water through the nozzle extension
(Figure 22). Back flush between 30 to 60 seconds.Turn
the adjustable nozzle extension to stream spray and move the nozzle from low to high while flushing.
Figure 22 — Backflushing the Nozzle
6.
Reinstall the nozzle and in-line filter into the nozzle extension. Do Not overtighten the nozzle with the allen wrench.
7.
Reconnect the nozzle extension to the spray gun.
8.
Reconnect the water supply, turn on the water, and start the engine.
13
Generac 2,300 PSI Pressure Washer
9.
Test the pressure washer by operating with nozzle in the high and in the low positions.
O–Ring Maintenance
Through the normal operation of your pressure washer, o–rings, which keep the connections of the hoses and spray gun tight and leak–free, may become worn or damaged.
Provided with your pressure washer is an O–Ring
Maintenance Kit which includes replacement o-rings, rubber washer and water inlet filter. Refer to the instruction sheet provided in the kit to service your unit’s o-rings. Note that not all of the parts in the kit will be used on your unit.
To remove a worn or damaged o–ring:
• Use a small flathead screwdriver to get underneath the o-ring and pry it off.
ENGINE MAINTENANCE
See the engine owner’s manual for instructions on how to properly maintain the engine.
CAUTION!
Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been shown to cause skin cancer in certain laboratory animals.Thoroughly wash exposed areas with soap and water.
KEEP OUT OF REACH OF CHILDREN. DON'T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
PREPARING THE UNIT
FOR STORAGE
Water should not remain in the unit for long periods of time. Sediments or minerals can deposit on pump parts and
“freeze” pump action. If you do not plan to use the pressure washer for more than 30 days, follow this procedure:
1.
Flush detergent siphoning tube by placing the filter into a pail of clean water while running pressure washer in low pressure mode (adjustable nozzle in the forward position). Flush for one to two minutes.
2.
Shut off the engine and let it cool, then remove high pressure and garden hoses. Disconnect spark plug wire from spark plug.
3.
Empty the pump of all pumped liquids by pulling the recoil handle about 6 times.This should remove most of the liquid in the pump.
4.
Use Generac brand PumpSaver to prevent corrosion build up and freezing of pump.
5.
Store unit in a clean, dry area.
Protecting the Pump
To protect the pump from damage caused by mineral deposits or freezing, use the Generac PumpSaver to treat pump.This prevents freeze damage and lubricates pistons and seals.
NOTE: Generac PumpSaver, model number 01559, is available as an optional accessory. It is not included with the pressure washer.
CAUTION!
You must protect your unit from freezing temperatures. Failure to do so will permanently damage your pump and render your unit inoperable. Freeze damage is not covered under warranty.
CAUTION!
Read and follow all cautions and warnings on the PumpSaver can label. Always wear eye protection when using PumpSaver.
To use PumpSaver, make sure the pressure washer is turned off and disconnected from supply water. Read and follow all instructions and warnings given on the PumpSaver container.
NOTE: PumpSaver will drip from pump after treatment and will stain wood and concrete.
NOTE: If PumpSaver is not available, draw RV antifreeze
(non-alcohol) into the pump by pouring the solution into a
3-foot section of garden hose connected to inlet adapter and pulling recoil handle twice.
STORING THE ENGINE
See the engine owner’s manual for instructions on how to properly prepare the engine for storage.
14
Generac 2,300 PSI Pressure Washer
TROUBLESHOOTING
Problem
Pump has following problems: failure to produce pressure, erratic pressure, chattering, loss of pressure, low water volume.
Cause
1. Nozzle in low pressure mode.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose strainer.
6. Water supply is over 100°F.
7. High pressure hose is blocked or leaks.
Detergent fails to mix with spray.
9. Nozzle is obstructed.
10. Pump is faulty.
1. Detergent siphoning tube is not submerged.
2. Chemical filter is clogged.
3. Dirty in-line filter.
4. Nozzle is in high pressure mode.
Engine speed is too slow. Engine runs good at noload but “bogs” when load is added.
Engine will not start; or starts and runs rough.
1. Dirty air cleaner.
2. Out of gasoline.
4. Spark plug wire not connected to spark plug.
5. Bad spark plug.
7. Overchoking.
8. Excessively rich fuel mixture.
9. Intake valve stuck open or closed.
10. Engine has lost compression.
Engine shuts down during operation.
Engine lacks power.
Out of gasoline.
Dirty air filter.
Choke is opened too soon.
Engine “hunts” or falters.
Correction
1. Pull nozzle backward for high pressure mode.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose strainer.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
10. Contact Generac service facility.
1. Insert detergent siphoning tube into detergent.
2. Clean or replace filter/detergent siphoning tube.
3. See “Check In-Line Filter” on page 12.
4. Push nozzle forward for low pressure mode.
Move throttle control to FAST position. If engine still “bogs down”, contact Briggs service facility.
1. Clean or replace air cleaner.
2. Fill fuel tank.
3. Drain gas tank; fill with fresh fuel.
4. Connect wire to spark plug.
5. Replace spark plug.
6. Drain gas tank; fill with fresh fuel.
7. Open choke fully and crank engine.
8. Contact Briggs service facility.
9. Contact Briggs service facility.
10. Contact Briggs service facility.
Fill fuel tank.
Replace air filter.
Move choke to halfway position until engine runs smoothly.
15
Generac 2,300 PSI Pressure Washer
EXPLODED VIEW — UNIT
16
Generac 2,300 PSI Pressure Washer
PARTS LIST — UNIT
Item Part #
1 NSP
2 187878GS
3 187915GS
4 187916GS
5 23139GS
6 190143GS
Qty. Description
1 ENGINE
1 HANDLE, Lift
1 DECAL,Warning/Decal
1 DECAL, Start Instructions
1 KEY
1 DECALS/BILLBOARD
7 B2516GS
8 187952GS
9 30809GS
10 49808GS
1 CAP,Vinyl, Black
1 DECAL, Cool Down
1 GROMMET, Chem Hose
2 WASHER, M12 Flat
11 B2142GS
12 190146GS
2 TIRE, 2" X 9" Black Mag
2 PUSHNUT, 1/2"
13 A187619GS 1 BASE,VSPW
14 A187602GS 1 HANDLE, PW
15 187918GS
16 27007GS
17 71693GS
18 188194GS
1 DECAL, Quick Reference
2 MOUNT, Rubber Foot
2 WASHER, Flat
2 RIVET, Blind
19 190132GS
20 87815GS
1 GUN, High Pressure
1 GOGGLES, Safety
21 BB3061BGS 1 OIL, 20oz
22 187623GS 1 KIT, Handle Hardware
23 190134GS
24 B3356GS
25 188287GS
26 B4224GS
1 MANUAL, Owners
1 MANUAL, B & S Engine
1 KIT, Nozzle Cleaning
1 SCREEN, Inlet
27 97837GS
28 B5830GS
1 O-RING, Hi - Pressure
1 KIT, O-Ring Maintenance
29 B3335GGS 1 WAND, Adjustable Nozzle
30 97566GS 1 HANG TAG, Nozzle
31 190605GS
32 B5642GS
33 21783GS
34 48750GS
35 A2013GS
36 189970GS
37 52858GS
1 NOZZLE, .95 Replcmnt
1 HOSE, 1/4" X 25'
1 VALVE,Thermal Relief
2 SHCS, M8 x 50mm
1 SHCS, M8 x 70mm
1 PUMP, Assembly (see pages 18-19)
3 NUT, M8 - 1.25 Lock
17
Generac 2,300 PSI Pressure Washer
EXPLODED VIEW — PUMP
18
Generac 2,300 PSI Pressure Washer
Item Part #
1 190623GS
2 190624GS
3 190569GS
9 190625GS
16 190572GS
19 190571GS
23 190626GS
28 190627GS
29 190575GS
30 190576GS
34 190577GS
45 190578GS
46 190629GS
47 190769GS
62 190581GS
68 190582GS
69 190584GS
76 21783GS
77 190586GS
A 190709GS
7 . . . . . .
11 . . . . . .
12 . . . . . .
13 . . . . . .
14 . . . . . .
15 . . . . . .
16 . . . . . .
70 . . . . . .
77 . . . . . .
78 . . . . . .
79 . . . . . .
B 190632GS
4 . . . . . .
8 . . . . . .
20 . . . . . .
21 . . . . . .
22 . . . . . .
C 190634GS
5 . . . . . .
6 . . . . . .
D 190710GS
16 . . . . . .
70 . . . . . .
71 . . . . . .
72 . . . . . .
73 . . . . . .
77 . . . . . .
E 190591GS
24 . . . . . .
25 . . . . . .
26 . . . . . .
PARTS LIST — PUMP
Qty. Description
1 SEAL, 35 x 50 x 7
1 SNAP RING, 35 x 1.5
1 RETAINING RING
1 ENGINE ADAPTER &
BEARING
1 O-RING, 80.60 x 2.62
1 CAP, Oil
1 CARTER
1 MANIFOLD
1 O-RING, 4 X 2
1 SCREW
1 CONNECTION, Chemical Inlet
1 PIN
1 VALVE, Seat Plate, Plastic
1 VALVE, Seat, Stainless
1 CAP, 1/8
1 BALL, 7mm Stainless Steal
1 O-RING, 9.25 x 1.78
1 THERMO RELIEF
1 OIL BOTTLE
0 KIT,WOBBLE PLATE
BEARING
1 SPACER, Plastic
1 FLAT BEARING DISC, 40 x 60-1
1 ROLLER BEARING, 40 x 60
1 WOBBLE PLATE, 7/8 x 8.0
1 CAP
1 FLAT BEARING DISC, 60 x 30
1 O-RING, 80.60 x 2.62
3 SCREW, M6 x 30
1 OIL BOTTLE
2 FLAT BEARING DISC, 45 x 65 x 1
1 ROLLER BEARING, 45 x 65
0 KIT,WATER INLET, ALUM
1 O-RING, 14 x 2
1 WASHER, 18 x 22 x 1.5
1 GARDEN HOSE w/ FINGER GRIP
1 EXTENSION, INLET
1 WASHER w/ FILTER 24 x 15 x 3.5
0 KIT, OUTLET, ALUM
1 OUTLET EXTENTION, M22-G3/8
1 O-RING, 13 x 2
0 KIT, PISTON
1 O-RING, 80.60 x 2.62
3 SCREW, M6 x 30
3 SPRING
3 PISTON, 14 Stainless Steel
3 SPRING PLATE
1 OIL BOTTLE
0 KIT, CHECK VALVES
3 O-RING, 12 x 2
3 O-RING, 12.42 x 1.78
6 ASSY.,Valve Group
Item Part #
27 . . . . . .
44 . . . . . .
74 . . . . . .
F 190592GS
37 . . . . . .
38 . . . . . .
39 . . . . . .
40 . . . . . .
41 . . . . . .
42 . . . . . .
43 . . . . . .
G 190593GS
31 . . . . . .
32 . . . . . .
33 . . . . . .
34 . . . . . .
35 . . . . . .
36 . . . . . .
H 190594GS
48 . . . . . .
49 . . . . . .
50 . . . . . .
51 . . . . . .
52 . . . . . .
53 . . . . . .
54 . . . . . .
55 . . . . . .
56 . . . . . .
57 . . . . . .
58 . . . . . .
59 . . . . . .
60 . . . . . .
61 . . . . . .
J 189971GS
78 . . . . . .
79 . . . . . .
80 . . . . . .
81 . . . . . .
K 190711GS
18 . . . . . .
61 . . . . . .
63 . . . . . .
64 . . . . . .
65 . . . . . .
66 . . . . . .
67 . . . . . .
74 . . . . . .
L 190596GS
74 . . . . . .
75 . . . . . .
NOTE: Item letters A - L are service kits and include all
Qty. Description
4 O-RING, 15 x 2
4 SCREW, M5 x 30
5 SCREW, M6 x 35
0 KIT, INLET CHECK
1 VALVE, Non-Return
1 SPRING, 9.2 x 10 x 0.8
1 INJECTION NOZZLE, M6 Flat
1 O-RING, 8 x 2
1 O-RING, 9.25 x 1.78
1 INJECTION NIPPLE
1 O-RING, 5 x 2
0 KIT, CHEMICAL INJECTION
1 SPRING, 3.5
1 BALL, 3/16"
1 O-RING, 3.69 x 1.78
1 CONNECTION, Chemical Inlet
1 O-RING, 7.66 x 1.78
1 SCREW, Fitting
0 KIT, UNLOADER STEM
1 BACK RING, 9 x 12 x 1.5
1 O-RING, 14 x 1.78
1 VALVE, By Pass, Brass
1 PISTON
1 SPRING, Easy Start
1 PISTON, Body
1 RING, Back, 6 x 9
1 SPACER
1 SPRING, Regulation Press
1 NUT, Regulation Press
1 NUT
1 O-RING, 12.42 x 1.78
1 O-RING, 6.07 x 1.78
1 O-RING, 8.73 x 1.78
0 KIT, CHEMICAL HOSE
1 O-RING, 6.75 x 1.78
1 TUBE, Inlet Support
1 TUBE, Chemical
1 FILTER
0 KIT, SEAL SET
3 O-RING, 11.11 x 1.78
1 O-RING, 8.73 x 1.78
3 SEAL, 14 x 22 x 5
3 BRASS BOUCHING
3 O-RING, 23.52 x 1.78
3 SEAL, 14 x 22 x 1.5
3 SEAL, H.P.
5 SCREW, M6 x 35
0 KIT, HEAD BRASS
5 SCREW, M6 x 35
1 HEAD, Pump parts shown within the box.
19
Lavadora de Presión 2,300 PSI de Generac
TABLA DE CONTENIDOS
Reglas De Seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Conozca Su Maquina Lavadora De Presion . . . . . . . . . . . . . . . . 22
Ensamblaje . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-25
Funcionamiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-29
Especificaciones Del Producto . . . . . . . . . . . . . . . . . . . . . . . . . 29
Mantenimiento. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-32
Almacenamiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Notas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Diagnosticos De Averías . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Piezas De Recambio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19
Garantia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
DESCRIPCIÓN DEL EQUIPO
Lea este manual de manera cuidadosa y familiarícese con su generador. Conozca sus usos, sus limitaciones y cualquier peligro relacionado con el mismo.
Se ha hecho cada esfuerzo posible para asegurarse que la información que aparece en este manual es exacta y se encuentra actualizada. Sin embargo, Generac se reserva el derecho a cambiar, alterar o de otra manera mejorar, el producto y este documento en cualquier momento, sin previo aviso.
ADVERTENCIA
El escape del motor de este producto contiene elementos químicos reconocidos en el Estado de
California por producir cáncer, defectos de nacimiento u otros daños de tipo reproductivo.
En el estado de California es obligatorio, según la ley, el uso de apagachispas (Sección 4442 del Código de Recursos Públicos de
California). Otros estados pueden tener leyes similares. Las leyes federales se aplican en tierras federales. Si equipa el silenciador con un apagachispas, este deberá ser mantenido en buenas condiciones de trabajo.
INSTRUCCIONES DE SEGURIDAD
El símbolo de alerta de seguridad ( ) es usado con una palabra
(PELIGRO, ADVERTENCIA, PRECAUCIÓN), un mensaje por escrito o una ilustración, para alertarlo acerca de cualquier situación de peligro que pueda existir. PELIGRO indica un riesgo el cual, si no se evita, causará la muerte o una herida grave.
ADVERTENCIA indica un riesgo el cual, si no se evita, puede causar la muerte o una herida grave. PRECAUCIÓN indica un riesgo, el cual, si no se evita, puede causar heridas menores o moderadas. PRECAUCIÓN, cuando se usa sin el símbolo de alerta, indica una situación que podría resultar en el daño del equipo. Siga los mensajes de seguridad para evitar o reducir los riesgos de heridas e inclusive la muerte.
ADVERTENCIA
La gasolina y sus vapores son extremadamente inflamables y explosivos.
El fuego o una explosión pueden causar quemaduras severas e inclusive la muerte.
CUANDO AÑADA COMBUSTIBLE
• Apague el generador (posición OFF) y déjelo enfriar al menos por
2 minutos antes de remover la tapa de la gasolina.
• Llene el tanque al aire libre.
• No llene demasiado el tanque. Permita al menos espacio para la expansión del combustible.
• Mantenga la gasolina alejada de chispas, llamas abiertas, pilotos, calor y otras fuentes de ignición.
• No encienda un cigarrillo o fume.
CUANDO OPERE EL EQUIPO
• No incline el motor o el equipo, de tal manera que la gasolina se pueda derramar.
• No rocíe líquidos inflamables.
CUANDO TRANSPORTE O REPARE EL EQUIPO
• Transporte o repare el equipo con el tanque de combustible vacío, o con la válvula para apagar el combustible, apagada (posición OFF).
CUANDO ALMACENE O GUARDE EL EQUIPO CON
COMBUSTIBLE EN EL TANQUE
• Almacene alejado de calderas, estufas, calentadores de agua, secadoras de ropa u otros aparatos electrodomésticos que posean pilotos u otras fuentes de ignición, porque ellos pueden encender los vapores de la gasolina.
ADVERTENCIA
El contacto del rocío con alambrado eléctrico puede tener como resultado electrocution.
• Mantenga el chorro del agua alejado de alambrados eléctricos, de lo contrario podrían ocurrir descargas eléctricas fatales.
ADVERTENCIA
La corriente de agua de alta presión que produce este equipo pueden perforar la piel y sus tejidos profundos, ocasionando lesiones serias y posible amputación.
• Nunca apunte la pistola a la gente, animales o plantas.
• No permita en ningún momento que NIÑOS operen la máquina lavadora a presión.
• Nunca repare la manguera de alta presión. Remplacela.
20
Lavadora de Presión 2,300 PSI de Generac
ADVERTENCIA
El rociado de la alta presión podría hacerlo caer si está muy cerca de la superficie de limpieza.
La presión de una máquina lavadora en funcionamiento se acumula a medida que usted sube. Cuando oprima el gatillo, la fuerza de reacción del rociado inicial podría hacerlo caer.
El uso de lavadora de presión puede crear los charcos y superficies resbalosas.
• Mantenga la boquilla de rociado de 8 a 24 pulgadas de la superficie de limpieza.
• Sea extremadamente cuidadoso si usa la máquina lavadora a presión desde una escalera, andamio o cualquier superficie relativamente inestable.
• El área de limpieza deberá tener inclinaciones y drenajes adecuados para disminuir la posibilidad de caídas debido a superficies resbalosas.
• Opere y almacene esta unidad sobre una superficie estable.
ADVERTENCIA
El arrancador y otras piezas que rotan pueden enredar las manos, el pelo, la ropa, o los accesorios.
• No use ropa suelta, joyas o elementos que puedan quedar atrapados en el arranque o en otras partes rotatorias.
• Ate para arriba el pelo largo y quite la joyería.
ADVERTENCIA
El rociado de alta presión puede hacer que partículas pequeñas de pintura u otras partículas salgan disparadas y viajen a altas velocidades.
• Siempre use protección para los ojos cuando utilice este equipo o cuando esté cerca de donde se esté usando el equipo.
ADVERTENCIA
PELIGRO
Al motor funcionar, se produce monóxido de carbono, un gas inodoro y venenoso.
El respirar el monóxido de carbono, producirá náusea, desmayo o la muerte.
• Opere el lavadora de presión SOLAMENTE al aire libre.
• Utilice un respirador o máscara siempre que exista la posibilidad de inhalar vapores.
• Lea todas las instrucciones de la máscara para asegurarse de que le brindará la protección necesaria contra la inhalación de vapores nocivos.
Chispear involuntario puede tener como resultado el fuego o el golpe eléctrico.
CUANDO AJUSTE O HAGA REPARACIONES A SU
MÁQUINA LAVADORA DE PRESIÓN
• Siempre desconecte el alambre de la bujía y colóquelo donde no pueda entrar en contacto con la bujía.
PRECAUCIÓN
El rociado de alta presión puede dañar elementos frágiles, incluyendo el vidrio.
• No apunte la pistola de rociado al vidrio cuando esté en el modo de rociado a chorro.
• Nunca apunte la pistola a plantas.
ADVERTENCIA
Los motores al funcionar producen calor. La temperatura del silenciador y de las áreas cercanas puede alcanzar o pasar los 150°F (65°C).
Quemaduras severas pueden ocurrir al hacer contacto.
• No toque las superficies calientes.
• Permita que el equipo se enfríe antes de tocarlo.
PRECAUCIÓN
Hacer funcionar el motor a velocidades excesivas aumenta el riesgo de lesiones personales.
• No juegue con partes que puedan aumentar o disminuir la velocidad de mando.
• No opere la máquina lavadora a presión con un valor de presión superior a su clasificación de presión.
21
Lavadora de Presión 2,300 PSI de Generac
CONOZCA SU MAQUINA LAVADORA DE PRESION
Lea el manual del propietario y las reglas de seguridad antes de poner en marcha su máquina lavadora a presión.
Compare las ilustraciones con su máquina lavadora a presión para familiarizarse con las ubicaciones de los diferentes controles y ajustes.
Guarde este manual para referencias futuras.
Bandeja Accesoria
Manguera de Alta Presión
Pistola de Rociado
Arrancador de Retroceso
Filtro y Tubo para
Recolección de Detergente
Palanca de la Válvula de Regulación
Filtro de Aire
Perilla del Cebador
Tapa del
Depósito del
Aceite
Entrada de Agua
Boquilla Ajustable
Arrancador de Retroceso – Usado para arrancar el motor manualmente.
Automático se Enfría Sistema - Los ciclos regan por bomba cuando agua alcanza 140º-145ºF. Entibiar agua descargará de la bomba en el suelo. Este sistema previene el daño interno de bomba.
Bandeja Accesoria – Proporciona convienant almacenamiento para el estándar y accesorios opcionales, tal como cepillos, las varitas de turbo, ect.
Bomba – Desarrolla alta presión de agua.
Boquilla Ajustable – Ajusta la presión a alta o baja presión; rociado a chorro o en abanico.
Entrada de Agua – Conexión para la manguera de jardín.
Filtro de Aire – El elemento de filtro tipo seco limita la cantidad de suciedad y polvo que se introduce en el motor.
Toma de Alta Presión
Bomba equipado con
Automático se Enfría Sistema
Filtro y Tubo para Recolección de Detergente – Usado para succionar detergente de la botella de químicos a la corriente de agua de baja presión.
Manguera de Alta Presión – Conecte un extremo a la pistola de rociado y el otro extremo a la toma de alta presión.
Palanca de Control de la Válvula de Regulación – Coloca el motor en modo de arranque para el arrancador de retroceso y detiene el motor en funcionamiento.
Perilla del Cebador – Usada para arranque de motores fríos.
Pistola de Rociado – Controla la aplicación de agua sobre la superficie de limpieza con el gatillo. Incluye cerrojo de seguridad.
Tapa del Depósito del Aceite – Llene el motor con aceite aquí. Siempre habitación de hoja para la expansión del combustible.
Toma de Alta Presión – Conexión para la manguera de alta presión.
22
Lavadora de Presión 2,300 PSI de Generac
IMPORTANTE: Lea totalmente el manual del propietario antes que intente ensamblar u operar su lavador a presión.
REMUEVA EL LAVADOR A
PRESIÓN DEL EMPAQUE
• Remueva la bolsa con las piezas, accesorios, y las adiciones incluidas con el lavador de presión.
• Corte dos esquinas en los extremos del cartón desde la parte superior hasta la parte inferior, de tal manera que el pánel pueda ser doblado en forma plana, luego quite todo el material de embalaje.
• Ruede el lavador a presión fuera de la caja.
Contenido de la Caja
Los artículos que se encuentran en la caja son:
• Unidad principal
• Pistola rociadora
• Extensión de la lanza
• Manguera de alta presión
• Manubrio
• Bandeja Accesoria Plástica
• Botella de aceite para motor
• Gafas de seguridad
• Bolsa de accesorios (incluye lo siguiente):
•
•
•
•
•
•
Tarjeta de registro del propietario
Juego de limpieza de la lanza
Juego de mantenimiento del anillo-O
Manual del propietario
•
•
Manual del motor
Piezas para la manubrio (incluye lo siguiente):
Perno del Soporte (2)
Perilla Plástica (2)
•
•
Gancho "J"
Clip Detergente de la Manga
• Auto Utiliza Enrosca (5)
Si una de las partes que se mencionan arriba se encuentran dañadas o hacen falta, llame a la línea directa del lavador a presión, al 1-800-270-1408.
PREPARANDO EL
LAVADOR A PRESIÓN
PARA SU USO
Si usted tiene un problema al ensamblar la unidad o si hacen falta algunas piezas o se encuentran dañadas, llame a la línea directa del lavador a presión, al 1-800-270-1408.
A prepara su arandela de la presión para la operación, usted necesitará a realiza estas tareas:
• Llene y mande en tarjeta de matrícula.
• Conecte manubrio y bandeja accesoria a unidad principal.
• Añada aceite al motor.
• Añada gasolina al tanque de combustible.
• Conecte manguera a alta presión a pistola rociadora y a bomba.
• Conecte el suministro de agua a bomba.
Conecte el Manubrio y Bandeja
Accesoria
NOTA: Todas las operaciones de ensamble proporcionadas en esta sección, serán descritas desde la perspectiva del ensamblaje de la lavadora a presión desde su parte posterior.
• Deslice la bandeja accesoria plástica en el asidero y alinee los hoyos en la bandeja accesoria con los hoyos en el asidero
(Figura 23).
Figura 23 - Conecte Bandeja Accesoria
• La bandeja segura al asidero con tornillos auto utiliza usando un #2 destornillador de phillips. Asegure seres de tornillos apretados pero no aplastar la bandeja accesoria plástica.
23
Lavadora de Presión 2,300 PSI de Generac
• Coloque el manubrio sobre los soportes del mismo que ya están adheridos a la unidad principal. Asegúrese de que los orificios en el manubrio estén alineados con los orificios en los soportes del mismo manubrio (Figura 24).
Figura 24 - Fijar el Manubrio a la Base
Manubrio
Alinear
Orificios
Soportes del
Manubrio
NOTA: Tal vez será necesario mover los soportes del manubrio de un lado a otro para alinear el manubrio de tal manera que pueda deslizarse sobre los soportes del mismo manubrio.
• Inserte el perno del soporte a través de los orificios desde fuera de la unidad y sujete una perilla de plástico desde el interior de la misma unidad. Apriete manualmente (Figura 25).
Figura 25 - Sujetar el Manubrio
Figura 27 - Deslice Manga Química en el Clip de Metal
• Incline la unidad arriba por el asidero y conecte el clip de metal a la costilla en la cara inferior izquierda de la bandeja accesoria
(Figura 28). Deslice la manga química por el clip de metal para que no sea apretado pero kinked.
Figura 28 - Deslice Clip de Metal en la Cartelera
• Inserte el gancho "J" en la segunda ranura a la izquierda en el charola accesoria (Figura 26).
Figura 26 - Colocar el Gancho "J" Hook sobre el Charola de
Accesoria
• Pellizque la manga química que sale de un hoyo en el baseand de la unidad lo desliza en el clip de metal como mostrado en la Figura 27.
Agregar Aceite al Motor
IMPORTANTE: Cualquier intento para arancar el motor antes de haberle proporcionado el mantenimiento apropiado con el aceite recomendado, podría ocasionar la falla del motor.
• Coloque la lavadora a presión sobre una superficie nivelada.
• Consulte el manual del propietario del motor para añadir al motor el aceite recomendado.
NOTA: Verifique el aceite del motor de manera frecuente cuando
éste se esfuerce demasiado. Consulte el manual del propietario del motor para conocer cuáles son las recomendaciones al respecto.
Añada Gasolina
¡ADVERTENCIA!
Nunca llene el tanque de combustible en recintos cerrados. Nunca llene el tanque de combustible cuando el motor esté funcionando o esté caliente. No fume cuando esté llenando el tanque de combustible.
¡ADVERTENCIA!
Nunca llene por completo el tanque de combustible. Deje espacio para la expansión del combustible. Limpie cualquier derrame de combustible del motor y del equipo antes de darle arranque a la unidad.
24
Lavadora de Presión 2,300 PSI de Generac
• Use combustible limpio y almacénelo en recipientes cubiertos, limpios y aprobados. Utilice embudos limpios. Nunca utilice gasolina "vieja" dejada de la estación anterior o gasolina almacenada por períodos de tiempo prolongados.
• Limpie el área alrededor de la tapa de llenado del combustible, retire la tapa.
• Agregue lentamente gasolina regular “SIN PLOMO” al tanque de combustible. Use un embudo para evitar que se derrame. Llene el tanque lentamente hasta aproxima-damente 1/2" por debajo de la parte inferior del cuello del tubo de llenado (Figura 29).
Figura 29 - Agregar Gasolina al Tanque de Combustible
Tanque
Espacio de 1/2"
Combustible
Figura 31 - Conecte la Manguera a alta Presión a la Pistola
Rociadora
Conecte aquí la manguera a alta presión
• Antes de que conecte la manguera de jardín a la entrada de agua, inspeccione el colador de la entrada (Figura 32). Limpie el colador si tiene residuos o solicite su remplazo si está dañado. NO HAGA
FUNCIONAR LA MÁQUINA LAVADORA A PRESIÓN SI EL
COLADOR DE LA ENTRADA ESTÁ DAÑADO.
Figura 32 - Conectar la Manguera del Jardín a la Entrada de Agua
Inspeccione la rejilla de entrada.
No la use si está dañada, límpiela si se encuentra sucia.
• Instale la tapa del tanque de combustible y limpie la gasolina que se haya derramado.
Conecte la Manguera y el Suministro de Agua a la Bomba
IMPORTANTE: Usted deberá armar la extensión para boquillas y conectar todas las mangueras antes de darle arranque al motor.
La bomba resultará dañada si arranca el motor sin tener todas las mangueras conectadas y el suministro agua abierto.
• Conecte el otro extremo de la manguera a alta presión, a la salida de alta presión de la bomba (Figura 30). Apriete con la mano.
Figura 30 - Conectar la Manguera de Alta Presión a la Toma de Agua
• Conecte la manguera a la base de la pistola de rociado
(Figura 31). Apriete con la mano.
• Haga correr el agua a través de la manguera de su jardín por
30 segundos para limpiar cualquier escombro que se encuentre en ella. Desconecte el agua.
IMPORTANTE: Hace no agua de parar de siphon para el abastecimiento de agua. Use agua SOLO fría (menos que 100°F).
• Conecte la manguera de jardín a la entrada del agua. Apriete con la mano (Figura 32).
¡PRECAUCIÓN!
DEBE haber por lo menos diez pies de manguera de jardín libre entre la entrada de agua de la lavadora a presión y cualquier dispositivo de control de flujo de agua, sea el caso de un conector 'Y' o de cualquier otro tipo de válvula. El daño a la lavadora a presión, resultado de la desatención a esta precaución, no será cubierto por la garantía.
• ABRA el suministro del agua (abra la válvula de suministro completamente).
¡PRECAUCIÓN!
Antes de darle arranque a la máquina lavadora a presión, asegúrese de usar protección adecuada para los ojos.
25
Lavadora de Presión 2,300 PSI de Generac
Lista de Revision Previa al Arranque del Motor
Revise la unidad para asegurarse que ha llevado a cabo los siguientes procedimientos:
• Cerciórese el manecilla es seguro.
• Revise que haya sido depositado aceite y esté al nivel correcto en la caja del cigüeñal del motor.
• Deposite la gasolina adecuada en el tanque del combustible.
• Revise que todas las conexiones de las mangueras (alta presión y suministro de agua) estén apretadas correctamente y que no existan dobleces, cortes o daño de la manguera de alta presión.
• Proporcione el suministro de agua adecuado.
• Asegúrese de leer las secciones "Reglas de Seguridad" y
"Cómo Usar Su Máquina Lavadora A Presión" antes de usar la máquina lavadora a presión.
CÓMO USAR SU
MÁQUINA LAVADORA A
PRESIÓN
Si tiene problemas operando su máquina lavadora a presión, por favor llame a la línea de ayuda para máquinas lavadoras a presión al 1-800-270-1408.
Cómo Darle Arranque a su Máquina
Lavadora a Presión
Para darle arranque a su máquina lavadora a presión movida a motor por primera vez, siga estas instrucciones paso a paso. Esta información acerca del arranque inicial también se aplica cuando vaya a darle arranque al motor después de haber dejado de la máquina lavadora a presión fuera de uso por al menos un día.
• Coloque la máquina lavadora a presión en un área cercana a una suministro de agua exterior capaz de abastecer agua a un volumen mayor de 2.2 galones por minuto.
• Revise que la manguera de alta presión se encuentre conectada firmemente a la pistola de rociado y a la bomba.Vea
“Preparando El Lavador A Presión Para Su Uso”.
• Asegúrese que la unidad esté nivelada.
• Conecte la manguera de jardín a la entrada del agua. Aprietela con la mano. Abra el suministro de agua.
¡PRECAUCIÓN!
No haga funcionar la bomba si no tiene el suministro conectado y abierto. Deberá cumplir con esta precaución, de otra forma la bomba resultará dañada.
• Apriete firmemente el gatillo de la pistola para purgar de aire e impurezas el sistema de bombeo.
• Conecte la extensión de la lanza a la pistola rociadora.
Apriétela con las manos (Figura 33).
Figura 33 - Conecte la Extensión de la Lanza a la Pistola
Rociadora
• Apriete el gatillo en la pistola rociadora (asegúrese de que la lanza se encuentra en el modo de baja presión) para deshacerse de la presión del aire causada al prender el agua. El agua se descargara de la pistola del spray en un chorro muy
Delgado. Aguante el gatillo hasta que un chorro continuo de agua aparece. Esto hará que el comienzo del motor se haga fácilmente. Suelte el gatillo.
• Coloque el pasador de seguridad al gatillo de la pistola rociadora (Figura 34).
Figura 34 - La Pistola Rociadora con el Pasador de Seguridad en su Posición
El Pasador de la
Seguridad
• Mueva el control de la válvula de admisión a la posición
"Rápido" ("Fast"), que se distingue con la figura de un conejo
(Figura 35).
Figura 35 - Controles de Aceleración y de Ahogamiento
Estrangule Palanca
Estrángulese Palanca
• Mueva la palanca del ahogador a la posición "Ahogado"
("Choke") (Figura 35).
NOTA: En el caso de que el motor esté caliente, asegúrese de que la palanca del ahogador se encuentre en la posición "En marcha" ("Run").
• Coloque su pie izquierdo en el cuadro inferior de la unidad y sujete la manija tal y como se muestra (Figura 36). La apariencia de la unidad puede ser ligeramente distinta de la mostrada aquí.
• Jale la cuerda de arranque lentamente con su mano derecha hasta que sienta alguna resistencia, entonces jale con energía.
26
Lavadora de Presión 2,300 PSI de Generac
Figura 36 - Posición Recomendada para Poner en Marcha el
Motor
Utilización de la Bandeja Accesoria
El unidad está equipado con una bandeja accesoria. Posee tres orificios para sostener la extensión de su boquilla, conexión rápida boquillas, su varilla turbo y su cepillo, así como dos ranuras para sostener la botella de solución limpiadora y el filtro para el detergente.También tiene dos ganchos en el bandeja accesoria para sostener su pistola aspersora y la manguera de alta presión.
NOTA: Los dos orificios extra en la charola se usan para colocar el cepillo y la varilla turbo. El cepillo y la varilla turbo NO se incluyen con su lavadora a presión. Puede adquirir dichos artículos como accesorios opcionales.
• Coloque la extensión de la boquilla a través del orificio en el charola de accesorios, tal y como se muestra en la Figura 37.
Figura 37 - Charola de Accesorios Sobre el Charola Accesoria
• Regrese la cuerda de arranque lentamente. No permita que la cuerda regrese bruscamente y golpee el arrancador.
• Cuando arranque el motor, mueva lentamente la palanca del ahogador a la posición "En marcha" ("Run"). Si el motor se enciende, pero no continúa funcionando, mueva entonces la palanca a la posición "Ahogado" ("Choke"), y después a la posición "En marcha" ("Run").
• Si el motor no arranca después de seis tirones, mueva la palanca del ahogador a la posición "Ahogado" ("Choke"), y después a la posición "En marcha" ("Run").
NOTA: En caso de que resulte difícil jalar el arrancador de retroceso, quizás será necesario apretar con firmeza el disparador de la pistola para disminuir la presión interna de bombeo.
Cómo Detener su Máquina Lavadora a Presión
• Mueva la palanca de control a la posición "Parado" ("Stop").
• Apriete el gatillo de la pistola de rociado para eliminar la presión de la manguera.
NOTA: Observará una pequeña cantidad de agua cuando elimine la presión.
• Sostenga la botella de su solución limpiadora en el gancho en forma de "J" y coloque el filtro del detergente en la última ranura a la izquierda (Figura 37).
• Cuelgue la manga alta de la presión en el gancho en el lado correcto de la bandeja accesoria (Figura 37).
• Coloque el fusil del rocío en el gancho en el lado izquierdo de la bandeja accesoria como mostrado en la página 22.
Cómo Usar la Boquilla Ajustable
Usted ya debe saber como darle ARRANQUE a su máquina lavadora a presión y como DETENERLA. La información de esta sección le dirá como ajustar el patrón de rociado y como aplicar detergente u otros químicos de limpieza.
¡PRECAUCIÓN!
Nunca ajuste el patrón de rociado cuando esté rociando. Nunca coloque las manos en frente de la boquilla para ajustar el patrón de rociado.
En el extremo de su pistola de rociado existe una manija que se puede mover hacia adelante y hacia atrás para ajustar el patrón de rociado para que sea de alta o baja presión.
27
Lavadora de Presión 2,300 PSI de Generac
• Usted también puede ajustar el patrón de rociado girando la boquilla para que esté concentrado en un patrón de chorro o un patrón expandido en abanico (Figura 38).
Figura 38 - Ajustar la Presión de Aspersión
• Apunte la boquilla hacia el suelo, desenganche el cerrojo de seguridad y apriete el gatillo para probar el patrón de rociado
(Figura 40).
Figura 40 - Ajustar el Patrón de Aspersión
Mueva la boquilla hacia atrás para obtener el modo de alta presión.
Mueva la boquilla hacia adelante para obtener el modo de baja presión y para la aplicación del detergente.
• El patrón de rociado se ajusta de un patrón angosto a un patrón en abanico girando la boquilla (Figura 39).
Figura 39 - Poner a Prueba el Patrón de Aspersión
Gire la boquilla en sentido contrario a las manecillas del reloj para un patrón de rociado en abanico.
Gire la boquilla en sentido de las manecillas del reloj para un patrón de rociado a chorro.
• Para una limpieza más efectiva, mantenga la boquilla de rociado de 8 a 24 pulgadas de la superficie de limpieza.
• Si coloca la boquilla de rociado demasiado cerca podría dañar la superficie, especialmente cuando esté usando el modo de alta presión.
• No coloque la boquilla a menos de 8 pulgadas cuando esté limpiando llantas.
Aplicación del Detergente Usando la
Boquilla Ajustable
¡PRECAUCIÓN!
Usted deberá conectar todas las mangueras antes de darle arranque al motor.Arrancar el motor sin tener todas las mangueras conectadas y sin el suministro de agua
ABIERTO (ON) causará el daño de la bomba.
IMPORTANTE: Utilice químicos diseñados
específicamente para máquinas lavadoras a presión. Los detergentes caseros podrían dañar la bomba.
Para aplicar el detergente, siga los siguientes pasos:
• Revise el uso de la boquilla ajustable.
• Prepare la solución detergente siguiendo las instrucciones del fabricante.
28
Lavadora de Presión 2,300 PSI de Generac
• Sostenga la solución detergente en el gancho "J" adherido al charola accesoria, tal y como lo muestra la Figura 41.
Figura 41 - Insertar el Filtro Dentro del Contenedor
• Coloque el pequeño extremo final del filtro del tubo de inyección del detergente dentro del contenedor del detergente.
¡PRECAUCIÓN!
Evite que el tubo de inyección de químicos entre en contacto con el silenciador caliente.
• Mueva la boquilla ajustable hacia adelante para obtener el modo de baja presión. El detergente no puede ser aplicado si tiene la boquilla en la posición de alta presión.
• Asegúrese que la manguera de jardín esté conectada a la entrada del agua. Revise que la manguera de alta presión esté conectada a la pistola de rociado y a la bomba. Dele arranque al motor.
• Aplique el detergente sobre la superficie seca, comenzando en la parte inferior del área y dirigiéndose hacia arriba, utilizando movimientos largos, parejos y superpuestos.
• Permita que el detergente "penetre" de 3 a 5 minutos antes de enjuagar.Vuelva a aplicarlo cuando sea necesario para evitar que la superficie se seque. No permita que el detergente se seque. Si permite que el detergente se seque, la superficie podría quedar con manchas.
IMPORTANTE: Usted deberá lavar el sistema de inyección de químicos después de cada uso colocando el filtro en un balde de agua limpia y haciendo funcionar la máquina lavadora a presión de
1 a 2 minutos en el modo de baja presión.
Enjuage de la Máquina Lavadora a
Presión
¡ADVERTENCIA!
Sea extremadamente cuidadoso si usa la máquina lavadora a presión desde una escalera, andamio o cualquier superficie relativamente inestable. La presión de una máquina lavadora en funcionamiento se acumula a medida que usted sube. Cuando oprima el gatillo, la fuerza de reacción del rociado inicial podría hacerlo caer. El rociado de la alta presión podría hacerlo caer si está muy cerca de la superficie de limpieza.
Para Enjuage:
• Deslice la boquilla hacia atrás a la presión alta y apriete el disparador. Llevará un pocos segundos para el detergente a claro.
NOTA: También puede detener la circulación del detergente retirando el tubo de succión del recipiente.
• Mantenga la pistola de rociado a una distancia segura del área que planea rociar.
• Aplique un rociado de alta presión en un área pequeña, después revise si la superficie presenta daños. Si no encuentra daños, puede continuar con el trabajo de limpieza.
• Comience en la parte superior del área que va a enjuagar, dirigiéndose hacia abajo con los mismos movimientos superpuestos que utilizó para el limpieza.
Sistema de Enfriamiento Automático
(Alivio Térmico)
El agua que circula dentro de la bomba puede alcanzar temperaturas entre los 140-145ºF si hace funcionar el motor de su máquina lavadora a presión de 3 a 5 minutos sin oprimir el gatillo de la pistola de rociado. Cuando el agua alcanza dicha temperatura, el sistema de enfriamiento automático se activa y enfría la bomba descargando agua caliente en el piso. Este sistema evita el daño interno de la bomba.
ESPECIFICACIONES
Presión de Salida . . . . . . 2,300 PSI
Promedio de Flujo . . . . 2.0 galones por minuto (gpm)
Detergente . . . . . . . . . . . Use el detergente adecuado para lavadores a presión
Temperatura del Suministro
de Agua . . . . . . . . . . . . . .Que no pase de 100ºF
Sistema de . . . . . . . . . . .Funcionará cuando el agua alcance de
Enfriamiento
Automático
140º-145ºF
Peso que Embarca . . . . . 77 lbs.
29
Lavadora de Presión 2,300 PSI de Generac
RECOMENDACIONES
GENERALES
La garantía de la máquina lavadora a presión no cubre los elementos que han sido sujetos a abuso o negligencia por parte del operador.
Para hacer válida la cobertura total de la garantía, el operador deberá mantener la lavadora de presión tal y como se indica en el manual.
• Algunos ajustes tendrán que hacerse periódicamente para mantener adecuadamente su máquina lavadora a presión.
• Todos los servicios y ajustes deberán hacerse por lo menos una vez en cada estación.
• Una vez al año, usted deberá limpiar o remplazar la bujía y el filtro de aire. Una bujía nueva y un filtro de aire limpio garantizan una mezcla de combustible-aire adecuada y le ayuda a su motor a funcionar mejor y a tener una vida útil más prolongada. Por favor, para mayores detalles, consulte el manual del propietario del motor.
Antes de Cada Uso
• Revise el nivel de aceite del motor.
• Revise si existen daños en el colador de la entrada de agua.
• Revise si existen daños en el filtro en línea.
• Revise si existen fugas en la manguera de alta presión.
• Revise si existen daños en los filtros de químicos.
• Revise si existen fugas en el conjunto de la extensión para boquillas y pistola.
• Elimine el aire y los contaminantes de la bomba.
MANTENIMIENTO DE LA
MAQUINA LAVADORA A
PRESION
Revise y Limpie el Colador de
Entrada
Examine el colador de entrada de la manguera de jardín. Límpielo si está tapado o remplacelo si está roto.
Revise la Manguera de Alta Presión
Las mangueras de alta presión pueden desarrollar fugas debido al desgaste, dobleces o abuso. Revise la manguera antes de cada uso.
Revise si existen cortes, fugas, abrasiones, levantamiento de la cubierta, daño o movimiento de los acoplamientos. Si existe cualquiera de estas condiciones, remplace la manguera inmediatamente.
¡PRECAUCIÓN!
Nunca repare la manguera de alta presión. Remplacela con una manguera que cumpla con la capacidad mínima de presión de su máquina lavadora a presión.
Chequee el Tubo de Sifón del
Detergente
Examine el filtro en el tubo del detergente y límpielo si se encuentra sucio. El tubo debería quedar apretado en la pieza.
Examine el tubo para ver si existe cualquier tipo de goteo o está roto. Reemplace el filtro o el tubo si alguno de ellos se encuentra dañado.
Limpiando el Tubo
Si usted usó el tubo, usted debe lavarlo con agua limpia antes de parar el motor.
• Coloque el filtro y la inyección química en un balde lleno de agua limpia.
• Deslice boquilla ajustable hacia adelante al modo bajo de la presión.
• Lave de 1 a 2 minutos.
• Apague el motor.
IMPORTANTE: Apagando el motor, simplemente no soltará la presión en el sistema. Cuando el motor se ha apagado, apriete el gatillo en la pistola rociadora para deshacerse de la presión en la manguera.
Revise la Pistola y la Extensión para
Boquillas
Examine la conexión de la manguera a la pistola y cerciorese de que esté en buen estado. Pruebe el gatillo oprimiéndolo y asegurándose de que se devuelve a su sitio cuando lo suelte.
Coloque el cerrojo de seguridad y pruebe el gatillo. Usted no debe ser capaz de oprimir el gatillo. Remplace la pistola inmediatamente si falla cualquiera de estas pruebas.
Revise el Filtro en Línea
Consulte la Figura 42 y suministre servicio al filtro en línea si se tapa siguiendo estos pasos:
Figura 42 - Limpieza del Filtro
Filtro en Línea
Extensión de la Boquilla
Anillo ‘O’
30
Lavadora de Presión 2,300 PSI de Generac
1.
Retire la pistola y la extensión para boquillas de la manguera de alta presión. Retire la extensión para boquillas de la pistola y retire el anillo 'o' y el colador de la extensión para boquillas. Lave el colador, pistola y extensión para boquillas con agua limpia para eliminar toda clase de residuos.
2.
Si el colador está dañado, encontrará un colador para el filtro en línea y un anillo 'o' de repuesto en el juego de anillos 'o'.
Si no está dañado, vuelva a usarlo.
3.
Coloque el colador del filtro en línea en el extremo con rosca de la extensión para boquillas. Su dirección no importa.
Coloque el colador ejerciendo presión con el borrador de un lápiz hasta que se asiente por completo en el fondo de la abertura.Tenga cuidado de no doblar el colador.
4.
Coloque el anillo 'o' en la ranura respectiva. Empuje el anillo
'o' hasta que quede ajustado contra el colador del filtro en línea.
5.
Conecte la extensión para boquillas a la pistola de rociado de la manera descrita anteriormente en este manual.
Elimine el Aire y los Contaminantes de la Bomba
Para retirar el aire de la bomba, siga los siguientes pasos:
• Instale la máquina lavadora a presión como está descrito en
“Preparando El Lavador A Presión Para Su Uso”. Conecte el abastecimiento de agua y prenda agua.
• Estire el disparador en el fusil del rocío y el asidero.
• Cuándo el agua es constante y constante, compromete el picaporte de la seguridad.
Para retirar los contaminantes de la bomba, siga los siguientes pasos:
• Instale la máquina lavadora a presión como está descrito en
“Preparando El Lavador A Presión Para Su Uso”. Conecte el abastecimiento de agua y prenda agua.
• Ponga en marcha el motor de acuerdo a las instrucciones de
“Cómo Darle Arranque a su Máquina Lavadora a Presión”.
• Quite boquilla la extensión del fusil del rocío.
• Hale el gatillo de la pistola y manténgalo apretado.
• Cuando el suministro de agua sea uniforme y constante, enganche el cerrojo de seguridad y vuelva a ajustar la extensión para boquillas.
Mantenimiento de las Boquillas
Si siente una sensación pulsante al momento de apretar el gatillo de la pistola rociadora, puede que sea causada por la presión excesiva en la bomba. La causa principal de la presión excesiva en la bomba es cuando la boquilla se encuentra atascada o tapada con materiales extraños, tales como tierra, etc. Para corregir el problema, limpie inmediatamente la boquilla usando las herramientas incluidas con su lavador a presión y siga las instrucciones siguientes:
1. Apague el motor y apague el suministro de agua.
2. Separe la extensión de la boquilla, de la pistola rociadora. Gire la boquilla en dirección de las agujas del reloj, a la posición
"stream" (chorro). Usando la llave de Allen de 2mm (5/64) provista, remueva la boquilla del extremo de la extensión de la boquilla (Figura 43).
Figura 43 - Remover y Limpiar la Boquilla
Boquilla
3. Quite el en el filtro de la línea del otro fin de la extensión de boquilla.
4. Use el alambre incluido en el juego (o un pequeño sujeta papeles) para liberar cualquier material extraño que esté tapando la boquilla (Figura 43).
5. Usando una manguera de jardín, remueva cualquier desecho adicional, poniendo agua en la extensión de la boquilla
(Figura 44). Haga ésto de 30 a 60 segundos. Gire la extensión de la boquilla ajustable a "stream spray" (chorro rociador) y mueva la boquilla de "low" (bajo) a "high" (alto), mientras drene el agua.
Figura 44 - Suministrar Flujo de Agua a la Boquilla
6. Instale de nuevo la boquilla y en el filtro en-línea en la extensión. No la apriete demasiado con la llave Allen.
7. Conecte de nuevo la extensión de la boquilla a la pistola rociadora.
8. Conecte de nuevo el suministro de agua, prenda el agua, y encienda el motor.
9. Pruebe el lavador a presión al hacer funcionar la boquilla en la posición "high" y "low" o con cada una de las boquillas de
Conexiones rápidas que viene con el lavador a presión.
31
Lavadora de Presión 2,300 PSI de Generac
Mantenimiento de los Anillos 'O'
Durante la operación normal de su máquina lavadora a presión los anillos 'o' mantienen apretadas y libres de fugas las conexiones de las mangueras y la pistola, ellos pueden desgastarse o dañarse con el uso.
Su máquina lavadora a presión viene con un Juego de Mantenimiento para anillos 'O', el cual contiene anillos 'o', arandela de caucho y un colador de repuesto para la entrada de la manguera de jardín. La nota que no todas las partes en el juego se usarán en su unidad.
Para retirar un anillo 'O' desgastado o dañado:
• Utilice un destornillador de cabeza plana pequeño, colóquelo por debajo del anillo 'o' y sáquelo haciendo palanca.
MANTENIMIENTO DEL
MOTOR
Consulte el manual del propietario del motor para las instrucciones de cómo mantener adecuadamente el motor.
¡PRECAUCIÓN!
Evite el contacto prolongado o repetido de piel con aceite usado de motor. El aceite usado del motor ha sido mostrado al cancer de la piel de la causa en ciertos animales del laboratorio. Completamente lavado expuso áreas con el jabón y el agua.
MANTENGA FUERA DE ALCANCE DE NIÑOS. NO
CONTAMINE. CONSERVE los RECURSOS.VUELVA
ACEITE USADO A la COLECCION CENTRA.
PREPARANDO LA
UNIDAD PARA SU
ALMACENAMIENTO
El agua no debe permanecer en la unidad por un largo periodo de tiempo. Los sedimentos o minerales se pueden depositar en las piezas de la bomba y "congelar" la acción de la bomba. Si usted no piensa usar el lavador a presión por mas de 30 días, siga este procedimiento:
1.
Vacíe el tubo de detergente, colocando el filtro en un envase lleno de agua limpia mientras esté corriendo el agua a baja presión (la lanza ajustable en la posición hacia adelante). Lave por 1 o 2 minutos.
2.
Apague el motor y permita refrescar, entonces quita mangas altas de presión y jardín. Desconecte el alambre de la bujía.
3.
Vacíe todos los líquidos presentes en la bomba, halando la manecilla de retroceso hasta seis veces. Esto debería remover la mayor parte de los líquidos presentes en la bomba.
4.
El salvador de la bomba de la marca del uso Generac a previene la corrosión construye y helado de bomba.
5.
Almacene la unidad en un lugar limpio y seco.
Proteger la Bomba
A protege al PumpSaver de uso de bomba Generac a previene congelar el daño y lubrica émbolos y sellos.
NOTA: El PumpSaver de Generac, el modelo numera 01559, están disponible sólo como un accesorio opcional. No es incluido con la arandela de la presión.
¡PRECAUCIÓN!
Usted deberá proteger su unidad de las temperaturas de congelamiento. Si No lo hace, dañará permanentemente la bomba y la unidad No podrá funcionar. La garantía no cubre el daño de la unidad ocasionado por congelamiento.
¡PRECAUCIÓN!
Lea y siga todo advierte y las advertencias en el PumpSaver pueden marcar. Siempre protección de ojo de uso cuando se usa PumpSaver.
Al uso el PumpSaver, cerciórese la arandela de la presión se apaga y desconecta del agua del suministro. Lea y siga todas instrucciones y las advertencias dadas en el contenedor de
PumpSaver.
NOTA: PumpSaver goteará de la bomba después que el tratamiento y manchará madera y cemento.
NOTA: Si el PumpSaver no está disponible, ponga anticongelante
RV (que no contenga alcohol) en la bomba, en una sección de
3 pies de la manguera del jardín conectada a un adaptador y halando la manecilla dos veces.
ALMACENANDO EL
MOTOR
Consulte el manual del propietario del motor para las instrucciones de cómo preparar adecuadamente el motor para su almacenamiento.
32
NOTAS
Lavadora de Presión 2,300 PSI de Generac
33
Lavadora de Presión 2,300 PSI de Generac
REPARACION DE DAÑOS
Problema
La bomba presenta los siguientes problemas: no produce presión, produce una presión errada, traqueteo, pérdida de presión, bajo volumen de agua.
El detergente no se mezcla con el rociado.
Causa
1.
La boquilla está en el modo de baja presión.
2.
La entrada de agua está bloqueada.
3.
Suministro de agua inadecuado.
4.
La manguera de entrada está doblada o presenta fugas.
5.
El colador de la manguera de entrada está tapado.
6.
El suministro de agua está por encima de los
100ºF.
7.
La manguera de alta presión está bloqueada o presenta fugas.
8.
La pistola presenta fugas.
9.
La boquilla está obstruida.
10.
Bomba defectuosa.
1.
El tubo de succión de detergente no está sumergido.
2.
El filtro de químicos está tapado.
3.
Sucio en el filtro de la línea.
4.
La boquilla está en el modo de alta presión.
La velocidad del motor es demasiado lenta.
El motor funciona bien cuando no tiene cargas, pero funciona “mal” cuando se conecta una carga.
El motor no arranca; o arranca y funciona mal.
El motor se apaga durante la operación.
El motor no tiene fuerza.
El motor intenta estabilizarse o su funcionamiento no es constante.
1.
Bajo nivel de aceite.
2.
Depurador de aire sucio.
3.
Sin gasolina.
4.
Gasolina vieja.
5.
El alambre de la bujía no está conectado a la bujía.
6.
Bujía mala.
7.
Agua en la gasolina.
8.
Estrangulación excesiva.
9.
Mezcla de combustible demasiado rica.
10.
Válvula de entrada trabada en la posición abierta o cerrada.
11.
El motor ha perdido compresión.
1.
Sin gasolina.
2.
Bajo nivel de aceite.
Filtro de aire sucio.
Cebador abierto demasiado rápido.
Solución
1.
Mueva la boquilla hacia atrás para el modo de alta presión.
2.
Limpie la entrada.
3.
Proporcione flujo de agua adecuado.
4.
Estire la manguera de entrada, coloque un parche en la fuga.
5.
Revise y limpie el colador de la manguera de entrada.
6.
Proporcione suministro de agua más fría.
7.
Retire las obstrucciones de la manguera de salida.
8.
Remplace la pistola.
9.
Limpie la boquilla.
10.
Póngase en contacto con el centro de servicio Briggs y Stratton.
1.
Coloque el tubo de succión de detergente en el detergente.
2.
Limpie o remplace el filtro/tubo de succión de detergente.
3.
Vea "Cheque En el Filtro de la Línea" en la página 30.
4.
Mueva la boquilla hacia adelante para el modo de baja presión.
Mueva el control de la válvula de regulación a la posición
FAST (RAPIDO). Si el motor continua funcionando mal, póngase en contacto con el centro de servicio Briggs y
Stratton.
1.
Llene la caja del cigüeñal hasta el nivel correcto.
2.
Limpie o remplace el depurador de aire.
3.
Llene el tanque de combustible.
4.
Drene el tanque de gasolina; llénelo con combustible fresco.
5.
Conecte el alambre a la bujía.
6.
Remplace la bujía.
7.
Drene el tanque de gasolina; llénelo con combustible fresco.
8.
Abra el cebador por completo y haga girar el motor.
9.
Póngase en contacto con el centro de servicio Briggs y Stratton.
10.
Póngase en contacto con el centro de servicio Briggs y Stratton.
11.
Póngase en contacto con el centro de servicio Briggs y Stratton.
1.
Llene el tanque de combustible.
2.
Llene la caja del cigüeñal hasta el nivel correcto.
Remplace el filtro de aire.
Mueva el cebador a la posición intermedia hasta que el motor funcione normalmente.
34
GARANTÍA LIMITADA
PÓLIZA DE GARANTÍA PARA LOS PROPIETARIOS DE PRODUCTOS PORTÁTILES GENERAC Efectiva desde el 1ro de Octubre, 2001
GARANTÍA LIMITADA
"Los productos portátiles Generac, LLC reparará o reemplazará, sin costo alguno, cualquier parte o partes del equipo que estén defectuosas en materiales o mano de obra, o ambos. Los cargos por concepto de transporte en las partes sometidas a reparación o reemplazo bajo esta garantía deben ser cubiertos por el comprador. Esta garantía es efectiva por un cierto periodo de tiempo y está sujeta a las condiciones provistas en la póliza. Para el servicio de garantía, consiga el concesionario autorizado más cercano en nuestro mapa localizador de concesionarios en www.generac-portables.com o llame al 1-877-544-0982. NO EXISTE
OTRA GARANTÍA EXPRESA. LAS GARANTÍAS IMPLÍCITAS, INCLUYENDO AQUELLAS DE MERCANTIBILIDAD O CAPACIDAD PARA UN PROPÓSITO
PARTICULAR, ESTÁN LIMITADAS AL PERIODO DE TIEMPO ESPECIFICADO, O HASTA EL LÍMITE PERMITIDO POR LA LEY,TODA Y CUALQUIER
GARANTÍA IMPLÍCITA ESTÁ EXCLUIDA. RESPONSABILIDAD POR DAÑOS CONSECUENTES BAJO CUALQUIER Y TODAS LAS GARANTÍAS, ESTÁN
EXCLUIDAS HASTA EL LÍMITE DE EXCLUSIÓN PERMITIDO POR LA LEY. Algunos estados no permiten limitaciones en cuánto y cuán implicadas, las garantías pueden ser y algunos estados no permiten la exclusión o limitación de daños incidentales o consecuentes, por lo que las limitaciones y exclusiones arriba mencionadas, es posible, que no se apliquen a usted. Esta garantía le proporciona derechos legales específicos y es posible que usted tenga otros derechos los cuales pueden variar de estado a estado y de país a país."
PRODUCTOS**
PERIODO DE GARANTÍA*
PARA USO DEL CONSUMIDOR PARA USO COMERCIAL
90 días
UNIDADES REACONDICIONADAS
POR LA FABRICA
90 días Generador portátil
(Válvula lateral con motor)
Generador portátil
1 año
2 años
(Motor de válvula superior) (el segundo año solamente para las partes)
Lavador eléctrico a presión 1 año
Lavador de gasolina a presión 1 año
1 año ninguno
90 días
90 días ninguno
90 días
* El periodo de garantía comienza en la fecha de compra hecha por el primer consumidor al detal o usuario comercial, y continúa por el periodo de tiempo que aparece en la tabla arriba mencionada. "Para uso del consumidor" significa, uso residencial por un consumidor al detal. "Para uso comercial" significa, todos los otros casos, incluyendo el uso comercial, para generar un ingreso o por propósitos de alquiler. Una vez que el equipo ha sido usado comercialmente, debería ser considerado como de uso comercial para las finalidades de esta garantía. El equipo usado, el equipo de demostración y el equipo usado como energía primaria en lugares donde las utilidades públicas no están garantizados. Los accesorios tales como pistolas, mangueras, varillas y boquillas están excluidos de la garantía del producto.
** El motor a gasolina y las baterías para el encendido, están garantizados por el fabricante de esos productos.
EL REGISTRO DE LA GARANTÍA NO ES NECESARIO PARA OBTENER LA GARANTÍA EN LOS EQUIPOS PORTÁTILES DE GENERAC.
GUARDE SU RECIBO DE COMPRA. SI USTED NO PROVEE LA PRUEBA DE LA FECHA DE LA COMPRA INICIAL, AL MOMENTO EN
QUE SE REQUIERA USAR LA GARANTÍA, LA FECHA DE LA FABRICACIÓN DEL EQUIPO SERÁ USADA PARA DETERMINAR EL
PERIODO DE GARANTÍA.
Acerca de la seguridad de su equipo:
Los Productos Portátiles Generac, reciben las reparaciones bajo la garantía y le pide disculpas por cualquier inconveniencia causada. Cualquier Concesionario de
Servicio Autorizado puede llevar a cabo reparaciones bajo la garantía. La mayoría de las reparaciones bajo la garantía son manejadas normalmente, pero algunas veces la solicitud del servicio de garantía es posible que no sea apropiada. Por ejemplo, la garantía no será válida si el daño al equipo ocurrió debido al mal uso, falta de mantenimiento adecuado, manejo, envío, almacenamiento o una instalación inadecuada. Similarmente, la garantía es anulada si el número de serial del equipo ha sido removido o el equipo ha sido alterado o modificado.
Si un cliente no está de acuerdo con la decisión hecha por el Concesionario de Servicio, se llevará a cabo una investigación para determinar si la garantía se puede aplicar. Pida al Concesionario de Servicio que entregue todos los hechos que soportan su decisión a su Distribuidor, para que éste los revise. Si el Distribuidor decide que el reclamo es justificado, al cliente se le reembolsará completamente por todos esos artículos que están defectuosos. Para evitar un malentendido que pueda ocurrir entre el Concesionario y el cliente, abajo aparecen algunos de las razones por las cuales el equipo puede fallar, y que la garantía no cubre:
Desgaste normal:
Equipo eléctrico al aire libre, como todos los aparatos mecánicos, necesita partes, servicio y reemplazo, periódicamente, para que funcione bien. Esta garantía no cubre la reparación cuando el uso normal ha acabado con la vida de una parte en particular o del equipo.
Instalación y mantenimiento:
Esta garantía no se aplica al equipo o parte que ha estado sujeta a una instalación inadecuada, que no haya sido autorizada o a cualquier tipo de alteración, el mal uso, negligencia, accidentes, sobrecarga, velocidad excesiva, mantenimiento inadecuado, reparación o almacenamiento, que según la opinión de los Productos
Portátiles Generac, han afectado desfavorablemente su rendimiento y fiabilidad. Esta garantía también no cubre el mantenimiento normal tales como ajustes, limpieza del sistema de combustión y la obstrucción (debido a materias químicas, suciedad, carbón o cal, etc.)
Otras exclusiones:
También se encuentran excluidos de está garantía, el desgaste de los artículos tales como, conectadores, medidores de aceite, correas, anillos O, filtros, empaque de la bomba, etc. las bombas que se hagan funcionar o trabajar sin agua, o daños y malfuncionamientos que resulten de accidentes, abusos, modificaciones, alteraciones, un servicio inadecuado, congelamiento o deterioro químico.
La garantía se encuentra disponible solamente a través de los concesionarios de servicios autorizados por los Productos Portátiles Generac.
Esta garantía no se aplica al servicio proveniente de cualquier otra entidad.
Usted puede ubicar su Concesionario de Servicio Autorizado de los Productos Portátiles de Generac más cercano, en nuestro mapa localizador de concesionarios en www.generac-portables.com o llame al 1-877-544-0982.
Los Productos Portátiles de Generac están fabricados bajo una o más de las siguientes patentes: (Otras patentes están pendientes)
5902094 5823752 5718255 5890413
Generac Portable Products, LLC
Jefferson,Wisconsin U.S.A.
LIMITED WARRANTY
GENERAC PORTABLE PRODUCTS OWNER WARRANTY POLICY Effective October 1, 2001
LIMITED WARRANTY
"Generac Portable Products, LLC will repair or replace, free of charge, any part, or parts of the equipment that are defective in material or workmanship or both.Transportation charges on parts submitted for repair or replacement under this Warranty must be borne by purchaser.
This warranty is effective for the time periods and subject to the conditions provided for in this policy. For warranty service, find the nearest
Authorized Service Dealer in our dealer locator map at www.generac-portables.com or call 1-877-544-0982.THERE IS NO OTHER EXPRESS
WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE TIME PERIOD SPECIFIED, OR TO THE EXTENT PERMITTED BY LAW ANY AND ALL IMPLIED WARRANTIES ARE
EXCLUDED. LIABILITY FOR CONSEQUENTIAL DAMAGES UNDER ANY AND ALL WARRANTIES ARE EXCLUDED TO THE EXTENT
EXCLUSION IS PERMITTED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you.This
warranty gives you specific legal rights and you may also have other rights which vary from state to state and country to country."
PRODUCTS**
Portable Generator
WARRANTY PERIOD*
CONSUMER USE COMMERCIAL USE
1 year 90 days
(Side Valve Engine Powered)
Portable Generator 2 years
(Overhead Valve Engine Powered) (2nd year parts only)
Electric Powered Pressure Washer 1 year
Gasoline Powered Pressure Washer 1 year
1 year
None
90 days
FACTORY RECONDITIONED UNITS
90 days
90 days
None
90 days
* The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. "Consumer use" means personal residential household use by a retail consumer. "Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once equipment has been used commercially, it shall thereafter be considered to be in commercial use for purposes of this warranty. Used equipment, demonstration equipment and equipment used for prime power in place of a utility are not warranted. Accessory parts such as guns, hoses, wands and nozzles are excluded from the product warranty.
** The gasoline engine and starting batteries are warranted solely by the manufacturers of those products.
WARRANTY REGISTRATION IS NOT NECESSARY TO OBTAIN WARRANTY ON GENERAC PORTABLE PRODUCTS
EQUIPMENT. SAVE YOUR PROOF OF PURCHASE RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL
PURCHASE DATE AT THE TIME WARRANTY SERVICE IS REQUESTED,THE MANUFACTURING DATE OF THE
EQUIPMENT WILL BE USED TO DETERMINE THE WARRANTY PERIOD.
About your equipment warranty:
Generac Portable Products welcomes warranty repair and apologizes to you for being inconvenienced.Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty would not apply if equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, warranty is void if the serial number of the equipment has been removed or the equipment has been altered or modified.
If a customer differs with the decision of the Service Dealer, an investigation will be made to determine whether the warranty applies. Ask the
Service Dealer to submit all supporting facts to its Distributor for review. If the Distributor decides that the claim is justified, the customer will be fully reimbursed for those items that are defective.To avoid misunderstandings that might occur between the customer and the Dealer, listed below are some of the causes of equipment failure that the warranty does not cover:
Normal wear:
Outdoor Power Equipment, like all mechanical devices, needs periodic parts, service and replacement to perform well.This warranty does not cover repair when normal use has exhausted the life of a part or the equipment.
Installation and Maintenance:
This warranty does not apply to equipment or parts that have been subjected to improper or unauthorized installation or alteration, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as, in Generac Portable Products' judgment, to adversely affect its performance and reliability.This warranty also does not cover normal maintenance such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).
Other Exclusions:
Also excluded from this warranty are wear items such as quick couplers, oil gauges, belts, o-rings, filters, pump packing, etc., pumps which have been run without water supplied or damage or malfunctions resulting from accidents, abuse, modifications, alterations, or improper servicing or freezing or chemical deterioration.
Warranty is available only through service dealers authorized by Generac Portable Products.This warranty does not apply to service by any other entity.
You may locate your nearest Authorized Generac Portable Product Service Dealer in our dealer locator map at www.generac-portables.com or call 1-877-544-0982.
Generac Portable Products Are Made Under One Or More Of The Following Patents: (Other Patents Pending)
5902094 5823752 5718255 5890413
Generac Portable Products, LLC
Jefferson,Wisconsin U.S.A.

Public link updated
The public link to your chat has been updated.
Advertisement
