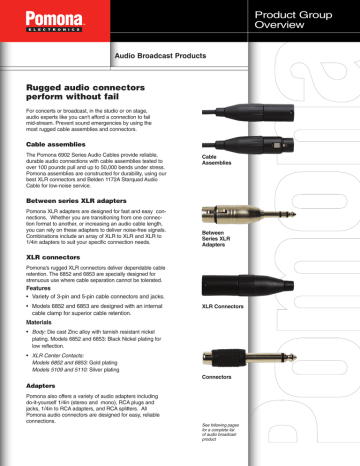

Product Group Overview Rugged audio connectors perform without fail

Product Group Overview Rugged audio connectors perform without fail
Product Group
Overview
Audio Broadcast Products
Rugged audio connectors
perform without fail
For concerts or broadcast, in the studio or on stage,
audio experts like you can't afford a connection to fail
mid-stream. Prevent sound emergencies by using the
most rugged cable assemblies and connectors.
Cable assemblies
The Pomona 6902 Series Audio Cables provide reliable,
durable audio connections with cable assemblies tested to
over 100 pounds pull and up to 50,000 bends under stress.
Pomona assemblies are constructed for durability, using our
best XLR connectors and Belden 1172A Starquad Audio
Cable for low-noise service.
Cable
Assemblies
Between series XLR adapters
Pomona XLR adapters are designed for fast and easy connections. Whether you are transitioning from one connection format to another, or increasing an audio cable length,
you can rely on these adapters to deliver noise-free signals.
Combinations include an array of XLR to XLR and XLR to
1/4in adapters to suit your specific connection needs.
Between
Series XLR
Adapters
XLR connectors
Pomona's rugged XLR connectors deliver dependable cable
retention. The 6852 and 6853 are specially designed for
strenuous use where cable separation cannot be tolerated.
Features
• Variety of 3-pin and 5-pin cable connectors and jacks.
• Models 6852 and 6853 are designed with an internal
cable clamp for superior cable retention.
XLR Connectors
Materials
• Body: Die cast Zinc alloy with tarnish resistant nickel
plating. Models 6852 and 6853: Black Nickel plating for
low reflection.
• XLR Center Contacts:
Models 6852 and 6853: Gold plating
Models 5109 and 5110: Silver plating
Connectors
Adapters
Pomona also offers a variety of audio adapters including
do-it-yourself 1/4in (stereo and mono), RCA plugs and
jacks, 1/4in to RCA adapters, and RCA splitters. All
Pomona audio connectors are designed for easy, reliable
connections.
See following pages
for a complete list
of audio broadcast
product
Audio Broadcast Products
Between series
XLR connectors
Cable assemblies
XLR(F) / XLR (F)
6856
Rugged 75Ω BNC Plug / Plug,
6ft to 25ft (1.8m to 7.6m)
XLR (M) / XLR (M)
6857
2249-E
XLR (F) / XLR (M)
6858
SMA (M) / SMZA(F) 50Ω Cable Assembly,
48in (1.2m)
Bantam Plug / Plug Series, Unplated Brass,
1ft to 10ft (0.3m to 3.0m)
4279
4528
Bantam Plug / Plug Series, Nickel Plated Brass,
1ft to 5ft (0.3m to 1.5m)
XLR (F) / 1/4in Jack (Stereo Or Mono)
6859
4279N
XLR (M) / 1/4in Jack (Stereo Or Mono)
6860
XLR Plug / Jack, Low Noise Cable Assembly,
15ft to 25ft (4.6m to 7.6m)
XLR Jack / 1/4in Stereo Plug Cable Assembly,
15ft to 25ft (4.6m to 7.6m)
6869
6888
XLR (F) / 1/4in Plug (Stereo)
6863
Rugged XLR Plug to XLR Jack,
10ft to 25ft (3.0m to 7.6m)
6902
2 Pomona
Audio Broadcast Products
XLR (M) / 1/4in Plug (Stereo)
6864
Connectors
Phone Jack/Double Banana Plug
4044
XLR Connectors
3 Pole (F) in Line XLR Silver Contacts,
Nickel Shell, Thermoplastic Boot
XLR (M) Connector, Black Nickel-plated Shell,
3 Gold-plated Contacts
5109
5126A
1/4in Phone Plug, 2 Pole
6873
3 Pole (M) in Line XLR Silver Contacts,
Nickel, Thermoplastic Boot
XLR (F) Connector, Black Nickel-plated Shell,
3 Gold-plated Contacts
6850
5110
1/4in Phone Plug, 3 Pole
XLR (M) Connector, Black Nickel-plated Shell,
3 Gold-plated Contacts
6874
6851
XLR (F) Panel Receptacle, 3 Contacts,
Nickel-plated Zinc
5113A
XLR (F) Panel Receptacle, 5 Contacts, Black
6854
Panel Mount 1/4 Phone Jack, Locking
6877
Rugged XLR (F) Connector, Black Nickel-plated Shell,
3 Gold-plated Contacts
6852
XLR (M) Panel Receptacle, 3 Contacts,
Nickel-plated Zinc
1/4in Plug / RCA Jack
5117A
6878
XLR (M) Panel Receptacle, 5 Contacts, Black
6855
Rugged XLR (M) Connector, Black Nickel-plated Shell,
3 Gold-plated Contacts
6853
1/4in Jack / RCA Plug
6879
XLR (F) Connector, Black Nickel-plated Shell,
3 Gold-plated Contacts
5125A
Go to www.pomonaelectronics.com for more information
Audio Broadcast Products
Pomona 3
Audio Broadcast Products
In the United States:
In Europe:
All other areas:
Pomona Electronics
9028 Evergreen Way
Everett, WA 98204
United States
Pomona Electronics
P.O.Box 1186
5602 BD Eindhoven
The Netherlands
www.pomonaelectronics.com
www.pomonaelectronics.com
www.pomona.cc
Tel: 1.800.490.2361
Fax: 425.446.5844
Tel: +31 (0) 40 2675 150
Fax: +31 (0) 40 2675 151
Copyright © 2004. Pomona is a registered
trademark of Pomona Electronics.
Specifications subject to change without
notice. All rights reserved. Printed in the USA.
5/04 2152248 D-ENG-N Rev. A
Tel: 1.425.446.5500
Fax: 1.425.446.4806
