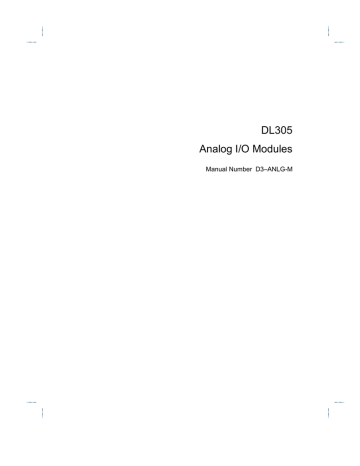

DL305 Analog I/O Modules Manual Number D3–ANLG-M

DL305 Analog I/O Modules Manual Number  D3–ANLG-M
DL305
Analog I/O Modules
Manual Number D3–ANLG-M
WARNING
Thank you for purchasing automation equipment from Automationdirect.com. We want your new DirectLOGIC
automation equipment to operate safely. Anyone who installs or uses this equipment should read this publication (and
any other relevant publications) before installing or operating the equipment.
To minimize the risk of potential safety problems, you should follow all applicable local and national codes that regulate
the installation and operation of your equipment. These codes vary from area to area and usually change with time. It is
your responsibility to determine which codes should be followed, and to verify that the equipment, installation, and
operation are in compliance with the latest revision of these codes.
At a minimum, you should follow all applicable sections of the National Fire Code, National Electrical Code, and the
codes of the National Electrical Manufacturer’s Association (NEMA). There may be local regulatory or government
offices that can also help determine which codes and standards are necessary for safe installation and operation.
Equipment damage or serious injury to personnel can result from the failure to follow all applicable codes and
standards. We do not guarantee the products described in this publication are suitable for your particular application,
nor do we assume any responsibility for your product design, installation, or operation.
Our products are not fault–tolerant and are not designed, manufactured or intended for use or resale as on–line control
equipment in hazardous environments requiring fail–safe performance, such as in the operation of nuclear facilities,
aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in
which the failure of the product could lead directly to death, personal injury, or severe physical or environmental
damage (”High Risk Activities”). Automationdirect.com specifically disclaims any expressed or implied warranty of
fitness for High Risk Activities.
For additional warranty and safety information, see the Terms and Conditions section of our Desk Reference. If you
have any questions concerning the installation or operation of this equipment, or if you need additional information,
please call us at 770–844–4200.
This publication is based on information that was available at the time it was printed. At Automationdirect.com we
constantly strive to improve our products and services, so we reserve the right to make changes to the products and/or
publications at any time without notice and without any obligation. This publication may also discuss features that may
not be available in certain revisions of the product.
Trademarks
This publication may contain references to products produced and/or offered by other companies. The product and
company names may be trademarked and are the sole property of their respective owners. Automationdirect.com
disclaims any proprietary interest in the marks and names of others.
Copyright 2003, Automationdirect.com Incorporated
All Rights Reserved
No part of this manual shall be copied, reproduced, or transmitted in any way without the prior, written consent of
Automationdirect.com Incorporated. Automationdirect.com retains the exclusive rights to all information
included in this document.
AVERTISSEMENT
Nous vous remercions d’avoir acheté l’équipement d’automatisation de Automationdirect.comE. Nous tenons à ce que
votre nouvel équipement d’automatisation DirectLOGIC fonctionne en toute sécurité. Toute personne qui installe ou
utilise cet équipement doit lire la présente publication (et toutes les autres publications pertinentes) avant de l’installer ou de
l’utiliser.
Afin de réduire au minimum le risque d’éventuels problèmes de sécurité, vous devez respecter tous les codes locaux et
nationaux applicables régissant l’installation et le fonctionnement de votre équipement. Ces codes diffèrent d’une région à
l’autre et, habituellement, évoluent au fil du temps. Il vous incombe de déterminer les codes à respecter et de vous assurer
que l’équipement, l’installation et le fonctionnement sont conformes aux exigences de la version la plus récente de ces
codes.
Vous devez, à tout le moins, respecter toutes les sections applicables du Code national de prévention des incendies, du
Code national de l’électricité et des codes de la National Electrical Manufacturer’s Association (NEMA). Des organismes de
réglementation ou des services gouvernementaux locaux peuvent également vous aider à déterminer les codes ainsi que
les normes à respecter pour assurer une installation et un fonctionnement sûrs.
L’omission de respecter la totalité des codes et des normes applicables peut entraîner des dommages à l’équipement ou
causer de graves blessures au personnel. Nous ne garantissons pas que les produits décrits dans cette publication
conviennent à votre application particulière et nous n’assumons aucune responsabilité à l’égard de la conception, de
l’installation ou du fonctionnement de votre produit.
Nos produits ne sont pas insensibles aux défaillances et ne sont ni conçus ni fabriqués pour l’utilisation ou la revente en tant
qu’équipement de commande en ligne dans des environnements dangereux nécessitant une sécurité absolue, par
exemple, l’exploitation d’installations nucléaires, les systèmes de navigation aérienne ou de communication, le contrôle de
la circulation aérienne, les équipements de survie ou les systèmes d’armes, pour lesquels la défaillance du produit peut
provoquer la mort, des blessures corporelles ou de graves dommages matériels ou environnementaux (”activités à risque
élevé”). La société Automationdirect.comE nie toute garantie expresse ou implicite d’aptitude à l’emploi en ce qui a trait
aux activités à risque élevé.
Pour des renseignements additionnels touchant la garantie et la sécurité, veuillez consulter la section Modalités et
conditions de notre documentation. Si vous avez des questions au sujet de l’installation ou du fonctionnement de cet
équipement, ou encore si vous avez besoin de renseignements supplémentaires, n’hésitez pas à nous téléphoner au
770–844–4200.
Cette publication s’appuie sur l’information qui était disponible au moment de l’impression. À la société
Automationdirect.comE, nous nous efforçons constamment d’améliorer nos produits et services. C’est pourquoi nous
nous réservons le droit d’apporter des modifications aux produits ou aux publications en tout temps, sans préavis ni quelque
obligation que ce soit. La présente publication peut aussi porter sur des caractéristiques susceptibles de ne pas être offertes
dans certaines versions révisées du produit.
Marques de commerce
La présente publication peut contenir des références à des produits fabriqués ou offerts par d’autres entreprises. Les
désignations des produits et des entreprises peuvent être des marques de commerce et appartiennent exclusivement à
leurs propriétaires respectifs. Automationdirect.comE nie tout intérêt dans les autres marques et désignations.
Copyright 2003, Automationdirect.comE Incorporated
Tous droits réservés
Nulle partie de ce manuel ne doit être copiée, reproduite ou transmise de quelque façon que ce soit sans le consentement
préalable écrit de la société Automationdirect.comE Incorporated. Automationdirect.comE conserve les droits
exclusifs à l’égard de tous les renseignements contenus dans le présent document.
1
Manual Revisions
If you contact us in reference to this manual, be sure to include the revision number.
Title: DL305 Analog I/O Modules, 2nd Edition, Rev. D
Manual Number: D3–ANLG–M
Issue
Date
Description of Changes
Original
1/94
Original Issue
2nd Edition
3/96
Corrections
Rev. A
4/96
Minor corrections
Rev. B
6/98
Downsized to spiral
Corrected sequencing examples
Rev. C
11/99
Added example programs for the D3–350
CPU.
3rd Edition
2/03
Added pointer method and additional
D3–350 programming examples
1
Table of Contents
Chapter 1: Getting Started
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Purpose of this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Who should read this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How this manual is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplemental Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DL305 Analog Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DL305 Analog I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermocouple Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Appropriate Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Made Easy – Four Simple Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channels per Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conversion Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conversion Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Linearity Error and Total Tolerance (Relative Accuracy) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accuracy vs. Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Points Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
External Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base Power Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Relative Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Terminal Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Output Module Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channels per Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conversion Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accuracy vs. Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–2
1–3
1–3
1–3
1–3
1–4
1–4
1–4
1–4
1–5
1–6
1–6
1–7
1–7
1–8
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–9
1–10
1–10
1–10
1–10
1–10
1–10
1–10
1–10
1–10
1–10
1–10
ii
Table of Contents
External Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base Power Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Relative Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Terminal Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Points Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–10
1–10
1–10
1–10
1–10
1–10
1–10
Chapter 2: D3–04AD 4-Channel Analog Input
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–2
2–2
2–3
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Custom Input Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current Loop Transmitter Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
All Channel Scan Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Channel Scan Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Active Channel Selection Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Channel on Every Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Multiple Channels over Alternating Scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single or Multiple Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaling the Input Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–3
2–3
2–3
2–4
2–5
2–6
2–6
2–7
2–7
2–8
2–8
2–9
2–9
2–10
2–11
2–11
2–11
2–12
2–13
2–14
2–18
Chapter 3: F3–04ADS 4-Channel Isolated Analog Input
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Number of Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting Input Signal Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Custom Input Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current Loop Transmitter Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–2
3–2
3–3
3–3
3–4
3–4
3–5
3–5
3–5
3–5
3–6
3–7
3–7
iii
Table of Contents
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Active Channel Selection Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Channel on Every Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Multiple Channels over Alternating Scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaling the Input Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–8
3–8
3–9
3–9
3–10
3–11
3–11
3–11
3–12
3–13
3–1
Chapter 4: F3–08AD–1 8-Channel Analog Input
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Number of Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current Loop Transmitter Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Active Channel Indication Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Channel on Every Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Multiple Channels over Alternating Scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Multiple Channels over Alternating Scans on a DL350 . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaling the Input Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaling the Input Data on a DL350 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4–2
4–2
4–3
4–3
4–3
4–4
4–4
4–4
4–4
4–5
4–5
4–6
4–6
4–7
4–7
4–8
4–9
4–9
4–9
4–10
4–11
4–13
4–17
4–18
Chapter 5: F3–16AD 16-Channel Analog Input
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Number of Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting Input Signal Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gain Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Variable Gain Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5–2
5–2
5–3
5–3
5–3
5–4
5–5
5–5
iv
Table of Contents
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Custom Input Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current Loop Transmitter Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Active Channel Indicator Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Example Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Example Program for a DL350 with a Conventional Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Example Program for a DL350 with a D3–XX–1 Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaling the Input Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaling the Input Data on a DL350 with a Conventional Base . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Broken Transmitter Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5–6
5–6
5–6
5–7
5–8
5–9
5–9
5–10
5–10
5–11
5–12
5–13
5–14
5–14
5–15
5–16
5–17
5–20
5–24
5–25
5–26
Chapter 6: D3–02DA 2–Channel Analog Output
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2
Analog Output Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
Load Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8
Calculating the Digital Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8
Sending the Same Data to Both Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–11
Sending Specific Data to Each Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12
Analog and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–13
Chapter 7: F3–04DA–1 4-Channel Analog Output
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Output Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7–2
7–2
7–3
7–3
v
Table of Contents
Selecting Output Signal Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Selection Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calculating the Digital Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sending Data to a Single Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sequencing the Channel Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sequencing Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7–3
7–4
7–4
7–4
7–4
7–5
7–5
7–6
7–6
7–7
7–7
7–8
7–9
7–9
7–9
7–12
7–13
7–13
7–14
Chapter 8: F3–04DAS 4-Channel Isolated Analog Output
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Output Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting Input Signal Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Output Signal Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Combining Voltage Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Combining Current Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Selection Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calculating the Digital Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sending Data to a Single Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sequencing the Channel Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8–2
8–3
8–4
8–4
8–5
8–6
8–7
8–7
8–7
8–7
8–8
8–8
8–8
8–9
8–10
8–10
8–11
8–11
8–12
8–13
8–13
8–13
8–16
8–17
8–18
vi
Table of Contents
Chapter 9: F3–08THM–n 8-Channel Thermocouple Input
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting °F or °C Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting 0–4095 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Active Channel Indicator Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Sign Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Input Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Millivolt Input Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Temperature Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Sign Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Multiple Channels on a DL350 with a D3–XX–1 Base . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaling the Input Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Millivolt and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9–2
9–2
9–2
9–2
9–3
9–3
9–4
9–4
9–4
9–4
9–5
9–5
9–5
9–5
9–6
9–6
9–7
9–7
9–8
9–8
9–8
9–8
9–9
9–9
9–9
9–11
9–12
9–14
9–18
9–18
Chapter 10: F3–08TEMP 8-Channel Temperature Input
Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compatible Temperature Probe Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Input Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Module Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Number of Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10–2
10–3
10–3
10–4
10–4
10–4
10–5
10–5
10–5
10–5
10–5
vii
Table of Contents
Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Scanning Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding the I/O Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Active Channel Indicator Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Input Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing the Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identifying the Data Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading the Digital Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Converting the Data to Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Temperatures Below Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storing the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Temperatures on a DL350 with a D3–XX–1 Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature and Digital Value Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10–6
10–6
10–7
10–7
10–8
10–8
10–9
10–9
10–9
10–10
10–12
10–13
10–14
10–17
Appendix A: DL305 Data Types and Memory Map
DL330 Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–2
DL330P Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–3
DL340 Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–4
I/O Point Bit Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–5
Control Relay Bit Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–6
Special Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–8
Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A–9
DL350 System V–Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–11
DL350 Comm Port 2 Control Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–12
DL350 Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–13
DL350 X Input/ Y Output Bit Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–14
DL350 Control Relay Bit Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–15
DL350 Staget Control / Status Bit Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–17
DL350 Timer and Counter Status Bit Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–19
Getting Started
In This Chapter. . . .
Ċ Introduction
Ċ Physical Characteristics
Ċ Analog Input Terminology
Ċ Analog Output Module Terminology
Ċ Selecting the Appropriate Module
Ċ Analog Made Easy - Four Simple Steps
11
1–2
Getting Started
Getting Started
Introduction
Purpose of this
manual
This manual will show you how to select and install analog input and analog output
modules. It also shows several ways to use the analog data in your PLC program.
Who should read
this manual
If you understand the DL305 oand DL350 instruction sets and system setup
requirements, this manual will provide all the information you need to install and use
the analog modules. This manual is not intended to be a tutorial on analog signal
theory, but rather, a user reference manual for the DL305 Analog I/O modules.
Supplemental
Manuals
If you have purchased operator interfaces or DirectSOFT, you will need to
supplement this manual with the manuals that are written for these products.
Technical Support
We realize that even though we strive to be the best, the information may be
arranged in such a way you cannot find what you are looking for. First, check these
resources for help in locating the information:
S
S
S
S
Table of Contents – chapter and section listing of contents, in the front
of this manual
Quick Guide to Contents – chapter summary listing on the next page
Appendices – reference material for key topics, near the end of this
manual
Index – alphabetical listing of key words, at the end of this manual
You can also check our online resources for the latest product support information:
S Internet – the address of our Web site is
http://www.plcdirect.com
S Bulletin Board Service(BBS) – call (770)–844–4209
If you still need assistance, please call us at 800–633–0405. Our technical support
group is glad to work with you in answering your questions. They are available
Monday through Friday from 9:00 A.M. to 6:00 P.M. Eastern Standard Time. If you
have a comment or question about any of our products, services, or manuals, please
fill out and return the ‘Suggestions’ card that was shipped with this manual.
1–3
Getting Started
Chapters
The main contents of this manual are organized into the following nine chapters:
2
3
4
5
D3–04AD
introduces the various DL305 Analog modules. Also includes
tips on getting started and how to design a successful
system.
explains the 4 channel analog input module. Provides ladder
logic examples for all bases and CPUs.
F3–04ADS
explains the 4 channel isolated analog input module.
Provides ladder logic examples for all bases and CPUs.
F3–08AD
explains the 8 channel analog input module. Provides ladder
logic examples for all bases and CPUs.
F3–16AD
explains the 16 channel analog input module. Provides
ladder logic examples for all bases and CPUs.
6
D3–02DA
explains the 2 channel analog output module. Provides
ladder logic examples for all bases and CPUs.
7
8
9
F3–04DA–1
explains the 4 channel analog output module. Provides
ladder logic examples for all bases and CPUs.
F3–04DAS
explains the 4 channel isolated analog output module.
Provides ladder logic examples for all bases and CPUs.
F3–08THM–n
explains the 8 channel Thermocouple input module.
Provides ladder logic examples for all bases and CPUs.
10
Appendices
AB
F3–08TEMP
explains the 8 channel temperature input module. Provides
ladder logic examples for all bases and CPUs.
Additional reference information on the DL305 analog modules is in the following
five appendices:
Reference
Appendices
S
S
A – DL305C Data Types and Memory Map
B – DL350 Data Types and Memory Map
Getting Started
1
Getting Started
1–4
Getting Started
Getting Started
DL305 Analog Components
There are a wide variety of Analog I/O modules available for use with the DL305
family of automation products. These modules are well suited for monitoring and
controlling various types of analog signals such as pressure, temperature, etc.
There are modules specifically designed for thermocouple and temperature input
requirements. No complex programming or module setup software is required.
Simply install the module, add a few lines to your RLL program, and you’re ready!
Read the
input data
Store input
data
Data OUT
Calculate output
values
Write output
values
DL305 Analog I/O
Thermocouple
Input
Temperature Input
Data IN
The following is a list of the types of analog input and analog output modules that are
available.
S D3–04AD — 4 channel input, 8-bit resolution
S F3–04ADS — 4 channel isolated input, 12-bit resolution
S F3–08AD — 8 channel input, 12-bit resolution
S F3–16AD — 16 channel input, 12-bit resolution
S D3–02DA — 2 channel output, 8-bit resolution
S F3–04DA–1 — 4 channel output, 12-bit resolution
S F3–04DAS — 4 channel isolated output, 12-bit resolution
There is also an 8 channel thermocouple input module that converts type E, J, K, R,
S, or T thermocouple signals into direct temperature readings. This module can also
convert other types of low-level (millivolt range) signals into digital values. The part
number for this module is F3–08THM–n, where n is the type of thermocouple. If you
want a millivolt input version, simply replace n with a 1 (0–50 mV) or a 2 (0 – 100mV).
All versions offer 12-bit resolution.
The Temperature Input module provides 8 channels for direct temperature
measurement in either Celsius or Fahrenheit from –55_ to 150_ C. Order part
number F3–08TEMP. This module offers 12-bit resolution.
1–5
Getting Started
Physical Characteristics
ANALOG OUTPUT
F3–04DA–1
Squeeze Tab
C
O
M
+I
CH1
+I
–I
CH2
–I
+I
CH3
+I
–I
CH4
–I
+V
Squeeze Tab
CH1
+V
–V
CH2
–V
+V
CH3
+V
–V
CH4
–V
C
O
M
Getting Started
The DL305 Analog Modules provide many features that make the modules easier to
use. For example, the terminal block can be removed making wiring a simple task.
You can also use our DINnector product line to organize your wiring even further
(see our catalog for details).
Some of the modules provide LEDs used to determine the signal level. Since there
are not enough LEDs to show all of the channels at once, there is a small switch
underneath the terminal cover that allows you to select the channel for monitoring.
Not all of the modules have this feature.
Most of the modules also have jumpers that can be set to select between the various
types of signals. Each chapter will show how to set these jumpers for the selections
you need.
1–6
Getting Started
Getting Started
Selecting the Appropriate Module
The following tables provide a condensed version of the information you need to
select the appropriate module. The most important thing is to simply determine the
number of channels required and the signal ranges that must be supported. Once
you’ve determined these parameters, look in the specific chapter for the selected
module to determine the installation and operation requirements.
Analog Input
Specification
D3–04AD
F3–04ADS
F3–08AD
F3–16AD
Channels
4
4
8
16
Input Ranges
1 – 5V
4 – 20 mA
0 – 5V
1 – 5V
0 – 10V
"5V
"10V
0 – 20mA
4 – 20mA
4 – 20mA
0 – 5V
1 – 5V
0 – 10V
"5V
"10V
0 – 20mA
4 – 20mA1
Resolution
8 bit (1 in 256)
12 bit (1 in 4096)
12 bit (1 in 4096)
12 bit (1 in 4096)
Channel
Isolation
Non-isolated
(one common)
Isolated
Non-isolated
(one common)
Non-isolated
(one common)
Input Type
Differential
Differential
Single ended
Single ended
Maximum
Inaccuracy at
77 °F (25 °C)
1%
"0.3%
0.35%
0.25% voltage
1.25% current
3
4
5
See Chapter . . . 2
1
– resolution is reduced with 4–20 mA signals. You should use the F3–08AD if the primary
application requires 4–20 mA signals.
1–7
Getting Started
Analog Output
D3–02DA
FACTS F3–04DA–1
FACTS F3–04DAS
Channels
2
4
4
Output Ranges
1 – 10VDC
4 – 20 mA
0 – 5V
0 –10V
4 – 12mA
4 – 20mA
Resolution
8 bit (1 in 256)
12 bit (1 in 4096)
0 – 5V
0 – 10V
"5V
"10V
4 – 20mA
12 bit (1 in 4096)
Channel Isolation
Non-isolated
(one common)
Non-isolated
(one common)
Isolated
Output Type
Single ended
Single ended
Differential
Maximum
Inaccuracy at 77 °F
(25 °C)
"0.4%
"0.2% voltage
"0.6% current
"0.8%
See Chapter . . . .
6
7
8
Special Input
Specification
F3–08TEMP
FACTS F4–04DA
Channels
8, Temperature Input
8, Thermocouple Input
Input Ranges
0 – 1mA
AD590 input types
E: –270/1000 _C, –450/1832 _F
J: –210/760 _C, –350/1390 _F
K: –270/1370 _C, –450/2500 _F
R: 0/1768 _C, –32/3214 _F
S: 0/1768 _C, –32/3214 _F
T: –270/400 _C, –450/752 _F
50mV: 0 – 50 mV
100mV: 0–100 mV
Resolution
12 bit (1 in 4096)
12 bit (1 in 4096)
Channel Isolation
Non-isolated
Non-isolated
Input Type
Single ended
Differential
Maximum Inaccuracy at
77 °F (25 °C)
0.25%
0.35%
See Chapter . . . .
10
9
Getting Started
Specification
1–8
Getting Started
Getting Started
Analog Made Easy – Four Simple Steps
Once you’ve selected the appropriate
module, use the chapter that describes the
module and complete the following steps.
STEP 1. Take a minute to review the
detailed specifications to make
sure the module meets your
application requirements.
STEP 2. Set the module switches and/or
jumpers to select:
S number of channels
S the operating ranges
(voltage or current)
Note, some of the modules may
not have switches.
STEP 3. Connect the field wiring to the
module connector.
Read the
input data
STEP 4. Review the module operating
characteristics and write the
control program.
Store input
data
Calculate output
values
Write output
values
1–9
Getting Started
Analog Input Terminology
Input Ranges
The input ranges in voltage and/or current that the module will operate properly
within.
Resolution
The number of binary weighted bits available on the digital side of the module for use
in converting the analog value to a digital value.
Input Type
Specifies if the module accepts single ended, bipolar or differential input signals.
Input Impedance
The input impedance of the module using a voltage or current input signal.
Conversion
Method
The method the module uses to convert the analog signal to a digital value.
Conversion Time
The amount of time required to complete the analog to digital conversion.
Linearity Error and The linearity and accuracy of the digital representation over the entire input range.
Total Tolerance
(Relative Accuracy)
Accuracy vs.
Temperature
The effect of temperature on the accuracy of the module.
LED Display
LED indicators on the module
I/O Points Required The number of I/O points the CPU must dedicate to the module.
External Power
Source
Some modules require a separate 24VDC power source. The 24VDC output supply
at the local or expansion base can be used as long as you do not exceed the current
rating.
Base Power
Required
The amount of base current required by the module. Use this value in your power
budget calculations.
Operating
Temperature
Relative Humidity
The minimum and maximum temperatures the module will operate.
Terminal Type
Indicates whether the terminal type is a removable or non-removable connector or a
terminal.
Weight
The weight of the module.
The minimum and maximum humidity the module will operate.
Getting Started
Channels per
Module
We use several different terms throughout the rest of this manual. You don’t have to
be an expert on analog terms to use the products, but it may help make it easier to
select the appropriate modules if you take a few minutes to review these definitions.
The number of analog channels or points available in the module to connect to field
devices.
1–10
Getting Started
Getting Started
Analog Output Module Terminology
Channels per
Module
The number of analog channels or points available in the module to connect to field
devices.
Output Ranges
The output ranges in voltage and/or current modes the module will operate properly
within.
Resolution
The number of binary weighted bits available on the digital side of the module for use
in converting the digital value to a analog signal.
Output Current
The maximum current the module will drive using a voltage output signal.
Output Impedance
The output impedance of the module using a voltage output signal.
Load Impedance
The minimum and maximum resistance the module can drive using a current output
signal.
Conversion Time
The amount of time required to complete the digital to analog conversion.
Accuracy
The linearity and calibrated accuracy of the digital representation over the entire
output range.
Accuracy vs.
Temperature
The effect of temperature on the accuracy of the module.
LED Display
LED indicators on the module
External Power
Source
Some modules require a separate 24VDC power source. The 24VDC output supply
at the local or expansion base can be used as long as you do not exceed the current
rating.
Base Power
Required
The amount of base current required by the module. Use this value in your power
budget calculations.
Operating
Temperature
The minimum and maximum temperatures the module will operate.
Relative Humidity
The minimum and maximum humidity the module will operate.
Terminal Type
Indicates whether the terminal type is a removable or non-removable connector or a
terminal.
Weight
The weight of the module.
I/O Points Required The number of I/O points the CPU must dedicate to the module.
D3–04AD
4-Channel
Analog Input
In This Chapter. . . .
Ċ Module Specifications
Ċ Setting the Module Jumpers
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
12
2–2
D3–04AD 4-Channel Analog Input
Module Specifications
D3–04AD
4-Channel Analog Input
The following table provides the specifications for the D3–04AD Analog Input
Module. Review these specifications to make sure the module meets your
application requirements.
Analog Input
Configuration
Requirements
Number of Channels
4
Input Ranges
1 – 5V, 4 – 20 mA
Resolution
8 bit (1 in 256)
Channel Isolation
Non-isolated (one common)
Input Type
Differential or Single ended
Input Impedance
1 MW minimum, voltage
250W current
Absolute Maximum Ratings
0 – +10V maximum, voltage
0 – 30 mA maximum, current
Linearity
"0.8% maximum
Accuracy vs. Temperature
"70 ppm / _C maximum
Maximim Inaccuracy
1% maximum at 25_ C
Conversion Method
Sequential comparison
Conversion Time
2 ms maximum
Power Budget Requirement
55 mA @ 9V
External Power Supply
24 VDC, "10%, 65 mA, class 2
Operating Temperature
32° to 140° F (0° to 60_ C)
Storage Temperature
–4° to 158° F (–20° to 70_ C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
Noise Rejection Ratio
Normal mode: –6 dB/250Hz
Common mode: 60dB/60Hz (–5 to 10V)
The D3–04AD Analog Input appears as a 16-point module. The module can be
installed in any slot configured for 16 points. See the DL305 User Manual for details
on using 16 point modules in DL305 systems. The limitation on the number of analog
modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
2–3
D3–04AD 4-Channel Analog Input
Setting the Module Jumpers
Connecting the Field Wiring
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the signal source. Do not
ground the shield at both the module and the source.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The D3–04AD requires a separate power supply. The DL305 bases have built-in 24
VDC power supplies that provide up to 100 mA of current. If you only have one
Requirements
analog module, you can use this power source instead of a separate supply. If you
have more than two analog modules, or you would rather use a separate supply,
choose one that meets the following requirements: 24 VDC "10%, Class 2, 65mA
current (or greater, depending on the number of modules being used.)
D3–04AD
4-Channel Analog Input
There are four jumpers located on the
module that select between 1–5V and
4–20 mA signals. The module is shipped
from the factory for use with 1–5V
signals.
If you want to use 4 – 20 mA signals, you
have to install a jumper. No jumper is
required for 1 – 5V operation. Each
channel range may be selected
independently of the others.
Range
Jumper
1 – 5V
Removed
4 – 20 mA
Installed
2–4
D3–04AD 4-Channel Analog Input
Custom Input
Ranges
Occasionally you may have the need to connect a transmitter with an unusual signal
range. By changing the wiring slightly and adding an external resistor to convert the
current to voltage, you can easily adapt this module to meet the specifications for a
transmitter that does not adhere to one of the standard input ranges. The following
diagram shows how this works.
Internal
Module
Circuitry
Field wiring
D3–04AD
4-Channel Analog Input
+
-
+ch1
50mA
Current
transmitter
(single ended)
+
Jumper
Removed
R
-ch1
250W
-
0V
R=
Vmax
Imax
R = value of external resistor
Vmax = high limit of selected voltage range
Imax = maximum current supplied by the transmitter
Example: current transmitter capable of 50mA, 1 - 5V range selected.
R=
5V
R = 100 ohms
50mA
NOTE: Your choice of resistor can affect the accuracy of the module. A resistor that
has "0.1% tolerance and a "50ppm / _C temperature coefficient is recommended.
2–5
D3–04AD 4-Channel Analog Input
Current Loop
Transmitter
Impedance
Standard 4 to 20 mA transmitters and transducers can operate from a wide variety of
power supplies. Not all transmitters are alike and the manufacturers often specify a
minimum loop or load resistance that must be used with the transmitter.
The D3–04AD provides 250 ohm resistance for each channel. If your transmitter
requires a load resistance below 250 ohms, then you do not have to make any
adjustments. However, if your transmitter requires a load resistance higher than 250
ohms, then you need to add a resistor in series with the module.
Consider the following example for a transmitter being operated from a 36 VDC
supply with a recommended load resistance of 750 ohms. Since the module has a
250 ohm resistor, you need to add an additional resistor.
R 500
R – Resistor to add
Tr – Transmitter Requirement
Mr – Module resistance (internal 250 ohms)
DC Supply
0V
+36V
R
+
–
Two-wire Transmitter
Module Channel 1
–
250W
+
D3–04AD
4-Channel Analog Input
R = Tr – Mr
R = 750 – 250
2–6
D3–04AD 4-Channel Analog Input
Removable
Connector
The D3–04AD module has a removable connector to make wiring easier. Simply
squeeze the tabs on the top and bottom and gently pull the connector from the
module.
Wiring Diagram
Note 1: Terminate all shields of the cable at their respective
signal source.
Internal
Module
Wiring
D3–04AD
4-Channel Analog Input
Note 2: Unused channels should be shorted to 0V or have the
Jumper installed for current input for best noise immunity.
Note 3: When a differential input is not used 0V should be
connected to the – of that channel.
+
See Note 1
+
CH3 Differential
Current Transmitter
+
–
+
OV
–
3
1
–
CH1 Differential
Voltage Transmitter
CH2 SingleĆended
Voltage Transmitter
+
–
+
OV
2
+
–
–
CH4
Not
Used
See Note 2
+
CH1
250
CH2
250
CH3
0
V
0
V
Internally
Connected
-
-
D3–04AD
CH 1
2
3
4
CH
DSPY
SEL
+
–4
+24
V
Analog
Switch
+
250
+
0V
– +
24VDC
ANALOG INPUT
A–D
Convertor
CH4
+24VDC
0V
0V
0V
250
-
Internal
Circuitry
+
1
–
+
2
–
0
V
0
V
+
3
–
+
4
–
0
V
24
V
1
2
3
4
1
2
4
8
16 DSPY
32
64
128
2–7
D3–04AD 4-Channel Analog Input
Module Operation
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The D3–04AD module supplies 1 channel of data per each CPU scan. Since there
are four channels, it can take up to four scans to get data for all channels. Once all
channels have been scanned, the process starts over with channel 1.
You do not have to select all of the channels. Unused channels are not processed, so
if you select only two channels, then each channel will be updated every other scan.
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 2
Scan N+1
Channel 3
Scan N+2
Channel 4
Scan N+3
Channel 1
Scan N+4
Read the data
Store data
Even though the channel updates to the CPU are synchronous with the CPU scan,
the module asynchronously monitors the analog transmitter signal and converts the
signal to a 8-bit binary representation. This enables the module to continuously
provide accurate measurements without slowing down the discrete control logic in
the RLL program.
D3–04AD
4-Channel Analog Input
Scan
2–8
D3–04AD 4-Channel Analog Input
Understanding the You may recall the D3–04AD module appears to the CPU as a 16-point module.
Some of the points are inputs to the CPU and some are outputs to the module. These
I/O Assignments
16 points provide:
S an indication of which channel is active.
S the digital representation of the analog signal.
D3–04AD
4-Channel Analog Input
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
D3–04AD
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
4ch.
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 002, R012
R 000, R010
R 011
MSB
1
1
7
R 001
LSB
MSB
1
1
0
LSB
0
1
0
0
1
7
- not used
Within these two register locations, the individual bits represent specific information
about the analog signal.
All Channel
Scan Output
The most significant point (MSP)
assigned to the module acts as an output
to the module and controls the channel
scanning sequence. This allows
flexibility in your control program.
If this output is on, all channels will be
scanned sequentially. If the output is off,
you can use other points to select a
single channel for scanning.
Scan
Out 117 Channel Input
N
Off
None
N+1
On
1
N+2
On
2
N+3
On
3
N+4
On
4
N+5
On
1
N+6
Off
None
N+7
Off
None
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- scan all channels
2–9
D3–04AD 4-Channel Analog Input
Single Channel
Scan Outputs
The first four points of the upper register
are used as inputs to tell the CPU which
channel
is
being
processed.
(Remember, the previous bits only tell
the module which channels to scan.) In
our example, when input 110 is on the
module is telling the CPU it is processing
channel 1. Here’s how the inputs are
assigned.
Input
Active Channel
110
1
111
2
112
3
113
4
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- scan a single channel
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- channel selection inputs
D3–04AD
4-Channel Analog Input
Active Channel
Selection Inputs
The upper register also contains two
additional outputs that can be used to
choose a single channel for scanning.
These outputs are ignored if the channel
scan output is turned on.
(Note, our example shows outputs 114
and 115. Your output point will depend on
where you have installed the module.)
Out 114 Out 115 Channel
Off
Off
1
On
Off
2
Off
On
3
On
On
4
2–10
D3–04AD 4-Channel Analog Input
D3–04AD
4-Channel Analog Input
Analog Data Bits
The first register contains 8 bits which
represent the analog data in binary
format.
Bit
Value
Bit
Value
0
1
4
16
1
2
5
32
2
4
6
64
3
8
7
128
R001
MSB
LSB
0
1
7
0
1
0
- analog data bits
Since the module has 8-bit resolution, the analog signal is converted into 256
“pieces” ranging from 0 – 255 (28). For example, with a 1 to 5V scale, a 1V signal
would be 0, and a 5V signal would be 255. This is equivalent to a a binary value of
0000 0000 to 1111 1111, or 00 to FF hexadecimal. The following diagram shows how
this relates to each signal range.
1V – 5V
4 – 20mA
+5V
20mA
1V
4mA
0
255
0
255
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that
could possibly result in a change in the
data value for each signal range.
Range
1 to 5V
4 to 20mA
Resolution = (H–L)/255
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
5V
1V
15.6 mV
20mA
4mA
62.7 µA
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
2–11
D3–04AD 4-Channel Analog Input
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
Since all channels are multiplexed into a single data word, the control program must
be setup to determine which channel is being read. Since the module provides input
points to the CPU, it is very easy to use the channel status bits to determine which
channel is being monitored.
D3–04AD
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
4ch.
(Analog)
020
027
–
120
127
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 002, R012
R 000, R010
R 011
MSB
Single Channel on
Every Scan
R 001
LSB
1
1
7
D3–04AD
4-Channel Analog Input
8pt
Relay
1
1
0
MSB
- not used
0
1
7
LSB
0
1
0
The following example shows a program that is designed to read a single channel of
analog data into a Register location on every scan. Once the data is in a Register,
you can perform math on the data, compare the data against preset values, etc. This
example is designed to read channel 1. If you choose another channel, you would
have to add a rung (or rungs) that use the channel select bits to select the channel for
scanning. You would also have to change the rung that stores the data.
Read the data
374
Store channel 1
110
DSTR1
R001
F51
BCD
F86
DOUT
R400
F60
This rung loads the data into the accumulator on
every scan. (You can use any permissive contact.)
The DL305 CPUs perform math operations in
BCD. This instruction converts the binary data to
BCD. (You can omit this step if your application
does not require the conversion.)
The channel selection inputs are used to let the
CPU know which channel has been loaded into the
accumulator. Channel 1 input has been used in the
example, but you could easily use a different input
for a different channel. By using these inputs to
control a DOUT instruction, you can easily move
the data to a storage register. The BCD value will
be stored in R400 and R401. (Two bytes are
required for four digit BCD numbers.)
2–12
D3–04AD 4-Channel Analog Input
Reading Multiple
Channels over
Alternating Scans
The following example shows a program that is designed to read multiple channels
of analog data into Register locations. This example reads one channel per scan.
Once the data is in a Register, you can perform math on the data, compare the data
against preset values, etc.
Scan all channels
374
117
D3–04AD
4-Channel Analog Input
OUT
Read the data
117
Store channel 1
110
Store channel 2
111
Store channel 3
112
Store channel 4
113
DSTR1
R001
F51
BCD
F86
DOUT
R400
F60
DOUT
R402
F60
DOUT
R404
F60
DOUT
R406
F60
Turn on output 117, which instructs the module to
scan all channels.
This rung loads the data into the accumulator. This
rung executes for all channels.
The DL305 performs math operations in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the data in BCD format.)
The channel selection inputs are used to let the
CPU know which channel has been loaded into the
accumulator. By using these inputs to control a
DOUT instruction, you can easily move the data to
a storage register. Notice that the DOUT
instruction stores the data in two bytes. (Two bytes
are required for four digit BCD numbers.)
2–13
D3–04AD 4-Channel Analog Input
Single or Multiple
Channels
The following example shows how you can use the same program to read either all
channels or a single channel of analog data into Register locations. Once the data is
in a Register, you can perform math on the data, compare the data against preset
values, etc.
Select all channels
000
001
117
OUT
000
114
OUT
Single Channel
001
003
000
115
Input 001 selects single channel scan. Inputs 002
and 003 select which channel by turning on
outputs 114 and 115 as necessary.
114
115
Channel
Off
On
Off
On
Off
Off
On
On
Ch. 1
Ch. 2
Ch. 3
Ch. 4
OUT
Read the data
000
001
Store channel 1
110
Store channel 2
111
Store channel 3
112
Store channel 4
113
DSTR1
R001
F51
BCD
F86
DOUT
R400
F60
DOUT
R402
F60
DOUT
R404
F60
DOUT
R406
F60
This rung loads the data into the accumulator. This
rung executes for all channel scan or single
channel scan.
The DL305 performs math operations in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the data in BCD format.)
The channel selection inputs are used to let the
CPU know which channel has been loaded into the
accumulator. By using these inputs to control a
DOUT instruction, you can easily move the data to
a storage register. Notice that the DOUT
instruction stores the data in two bytes. This is
because two bytes are required to store the BCD
number.
D3–04AD
4-Channel Analog Input
Single Channel
001
002
Inputs 000 and 001 are used to select between
single channel scanning and all channel scanning.
These two points were arbitrarily chosen and could
be any permissive contacts. When output 117 is
on, all channels will be scanned.
2–14
D3–04AD 4-Channel Analog Input
The following instructions are required to scale the data. We’ll continue to use the
42.9 PSI example. In this example we’re using channel 1. Input 110 is the active
channel indicator for channel 1. Of course, if you were using a different channel, you
would use the active channel indicator point that corresponds to the channel you
were using.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
D3–04AD
4-Channel Analog Input
110
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
0 1 1 0
0 0 0 0
R577
DIV
K256
F74
The analog value is divided by the resolution of the
module, which is 256. (110 / 256 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is then multiplied by the scaling
factor, which is 100. (100 x 4296 = 429600). Notice
that the most significant digits are now stored in
the auxilliary accumulator. (This is different from
the way the Divide instruction operates.)
9
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K100
R576
Accumulator
6 0 0
Aux. Accumulator
0 0 4 2
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 4 2
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the PSI,
which is 42 PSI.
Accumulator
Store in R451 & R450
0 0 4 2
0 0 4 2
R451
R450
2–15
D3–04AD 4-Channel Analog Input
You probably noticed that the previous example yielded 42 PSI when the real value
should have been 42.9 PSI. By changing the scaling value slightly, we can “imply” an
extra decimal of precision. Notice in the following example we’ve added another digit
to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for the
PSI range.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
110
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
0 1 1 0
0 0 0 0
R577
DIV
K256
F74
The analog value is divided by the resolution of the
module, which is 256. (110 / 256 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is multiplied by the scaling factor,
which is now 1000. (1000 x 4296 = 4296000). The
most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
6
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K1000
R576
Accumulator
0 0 0
Aux. Accumulator
0 4 2 9
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 4 2 9
0 4 2 9
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450.
R450 now contains the PSI, which implies 42.9.
Accumulator
Store in R451 & R450
0 4 2 9
0 4 2 9
R451
R450
D3–04AD
4-Channel Analog Input
DSTR
R400
2–16
D3–04AD 4-Channel Analog Input
This example program shows how you can use the instructions to load the equation
constants into data registers. The example is written for channel 1, but you can
easily use a similar approach to use different scales for all channels if required.
You may just use the appropriate constants in the instructions dedicated for each
channel, but this method allows easier modifications. For example, you could easily
use an operator interface or a programming device to change the constants if they
are stored in Registers.
Load the constants
D3–04AD
4-Channel Analog Input
374
Read the data
374
Store channel 1
110
On the first scan, these first two instructions load
the analog resolution (constant of 256) into R430
and R431.
DSTR
K256
F50
DOUT
R430
F60
DSTR
K1000
F50
DOUT
R432
F60
DSTR1
R001
F51
This rung loads the data into the accumulator on
every scan. (You could use any permissive contact.)
BCD
F86
The DL305 CPUs perform math operations in
BCD. Since we will perform math on the data, the
data must be converted from binary data to BCD.
DIV
R430
F74
The analog value is divided by the resolution of the
module, stored in R430.
DSTR
R576
F50
This instruction moves the decimal portion from the
auxilliary accumulator into the regular accumulator
for further operations.
MUL
R432
F73
The accumulator is multiplied by the scaling factor,
stored in R432.
DSTR
R576
F50
This instruction moves most significant digits (now
stored in the auxilliary accumulator) into the
regular accumulator for further operations.
DOUT
R400
F60
The scaled value is stored in R400 and R401 for
further use.
These two instructions load the high limit of the
Engineering unit scale (constant of 1000) into
R432 and R433. Note, if you have different scales
for each channel, you’ll also have to enter the
Engineering unit high limit for those as well.
2–17
D3–04AD 4-Channel Analog Input
Writing the Control Program (DL350)
Multiplexing:
DL350 with a
Conventional
DL305 Base
The example below shows how to read multiple channels on an D3–04AD Analog
module in the 10–17/110–117 address slot. This module must be placed in a 16 bit
slot in order to work.
Load the data
_On
SP1
X10
This rung loads analog data and converts it to
BCD.
K8
BCD
(
X117
OUT
)
When X117 is On, all channels will be scanned.
Store Channel 1
X110
OUT
This writes channel 1 analog data to V3000 when
bit X110 is on.
V3000
Store Channel 2
X111
OUT
V3001
This writes channel 2 analog data to V3001 when
bit X111 is on.
Store Channel 3
X112
OUT
V3002
This writes channel 3 analog data to V3002 when
bit X112 is on.
Store Channel 4
X113
OUT
V3003
This writes channel 4 analog data to V3003 when
bit X113 is on.
D3–04AD
4-Channel Analog Input
LDF
2–18
D3–04AD 4-Channel Analog Input
Multiplexing:
DL350 with a
D3–xx–1 Base
The example below shows how to read multiple channels on an D3–04AD Analog
module in the X0 address of the base. If any expansion bases are used in the
system, they must all be D3–xx–1 to be able to use this example. Otherwise, the
conventional base addressing must be used.
Load the data
_On
SP1
LDF
X0
This rung loads analog data and converts it to
BCD.
D3–04AD
4-Channel Analog Input
K8
BCD
(
X17
OUT
)
When X17 is On, all channels will be scanned.
Store Channel 1
X10
OUT
This writes channel 1 analog data to V3000 when
bit X10 is on.
V3000
Store Channel 2
X11
OUT
V3001
This writes channel 2 analog data to V3001 when
bit X11 is on.
Store Channel 3
X12
OUT
V3002
This writes channel 3 analog data to V3002 when
bit X12 is on.
Store Channel 4
X13
OUT
V3003
This writes channel 4 analog data to V3003 when
bit X13 is on.
2–19
D3–04AD 4-Channel Analog Input
Scaling the Input
Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
Units = (A/255)*S
Units = value in Engineering Units
A = Analog value (0 – 255)
S = Engineering unit range
Units = (A/255)*S
Units = (110/255)*100
Units = 43
Here is how you would write the program to perform the engineering unit conversion.
This example assumes you have the analog data in BCD format data loaded into
V3000.
NOTE: This example uses SP1, which is always on. You could also use an X, C, etc. permissive contact.
SP1
LD
V3000
When SP1 is on, load channel 1 data to the accumulator.
MUL
K100
Multiply the accumulator by 100 (to start the conversion).
DIV
K255
Divide the accumulator by 255.
OUT
V3010
Store the result in V3010.
D3–04AD
4-Channel Analog Input
The following example shows how you
would use the analog data to represent
pressure (PSI) from 0 to 100. This
example assumes the analog value is
110, which is slightly less than half scale.
This should yield approximately 43 PSI.
2–20
D3–04AD 4-Channel Analog Input
Analog and Digital Sometimes it is helpful to be able to quickly convert between the signal levels and the
Value Conversions digital values. This is especially helpful during machine startup or troubleshooting.
The following table provides formulas to make this conversion easier.
Range
D3–04AD
4-Channel Analog Input
1 to 5V
4 to 20mA
If you know the digital value ...
If you know the analog signal
level ...
A = (4D/255) + 1
D = (255/4)(A–1)
A = (16D/255) + 4
D = (255/16)(A–4)
For example, if you are using the 1 to 5V
range and you have measured the signal
at 3V, you would use the following
formula to determine the digital value
that should be stored in the register
location that contains the data.
D = (255/4)(A–1)
D = (255/4)(3V–1)
D = (63.75) (2)
D = 127.5 (or 128)
F3–04ADS
4-Channel Isolated
Analog Input
In This Chapter. . . .
Ċ Module Specifications
Ċ Setting the Module Jumpers
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
13
3–2
F3–04ADS 4-Channel Isolated Analog Input
Module Specifications
F3–04ADS
4-Ch. Isolated Analog In.
The following table provides the specifications for the F3–04ADS Analog Input
Module. Make sure the module meets your application requirements.
Analog Input
Configuration
Requirements
Number of Channels
4, isolated
Input Ranges
0 – 5V, 0 – 10V, 1 – 5V, "5V, "10V,
0 – 20 mA, 4 – 20 mA
Resolution
12 bit (1 in 4096)
Input Type
Differential
Max. Common mode voltage
"750V peak continuous transformer isolation
Noise Rejection Ratio
Common mode: –100 dB at 60Hz
Active Low-pass Filtering
–3 dB at 10Hz, –12 dB per octave
Input Impedance
250W "0.1%, 1/2W current input
200KW voltage input
Absolute Maximum Ratings
"40 mA, current input "100V, voltage input
Conversion Time
1 channel per scan, successive
approximation, AD574
Linearity Error
"1 count (0.03% of full scale) maximum
Full Scale Calibration Error
"9 counts maximum
Offset Calibration Error
"4 counts maximum, bipolar ranges
"2 counts maximum, unipolar ranges
Accuracy vs. Temperature
57 ppm / _C maximum full scale
Recommended Fuse
0.032 A, Series 217 fast-acting, current inputs
Power Budget Requirement
183 mA @ 9 VDC, 50 mA @ 24 VDC
External Power Supply
None required
Operating Temperature
32° to 140° F (0° to 60_ C)
Storage Temperature
–4° to 158° F (–20° to 70_ C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
The F3–04ADS Analog Input appears as a 16-point module. The module can be
installed in any slot configured for 16 points. See the DL305 User Manual for details
on using 16 point modules in DL305 systems. The limitation on the number of analog
modules are:
S
The module should not be placed in the last slot of a rack (due to size
constraints.)
S
For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
3–3
F3–04ADS 4-Channel Isolated Analog Input
Setting the Module Jumpers
Jumper Locations
The module is set at the factory for a 4–20 mA signal on all four channels. If this is
acceptable you do not have to change any of the jumpers. The following diagram
shows how the jumpers are set.
Channel 1
Channel 2
Channel 3
J10
Pin 1
J11
J12
Channel 4
Selecting the
Number of
Channels
F3–04ADS
4-Ch. Isolated Analog In.
UNIPOLAR
J13
BIPOLAR
If you examine the rear of the module, you’ll
notice several jumpers. The jumpers labeled +1
and +2 (located on the larger board, near the
terminal block) are used to select the number of
channels that will be used.
Without any jumpers the module processes one
channel. By installing the jumpers you can add
channels. The module is set from the factory for
four channel operation.
For example, if you install the +1 jumper, you
add one channel for a total of two. Now if you
install the +2 jumper you add two more channels
for a total of four.
Any unused channels are not processed so if
you only select channels 1, 2, and 3, channel 4
will not be active. The table shows which
jumpers to install.
+1
+2
Jumpers installed as shown
selects 4Ćchannel operation
Channel
1
1, 2,
1, 2, 3
1, 2, 3, 4
+1
No
Yes
No
Yes
+2
No
No
Yes
Yes
3–4
F3–04ADS 4-Channel Isolated Analog Input
Selecting Input
Signal Ranges
As you examin the jumper settings, notice there are jumpers for each individual
channel. These jumpers allow you to select the type of signal (voltage or current) and
the range of the signal. The following tables show the jumper selections for the
various ranges. Only channel 1 is used in the example, but all channels must be set.
NOTE: The Polarity jumper selects Unipolar or Bipolar operation for all channels.
Bipolar Signal Range
–5 VDC to +5 VDC
(–20 to +20 mA)
–10 VDC to +10 VDC
Jumper Settings
Polarity
Uni Bi
Channel 1 Ranges
Current Jumper
J10
Polarity
Uni Bi
1
Channel 1 Ranges
Current Jumper
F3–04ADS
4-Ch. Isolated Analog In.
J10
1
Unipolar Signal Range
4 to 20 mA
(1 VDC to 5 VDC, remove the current jumper)
Jumper Settings
Polarity
Uni Bi
Channel 1 Ranges
Current Jumper
J10
1
0 VDC to +5 VDC
(0 to +20 mA, install the current
jumper)
Polarity
Uni Bi
Channel 1 Ranges
Current Jumper
J10
1
0 VDC to +10 VDC
Polarity
Uni Bi
Channel 1 Ranges
Current Jumper
J10
1
3–5
F3–04ADS 4-Channel Isolated Analog Input
Connecting the Field Wiring
Wiring Guidelines
S
Use the shortest wiring route whenever possible.
S
Use shielded wiring and ground the shield at the signal source. Do not
ground the shield at both the module and the source.
S
Do not run the signal wiring next to large motors, high current switches,
or transformers. This may cause noise problems.
S
Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
The F3–04ADS receives all power from the base. A separate power supply is not
required.
Occasionally you may have the need to connect a transmitter with an unusual signal
range. By changing the wiring slightly and adding an external resistor to convert the
current to voltage, you can easily adapt this module to meet the specifications for a
transmitter which does not adhere to one of the standard input ranges. The following
diagram shows how this works.
Internal
Module
Circuitry
+CH1
+
-
R=
50mA
Current
Transmitter
+
Jumper
Removed
R
250W
-CH1
-
Vmax
Imax
R = value of external resistor
Vmax = high limit of selected voltage range
Imax = maximum current supplied by the transmitter
Example: current transmitter capable of 50mA, 0 - 10V range selected.
R=
10V
R = 200 ohms
50mA
NOTE: Your choice of resistor can affect the accuracy of the module. A resistor with
a "0.1% tolerance and a "50ppm / _C temperature coefficient is recommended.
F3–04ADS
4-Ch. Isolated Analog In.
User Power Supply
Requirements
Custom Input
Ranges
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
3–6
F3–04ADS 4-Channel Isolated Analog Input
Current Loop
Transmitter
Impedance
Standard 4 to 20 mA transmitters and transducers can operate from a wide variety of
power supplies. Not all transmitters are alike and the manufacturers often specify a
minimum loop or load resistance that must be used with the transmitter.
The F3–04ADS provides 250 ohm resistance for each channel. If your transmitter
requires a load resistance below 250 ohms, then you do not have to make any
adjustments. However, if your transmitter requires a load resistance higher than 250
ohms, then you need to add a resistor in series with the module.
Consider the following example for a transmitter being operated from a 36 VDC
supply with a recommended load resistance of 750 ohms. Since the module has a
250 ohm resistor, you need to add an additional resistor.
R + Tr * Mr
R + 750 * 250
R w 500
R – Resistor to add
Tr – Transmitter Requirement
Mr – Module resistance (internal 250 ohms)
F3–04ADS
4-Ch. Isolated Analog In.
DC Supply
0V
+36V
R
+
–
Two-wire Transmitter
Module Channel 1
–
250W
+
3–7
F3–04ADS 4-Channel Isolated Analog Input
Removable
Connector
The F3–04ADS module has a removable connector to make wiring easier. Simply
squeeze the top and bottom tabs and gently pull the connector from the module.
Wiring Diagram
Note 1: Connect unused voltage or current inputs to 0VDC
at terminal block or leave current jumper installed
(see Channel 3).
Note 2: A Series 217, 0.032A, Fast-acting fuse is
recommended for 4–20mA current loops.
Note 3: Transmitters may be 2, 3, or 4 wire type.
Note 4: Transmitters may be powered from separate
power sources.
ANALOG INPUT
F3–04ADS
Note 5: Terminate all shields of the cable at their respective
signal source.
Internal Module Wiring
250 J10
-
to
Analog
Circuitry
250 J11
CH3
Not Used
to
Analog
Circuitry
+
2
–
+
3
–
+
250 J13
-
CH3
Jumper
Installed
+
4
–
+
250 J14
Installed
CH4 Jumper
to
Analog
Circuitry
-
to
Analog
Circuitry
F3–04ADS
4-Ch. Isolated Analog In.
+
CH2
+
Voltage
Transmitter –
CH4
+
4-20mA
Current
–
Transmitter
+
1
–
+
See Notes
CH1
+
Voltage
Transmitter
–
3–8
F3–04ADS 4-Channel Isolated Analog Input
Module Operation
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The F3–04ADS module supplies1 channel of data per each CPU scan. Since there
are four channels, it can take up to four scans to get data for all channels. Once all
channels have been scanned the process starts over with channel 1.
You do not have to select all of the channels. Unused channels are not processed, so
if you select only two channels, then each channel will be updated every other scan.
F3–04ADS
4-Ch. Isolated Analog In.
Scan
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 2
Scan N+1
Channel 3
Scan N+2
Channel 4
Scan N+3
Channel 1
Scan N+4
Read the data
Store data
Even though the channel updates to the CPU are synchronous with the CPU scan,
the module asynchronously monitors the analog transmitter signal and converts the
signal to a 12-bit binary representation. This enables the module to continuously
provide accurate measurements without slowing down the discrete control logic in
the RLL program.
3–9
F3–04ADS 4-Channel Isolated Analog Input
Understanding the You may recall the F3–04ADS module appears to the CPU as a 16-point module.
These 16 points provide:
I/O Assignments
S an indication of which channel is active.
S the digital representation of the analog signal.
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
F3–04ADS
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
4ch.
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 002, R012
R 000, R010
MSB
1
1
7
R 001
LSB
MSB
1
1
0
LSB
0
1
0
0
1
7
Within these two register locations, the individual bits represent specific information
about the analog signal.
Active Channel
Selection Inputs
The last four points of the upper register
are used as inputs to tell the CPU which
channel is being processed. In our
example, when input 114 is on the
module is telling the CPU it is processing
channel 1. Here’s how the inputs are
assigned.
Input
Active Channel
114
1
115
2
116
3
117
4
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- channel selection inputs
F3–04ADS
4-Ch. Isolated Analog In.
R 011
3–10
F3–04ADS 4-Channel Isolated Analog Input
Analog Data Bits
The remaining twelve bits represent the
analog data in binary format.
Bit
Value
Bit
Value
0 (LSB)
1
6
64
1
2
7
128
2
4
8
256
3
8
9
512
4
16
10
1024
5
32
11
2048
R011
R001
MSB
LSB
1 1 1 1 11 1 1
1 1 1 1 11 1 1
7 6 5 4 32 1 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- data bits
Since the module has 12-bit resolution, the analog signal is converted into 4096
“pieces” ranging from 0 – 4095 (212). For example, with a 0 to 10V scale, a 0V signal
would be 0, and a 10V signal would be 4095. This is equivalent to a a binary value of
0000 0000 0000 to 1111 1111 1111, or 000 to FFF hexadecimal. The following
diagram shows how this relates to each signal range.
–10V – +10V
–5V – +5V
F3–04ADS
4-Ch. Isolated Analog In.
+V
0V – 10V
0V – 5V
+V
1V – 5V
4 – 20mA
+5V
20mA
1V
4mA
0V
-V
0V
0
4095
0
4095
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
result in a change in the data value for
each signal range.
Range
0
4095
0
4095
Resolution + H * L
4095
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
–10 to +10V
+10V
–10V
4.88 mV
–5 to +5V
+5 V
–5V
2.44 mV
0 to 5V
5V
0V
1.22 mV
0 to 10V
10 V
0V
2.44 mV
1 to 5V
5V
1V
0.98 mV
20mA
4mA
3.91 mA
4 to 20mA
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
3–11
F3–04ADS 4-Channel Isolated Analog Input
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
Since all channels are multiplexed into a single data word, the control program must
be setup to determine which channel is being read. Since the module provides input
points to the CPU, it is very easy to use the active channel status bits to determine
which channel is being monitored.
F3–04ADS
8pt
Relay
8pt
Output
8pt
Output
16pt
Input
050
–
057
040
–
047
030
–
037
020
027
–
120
127
R 002, R012
4ch.
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
1
1
7
Single Channel on
Every Scan
R 001
LSB
1
1
0
MSB
0
1
7
LSB
0
1
0
The following example shows a program that is designed to read a single channel of
analog data into a Register location on every scan. Once the data is in a Register,
you can perform math on the data, compare the data against preset values, etc. This
example is designed to read channel 1. Since you use jumpers to select the number
of channels to scan, this is the only channel that you can use in this manner.
Read the data
374
Store channel 1
114
DSTR1
R001
F51
BCD
F86
DOUT
R400
F60
This rung loads the data into the accumulator on
every scan. (You can use any permissive contact.)
The DL305 CPUs perform math operations in
BCD. This instruction converts the binary data to
BCD. (You can omit this step if your application
does not require the conversion.)
The active channel inputs are used to let the CPU
know which channel has been loaded into the
accumulator. (Since you cannot isolate the
individual channels for scanning, channel 1 is the
only channel that can be used in this manner.) By
using the input to control a DOUT instruction, you
can easily move the data to a storage register. The
BCD value will be stored in R400 and R401. (Two
bytes are required for four digit BCD numbers.)
F3–04ADS
4-Ch. Isolated Analog In.
R 011
MSB
3–12
F3–04ADS 4-Channel Isolated Analog Input
Reading Multiple
Channels over
Alternating Scans
The following example shows a program designed to read any of the available
channels of analog data into Register locations. Once the data is in a Register, you
can perform math on the data, compare the data against preset values, etc. Since
the DL305 CPUs use 8-bit word instructions, you have to move the data in pieces. It’s
simple if you follow the example.
F3–04ADS
4-Ch. Isolated Analog In.
Read the data
374
Store channel 1
114
Store channel 2
115
Store channel 3
116
Store channel 4
117
DSTR3
R011
F53
This rung loads the four most significant data bits
into the accumulator from Register 011. (A normally
closed 374 means it is loaded on every scan.)
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight least significant data bits
into the accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
DOUT
R400
F60
DOUT
R402
F60
DOUT
R404
F60
DOUT
R406
F60
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the conversion.)
The channel selection inputs are used to let the
CPU know which channel has been loaded into the
accumulator. By using these inputs to control a
DOUT instruction, you can easily move the data to
a storage register. Notice the DOUT instruction
stores the data in two bytes. (Two bytes are
required for four digit BCD numbers.)
3–13
F3–04ADS 4-Channel Isolated Analog Input
Scaling the
Input Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
The following example shows how you
would use the analog data to represent
pressure (PSI) from 0 to 100. This
example assumes the analog value is
1760. This should yield approximately
42.9 PSI.
Units +
A S
4096
Units = value in Engineering Units
A = Analog value (0 – 4095)
S = high limit of the Engineering
unit range
Units +
A S
4096
Units + 1760 100
4096
F3–04ADS
4-Ch. Isolated Analog In.
Units + 42.9
3–14
F3–04ADS 4-Channel Isolated Analog Input
The following instructions are required to scale the data. We’ll continue to use the
42.9 PSI example. In this example we’re using channel 1. Input 114 is the active
channel indicator for channel 1. Of course, if you were using a different channel, you
would use the active channel indicator point that corresponds to the channel you
were using.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
114
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
F3–04ADS
4-Ch. Isolated Analog In.
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is then multiplied by the scaling
factor, which is 100. (100 x 4296 = 429600). Notice
the most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
9
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K100
R576
Accumulator
6 0 0
Aux. Accumulator
0 0 4 2
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 4 2
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450.
R450 now contains the PSI, which is 42 PSI.
Accumulator
Store in R451 & R450
0 0 4 2
0 0 4 2
R451
R450
3–15
F3–04ADS 4-Channel Isolated Analog Input
You probably noticed the previous example yielded 42 PSI when the real value
should have been 42.9 PSI. By changing the scaling value slightly, we can “imply” an
extra decimal of precision. Notice in the following example we’ve added another digit
to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for the
PSI range.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is multiplied by the scaling factor,
which is now 1000. (1000 x 4296 = 4296000). The
most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
6
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K1000
R576
Accumulator
0 0 0
Aux. Accumulator
0 4 2 9
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 4 2 9
0 4 2 9
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the PSI,
which implies 42.9.
Accumulator
Store in R451 & R450
0 4 2 9
0 4 2 9
R451
R450
F3–04ADS
4-Ch. Isolated Analog In.
114
3–16
F3–04ADS 4-Channel Isolated Analog Input
This example program shows how you can use the instructions to load these
equation constants into data registers. The example is written for channel 1, but you
can easily use a similar approach to use different scales for all channels if required.
You may just use the appropriate constants in the instructions dedicated for each
channel, but this method allows easier modifications. For example, you could easily
use an operator interface or a programming device to change the constants if they
are stored in Registers.
Load the constants
374
F3–04ADS
4-Ch. Isolated Analog In.
Read the data
374
Store channel 1
114
On the first scan, these first two instructions load
the analog resolution (constant of 4096) into R430
and R431.
DSTR
K4096
F50
DOUT
R430
F60
DSTR
K1000
F50
DOUT
R432
F60
DSTR3
R011
F53
This rung loads the four most significant data bits
into the accumulator from Register 011.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DIV
R430
F74
The analog value is divided by the resolution of the
module, which is stored in R430.
DSTR
R576
F50
This instruction moves the decimal portion from the
auxilliary accumulator into the regular accumulator
for further operations.
MUL
R432
F73
The accumulator is multiplied by the scaling factor,
which is stored in R432.
DSTR
R576
F50
This instruction moves most significant digits (now
stored in the auxilliary accumulator) into the
regular accumulator for further operations.
DOUT
R400
F60
The scaled value is stored in R400 and R401 for
further use.
These two instructions load the high limit of the
Engineering unit scale (constant of 1000) into
R432 and R433. Note, if you have different scales
for each channel, you’ll also have to enter the
Engineering unit high limit for those as well.
3–17
F3–04ADS 4-Channel Isolated Analog Input
Writing the Control Program (DL350)
Reading Values:
Pointer Method
and Multiplexing
There are two methods of reading values for the DL350:
S The pointer method (all system bases must be D3–xx–1 bases to
support the pointer method)
S Multiplexing
You must use the multiplexing method with remote I/O modules (the pointer method
will not work). You can use either method when using DL350, but for ease of
programming it is strongly recommended that you use the pointer method.
NOTE: Do not use the pointer method and the PID PV auto transfer from I/O module
function together for the same module. If using PID loops, use the pointer method
and ladder logic code to map the analog input data into the PID loop table.
Pointer Method
SP0
LD
K 04 00
- or -
LD
K 84 00
Loads a constant that specifies the number of channels to scan and
the data format. The upper byte, most significant nibble (MSN)
selects the data format (i.e. 0=BCD, 8=Binary), the LSN selects
the number of channels (i.e. 1, 2, 3, 4).
The binary format is used for displaying data on some operator
interfaces.
OUT
V7662
LDA
O2000
OUT
V7672
Special V-memory location assigned to slot 2 that contains the
number of channels to scan.
This loads an octal value for the first V-memory location that will be
used to store the incoming data. For example, the O2000 entered
here would designate the following addresses.
Ch1 - V2000, Ch2 - V2001, Ch3 - V2002, Ch 4 - V2003
The octal address (O2000) is stored here. V7672 is assigned to slot
2 and acts as a pointer, which means the CPU will use the octal
value in this location to determine exactly where to store the
incoming data.
F3–04ADS
4-Ch. Isolated Analog In.
The DL350 has special V-memory locations assigned to each base slot that greatly
simplifies the programming requirements. These V-memory locations allow you to:
S specify the data format
S specify the number of channels to scan
S specify the storage locations
The example program shows how to setup these locations. Place this rung
anywhere in the ladder program or in the Initial Stage if you are using RLL PLUS
instructions. This is all that is required to read the data into V-memory locations.
Once the data is in V-memory, you can perform math on the data, compare the data
against preset values, and so forth. V2000 is used in the example, but you can use
any user V-memory location. In this example the module is installed in slot 2. You
should use the V-memory locations for your module placement.
3–18
F3–04ADS 4-Channel Isolated Analog Input
The table shows the special V-memory locations used with the DL350. Slot 0 (zero)
is the module next to the CPU, slot 1 is the module two places from the CPU, and so
on. Remember, the CPU only examines the pointer values at these locations after a
mode transition. The pointer method is supported on expansion bases up to a total of
8 slots away from the DL350 CPU. The pointer method is not supported in slot 8 of a
10 slot base.
Analog Input Module Slot-Dependent V-memory Locations
Slot
F3–04ADS
4-Ch. Isolated Analog In.
Multiplexing:
DL350 with a
D3–xx–1 Base
0
1
2
3
4
5
6
7
No. of Channels
V7660 V7661 V7662
V7663 V7664
V7665 V7666
V7667
Storage Pointer
V7670 V7671 V7672
V7673 V7674
V7675 V7676
V7677
The example below shows how to read multiple channels on a F3–04ADS Analog
module in the X20 adddress position of the D3–XX–1 base. If any expansion bases
are used in the system, they must all be D3–xx–1 to be able to use this example.
Otherwise, the conventional base addressing must be used.
Load the data
_On
SP1
LDF
X20
K12
This rung loads the first twelve bits of data from
X20 and then converts it to BCD format.
BCD
Channel 1 Select Bit
X34
OUT
This writes channel one analog data to V3000
when X34 (channel select 1) is on.
V3000
Channel 2 Select Bit
X35
OUT
V3001
Channel 3 Select Bit
X36
OUT
V3002
Channel 4 Select Bit
X37
OUT
V3003
This writes channel two analog data to V3001
when X35 (channel select 2) is on.
This writes channel three analog data to V3002
when X36 (channel select 3) is on.
This writes channel four analog data to V3003
when X37 (channel select 4) is on.
3–19
F3–04ADS 4-Channel Isolated Analog Input
Multiplexing:
DL350 with a
Conventional
DL305 Base
The example below shows how to read multiple channels on an F3–04ADS Analog
module in the 20–27/120–127 address slot. This module must be placed in a 16 bit
slot in order to work.
Load the data
_On
SP1
LDF
X120
SHFL
ORF
K8
This rung loads the upper byte of analog data from
the module.
K8
SHFL K8 shifts the data to the left eight places to
make room for the lower byte of data.
X20
K8
ANDD
Kfff
The ORF X20 brings the lower byte of data from
the module into the accumulator. At this time there
is a full word of data from the analog module in the
accumulator.
The ANDD Kfff masks off the twelve least
significant bits of data from the word. This is the
actual analog value.
BCD
The BCD command converts the data to BCD
format.
OUT
This writes channel 1 analog data to V3000 when
the Channel 1 Select Bit (X124) is on.
Channel 1 Select Bit
V3000
Channel 2 Select Bit
X125
OUT
This writes channel 2 analog data to V3001 when
the Channel 2 Select Bit (X125) is on.
V3001
Channel 3 Select Bit
X126
OUT
This writes channel 3 analog data to V3002 when
the Channel 3 Select Bit (X126) is on.
V3002
Channel 4 Select Bit
X127
OUT
V3003
This writes channel 4 analog data to V3003 when
the Channel 4 Select Bit (X127) is on.
F3–04ADS
4-Ch. Isolated Analog In.
X124
3–20
F3–04ADS 4-Channel Isolated Analog Input
Scaling the
Input Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
Units + A H * L
4095
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
A = Analog value (0 – 4095)
For example, if you wanted to measure pressure (PSI) from 0.0 to 99.9 then you
would have to multiply the analog value by 10 in order to imply a decimal place when
you view the value with the programming software or a handheld programmer.
Notice how the calculations differ when you use the multiplier.
Here is how you would write the program to perform the engineering unit conversion.
This example assumes you have BCD data loaded into the appropriate V-memory
locations using instructions that apply for the model of CPU you are using.
F3–04ADS
4-Ch. Isolated Analog In.
NOTE: This example uses SP1, which is always on. You could also use an X, C, etc. permissive contact.
SP1
LD
V3000
When SP1 is on, load channel 1 data to the accumulator.
MUL
K1000
Multiply the accumulator by 1000 (to start the conversion).
DIV
K4095
Divide the accumulator by 4095.
OUT
V3010
Store the result in V3010.
3–21
F3–04ADS 4-Channel Isolated Analog Input
Analog and Digital Sometimes it is helpful to be able to quickly convert between the signal levels and the
Value Conversions digital values. This is especially helpful during machine startup or troubleshooting.
The following table provides formulas to make this conversion easier.
Range
If you know the digital value ...
If you know the analog signal
level ...
–10V to + 10V
A + 20D * 10
4095
D + 4095 (A ) 10)
20
–5V to + 5V
A + 10D * 5
4095
D + 4095 (A ) 5)
10
0 to 5V
A + 5D
4095
D + 4095 A
5
0 to 10V
A + 10D
4095
D + 4095 A
10
1 to 5V
A + 4D ) 1
4095
D + 4095 (A * 1)
4
4 to 20mA
A + 16D ) 4
4095
D + 4095 (A * 4)
16
D + 4095 (A ) 10)
20
D + 4095 (6V ) 10)
20
D + (204.75) (16)
D + 3276
F3–04ADS
4-Ch. Isolated Analog In.
For example, if you are using the –10 to
+10V range and you have measured the
signal at 6V, you would use the following
formula to determine the digital value
that should be stored in the register
location that contains the data.
F3–08AD–1
8-Channel
Analog Input
In This Chapter. . . .
Ċ Module Specifications
Ċ Setting the Module Jumpers
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
14
4–2
F3–08AD–1 8-Channel Analog Input
Module Specifications
F3–08AD–1
8-Channel Analog Input
The following table provides the specifications for the F3–08AD Analog Input
Module from FACTS Engineering. Review these specifications to make sure the
module meets your application requirements.
Analog Input
Configuration
Requirements
Number of Channels
8, single ended (one common)
Input Ranges
4 – 20 mA
Resolution
12 bit (1 in 4096)
Input Impedance
250W "0.1%, 1/2W current input
Absolute Maximum Ratings
"30mA
Conversion Time
Converter Type
35ms per channel
1 channel per CPU scan
Successive Approximation, AD574
Linearity Error
"1 count (0.03% of full scale) maximum
Maximum Inaccuracy
0.35% of full scale at 77 °F (25 °C)
Accuracy vs. Temperature
Recommended Fuse
57 ppm / _C maximum full scale (including
maximum offset change of 2 counts)
0.032 A, Series 217 fast-acting
Power Budget Requirement
25 mA @ 9 VDC, 37 mA @ 24 VDC
External Power Supply
None required
Operating Temperature
32° to 140° F (0° to 60_ C)
Storage Temperature
–4° to 158° F (–20° to 70_ C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
The F3–08AD Analog Input appears as a 16-point module. The module can be
installed in any slot configured for 16 points. See the DL305 User Manual for details
on using 16 point modules in DL305 systems. The limitation on the number of analog
modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
4–3
F3–08AD–1 8-Channel Analog Input
Setting the Module Jumpers
Jumper Locations
The module is set at the factory for a 4–20 mA signal on all eight channels. If this is
acceptable you do not have to change any of the jumpers. The following diagram
shows how the jumpers are set.
Channels
+4
+2
+1
Selecting the
Number of
Channels
+4 +2 +1
Number of
Channels
Jumpers installed as shown
selects 8-channel operation
F3–08AD–1
8-Channel Analog Input
If you examine the rear of the module,
you’ll notice several jumpers. The
jumpers labeled +1, +2 and +4 are used
to select the number of channels that will
be used. Without any jumpers the
module processes one channel (channel
1). By installing the jumpers you can add
channels. The module is set from the
factory for eight channel operation.
For example, if you install the +1 jumper,
you add one channel for a total of two.
Now if you install the +2 jumper you add
two more channels for a total of four.
Any unused channels are not processed
so if you only select channels 1–4, then
the last four channels will not be active.
The following table shows which jumpers
to install.
Channel(s) +4
+2
+1
1
No
No
No
12
No
No
Yes
123
No
Yes
No
1234
No
Yes
Yes
12345
Yes
No
No
123456
Yes
No
Yes
1234567
Yes
Yes
No
1 2 3 4 5 6 7 8 Yes
Yes
Yes
4–4
F3–08AD–1 8-Channel Analog Input
Connecting the Field Wiring
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the signal source. Do not
ground the shield at both the module and the source.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The F3–08AD receives all power from the base. A separate power supply is not
required.
Requirements
F3–08AD–1
8-Channel Analog Input
Current Loop
Transmitter
Impedance
Standard 4 to 20 mA transmitters and transducers can operate from a wide variety of
power supplies. Not all transmitters are alike and the manufacturers often specify a
minimum loop or load resistance that must be used with the transmitter.
The F3–08AD provides 250 ohm resistance for each channel. If your transmitter
requires a load resistance below 250 ohms, then you do not have to make any
adjustments. However, if your transmitter requires a load resistance higher than 250
ohms, then you need to add a resistor in series with the module.
Consider the following example for a transmitter being operated from a 36 VDC
supply with a recommended load resistance of 750 ohms. Since the module has a
250 ohm resistor, you need to add an additional resistor.
R + Tr * Mr
R + 750 * 250
R w 500
R – Resistor to add
Tr – Transmitter Requirement
Mr – Module resistance (internal 250 ohms)
DC Supply
0V
+36V
R
+
–
Two-wire Transmitter
Module Channel 1
–
250W
+
4–5
F3–08AD–1 8-Channel Analog Input
Removable
Connector
The F3–08AD module has a removable connector to make wiring easier. Simply
squeeze the top and bottom tabs and gently pull the connector from the module.
Wiring Diagram
Note 1: Terminate all shields at their respective signal source
Note 2: To avoid “ground loop” errors, the following transmitter
types are recommended:
2 & 3 wire: Isolation between input signal & P/S
4 wire: Full isolation between input signal, P/S and
output signal.
ANALOG INPUT
F3–08AD
Internal Module Wiring
+
-
4 wire 4-20mA
Transmitter P/S
A/D
4–20mA
C
O
M
See note
+
1
COM
4 wire
4-20mA
4 wire
4-20mA
4 wire
4-20mA
4 wire
4-20mA
2 wire
4-20mA
2 wire
4-20mA
3 wire
4-20mA
+
1+
2+
2+
1–
1–
2–
2–
3+
3+
4+
4+
3–
3–
4–
4–
5+
5+
6+
6+
5–
5–
6–
6–
7+
7+
8+
8+
7–
7–
8–
8–
COM
COM
External P/S
for 4-20mA
Transmitters
(Switching Type DC P/S not recommended)
–
250
–
250
+
3
–
250
250
Analog
Switch
+
4
–
+
5
–
250
+
2
250
+
6
–
+
250
7
+
–
8
250
C
O
M
–
F3–08AD–1
8-Channel Analog Input
3 wire
4-20mA
1+
4–6
F3–08AD–1 8-Channel Analog Input
Module Operation
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The F3–08AD module supplies1 channel of data per each CPU scan. Since there
are eight channels, it can take up to eight scans to get data for all channels. Once all
channels have been scanned the process starts over with channel 1.
You do not have to select all of the channels. Unused channels are not processed, so
if you select only four channels, then the channels will be updated within four scans.
Scan
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 2
Scan N+1
Channel 8
Scan N+7
Channel 1
Scan N+8
F3–08AD–1
8-Channel Analog Input
.
.
.
Read the data
.
.
.
Store data
Even though the channel updates to the CPU are synchronous with the CPU scan,
the module asynchronously monitors the analog transmitter signal and converts the
signal to a 12-bit binary representation. This enables the module to continuously
provide accurate measurements without slowing down the discrete control logic in
the RLL program.
4–7
F3–08AD–1 8-Channel Analog Input
Understanding the You may recall the F3–08AD module appears to the CPU as a 16-point module.
These 16 points provide:
I/O Assignments
S an indication of which channel is active.
S the digital representation of the analog signal.
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
F3–08AD
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
8ch
(Analog)
020
027
–
120
127
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 002, R012
R 000, R010
R 011
MSB
1
1
7
- not used
R 001
LSB
MSB
1
1
0
LSB
0
1
0
0
1
7
Active Channel
Indication Inputs
The next to last three bits of the upper
Register indicate the active channel. The
indicators automatically increment with
each CPU scan.
Scan Channel Inputs Active Channel
N
000
1
N+1
001
2
N+2
010
3
N+3
011
4
N+4
100
5
N+5
101
6
N+6
110
7
N+7
111
8
N+8
000
1
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- channel indicator inputs
F3–08AD–1
8-Channel Analog Input
Within these two register locations, the individual bits represent specific information
about the analog signal.
4–8
F3–08AD–1 8-Channel Analog Input
Analog Data Bits
The remaining twelve bits represent the
analog data in binary format.
Bit
Value
Bit
Value
0 (LSB)
1
6
64
1
2
7
128
2
4
8
256
3
8
9
512
4
16
10
1024
5
32
11
2048
Since the module has 12-bit resolution,
the analog signal is converted into 4096
“pieces” ranging from 0 – 4095 (212). For
example, with a 4 – 20 mA scale, a 4 mA
signal would be 0, and a 20 mA signal
would be 4095. This is equivalent to a
binary value of 0000 0000 0000 to
1111 1111 1111, or 000 to FFF
hexadecimal. The following diagram
shows how this relates to each signal
range.
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
result in a change in the data value for
each signal range.
F3–08AD–1
8-Channel Analog Input
Range
4 to 20mA
R011
MSB
R001
LSB
1 1 1 1 11 1 1
1 1 1 1 11 1 1
7 6 5 4 32 1 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- data bits
4 – 20mA
20mA
4mA
0
4095
Resolution + H * L
4095
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
20mA
4mA
3.91 mA
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
4–9
F3–08AD–1 8-Channel Analog Input
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
Since all channels are multiplexed into a single data word, the control program must
be setup to determine which channel is being read. Since the module provides input
points to the CPU, it is very easy to use the active channel status bits to determine
which channel is being monitored.
F3–08AD
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
R 002, R012
8ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1
1
7
1
1
0
- not used
Single Channel on
Every Scan
R 001
LSB
MSB
0
1
7
LSB
0
1
0
374
DSTR1
R001
F51
DOUT1
R400
F61
DSTR1
R011
F51
DOUT1
R401
F61
DSTR
R400
F50
BCD
DOUT
R400
F86
F60
This rung loads the data into the accumulator on
every scan. (You can use any permissive contact.)
Since the active channel indicators are all off when
channel 1 is being read, you would not have to use
them. (Since you cannot isolate the individual
channels for scanning, channel 1 is the only
channel that can be used in this manner.) The
DOUT1 instruction moves the data to a storage
register. The BCD value will be stored in R400 and
R401. (Two bytes are required for four digit BCD
numbers.)
The DL305 CPUs perform math operations in
BCD. This instruction converts the binary data to
BCD. (You can omit this step if your application
does not require the conversion.)
F3–08AD–1
8-Channel Analog Input
The following example shows a program that is designed to read a single channel of
analog data into a Register location on every scan. Once the data is in a Register,
you can perform math on the data, compare the data against preset values, etc. This
example is designed to read channel 1. Since you use jumpers to select the number
of channels to scan, this is the only channel that you can use in this manner.
4–10
F3–08AD–1 8-Channel Analog Input
Reading Multiple
Channels over
Alternating Scans
The following example shows a program designed to read any of the available
channels of analog data into Register locations. Once the data is in a Register, you
can perform math on the data, compare the data against preset values, etc. Since
the DL305 CPUs use 8-bit word instructions, you have to move the data in pieces. It’s
simple if you follow the example.
Read the data
374
Store channel 1
114
115
116
F3–08AD–1
8-Channel Analog Input
Store channel 2
114
115
116
Store channel 3
114
115
116
Store channel 4
114
115
116
Store channel 5
114
115
116
Store channel 6
114
115
116
Store channel 7
114
115
116
Store channel 8
114
115
116
DSTR3
R011
F53
This rung loads the four most significant data bits
into the accumulator from Register 011 on every
scan. (You could use any permissive contact.)
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight least significant data bits
into the accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
DOUT
R400
F60
DOUT
R402
F60
DOUT
R404
F60
DOUT
R406
F60
DOUT
R410
F60
DOUT
R412
F60
DOUT
R414
F60
DOUT
R416
F60
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the conversion.)
The channel indicator inputs are used to let the
CPU know which channel has been loaded into the
accumulator. By using these inputs to control a
DOUT instruction, you can easily move the data to
a storage register. Notice the DOUT instruction
stores the data in two bytes. (Two bytes are
required for four digit BCD numbers.)
4–11
F3–08AD–1 8-Channel Analog Input
Scaling the
Input Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
The following example shows how you
would use the analog data to represent
pressure (PSI) from 0 to 100. This
example assumes the analog value is
1760. This should yield approximately
42.9 PSI.
Units +
A S
4096
Units = value in Engineering Units
A = Analog value (0 – 4095)
S = high limit of the Engineering
unit range
Units +
A S
4096
Units + 1760 100
4096
Units + 42.9
4–12
F3–08AD–1 8-Channel Analog Input
The following instructions are required to scale the data. We’ll continue to use the
42.9 PSI example. In this example we’re using channel 1. Input 114, input 115, and
input 116 are all off when channel 1 data is being read. Of course, if you were using a
different channel, you would use the active channel indicator point combination that
corresponds to the channel you were using.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
114
115
116
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F3–08AD–1
8-Channel Analog Input
F50
R576
The accumulator is then multiplied by the scaling
factor, which is 100. (100 x 4296 = 429600). Notice
the most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
9
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K100
R576
Accumulator
6 0 0
Aux. Accumulator
0 0 4 2
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 4 2
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the PSI,
which is 42 PSI.
Accumulator Store in R451 & R450
0 0 4 2
0 0 4 2
R451
R450
4–13
F3–08AD–1 8-Channel Analog Input
You probably noticed the previous example yielded 42 PSI when the real value
should have been 42.9 PSI. By changing the scaling value slightly, we can “imply” an
extra decimal of precision. Notice in the following example we’ve added another digit
to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for the
PSI range.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
114
115
116
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
R576
The accumulator is multiplied by the scaling factor,
which is now 1000. (1000 x 4296 = 4296000). The
most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
6
Accumulator
0 0 0
F50
Aux. Accumulator
0 4 2 9
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 4 2 9
0 4 2 9
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the PSI,
which implies 42.9.
0
Accumulator
4 2 9
Store in R451 & R450
0 4 2 9
R451
R450
F3–08AD–1
8-Channel Analog Input
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K1000
R576
4–14
F3–08AD–1 8-Channel Analog Input
This example program shows how you can use the instructions to load these
equation constants into data registers. The example was written for channel 1, but
you could easily use a similar approach to use different scales for all channels if
required.
You could just use the appropriate constants in the instructions dedicated for each
channel, but this method allows easier modifications. For example, you could easily
use an operator interface or a programming device to change the constants if they
are stored in Registers.
Load the constants
374
F3–08AD–1
8-Channel Analog Input
Read the data
374
Store channel 1
114
115
116
On the first scan, these first two instructions load
the analog resolution (constant of 4096) into R430
and R431.
DSTR
K4096
F50
DOUT
R430
F60
DSTR
K1000
F50
DOUT
R432
F60
DSTR3
R011
F53
This rung loads the four most significant data bits
into the accumulator from Register 011 on every
scan. (You could use any permissive contact.)
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DIV
R430
F74
The analog value is divided by the resolution of the
module, which is stored in R430.
DSTR
R576
F50
This instruction moves the decimal portion from the
auxilliary accumulator into the regular accumulator
for further operations.
MUL
R432
F73
The accumulator is multiplied by the scaling factor,
which is stored in R432.
DSTR
R576
F50
This instruction moves most significant digits (now
stored in the auxilliary accumulator) into the
regular accumulator for further operations.
DOUT
R400
F60
The scaled value is stored in R400 and R401 for
further use.
These two instructions load the high limit of the
Engineering unit scale (constant of 1000) into
R432 and R433. Note, if you have different scales
for each channel, you’ll also have to enter the
Engineering unit high limit for those as well.
4–15
F3–08AD–1 8-Channel Analog Input
Writing the Control Program (DL350)
Reading Values:
Pointer Method
and Multiplexing
There are two methods of reading values for the DL350:
S The pointer method (all system bases must be D3–xx–1 bases to
support the pointer method)
S Multiplexing
You must use the multiplexing method with remote I/O modules (the pointer method
will not work). You can use either method when using DL350, but for ease of
programming it is strongly recommended that you use the pointer method.
NOTE: Do not use the pointer method and the PID PV auto transfer from I/O module
function together for the same module. If using PID loops, use the pointer method
and ladder logic code to map the analog input data into the PID loop table.
Pointer Method
The DL350 has special V-memory locations assigned to each base slot that greatly
simplifies the programming requirements. These V-memory locations allow you to:
S specify the data format
S specify the number of channels to scan
S specify the storage locations
The example program shows how to setup these locations. Place this rung
anywhere in the ladder program or in the Initial Stage if you are using RLL PLUS
instructions. This is all that is required to read the data into V-memory locations.
Once the data is in V-memory, you can perform math on the data, compare the data
against preset values, and so forth. V2000 is used in the example, but you can use
any user V-memory location. In this example the module is installed in slot 2. You
should use the V-memory locations for your module placement.
LD
K 08 00
- or -
LD
K 88 00
Loads a constant that specifies the number of channels to scan and
the data format. The upper byte, most significant nibble (MSN)
selects the data format (i.e. 0=BCD, 8=Binary), the LSN selects
the number of channels (i.e. 1, 2, 3, 4, 5, 6, 7, 8).
The binary format is used for displaying data on some operator
interfaces.
OUT
V7662
Special V-memory location assigned to slot 2 that contains the
number of channels to scan.
LDA
O2000
This loads an octal value for the first V-memory location that will be
used to store the incoming data. For example, the O2000 entered
here would designate the following addresses.
Ch1 - V2000, Ch2 - V2001, Ch3 - V2002, Ch4 - V2003,
Ch5 – V2004, Ch6 – V2005, Ch7 – V2006, Ch8 – V2007
OUT
V7672
The octal address (O2000) is stored here. V7672 is assigned to slot
2 and acts as a pointer, which means the CPU will use the octal
value in this location to determine exactly where to store the
incoming data.
F3–08AD–1
8-Channel Analog Input
SP0
4–16
F3–08AD–1 8-Channel Analog Input
The table shows the special V-memory locations used with the DL350. Slot 0 (zero)
is the module next to the CPU, slot 1 is the module two places from the CPU, and so
on. Remember, the CPU only examines the pointer values at these locations after a
mode transition. The pointer method is supported on expansion bases up to a total of
8 slots away from the DL350 CPU. The pointer method is not supported in slot 8 of a
10 slot base.
Analog Input Module Slot-Dependent V-memory Locations
Slot
Multiplexing:
DL350 with a
Conventional
DL305 Base
0
1
2
4
5
6
7
No. of Channels
V7660 V7661 V7662
V7663 V7664
V7665 V7666
V7667
Storage Pointer
V7670 V7671 V7672
V7673 V7674
V7675 V7676
V7677
The example below shows how to read multiple channels on an F3–08AD Analog
module in the X20–27 / X120–127 address slot. This module must be placed in a 16
bit slot in order to work.
Load the data
_On
SP1
LDF
X120
SHFL
ORF
K8
This rung loads the upper byte of analog data from
the module.
K8
SHFL K8 shifts the data to the left eight places to
make room for the lower byte of data.
X20
K8
ANDD
F3–08AD–1
8-Channel Analog Input
3
Kfff
BCD
The ORF X20 brings the lower byte of data from
the module into the accumulator. At this time there
is a full word of data from the analog module in the
accumulator.
The ANDD Kfff masks off the twelve least
significant bits of data from the word. This is the
actual analog value.
The BCD command converts the data to BCD
format.
Channel 1 Select Bit States
X124 X125
X126
OUT
This writes channel one analog data to V3000
when bits X124, X125 and X126 are as shown.
V3000
Channel 2 Select Bit States
X124 X125
X126
OUT
V3001
This writes channel two analog data to V3001
when bits X124, X125 and X126 are as shown.
Channel 3 Select Bit States
X124 X125
X126
OUT
V3002
example continued on next page
This writes channel three analog data to V3002
when bits X124, X125 and X126 are as shown.
4–17
F3–08AD–1 8-Channel Analog Input
example continued from previous page
Channel 4 Select Bit States
X124 X125 X126
OUT
V3003
This writes channel four analog data to V3003
when bits X124, X125 and X126 are as shown.
Channel 5 Select Bit States
X124 X125
X126
OUT
V3004
Channel 6 Select Bit States
X124 X125 X126
OUT
V3005
Channel 7 Select Bit States
X124 X125 X126
OUT
V3006
This writes channel five analog data to V3004
when bits X124, X125 and X126 are as shown.
This writes channel six analog data to V3005 when
bits X124, X125 and X126 are as shown.
This writes channel seven analog data to V3006
when bits X124, X125 and X126 are as shown.
Channel 8 Select Bit States
X124 X125 X126
OUT
V3007
This writes channel eight analog data to V3007
when bits X124, X125 and X126 are as shown.
F3–08AD–1
8-Channel Analog Input
4–18
F3–08AD–1 8-Channel Analog Input
Multiplexing:
DL350 with a
D3–xx–1 Base
The example below shows how to read multiple channels on an F3–08AD Analog
module in the X0 address slot of a D3–xx–1 base. If any expansion bases are used in
the system, they must all be D3–xx–1 to be able to use this example. Otherwise, the
conventional base addressing must be used.
Load the data
_On
SP1
LD
VX0
SHFR
OUT
_On
SP1
LDF
This rung loads the only the channel select bits
into V1400. The SHFR shifts the analog data out of
the word.
K12
V1400
X0
K12
This rung loads the only the analog input data and
converts it to BCD.
BCD
F3–08AD–1
8-Channel Analog Input
Channel 1
V1400
K0
=
OUT
V3000
Channel 2
V1400
K1
=
OUT
V3001
Channel 3
V1400
K2
=
OUT
V3002
example continued on next page
These rungs store the BCD analog input data into
consecutive V memory registers. V1400 will
increment once per scan from 0 to 7.
4–19
F3–08AD–1 8-Channel Analog Input
example continued from previous page
Channel 4
V1400
K3
=
OUT
V3003
These rungs store the BCD analog input data into
consecutive V memory registers. V1400 will
increment once per scan from 0 to 7.
Channel 5
V1400
K4
=
OUT
V3004
Channel 6
V1400
K5
=
OUT
V3005
Channel 7
V1400
K6
=
V3006
Channel 8
V1400
K7
=
OUT
OUT
V3007
F3–08AD–1
8-Channel Analog Input
4–20
F3–08AD–1 8-Channel Analog Input
Scaling the
Input Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
Units + A H * L
4095
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
A = Analog value (0 – 4095)
For example, if you wanted to measure pressure (PSI) from 0.0 to 99.9 then you
would have to multiply the analog value by 10 in order to imply a decimal place when
you view the value with the programming software or a handheld programmer.
Notice how the calculations differ when you use the multiplier.
Here is how you would write the program to perform the engineering unit conversion.
This example assumes you have BCD data loaded into the appropriate V-memory
locations using instructions that apply for the model of CPU you are using.
NOTE: This example uses SP1, which is always on. You could also use an X, C, etc. permissive contact.
SP1
LD
V3000
When SP1 is on, load channel 1 data to the accumulator.
MUL
K1000
Multiply the accumulator by 1000 (to start the conversion).
DIV
K4095
Divide the accumulator by 4095.
F3–08AD–1
8-Channel Analog Input
OUT
V3010
Store the result in V3010.
Analog and Digital Sometimes it is helpful to be able to quickly convert between the signal levels and the
Value Conversions digital values. This is especially helpful during machine startup or troubleshooting.
The following table provides formulas to make this conversion easier.
Range
4 to 20mA
If you know the digital value ...
A + 16D ) 4
4095
For example, if you have measured the
signal at 10mA, you would use the
following formula to determine the digital
value that should be stored in the register
location that contains the data.
If you know the analog signal
level ...
D + 4095 (A * 4)
16
D + 4095 (A * 4)
16
D + 4095 (10mA * 4)
16
D + (255.93) (6)
D + 1536
F3–16AD
16-Channel
Analog Input
In This Chapter. . . .
Ċ Module Specifications
Ċ Setting the Module Jumpers
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
15
5–2
F3–16AD 16-Channel Analog Input
Module Specifications
The following table provides the specifications for the F3–16AD Analog Input
Module from FACTS Engineering. Review these specifications to make sure the
module meets your application requirements.
Number of Channels
16, single ended (one common)
Input Ranges
"5V, "10V, 0–5V1, 0–10V,
0–20 mA, 4 – 20 mA2
Resolution
12 bit (1 in 4096)
Input Impedance
2MW, voltage input
500W "1%, current input
Absolute Maximum Ratings
"25V, voltage input
"30 mA, current input
Conversion Time
Converter Type
35ms per channel
1 channel per CPU scan
Successive Approximation, AD574
Linearity Error
"1 count maximum
Maximum Inaccuracy at 77 °F
(25 °C)
0.25% of full scale, voltage input
1.25% of full scale, current input
Accuracy vs. Temperature
57 ppm / _C maximum full scale
Recommended Fuse
0.032 A, Series 217 fast-acting, current inputs
Power Budget Requirement
33 mA @ 9 VDC, 47 mA @ 24 VDC
External Power Supply
None required
Operating Temperature
32° to 140° F (0° to 60_ C)
Storage Temperature
–4° to 158° F (–20° to 70_ C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
F3–16AD
16-Channel Analog Input
1 – requires gain adjustment with potentiometer.
2 – resolution is 3275 counts (instead of 4096). Allows easier broken transmitter detection
Analog Input
Configuration
Requirements
The F3–16AD Analog Input appears as a 16-point module. The module can be
installed in any slot configured for 16 points. See the DL305 User Manual for details
on using 16 point modules in DL305 systems. The limitation on the number of analog
modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
5–3
F3–16AD 16-Channel Analog Input
Setting the Module Jumpers
Jumper Locations
The module is set at the factory for a 0–20 mA signal on all sixteen channels. If this is
acceptable you do not have to change any of the jumpers. The following diagram
shows the jumper locations.
ADJ
Bipolar 10V
Span Gain
20V
X100 Gain
X1
X1000 X10
Unipolar
Polarity
Current
Channels
8
4
2
1
Selecting the
Number of
Channels
If you examine the rear of the module,
you’ll notice several jumpers. The
jumpers labeled +1, +2, +4 and +8 are
used to select the number of channels
that will be used. Without any jumpers
the module processes one channel. By
installing the jumpers you can add
channels. The module is set from the
factory for sixteen channel operation.
Any unused channels are not processed
so if you only select channels 1–8, then
the last eight channels will not be active.
The following table shows which jumpers
to install.
+8 +4 +2 +1
Number of
Channels
Jumpers installed as shown
selects 16-channel operation
Jumper
Channel(s)
Jumper
+4
+2
+1
+8
+4
+2
+1
1
No
No
No
No
12
No
No
No
Yes
123456789
Yes
No
No
No
1 2 3 4 5 6 7 8 9 10
Yes
No
No
Yes
123
No
No
Yes
1234
No
No
Yes
No
1 2 3 4 5 6 7 8 9 10 11
Yes
No
Yes
No
Yes
1 2 3 4 5 6 7 8 9 10 11 12
Yes
No
Yes
Yes
12345
No
Yes
No
No
1 2 3 4 5 6 7 8 9 10 11 12 13
Yes
Yes
No
No
123456
No
1234567
No
Yes
No
Yes
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Yes
Yes
No
Yes
Yes
Yes
No
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Yes
Yes
Yes
No
12345678
No
Yes
Yes
Yes
1 2 3 4 5 6 7 8 9 10 11 12 13141516
Yes
Yes
Yes
Yes
F3–16AD
16-Channel Analog Input
+8
Channel(s)
5–4
F3–16AD 16-Channel Analog Input
Selecting Input
Signal Ranges
As you examined the jumper settings, you may have noticed there are current
jumpers for each individual channel. These jumpers allow you to select the type of
signal (voltage or current).
The span and polarity jumpers are used to select the signal range. The polarity and
span selection affect all the channels. For example, if you select unipolar operation
and a 10V span, you can use both 0 –10V and 0–20 mA signals at the same time.
Channels that will receive 0–20 mA signals should have the current jumper installed.
The following table shows the jumper selections for the various ranges. (Only
channel 1 is used in the example, but all channels must be set.)
Bipolar Signal Range
Jumper Settings
Polarity
–5 VDC to +5 VDC
Bi
Uni
Current Jumper
Span
20V
10V
Gain Jumper
x1
Polarity
–10 VDC to +10 VDC
Bi
Uni
x10
Current Jumper
Span
20V
10V
Gain Jumper
x1
Unipolar Signal Range
0 to 20 mA
(these settings are also used
for the 4–20mA range)
x10
Jumper Settings
Polarity
Bi
Uni
Current Jumper
Span
20V
10V
Gain Jumper
x1
Polarity
0 VDC to +10 VDC
Bi
Uni
Span
20V
10V
x10
Current Jumper
Gain Jumper
x1
Polarity
0 VDC to +1 VDC
Bi
Uni
x10
Current Jumper
Span
20V
10V
Gain Jumper
x1
Polarity
F3–16AD
16-Channel Analog Input
0 VDC to +0.1 VDC
Bi
Uni
Span
Current Jumper
20V
10V
Gain Jumper
x100
Polarity
0 VDC to +0.01 VDC
Bi
Uni
x10
x1000
Current Jumper
Span
20V
10V
Gain Jumper
x100
x1000
5–5
F3–16AD 16-Channel Analog Input
Input Signal Range
0 VDC to +5 VDC
(requires gain adjustment
see instructions below)
Jumper Settings
Polarity
Bi
Uni
Current Jumper
Span
20V
10V
Gain Jumper
x1
0 VDC to +12 VDC
(requires gain adjustment
see instructions below)
Polarity
Bi
Uni
Span
Current Jumper
20V
10V
Gain Jumper
x1
Variable Gain
Adjustment
If you look at the terminal block closely,
you’ll notice a small hole conceals an
adjustment potentiometer. This small
potentiometer is used to adjust the gain
for certain situations.
For example, if you have 0–5V
transmitters you have to use the 0–10V
scale on the module. Since the module
converts the signal to a digital value
between 0 and 4095, a 5V signal would
only yield a value of 2048. Fortunately,
the variable gain feature provides a
simple solution. Just complete the
following steps.
x10
x10
Potentiometer
Adjustment
Hole
1. Install a jumper on the gain adjustment pins. (This jumper location is
labeled ADJ. This jumper will remain installed after the gain adjustment .)
2. Apply 5V to one of the channels.
3. Use a handheld programmer or DirectSOFT to monitor the input register
that contains the analog data. (If you’re not familiar with this procedure, wait
until you read the section on Writing the Control Program. This will show
you how to get data into a register. You can come back to this procedure
later.)
4. Adjust the potentiometer until the register value reads 4094 or 4095. The
potentiometer is turned clockwise to increase the gain.
F3–16AD
16-Channel Analog Input
Now the module has been adjusted so a 5V signal provides a digital value of 4095
instead of 2048.
5–6
F3–16AD 16-Channel Analog Input
Connecting the Field Wiring
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the signal source. Do not
ground the shield at both the module and the source.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
F3–16AD
16-Channel Analog Input
User Power Supply The F3–16AD receives all power from the base. A separate power supply is not
required.
Requirements
5–7
F3–16AD 16-Channel Analog Input
Custom Input
Ranges
Occasionally you may have the need to connect a transmitter with an unusual signal
range. By changing the wiring slightly and adding an external resistor to convert the
current to voltage, you can easily adapt this module to meet the specifications for a
transmitter that does not adhere to one of the standard input ranges. The following
diagram shows how this works.
Internal
Module
Circuitry
+
+CH1
50mA
Current
Transmitter
-
R=
Jumper
Removed
R
250W
COM
Vmax
Imax
R = value of external resistor
Vmax = high limit of selected voltage range
Imax = maximum current supplied by the transmitter
Example: current transmitter capable of 50mA, 0 - 10V range selected.
R=
10V
R = 200 ohms
50mA
NOTE: Your choice of resistor can affect the accuracy of the module. A resistor that
has "0.1% tolerance and a "50ppm / _C temperature coefficient is recommended.
F3–16AD
16-Channel Analog Input
5–8
F3–16AD 16-Channel Analog Input
Current Loop
Transmitter
Impedance
Standard 4 to 20 mA transmitters and transducers can operate from a wide variety of
power supplies. Not all transmitters are alike and the manufacturers often specify a
minimum loop or load resistance that must be used with the transmitter at the various
voltages.
The F3–16AD provides 500 ohm resistance for each channel. If your transmitter
requires a load resistance below 500 ohms, then you do not have to make any
adjustments. However, if your transmitter requires a load resistance higher than 500
ohms, then you need to add a resistor in series with the module.
Consider the following example for a transmitter being operated from a 36 VDC
supply with a recommended load resistance of 750 ohms. Since the module has a
500 ohm resistor, you need to add an additional resistor.
R + Tr * Mr
R + 750 * 500
R w 250
R – Resistor to add
Tr – Transmitter Requirement
Mr – Module resistance (internal 500 ohms)
DC Supply
0V
+36V
R
+
–
F3–16AD
16-Channel Analog Input
Two-wire Transmitter
Module Channel 1
–
500W
+
5–9
F3–16AD 16-Channel Analog Input
Removable
Connector
The F3–16AD module has a removable connector to make wiring easier. Simply
squeeze the top and bottom tabs and gently pull the connector from the module.
Wiring Diagram
Note 1: Terminate all shields at their respective signal source.
Note 2: Jumpers for CH4, 7, 12 and 16 are installed for current input.
See note
CH1
Volatage
Transmitter
CH2
Volatage
Transmitter
CH3
Volatage
Transmitter
CH4
Current
Transmitter
CH5
Volatage
Transmitter
CH6
Volatage
Transmitter
CH8
Volatage
Transmitter
CH11
CH12
CH13
CH14
CH15
CH16
Internal Module Wiring
ANALOG INPUT
F3–16AD
+
+
COM
+
Analog
Switch
2
3
Current
Transmitter
CH10
+
1
CH7
CH9
+
Volatage
Transmitter
Volatage
Transmitter
Volatage
Transmitter
Current
Transmitter
+
4
5
+
6
7
+
8
9
+
10
11
+
12
13
+
14
15
+
16
COM
Volatage
Transmitter
Volatage
Transmitter
Volatage
Transmitter
Current
Transmitter
+
+
CH
C
O
M
1
CH
CH
2
3
CH
CH
4
5
CH
CH
6
7
CH
CH
8
9
CH
CH
10
11
CH
CH
12
13
CH
CH
14
15
C
O
M
+
CH
16
+
All resistors are 500W
F3–16AD
16-Channel Analog Input
5–10
F3–16AD 16-Channel Analog Input
Module Operation
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The F3–16AD module supplies 1 channel of data per each CPU scan. Since there
are sixteen channels, it can take up to sixteen scans to get data for all channels.
Once all channels have been scanned the process starts over with channel 1.
You do not have to select all of the channels. Unused channels are not processed, so
if you select only eight channels, then the channels will be updated within eight
scans.
Scan
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 2
Scan N+1
Channel 16
Scan N+15
Channel 1
Scan N+16
F3–16AD
16-Channel Analog Input
.
.
.
Read the data
.
.
.
Store data
Even though the channel updates to the CPU are synchronous with the CPU scan,
the module asynchronously monitors the analog transmitter signal and converts the
signal to a 12-bit binary representation. This enables the module to continuously
provide accurate measurements without slowing down the discrete control logic in
the RLL program.
5–11
F3–16AD 16-Channel Analog Input
Understanding the You may recall the F3–16AD module appears to the CPU as a 16-point module.
These 16 points provide:
I/O Assignments
S an indication of which channel is active.
S the digital representation of the analog signal.
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
F3–16AD
8pt
Relay
8pt
Output
8pt
Output
16pt
Input
050
–
057
040
–
047
030
–
037
020
027
–
120
127
R 002, R012
16ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1
1
7
R 001
LSB
1
1
0
MSB
0
1
7
LSB
0
1
0
Within these two register locations, the individual bits represent specific information
about the analog signal.
F3–16AD
16-Channel Analog Input
5–12
F3–16AD 16-Channel Analog Input
F3–16AD
16-Channel Analog Input
Active Channel
Indicator Inputs
The last four inputs of the upper Register
indicate the active channel. The
indicators automatically increment with
each CPU scan.
Channel Active
Scan
Inputs
Channel
N
0000
1
N+1
0001
2
N+2
0010
3
N+3
0011
4
N+4
0100
5
N+5
0101
6
N+6
0110
7
N+7
0111
8
N+8
1000
9
N+9
1001
10
N+10
1010
11
N+11
1011
12
N+12
1100
13
N+13
1101
14
N+14
1110
15
N+15
1111
16
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- channel indicator inputs
5–13
F3–16AD 16-Channel Analog Input
Analog Data Bits
The remaining twelve bits represent the
analog data in binary format.
Bit
Value
Bit
Value
0 (LSB)
1
6
64
1
2
7
128
2
4
8
256
3
8
9
512
4
16
10
1024
5
32
11
2048
R011
R001
MSB
LSB
1 1 1 1 11 1 1
1 1 1 1 11 1 1
7 6 5 4 32 1 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- data bits
Since the module has 12-bit resolution, the analog signal is converted into 4096
“pieces” ranging from 0 – 4095 (212). For example, with a 0 to 10V scale, a 0V signal
would be 0, and a 10V signal would be 4095. This is equivalent to a a binary value of
0000 0000 0000 to 1111 1111 1111, or 000 to FFF hexadecimal. The following
diagram shows how this relates to each signal range.
–10V – +10V
–5V – +5V
+V
0V – 10V
0 – 20mA
+V
20mA
0V
0mA
4 – 20mA
20mA
0V
-V
0
4095
0
4095
4mA
0
4095
0 819
4095
NOTE: When you use 4–20mA signals, you have to use the 0–20mA scale. You do
not have resolution of 4096 if the 4–20mA signal is present. In this case, the range is
819 to 4095. This is because a 0 still represents 0mA, not 4mA.
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
possibly result in a change in the data
value for each signal range.
Range
Resolution + H * L
4095
H = high limit of the signal range
L = low limit of the signal range
Lowest Signal
Smallest Change
–10 to +10V
+10V
–10V
4.88 mV
–5 to +5V
+5 V
–5V
2.44 mV
0 to 5V
5V
0V
1.22 mV
0 to 10V
10V
0V
2.44 mV
0 to 12V
12V
0V
2.90 mV
20mA
0mA
4.88 mA
1V
0V
0.244 mV
0 to 0.1V
0.1 V
0V
24.4 uV
0 to 0.01V
0.01 V
0V
2.44 uV
0 to 20mA
(4 to 20mA also)
0 to 1V
F3–16AD
16-Channel Analog Input
Highest Signal
5–14
F3–16AD 16-Channel Analog Input
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
Since all channels are multiplexed into a single data word, the control program must
be setup to determine which channel is being read. Since the module provides input
points to the CPU, it is very easy to use the active channel status bits to determine
which channel is being monitored.
F3–16AD
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
R 002, R012
16pt
Input
020
027
–
120
127
16ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
F3–16AD
16-Channel Analog Input
1
1
7
R 001
LSB
1
1
0
MSB
0
1
7
LSB
0
1
0
5–15
F3–16AD 16-Channel Analog Input
Example Program
The following example shows a program designed to read any of the available
channels of analog data into Register locations. Once the data is in a Register, you
can perform math on the data, compare the data against preset values, etc. Since
the DL305 CPUs use 8-bit word instructions, you have to move the data in pieces. It’s
pretty simple if you follow the example.
Identify the channel
374
Read the data
374
DSTR2
R011
F52
This rung loads the channel ID bits into the
accumulator from Register 011 on every scan.
BCD
F86
Convert the channel ID status to BCD. (We’ll use
relational contacts later to make the chanel
selection much easier.)
DOUT
R600
F60
Store the channel ID in R600. (Note, you don’t
absolutely have to do it this way. If you use R600,
then you can’t use Timer/Counter 600. You could
just use the channel indicators. See the Store
Channel 1 example that follows.)
DSTR3
R011
F53
This rung loads the four least significant data bits into
the accumulator from Register 011 on every scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight least significant data bits
into the accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
Store channel data
Store channel 1
114 115 116 117
Store channel 2
CT600 K0001
=
=
Store channel 16
CT600 K0015
=
F60
DOUT
R402
F60
DOUT
R434
F60
DOUT
R436
F60
The channel selection inputs are used to let the
CPU know which channel has been loaded into the
accumulator. By using these inputs to control a
DOUT instruction, you can easily move the data to
a storage register. Notice the DOUT instruction
stores the data in two bytes. (Two bytes are
required for four digit BCD numbers.)
This rung shows how you would use the channel
indicator inputs as contacts to control the channel
selection.
This rung shows an easier way. Earlier we loaded
the channel ID bits (in BCD format) into R600. Now
we can use one relational contact to examine this
value. However, this method uses the register
associated with Timer/Counter 600. If you use this
method, make sure you don’t use the
Timer/Counter associated with the register
elsewhere in the program.
F3–16AD
16-Channel Analog Input
Store channel 15
CT600 K0014
DOUT
R400
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the conversion.)
5–16
F3–16AD 16-Channel Analog Input
Scaling the Input
Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
The following example shows how you
would use the analog data to represent
pressure (PSI) from 0 to 100. This
example assumes the analog value is
1760. This should yield approximately
42.9 PSI.
Units +
A S
4096
Units = value in Engineering Units
A = Analog value (0 – 4095)
S = high limit of the Engineering
unit range
Units +
A S
4096
Units + 1760 100
4096
F3–16AD
16-Channel Analog Input
Units + 42.9
5–17
F3–16AD 16-Channel Analog Input
The following instructions are required to scale the data. (We’ll continue to use the
42.9 PSI example.) In this example we’re using channel 1. The active channel
indicator inputs are all off when channel 1 data is being read. Of course, if you were
using a different channel, you would use the active channel indicator point
combination that corresponds to the channel you were using.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
114 115 116 117
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is then multiplied by the scaling
factor, which is 100. (100 x 4296 = 429600). Notice
the most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
9
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K100
R576
Accumulator
6 0 0
Aux. Accumulator
0 0 4 2
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 4 2
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450.
R450 now contains the PSI, which is 42 PSI.
Accumulator
Store in R451 & R450
0 0 4 2
0 0 4 2
R450
F3–16AD
16-Channel Analog Input
R451
5–18
F3–16AD 16-Channel Analog Input
You probably noticed the previous example yielded 42 PSI when the real value
should have been 42.9 PSI. By changing the scaling value slightly, we can “imply” an
extra decimal of precision. Notice in the following example we’ve added another digit
to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for the
PSI range.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
114 115 116 117
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is multiplied by the scaling factor,
which is now 1000. (1000 x 4296 = 4296000). The
most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
6
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K1000
R576
Accumulator
0 0 0
Aux. Accumulator
0 4 2 9
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 4 2 9
0 4 2 9
DOUT
R450
F60
R577
R576
F3–16AD
16-Channel Analog Input
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the PSI,
which implies 42.9.
Accumulator
Store in R451 & R450
0 4 2 9
0 4 2 9
R451
R450
5–19
F3–16AD 16-Channel Analog Input
This example program shows how you can use the instructions to load these
equation constants into data registers. The example is written for channel 1, but you
can easily use a similar approach to use different scales for all channels if required.
You may just use the appropriate constants in the instructions dedicated for each
channel, but this method allows easier modifications. For example, you could easily
use an operator interface or a programming device to change the constants if they
are stored in Registers.
Load the constants
374
Read the data
374
Store channel 1
114 115 116 117
On the first scan, these first two instructions load
the analog resolution (constant of 4096) into R460
and R461.
DSTR
K4096
F50
DOUT
R460
F60
DSTR
K1000
F50
DOUT
R462
F60
DSTR3
R011
F53
This rung loads the four most significant data bits into
the accumulator from Register 011 on every scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DIV
R460
F74
The analog value is divided by the resolution of the
module, which is stored in R460.
DSTR
R576
F50
This instruction moves the decimal portion from the
auxilliary accumulator into the regular accumulator
for further operations.
MUL
R462
F73
The accumulator is multiplied by the scaling factor,
which is stored in R462.
DSTR
R576
F50
This instruction moves most significant digits (now
stored in the auxilliary accumulator) into the
regular accumulator for further operations.
DOUT
R400
F60
The scaled value is stored in R400 and R401 for
further use.
These two instructions load the high limit of the
Engineering unit scale (constant of 1000) into
R462 and R463. Note, if you have different scales
for each channel, you’ll also have to enter the
Engineering unit high limit for those as well.
F3–16AD
16-Channel Analog Input
5–20
F3–16AD 16-Channel Analog Input
Broken Transmitter If you use 4–20mA signals you can easily check for broken transmitter conditions.
Since you have to use the 0–20mA range and the lowest signal for the 4–20mA
Detection
transmitter is 4mA, the lowest digital value for the signal is not 0, but instead is 819.
If the transmitter is working properly the smallest value you should ever see is 819. If
you see a value of less than about 750 (allowing for tolerance), then you know the
transmitter is broken.
Read the channel ID
374
Read the data
374
Store channel 1
114 115 116 117
DSTR2
R011
F52
This rung loads the channel ID bits into the
accumulator from Register 011 on every scan.
BCD
F86
Convert the channel ID status to BCD. We’ll use
relational contacts later to make the chanel
selection much easier.)
DOUT
R600
F60
Store the channel ID in R600.
DSTR3
R011
F53
This rung loads the four most significant data bits into
the accumulator from Register 011 on every scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight least significant data bits
into the accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
DOUT
R400
F60
CMP
K0100
F70
F3–16AD
16-Channel Analog Input
Broken transmitter indicator on channel 1
773
114 115 116 117
040
OUT
774
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the conversion.)
The DOUT instruction copies the accumulator data
to R400 and R401. Since the data is still in the
accumulator, we can compare it against a
constant. Since the minimum value for a 4mA
signal is 819 (minus the module tolerance), we can
choose a value for the compare. We picked 100,
but you could choose something else from 0 to
about 750.
Flags 773 and 774 are used with the Compare
instruction. In this example if the analog value is
less than or equal to 100, then output 040 is turned
on.
You may want to latch 040 to catch intermittent
broken transmitters.
5–21
F3–16AD 16-Channel Analog Input
Writing the Control Program (DL350)
Reading Values:
Pointer Method
and Multiplexing
There are two methods of reading values for the DL350:
S The pointer method (all system bases must be D3–xx–1 bases to
support the pointer method)
S Multiplexing
You must use the multiplexing method with remote I/O modules (the pointer method
will not work). You can use either method when using DL350, but for ease of
programming it is strongly recommended that you use the pointer method.
NOTE: Do not use the pointer method and the PID PV auto transfer from I/O module
function together for the same module. If using PID loops, use the pointer method
and ladder logic code to map the analog input data into the PID loop table.
Pointer Method
The DL350 has special V-memory locations assigned to each base slot that greatly
simplifies the programming requirements. These V-memory locations allow you to:
S specify the data format
S specify the number of channels to scan
S specify the storage locations
The example program shows how to setup these locations. Place this rung
anywhere in the ladder program or in the Initial Stage if you are using RLL PLUS
instructions. This is all that is required to read the data into V-memory locations.
Once the data is in V-memory, you can perform math on the data, compare the data
against preset values, and so forth. V2000 is used in the example, but you can use
any user V-memory location. In this example the module is installed in slot 2. You
should use the V-memory locations for your module placement.
16 channels selected
15 channels selected
SP0
LD
K 1000
- or -
LD
K 9 000
LD
K 0f 00
- or -
LD
K 8f 00
Loads a constant that specifies the number of channels to scan and
the data format. For 1–15 channels, the upper byte, most
significant nibble (MSN) selects the data format (i.e. 0=BCD,
8=Binary), the LSN selects the number of channels (i.e. 1, 2, 3, 4,
5, 6, 7, 8, 9, a, b, c, d, e, f). To select 16 channels, the upper
nibble (MSN) selects the data format and the number of channels
(i.e. 1=16 channels BCD, 9= 16 channels Binary).
LDA
O2000
OUT
V7672
Special V-memory location assigned to slot 2 that contains the
number of channels to scan.
This loads an octal value for the first V-memory location that will be
used to store the incoming data. For example, the O2000 entered
here would designate the following addresses.
Ch1 - V2000, Ch2 - V2001, Ch3 - V2002, Ch4 - V2003,
Ch5 – V2004, Ch6 – V2005, Ch7 – V2006, Ch8 – V2007,
Ch9 – V2010, Ch10 – V2011, Ch11 – V2012, Ch12 – V2013
Ch13 – V2014, Ch14 – V2015, Ch15 – V2016, Ch16 – V2017
The octal address (O2000) is stored here. V7672 is assigned to slot
2 and acts as a pointer, which means the CPU will use the octal
value in this location to determine exactly where to store the
incoming data.
F3–16AD
16-Channel Analog Input
OUT
V7662
5–22
F3–16AD 16-Channel Analog Input
The table shows the special V-memory locations used with the DL350. Slot 0 (zero)
is the module next to the CPU, slot 1 is the module two places from the CPU, and so
on. Remember, the CPU only examines the pointer values at these locations after a
mode transition. The pointer method is supported on expansion bases up to a total of
8 slots away from the DL350 CPU. The pointer method is not supported in slot 8 of a
10 slot base.
Analog Input Module Slot-Dependent V-memory Locations
F3–16AD
16-Channel Analog Input
Slot
0
1
2
3
4
5
6
7
No. of Channels
V7660 V7661 V7662
V7663 V7664
V7665 V7666
V7667
Storage Pointer
V7670 V7671 V7672
V7673 V7674
V7675 V7676
V7677
5–23
F3–16AD 16-Channel Analog Input
Multiplexing:
DL350 with a
Conventional
DL305 Base
The example below shows how to read multiple channels on an F3–08AD Analog
module in the 20–27/120–127 address slot. This module must be placed in a 16 bit
slot in order to work.
Load the data
_On
SP1
LDF
SHFL
ORF
X120
K8
This rung loads the upper byte of analog data from
the module.
K8
SHFL K8 shifts the data to the left eight places to
make room for the lower byte of data.
X20
K8
ANDD
Kfff
The ANDD Kfff masks off the four most significant
bits of data from the word. This leaves the actual
analog value.
The BCD command converts the data to BCD
format.
BCD
OUT
The ORF X20 brings the lower byte of data from
the module into the accumulator. At this time there
is a full word of data from the analog module in the
accumulator.
Stores the data in V2200.
V2200
Channel 1 Select Bit States
X124 X125
X126 X127
LD
V2200
OUT
This sends channel one analog data to
V3000 when bits X124, X125, X126
and X127 are as shown.
V3000
Channel 2 Select Bit States
X124 X125
X126 X127
LD
V2200
OUT
This sends channel two analog data to
V3001 when bits X124, X125, X126
and X127 are as shown.
V3001
X124 X125
X126 X127
LD
V2200
OUT
V3002
This sends channel two analog data to
V3002 when bits X124, X125, X126
and X127 are as shown.
F3–16AD
16-Channel Analog Input
Channel 3 Select Bit States
5–24
F3–16AD 16-Channel Analog Input
Multiplexing:
DL350 with a
D3–XX–1 Base
The example below shows how to read multiple channels on an F3–16AD Analog
module in the X0 address slot of the D3–XX–1 base. If any expansion bases are
used in the system, they must all be D3–xx–1 to be able to use this example.
Otherwise, the conventional base addressing must be used.
_On
SP1
LD
VX0
This rung loads the upper byte of analog data from
the module.
K12
SHFL K12 shifts the word to the right twelve
places.
SHFR
OUT
_On
SP1
LDF
V1400
Puts the four channel select bits in the lower nibble
(four bits) of word V1400. This will increment once
with each scan from 0 to F.
X0
This rung loads the twelve bits of analog data to
the module and converts it to BCD. It is the OUT to
V1401.
K12
BCD
OUT
This converts the data to BCD.
V1401
The analog data (in BCD format) is then stored in
the Holding Register, V1401.
Rungs 3–18 compare the count of the chennel select bits. When the corresponding bits are true, the
channel data for that channel is stored in the proper V-memory location. For sixteen channels of
analog data, the module will require sixteen scans in order to update all channels.
Channel Selection Data
V1400
K0
=
LD
V1401
Channel #1 Data
OUT
Channel Selection Data
V1400
K1
=
LD
V2000
V1401
Channel #2 Data
F3–16AD
16-Channel Analog Input
OUT
Channel Selection Data
V1400
K2
=
LD
V2001
V1401
Channel #3 Data
OUT
V2002
5–25
F3–16AD 16-Channel Analog Input
Channel Selection Data
V1400
K3
=
LD
OUT
Channel Selection Data
V1400
K4
=
LD
V1401
Channel #4 Data
V2003
V1401
Channel #5 Data
OUT
Channel Selection Data
K5
V1400
=
LD
V2004
V1401
Channel #6 Data
OUT
Channel Selection Data
V1400 K6
=
LD
V2005
V1401
Channel #7 Data
OUT
Channel Selection Data
K7
V1400
=
LD
V2006
V1401
Channel #8 Data
OUT
Channel Selection Data
K8
V1400
=
LD
V2007
V1401
Channel #9 Data
Channel Selection Data
K9
V1400
=
LD
V2010
V1401
Channel #10 Data
OUT
V2011
F3–16AD
16-Channel Analog Input
OUT
5–26
F3–16AD 16-Channel Analog Input
Channel Selection Data
Ka
V1400
=
LD
V1401
Channel #11 Data
OUT
Channel Selection Data
Kb
V1400
=
LD
V2012
V1401
Channel #12 Data
OUT
Channel Selection Data
V1400
Kc
=
LD
V2013
V1401
Channel #13 Data
OUT
Channel Selection Data
Kd
V1400
=
LD
V2014
V1401
Channel #14 Data
OUT
Channel Selection Data
Ke
V1400
=
LD
V2015
V1401
Channel #15 Data
OUT
Channel Selection Data
Kf
V1400
=
LD
V2016
V1401
F3–16AD
16-Channel Analog Input
Channel #16 Data
OUT
V2017
5–27
F3–16AD 16-Channel Analog Input
Scaling the
Input Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
Units + A H * L
4095
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
A = Analog value (0 – 4095)
For example, if you wanted to measure pressure (PSI) from 0.0 to 99.9 then you
would have to multiply the analog value by 10 in order to imply a decimal place when
you view the value with the programming software or a handheld programmer.
Notice how the calculations differ when you use the multiplier.
Here is how you would write the program to perform the engineering unit conversion.
This example assumes you have BCD data loaded into the appropriate V-memory
locations using instructions that apply for the model of CPU you are using.
NOTE: This example uses SP1, which is always on. You could also use an X, C, etc. permissive contact.
SP1
LD
V3000
When SP1 is on, load channel 1 data to the accumulator.
MUL
K1000
Multiply the accumulator by 1000 (to start the conversion).
DIV
K4095
Divide the accumulator by 4095.
OUT
V3020
Store the result in V3020.
F3–16AD
16-Channel Analog Input
5–28
F3–16AD 16-Channel Analog Input
Analog and Digital Sometimes it is helpful to be able to quickly convert between the signal levels and the
Value Conversions digital values. This is especially helpful during machine startup or troubleshooting.
The following table provides formulas to make this conversion easier.
Range
If you know the digital value ...
If you know the analog signal
level ...
–10V to + 10V
A + 20D * 10
4095
D + 4095 (A ) 10)
20
–5V to + 5V
A + 10D * 5
4095
D + 4095 (A ) 5)
10
0 to 5V
A + 5D
4095
D + 4095 A
5
0 to 10V
A + 10D
4095
D + 4095 A
10
0 to 12V
A + 12D
4095
D + 4095 A
12
0 to 20mA
(or 4–20mA)
A + 20D
4095
D + 4095 A
20
0 to 1V
A + 1D
4095
D + 4095 A
1
0 to 0.1V
A + 0.1D
4095
D + 4095 A
0.1
0 to 0.01V
ȏA + 0.01D
4095
D + 4095 A
0.01
For example, if you are using the –10 to
+10V range and you have measured the
signal at 6V, you would use the following
formula to determine the digital value
that should be stored in the register
location that contains the data.
D + 4095 (A ) 10)
20
D + 4095 (6V ) 10)
20
D + (204.75) (16)
F3–16AD
16-Channel Analog Input
D + 3276
D3–02DA
2–Channel
Analog Output
In This Chapter. . . .
Ċ Module Specifications
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
16
6–2
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Module Specifications
The following table provides the specifications for the D3–02DA Analog Output
Module. Review these specifications to make sure the module meets your
application requirements.
Analog Output
Configuration
Requirements
Number of Channels
2 (independent)
Output Ranges
0 – 10V, 4 – 20 mA
Resolution
8 bit (1 in 256)
Output Type
Single ended
Output Impedance
.5W maximum, voltage output
Output Current
10 mA minimum, voltage output @ 10 VDC
Load Impedance
550W maximum, 5W minimum, current output
Total Inaccuracy
"0.4% maximum at 25_ C
Accuracy vs. Temperature
"50 ppm / _C maximum
Conversion Time
100ms maximum (2 channels/scan)
Power Budget Requirement
80 mA @9V
External Power Supply
24 VDC, "10%, 170 mA, class 2
Operating Temperature
32° to 140° F (0° to 60_ C)
Storage Temperature
–4° to 158° F (–20° to 70_ C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
The D3–02DA Analog Output appears as a 16-point module. The module can be
installed in any slot configured for 16 points. See the DL305 User Manual for details
on using 16 point modules in DL305 systems. The limitation on the number of analog
modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
6–3
D3–02DA 2-Channel Analog Output
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the module or the power
supply return (0V). Do not ground the shield at both the module and the
transducer.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The D3–02DA requires a separate power supply. Choose a supply that meets the
following requirements: 24 VDC "10%, Class 2, 170mA current (or greater,
Requirements
depending on the number of modules being used.)
Load
Requirements
Each channel can be wired independently for a voltage or current transducer.
S Current transducers must have an impedance between 5 and 550 ohms
S Voltage transducers must have an impedance greater than 1K ohms.
D3–02DA
2-Channel Analog Output
Connecting the Field Wiring
6–4
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Removable
Connector
The D3–02DA module has a removable connector to make wiring easier. Simply
remove the retaining screws and gently pull the connector from the module.
Wiring Diagram
Note 1: Shields should be connected to the 0V
of the module or to the 0V of the P/S.
Note 2: Unused voltage and current outputs
should remain open (no connections).
ANALOG OUTPUT
CH1 1 16 1 16 CH2
18V
Channel 1
is wired for
Current Output
2 32 2 32
4 64 4 64
8 128 8 128
18V
4–20mA
See Note 1
4-20mA
2+
1+
2–
User Load
5–550 ohms
1–
User load
>1K ohm
1+
D–A
Convertor
CH2
2+
2–
0-10VDC
D3–02DA
Internal Module Wiring
CH1
1–
Channel 2
is wired for
Voltage Output
0
V
24
V
– +
24VDC
+/– 10%
(170mA)
+
2
–
0–10V
+
1
–
+
2
–
+24V
+0V
+24V
0
V
+
1
–
24
0 V
V 24
0 V
V
6–5
D3–02DA 2-Channel Analog Output
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The D3–02DA module updates both channels in the same scan. The control
program updates the two channels of this module independent of each other and
each channel does not have to be refreshed on each scan.
Scan
I/O Update
Channel 1
Scan N
Channel 2
Channel 1
Channel 2
Channel 1
Execute Application Program
Calculate the data
Scan N+1
Scan N+2
Channel 2
Channel 1
Write data
Scan N+3
Channel 2
Channel 1
Channel 2
Scan N+4
D3–02DA
2-Channel Analog Output
Module Operation
6–6
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Understanding the You may recall the D3–02DA module appears to the CPU as a 16-point module.
These 16 points provide the digital representation of the analog signal.
I/O Assignments
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
D3–02DA
8pt
Relay
8pt
Output
8pt
Output
16pt
Input
050
–
057
040
–
047
030
–
037
020
027
–
120
127
R 002, R012
2ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
R 001
LSB
1
1
1 Channel 2 1
7
0
MSB
LSB
0
0
1 Channel 1 1
0
7
Within these two word locations, the individual bits represent specific information
about the analog signal.
6–7
D3–02DA 2-Channel Analog Output
The first register contains the data for
channel one (R001). The second register
contains the data for channel two (R011).
Bit
Value
Bit
Value
0
1
4
16
1
2
5
32
2
4
6
64
3
8
7
128
R001
MSB
LSB
0
1
7
0
1
0
- analog data bits
Since the module has 8-bit resolution, the analog signal is converted into 256
“pieces” ranging from 0 – 255 (28). For example, with a 0 to 10V scale, a 0V signal
would be 0, and a 10V signal would be 255. This is equivalent to a a binary value of
0000 0000 to 1111 1111, or 00 to FF hexadecimal. The following diagram shows how
this relates to each signal range.
0V – 10V
+10V
4 – 20mA
20mA
4mA
0V
0
255
0
255
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
result in a change in the data value for
each signal range.
Range
0 to 10V
4 to 20mA
Resolution + H * L
255
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
10V
0V
39 mV
20mA
4mA
62.5 mA
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
D3–02DA
2-Channel Analog Output
Analog Data Bits
6–8
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
As mentioned earlier, you can update either channel or both channels during the
same scan. Since the module does not have any channel select bits, you just simply
determine the location of the data word and send the data word to the output module
whenever you need to update the data.
D3–02DA
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
R 002, R012
2ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1
1 Channel 2
7
Calculating the
Digital Value
R 001
LSB
MSB
1
1
0
Your program has to calculate the digital
value to send to the analog module.
There are many ways to do this, but most
all applications are understood more
easily if you use measurements in
engineering units. This is accomplished
by using the conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
0
1 Channel 1
7
A + 256
LSB
0
1
0
U
H*L
A = Analog value (0 – 255)
U = Engineering Units
H = high limit of the Engineering
unit range
L = low limit of the Engineering
unit range
The following example shows how you would use Engineering Units to obtain the
digital value to represent pressure (PSI) from 0 to 100. This example assumes you
want to obtain a pressure of 42 PSI, which is slightly less than half scale.
A + 256
U
H*L
A + 256
42
100 * 0
A + 107.5 (or 108)
6–9
D3–02DA 2-Channel Analog Output
This example assumes you have already loaded the Engineering unit
value in R400.
Scale the data
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 0 0
R577
DIV
K100
F74
The Engineering unit value is divided by the
Engineering unit range (42/100=.42). In this case
the range is 100. (100 – 0 = 100)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 0 0
R577
DSTR
R576
F50
F73
R576
The accumulator is then multiplied by the module
resolution, which is 256. (256 x 4200 = 1075200).
Notice the most significant digits are now stored in
the auxilliary accumulator. (This is different from
the Divide instruction operation.)
5
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 0 0
4 2 0 0
R577
MUL
K256
R576
Accumulator
2 0 0
F50
Aux. Accumulator
0 1 0 7
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 1 0 7
0 1 0 7
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R451
and R450. R451 and R450 now contain the digital
value, which is 107.
0
Accumulator
1 0 7
Store in R451 & R450
0 1 0 7
R451
R450
D3–02DA
2-Channel Analog Output
Here’s how you would write the program to perform the Engineering Unit conversion.
This example assumes you have calculated or loaded the engineering unit value
and stored it in R400. Also, you have to perform this for both channels if you’re using
different data for each channel.
6–10
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
There will probably be times when you need more precise control. For example,
maybe your application requires 42.9 PSI, not just 42 PSI. By changing the scaling
value slightly, we can “imply” an extra decimal of precision. Notice in the following
example we’ve entered 429 as the Engineering unit value and we’ve added another
digit to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for
the PSI range.
This example assumes you have already loaded the Engineering unit value in R400.
Scale the data
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator.
Accumulator
Aux. Accumulator
0 4 2 9
0 0 0 0
R577
DIV
K1000
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 1000.
(100.0 implied range) (429/1000 = .429)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 0
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is then multiplied by the module
resolution, which is 256. (256 x 4290 = 1098240).
Notice the most significant digits are now stored in
the auxilliary accumulator. (This is different from
the Divide instruction operation.)
8
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 0
4 2 9 0
R577
MUL
K256
R576
Accumulator
2 4 0
Aux. Accumulator
0 1 0 9
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 1 0 9
0 1 0 9
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the digital
value, which is 109.
Accumulator
Store in R451 & R450
0 1 0 9
0 1 0 9
R451
R450
6–11
D3–02DA 2-Channel Analog Output
In some applications, you’ll want to send the same output values to both channels.
The following program example shows how to send the digital values to the module.
This example assumes you have already loaded the Engineering unit value in R450 and R451.
Send Channel 1 & 2
374
DSTR
R450
F50
This rung loads the data into the accumulator on
every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R001
F61
Send the accumulator data to the Register that
corresponds to channel 1, which is R001.
DOUT1
R011
F61
Send the accumulator data to the Register that
corresponds to channel 2, which is R011.
If you want a shorter program, just combine the data scaling and output instructions.
This example assumes you have already loaded the Engineering unit value in R400.
Send Channel 1 & 2
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator.
DIV
K1000
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 1000.
(100.0 implied range)
DSTR
R576
F50
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
MUL
K256
F73
The accumulator is then multiplied by the module
resolution, which is 256.
DSTR
R576
F50
This instruction moves the two-byte auxilliary
accumulator into the regular accumulator.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R001
F61
Send the accumulator data to the Register that
corresponds to channel 1, which is R001.
DOUT1
R011
F61
Send the accumulator data to the Register that
corresponds to channel 2, which is R011.
D3–02DA
2-Channel Analog Output
Sending the Same
Data to Both
Channels
6–12
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Sending Specific
Data to Each
Channel
In this case, the example logic is setup to send different data to each channel. Of
course, you would have to have separate routines to calculate the output data and
you would have to store the different values in separate registers.
This example assumes you have already loaded the Engineering unit value for Channel 1 in R450 and R451
and the data for Channel 2 in R452 and R453.
Send Channel 1
374
Send Channel 2
374
DSTR
R450
F50
This rung loads the data for channel 1 into the
accumulator on every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R001
F61
Send the accumulator data to the Register that
corresponds to channel 1, which is R001.
DSTR
R452
F50
This rung loads the data for channel 2 into the
accumulator on every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R011
F61
Send the accumulator data to the Register that
corresponds to channel 2, which is R011.
6–13
D3–02DA 2-Channel Analog Output
Multiplexing:
DL350 with a
Conventional
DL305 Base
This example assumes the module is in the Y10–17 / Y110–117 slot of a 305
conventional base. In this example V1400 contains the BCD data for channel 1 and
V1401 contains the data for channel 2.
Send Channel 1
SP1
LD
V1400
This rung loads the data for channel 1 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
Kff
Masks off the 256 bit analog data for the module.
Y10
Send the accumulator data to the bits that
correspond to channel 1.
K8
Send Channel 2
SP1
LD
V1401
This rung loads the data for channel 2 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
K8
Kff
Masks off the 256 bit analog data for the module.
Y110
Send the accumulator data to the bits that
correspond to channel 2.
D3–02DA
2-Channel Analog Output
Writing the Control Program (DL350)
6–14
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Multiplexing:
DL350 with a
D3–xx–1 Base
This example assumes the module is in Y0 address slot of a D3–xx–1 base . In this
example V1400 contains the BCD data for channel 1 and V1401 contains the data
for channel 2. If any expansion bases are used in the system, they must all be
D3–xx–1 to be able to use this example. Otherwise, the conventional base
addressing must be used.
Send Channel 1
SP1
LD
V1400
This rung loads the data for channel 1 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
Kff
Masks off the 256 bit analog data for the module.
Y0
Send the accumulator data to the bits that
correspond to channel 1.
K8
Send Channel 2
SP1
LD
V1401
This rung loads the data for channel 2 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
K8
Kff
Masks off the 256 bit analog data for the module.
Y10
Send the accumulator data to the bits that
correspond to channel 2.
6–15
D3–02DA 2-Channel Analog Output
Range
If you know the digital value ...
If you know the analog signal
level ...
0 to 10V
A + 10D
255
D + 255 A
10
4 to 20mA
A + 16D ) 4
255
D + 255 (A * 4)
16
For example, if you are using the
4–20mA range and you know you need a
10mA signal level, you would use the
following formula to determine the digital
value that should be sent to the module.
D + 255 (A * 4)
16
D + 255 (10mA * 4)
16
D + (15.93) (6)
D + 96
Calculating the
Digital Value
Your program must calculate the digital
value to send to the analog module.
There are many ways to do this, but most
applications are understood more easily
if you use measurements in engineering
units. This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
A + U 255
H*L
A = Analog value (0 – 255)
U = Engineering Units
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
Consider the following example which controls pressure from 0.0 to 99.9 PSI. By
using the formula, you can easily determine the digital value that should be sent to
the module. The example shows the conversion required to yield 49.4 PSI. Notice
the formula uses a multiplier of 10. This is because the decimal portion of 49.4
cannot be loaded, so you adjust the formula to compensate for it.
A + 10U
255
10(H * L)
A + 494
255
1000 * 0
A + 126
D3–02DA
2-Channel Analog Output
Analog and Digital Sometimes it is helpful to be able to quickly convert between the voltage or current
Value Conversions signal levels and the digital values. This is especially helpful during machine startup
or troubleshooting. The following table provides formulas to make this conversion
easier.
6–16
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
The example program below shows how you would write the program to perform the
engineering unit conversion. This example assumes you have calculated or loaded
the engineering unit values in BCD and stored them in V2300 and V2301 for
channels 1 and 2 respectively.
NOTE: The DL350 offers various instructions that allow you to perform math
operations using BCD format. It is easier to perform math calculations in BCD and
then convert the value to binary before sending the data to the module.
SP1
LD
V2300
MUL
K255
DIV
K1000
OUT
V1400
SP1
LD
V2301
MUL
K255
DIV
K1000
OUT
V1401
The LD instruction loads the engineering units used with channel 1 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
Multiply the accumulator by 255 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V1400 (the actual steps to write the data
were shown earlier).
The LD instruction loads the engineering units used with channel 2 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
Multiply the accumulator by 255 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V1401 (the actual steps to write the data
were shown earlier).
F3–04DA–1
4-Channel
Analog Output
In This Chapter. . . .
17
Ċ Module Specifications
Ċ Setting the Module Jumpers
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program (DL330 / DL340)
Ċ Writing the Control Program (DL350)
7–2
F3–04DA–1 4-Channel Analog Output
Module Specifications
F3–04DA–1
4-Channel Analog Output
The following table provides the specifications for the F3–04DA–1 Analog Output
Module. Review these specifications to make sure the module meets your
application requirements.
Analog Output
Configuration
Requirements
Number of Channels
4
Output Ranges
0 – 5V, 0 – 10V, 4 – 12 mA,
4 – 20 mA (source)
Resolution
12 bit (1 in 4096)
Output Type
Single ended (one common)
Output Impedance
0.5W typical, voltage output
Output Current
5 mA source, 2.5 mA sink (voltage)
Short-circuit Current
40 mA typical, voltage output
Load Impedance
1KW maximum, current output
2KW minimum, voltage output
Linearity Error
1 count (0.03% maximum)
Maximum Inaccuracy at 77 °F
(25 °C)
0.6% of span, current output
0.2% of span, voltage output
Accuracy vs. Temperature
50 ppm / _C maximum
Conversion Time
30mS maximum
Power Budget Requirement
144 mA @9V, 108 mA @ 24V
External Power Supply
None required
Operating Temperature
32° to 140° F (0° to 60° C)
Storage Temperature
–4° to 158° F (–20° to 70° C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
The F3–04DA–1 Analog Output appears as a 16-point module. The module can be
installed in any slot configured for 16 points. See the DL305 User Manual for details
on using 16 point modules in DL305 systems. The limitation on the number of analog
modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
7–3
F3–04DA–1 4-Channel Analog Output
Setting the Module Jumpers
Jumper Locations
The module is set at the factory for a 0–10V signal on all four channels. (This range
also allows 4–20 mA operation since there are separate I and V wiring terminals.) If
this is acceptable you do not have to change any of the jumpers. The following
diagram shows the jumper locations.
Channel 4
10V
Channel 3
5V
10V
Channel 2
5V
10V
Channel 1
5V
10V
5V
F3–04DA–1
4-Channel Analog Output
Channel 3 Channel 1
Channel 4 Channel 2
Selecting Output
Signal Ranges
The jumper is set from the factory to allow either 0–10V or 4–20mA operation on all
channels. In addition, you can select 0 – 5V or 4 – 12 mA operation by moving the
jumper. (Only channel 1 is used in the example, but all channels must be set.)
Signal Range
Jumper Settings
Range
0 to +5 VDC
4 to 12 mA
0-10V
0 VDC to +10 VDC
4 to 20 mA
0-10V
0-5V
Range
0-5V
7–4
F3–04DA–1 4-Channel Analog Output
Connecting the Field Wiring
F3–04DA–1
4-Channel Analog Output
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the module or the power
supply return (0V). Do not ground the shield at both the module and the
transducer.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The F3–04DA–1 receives all power from the base. A separate power supply is not
required.
Requirements
Load
Requirements
Each channel can be wired independently for a voltage or current transducer.
S Current transducers must have an impedance less than 1K ohm.
S Voltage transducers must have an impedance greater than 2K ohms.
7–5
F3–04DA–1 4-Channel Analog Output
Removable
Connector
The F3–04DA–1 module has a removable connector to make wiring easier. Simply
squeeze the top and bottom tabs and gently pull the connector from the module.
Wiring Diagram
Note 1: Shields should be connected to the 0V (COM)
of the module
F3–04DA–1
Internal Module Wiring
4–20mA are
Current Sourcing
See Note 1
CH1
Current
Output
0-1K ohm
C
O
M
CH1
+I
CH1
+I
–I
CH2
CH2
D/A
+I
D/A
CH2
Voltage
Output
2K ohm min
CH4
Voltage
Output
2K ohm min
+I
CH3
CH3
+I
–I
CH4
D/A
–V
–V
+I
CH3
+I
–I
CH4
–I
+V
+V
CH2
–V
+V
CH3
+I
CH2
–I
D/A
CH4
–I
+V
CH1
CH1
–I
–I
CH3
Current
Output
0-1K ohm
C
O
M
+V
CH1
+V
–V
CH2
–V
CH4
–V
Voltage is Sink/Source
C
O
M
+V
CH3
+V
–V
CH4
–V
24VDC
COM
C
O
M
F3–04DA–1
4-Channel Analog Output
Note 2: Unused voltage & current outputs should remain open (no connections)
ANALOG OUTPUT
7–6
F3–04DA–1 4-Channel Analog Output
Module Operation
F3–04DA–1
4-Channel Analog Output
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The F3–04DA–1 module can update one channel per CPU scan. Your RLL program
selects which channel to update, so you have complete flexibility to solve your
application requirements.
Scan
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 3
Scan N+1
Channel 1
Scan N+2
Channel 4
Scan N+3
Channel 2
Scan N+4
Calculate the data
Write data
7–7
F3–04DA–1 4-Channel Analog Output
Understanding the You may recall the F3–04DA–1 module appears to the CPU as a 16-point module.
These 16 points provide:
I/O Assignments
S the digital representation of the analog signal.
S identification of the channel to receive the data.
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
F3–04DA1
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
4ch.
(Analog)
010
017
–
110
117
R 002, R012
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1
1
7
F3–04DA–1
4-Channel Analog Output
8pt
Relay
R 001
LSB
MSB
1
1
0
LSB
0
1
0
0
1
7
Within these two word locations, the individual bits represent specific information
about the analog signal.
Channel Selection
Inputs
The last four points of the upper register
are used as outputs to tell the module
which channel to update. In our example,
when output 114 is on, channel 1 will be
updated. Here’s how the outputs are
assigned.
Output
Channels
114
1
115
2
116
3
117
4
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- channel selection outputs
7–8
F3–04DA–1 4-Channel Analog Output
F3–04DA–1
4-Channel Analog Output
Analog Data Bits
The remaining twelve bits represent the
analog data in binary format.
Bit
Value
Bit
Value
0 (LSB)
1
6
64
1
2
7
128
2
4
8
256
3
8
9
512
4
16
10
1024
5
32
11
2048
R011
R001
MSB
LSB
1 1 1 1 11 1 1
1 1 1 1 11 1 1
7 6 5 4 32 1 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- data bits
Since the module has 12-bit resolution, the analog signal is converted into 4096
“pieces” ranging from 0 – 4095 (212). For example, with a 0 to 10V scale, a 0V signal
would be 0, and a 10V signal would be 4095. This is equivalent to a a binary value of
0000 0000 0000 to 1111 1111 1111, or 000 to FFF hexadecimal. The following
diagram shows how this relates to each signal range.
0V – 10V
0V – 5V
+V
0V
0
4 – 12mA
12mA
20mA
4 mA
4mA
4095
0
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
possibly result in a change in the data
value for each signal range.
Range
4 – 20mA
4095
0
4095
Resolution H L
4095
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
0 to 5V
5V
0V
1.22 mV
0 to 10V
10V
0V
2.44 mV
4 to 12mA
12mA
4mA
1.95 mA
4 to 20mA
20mA
4mA
3.91 mA
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
7–9
F3–04DA–1 4-Channel Analog Output
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
As mentioned earlier, you can use the channel selection bits to determine which
channels will be updated. The following diagram shows the location for both the
channel selection bits and data bits.
F3–04DA–1
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
4ch.
(Analog)
020
027
–
120
127
R 002, R012
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1 1 1 1
1 1 1 1
7 6 5 4
F3–04DA–1
4-Channel Analog Output
8pt
Relay
R 001
LSB
MSB
1
1
0
0
1
7
LSB
0
1
0
- data bits
- channel selection inputs
Calculating the
Digital Value
Your program has to calculate the digital
value to send to the analog module.
There are many ways to do this, but most
all applications are understood more
easily if you use measurements in
engineering units. This is accomplished
by using the conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
A 4096
U
HL
A = Analog value (0 – 4095)
U = Engineering Units
H = high limit of the Engineering
unit range
L = low limit of the Engineering
unit range
The following example shows how you would use Engineering units to obtain the
digital value to represent pressure (PSI) from 0 to 100. This example assumes you
want to obtain a pressure of 42 PSI, which is slightly less than half scale.
A 4096
U
HL
A 4096
42
100 0
A 1720
7–10
F3–04DA–1 4-Channel Analog Output
Here’s how you would write the program to perform the Engineering unit conversion.
This example assumes you have calculated or loaded the engineering unit value
and stored it in R400. Also, you have to perform this for all channels if you’re using
different data for each channel.
Scale the data
F3–04DA–1
4-Channel Analog Output
374
This example assumes you have already loaded the Engineering unit
value in R400.
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator on every scan.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 0 0
R577
DIV
K100
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 100.
(100 – 0 = 100)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 0 0
R577
773
CMP
K1
F70
DSTR
R576
F50
F73
If not equal to one, this instruction moves the
two-byte decimal portion into the accumulator for
further operations.
Accumulator
Aux. Accumulator
4 2 0 0
4 2 0 0
F50
R576
The accumulator is then multiplied by the module
resolution, which is 4096. (4096 x 4200 =
17203200). Notice the most significant digits are
now stored in the auxilliary accumulator. (This is
different from the Divide instruction operation.)
3
DSTR
R576
R576
Compare for equal to 100 (100 div 100 = 1).
R577
MUL
K4096
R576
Accumulator
2 0 0
Aux. Accumulator
1 7 2 0
R577
R576
This instruction moves the two-byte auxilliary
accumulator
for further operations.
Accumulator
Aux. Accumulator
1 7 2 0
1 7 2 0
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450and R451 now contain the digital
value, which is 1720.
Accumulator
Store in R451 & R450
1 7 2 0
1 7 2 0
R451
773
R450
DSTR
K4095
F50
If equal to one, store 4095 into the accumulator.
DOUT
R450
F60
If equal to one, move 4095 from accumulator to
R450.
7–11
F3–04DA–1 4-Channel Analog Output
There will probably be times when you need more precise control. For example,
maybe your application requires 42.9 PSI, not just 42 PSI. By changing the scaling
value slightly, we can “imply” an extra decimal of precision. Notice in the following
example we’ve entered 429 as the Engineering unit value and we’ve added another
digit to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for
the PSI range.
Scale the data
374
This example assumes you have already loaded the Engineering unit
value in R400.
F50
This instruction loads Engineering unit value into
the accumulator on every scan.
Accumulator
Aux. Accumulator
0 4 2 9
0 0 0 0
R577
DIV
K1000
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 1000.
(100.0 implied range)
0
Accumulator
0 0 0
Aux. Accumulator
4 2 9 0
R577
CMP
K1
773
DSTR
R576
F70
F50
If not equal to one, this instruction moves the
two-byte decimal portion into the accumulator for
further operations.
Accumulator
2 9 0
Aux. Accumulator
4 2 9 0
R577
F73
F50
R576
The accumulator is then multiplied by the module
resolution, which is 4096. (4096 x 4290 =
17571840). Notice the most significant digits are
now stored in the auxilliary accumulator. (This is
different from the Divide instruction operation.)
1
DSTR
R576
R576
Compare for equal to 1000 (1000 div 1000 = 1).
4
MUL
K4096
R576
Accumulator
8 4 0
Aux. Accumulator
1 7 5 7
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
1 7 5 7
1 7 5 7
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the digital
value, which is 1757.
Accumulator
Store in R451 & R450
1 7 5 7
1 7 5 7
R451
773
R450
DSTR
K4095
F50
If equal to one, store 4095 into the accumulator.
DOUT
R450
F60
If equal to one, move 4095 from accumulator to
R450.
F3–04DA–1
4-Channel Analog Output
DSTR
R400
7–12
F3–04DA–1 4-Channel Analog Output
Sending Data to a
Single Channel
The following program example shows how to send the digital value to a single
channel.
This example assumes you have already loaded the Engineering unit value in R450 and R451.
F3–04DA–1
4-Channel Analog Output
Send Channel 1
374
DSTR
R450
F50
This rung loads the data into the accumulator on
every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT5
R001
F65
Send the accumulator data to the Register that
corresponds to the module, which is R001.
114
OUT
115
OUT
Indicate the channel to update. In this case,
channel 1 is being updated.
To update other channels with the same output
data, simple add the channel selection outputs for
the additional channels.
If you install the F3–04DA–1 in the slot corresponding to registers 6 and 16, you have
to make a slight program adjustment. This is because the DOUT5 instruction is not
supported for this slot.
This example assumes you have already loaded the Engineering unit value in R450 and R451.
Send Channel 1
374
DSTR
R450
F50
This rung loads the data into the accumulator on
every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R006
F61
Send the 8 least significant data bits to the first
Register that corresponds to the module which is
R006.
SHFR
K0008
F80
Shift the 4 most significant data bits to the right 8
places. (The data is still in the accumulator).
DOUT3
R016
F63
Send the 4 most significant data bits to the second
Register that corresponds to the module which is
R016.
164
OUT
Indicate the channel to update. In this case,
channel 1 is being updated.
7–13
F3–04DA–1 4-Channel Analog Output
Sequencing the
Channel Updates
Ch4 Done
117
160
OUT RST
Ch3 Done
116
DSTR
R456
F50
117
When channel 4 has been updated, 160 restarts
the update sequence.
When channel 3 has been updated, this rung loads
the data for channel 4 into the accumulator. By
turning on 117, this triggers the channel update.
(Since 117 is also used as an input, this results in
a one-shot.)
OUT
Ch2 Done
115
DSTR
R454
F50
116
When channel 2 has been updated, this rung loads
the data for channel 3 into the accumulator. By
turning on 116, this triggers the channel update.
(Since 116 is also used as an input, this results in
a one-shot.)
OUT
Ch1 Done
114
DSTR
R452
F50
115
When channel 1 has been updated, this rung loads
the data for channel 2 into the accumulator. By
turning on 115, this triggers the channel update.
(Since 115 is also used as an input, this results in
a one-shot.)
OUT
Restart
160
374
374
DSTR
R450
On
First
Scan
Always
on
F50
114
OUT
This rung loads the data for channel 1 into the
accumulator. Since 374 is used, this rung
automatically executes on the first scan. After that,
160 restarts this rung. If you examine the first rung,
you’ll notice 160 only comes on after channel 4
has been updated.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module. (You can omit this step if you’ve already
converted the data elsewhere.)
BIN
F85
DOUT1
R001
F61
Send the 8 least significant data bits to the first
Register that corresponds to the module which is
R001.
SHFR
K8
F80
Shift the 4 most significant data bits to the right 8
places. (The data is still in the accumulator).
DOUT3
R0011
F63
Send the 4 most significant data bits to the second
Register that corresponds to the module which is
R011.
F3–04DA–1
4-Channel Analog Output
Sequencing
Example
This example shows how to send digital values to the module when you have more
than one channel. This example will automatically update all four channels over four
scans. The example is fairly simple and will work in most all situations, but there are
instances where problems can occur. The logic must be active on the first CPU scan
and all subsequent scans. If the logic gets stopped or disabled for some reason,
there is no way to restart it. If you’re using an RLL PLUS (Stage) program, put this logic
in an initial stage that is always active. Also, you should avoid using the this example
if you require the analog output logic to be used inside a Master Control Relay field of
control. Even if you do not have a need for the MCR, you can still accidentally disable
the analog output logic by inadvertently writing to the multiplexing control relays with
an operator interface or intelligent module, such as an ASCII BASIC module, etc.
The following program example shows how to send the digital values to multiple
channels. With this program, all channels will be updated within four scans. You must
use the rungs in the order shown, but you can include them anywhere in the program.
7–14
F3–04DA–1 4-Channel Analog Output
Writing the Control Program (DL350)
F3–04DA–1
4-Channel Analog Output
Reading Values:
Pointer Method
and Multiplexing
Pointer Method
There are two methods of reading values:
S The pointer method (all system bases must be D3–xx–1 to support the
pointer method)
S Multiplexing
You must use the multiplexing method with remote I/O modules (the pointer method
will not work). You can use either method when using DL350 CPU, but for ease of
programming it is strongly recommended that you use the pointer method.
The DL350 has special V-memory locations assigned to each base slot that greatly
simplifies the programming requirements. By using these V-memory locations you
can:
S specify the number of channels to update.
S specify where to obtain the output data.
NOTE: Do not use the pointer method and the PID Control Output auto transfer to
I/O module function together for the same module. If using PID loops, use the pointer
method and ladder logic code to map the analog output data from the PID loop to the
output module memory location(s).
The following program example shows how to set up these locations. Place this rung
anywhere in the ladder program, or in the initial stage when using stage
programming.
SP0
LD
K4
- or -
LD
K 84
Loads a constant that specifies the number of channels to scan and
the data format. The lower byte, most significant nibble (MSN)
selects the data format (i.e. 0=BCD, 8=Binary), the LSN selects
the number of channels (1 to 4).
The binary format is used for displaying data on some operator
interfaces.
Special V-memory location assigned to slot 3 that contains the
number of channels to scan.
OUT
V7663
This loads an octal value for the first V-memory location that will be
used to store the output data. For example, the O2000 entered here
would designate the following addresses.
Ch1 – V2000, Ch2 – V2001, ch3 – V2002, ch4 – V2003
LDA
O2000
The octal address (O2000) is stored here. V7703 is assigned to slot
3 and acts as a pointer, which means the CPU will use the octal
value in this location to determine exactly where to store the output
data.
OUT
V7703
The table shows the special V-memory locations used with the DL350. Slot 0 (zero)
is the module next to the CPU. Remember, the CPU only examines the pointer
values at these locations after a mode transition. The pointer method is supported on
expansion bases (all bases must be D3–xx–1) up to a total of 8 slots away from the
DL350. The pointer method is not supported in slot 8 of a 10 slot base.
Analog Output Module Slot Dependent V-memory Locations
Slot
0
1
2
3
4
5
6
7
No. of Channels
V7660 V7661 V7662
V7663 V7664
V7665 V7666
V7667
Storage Pointer
V7700 V7701 V7702
V7703 V7704
V7705 V7706
V7707
7–15
F3–04DA–1 4-Channel Analog Output
Multiplexing:
DL350 with a
D3–xx–01 Base
This example assumes the module is in Y0 address slot of D3–xx–1 base. In this
example V2000 contains the data for channel and V2001 for channel 2, etc. If any
expansion bases are used in the system, they must all be D3–xx–1 to be able to use
this example. Otherwise, the conventional base addressing must be used.
SP1
INC
This rung loads increments V1400 once every
scan from 0–4.
V2000
This rung loads the data for channel 1 into the
accumulator when V1400 = 1.
LD
The data is stored in V3000 before sending it to
the module.
OUT
V3000
V1400
Y14
OUT
(
Channel 2
K2
=
)
LD
V2001
OUT
V3000
Channel 3
V1400
Y15
OUT
(
K3
=
)
LD
V2002
OUT
V3000
Channel 4
K4
V1400
=
Y16
OUT
(
)
LD
The channel select bit for channel 1 is Y14.
This rung loads the data for channel 2 into the
accumulator when V1400 = 2.
The data is stored in V3000 before sending it to
the module.
The channel select bit for channel 2 is Y15.
This rung loads the data for channel 3 into the
accumulator when V1400 = 3.
The data is stored in V3000 before sending it to
the module.
The channel select bit for channel 3 is Y16.
V2003
This rung loads the data for channel 4 into the
accumulator when V1400 = 4.
V3000
The data is stored in V3000 before sending it to
the module.
OUT
LD
K0
When V1400 is reset to 0 when V1400 is =4.
OUT
V1400
(
Y17
OUT
)
example program continued on next page
The channel select bit for channel 4 is Y17.
F3–04DA–1
4-Channel Analog Output
Channel 1
K1
V1400
=
V1400
7–16
F3–04DA–1 4-Channel Analog Output
example program continued from previous page
SP1
LD
V3000
This rung converts the appropriate analog channel
data to binary for the module.
F3–04DA–1
4-Channel Analog Output
BIN
Y0
OUTF
K12
Multiplexing:
DL350 with a
Conventional
DL305 Base
The OUTF instruction sends the 12 bits of analog
data to the analog module memory address.
This example assumes the module is in the 10–17 / 110–117 slot of a 305
conventional base. In this example V3000 contains the BCD data for channel 1 and
V3001 contains the data for channel 2, etc. One more rung would be necessary for
channel 4.
Send Channel 1
SP1
LD
V3000
BIN
This rung loads the data for channel 1 into the
accumulator.
Converts the BCD data to binary.
ANDD
Kfff
Masks the 12 analog data bits
OUTF Y10
Output the first 8 analog data bits to the module
K8
SHFR
K8
Shifts the first 8 analog data bits out of the
accumulator, leaving the most significant 4 bits
OUTF Y110
K4
Output the last 4 analog data bits to the module
(
Y114
OUT
)
Channel 1 select bit.
example program continued on next page
7–17
F3–04DA–1 4-Channel Analog Output
example program continued from previous page.
Send Channel 2
SP1
LD
V3001
BIN
This rung loads the data for channel 2 into the
accumulator.
Converts the BCD data to binary.
ANDD
Kfff
Masks the 12 analog data bits
Output the first 8 analog data bits to the module
K8
SHFR
K8
Shifts the first 8 analog data bits out of the
accumulator, leaving the most significant 4 bits
OUTF Y110
K4
Output the last 4 analog data bits to the module
(
Send Channel 3
SP1
Y115
OUT
)
LD
V3002
Channel 2 select bit.
This rung loads the data for channel 3 into the
accumulator.
BIN
Converts the BCD data to binary.
ANDD
Kfff
Masks the 12 analog data bits
OUTF Y10
Output the first 8 analog data bits to the module
K8
SHFR
K8
Shifts the first 8 analog data bits out of the
accumulator, leaving the most significant 4 bits
OUTF Y110
K4
(
Y116
OUT
)
Output the last 4 analog data bits to the module
Channel 3 select bit.
F3–04DA–1
4-Channel Analog Output
OUTF Y10
7–18
F3–04DA–1 4-Channel Analog Output
F3–04DA–1
4-Channel Analog Output
Calculating the
Digital Value
Your program must calculate the digital
value to send to the analog module.
There are many ways to do this, but most
applications are understood more easily
if you use measurements in engineering
units. This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
A U 4095
HL
A = Analog value (0 – 4095)
U = Engineering Units
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
Consider the following example which controls pressure from 0.0 to 99.9 PSI. By
using the formula, you can easily determine the digital value that should be sent to
the module. The example shows the conversion required to yield 49.4 PSI. Notice
the formula uses a multiplier of 10. This is because the decimal portion of 49.4
cannot be loaded, so you adjust the formula to compensate for it.
A 10U
4095
10(H L)
A 494
4095
1000 0
A 2023
7–19
F3–04DA–1 4-Channel Analog Output
The example program shows how you would write the program to perform the
engineering unit conversion. This example assumes you have calculated or loaded
the engineering unit values in BCD and stored them in V2300 and V2301 for
channels 1 and 2 respectively.
NOTE: The DL350 offers various instructions that allow you to perform math
operations using BCD format. It is easier to perform math calculations in BCD and
then convert the value to binary before sending the data to the module.
LD
V2300
MUL
K4095
DIV
K1000
OUT
V3000
SP1
LD
V2301
MUL
K4095
DIV
K1000
OUT
V3001
The LD instruction loads the engineering units used with channel 1 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
Multiply the accumulator by 4095 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V3000 (the actual steps to write the data
were shown earlier).
The LD instruction loads the engineering units used with channel 2 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
Multiply the accumulator by 4095 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V3001 (the actual steps to write the data
were shown earlier).
F3–04DA–1
4-Channel Analog Output
SP1
7–20
F3–04DA–1 4-Channel Analog Output
Analog and Digital Sometimes it is helpful to be able to quickly convert between the voltage or current
Value Conversions signal levels and the digital values. This is especially helpful during machine startup
or troubleshooting. The following table provides formulas to make this conversion
easier.
F3–04DA–1
4-Channel Analog Output
Range
If you know the digital value ...
If you know the analog signal
level ...
0 to 5V
A 5D
4095
D 4095 A
5
0 to 10V
A 10D
4095
D 4095 A
10
4 to 12mA
A 12D 4
4095
D 4095 (A 4)
12
4 to 20mA
A 16D 4
4095
D 4095 (A 4)
16
For example, if you are using the
4–20mA range and you know you need a
10mA signal level, you would use the
following formula to determine the digital
value that should be sent to the module.
D 4095 (A 4)
16
D 4095 (10mA 4)
16
D (255.93) (6)
D 1536
F3–04DAS
4-Channel Isolated
Analog Output
In This Chapter. . . .
18
Ċ Module Specifications
Ċ Setting the Module Jumpers
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program (DL340/DL350)
Ċ Writing the Control Program (DL350)
8–2
F3–04DAS 4-Channel Isolated Analog Output
Module Specifications
F3–04DAS
4 Ch. Isolated Analog Out.
The following table provides the specifications for the F3–04DAS Analog Output
Module. Review these specifications to make sure the module meets your
application requirements.
Number of Channels
4
Output Ranges
"5V, "10V, 0–5V, 0–10V, 1–5V,
0–20 mA, 4–20 mA
Resolution
12 bit (1 in 4096)
Output Type
Isolated, 750 VDC channel-to-channel
750 VDC channel-to-logic
Output Current
"5 mA, voltage output
Short-circuit Current
"20 mA typical, voltage output
Capacitive Load Drive
0.1mF typical, voltage output
Load Impedance
470W maximum, current output
2KW minimum, voltage output
Isolation Mode Rejection
140 dB at 60Hz
Linearity Error
"1 count ("0.03% maximum)
Calibration Error
"0.15% typical, "0.75% maximum of span
"10 ppm / _C maximum of full scale
Calibrated Offset Error
"1 count maximum, current output
"5 mV typical, "50 mV max., voltage output
"0.2 mV typical / _C
Conversion Time
30mS maximum, 1 channel/scan
Power Budget Requirement
154 mA @9V, 145 mA @ 24V (maximum)
External Power Supply
None required
Operating Temperature
32° to 140° F (0° to 60° C)
Storage Temperature
–4° to 158° F (–20° to 70° C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
8–3
F3–04DAS 4-Channel Isolated Analog Output
Analog Output
Configuration
Requirements
The F3–04DAS Analog Output appears as a 16-point module. The module can be
installed in any slot configured for 16 points, but should not be installed in Slot 3 of
any DL305 base. See the DL305 User Manual for details on using 16 point modules
in DL305 systems. The limitation on the number of analog modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
WARNING: You should not install this module in Slot 3 of any DL305 base. The
module has traces on the edge card connector that may become damaged if
the module is repeatedly installed and removed. The solder mask that
protects the traces may be scraped off, which may cause a short circuit on the
I/O bus. The short circuit can lead to unpredictable system operation or cause
damage to the CPU or power supply.
2
1
0
C
P DL305
U
6
5
4
3
2
1
0
C
P DL305
U
10
or
7
6
5
4
3
2
1
70
0
C
P DL305
U
F3–04DAS
4 Ch. Isolated Analog Out.
3
8–4
F3–04DAS 4-Channel Isolated Analog Output
Setting the Module Jumpers
Jumper Locations
The module is set at the factory for a 0–10V signal on all four channels. If this is
acceptable you do not have to change any of the jumpers.
If you examine the top board on the module you will notice four sets of jumpers. The
jumpers are assigned to the channels as follows.
S Channel 1 — Jumper JP4
S Channel 2 — Jumper JP3
S Channel 3 — Jumper JP2
S Channel 4 — Jumper JP1
F3–04DAS
4 Ch. Isolated Analog Out.
NOTE: At first glance it might appear we have the channel / jumper assignments out
of order. Your eyes do not deceive you. Channel 1 is controlled by JP4.
Each channel also has a jumper located on the bottom board of the module. These
jumpers select a 1V (or 4mA) offset for each channel. Remove the jumper for any
range that requires an offset. These jumpers are assigned as expected. JP1 selects
an offset for channel 1, JP2 selects an offset for channel 2, etc.
The following diagram shows how the jumpers are assigned. It also shows the
factory settings.
Channel 1 Range
Channel 2 Ranges
J
P
3
1
1
Channel 3 Ranges
J
P
2
Channel 4 Ranges
1
1
JP1
J
P
4
Channel 1 Offset
J
P
1
Channel 2 Offset
JP2
Channel 3 Offset
JP3
Channel 4 Offset
JP4
8–5
F3–04DAS 4-Channel Isolated Analog Output
Selecting Input
Signal Ranges
The following tables show the jumper selections for the various ranges. (Only
channel 1 is used in the example, but all channels must be set.)
Bipolar Signal Range
Jumper Settings
–5 VDC to +5 VDC
Channel 1 (JP4)
Offset Jumper (JP1)
Channel 1 (JP4)
Offset Jumper (JP1)
1
–10 VDC to +10 VDC
1
Unipolar Signal Range
Jumper Settings
Channel 1 (JP4)
Offset Jumper (JP1)
Channel 1 (JP4)
Offset Jumper (JP1)
Channel 1 (JP4)
Offset Jumper (JP1)
1
0 VDC to +5 VDC
(0 to +20 mA)
1
0 VDC to +10 VDC
1
F3–04DAS
4 Ch. Isolated Analog Out.
4 to 20 mA
(1 VDC to 5 VDC)
8–6
F3–04DAS 4-Channel Isolated Analog Output
Special Output
Signal Ranges
The following tables show the jumper selections for some additional ranges that are
not normally found in many applications. Notice you can install or remove the offset
jumper to change the settings. (Only channel 1 is used in the example, but all
channels must be set.)
Signal Range
Offset Installed
Signal Range
Offset Removed
Jumper Settings
–10 VDC to +6 VDC –9 VDC to +7 VDC
Channel 1 (JP4)
1
–5 VDC to +3 VDC
–4 VDC to +4 VDC
Channel 1 (JP4)
F3–04DAS
4 Ch. Isolated Analog Out.
1
–2.5 VDC to
+2.5 VDC
–1.5 VDC to
+3.5 VDC
Channel 1 (JP4)
1
–2.5 VDC to
+1.5 VDC
–1.5 VDC to
+2.5 VDC
Channel 1 (JP4)
1
0 VDC to 8 VDC
1 VDC to 9 VDC
Channel 1 (JP4)
1
0 VDC to 4 VDC
1 VDC to 5 VDC
Channel 1 (JP4)
1
8–7
F3–04DAS 4-Channel Isolated Analog Output
Connecting the Field Wiring
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the module or the power
supply return (0V). Do not ground the shield at both the module and the
transducer.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The F3–04DAS receives all power from the base. A separate power supply is not
required.
Requirements
Each channel can be wired independently for a voltage or current transducer.
S Current transducers must have an impedance less than 470 ohms.
S Voltage transducers must have an impedance greater than 2K ohms.
F3–04DAS
4 Ch. Isolated Analog Out.
Load
Requirements
8–8
F3–04DAS 4-Channel Isolated Analog Output
Removable
Connector
Wiring Diagram
The F3–04DAS module has a removable connector to make wiring easier. Simply
squeeze the top and bottom tabs and gently pull the connector from the module.
Note1: Shields should be connected to the respective channel’s
– V terminal of the module.
Note 2: Each isolated output channel may have either a voltage or
current load, but not both
ANALOG OUTPUT
F3–04DAS
Note 3: An external 0.31 Amp fast-acting fuse in series with the isolated
+I terminal (+15VDC) is recommended to protect against accidental
shorts to the –V terminal (15VDC common)
Note 4: Do not attempt to source more than 20mA from any one of the
four isolated +15VDC power supplies
Internal Module Wiring
See note
+I
CH1
Current
Output
0-470 ohm
+I
CH2
Current
Output
0-470ohm
+I
CH1
+V
CH1
–I
CH2
+V
–I
–V
CH3
CH3
Voltage
Output
2K ohm min
15VDC (20mA)
Isolated Power
–V
CH4
Current
Sink
–V
CH2
+V
–I
CH2
CH3
+V
–I
CH3
+I
CH4
–I
–V
–V
Voltage
Output
+V
CH1
–V
+V
+I
+V
–I
+I
–I
CH4
Voltage
Output
2K ohm min
CH1
+I
Current
Sink
–V
+I
F3–04DAS
4 Ch. Isolated Analog Out.
Voltage
Output
CH4
+V
–I
CH4
–V
15VDC (20mA)
Isolated Power
Internal wiring for CH2 & 3 is
similar to wiring shown above
Combining Voltage You may occasionally encounter transmitters that have a very unusual signal range.
Since each channel is isolated, you can “daisy chain” the channels to provide output
Outputs
voltage signals that are outside of the normal operating range. For example, you
could connect the first two channels to provide a voltage output from 0 to 20 VDC.
+V
User Load
2K ohm min
0–20V
CH1
0–10
–V
CH1 & 2
are configured
for 0–10V
+V
CH2
–V
0–10
8–9
F3–04DAS 4-Channel Isolated Analog Output
Combining Current You cannot connect the current outputs in series (like the voltage outputs) but you
can achieve unusual ranges with a few wiring and programming tricks. For example,
Outputs
let’s say an application requires a "20 mA range. By completing the following steps,
you could easily accommodate this requirement.
1. Configure channel 1 and channel 2 for 0–20mA.
2. Connect the +I of channel 1 to the –I of channel 2.
3. Connect the –I of channel 1 to the +I of channel 2.
4. Send 0 (digital value) to channel 2 while you send 0–4095 (digital value) to
channel 1. To reverse the power flow, send 0 to channel 1 while you send
the 0–4095 value to channel 2. (See the section on Writing the Control
Program for information on sending data values.)
WARNING: The isolated +15 VDC power supplies are rated at a maximum of 20
mA. Current ratings that exceed 20 mA will damage the module beyond repair.
For example, if you used the 0–10 VDC range for the example, the current
would approach 40 mA which would cause damage to the module.
+/– 20mA
CH1
0–20mA
–I
CH1 & 2
are configured
for 0–20mA
+I
CH2
–I
0–20mA
F3–04DAS
4 Ch. Isolated Analog Out.
+I
User Load
0–470 ohm
8–10
F3–04DAS 4-Channel Isolated Analog Output
Module Operation
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The F3–04DAS module can update one channel per CPU scan. Your RLL program
selects the channel to update, so you have complete flexibility in solving your
application requirements.
Scan
F3–04DAS
4 Ch. Isolated Analog Out.
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 3
Scan N+1
Channel 1
Scan N+2
Channel 4
Scan N+3
Channel 2
Scan N+4
Calculate the data
Write data
8–11
F3–04DAS 4-Channel Isolated Analog Output
Understanding the You may recall the F3–04DAS module appears to the CPU as a 16-point module.
These 16 points provide:
I/O Assignments
S the digital representation of the analog signal.
S identification of the channel to receive the data.
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
F3–04DAS
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
4ch.
(Analog)
020
027
–
120
127
R 002, R012
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
1
1
7
R 001
LSB
MSB
1
1
0
LSB
0
1
0
0
1
7
Within these two word locations, the individual bits represent specific information
about the analog signal.
Channel Selection
Inputs
The last four points of the upper register
are used as outputs to tell the module
which channel to update. In our example,
when output 114 is on, channel 1 will be
updated. Here’s how the outputs are
assigned.
Output
Channels
114
1
115
2
116
3
117
4
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- channel selection inputs
F3–04DAS
4 Ch. Isolated Analog Out.
R 011
MSB
8–12
F3–04DAS 4-Channel Isolated Analog Output
Analog Data Bits
The remaining twelve bits represent the
analog data in binary format.
Bit
Value
Bit
Value
0 (LSB)
1
6
64
1
2
7
128
2
4
8
256
3
8
9
512
4
16
10
1024
5
32
11
2048
R011
R001
MSB
LSB
1 1 1 1 11 1 1
1 1 1 1 11 1 1
7 6 5 4 32 1 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- data bits
Since the module has 12-bit resolution, the analog signal is converted into 4096
“pieces” ranging from 0 – 4095 (212). For example, with a 0 to 10V scale, a 0V signal
would be 0, and a 10V signal would be 4095. This is equivalent to a a binary value of
0000 0000 0000 to 1111 1111 1111, or 000 to FFF hexadecimal. The following
diagram shows how this relates to each signal range.
–10V – +10V
–5V – +5V
F3–04DAS
4 Ch. Isolated Analog Out.
+V
0V – 10V
0V – 5V
+V
1V – 5V
4 – 20mA
+5V
20mA
1V
4mA
0V
-V
0V
0
4095
0
4095
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
possibly result in a change in the data
value for each signal range.
Range
0
4095
0
4095
Resolution + H * L
4095
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
–10 to +10V
+10V
–10V
4.88 mV
–5 to +5V
+5 V
–5V
2.44 mV
0 to 5V
5V
0V
1.22 mV
0 to 10V
10V
0V
2.44 mV
1 to 5V
5V
1V
0.98 mV
20mA
4mA
3.91 mA
4 to 20mA
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
8–13
F3–04DAS 4-Channel Isolated Analog Output
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
As mentioned earlier, you can use the channel selection bits to determine which
channels will be updated. The following diagram shows the location for both the
channel selection bits and data bits.
F3–04DAS
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
4ch.
(Analog)
020
027
–
120
127
010
017
–
110
117
R 002, R012
16pt
Input
000
007
–
100
107
R 000, R010
R 001
LSB
1 1 1 1
1 1 1 1
7 6 5 4
MSB
1
1
0
0
1
7
LSB
0
1
0
- data bits
- channel selection inputs
Calculating the
Digital Value
Your program has to calculate the digital
value to send to the analog module.
There are many ways to do this, but most
all applications are understood more
easily if you use measurements in
engineering units. This is accomplished
by using the conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
A + 4096
U
H*L
A = Analog value (0 – 4095)
U = Engineering Units
H = high limit of the Engineering
unit range
L = low limit of the Engineering
unit range
The following example shows how you would use Engineering Units to obtain the
digital value to represent pressure (PSI) from 0 to 100. This example assumes you
want to obtain a pressure of 42 PSI, which is slightly less than half scale.
A + 4096
U
H*L
A + 4096
42
100 * 0
A + 1720
F3–04DAS
4 Ch. Isolated Analog Out.
R 011
MSB
8–14
F3–04DAS 4-Channel Isolated Analog Output
Here’s how you would write the program to perform the Engineering Unit conversion.
This example assumes you have calculated or loaded the engineering unit value
and stored it in R400. Also, you have to perform this for all channels if you’re using
different data for each channel.
This example assumes you have already loaded the Engineering unit
value in R400.
Scale the data
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator on every scan.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 0 0
R577
DIV
K100
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 100.
(100 – 0 = 100)
0
Accumulator
0 0 0
Aux. Accumulator
4 2 0 0
F3–04DAS
4 Ch. Isolated Analog Out.
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is then multiplied by the module
resolution, which is 4096. (4096 x 4200 =
17203200). Notice the most significant digits are
now stored in the auxilliary accumulator. (This is
different from the Divide instruction operation.)
3
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 0 0
4 2 0 0
R577
MUL
K4096
R576
Accumulator
2 0 0
Aux. Accumulator
1 7 2 0
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
1 7 2 0
1 7 2 0
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the digital
value, which is 1720.
Accumulator
Store in R451 & R450
1 7 2 0
1 7 2 0
R451
R450
8–15
F3–04DAS 4-Channel Isolated Analog Output
There will probably be times when you need more precise control. For example,
maybe your application requires 42.9 PSI, not just 42 PSI. By changing the scaling
value slightly, we can “imply” an extra decimal of precision. Notice in the following
example we’ve entered 429 as the Engineering unit value and we’ve added another
digit to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for
the PSI range.
This example assumes you have already loaded the Engineering unit value in R400.
Scale the data
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator on every scan.
Accumulator
Aux. Accumulator
0 4 2 9
0 0 0 0
R577
DIV
K1000
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 1000.
(100.0 implied range)
0
Accumulator
0 0 0
Aux. Accumulator
4 2 9 0
R577
F50
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 0
4 2 9 0
R577
MUL
K4096
F73
F50
R576
The accumulator is then multiplied by the module
resolution, which is 4096. (4096 x 4290 =
17571840). Notice the most significant digits are
now stored in the auxilliary accumulator. (This is
different from the Divide instruction operation.)
1
DSTR
R576
R576
Accumulator
8 4 0
Aux. Accumulator
1 7 5 7
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
1 7 5 7
1 7 5 7
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the digital
value, which is 1757.
Accumulator
Store in R450 & R451
1 7 5 7
1 7 5 7
R450
R451
F3–04DAS
4 Ch. Isolated Analog Out.
DSTR
R576
R576
8–16
F3–04DAS 4-Channel Isolated Analog Output
Sending Data to a
Single Channel
The following program example shows how to send the digital value to a single
channel.
This example assumes you have already loaded the Engineering unit value in R450 and R451.
Send Channel 1
374
DSTR
R450
F50
This rung loads the data into the accumulator on
every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT5
R001
F65
Send the accumulator data to the Register that
corresponds to the module, which is R001.
114
OUT
115
F3–04DAS
4 Ch. Isolated Analog Out.
OUT
Indicate the channel to update. In this case,
channel 1 is being updated.
To update other channels with the same output
data, simple add the channel selection outputs for
the additional channels.
If you install the F3–04DA–1 in the slot corresponding to registers 6 and 16, you have
to make a slight program adjustment. This is because the DOUT5 instruction is not
supported for this slot.
This example assumes you have already loaded the Engineering unit value in R450 and R451.
Send Channel 1
374
DSTR
R450
F50
This rung loads the data into the accumulator on
every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R006
F61
Send the 8 least significant data bits to the first
Register that corresponds to the module which is
R006.
SHFR
K0008
F80
Shift the 4 most significant data bits to the right 8
places. (The data is still in the accumulator).
DOUT3
R016
F63
Send the 4 most significant data bits to the second
Register that corresponds to the module which is
R016.
164
OUT
Indicate the channel to update. In this case,
channel 1 is being updated.
8–17
F3–04DAS 4-Channel Isolated Analog Output
Sequencing the
Channel Updates
Sequencing
Example
This example shows how to send digital values to the module when you have more
than one channel. This example will automatically update all four channels over four
scans. The example is fairly simple and will work in most all situations, but there are
instances where problems can occur. The logic must be active on the first CPU scan
and all subsequent scans. If the logic gets stopped or disabled for some reason,
there is no way to restart it. If you’re using an RLL PLUS (Stage) program, put this logic
in an initial stage that is always active. Also, you should avoid using the this example
if you require the analog output logic to be used inside a Master Control Relay field of
control. You could also accidentally disable the analog output logic by inadvertently
writing to the multiplexing control relays with an operator interface or intelligent
module, such as an ASCII BASIC module, etc.
The following program example shows how to send the digital values to multiple
channels. With this program, all channels will be updated within four scans. You must
use the rungs in the order shown, but you can include them anywhere in the program.
Ch4 Done
117
160
OUT
Ch3 Done
116
F50
117
When channel 3 has been updated, this rung loads
the data for channel 4 into the accumulator. By
turning on 117, this triggers the channel update.
(Since 117 is also used as an input, this results in
a one-shot.)
OUT
Ch2 Done
115
DSTR
R454
F50
116
When channel 2 has been updated, this rung loads
the data for channel 3 into the accumulator. By
turning on 116, this triggers the channel update.
(Since 116 is also used as an input, this results in
a one-shot.)
OUT
Ch1 Done
114
DSTR
R452
F50
115
When channel 1 has been updated, this rung loads
the data for channel 2 into the accumulator. By
turning on 115, this triggers the channel update.
(Since 115 is also used as an input, this results in
a one-shot.)
OUT
Restart
160
374
374
DSTR
R450
On
First
Scan
Always
on
F50
114
OUT
This rung loads the data for channel 1 into the
accumulator. Since 374 is used, this rung
automatically executes on the first scan. After that,
160 restarts this rung. If you examine the first rung,
you’ll notice 160 only comes on after channel 4
has been updated.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module. (You can omit this step if you’ve already
converted the data elsewhere.)
BIN
F85
DOUT1
R001
F61
Send the 8 least significant data bits to the first
Register that corresponds to the module which is
R001.
SHFR
K8
F80
Shift the 4 most significant data bits to the right 8
places. (The data is still in the accumulator).
DOUT3
R0011
F63
Send the 4 most significant data bits to the second
Register that corresponds to the module which is
R011.
F3–04DAS
4 Ch. Isolated Analog Out.
DSTR
R456
When channel 4 has been updated, 160 restarts
the update sequence.
8–18
F3–04DAS 4-Channel Isolated Analog Output
Writing the Control Program (DL350)
Reading Values:
Pointer Method
and Multiplexing
Pointer Method
There are two methods of reading values:
S The pointer method (all system bases must be D3–xx–1 to support the
pointer method)
S Multiplexing
You must use the multiplexing method with remote I/O modules (the pointer method
will not work). You can use either method when using DL350 CPU, but for ease of
programming it is strongly recommended that you use the pointer method.
The DL350 has special V-memory locations assigned to each base slot that greatly
simplifies the programming requirements. By using these V-memory locations you
can:
S specify the number of channels to update.
S specify where to obtain the output data.
F3–04DAS
4 Ch. Isolated Analog Out.
NOTE: Do not use the pointer method and the PID Control Output auto transfer to
I/O module function together for the same module. If using PID loops, use the pointer
method and ladder logic code to map the analog output data from the PID loop to the
output module memory location(s).
The following program example shows how to set up these locations. Place this rung
anywhere in the ladder program, or in the initial stage when using stage
programming.
SP0
LD
K4
- or -
LD
K 84
Loads a constant that specifies the number of channels to scan and
the data format. The lower byte, most significant nibble (MSN)
selects the data format (i.e. 0=BCD, 8=Binary), the LSN selects
the number of channels (1 or 2).
The binary format is used for displaying data on some operator
interfaces.
Special V-memory location assigned to slot 3 that contains the
number of channels to scan.
OUT
V7663
This loads an octal value for the first V-memory location that will be
used to store the output data. For example, the O2000 entered here
would designate the following addresses.
Ch1 – V2000, Ch2 – V2001
LDA
O2000
The octal address (O2000) is stored here. V7703 is assigned to slot
3 and acts as a pointer, which means the CPU will use the octal
value in this location to determine exactly where to store the output
data.
OUT
V7703
The table shows the special V-memory locations used with the DL350. Slot 0 (zero)
is the module next to the CPU. Remember, the CPU only examines the pointer
values at these locations after a mode transition. The pointer method is supported on
expansion bases (all bases must be D3–xx–1) up to a total of 8 slots away from the
DL350. The pointer method is not supported in slot 8 of a 10 slot base.
Analog Output Module Slot Dependent V-memory Locations
Slot
0
1
2
3
4
5
6
7
No. of Channels
V7660 V7661 V7662
V7663 V7664
V7665 V7666
V7667
Storage Pointer
V7700 V7701 V7702
V7703 V7704
V7705 V7706
V7707
8–19
F3–04DAS 4-Channel Isolated Analog Output
Multiplexing:
DL350 with a
D3–xx–1 Base
This example assumes the module is in Y0 address slot of a D3–xx–1. In this
example V2000 contains the data for channel 1 and V2001 for channel 2, etc. in
BCD. If any expansion bases are used in the system, they must all be D3–xx–1 to be
able to use this example. Otherwise, the conventional base addressing must be
used.
SP1
INC
Channel 1
K1
V1400
=
V1400
This rung loads increments V1400 once every
scan from 0–4.
V2000
This rung loads the data for channel 1 into the
accumulator when V1400 = 1.
LD
The data is stored in V3000 before sending it to
the module.
OUT
V3000
K2
=
)
LD
V2001
OUT
V3000
Channel 3
V1400
Y15
OUT
(
K3
=
)
LD
V2002
OUT
V3000
Channel 4
K4
V1400
=
Y16
OUT
(
)
LD
The channel select bit for channel 1 is Y14.
This rung loads the data for channel 2 into the
accumulator when V1400 = 2.
The data is stored in V3000 before sending it to
the module.
The channel select bit for channel 2 is Y15.
This rung loads the data for channel 3 into the
accumulator when V1400 = 3.
The data is stored in V3000 before sending it to
the module.
The channel select bit for channel 3 is Y16.
V2003
This rung loads the data for channel 4 into the
accumulator when V1400 = 4.
V3000
The data is stored in V3000 before sending it to
the module.
OUT
LD
K0
V1400 is reset to 0 when V1400 is =4.
OUT
V1400
(
Y17
OUT
)
example program continued on next page
The channel select bit for channel 4 is Y17.
F3–04DAS
4 Ch. Isolated Analog Out.
Channel 2
V1400
Y14
OUT
(
8–20
F3–04DAS 4-Channel Isolated Analog Output
example program continued from previous page
SP1
LD
V3000
This rung converts the appropriate analog channel
data to binary for the module.
BIN
Y0
OUTF
K12
Multiplexing:
DL350 with
Conventional
DL305 Base
This example assumes the module is in the Y0–10 / Y100–107 slot of a 305
conventional base. In this example V2000 contains the BCD data for channel 1 and
V2001 contains the data for channel 2, etc. One more rung would be necessary for
channel 4.
SP1
F3–04DAS
4 Ch. Isolated Analog Out.
The OUTF instruction sends the 12 bits of analog
data to the analog module memory address.
INC
Channel 1
K1
V1400
=
V1400
This rung loads increments V1400 once every
scan from 0–4.
V2000
This rung loads the data for channel 1 into the
accumulator when V1400 = 1.
LD
The data is stored in V3000 before sending it to
the module.
OUT
V3000
Channel 2
V1400
Y114
OUT
(
K2
=
)
LD
V2001
OUT
V3000
Channel 3
V1400
K3
=
Y115
OUT
(
)
LD
V2002
OUT
V3000
(
Y116
OUT
)
The channel select bit for channel 1 is Y14.
This rung loads the data for channel 2 into the
accumulator when V1400 = 2.
The data is stored in V3000 before sending it to
the module.
The channel select bit for channel 2 is Y15.
This rung loads the data for channel 3 into the
accumulator when V1400 = 3.
The data is stored in V3000 before sending it to
the module.
The channel select bit for channel 3 is Y16.
example program continued on next page
8–21
F3–04DAS 4-Channel Isolated Analog Output
example program continued from previous page
Channel 4
K4
V1400
=
LD
V2003
This rung loads the data for channel 4 into the
accumulator when V1400 = 4.
V3000
The data is stored in V3000 before sending it to
the module.
OUT
LD
K0
V1400 is reset to 0 when V1400 is =4.
OUT
V1400
(
The channel select bit for channel 4 is Y17.
)
LD
V3000
The BIN converts the appropriate analog channel
data to binary for the module.
BIN
ANDD
Kfff
OUTF
K8
Y0
SHFR
K8
Y100
OUTF
K4
The OUTF and SHFR instruction formats the data
and sends the 12 bits of analog data to the analog
module memory address.
F3–04DAS
4 Ch. Isolated Analog Out.
SP1
Y117
OUT
8–22
F3–04DAS 4-Channel Isolated Analog Output
Calculating the
Digital Value
Your program must calculate the digital
value to send to the analog module.
There are many ways to do this, but most
applications are understood more easily
if you use measurements in engineering
units. This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
A + U 4095
H*L
A = Analog value (0 – 4095)
U = Engineering Units
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
F3–04DAS
4 Ch. Isolated Analog Out.
Consider the following example which controls pressure from 0.0 to 99.9 PSI. By
using the formula, you can easily determine the digital value that should be sent to
the module. The example shows the conversion required to yield 49.4 PSI. Notice
the formula uses a multiplier of 10. This is because the decimal portion of 49.4
cannot be loaded, so you adjust the formula to compensate for it.
A + 10U
4095
10(H * L)
A + 494
4095
1000 * 0
A + 2023
8–23
F3–04DAS 4-Channel Isolated Analog Output
The example program below shows how you would write the program to perform the
engineering unit conversion. This example assumes you have calculated or loaded
the engineering unit values in BCD and stored them in V2300 and V2301 for
channels 1 and 2 respectively.
NOTE: The DL350 offers various instructions that allow you to perform math
operations using BCD format. It is easier to perform math calculations in BCD and
then convert the value to binary before sending the data to the module.
SP1
LD
V2300
MUL
K4095
OUT
V3000
SP1
LD
V2301
MUL
K4095
DIV
K1000
OUT
V3001
Multiply the accumulator by 4095 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V3000 (the actual steps to write the data
were shown earlier).
The LD instruction loads the engineering units used with channel 2 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
Multiply the accumulator by 4095 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V3001 (the actual steps to write the data
were shown earlier).
F3–04DAS
4 Ch. Isolated Analog Out.
DIV
K1000
The LD instruction loads the engineering units used with channel 1 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
8–24
F3–04DAS 4-Channel Isolated Analog Output
Analog and Digital Sometimes it is helpful to be able to quickly convert between the voltage or current
Value Conversions signal levels and the digital values. This is especially helpful during machine startup
or troubleshooting. The following table provides formulas to make this conversion
easier.
F3–04DAS
4 Ch. Isolated Analog Out.
Range
If you know the digital value ...
If you know the signal level ...
–10V to + 10V
A + 20D * 10
4095
D + 4095 (A ) 10)
20
–5V to + 5V
A + 10D * 5
4095
D + 4095 (A ) 5)
10
0 to 5V
A + 5D
4095
D + 4095 A
5
0 to 10V
A + 10D
4095
D + 4095 A
10
1 to 5V
A + 4D ) 1
4095
D + 4095 (A * 1)
4
4 to 20mA
A + 16D ) 4
4095
D + 4095 (A * 4)
16
For example, if you are using the –10 to
+10V range and you have measured the
signal at 6V, you would use the following
formula to determine the digital value
that should be stored in the register
location that contains the data.
D + 4095 (A ) 10)
20
D + 4095 (6V ) 10)
20
D + (204.75) (16)
D + 3276
F3–08THM–n
8-Channel
Thermocouple Input
In This Chapter. . . .
Ċ Introduction
Ċ Module Specifications
Ċ Setting the Module Switches
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
19
9–2
F3–08THM–n 8-Channel Thermocouple Input
Introduction
Automatic
Conversion
The F3–08THM–n Thermocouple Input Module provides eight, differential
thermocouple input channels (12-bit resolution). The module automatically converts
type E, J, K, R, S or T thermocouple signals into direct temperature readings. No
extra scaling or complex conversion is required. You can select between _F or _C
operation.
This module is also available in versions specially designed to convert millivolt signal
levels into direct digital values (0–4095). Two versions are available, one for
0–50mV and one for 0–100mV.
Hardware Features The F3–08THM–n also features automatic cold junction compensation,
thermocouple linearization, plus analog and digital filtering. The temperature
calculation and linerazation are based on data provided by the National Bureau of
Standards.
F3–08THM–n
8Ch. Thermocouple In.
Diagnostic
Features
Thermocouple burnout and other errors are automatically reported to the CPU. For
example, if the thermocouple becomes disconnected, then a value of 4095 is
assigned to that channel.
9–3
F3–08THM–n 8-Channel Thermocouple Input
Module Specifications
The following table provides the specifications for the F3–08THM–n Thermocouple
Input Module from FACTS Engineering. Review these specifications to make sure
the module meets your application requirements.
8, differential inputs
Input Ranges
Type E: –270/1000 _C, –450/1832 _F
Type J: –210/760 _C, –350/1390 _F
Type K: –270/1370 _C, –450/2500 _F
Type R: 0/1768 _C, –32/3214 _F
Type S: 0/1768 _C, –32/3214 _F
Type T: –270/400 _C, –450/752 _F
–1: 0 – 50 mV
–2: 0–100 mV
Resolution
12 bit (1 in 4096)
Input Impedance
27KW DC
Absolute Maximum Ratings
Fault protected input, 130 Vrms or 100 VDC
Cold Junction Compensation
Automatic
Conversion Time
15ms per channel, minimum
1 channel per CPU scan
Converter Type
Successive Approximation, 574
Linearity Error
"1 count (0.03% of full scale) maximum
Maximum Inaccuracy at 77 °F
(25 °C)
0.35% of full scale
Accuracy vs. Temperature
57 ppm / _C maximum full scale
Power Budget Requirement
50 mA @ 9 VDC, 34 mA @ 24 VDC
External Power Supply
None required
Operating Temperature
32° to 140° F (0° to 60° C)
Storage Temperature
–4° to 158° F (–20° to 70° C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
The F3–08THM–n Thermocouple Input appears as a 16-point module. The module
can be installed in any slot configured for 16 points. See the DL305 User Manual for
details on using 16 point modules in DL305 systems. The limitation on the number of
analog modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
F3–08THM–n
8Ch. Thermocouple In.
Analog Input
Configuration
Requirements
Number of Channels
9–4
F3–08THM–n 8-Channel Thermocouple Input
Setting the Module Jumpers
Jumper Locations
The module is set at the factory for _C thermocouple readings. If this is acceptable
you do not have to change any of the jumpers. The following diagram shows how the
jumpers are set.
WARNING: DO NOT change the calibration jumper settings. If you think this
jumper has been changed, make sure it is NOT in the CAL position. All
calibration is performed at the factory. Any changes to this may affect the
module accuracy which could result in the risk of personal injury and/or
equipment damage.
Selecting _F or _C
Operation
There is a jumper located on the bottom
of the board that selects between _C and
_F temperature measurements. This
jumper (labeled _F) should be removed if
you require _C measurements.
Measurement
Selection
_F
CNTS
Remove this jumper
for _C operation.
F3–08THM–n
8Ch. Thermocouple In.
Selecting 0–4095
Operation
There is a jumper located on the bottom
of the board that allows you to disable the
direct temperature conversion feature. If
you install a jumper on the CNTS pin, the
temperature will be represented by a
digital value between 0 and 4095. For
example, an E type thermocouple would
have a value of 0 for –450 _F and a value
of 4095 for 1832 _F.
NOTE: If you are using the –1 (50mV) or
the –2 (100mV) millivolt input versions,
you should make sure this jumper is
installed.
Measurement
Selection
_F
CNTS
Install this jumper to obtain
digital values (0 – 4095).
9–5
F3–08THM–n 8-Channel Thermocouple Input
Connecting the Field Wiring
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the signal source. Do not
ground the shield at both the module and the source.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The F3–08THM–n receives all power from the base. A separate power supply is not
required.
Requirements
Wiring Diagram
Note 1: Terminate shields at the respective signal source
Note 2: Leave unused channels open (no connection)
Internal Module Wiring
THERMOCOUPLE
F3–08THM
A/D
See note
C
C
–1
–1
CH1
+1
+1
–2
–2
Examples of differential
Thermocouple wiring
+2
+2
CH3
+3
+3
C
C
–4
–4
+4
+4
–5
+5
C
–6
CH6
+6
–7
Examples of grounded
Thermocouple wiring
+7
–8
CH8
+8
C
Analog
Switch
–5
+5
C
–6
+6
–7
+7
–8
+8
C
F3–08THM–n
8Ch. Thermocouple In.
–3
–3
9–6
F3–08THM–n 8-Channel Thermocouple Input
Module Operation
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The F3–08THM–n module supplies1 channel of data per each CPU scan. Since
there are eight channels, it can take up to eight scans to get data for all channels.
Once all channels have been scanned the process starts over with channel 1.
Scan
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 2
Scan N+1
Channel 8
Scan N+7
Channel 1
Scan N+8
F3–08THM–n
8Ch. Thermocouple In.
.
.
.
Read the data
.
.
.
Store data
Even though the channel updates to the CPU are synchronous with the CPU scan,
the module asynchronously monitors the thermocouple signal and converts the
signal to a temperature (or 12-bit binary) representation. This enables the module to
continuously provide accurate measurements without slowing down the discrete
control logic in the RLL program.
9–7
F3–08THM–n 8-Channel Thermocouple Input
Understanding the You may recall the F3–08THM–n module appears to the CPU as a 16-point module.
These 16 points provide:
I/O Assignments
S an indication of which channel is active.
S the digital representation of the temperature.
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
F3–08THM
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
8ch
(Analog)
020
027
–
120
127
R 002, R012
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1
1
7
R 001
LSB
MSB
1
1
0
LSB
0
1
0
0
1
7
Within these two register locations, the individual bits represent specific information
about the analog signal.
The next to last three bits of the upper
Register indicate the active channel. The
indicators automatically increment with
each CPU scan.
Active Channel
Scan
Inputs
Channel
N
000
1
N+1
001
2
N+2
010
3
N+3
011
4
N+4
100
5
N+5
101
6
N+6
110
7
N+7
111
8
N+8
000
1
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- active channel
indicator inputs
F3–08THM–n
8Ch. Thermocouple In.
Active Channel
Indicator Inputs
9–8
F3–08THM–n 8-Channel Thermocouple Input
Temperature Sign
Bit
The most significant bit is used to note
the sign of the temperature. If this bit is
on, then the temperature is negative. If
the bit is off, then the temperature is
positive.
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- temperature sign
Analog Data Bits
Temperature Input
Resolution
F3–08THM–n
8Ch. Thermocouple In.
Millivolt Input
Resolution
The first twelve bits represent the
temperature. If you have selected the
0–4095 scale, the following format is
used.
Bit
Value
Bit
Value
0 (LSB)
1
6
64
1
2
7
128
2
4
8
256
3
8
9
512
4
16
10
1024
5
32
11
2048
R011
R001
MSB
LSB
1 1 1 1 11 1 1
1 1 1 1 11 1 1
7 6 5 4 32 1 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- data bits
Typically, the F3–08THM–n resolution enables you to detect a 1 _C change in
temperature. The National Bureau of Standards publishes conversion tables that
show how each temperature corresponds to an equivalent signal level.
Since the module has 12-bit resolution,
the analog signal is converted into 4096
“pieces” ranging from 0 – 4095 (212). For
example, with a –2 (100mV) module a
signal of 0 mV would be 0, and a signal of
100 mV would be 4095. This is
equivalent to a a binary value of 0000
0000 0000 to 1111 1111 1111, or 000 to
FFF hexadecimal. The diagram shows
how this relates to the example signal
range.
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
result in a change in the data value for
each signal range.
Range
0–100 mV Scale
100mV
0 mV
0
4095
Resolution + H * L
4095
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
0 – 50 mV
50 mV
0 mV
12.2 mV
0 – 100 mV
100mA
0mA
24.2 mV
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
9–9
F3–08THM–n 8-Channel Thermocouple Input
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
Since all channels are multiplexed into a single data word, the control program must
be setup to determine which channel is being read. Since the module provides input
points to the CPU, it is very easy to use the channel status bits to determine which
channel is being monitored.
F3–08THM
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
R 002, R012
8ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
R 001
LSB
1 1 1 1
1 1 1 1
7 6 5 4
1
1
0
MSB
0
1
7
LSB
0
1
0
- temperature sign
Automatic
Temperature
Conversion
If you are using the temperature scale (°F or° C) then you do not have to perform any
scaling. Once you convert the binary temperature reading to a four-digit BCD
number, you have the temperature.
F3–08THM–n
8Ch. Thermocouple In.
- active channel
indicator inputs
- data bits
9–10
F3–08THM–n 8-Channel Thermocouple Input
The following example shows a program designed to read any of the available
channels of data into Register locations. Once the data is in a Register, you can
perform math on the data, compare the data against preset values, etc. Since the
DL305 CPUs use 8-bit word instructions, you have to move the data in pieces. It’s
simple if you follow the example.
Read the data
374
Store channel 1
114
115
116
F3–08THM–n
8Ch. Thermocouple In.
Store channel 2
114
115
116
Store channel 3
114
115
116
Store channel 4
114
115
116
Store channel 5
114
115
116
Store channel 6
114
115
116
Store channel 7
114
115
116
Store channel 8
114
115
116
DSTR3
R011
F53
This rung loads the four data bits into the
accumulator from Register 011 on every scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight data bits into the
accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
DOUT
R400
F60
DOUT
R402
F60
DOUT
R404
F60
DOUT
R406
F60
DOUT
R410
F60
DOUT
R412
F60
DOUT
R414
F60
DOUT
R416
F60
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the conversion.)
The channel selection inputs are used to let the
CPU know which channel has been loaded into the
accumulator. By using these inputs to control a
DOUT instruction, you can easily move the data to
a storage register. Notice the DOUT instruction
stores the data in two bytes. (Two bytes are
required for four digit BCD numbers.)
9–11
F3–08THM–n 8-Channel Thermocouple Input
Using the Sign Bit
By adding a couple of simple rungs you can easily monitor the temperature for
positive vs. negative readings. (For example, you have to know whether the
temperature is +100 _F or –100 _F.) Notice how we’ve changed Channel 2 to control
an output that denotes the sign of the temperature.
Read the data
374
Store channel 1
114
115
116
Store channel 2
114
115
116
114
115
116
DSTR3
R011
F53
This rung loads the four data bits into the
accumulator from Register 011 on every scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight data bits into the
accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
DOUT
R400
F60
DOUT
R402
F60
117
200
114
115
116
117
200
RST
Store channel 3
114
115
116
Store channel 4
114
115
116
DOUT
R404
F60
DOUT
R406
F60
The channel selection inputs are used to let the
CPU know which channel has been loaded into the
accumulator. By using these inputs to control a
DOUT instruction, you can easily move the data to
a storage register. Notice the DOUT instruction
stores the data in two bytes. (Two bytes are
required for four digit BCD numbers.)
If 117 is on, then the temperature on channel 2 is
negative.
If 117 is off, then the temperature on channel 2 is
positive.
F3–08THM–n
8Ch. Thermocouple In.
SET
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (You
can omit this step if your application does not
require the conversion.)
9–12
F3–08THM–n 8-Channel Thermocouple Input
Scaling the Input
Data
If you are using the –1 (50mV) or the
–2 (100mV) versions, you may want to
scale the data to represent the
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
Units +
A S
4096
Units = value in Engineering Units
A = Analog value (0 – 4095)
S = high limit of the Engineering
unit range
NOTE: The thermocouple versions
automatically provide the correct
temperature readings. Scaling is not
required.
The following example shows how you
would use the analog data to represent
pressure (PSI) from 0 to 100. This
example assumes the analog value is
1760. This should yield approximately
42.9 PSI.
Units +
A S
4096
Units + 1760 100
4096
F3–08THM–n
8Ch. Thermocouple In.
Units + 42.9
9–13
F3–08THM–n 8-Channel Thermocouple Input
The following instructions are required to scale the data. (We’ll continue to use the
42.9 PSI example.) Once we’ve explained how these instructions operate, we’ll
show an example program.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
114
115
116
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is then multiplied by the scaling
factor, which is 100. (100 x 4296 = 429600). Notice
the most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
9
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K100
R576
Accumulator
6 0 0
Aux. Accumulator
0 0 4 2
R577
R576
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the PSI,
which is 42 PSI.
Accumulator
Store in R451 & R450
0 0 4 2
0 0 4 2
R451
R450
F3–08THM–n
8Ch. Thermocouple In.
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 4 2
9–14
F3–08THM–n 8-Channel Thermocouple Input
You probably noticed the previous example yielded 42 PSI when the real value
should have been 42.9 PSI. By changing the scaling value slightly, we can “imply” an
extra decimal of precision. Notice in the following example we’ve added another digit
to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for the
PSI range.
This example assumes you have already read the analog data
and stored the BCD equivalent in R400 and R401
Scale the data
114
115
116
DSTR
R400
F50
This instruction brings the analog value (in BCD)
into the accumulator.
Accumulator
Aux. Accumulator
1 7 6 0
0 0 0 0
R577
DIV
K4096
F74
The analog value is divided by the resolution of the
module, which is 4096. (1760 / 4096 = 0.4296)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 6
R577
DSTR
R576
F50
F73
F3–08THM–n
8Ch. Thermocouple In.
F50
R576
The accumulator is multiplied by the scaling factor,
which is now 1000. (1000 x 4296 = 4296000). The
most significant digits are now stored in the
auxilliary accumulator. (This is different from the
way the Divide instruction operates.)
6
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 6
4 2 9 6
R577
MUL
K1000
R576
Accumulator
0 0 0
Aux. Accumulator
0 4 2 9
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 4 2 9
0 4 2 9
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contains the PSI,
which implies 42.9.
Accumulator
Store in R451 & R450
0 4 2 9
0 4 2 9
R451
R450
9–15
F3–08THM–n 8-Channel Thermocouple Input
This example program shows how you can use the instructions to load these
equation constants into data registers. The example is written for channel 1, but you
can easily use a similar approach to use different scales for all channels if required.
You may just use the appropriate constants in the instructions dedicated for each
channel, but this method allows easier modifications. For example, you could easily
use an operator interface or a programming device to change the constants if they
are stored in Registers.
Load the constants
374
Read the data
374
F50
DOUT
R430
F60
DSTR
K1000
F50
DOUT
R432
F60
DSTR3
R011
F53
This rung loads the four most significant data bits
into the accumulator from Register 011 on every
scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DIV
R430
F74
The analog value is divided by the resolution of the
module, which is stored in R430 and R431.
DSTR
R576
F50
This instruction moves the decimal portion from the
auxilliary accumulator into the regular accumulator
for further operations.
MUL
R432
F73
The accumulator is multiplied by the scaling factor,
which is stored in R432 and R433.
DSTR
R576
F50
This instruction moves most significant digits (now
stored in the auxilliary accumulator) into the
regular accumulator for further operations.
DOUT
R400
F60
The scaled value is stored in R400 and R401 for
further use.
These two instructions load the high limit of the
Engineering unit scale (constant of 1000) into
R432 and R433. Note, if you have different scales
for each channel, you’ll also have to enter the
Engineering unit high limit for those as well.
F3–08THM–n
8Ch. Thermocouple In.
Store channel 1
114
115
116
On the first scan, these first two instructions load
the analog resolution (constant of 4096) into R430
and R431.
DSTR
K4096
9–16
F3–08THM–n 8-Channel Thermocouple Input
Writing the Control Program (DL350)
Reading Values:
Pointer Method
and Multiplexing
There are two methods of reading values for the DL350:
S The pointer method (all system bases must be D3–xx–1 bases to
support the pointer method)
S Multiplexing
You must use the multiplexing method with remote I/O modules (the pointer method
will not work). You can use either method when using DL350, but for ease of
programming it is strongly recommended that you use the pointer method.
Pointer Method
The DL350 has special V-memory locations assigned to each base slot that greatly
simplifies the programming requirements. These V-memory locations allow you to:
S specify the data format
S specify the number of channels to scan
S specify the storage locations
The example program shows how to setup these locations. Place this rung
anywhere in the ladder program or in the Initial Stage if you are using RLL PLUS
instructions. This is all that is required to read the data into V-memory locations.
Once the data is in V-memory, you can perform math on the data, compare the data
against preset values, and so forth. V2000 is used in the example, but you can use
any user V-memory location. In this example the module is installed in slot 2. You
should use the V-memory locations for your module placement.
SP0
F3–08THM–n
8Ch. Thermocouple In.
LD
K 08 00
- or -
LD
K 88 00
Loads a constant that specifies the number of channels to scan and
the data format. The upper byte, most significant nibble (MSN)
selects the data format (i.e. 0=BCD, 8=Binary), the LSN selects
the number of channels (i.e. 1, 2, 3, 4, 5, 6, 7, 8).
The binary format is used for displaying data on some operator
interfaces.
OUT
V7662
Special V-memory location assigned to slot 2 that contains the
number of channels to scan.
LDA
O2000
This loads an octal value for the first V-memory location that will be
used to store the incoming data. For example, the O2000 entered
here would designate the following addresses.
Ch1 - V2000, Ch2 - V2001, Ch3 - V2002, Ch4 - V2003,
Ch5 – V2004, Ch6 – V2005, Ch7 – V2006, Ch8 – V2007
OUT
V7672
The octal address (O2000) is stored here. V7672 is assigned to slot
2 and acts as a pointer, which means the CPU will use the octal
value in this location to determine exactly where to store the
incoming data.
9–17
F3–08THM–n 8-Channel Thermocouple Input
The table shows the special V-memory locations used with the DL350. Slot 0 (zero)
is the module next to the CPU, slot 1 is the module two places from the CPU, and so
on. Remember, the CPU only examines the pointer values at these locations after a
mode transition. The pointer method is supported on expansion bases up to a total of
8 slots away from the DL350 CPU. The pointer method is not supported in slot 8 of a
10 slot base.
Analog Input Module Slot-Dependent V-memory Locations
Slot
0
1
2
3
4
5
6
7
No. of Channels
V7660 V7661 V7662
V7663 V7664
V7665 V7666
V7667
Storage Pointer
V7670 V7671 V7672
V7673 V7674
V7675 V7676
V7677
F3–08THM–n
8Ch. Thermocouple In.
9–18
F3–08THM–n 8-Channel Thermocouple Input
Multiplexing:
DL350 with a
D3–XX–1 Base
The example below shows how to read multiple channels on an F3–08THM
Thermocouple module in the X0 address slot of the D3–xx–1 base. If any expansion
bases are used in the system, they must all be D3–xx–1 to be able to use this
example. Otherwise, the conventional base addressing must be used.
Load the data
_On
SP1
LDF
X0
This loads the analog data from the module.
K12
The BCD command converts the data to BCD
format.
BCD
OUT
V1400
The scaled value is stored in V1400 with an
implied decimal.
Channel 1 Select Bit States
X14
X15
X16
LD
V1400
OUT
This writes channel one data to V2000
when bits X14, X15 and X16 are as
shown.
V2000
Channel 2 Select Bit States
X14
X15
X16
LD
F3–08THM–n
8Ch. Thermocouple In.
V1400
OUT
This writes channel two data to V2001
when bits X14, X15 and X16 are as
shown.
V2001
Channel 3 Select Bit States
X14
X15
X16
LD
V1400
OUT
This writes channel three data to
V2002 when bits X14, X15 and X16
are as shown.
V2002
Channel 4 Select Bit States
X14
X15
X16
LD
V1400
OUT
V2003
This writes channel four data to V2003
when bits X14, X15 and X16 are as
shown.
9–19
F3–08THM–n 8-Channel Thermocouple Input
Channel 5 Select Bit States
X14
X15
X16
LD
V1400
OUT
This writes channel five data to V2004
when bits X14, X15 and X16 are as
shown.
V2004
Channel 6 Select Bit States
X14
X15
X16
LD
V1400
OUT
This writes channel six data to V2005
when bits X14, X15 and X16 are as
shown.
V2005
Channel 7 Select Bit States
X14
X15
X16
LD
V1400
OUT
This writes channel seven data to
V2006 when bits X14, X15 and X16
are as shown.
V2006
Channel 8 Select Bit States
X14
X15
X16
LD
V1400
V2007
Using the Sign Bit
X17 is the sign bit when in module address 0.
Channel 1 Selected
X14
X15
X16
X17
C0
SET
X14
X15
X16
X17
C0
RST
When the sign bit is on, the sign control relay (C0)
is set, causing the temperature on channel one to
be negative.
When the sign bit is not true, the sign bit control bit
is reset, causing the temperature on channel one
to be positive.
F3–08THM–n
8Ch. Thermocouple In.
OUT
This writes channel eight data to
V2007 when bits X14, X15 and X16
are as shown.
9–20
F3–08THM–n 8-Channel Thermocouple Input
Multiplexing:
DL350 with a
Conventional
DL305 Base
The example below shows how to read multiple channels on an F3–08THM
Thermocouple module in the X20–X27 / 120 –127 address of a DL305 conventional
base. The first six channels are shown.
Load the data
_On
SP1
LDF
X120
This loads the upper byte of the analog data from
the module.
K8
SHFL
K8
ORF
X20
K8
ANDD
Kfff
BCD
This shifts the to the left to make room for the
lower byte of data.
This brings the lowewr byte of data from the
module into the accumulator.
This masks off the 12 analog data bits
The BCD command converts the data to BCD
format.
The channel data is stored in V2200.
OUT
V2200
Channel 1 Select Bit States
X124 X125
X126
LD
V2200
F3–08THM–n
8Ch. Thermocouple In.
OUT
Channel 2 Select Bit States
X124 X125
X126
This writes channel one data to V3000
when bits X124, X125 and X126 are
as shown.
V3000
LD
V2200
OUT
This writes channel two data to V3001
when bits X124, X125 and X126 are
as shown.
V3001
Channel 3 Select Bit States
X124 X125
X126
LD
V2200
OUT
V3002
This writes channel three data to
V3002 when bits X124, X125 and
X126 are as shown.
9–21
F3–08THM–n 8-Channel Thermocouple Input
Channel 4 Select Bit States
X124 X125
X126
LD
V2200
OUT
This writes channel four data to V3003
when bits X124, X125 and X126 are
as shown.
V3003
Channel 5 Select Bit States
X124 X125
X126
LD
V2200
OUT
This writes channel five data to V3004
when bits X124, X125 and X126 are
as shown.
V3004
Channel 6 Select Bit States
X124 X125
X126
LD
V2200
OUT
X16
X17
C0
SET
X14
X15
X16
X17
C0
RST
When the sign bit is on, the sign control relay (C0)
is set, causing the temperature on channel one to
be negative.
When the sign bit is not true, the sign bit control bit
is reset, causing the temperature on channel one
to be positive.
F3–08THM–n
8Ch. Thermocouple In.
X15
V3005
X17 is the sign bit when in module address 0.
Channel 1 Negative Temp
X14
This writes channel six data to V3005
when bits X14, X15 and X16 are as
shown.
9–22
F3–08THM–n 8-Channel Thermocouple Input
Scaling the
Input Data
Most applications usually require
measurements in engineering units,
which provide more meaningful data.
This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
Units + A H * L
4095
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
A = Analog value (0 – 4095)
For example, if you wanted to measure pressure (PSI) from 0.0 to 99.9 then you
would have to multiply the analog value by 10 in order to imply a decimal place when
you view the value with the programming software or a handheld programmer.
Notice how the calculations differ when you use the multiplier.
Here is how you would write the program to perform the engineering unit conversion.
This example assumes you have BCD data loaded into the appropriate V-memory
locations using instructions that apply for the model of CPU you are using.
NOTE: This example uses SP1, which is always on. You could also use an X, C, etc. permissive contact.
SP1
LD
V3000
When SP1 is on, load channel 1 data to the accumulator.
MUL
K1000
Multiply the accumulator by 1000 (to start the conversion).
DIV
K4095
Divide the accumulator by 4095.
F3–08THM–n
8Ch. Thermocouple In.
OUT
V3010
Store the result in V3010.
9–23
F3–08THM–n 8-Channel Thermocouple Input
Temperature and
Digital Value
Conversions
Since the thermocouple devices are non-linear, it is much easier to rely on published
standards for conversion information. The National Bureau of Standards publishes
conversion tables that show how each temperature corresponds to an equivalent
signal level.
Millivolt and Digital Sometimes it is helpful to be able to quickly convert between the signal levels and the
Value Conversions digital values. This is especially helpful during machine startup or troubleshooting.
The following table provides formulas to make this conversion easier.
mV Range
If you know the digital value ... If you know the analog signal
level ...
MV50
0 to 50 mV
A + 50D
4095
D + 4095 A
50
MV100
0 to 100 mV
A + 100D
4095
D + 4095 A
100
For example, if you are using a
–2 (100mV) version and you have
measured the signal as 30 mV, you
would use the following formula to
determine the digital value that should be
stored in the register location that
contains the data.
D + 4095 A
100
D + 4095 (30)
100
D + (40.95) (30)
D + 1229
F3–08THM–n
8Ch. Thermocouple In.
F3–08TEMP
8-Channel
Temperature Input
In This Chapter. . . .
Ċ Module Specifications
Ċ Setting the Module Jumpers
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
110
10–2
F3–08TEMP 8-Channel Temperature Input
Module Specifications
F3–08TEMP
8 Ch. Temperature Input
The F3–08TEMP Temperature Input Module provides eight, single-ended
temperature inputs for use with AD590 type temperature transmitters (range of
0–1mA.) The module provides 12-bit resolution. You can use the RLL control
program to select between _F or _C operation.
The following table provides the specifications for the F3–08TEMP Temperature
Input Module from FACTS Engineering. Review these specifications to make sure
the module meets your application requirements.
Number of Channels
8, single-ended inputs
Input Ranges
0 – 1 mA
Resolution
12 bit (1 in 4096)
No missing codes 0.25 _C with AD590M
Input Impedance
10KW "0.1%
Absolute Maximum Ratings
"50 mA
Conversion Time
Converter Type
35ms per channel, maximum
1 channel per CPU scan
Successive Approximation, AD574
Linearity Error
"1 count (0.03% of full scale) maximum
Maximum Inaccuracy at 77 °F
(25 °C)
0.25% of full scale
Accuracy at 25 _C
"1 _C with AD590M transmitter
Accuracy vs. Temperature
57 ppm / _C maximum full scale
Power Budget Requirement
25 mA @ 9 VDC, 37 mA @ 24 VDC
External Power Supply
None required
Operating Temperature
32° to 140° F (0° to 60° C)
Storage Temperature
–4° to 158° F (–20° to 70° C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
10–3
F3–08TEMP 8-Channel Temperature Input
The following table provides the specifications for input temperature probes
Compatible
Temperature Probe compatible with this module.
Specifications
Compatible Temperature Probe Specifications
Analog Input
Configuration
Requirements
Transmitter Type
AD590
Input Temperature Range
–40° to 212° F (–40° to 100°C) –
(Opto 22 PN ICTD)
–67° to 302° F (–55° to 150°C) –
(Analog Devices PN AC2626J)
Transmitter Output
for Opto 22 and
Analog Devices
1 mA / _K, 298.2 mA @ 25 _C
218 mA @ –55 _C, 423 mA @ 150 _C
The F3–08TEMP Temperature Input appears as a 16-point module. The module can
be installed in any slot configured for 16 points. See the DL305 User Manual for
details on using 16 point modules in DL305 systems. The limitation on the number of
analog modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
F3–08TEMP
8Ch. Temperature Input
10–4
F3–08TEMP 8-Channel Temperature Input
Setting the Module Jumpers
Factory Settings
F3–08TEMP
8 Ch. Temperature Input
Selecting the
Number of
Channels
The module is set at the factory for eight-channel operation. If this is acceptable you
do not have to change any of the jumpers. The following diagram shows how the
jumpers are set.
If you examine the rear of the module,
you’ll notice several jumpers. The
jumpers labeled +1, +2 and +4 are used
to select the number of channels that will
be used. Without any jumpers the
module processes one channel. By
installing the jumpers you can add
channels. The module is set from the
factory for eight channel operation.
For example, if you install the +1 jumper,
you add one channel for a total of two.
Now if you install the +2 jumper you add
two more channels for a total of four.
Any unused channels are not processed
so if you only select channels 1–4, then
the last four channels will not be active.
The following table shows which jumpers
to install.
Channel(s) +4
+2
+1
1
No
No
No
12
No
No
Yes
123
No
Yes
No
1234
No
Yes
Yes
12345
Yes
No
No
123456
Yes
No
Yes
1234567
Yes
Yes
No
1 2 3 4 5 6 7 8 Yes
Yes
Yes
+4 +2 +1
Number of
Channels
Jumpers installed as shown
selects 8-channel operation
10–5
F3–08TEMP 8-Channel Temperature Input
Connecting the Field Wiring
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the signal source. Do not
ground the shield at both the module and the source.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The F3–08TEMP receives all power from the base. A separate power supply is not
required.
Requirements
The F3–08TEMP module has a removable connector to make wiring easier. Simply
remove the retaining screws and gently pull the connector from the module.
Removable
Connector
Note 1: Terminate the shield at the signal source (0V reference potential)
Note 2: Connect unused AD590 current inputs to 0VDC
ANALOG INPUT
Internal Module Wiring
F3–08TEMP
AD574
0–1mA
See notes
COM
1+
COM
IN
0V
AD590M
2+
CH1
+
1
–
10K
1–
AD590M
2–
IN
0V
CH2
IN
0V
CH3
10K
3+
AD590M
4+
10K
AD590M
IN
0V
3–
4–
AD590M
10K
IN
0V
5+
6+
AD590M
IN
0V
CH6
IN
0V
CH7
10K
7+
8+
10K
IN
0V
7–
8–
CH8
+5 to
+30VDC
–
AD590 TEMP TRANSDUCER
Power Supply
+
5
–
+
7
–
10K
C
O
M
COM
+
Analog
Switch
COM
0V
+
2
–
+
4
–
+
6
–
+
8
–
F3–08TEMP
8Ch. Temperature Input
6–
AD590M
CH5
10K
5–
AD590M
CH4
+
3
–
C
O
M
10–6
F3–08TEMP 8-Channel Temperature Input
Module Operation
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The F3–08TEMP module supplies1 channel of data per each CPU scan. Since there
are eight channels, it can take up to eight scans to get data for all channels. Once all
channels have been scanned the process starts over with channel 1.
You do not have to select all of the channels. Unused channels are not processed, so
if you select only four channels, then the channels will be updated within four scans.
Scan
I/O Update
Channel 1
Scan N
Execute Application Program
Channel 2
Scan N+1
Channel 8
Scan N+7
Channel 1
Scan N+8
F3–08TEMP
8 Ch. Temperature Input
.
.
.
Read the data
.
.
.
Store data
Even though the channel updates to the CPU are synchronous with the CPU scan,
the module asynchronously monitors the temperature transmitter signal and
converts the signal to a 12-bit binary representation. This enables the module to
continuously provide accurate measurements without slowing down the discrete
control logic in the RLL program.
10–7
F3–08TEMP 8-Channel Temperature Input
Understanding the You may recall the F3–08TEMP module appears to the CPU as a 16-point module.
These 16 points provide:
I/O Assignments
S an indication of which channel is active.
S the digital representation of the temperature.
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
F3–08TEMP
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
8ch
(Analog)
010
017
–
110
117
R 002, R012
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1
1
7
- not used
R 001
LSB
MSB
1
1
0
LSB
0
1
0
0
1
7
Within these two register locations, the individual bits represent specific information
about the analog signal.
Active Channel
Indicator Inputs
R011
MSB
LSB
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- active channel
indicator inputs
F3–08TEMP
8Ch. Temperature Input
The next to last three bits of the upper
Register indicate the active channel. The
indicators automatically increment with
each CPU scan.
Active Channel
Scan
Inputs
Channel
N
000
1
N+1
001
2
N+2
010
3
N+3
011
4
N+4
100
5
N+5
101
6
N+6
110
7
N+7
111
8
N+8
000
1
10–8
F3–08TEMP 8-Channel Temperature Input
Analog Data Bits
F3–08TEMP
8 Ch. Temperature Input
Temperature Input
Resolution
The first twelve bits represent the
temperature. The following format is
used.
Bit
Value
Bit
Value
0 (LSB)
1
6
64
1
2
7
128
2
4
8
256
3
8
9
512
4
16
10
1024
5
32
11
2048
R011
MSB
1 1 1 1 11 1 1
1 1 1 1 11 1 1
7 6 5 4 32 1 0
R001
LSB
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
7 6 5 4 3 2 1 0
- data bits
Typically, the F3–08TEMP resolution enables you to detect a 0.1 _F change in
temperature.
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
10–9
F3–08TEMP 8-Channel Temperature Input
Writing the Control Program (DL 330 / DL340)
Identifying the
Data Locations
Since all channels are multiplexed into a single data word, the control program must
be setup to determine which channel is being read. Since the module provides input
points to the CPU, it is very easy to use the channel status bits to determine which
channel is being monitored.
F3–08TEMP
8pt
Relay
8pt
Output
8pt
Output
16pt
Input
050
–
057
040
–
047
030
–
037
020
027
–
120
127
R 002, R012
8ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
R 001
LSB
1
1
7
1
1
0
- not used
MSB
0
1
7
LSB
0
1
0
Reading the Digital The following example program is designed to read any of the available channels of
data . Once the data is read, you’ll have to add some logic to convert the data into a
Value
_C or _F temperature. (More on the conversion in a minute. For now, let’s just read
the value into the accumulator.) Since the DL305 CPUs use 8-bit word instructions,
you have to move the data in pieces. It’s simple if you follow the example.
Read the data
374
F53
This rung loads the four data bits into the
accumulator from Register 011 on every scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight data bits into the
accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (We’ll
have to use math to convert the value to a
temperature.)
F3–08TEMP
8Ch. Temperature Input
DSTR3
R011
10–10
F3–08TEMP 8-Channel Temperature Input
Converting the
Data to
Temperature
Once the input data is stored in a register location, you will need to convert it to
represent the temperature you are measuring. Use the formulas shown to convert
the data to show the temperature in _C and _F.
For _C Readings
For _F Readings
Temp + 1000 A * 273.2
4096
Temp + 1000 A * 459.6
2276
Temp = temperature in _C
A = Analog value (0 – 4095)
Temp = temperature in _F
A = Analog value (0 – 4095)
273.2 = _K offset
(0 _K = –273.2 _C)
459.6 = _K offset
(0 _K = –459.6 _F)
The following example shows how you
would use the analog data to represent
the temperature. This example assumes
the analog value is 1733. This should
yield approximately 150 _C.
Temp + 1000 1733 * 273.2
4096
Temp + 149.9
F3–08TEMP
8 Ch. Temperature Input
You can’t quite enter the formula exactly as is with the DL305 instruction set. You
have to use a value that implies the decimal point of precision. Plus, since we can
move the decimal portion into the accumulator, we do not have to multiply the value
by 1000.
The following instructions show you how to solve the conversion problem. (We’ll
continue to use the 150 _C example.)
10–11
F3–08TEMP 8-Channel Temperature Input
NOTE: This example uses °C. To use °F, simply change the scaling factor and offset
instructions to use the F formula.
S _F scale — Constant of 2276 for scaling factor, constant of 4596 for
offset.
S _C scale — constant of 4096 for scaling factor, constant of 2732 for
offset.
Read the data
374
DSTR3
R011
F53
This rung loads the four data bits into the
accumulator from Register 011 on ever scan.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight data bits into the
accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (We’ll
have to use math to convert the value to a
temperature.)
Accumulator
Aux. Accumulator
1 7 3 3
0 0 0 0
R577
R576
Scale the data
374
DIV
K4096
F74
The analog value is divided by _C scaling factor,
which is 4096. (1733 / 4096 = 0.4230)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 3 0
R577
DSTR
R576
F50
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 3 0
4 2 3 0
R577
F72
R576
Now subtract the _K offset from the accumulator.
(The _K offset is 2732, which represents 273.2 _.
Accumulator
Constant
4 2 3 0
2 7 3 2
–
1
Accumulator
4 9 8
F3–08TEMP
8Ch. Temperature Input
SUB
K2732
R576
10–12
F3–08TEMP 8-Channel Temperature Input
Reading
Temperatures
Below Zero
You have to perform some additional
calculations if the temperature is below
zero. Since the DL305 sets a special
contact 775 if the subtraction results in a
value below zero, you can use this to
indicate further calculations are required.
The following example shows the scaling
and zero indication for a temperature of
–30 C.
Temp + 1000 996 * 273.2
4096
Temp + * 30.0
This example assumes you have already read the analog data
into the accumulator and converted the data to BCD.
0
Accumulator
9 9 6
Scale the data
374
DIV
K4096
F74
The analog value is divided by _C scaling factor,
which is 4096. (996 / 4096 = 0.2431)
Accumulator
Aux. Accumulator
0 0 0 0
2 4 3 1
R577
DSTR
R576
F50
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
2 4 3 1
2 4 3 1
R577
SUB
K2732
F72
R576
R576
Now subtract the _K offset from the accumulator.
(The _K offset is 2732, which represents 273.2 _.
Accumulator
Constant
2 4 3 1
2 7 3 2
–
0
775
DOUT
R500
F60
If 775 is on, the value is temporarily stored in
registers (R500 and R501 in this case).
Accumulator
0 6 9 9
0 6 9 9
R501
DSTR
K0000
F3–08TEMP
8 Ch. Temperature Input
SP775
1 (on)
Since the DL305 encountered a negative number, it
turns contact 775 on to indicate a borrow.
Below zero correction
374
Accumulator
6 9 9
F50
Store 0000 in the accumulator. This will allow us to
calculate the correct value.
0
SUB
R500
F72
R500
Accumulator
0 0 0
Now subtract the original answer (which was
0699.) 0 – 0699 = 0301, or 30.1 _C
Accumulator
Constant
0 0 0 0
0 6 9 9
–
0
Accumulator
3 0 1
SP775
1 (on)
10–13
F3–08TEMP 8-Channel Temperature Input
Storing the
Temperature
Once you’ve read the data and converted it to a temperature, you can use the
channel selection inputs to store each of the eight channels. Once you’ve stored the
data you can perform data comparisons, additional math, etc.
Read the data
374
Scale the data
374
Below zero correction
374
775
Store channel 1
114
115
116
Store channel 8
114
115
116
F53
This rung loads the four data bits into the
accumulator from Register 011.
DOUT1
R501
F61
Temporarily store the bits to Register 501.
DSTR1
R001
F51
This rung loads the eight data bits into the
accumulator from Register 001.
DOUT1
R500
F61
Temporarily store the bits to Register 500. Since
the most significant bits were loaded into 501, now
R500 and R501 contain all twelve bits in order.
DSTR
R500
F50
Now that all the bits are stored, load all twelve bits
into the accumulator.
BCD
F86
DIV
K4096
F74
The analog value is divided by _C scaling factor,
which is 4096. (1733 / 4096 = 0.4230)
DSTR
R576
F50
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
SUB
K2732
F72
Now subtract the _K offset from the accumulator.
(The _K offset is 2732, which represents 273.2 _.
DOUT
R500
F60
If 775 is on, the value is temporarily stored in
registers (R500 and R501 in this case).
DSTR
K0000
F50
Store 0000 in the accumulator. This will allow us to
calculate the correct value.
SUB
R500
F72
Now subtract the original answer (which was
0699.) 0 – 0699 = 0301, or 30.1 _C
DOUT
R400
F60
Use the channel selection bits to determine which
channel is active. For example, this rung stores
channel 1 temperature in registers 400 and 401.
DOUT
R402
F60
DOUT
R416
F60
Math operations are performed in BCD. This
instruction converts the binary data to BCD. (We’ll
have to use math to convert the value to a
temperature.)
F3–08TEMP
8Ch. Temperature Input
Store channel 2
114
115
116
DSTR3
R011
10–14
F3–08TEMP 8-Channel Temperature Input
Writing the Control Program (DL350)
Reading Values:
Pointer Method
and Multiplexing
There are two methods of reading values for the DL350:
S The pointer method (all system bases must be D3–xx–1 bases to
support the pointer method)
S Multiplexing
You must use the multiplexing method with remote I/O modules (the pointer method
will not work). You can use either method when using DL350, but for ease of
programming it is strongly recommended that you use the pointer method.
Pointer Method
The DL350 has special V-memory locations assigned to each base slot that greatly
simplifies the programming requirements. These V-memory locations allow you to:
S specify the data format
S specify the number of channels to scan
S specify the storage locations
The example program shows how to setup these locations. Place this rung
anywhere in the ladder program or in the Initial Stage if you are using RLL PLUS
instructions. This is all that is required to read the data into V-memory locations.
Once the data is in V-memory, you can perform math on the data, compare the data
against preset values, and so forth. V2000 is used in the example, but you can use
any user V-memory location. In this example the module is installed in slot 2. You
should use the V-memory locations for your module placement.
SP0
LD
K 08 00
- or -
LD
K 88 00
Loads a constant that specifies the number of channels to scan and
the data format. The upper byte, most significant nibble (MSN)
selects the data format (i.e. 0=BCD, 8=Binary), the LSN selects
the number of channels (i.e. 1, 2, 3, 4, 5, 6, 7, 8).
The binary format is used for displaying data on some operator
interfaces.
F3–08TEMP
8 Ch. Temperature Input
OUT
V7662
Special V-memory location assigned to slot 2 that contains the
number of channels to scan.
LDA
O2000
This loads an octal value for the first V-memory location that will be
used to store the incoming data. For example, the O2000 entered
here would designate the following addresses.
Ch1 - V2000, Ch2 - V2001, Ch3 - V2002, Ch4 - V2003,
Ch5 – V2004, Ch6 – V2005, Ch7 – V2006, Ch8 – V2007
OUT
V7672
The octal address (O2000) is stored here. V7672 is assigned to slot
2 and acts as a pointer, which means the CPU will use the octal
value in this location to determine exactly where to store the
incoming data.
10–15
F3–08TEMP 8-Channel Temperature Input
The table shows the special V-memory locations used with the DL350. Slot 0 (zero)
is the module next to the CPU, slot 1 is the module two places from the CPU, and so
on. Remember, the CPU only examines the pointer values at these locations after a
mode transition. The pointer method is supported on expansion bases up to a total of
8 slots away from the DL350 CPU. The pointer method is not supported in slot 8 of a
10 slot base.
Analog Input Module Slot-Dependent V-memory Locations
Slot
0
1
2
3
4
5
6
7
No. of Channels
V7660 V7661 V7662
V7663 V7664
V7665 V7666
V7667
Storage Pointer
V7670 V7671 V7672
V7673 V7674
V7675 V7676
V7677
F3–08TEMP
8Ch. Temperature Input
10–16
F3–08TEMP 8-Channel Temperature Input
Multiplexing:
DL350 with a
D3–XX–1 Base
The example below shows how to read an Analog Devices AD590 temperature
transducer on an F3–08TEMP Temperature Input module in the X0 address of the
D3–xx–1 Base. If any expansion bases are used in the system, they must all be
D3–xx–1 to be able to use this example. Otherwise, the conventional base
addressing must be used.
_FirstScan
SP0
LD
K2732
OUT
V1401
LD
This loads the offset for Celcus conversion, which
is 273.2 degrees.
This stores the offset in V1401.
This loads the scaling factor, 4096.
K4096
Convert from
Kelvin to Celsius
_On
SP1
OUT
LDF
V1402
X0
This stores the scaling factor in V1402.
This loads the first twelve bits.
K12
BCD
SHFL
This converts to BCD.
K16
This shifts the BCD value 16 bits to the left. This is
the equivalent of multiplying by 1000.
DIV
V1402
SUB
V1401
This scales the value for Celsius.
This subtracts the offset for Celsius.
Check for “Borrow” or Negative
_On
SP1
SP64
OUT
This stores the 12 Bit Analog Data in V1400.
V1400
F3–08TEMP
8 Ch. Temperature Input
LD
SUB
K0
V1400
Loads a Zero into the accumulator.
Subtracts the value in V1400 from zero, resulting
in a negative number.
DIV
V1402
C0
SET
This scales the value for Celsius.
Sets control relay C0.
10–17
F3–08TEMP 8-Channel Temperature Input
Channel 1 Select Bit States
X14
X15
X16
When the appropriate channel select bits are turned on, the
converted analog data is then stored in V-memory locations,
starting with V2000 (for channel 1).
OUT
V2000
This writes channel one data to V2000
when bits X14, X15 and X16 are as
shown.
The negative indicator bit
C0
X14
X15
X16
C1
SET
C0
X14
X15
X16
C1
These two rungs control the negative indicator bit.
When the channels select bits are true for a
particular channel and C0 is on, the negative bit
for that channel is set. When the temperature goes
above 0 Celsius, the bit is reset.
Notice that this only applies to Channels 1.
RST
The remaining channels are shown below, without covering the negative bit logic.
Channel 2 Select Bit States
X14
X15
X16
OUT
V2001
This writes channel two data to V2001
when bits X14, X15 and X16 are as
shown.
V2002
This writes channel three data to
V2002 when bits X14, X15 and X16
are as shown.
Channel 3 Select Bit States
X14
X15
X16
OUT
F3–08TEMP
8Ch. Temperature Input
10–18
F3–08TEMP 8-Channel Temperature Input
Channel 4 Select Bit States
X124 X125 X126
OUT
V3003
This writes channel four analog data to V3003
when bits X124, X125 and X126 are as shown.
Channel 5 Select Bit States
X124 X125
X126
OUT
V3004
Channel 6 Select Bit States
X124 X125 X126
OUT
V3005
Channel 7 Select Bit States
X124 X125 X126
OUT
V3006
This writes channel five analog data to V3004
when bits X124, X125 and X126 are as shown.
This writes channel six analog data to V3005 when
bits X124, X125 and X126 are as shown.
This writes channel seven analog data to V3006
when bits X124, X125 and X126 are as shown.
Channel 8 Select Bit States
X124 X125 X126
OUT
F3–08TEMP
8 Ch. Temperature Input
V3007
This writes channel eight analog data to V3007
when bits X124, X125 and X126 are as shown.
10–19
F3–08TEMP 8-Channel Temperature Input
Temperature and
Digital Value
Conversions
Sometimes it is helpful to be able to quickly convert between the signal levels and the
digital values. This is especially helpful during machine startup or troubleshooting.
The following table provides formulas to make this conversion easier.
Range
If you know the digital value ... If you know the temperature ...
–55 to150 _C
T + 1000D * 273.2
4095
D + 4095 (T ) 273.2)
1000
–67 to 302 _F
T + 1000D * 459.6
2276
D + 2276 (T ) 459.6)
1000
For example, if you have measured the
temperature at 30 _C, you would use the
following formula to determine the digital
value that should be stored in the register
location that contains the temperature.
D + 4095 (T ) 273.2)
1000
D + 4095 (30 ) 273.2)
1000
D + (4.095) (303.2)
D + 1241
F3–08TEMP
8Ch. Temperature Input
DL305
Data Types and
Memory Map
In This Chapter. . . .
Ċ DL330 Memory Map
Ċ DL330P Memory Map
Ċ DL340 Memory Map
Ċ I/O Point Bit Map
Ċ Control Relay Bit Map
Ċ Special Relays
Ċ Data Registers
1A
A–2
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
DL330 Memory Map
Memory Type
Discrete Memory
Reference
(octal)
Register Memory
Reference
(octal)
Qty.
Decimal
Symbol
Input / Output
Points
000 – 157
700 – 767
R000 – R015
R070 – R076
168 Total
Control Relays
160 – 373
R016 – R037
140
C0
C0
Special Relays
374 – 377
770 – 777
R037
R077
12
772
376
Timers /
Counters
600 – 673
674 – 677*
None
64
Timer / Counter
Current Values
None
R600 – R673
R674 – R677*
64
Timer / Counter
Status Bits
T600 – T673
T674 – T677*
None
64
Data Words
None
R400 – R563
116
Shift Registers
400 – 577
None
128
010
000
TMR
T600
K100
R600
CNT C600
K10
K100
T600
None specific, used with many
instructions
SR
400
417
Special
Registers
None
R574 – R577
4
R574 – R575 used with FAULT
R576 – R577 Auxiliary Accumulator
* T/ C Setpoint Unit Only. Can be used as data registers if the Timer/Counter Setpoint Unit or Thumbwheel Interface Module is not used. R564 – R573 contain the preset value used with the Timer /
Appendix E
DL305 Memory Map
Counter Setpoint Unit. R674 – R677 contain the current values for these timers or counters.
A–3
DL305 Data Types and Memory Map
Appendix A
Data Types & Mem. Map
DL330P Memory Map
Memory Type
Discrete Memory
Reference
(octal)
Register Memory
Reference
(octal)
Qty.
Decimal
Symbol
Input / Output
Points
000 – 157
700 – 767
R000 – R015
R070 – R076
168 Total
Control Relays
160 – 174
200 – 277
R016 – R017
R020 – R027
77
C0
C0
Special Relays
175 – 177
770 – 777
R017
R077
11
772
176
Timers /
Counters
600 – 673
674 – 677*
None
64
Timer / Counter
Current Values
None
R600 – R673
R674 – R677*
64
Timer / Counter
Status Bits
T600 – T673
T674 – T677*
None
64
Data Words
None
R400 – R563
116
Stages
S0 – S177
R100 – R117
128
010
000
TMR
T600
K100
R600
CNT C600
K10
K100
T600
None specific, used with many
instructions
S1
SG
S 001
Special
Registers
None
R574 – R577
4
R574 – R575 used with FAULT
R576 – R577 Auxiliary Accumulator
* T/ C Setpoint Unit Only. Can be used as data registers if the Timer/Counter Setpoint Unit or Thumbwheel Interface Module is not used, which provides a total of 128 data registers.
R564 – R573 contain the preset value used with the Timer / Counter Setpoint Unit. R674 – R677 contain the current values for these timers or counters.
Appendix E
DL305 Memory Map
A–4
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
DL340 Memory Map
Memory Type
Discrete Memory
Reference
(octal)
Register Memory
Reference
(octal)
Qty.
Decimal
Symbol
Input / Output
Points
000 – 157
700 – 767
R000 – R015
R070 – R076
168 Total
Control Relays
160 – 373
1000 – 1067
R016 – R037
R100 – R106
180
C0
C0
Special Relays
374 – 377
770 – 777
1070 – 1077
R037
R077
R107
20
772
376
Timers /
Counters
600 – 673
674 – 677*
None
64
Timer / Counter
Current Values
None
R600 – R673
R674 – R677*
64
Timer / Counter
Status Bits
T600 – T673
T674 – T677*
None
64
Data Words
None
R400 – R563
R700 – R767
172
Shift Registers
400 – 577
None
128
010
000
TMR
T600
K100
R600
CNT C600
K10
K100
T600
None specific, used with many
instructions
SR
400
417
Special
Registers
None
R574 – R577
R770 – R777
12
R574–R575 used with FAULT
R576–R577 Auxiliary Accumulator
R770–R777 Communications Setup
* T/ C Setpoint Unit Only. Can be used as data registers if the Timer/Counter Setpoint Unit or Thumbwheel Interface Module is not used. R564 – R573 contain the preset value used with the Timer /
Appendix E
DL305 Memory Map
Counter Setpoint Unit. R674 – R677 contain the current values for these timers or counters.
A–5
DL305 Data Types and Memory Map
These tables provide a listing of the individual Input points associated with each
register location for the DL330, DL330P, and DL340 CPUs.
MSB
007
017
027
037
047
057
067
077
107
117
127
137
147
157
167
177
707
717
727
737
747
757
767
I/O References
006
016
026
036
046
056
066
076
106
116
126
136
146
156
166
176
706
716
726
736
746
756
766
005
015
025
035
045
055
065
075
105
115
125
135
145
155
165
175
705
715
725
735
745
755
765
004
014
024
034
044
054
064
074
104
114
124
134
144
154
164
174
704
714
724
734
744
754
764
003
013
023
033
043
053
063
073
103
113
123
133
143
153
163
173
703
713
723
733
743
753
763
LSB
002
012
022
032
042
052
062
072
102
112
122
132
142
152
162
172
702
712
722
732
742
752
762
001
011
021
031
041
051
061
071
101
111
121
131
141
151
161
171
701
711
721
731
741
751
761
000
010
020
030
040
050
060
070
100
110
120
130
140
150
160
170
700
710
720
730
740
750
760
Register
Number
R0
R1
R2
R3
R4
R5
R6
R7
R10
R11
R12
R13
R14
R15
n/a
n/a
R70
R71
R72
R73
R74
R75
R76
Appendix A
Data Types & Mem. Map
I/O Point Bit Map
NOTE: 160 – 167 can be used as I/O in a DL330 or DL330P CPU under certain
conditions. 160 – 177 can be used as I/O in a DL340 CPU under certain conditions.
You should consult the DL305 User Manual to determine which configurations allow
the use of these points.
Appendix E
DL305 Memory Map
These points are normally used as control relays. You cannot use them as both
control relays and as I/O points. Also, if you use these points as I/O, you cannot
access these I/O points as a Data Register reference.
A–6
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
Control Relay Bit Map
The following tables provide a listing of the individual control relays associated with
each register location for the DL305 CPUs.
NOTE: 160 – 167 can be used as I/O in a DL330 or DL330P CPU under certain
conditions. 160 – 177 can be used as I/O in a DL340 CPU under certain conditions.
You should consult the DL305 User Manual to determine which configurations allow
the use of these points.
You cannot use them as both control relays and as I/O points. Also, if you use these
points as I/O, you cannot access these I/O points as a Data Register reference.
MSB
167
177
207
217
227
237
247
257
267
277
307
317
327
337
347
357
367
166
176
206
216
226
236
246
256
266
276
306
316
326
336
346
356
366
DL330
Control Relay References
165
164
163
162
175
174
173
172
205
204
203
202
215
214
213
212
225
224
223
222
235
234
233
232
245
244
243
242
255
254
253
252
265
264
263
262
275
274
273
272
305
304
303
302
315
314
313
312
325
324
323
322
335
334
333
332
345
344
343
342
355
354
353
352
365
364
363
362
373
372
LSB
161
171
201
211
221
231
241
251
261
271
301
311
321
331
341
351
361
371
160
170
200
210
220
230
240
250
260
270
300
310
320
330
340
350
360
370
Register
Number
R16
R17
R20
R21
R22
R23
R24
R25
R26
R27
R30
R31
R32
R33
R34
R35
R36
R37
Appendix E
DL305 Memory Map
* Control relays 340 – 373 can be made retentive by setting a CPU dipswitch. See the DL305 User Manual for details
on setting CPU dipswitches.
A–7
DL305 Data Types and Memory Map
167
166
207
217
227
237
247
257
267
277*
206
216
226
236
246
256
266
276
DL330P
Control Relay References
165
164
163
162
174
173
172
205
204
203
202
215
214
213
212
225
224
223
222
235
234
233
232
245
244
243
242
255
254
253
252
265
264
263
262
275
274
273
272
LSB
161
171
201
211
221
231
241
251
261
271
160
170
200*
210
220
230
240
250
260
270
Register
Number
R16
R17
R20
R21
R22
R23
R24
R25
R26
R27
Appendix A
Data Types & Mem. Map
MSB
* Control relays 200 – 277 can be made retentive by setting a CPU dipswitch. See the DL305 User Manual for details on setting CPU dipswitches.
MSB
166
176
206
216
226
236
246
256
266
276
306
316
326
336
346
356
366
1007
1017
1027
1037
1047
1057
1067
1006
1016
1026
1036
1046
1056
1066
LSB
161
171
201
211
221
231
241
251
261
271
301
311
321
331
341
351
361
371
1001
1011
1021
1031
1041
1051
1061
160
170
200
210
220
230
240
250
260
270
300
310
320
330
340*
350
360
370
1000
1010
1020
1030
1040
1050
1060
Register
Number
R16
R17
R20
R21
R22
R23
R24
R25
R26
R27
R30
R31
R32
R33
R34
R35
R36
R37
R100
R101
R102
R103
R104
R105
R106
* Control relays 340 – 373 can be made retentive by setting a CPU dipswitch. See the DL305 User Manual for details
on setting CPU dipswitches.
Appendix E
DL305 Memory Map
167
177
207
217
227
237
247
257
267
277
307
317
327
337
347
357
367
DL340
Control Relay References
165
164
163
162
175
174
173
172
205
204
203
202
215
214
213
212
225
224
223
222
235
234
233
232
245
244
243
242
255
254
253
252
265
264
263
262
275
274
273
272
305
304
303
302
315
314
313
312
325
324
323
322
335
334
333
332
345
344
343
342
355
354
353
352
365
364
363
362
373*
372
1005
1004
1003
1002
1015
1014
1013
1012
1025
1024
1023
1022
1035
1034
1033
1032
1045
1044
1043
1042
1055
1054
1053
1052
1065
1064
1063
1062
A–8
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
Special Relays
The following table shows the Special Relays used with the DL305 CPUs.
CPUs
DL330P
DL330
DL340
DL330
DL330P
DL340
Appendix E
DL305 Memory Map
DL340
Special
Relay
Description of Contents
175
100 ms clock, on for 50 ms and off for 50 ms.
176
Disables all outputs except for those entered with the SET
OUT instruction.
177
Battery voltage is low.
374
On for the first scan cycle after the CPU is switched to Run
Mode.
375
100 ms clock, on for 50 ms and off for 50 ms.
376
Disables all outputs except for those entered with the SET
OUT instruction.
377
Battery voltage is low.
770
Changes timers to 0.01 second intervals. Timers are
normally 0.1 second time intervals.
771
The external diagnostics FAULT instruction (F20) is in use.
772
The data in the accumulator is greater than the comparison
value.
773
The data in the accumulator is equal to the comparison
value.
774
The data in the accumulator is less than the comparison
value.
775
An accumulator carry or borrow condition has occurred.
776
The accumulator value is zero.
777
The accumulator has an overflow condition.
1074
The RX or WX instruction is active.
1075
An error occurred during communications with the RX or
WX instructions.
1076
Port 2 communications mode: on = ASCII mode, off = HEX
mode
1077
Port 1 communications mode: on = ASCII mode, off = HEX
mode
A–9
DL305 Data Types and Memory Map
The following 8-bit data registers are primarily used with data instructions to store
various types of application data. For example, you could use a register to hold a
timer or counter preset value.
Some data instructions call for two bytes, which will correspond to two consecutive
8-bit data registers such as R401 and R400. The LSB (Least Significant Bit) will be in
register R400 as bit0 and the MSB (Most Significant Bit) will be in register R401 as
bit17.
Appendix A
Data Types & Mem. Map
Data Registers
NOTE: Data Registers are retentive.
407
417
427
437
447
457
467
477
507
517
527
537
547
557
406
416
426
436
446
456
466
476
506
516
526
536
546
556
405
415
425
435
445
455
465
475
505
515
525
535
545
555
DL330 / DL330P
8-Bit Data Registers
404
403
414
413
424
423
434
433
444
443
454
453
464
463
474
473
504
503
514
513
524
523
534
533
544
543
554
553
563
402
412
422
432
442
452
462
472
502
512
522
532
542
552
562
401
411
421
431
441
451
461
471
501
511
521
531
541
551
561
400
410
420
430
440
450
460
470
500
510
520
530
540
550
560
Appendix E
DL305 Memory Map
A–10
Appendix E
DL305 Memory Map
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
407
417
427
437
447
457
467
477
507
517
527
537
547
557
406
416
426
436
446
456
466
476
506
516
526
536
546
556
405
415
425
435
445
455
465
475
505
515
525
535
545
555
707
717
727
737
747
757
767
706
716
726
736
746
756
766
705
715
725
735
745
755
765
DL340
8-Bit Data Registers
404
403
414
413
424
423
434
433
444
443
454
453
464
463
474
473
504
503
514
513
524
523
534
533
544
543
554
553
563
704
703
714
713
724
723
734
733
744
743
754
753
764
763
402
412
422
432
442
452
462
472
502
512
522
532
542
552
562
702
712
722
732
742
752
762
401
411
421
431
441
451
461
471
501
511
521
531
541
551
561
701
711
721
731
741
751
761
400
410
420
430
440
450
460
470
500
510
520
530
540
550
560
700
710
720
730
740
750
760
A–11
DL305 Data Types and Memory Map
System
V-memory
V7620–V7627
Description of Contents
Default Values / Ranges
Locations for DV–1000 operator interface parameters
V7620 Sets the V-memory location that contains the value.
V0 – V3777
V7621 Sets the V-memory location that contains the message.
V0 – V3777
V7622 Sets the total number (1 – 16) of V-memory locations to be displayed.
1 – 16
V7623 Sets the V-memory location that contains the numbers to be displayed.
V0 – V3777
V7624 Sets the V-memory location that contains the character code to be displayed.
V0 – V3777
V7625 Contains the function number that can be assigned to each key.
V-memory for X, Y, or C
V7626 Reserved
0,1,2,3,12
V7627 Reserved
Default=0000
Reserved
V7633
User defined timer interrupt/operation of battery/Binary instruction sign flag*
Bit 0–7
40H Setting Interrupt
Bit 12
ON with battery sign flag. ON use sign flag –
OFF no sign flag
Bit 15
Binary instruction sign flag. ON use sign flag –
OFF no sign flag
V7634
User defined timer interrupt
V7640
Loop Table Beginning address
V1400–V7340
V7641
Number of Loops Enabled
1–4
V7642
Error Code – V–memory Error Location for Loop Table
V7643–V7647
Reserved
V7650
Port 2 End–code setting Setting (A55A), Nonprocedure communications start.
V7651
Port 2 Data format –Non–procedure communications format setting.
V7652
Port 2 Format Type setting – Non–procedure communications type code
setting.
V7653
Port 2 Terminate–code setting – Non–procedure communications Termination
code setting.
V7654
Port 2 Store V–mem address – Non–procedure communication data store
V–Memory address.
V7655
Port 2 Setup area –0–7 Comm protocol (flag 0) 8–15 Comm time
out/response delay time (flag 1)
V7656
Port 2 setup area – 0–15 Communication (flag2, flag 3)
V7657
Port 2 setup area – Bit to select use of parameter
V7660–V7707
Set–up Information
V7710–V7717
Reserved
V7720–V7722
Locations for DV–1000 operator interface parameters.
V7720 Titled Timer preset value pointer
V7721 Title Counter preset value pointer
V7722 HiByte-Titled Timer preset block size, LoByte-Titled Counter preset block size
V7730–V7737
For slot 0 to 7 D3–DCM
V7747
Location contains a 10ms counter. This location increments once every 10ms.
V7750
Reserved
–
Appendix E
DL305 Memory Map
V7630–V7632
Appendix A
Data Types & Mem. Map
DL350 System V-memory
A–12
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
System
V-memory
Description of Contents
V7751
Fault Message Error Code — stores the 4-digit code used with the FAULT instruction when the
instruction is executed.
V7752
Reserved
V7753
Reserved
V7754
Reserved
V7755
Error code — stores the fatal error code.
V7756
Error code — stores the major error code.
V7757
Error code — stores the minor error code.
V7760–V7762
Reserved
V7763–V7764
Location for syntax error information.
V7765
Scan — stores the total number of scan cycles that have occurred since the last Program Mode to Run
Mode transition.
V7766
Contains the number of seconds on the clock. (00 to 59).
V7767
Contains the number of minutes on the clock. (00 to 59).
V7770
Contains the number of hours on the clock. (00 to 23).
V7771
Contains the day of the week. (Mon, Tue, etc.).
V7772
Contains the day of the month (1st, 2nd, etc.).
V7773
Contains the month. (01 to 12)
V7774
Contains the year. (00 to 99)
V7775
Scan — stores the current scan time (milliseconds).
V7776
Scan — stores the minimum scan time that has occurred since the last Program Mode to Run Mode
transition (milliseconds).
V7777
Scan — stores the maximum scan time that has occurred since the last Program Mode to Run Mode
transition (milliseconds).
DL350 Comm Port 2 Control Relays
Appendix E
DL305 Memory Map
The following system control relays are valid only for D3–350 CPU remote I/O setup
on Communications Port 2.
System CRs
Description of Contents
C740
Completion of setups – ladder logic must turn this relay on when it has finished writing to
the Remote I/O setup table
C741
Erase received data – turning on this flag will erase the received data during a communication error.
C743
Re-start – Turning on this relay will resume after a communications hang-up on an error.
C750 to C757
Setup Error – The corresponding relay will be ON if the setup table contains an error (C750
= master, C751 = slave 1... C757=slave 7
C760 to C767
Communications Ready – The corresponding relay will be ON if the setup table data is valid
(C760 = master, C761 = slave 1... C767=slave 7
A–13
DL305 Data Types and Memory Map
Appendix A
Data Types & Mem. Map
DL350 Memory Map
Memory Type
Discrete Memory
Reference
(octal)
Word Memory
Reference
(octal)
Qty.
Decimal
Symbol
Input Points
X0 – X777
V40400 – V40437
512
X0
Output Points
Y0 – Y777
V40500 – V40537
512
Y0
Control Relays
C0 – C1777
V40600 – V40677
1024
Special Relays
SP0 – SP777
V41200 – V41237
512
Timer Current
Values
None
V0 – V377
256
Timer Status Bits T0 – T377
V41100 – V41117
256
Counter
Current Values
None
V1000 – V1177
128
Counter Status
Bits
CT0 – CT177
V41140 – V41147
128
Data Words
none
V1400 – V7377
V10000–V17777
3072
4096
Stages
S0 – S1777
V41000 – V41077
1024
C0
C0
SP0
V0
K100
T0
V1000
K100
CT0
None specific, used with many
instructions
S0
SG
S 001
System
parameters
None
V7400–V7777
256
System specific, used for various
purposes
Appendix E
DL305 Memory Map
A–14
Appendix E
DL305 Memory Map
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
DL 350 X Input / Y Output Bit Map
This table provides a listing of the individual Input points associated with each V-memory address bit.
MSB
DL350 Input (X) and Output (Y) Points
LSB
X Input Y Output
Address Address
17
16
15
14
13
12
11
10
7
6
5
4
3
2
1
0
017
016
015
014
013
012
011
010
007
006
005
004
003
002
001
000
V40400
V40500
037
036
035
034
033
032
031
030
027
026
025
024
023
022
021
020
V40401
V40501
057
056
055
054
053
052
051
050
047
046
045
044
043
042
041
040
V40402
V40502
077
076
075
074
073
072
071
070
067
066
065
064
063
062
061
060
V40403
V40503
117
116
115
114
113
112
111
110
107
106
105
104
103
102
101
100
V40404
V40504
137
136
135
134
133
132
131
130
127
126
125
124
123
122
121
120
V40405
V40505
157
156
155
154
153
152
151
150
147
146
145
144
143
142
141
140
V40406
V40506
177
176
175
174
173
172
171
170
167
166
165
164
163
162
161
160
V40407
V40507
217
216
215
214
213
212
211
210
207
206
205
204
203
202
201
200
V40410
V40510
237
236
235
234
233
232
231
230
227
226
225
224
223
222
221
220
V40411
V40511
257
256
255
254
253
252
251
250
247
246
245
244
243
242
241
240
V40412
V40512
277
276
275
274
273
272
271
270
267
266
265
264
263
262
261
260
V40413
V40513
317
316
315
314
313
312
311
310
307
306
305
304
303
302
301
300
V40414
V40514
337
336
335
334
333
332
331
330
327
326
325
324
323
322
321
320
V40415
V40515
357
356
355
354
353
352
351
350
347
346
345
344
343
342
341
340
V40416
V40516
377
376
375
374
373
372
371
370
367
366
365
364
363
362
361
360
V40417
V40517
417
416
415
414
413
412
411
410
407
406
405
404
403
402
401
400
V40420
V40520
437
436
435
434
433
432
431
430
427
426
425
424
423
422
421
420
V40421
V40521
457
456
455
454
453
452
451
450
447
446
445
444
443
442
441
440
V40422
V40522
477
476
475
474
473
472
471
470
467
466
465
464
463
462
461
460
V40423
V40523
517
516
515
514
513
512
511
510
507
506
505
504
503
502
501
500
V40424
V40524
537
536
535
534
533
532
531
530
527
526
525
524
523
522
521
520
V40425
V40525
557
556
555
554
553
552
551
550
547
546
545
544
543
542
541
540
V40426
V40526
577
576
575
574
573
572
571
570
567
566
565
564
563
562
561
560
V40427
V40527
617
616
615
614
613
612
611
610
607
606
605
604
603
602
601
600
V40430
V40530
637
636
635
634
633
632
631
630
627
626
625
624
623
622
621
620
V40431
V40531
657
656
655
654
653
652
651
650
647
646
645
644
643
642
641
640
V40432
V40532
677
676
675
674
673
672
671
670
667
666
665
664
663
662
661
660
V40433
V40533
717
716
715
714
713
712
711
710
707
706
705
704
703
702
701
700
V40434
V40534
737
736
735
734
733
732
731
730
727
726
725
724
723
722
721
720
V40435
V40535
757
756
755
754
753
752
751
750
747
746
745
744
743
742
741
740
V40436
V40536
777
776
775
774
773
772
771
770
767
766
765
764
763
762
761
760
V40437
V40537
A–15
DL305 Data Types and Memory Map
This table provides a listing of the individual control relays associated with each V-memory address bit.
MSB
DL350 Control Relays (C)
LSB
Address
16
15
14
13
12
11
10
7
6
5
4
3
2
1
0
017
016
015
014
013
012
011
010
007
006
005
004
003
002
001
000
V40600
037
036
035
034
033
032
031
030
027
026
025
024
023
022
021
020
V40601
057
056
055
054
053
052
051
050
047
046
045
044
043
042
041
040
V40602
077
076
075
074
073
072
071
070
067
066
065
064
063
062
061
060
V40603
117
116
115
114
113
112
111
110
107
106
105
104
103
102
101
100
V40604
137
136
135
134
133
132
131
130
127
126
125
124
123
122
121
120
V40605
157
156
155
154
153
152
151
150
147
146
145
144
143
142
141
140
V40606
177
176
175
174
173
172
171
170
167
166
165
164
163
162
161
160
V40607
217
216
215
214
213
212
211
210
207
206
205
204
203
202
201
200
V40610
237
236
235
234
233
232
231
230
227
226
225
224
223
222
221
220
V40611
257
256
255
254
253
252
251
250
247
246
245
244
243
242
241
240
V40612
277
276
275
274
273
272
271
270
267
266
265
264
263
262
261
260
V40613
317
316
315
314
313
312
311
310
307
306
305
304
303
302
301
300
V40614
337
336
335
334
333
332
331
330
327
326
325
324
323
322
321
320
V40615
357
356
355
354
353
352
351
350
347
346
345
344
343
342
341
340
V40616
377
376
375
374
373
372
371
370
367
366
365
364
363
362
361
360
V40617
417
416
415
414
413
412
411
410
407
406
405
404
403
402
401
400
V40620
437
436
435
434
433
432
431
430
427
426
425
424
423
422
421
420
V40621
457
456
455
454
453
452
451
450
447
446
445
444
443
442
441
440
V40622
477
476
475
474
473
472
471
470
467
466
465
464
463
462
461
460
V40623
517
516
515
514
513
512
511
510
507
506
505
504
503
502
501
500
V40624
537
536
535
534
533
532
531
530
527
526
525
524
523
522
521
520
V40625
557
556
555
554
553
552
551
550
547
546
545
544
543
542
541
540
V40626
577
576
575
574
573
572
571
570
567
566
565
564
563
562
561
560
V40627
617
616
615
614
613
612
611
610
607
606
605
604
603
602
601
600
V40630
637
636
635
634
633
632
631
630
627
626
625
624
623
622
621
620
V40631
657
656
655
654
653
652
651
650
647
646
645
644
643
642
641
640
V40632
677
676
675
674
673
672
671
670
667
666
665
664
663
662
661
660
V40633
717
716
715
714
713
712
711
710
707
706
705
704
703
702
701
700
V40634
737
736
735
734
733
732
731
730
727
726
725
724
723
722
721
720
V40635
757
756
755
754
753
752
751
750
747
746
745
744
743
742
741
740
V40636
777
776
775
774
773
772
771
770
767
766
765
764
763
762
761
760
V40637
Appendix E
DL305 Memory Map
17
Appendix A
Data Types & Mem. Map
DL350 Control Relay Bit Map
A–16
Appendix E
DL305 Memory Map
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
MSB
17
Additional DL350 Control Relays (C)
16
15
14
13
12
1017 1016 1015 1014 1013 1012
11
1011
10
7
6
5
LSB
4
3
2
1
0
Address
1010 1007 1006 1005
1004 1003
1002 1001 1000
V40640
1037 1036 1035 1034 1033 1032 1031 1030 1027 1026 1025
1024 1023
1022 1021 1020
V40641
1057 1056 1055 1054 1053 1052 1051 1050 1047 1046 1045
1044 1043
1042 1041 1040
V40642
1077 1076 1075 1074 1073 1072 1071 1070 1067 1066 1065
1064 1063
1062 1061 1060
V40643
1117
1116
1115
1114
1113
1112
1111
1110
1107
1106
1105
1104
1103
1102
1101
1100
V40644
1137
1136
1135
1134
1133
1132
1131
1130
1127
1126
1125
1124
1123
1122
1121
1120
V40645
1157
1156
1155
1154
1153
1152
1151
1150
1147
1146
1145
1144
1143
1142
1141
1140
V40646
1177
1176
1175
1174
1173
1172
1171
1170
1167
1166
1165
1164
1163
1162
1161
1160
V40647
1217 1216 1215 1214 1213 1212
1211
1210 1207 1206 1205
1204 1203
1202 1201 1200
V40650
1237 1236 1235 1234 1233 1232 1231 1230 1227 1226 1225
1224 1223
1222 1221 1220
V40651
1257 1256 1255 1254 1253 1252 1251 1250 1247 1246 1245
1244 1243
1242 1241 1240
V40652
1277 1276 1275 1274 1273 1272 1271 1270 1267 1266 1265
1264 1263
1262 1261 1260
V40653
1317 1316 1315 1314 1313 1312
1310 1307 1306 1305
1304 1303
1302 1301 1300
V40654
1337 1336 1335 1334 1333 1332 1331 1330 1327 1326 1325
1324 1323
1322 1321 1320
V40655
1357 1356 1355 1354 1353 1352 1351 1350 1347 1346 1345
1344 1343
1342 1341 1340
V40656
1377 1376 1375 1374 1373 1372 1371 1370 1367 1366 1365
1364 1363
1362 1361 1360
V40657
1417 1416 1415 1414 1413 1412
1410 1407 1406 1405
1404 1403
1402 1401 1400
V40660
1437 1436 1435 1434 1433 1432 1431 1430 1427 1426 1425
1424 1423
1422 1421 1420
V40661
1457 1456 1455 1454 1453 1452 1451 1450 1447 1446 1445
1444 1443
1442 1441 1440
V40662
1477 1476 1475 1474 1473 1472 1471 1470 1467 1466 1465
1464 1463
1462 1461 1460
V40663
1517 1516 1515 1514 1513 1512
1510 1507 1506 1505
1504 1503
1502 1501 1500
V40664
1537 1536 1535 1534 1533 1532 1531 1530 1527 1526 1525
1524 1523
1522 1521 1520
V40665
1557 1556 1555 1554 1553 1552 1551 1550 1547 1546 1545
1544 1543
1542 1541 1540
V40666
1577 1576 1575 1574 1573 1572 1571 1570 1567 1566 1565
1564 1563
1562 1561 1560
V40667
1617 1616 1615 1614 1613 1612
1610 1607 1606 1605
1604 1603
1602 1601 1600
V40670
1637 1636 1635 1634 1633 1632 1631 1630 1627 1626 1625
1624 1623
1622 1621 1620
V40671
1657 1656 1655 1654 1653 1652 1651 1650 1647 1646 1645
1644 1643
1642 1641 1640
V40672
1677 1676 1675 1674 1673 1672 1671 1670 1667 1666 1665
1664 1663
1662 1661 1660
V40673
1717 1716 1715 1714 1713 1712
1710 1707 1706 1705
1704 1703
1702 1701 1700
V40674
1737 1736 1735 1734 1733 1732 1731 1730 1727 1726 1725
1724 1723
1722 1721 1720
V40675
1757 1756 1755 1754 1753 1752 1751 1750 1747 1746 1745
1744 1743
1742 1741 1740
V40676
1777 1776 1775 1774 1773 1772 1771 1770 1767 1766 1765
1764 1763
1762 1761 1760
V40677
1311
1411
1511
1611
1711
A–17
DL305 Data Types and Memory Map
This table provides a listing of the individual Staget control bits associated with each V-memory address.
MSB
DL350 Stage (S) Control Bits
LSB
Address
16
15
14
13
12
11
10
7
6
5
4
3
2
1
0
017
016
015
014
013
012
011
010
007
006
005
004
003
002
001
000
V41000
037
036
035
034
033
032
031
030
027
026
025
024
023
022
021
020
V41001
057
056
055
054
053
052
051
050
047
046
045
044
043
042
041
040
V41002
077
076
075
074
073
072
071
070
067
066
065
064
063
062
061
060
V41003
117
116
115
114
113
112
111
110
107
106
105
104
103
102
101
100
V41004
137
136
135
134
133
132
131
130
127
126
125
124
123
122
121
120
V41005
157
156
155
154
153
152
151
150
147
146
145
144
143
142
141
140
V41006
177
176
175
174
173
172
171
170
167
166
165
164
163
162
161
160
V41007
217
216
215
214
213
212
211
210
207
206
205
204
203
202
201
200
V41010
237
236
235
234
233
232
231
230
227
226
225
224
223
222
221
220
V41011
257
256
255
254
253
252
251
250
247
246
245
244
243
242
241
240
V41012
277
276
275
274
273
272
271
270
267
266
265
264
263
262
261
260
V41013
317
316
315
314
313
312
311
310
307
306
305
304
303
302
301
300
V41014
337
336
335
334
333
332
331
330
327
326
325
324
323
322
321
320
V41015
357
356
355
354
353
352
351
350
347
346
345
344
343
342
341
340
V41016
377
376
375
374
373
372
371
370
367
366
365
364
363
362
361
360
V41017
417
416
415
414
413
412
411
410
407
406
405
404
403
402
401
400
V41020
437
436
435
434
433
432
431
430
427
426
425
424
423
422
421
420
V41021
457
456
455
454
453
452
451
450
447
446
445
444
443
442
441
440
V41022
477
476
475
474
473
472
471
470
467
466
465
464
463
462
461
460
V41023
517
516
515
514
513
512
511
510
507
506
505
504
503
502
501
500
V41024
537
536
535
534
533
532
531
530
527
526
525
524
523
522
521
520
V41025
557
556
555
554
553
552
551
550
547
546
545
544
543
542
541
540
V41026
577
576
575
574
573
572
571
570
567
566
565
564
563
562
561
560
V41027
617
616
615
614
613
612
611
610
607
606
605
604
603
602
601
600
V41030
637
636
635
634
633
632
631
630
627
626
625
624
623
622
621
620
V41031
657
656
655
654
653
652
651
650
647
646
645
644
643
642
641
640
V41032
677
676
675
674
673
672
671
670
667
666
665
664
663
662
661
660
V41033
717
716
715
714
713
712
711
710
707
706
705
704
703
702
701
700
V41034
737
736
735
734
733
732
731
730
727
726
725
724
723
722
721
720
V41035
757
756
755
754
753
752
751
750
747
746
745
744
743
742
741
740
V41036
777
776
775
774
773
772
771
770
767
766
765
764
763
762
761
760
V41037
Appendix E
DL305 Memory Map
17
Appendix A
Data Types & Mem. Map
DL350 Staget Control / Status Bit Map
A–18
Appendix E
DL305 Memory Map
Appendix A
Data Types & Mem. Map
DL305 Data Types and Memory Map
MSB
17
DL350 Additional Stage (S) Control Bits (continued)
16
15
14
13
12
1017 1016 1015 1014 1013 1012
11
1011
10
7
6
5
4
LSB
3
2
1
0
Address
1010 1007 1006 1005
1004 1003
1002 1001 1000
V41040
1037 1036 1035 1034 1033 1032 1031 1030 1027 1026 1025
1024 1023
1022 1021 1020
V41041
1057 1056 1055 1054 1053 1052 1051 1050 1047 1046 1045
1044 1043
1042 1041 1040
V41042
1077 1076 1075 1074 1073 1072 1071 1070 1067 1066 1065
1064 1063
1062 1061 1060
V41043
1117
1116
1115
1114
1113
1112
1111
1110
1107
1106
1105
1104
1103
1102
1101
1100
V41044
1137
1136
1135
1134
1133
1132
1131
1130
1127
1126
1125
1124
1123
1122
1121
1120
V41045
1157
1156
1155
1154
1153
1152
1151
1150
1147
1146
1145
1144
1143
1142
1141
1140
V41046
1177
1176
1175
1174
1173
1172
1171
1170
1167
1166
1165
1164
1163
1162
1161
1160
V41047
1217 1216 1215 1214 1213 1212
1211
1210 1207 1206 1205
1204 1203
1202 1201 1200
V41050
1237 1236 1235 1234 1233 1232 1231 1230 1227 1226 1225
1224 1223
1222 1221 1220
V41051
1257 1256 1255 1254 1253 1252 1251 1250 1247 1246 1245
1244 1243
1242 1241 1240
V41052
1277 1276 1275 1274 1273 1272 1271 1270 1267 1266 1265
1264 1263
1262 1261 1260
V41053
1317 1316 1315 1314 1313 1312
1310 1307 1306 1305
1304 1303
1302 1301 1300
V41054
1337 1336 1335 1334 1333 1332 1331 1330 1327 1326 1325
1324 1323
1322 1321 1320
V41055
1357 1356 1355 1354 1353 1352 1351 1350 1347 1346 1345
1344 1343
1342 1341 1340
V41056
1377 1376 1375 1374 1373 1372 1371 1370 1367 1366 1365
1364 1363
1362 1361 1360
V41057
1417 1416 1415 1414 1413 1412
1311
1410 1407 1406 1405
1404 1403
1402 1401 1400
V41060
1437 1436 1435 1434 1433 1432 1431 1430 1427 1426 1425
1411
1424 1423
1422 1421 1420
V41061
1457 1456 1455 1454 1453 1452 1451 1450 1447 1446 1445
1444 1443
1442 1441 1440
V41062
1477 1476 1475 1474 1473 1472 1471 1470 1467 1466 1465
1464 1463
1462 1461 1460
V41063
1517 1516 1515 1514 1513 1512
1510 1507 1506 1505
1504 1503
1502 1501 1500
V41064
1537 1536 1535 1534 1533 1532 1531 1530 1527 1526 1525
1524 1523
1522 1521 1520
V41065
1557 1556 1555 1554 1553 1552 1551 1550 1547 1546 1545
1544 1543
1542 1541 1540
V41066
1577 1576 1575 1574 1573 1572 1571 1570 1567 1566 1565
1564 1563
1562 1561 1560
V41067
1617 1616 1615 1614 1613 1612
1610 1607 1606 1605
1604 1603
1602 1601 1600
V41070
1637 1636 1635 1634 1633 1632 1631 1630 1627 1626 1625
1624 1623
1622 1621 1620
V41071
1657 1656 1655 1654 1653 1652 1651 1650 1647 1646 1645
1644 1643
1642 1641 1640
V41072
1677 1676 1675 1674 1673 1672 1671 1670 1667 1666 1665
1664 1663
1662 1661 1660
V41073
1717 1716 1715 1714 1713 1712
1710 1707 1706 1705
1704 1703
1702 1701 1700
V41074
1737 1736 1735 1734 1733 1732 1731 1730 1727 1726 1725
1724 1723
1722 1721 1720
V41075
1757 1756 1755 1754 1753 1752 1751 1750 1747 1746 1745
1744 1743
1742 1741 1740
V41076
1777 1776 1775 1774 1773 1772 1771 1770 1767 1766 1765
1764 1763
1762 1761 1760
V41077
1511
1611
1711
A–19
DL305 Data Types and Memory Map
This table provides a listing of the individual timer and counter contacts associated with each V-memory
address bit.
MSB
DL350 Timer (T) and Counter (CT) Contacts
LSB
11
10
7
6
5
4
3
2
1
0
Timer
Address
012
011
010
007
006
005
004
003
002
001
000
V41100
V41140
032
031
030
027
026
025
024
023
022
021
020
V41101
V41141
053
052
051
050
047
046
045
044
043
042
041
040
V41102
V41142
074
073
072
071
070
067
066
065
064
063
062
061
060
V41103
V41143
115
114
113
112
111
110
107
106
105
104
103
102
101
100
V41104
V41144
136
135
134
133
132
131
130
127
126
125
124
123
122
121
120
V41105
V41145
157
156
155
154
153
152
151
150
147
146
145
144
143
142
141
140
V41106
V41146
177
176
175
174
173
172
171
170
167
166
165
164
163
162
161
160
V41107
V41147
LSB
17
16
15
14
13
12
017
016
015
014
013
037
036
035
034
033
057
056
055
054
077
076
075
117
116
137
Counter
Address
Appendix A
Data Types & Mem. Map
DL350 Timer and Counter Status Bit Maps
This portion of the table shows additional Timer contacts available with the DL350.
MSB
DL350 Additional Timer (T) Contacts
17
16
15
14
13
12
11
10
7
6
5
4
3
2
1
0
Timer
Address
217
216
215
214
213
212
211
210
207
206
205
204
203
202
201
200
V41110
237
236
235
234
233
232
231
230
227
226
225
224
223
222
221
220
V41111
257
256
255
254
253
252
251
250
247
246
245
244
243
242
241
240
V41112
277
276
275
274
273
272
271
270
267
266
265
264
263
262
261
260
V41113
317
316
315
314
313
312
311
310
307
306
305
304
303
302
301
300
V41114
337
336
335
334
333
332
331
330
327
326
325
324
323
322
321
320
V41115
357
356
355
354
353
352
351
350
347
346
345
344
343
342
341
340
V41116
377
376
375
374
373
372
371
370
367
366
365
364
363
362
361
360
V41117
Appendix E
DL305 Memory Map
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
