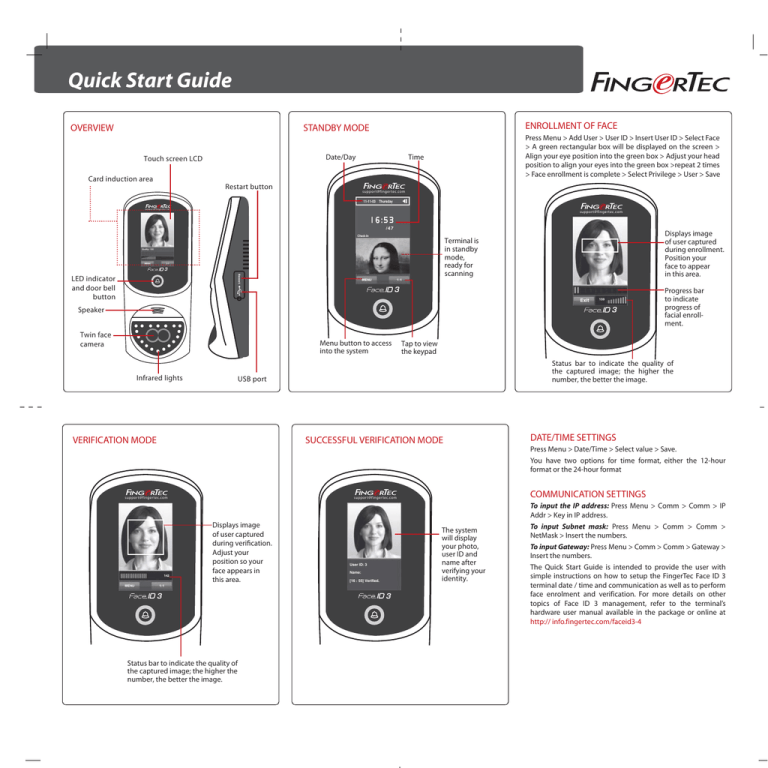

OVERVIEW
ENROLLMENT OF FACE
STANDBY MODE
Date/Day
Touch screen LCD
Press Menu > Add User > User ID > Insert User ID > Select Face
> A green rectangular box will be displayed on the screen >
Align your eye position into the green box > Adjust your head
position to align your eyes into the green box >repeat 2 times
> Face enrollment is complete > Select Privilege > User > Save
Time
Card induction area
Restart button
[email protected]
11-11-03 Thursday
[email protected]
[email protected]
16:53
/47
Displays image
of user captured
during enrollment.
Position your
face to appear
in this area.
Check-In
Terminal is
in standby
mode,
ready for
scanning
3
LED indicator
and door bell
button
3
Exit
159
3
Speaker
Twin face
camera
Menu button to access
into the system
Infrared lights
Tap to view
the keypad
Status bar to indicate the quality of
the captured image; the higher the
number, the better the image.
USB port
VERIFICATION MODE
Progress bar
to indicate
progress of
facial enrollment.
SUCCESSFUL VERIFICATION MODE
DATE/TIME SETTINGS
Press Menu > Date/Time > Select value > Save.
You have two options for time format, either the 12-hour
format or the 24-hour format
142
COMMUNICATION SETTINGS
[email protected]
[email protected]
Displays image
of user captured
during verification.
Adjust your
position so your
face appears in
this area.
3
Status bar to indicate the quality of
the captured image; the higher the
number, the better the image.
The system
will display
your photo,
user ID and
name after
verifying your
identity.
User ID: 3
Name:
[16 : 55] Verified.
3
To input the IP address: Press Menu > Comm > Comm > IP
Addr > Key in IP address.
To input Subnet mask: Press Menu > Comm > Comm >
NetMask > Insert the numbers.
To input Gateway: Press Menu > Comm > Comm > Gateway >
Insert the numbers.
The Quick Start Guide is intended to provide the user with
simple instructions on how to setup the FingerTec Face ID 3
terminal date / time and communication as well as to perform
face enrolment and verification. For more details on other
topics of Face ID 3 management, refer to the terminal’s
hardware user manual available in the package or online at
http:// info.fingertec.com/faceid3-4
System Overview
1
3
Hardware Installation & Face Enrollment
Refer to hardware user manual / installation guide/AdapTec AC & Plus installer manual
(consult a qualified installer)
Download User and Data from Terminal
[email protected]
[email protected]




[email protected]
3
3
User Enrollment

Press Menu and select Add User.
 Enter your User ID and select Face.
 Follow the instructions and align your eye position into the green rectangle on the screen to enroll
your face.
 Once the enrollment process is done, select the suitable Privilege level, and press Save.
2
4
Activate Terminal on the TCMS V2 Software

Double click the TCMS V2 software icon.
 Click on Devices and double click Setup FingerTec Terminals.
 Click Add and enter your TCMS V2 Product Key - Refer to the reverse of the DVD.
 Select the terminal under Model.
 Insert the Device ID and IP Address into the columns.
 Uncheck the Disabled checkbox column.

Wait for the software to link to the Face ID 3.
TCMS

Enter your Activation Key and click OK.
V2
FingerTec TCMS V2 Roadmap
Software Initial Setup
The TCMS V2 software installer is
stored on the FingerTec Going Green
DVD which comes with all FingerTec
terminals.
TCMS
V2





Connect your FingerTec terminals to
the TCMS V2 using the product code
and activation key that are available
at the back of the DVD cover.
FingerTec TCMS v2
Product Key:
YTR1-4AWE-9899
S/N: 8203602
Activation Key: K2EWF5SZ
001010
c 2008-2009 HRM System All right reserved.
TCMS
V2
Time Control
Management System-V2
User’s Management
Add, delete, edit and manage user information and transaction logs.
Attendance Calculation Setup
FingerTec Terminal
Management
Attendance rules and calculation
formulas must be figured out to
obtain correct attendance reports.
Access Control Setup
(Only applicable to FingerTec access control models.)
Set up access restrictions and door
lock settings for each group and
users.
Download attendance and in/out movement records from terminals
Retrieve the transaction logs and access reports stored in the terminals into
the server. In/Out movement records are only available for FingerTec access
control models.
Check and edit attendance
records
Viewing In/Out records
Review the records and edit /
insert / check for missing records.
Review access records and monitor
movement of staff.
Generating attendance
reports
Generating access control reports
(Only applicable to FingerTec access control models.)
Assi
All complete hardware and software manuals are available in the FingerTec
Going Green DVD and downloadable online at http://user.fingertec.com
