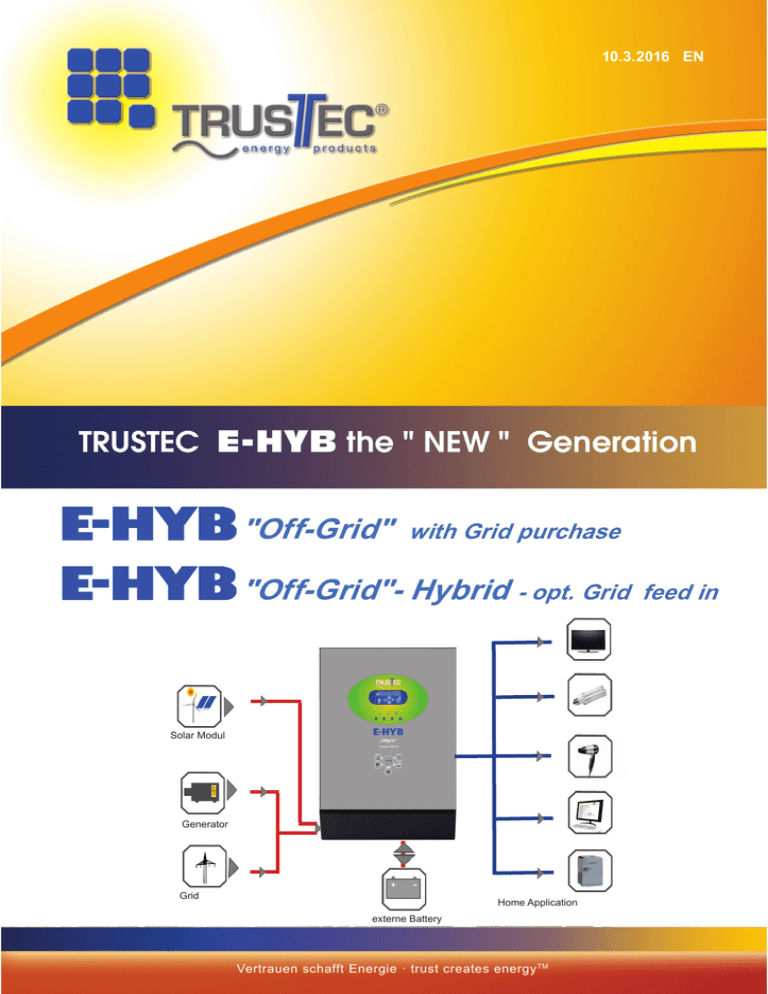

TRUSTEC E-HYB the " NEW " Generation
"Off-Grid"
with Grid purchase
"Off-Grid"- Hybrid - opt. Grid
AC
ESC
Solar Modul
! Fault
CHG
INV
UP
Down
Enter
„Offgrid“
„Offgrid“
1-phasig 5 KVA
- 48 V
1-phasig 5 KVA-48
Generator
Grid
Home Application
externe Battery
Vertrauen schafft Energie · trust creates energy TM
feed in
®
multifunctional E-HYB
Off Grid
WECHSELRICHTER
TRUSTEC E- HYB "Off- Grid" 1,5 KVA singlephase
(15-30K VA3phase)
Entire technology function in a single device
Offgrid pure sine wave inverter / MPP solar charge controller / network-charging
stage / control / LCD display / power switchover
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Pure Sine Wave inverter (single-phase)
Wide AC input voltage range (for switching on mainpower or generator)
selectable charge current ranges
configurable solar input currents by LCD
Mains and generator power compatible (only if solar / battery power too
weak / load too high)
Auto restart while AC power (automatically switches back to solar energy)
Surge short circuit protection
Intelligent charger design for optimized battery performance
Cold start function of the inverter
5 KVA device scalable-aswell to 400 V with phase shift=3phase
up to 30 KW
LCD display of the circuit functions and performance with battery capacity
3 years function warranty
Perfection technology is based on proven UPS technology industry
Always full separation of own electricity to supply voltage and frequency
Thus law to a current reference / consumption system
2
Vertrauen schafft Energie • trust creates energy™
AC
ESC
! Fault
CHG
INV
UP
Down
Enter
„Offgrid“
1-phasig 1 KVA-12 V
Offgrid 5 KVA 48 V
®
Display Function Description
energy
products
for E-HYB - Offgrid 1-3 Single Phase
TRUSTEC-E-HYB "Offgrid" 1-3 phases 1 KVA - 5 KVA (30 KVA)
with power - to / downshift
LCD display: LCD display subject of the terminal and the currently running function of:
•
•
•
•
•
•
•
Solarmodul (Watt, Volt,Amp.)
MPP-charge control (integrated)
Battery (V, charger level in 4 bar)
Inverter (integrated)
Grid (V, Hz)
Load (W, VA, % utilization)
Current flow with direction
Fault error message - with code and warning
LDC Display
Function keys
Control: Designed in accordance with industry-UPS technology with high standards and the utmost reliability.
LCD info display on "UP" and "DOWN" button.
Solar energy charges the battery always, even if the inverter module is switched off.
So higher consumption currents as inverter power, or when the battery is emty immediately supplied directly
from the public network total load on bypass. Electronics queries all about 10 minutes if load again low, or battery
charged and if so can be done downshift to OFF-grid supply.
The battery-voltage switchgear and values can be adjusted by the user. Individual battery-values can be set.
This controller is fully automatic and follows the shift to personalized and easy user set values.
The function is to cover all the necessary conditions and most likely probably leave you wanting for the flow of
energy open.
Connection: An existing AC-house installation TRUSTEC-E-HYB "OFFGRID" may be connected - for the supply of a phase 230 V in the house power per E-HYB-device power consumption = automatic switching only as
solar, battery and inverter capacity are smaller than required load.
Generator can be started 230 via the potential-free contact.
The E-HYB 5 KVA can be operated in parallel with other identical devices for energy supply, also with phase shift
= 400 V three-phase
Info Technical Details: For more information, visit our website www.trustec-energy.eu /E-HYB.
When making an investment planning we or our regoionaler TRUSTEC partner can advise you on the spot. We
are looking forward to your message.
. All technical details are subject to change without notice. For any printing, translation and transmission errors are not liable
Vertrauen schafft Energie • trust creates energy™
3
®
Off Grid application examples
WECHSELRICHTER
The desire to own, self-sufficient solar power is positive reality
Small huts supply: 1 KVA
home supply: 3 KVA
With solar power is the leisure
more beautiful and carefree
Sunstream saves money brings security and our satisfaction
1 KVA technical applicationen - Power Supply
House - Commercial - Agricultural Supply : 5 KVA to 30 KVA
Never the energy may be missing
Sun and technology ensure this with the
TRSUTEC - E-HYB - Technology
Accessories: remote control LCD
Energy Communication makes the joy
4
Vertrauen schafft Energie • trust creates energy™
®
Technical Data
energy
products
AC
AC
AC
Down
UP
Down
Down
Enter
Down
Enter
„Offgrid“
1-phasig 5 KVA - 48 V
1-phasig 5 KVA-48
1-phasig 3 KVA-24/48
Enter
„Offgrid“
„Offgrid“
1-phasig 1 KVA - 24/48 V
„Offgrid“„Offgrid“
1-phasig
1 KVA-12 V- 12V
1-phasig
1KVA
1-phasig 1 KVA-24/48 V
Offgrid S-1212
Model
UP
! Fault
CHG
INV
UP
„Offgrid“
„Offgrid“
ESC
AC
ESC
! Fault
CHG
INV
Enter
„Offgrid“
1-phasig 3 KVA -24/48 V
! Fault
CHG
INV
UP
ESC
! Fault
CHG
INV
ESC
Offgrid M-1224/48
Offgrid M-3224/48
Offgrid MS-5048
1000 VAC
3000 VAC
5000 VAC
TEH OG-S1212 TEH OG-M1224 TEH OG-M1248 TEH OGM-3224 TEH OG-M3248 TEH OG-MSK5048
Rated capacity (5 s > 150% - 10 [email protected] % ) 1000 VAC / 800 W 1000 VAC / 800 W 1000 VAC / 1 kW
3KVA 7 2,4 kW
3kVA / 2,4 kW
5kVA / 4 kW
Input
Voltage
230 VAC
Mains voltage stabilization
170-280 VAC ( for Computer) ; 90-280 VAC ( for Home)
Frequenzy range
50 / 60 HZ Auto sensing
Output AC
AC voltage regulation ( Battery
230 VAC +/- 5 %
AC voltage regulation
Efficiency (peak)
2000 VA
6 kVA
90 %
6 kVA
10 kVA
90 - 93 %
Transfer time adjustable
10 ms ( for Computer) ; 20 ms ( for Home)
Wave form
Rein Sinus
Battery
12 VAC
24 V
48 V
24 V
48 V
48 V
Battery voltage ( Floating)
Battery voltage
13,5 VAC
27 V
54 V
27 V
54 V
54 V
Overcharge protection
15,5 VAC
31 V
62 V
31 V
62 V
62 V
Solarcharger & AC charger
max. PV power
MPP range @ operating voltage
600 W
600 W
900 W
1500 W
3000 W
3000 W
30 - 50 V
30 - 66 V
60 - 88 V
30 - 115 V
60 - 115 V
60 - 115 V
145 V
max PV open circuit voltage
50 V
75 V
102 V
145 V
145 V
max. Solar charging current
50 A
25 A
18 A
60 A
60 A
60 A
max. AC chaging current
10 A
20 A
15 A
30 A
15 A
60 A
50 A
25 A
18 A
30 A
18 A
120 A
max. charging current
AC charger and solar charger can noz work simultaneously
max Effiziency
Stand By consumption
98 %
1W
2W
Others
Dimensions ( DxWxH) wall
Weight Net
95 x 240 x 316mm
5 kg
100 x 272 x 355 mm
6,8 kg
6,8 kg
Operating temperature
140 x 295 x 479 mm
11,5 kg
11,5 kg
120x295x468 mm
11 kg
0 - 55 °C
Storage temperature
- 15 - + 60 °C
All technical details are subject to change without notice. For any printing, translation and transmission errors are not liable
Vertrauen schafft Energie • trust creates energy™
5
®
TRUSTEC®
E-HYB Hybrid
WECHSELRICHTER
TRUSTEC E- HYB "Hybrid" 5 / 10 / 30 KW
(1 / 3-phase)
Entire technology function in a single device
Hybrid pure sine wave inverter / MPP solar charge controller / network-charging
stage / control / LCD display / power switching opt. grid feed
•
•
•
•
•
•
•
•
•
•
•
•
•
" Hybrid "
Pure Sine Wave inverter (1-phase and 3-phase)
3-phasig 10KW 48V
Wide AC input voltage range (for network intrusion, parallel operation and
network feed)
selectable power-flow configuration to configure individually versatile to need
configurable AC and solar input and supply priority over LCD
Mains and generator power compatibility
Auto restart while AC power
Surge short circuit protection
Intelligent charger design for optimized battery performance
Cold start function of the inverter
10 KVA unit scalable to 30 KW
LCD display - comfortable - from: subjects, circuit functions and performance with battery capacity
3 years function warranty
Perfection technology is based on thousands of best UPS industry technology
Esc
ON
OFF
UP
DOWN
ON
2
6
1
Enter
E-HYB Hybrid: on wall mount (cable to: solar module,
Battery input to bypass, exit to bypass)
2
Solar module: mount (cable to E-HYB Hybird)
3
Battery: up (cable to E-HYB Hybrid)
4
Bypass: to wallmount (cable to E-HYB hybrid 2x,
Solar
Zähler
4
Bypass mit
Schalter
„Hybrid“
3-phasig 40/10KW 48 V
Sicherungskasten
5
1
3
Fuse box, counter)
5
Fuse box available: cable to bypass
6
Counters available: cable to bypass
Akku-Speicher
Last
7
6
Vertrauen schafft Energie • trust creates energy™
®
Display Function Description
energy
for E-HYB- Hybrid
TRUSTEC-E-HYB "Hybrid 3 Phase" 40/10 KW
and
products
"Hybrid 1 Phase" 30/5 KW
LCD display: Comfortable LCD display subject of the terminal and the currently running function of:
•
•
•
•
•
•
•
•
•
•
•
Solar Panels (PV input, V, KW for 2 strings, income kWh)
MPP-Tracker
Battery (state of charge, voltage, charge / discharge)
Charge control
Inverter
Grid
Load
Current flow and direction
Solar yield display and storage
Date
Fault error message - with code warning
Enter
Esc
ON
OFF
All AC and DC currents: input and output per phase, load in %,
Apparent power KVA, KW active power with voltage (V) and frequency (Hz)
UP
DOWN
ON
Control: Designed in accordance with industry-UPS technology with high-standard and high reliability. Solar
energy can optionally have priority, higher consumption currents can be supplemented from the electrical
outlet with many individual variations. Control is fully automatic and follows the shift to individually set by the
user rules, which cover all the necessary options in detail and most likely probably leave you wanting for the
flow of energy open.
Function Variants: TRUSTEC-E-HYB "Hybrid" system can be operated in 3 variants with different priority
circuits:
1. Offgrid in 3 variants with or without network connection
2. Network connectivity with backup / battery charge and use
3. Network Function = pure feed
Connection: Can be connected and controlled with existing AC-house installation in 2 variants 1. Hybrid - with grid or even mains supply via switch box
2. ditto.
via modbus control
Info Technical Details: For more information, visit our website www.trustec-energy.eu / E -HYB. with examples of: Switching current flow diagrams, wiring diagrams and detailed descriptions. When making an
investment planning we or our regional TRUSTEC partner can advise you on the spot.
All technical details are subject to change without notice. For any printing, translation and transmission errors are not liable
Vertrauen schafft Energie • trust creates energy™
7
®
Technical Data Part 1
WECHSELRICHTER
Model
TEH " Hybrid " 1- phase
TEH " Hybrid " 3- phase
TEH 9200 + E-HYB Hybrid
TEH 27600-E-HYB Hybrid
Phase
1
3
10000 Wp
14850 Wp
9200 W = inverter + AC from grid
27600 W = inverter + AC from grid
5 kW = 1x5kW
10 kW = 3x3,33 kW
Max.Solarmodul capacity
Max. AC Output power
Inverter max. Output
Off-Grid Mode
1. Solar power can provide max 10 kW The maximum load can be designed to 10kW
2. The performance of solar modules can directly operate the load and the excess energy in the battery bank is stored
3. Battery Bank alone will provide power when the solar panel does not generate electricity
4.You can start the generator when the battery bank has no more power
Off Grid Mode = Energy from Solar + Battery
AC Input
AC Startup range
120 -- 140 VAC / 180 VVAV
Auto Restart voltage
allowable input voltage range
max. input current
Number MPPTracker
120 - 140 VAc pro Phase
180 VAC
180 VAC pro Phase
170 - 280 VAC
170 - 280 VAC pro Phase
225 VDC - 850 VDC
40 A
30 A
2
14850 W
PV Input (DC)
Nominale DC power
10000 W
Nomilale Voltage
720 VDC
720 VDC
max. DC input voltage
900 VDC
900 VDC
Start-up voltage / initiale supply voltage
225 VDC / 250 VDC
320 VDC / 350 VDC
MPPT voltage range
225 VDC - 850 VDC
400 VDC - 800 VDC
Number MPP Tracker
max. Input current
2
2
2 x 10 A
2 x 18,6 A
Battery Mode Output AC
Nominale output voltage
202/208/220/230/204 VAC
Output frequency
230 VAC (P-N) / 400 VAC(P-P)
50 Hz / 60 Hz ( auto-sensing)
Output wave form
pure sine wave
efficiency DC to AC
93 %
91 %
Battery and Charger
Nominal Battery voltage
Charging current
8
48 VDC
Standard 60 A, 5-100 A adjustable
All technical details are subject to change without notice. For any printing, translation and transmission errors are not liable
Vertrauen schafft Energie • trust creates energy™
Standard 60 A, 10-200 A adjustable
®
Technical Data Part 2
energy
products
" Hybrid "
3-phasig10KW 48V
Enter
Esc
ON
OFF
UP
DOWN
ON
Hybrid Mode = Energy f. Solar + Battery+ Gird
TEH 9200 + E-HYB Hybrid
TEH 27600- E-HYB Hybrid
Solarmodul Input DC
Nominal Voltage
720 VDC
720 VDC
Max. DC Input Voltage
900 VDC
900 VDC
Startup Voltage / Initiale supply voltage
225 VDC / 250 VDC
320 VDC / 350 VDC
MPPT voltage range
225 VDC - 850 VDC
400 VDC - 800 VDc
Number MPPTracker
2
2
2 x 10 A
2 x 18,6 A
208/220/230/240 VAC
230 VAC (P-N) / 400 VAC (P-P)
184-265 VAC
184-265 VAC je Phase
max. input current
Inverter Output AC to Grid
Nominal Output voltage
Output Voltage Range
Output Frequency Range
47,5 - 51,5 Hz oder 59,3 - 60,5 HZ
Nominale Output current
21 A
13,0 A pro Phase
Power Factor
> 0,99
efficiency
96 %
AC Input
AC Starup range
120-140 VAC / 180VVAH
Auto-Restart-voltage
allowable input voltage range
max. Input current
120 - 140 VAC pro Phase
180 VAC
180 VAC pro Phase
180-280 VAC
170-280 VAC pro Phase
30 A
40 A
202/208/220/230/204 VAC
230 VAC (P-N) / 400 VAC(P-P)
Nominal output voltage
output freqency
50 Hz / 60 Hz ( auto-sensing)
output wave form
pure sine wave
efficiency DC to AC
93 %
91 %
Battery and Charger
Nominal battery voltage
48 VDC
charging current
Standard 60 A, 5-100 A adjustable
Standard 60 A, 10-200 A adjustable
120 x 438 x 550 mm
167,5 x 500 x 622 mm
18 kg
45 kg
Others
Dimension (T x B x H )
Weight Net
Interface
communication connection
RS-232/USB und CAN Schnittstelle
intelligente slot
optional SNMP, Modbus und AS-400 Karte verfügbar
Environmental
Humidity
9 - 90 % RH kein kondensieren
Operating temperatur
-10 - 55 ° C
Altitude
0 - 1000 m **
* These figures are based on VDE 4105 standard. All information can vary depending on other mains voltage and countries
** Derating of 1% per 100 m at an altitude above 1000 m
*** TEH 27600+ scales to 3 units = 30 KW
Productspecification are subject to change without notice
Vertrauen schafft Energie • trust creates energy™
All technical details are subject to change without notice. For any printing, translation and transmission errors are not liable
Battery Mode Ouput AC
9
®
TRUSTEC E-HYB "Mobil"
WECHSELRICHTER
Portable Solar Energy Security with the best features
ALL in one device!
Mains charging step above 230 V / max. 600 / 900 W
Control: all functions, battery monitoring with automatic. Power-up and downshift if battery or inverter
overload
•
Comfort Display with subject indicator, power
A / watt, battery capacity, utilization, warning function
Connection to solar module MC 4 to max. 50V / 600W
MPP charge controllers
•
Battery: 36 / 72 Ah lead AGM
•
Pure Sine Wave inverter1000 VA 230 V
•
Outer connector: Schuko and power outlet,
MC 4, 12 V, securing
•
•
•
•
1000 VAC
TEH-M-1012-32 AGM TEH-M-1012-64 AGM
Model
Offgridfunktion with power-up and downshift
1000 VAC / 800 W
rated power ( 5 s >150 % - 10 s @110 % )
Input
1000 VAC / 800 W
opt. 2000 VA
Voltage
230 VAC
Mains voltage stabilization
170-280 VAC ( für Computer) ; 90-280 VAC ( für Hausanwendungen)
Frequency range
50 / 60 HZ Auto sensing
Output AC
AC voltage regulation (battery mode)
230 VAC +/- 5 %
AC voltage regulation
2000 VA
Efficiency (peak)
Transfer time adjustable
90 %
10 ms ( für Computer) ; 20 ms ( für Hausanwendungen )
Wave form
Battery Wh / Wh benefits ca.
Pure Sine Wave
384 / 192
778 / 384
AGM lead-gel
Battery voltage
12 VAC
Battery voltage (floating)
13,5 VAC
Overcharge protection
15,5 VAC
Solar charger and AC charger
max. PV power
600 W
MPP range @ operating voltage
30 - 50 V
max PV open circuit voltage
50 V
max. Solar charging current
50 A
plug
MC 4
max. AC charging current
max. charging current
Can the daily use with solar module
fully self-sufficient energy supply to
take with grid connection when solar
energy is insufficient
10 A
50 A
AC charger and solar charger can not work simultaneously
max Efficiency
98 %
Stand By consumption
1W
Can take over the power supply of the
main house techniques in environmental
blackouts etc.
Others
Dimension( BxHxT)
Weight net ca.
Humidity
Operating temperature
Staorge temperature
10
465x480x250
20 kg
30 kg
5- 95 % RH no condensing
optional with GEL-Battery
0 - 40 °C
- 15 - + 40 °C
All technical details are subject to change without notice. For any printing, translation and transmission errors are not liable
Vertrauen schafft Energie • trust creates energy™
®
energy
products
A
A= Solar Power
1,890 Wp

B = Inverter
5.000 KW
Display
Enter
Esc
ON
OFF
UP
DOWN
ON
" Hybrid "
1-phasig 5 KW
B

Enter
Esc
ON
OFF
UP
DOWN
ON

C = Akku
7200 Wh
Nutz 3600Wh/
50 % DOD
Automatic
To network - and downshift
- If battery emty
- Loads higher inverter power
Power = Power = power purchase
pure Offgrid conditioning





C
SET
SET 1012
SET 1024
SET 3024
SET 3048
SET 5048
100 Wp
270 Wp
540 Wp
1080 Wp
1620 Wp
1
1
2
4
6
Solar annual yield ca.
125 kWh
250 kWh
500 kWh
1000 kWh
2000 kWh
Total Power max A/W
50
25
60
60
Solar Modul
Numbers
Solar charge control max.Watt/Modul
600 W / 2 x 280 W
600 W / 2 x 280 W
1200 W / 5 x 280 W
3000 W / 10 x 280 W
60
3000 W / 210x 280 W
AC charging stage
2/10/20
2/10/20
2/10/20/30
2/10/15
TT EHYB Offgrid TYP
TT 1K12
TT 1K24
TT3K24
TT3K48
TT5K48
1000/1500/1250
1000/1500/1250
3000/4500/3750
1000/4500/3750
5000/7500/6250
VA/max. 5s > 150%, 10 s 110-150 %
Power Battery capacity displayV / A /
kWh / Warning
Sun Battery AGM
opt.additional equipment
2/10/120
ja
ja
ja
ja
ja
mit Shunt
mit Shunt
mit Shunt
mit Shunt
mit Shunt
780 Wh / 12 /
1560 Wh / 24 /
2400 Wh / 24 /
4800 Wh/ 48 /
7200 Wh/ 48 /
1 x 65 Ah
2 x 65Ah
2 x 100 Ah
4 x 100 AH
4 x 150 Ah
1. Cable Set modules 100m battery to WR 2 m
2. Increasing number of solar modules
3. Battery capacity increase
4. Battery gel instead AMG charge - Lithium instead AMG charge
Technical rigor is individually tested before delivery of your order!
Hardware optimization to change without notice
So solar modules are desired in particular embodiments, ask - prices on request
All technical details are subject to change without notice. For any printing, translation and transmission errors are not liable
Vertrauen schafft Energie • trust creates energy™
11
Reliability and Autonomy with TRUSTEC Energy
Solar Technology
Energy generation
Solar Panele
Energy storage
Mono- Poly- or doubleglass modul from reputable
manufacturers
storage battery
Energy-tranformation
Grid Inverter
QX 3
3 phasige inverter
3-20 kW
Lead/Gel from Germany
Lithium-Iron Battery
Inverter off grid
COTEK
Energystorage Set
Security of energy in all
performance classes
Enter
Esc
ON
OFF
UP
Inverter
350 W - 4000 W
DOWN
ON
Enter
Esc
ON
OFF
UP
DOWN
ON
Vertrauen schafft
Energie
Trust creates Energy
Energy storage
& Management
Hobertec
Solar Pump inverter
0,7 - 120 kW
for commercial and industrial
Solar LED Light
Yard and street lamp
„All in ONE“
15 - 60 Watt LED
Infrared
heatpanele
The comfort heating
modern.excclusiv.
soothing
efficient Energy use
Vertrauen schafft Energie - trust creates energy
TRUSTEC Energy GmbH
Electrotechnical Energy Products
D-91522 Ansbach · Technologiepark 20
fon +49(0)981 48 74 49 - 00
fax +49(0)981 48 74 49 - 29
e-mail: [email protected]
www.trustec-energy.eu
TRUSTEC Salespartner:
Vertrauen schafft Energie · trust creates energy TM
Sämtliche technische Angaben können jederzeit ohne Vorankündigung geändert werden. Für etwaige DruckÜbersetzungs- und Übertragungsfehler wird nicht gehaftet.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
