C02: General purpose 62.5 µm fibre at 1300 nm General and application

C02: General purpose 62.5 µm fibre at 1300 nm General and application

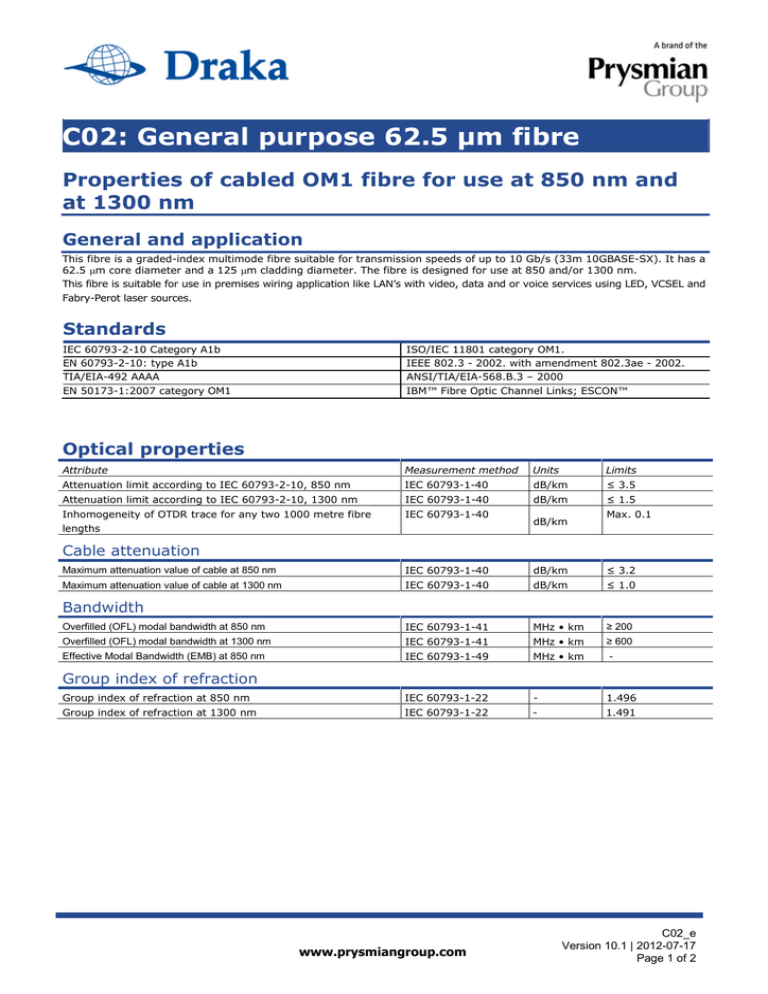

C02: General purpose 62.5 µm fibre
Properties of cabled OM1 fibre for use at 850 nm and
at 1300 nm
General and application
This fibre is a graded-index multimode fibre suitable for transmission speeds of up to 10 Gb/s (33m 10GBASE-SX). It has a
62.5 m core diameter and a 125 m cladding diameter. The fibre is designed for use at 850 and/or 1300 nm.
This fibre is suitable for use in premises wiring application like LAN’s with video, data and or voice services using LED, VCSEL and
Fabry-Perot laser sources.
Standards
IEC 60793-2-10 Category A1b
EN 60793-2-10: type A1b
TIA/EIA-492 AAAA
EN 50173-1:2007 category OM1
ISO/IEC 11801 category OM1.
IEEE 802.3 - 2002. with amendment 802.3ae - 2002.
ANSI/TIA/EIA-568.B.3 – 2000
IBM™ Fibre Optic Channel Links; ESCON™
Optical properties
Attribute
Measurement method
Units
Limits
Attenuation limit according to IEC 60793-2-10, 850 nm
IEC 60793-1-40
dB/km
≤ 3.5
Attenuation limit according to IEC 60793-2-10, 1300 nm
IEC 60793-1-40
dB/km
≤ 1.5
Inhomogeneity of OTDR trace for any two 1000 metre fibre
lengths
IEC 60793-1-40
dB/km
Max. 0.1
Cable attenuation
Maximum attenuation value of cable at 850 nm
IEC 60793-1-40
dB/km
≤ 3.2
Maximum attenuation value of cable at 1300 nm
IEC 60793-1-40
dB/km
≤ 1.0
Overfilled (OFL) modal bandwidth at 850 nm
IEC 60793-1-41
MHz • km
≥ 200
Overfilled (OFL) modal bandwidth at 1300 nm
IEC 60793-1-41
MHz • km
≥ 600
Effective Modal Bandwidth (EMB) at 850 nm
IEC 60793-1-49
MHz • km
-
Bandwidth
Group index of refraction
Group index of refraction at 850 nm
IEC 60793-1-22
-
1.496
Group index of refraction at 1300 nm
IEC 60793-1-22
-
1.491
www.prysmiangroup.com
C02_e
Version 10.1 | 2012-07-17
Page 1 of 2
C02: General purpose 62.5 µm fibre
Geometrical properties
Attribute
Measurement method
Units
Limits
Core diameter
Cladding diameter
Cladding non-circularity
Core non-circularity
Core-cladding concentricity error
Primary coating diameter – uncoloured
Primary coating diameter - coloured
Primary coating non-circularity
Primary coating-cladding concentricity error
IEC
IEC
IEC
IEC
IEC
IEC
IEC
IEC
IEC
m
m
%
m
62.5 ± 2.5
125.0 ± 1.0
≤ 1.0
≤5
≤ 1.5
242 ± 7
250 ± 15
≤5
≤6
60793-1-20
60793-1-20
60793-1-20
60793-1-20
60793-1-20
60793-1-21
60793-1-21
60793-1-21
60793-1-21
%
%
m
m
m
Mechanical properties
Attribute
Measurement method
Units
Limits
Proof stress level
Typical average strip force
IEC 60793-1-30
IEC 60793-1-32
GPa
N
Strip force (peak)
IEC 60793-1-32
N
≥ 0.7 (≈ 1 %)
1.7
1.3 ≤ Fpeak.strip ≤
8.9
© PRYSMIAN GROUP 2012, All Rights Reserved
All sizes and values without tolerances are reference values. Specifications are for product as supplied by Prysmian Group: any
modification or alteration afterwards of product may give different result.
The information contained within this document must not be copied, reprinted or reproduced in any form, either wholly or in part, without
the written consent of Prysmian Group. The information is believed to be correct at the time of issue. Prysmian Group reserves the right
to amend this specification without prior notice. This specification is not contractually valid unless specifically authorised by Prysmian
Group.
www.prysmiangroup.com
C02_e
Version 10.1 | 2012-07-17
Page 2 of 2
E14a: UCFIBRE™ Universal central tube cable
1000N central tube cable w 2 – 24 fibres, glass elements and
FireBur® sheath, VDE U-DQ(ZN)BH
Application and installation
This cable can be used for LAN and WAN backbones, telecom access lines, fibre to business and fibre to the building drop
connections as well as fibre to the home drop and access connections.
With its FireBur® LSHF sheathing this cable is ideal for mixed indoor and outdoor installation.
It is equally suited for installation in ducts and on trays.
Standards
ISO 11801 2nd edition, EN 50173-1:2002, IEC 60794-1
Flame resistance
IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2
Construction
Loose tube
Fibre colour code
Ø2.8 mm jelly filled loose tube with 2 – 16 fibres; Ø3.5 mm loose tube with 24 fibres
Red
Yellow w/mark every 70 mm
1
13
White w/mark every 70 mm
Green
2
14
3
Blue
15
Grey w/mark every 70 mm
4
Yellow
16
Turquoise w/mark every 70 mm
5
White
17
Orange w/mark every 70 mm
6
Grey
18
Pink w/mark every 70 mm
7
Brown
19
Yellow w/mark every 35 mm
8
Violet
20
White w/mark every 35 mm
9
Turquoise
21
Grey w/mark every 35 mm
10
Black
22
Turquoise w/mark every 35 mm
11
Orange
23
Orange w/mark every 35 mm
12
Pink
24
Pink w/mark every 35 mm
Strength member
Waterblocked E-Glass fibre elements
Sheath
1.0 mm blue FireBur sheath, UV stabilised, IEC 50290-2-27
Sheath marking
Draka UCFIBRE I/O CT D DA LSHF 1.0 kN <Fibre count> <Fibre type><Fibre brand><Item
No>05<Batch Number><Meter mark> U-DQ(ZN)BH <Fibre count> <Fibre family> <Mode field
diameter> /125 <Transmission Class>
LINKING THE FUTURE
www.prysmiangroup.com
E14a_e
Version 11.1 | 2012-12-21
Page 1 of 3
E14a: UCFIBRE™ Universal central tube cable
Physical properties
Attribute
Nominal outer diameter
IEC 60794-1-2
Method
-
Nominal weight
-
Limits
Maximum installation tensile strength
E1
2 - 16 fibres: 6.0 mm
18 - 24 fibres: 6.5 mm
2 - 16 fibres: 40 kg/km
18 - 24 fibres: 45 kg/km
1000 N (fibre strain less than 1/2 of proof test level)
Short term tensile strength
E1
750 N (fibre strain less than 1/3 of proof test level)
Permanent tensile strength
E1
Compressive strength (crush)
E3
500 N (no attenuation change, fibre strain less than 1/4 of
proof test level)
1500 N
Impact
E4
15 Nm (no attenuation change, no broken cable elements)
Torsion
Kink
E7
E10
Min. bending radius, unloaded
Min. bending radius, loaded
E11
-
5 cycles  1 turn
The cables do not form a kink when a loop is drawn together
to a diameter of 100 mm
R = 60 mm
R = 100 mm
Temperature range
F1
Water penetration
F5B
Heat of combustion
-
Storage: -40C to +60C
Installation: -30C to +40C
Operation: -30C to +60C.
No water on free end
2-16 fibres: 630 MJ/km =
24 fibres: 800 MJ/km =
0.18 kWh/m
0.22 kWh/km
Product codes – ordering information
Prysmian
group
material
code
Prysmian Group
material description
UCFIBRE
UCFIBRE
UCFIBRE
UCFIBRE
UCFIBRE
I/O
I/O
I/O
I/O
I/O
CT
CT
CT
CT
CT
D
D
D
D
D
DA
DA
DA
DA
DA
LSHF
LSHF
LSHF
LSHF
LSHF
1.0kN
1.0kN
1.0kN
1.0kN
1.0kN
Draka
Material
code
4 MM51
6 MM51
8 MM51
12 MM51
24 MM51
1017435
1017436
1017107
1017437
1017438
Fibre
count
4
6
8
12
24
UCFIBRE I/O CT D DA LSHF 1.0kN 4 OM3B
1018246 4
UCFIBRE I/O CT D DA LSHF 1.0kN 6 OM3B
1017113 6
UCFIBRE I/O CT D DA LSHF 1.0kN 8 OM3B
1017139 8
UCFIBRE I/O CT D DA LSHF 1.0kN 12 OM3B
1017140 12
UCFIBRE I/O CT D DA LSHF 1.0kN 24 OM3B
1017141 24
UCFIBRE I/O CT D DA LSHF 1.0kN 4 OM4B
1026223 4
UCFIBRE I/O CT D DA LSHF 1.0kN 6 OM4B
1026508 6
UCFIBRE I/O CT D DA LSHF 1.0kN 12 OM4B
1022246 12
LINKING THE FUTURE
www.prysmiangroup.com
Fibre type
OM2
OM2
OM2
OM2
OM2
50/125
50/125
50/125
50/125
50/125
multi
multi
multi
multi
multi
MaxCap-BB-OM3
mode
MaxCap-BB-OM3
mode
MaxCap-BB-OM3
mode
MaxCap-BB-OM3
mode
MaxCap-BB-OM3
mode
mode
mode
mode
mode
mode
Fibre
data
sheet
500/500
500/500
500/500
500/500
500/500
C23
C23
C23
C23
C23
50/125 multi
C31
50/125 multi
C31
50/125 multi
C31
50/125 multi
C31
50/125 multi
C31
MaxCap-BB-OM4 50/125 multi
mode
MaxCap-BB-OM4 50/125 multi
mode
MaxCap-BB-OM4 50/125 multi
mode
C32
C32
C32
E14a_e
Version 11.1 | 2012-12-21
Page 2 of 3
E14a: UCFIBRE™ Universal central tube cable
UCFIBRE I/O CT D DA LSHF 1.0kN 24 OM4B
1022247 24
MaxCap-BB-OM4 50/125 multi
mode
C32
UCFIBRE
UCFIBRE
UCFIBRE
UCFIBRE
UCFIBRE
I/O
I/O
I/O
I/O
I/O
CT
CT
CT
CT
CT
D
D
D
D
D
DA
DA
DA
DA
DA
LSHF
LSHF
LSHF
LSHF
LSHF
1.0kN
1.0kN
1.0kN
1.0kN
1.0kN
4 MM61
6 MM61
8 MM61
12 MM61
24 MM61
1016955
1017267
1016959
1017536
1017269
4
6
8
12
24
OM1
OM1
OM1
OM1
OM1
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
C02
C02
C02
C02
C02
UCFIBRE
UCFIBRE
UCFIBRE
UCFIBRE
UCFIBRE
I/O
I/O
I/O
I/O
I/O
CT
CT
CT
CT
CT
D
D
D
D
D
DA
DA
DA
DA
DA
LSHF
LSHF
LSHF
LSHF
LSHF
1.0kN
1.0kN
1.0kN
1.0kN
1.0kN
4 SM2D
6 SM2D
8 SM2D
12 SM2D
24 SM2D
1016956
1017268
1016960
1016962
1016964
4
6
8
12
24
OS2
OS2
OS2
OS2
OS2
Single
Single
Single
Single
Single
multi
multi
multi
multi
multi
mode
mode
mode
mode
mode
mode
mode
mode
mode
mode
G652.D
G652.D
G652.D
G652.D
G652.D
C03e
C03e
C03e
C03e
C03e
UCFIBRE I/O CT D DA LSHF 1.0kN 4 SM2D
UCFIBRE I/O CT D DA LSHF 1.0kN 6 SM2D
1022415 4
1027433 6
BendBrightXS G.657.A2
BendBrightXS G.657.A2
C24
C24
UCFIBRE I/O CT D DA LSHF 1.0kN 12
SM2D/MM52
1018667 12
Hybrid 4 x OS2 single mode + 8 x
OM2 50/125
UCFIBRE I/O CT D DA LSHF 1.0kN 24
SM2D/MM52
1018668 24
Hybrid 16 x OS2 single mode + 8 x
OM2 50/125
C03e
+
C01a
C03e
+
C01a
[PRODUCT CODE TABLE]
© PRYSMIAN GROUP 2010, All Rights Reserved
All sizes and values without tolerances are reference values. Specifications are for product as supplied by Prysmian Group: any
modification or alteration afterwards of product may give different result.
The information contained within this document must not be copied, reprinted or reproduced in any form, either wholly or in part, without
the written consent of Prysmian Group. The information is believed to be correct at the time of issue. Prysmian Group reserves the right to
amend this specification without prior notice. This specification is not contractually valid unless specifically authorised by Prysmian Group.
LINKING THE FUTURE
www.prysmiangroup.com
E14a_e
Version 11.1 | 2012-12-21
Page 3 of 3
