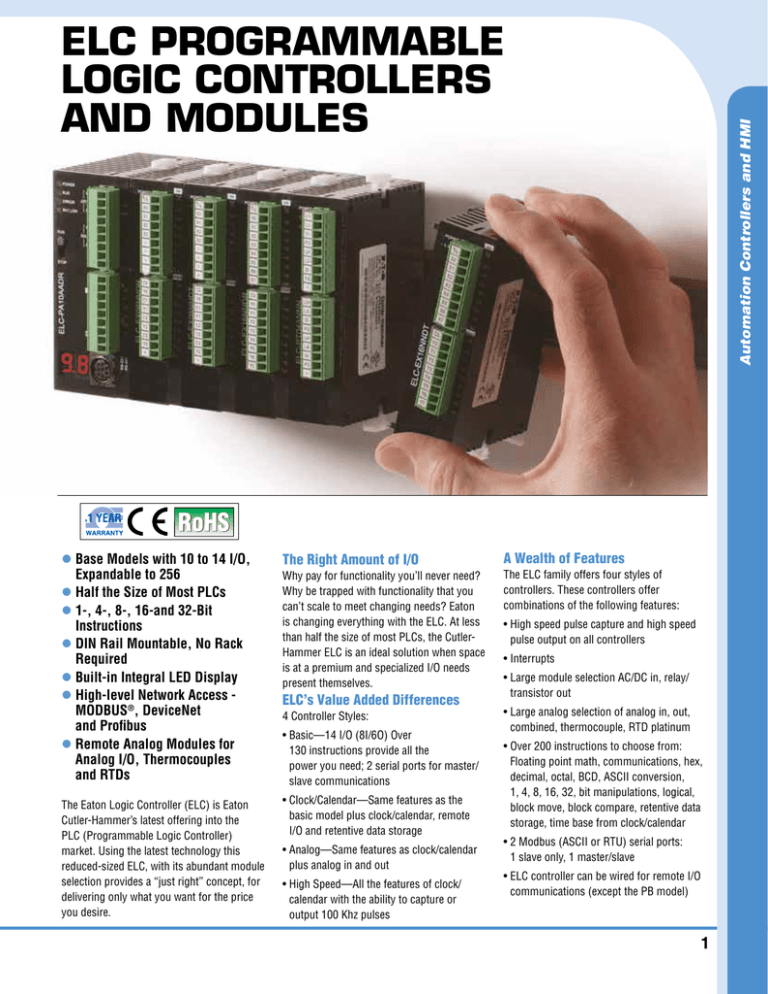

ELC ProgrammabLE LogiC ControLLErs and moduLEs ollers and HMI

ELC ProgrammabLE LogiC ControLLErs and moduLEs ollers and HMI
l Base Models with 10 to 14 I/O,
Expandable to 256
l Half the Size of Most PLCs
l 1-, 4-, 8-, 16-and 32-Bit
Instructions
l DIN Rail Mountable, No Rack
Required
l Built-in Integral LED Display
l High-level Network Access Modbus®, DeviceNet
and Profibus
l Remote Analog Modules for
Analog I/O, Thermocouples
and RTDs
The Right Amount of I/O
A Wealth of Features
Why pay for functionality you’ll never need?
Why be trapped with functionality that you
can’t scale to meet changing needs? Eaton
is changing everything with the ELC. At less
than half the size of most PLCs, the CutlerHammer ELC is an ideal solution when space
is at a premium and specialized I/O needs
present themselves.
• High speed pulse capture and high speed
pulse output on all controllers
The Eaton Logic Controller (ELC) is Eaton
Cutler-Hammer’s latest offering into the
PLC (Programmable Logic Controller)
market. Using the latest technology this
reduced-sized ELC, with its abundant module
selection provides a “just right” concept, for
delivering only what you want for the price
you desire.
• Clock/Calendar—Same features as the
basic model plus clock/calendar, remote
I/O and retentive data storage
ELC’s Value Added Differences
4 Controller Styles:
• Basic—14 I/O (8I/6O) Over
130 instructions provide all the
power you need; 2 serial ports for master/
slave communications
• Analog—Same features as clock/calendar
plus analog in and out
• High Speed—All the features of clock/
calendar with the ability to capture or
output 100 Khz pulses
Automation Controllers and HMI
ELC Programmable
Logic Controllers
and Modules
The ELC family offers four styles of
controllers. These controllers offer
combinations of the following features:
• Interrupts
• Large module selection AC/DC in, relay/
transistor out
• Large analog selection of analog in, out,
combined, thermocouple, RTD platinum
• Over 200 instructions to choose from:
Floating point math, communications, hex,
decimal, octal, BCD, ASCII conversion,
1, 4, 8, 16, 32, bit manipulations, logical,
block move, block compare, retentive data
storage, time base from clock/calendar
• 2 Modbus (ASCII or RTU) serial ports:
1 slave only, 1 master/slave
• ELC controller can be wired for remote I/O
communications (except the PB model)
1
Space Saving, Cost Saving
This space-saving design perfectly fits at
home in small machine control stations
as well as other enclosed applications
where space is critical.
While the ELC is perfectly suited for
applications with 40 I/O and less, it can also
be expanded to 256 I/O. That means there’s
no need to change to a different controller as
I/O needs expand. Furthermore, the ELC’s
2 communication ports can provide any
networking task. In remote mode, the
ELC exchanges and shares information
with up to 16 other devices, in normal
mode, the ELC can communicate with
up to 32 other devices. Its small size
allows for reduced panel size, and saves
valuable machine space.
Capability
The ELC provides the instruction set of a
large PLC in a small package. It is capable of
1-, 4-, 8-, 16- and 32-bit instructions, block
compare, block move, communications,
interrupts, clock/calendar and logic, over
240 instructions in all (except PB).
No Racks Required
A DIN rail lets you add as many modules as
desired. Just snap on, and slide into place.
All connections are done automatically.
ELC-PA10AADR, shown larger
than actual size.
Large PLC Features
Multiple communication ports, remote I/O
ability, data storage, high speed counters,
high speed pulse outputs, interrupts, timer
resolution to 10 ms, PIDs, plus much more.
No racks
required.
Built-In Display
An integral LED display provides userassigned process monitoring, error
messages, alarms, display counts and more.
Built-in
display.
2
Software
ELCSoft programs in standard ladder,
sequential function chart programming
or instruction.
ELC Modules
Easy Connectivity to Drives
ELC Expansion Modules
ELC communicates easily to MVX drives,
eliminating the need to operate drives by
analog voltage/current or digital I/O. ELC can
access all of the parameters in the MVX by
serial communications, saving money.
ELC expansion modules provide the correct
amount of I/O for application solutions.
Choose 8 or 16 I/O expansion modules
added to the ELC processor 256 I/O
(128 Inputs and 128 maximum).
Remote Communication
ELC Specialty Modules
All ELC analog type modules are capable
of stand-alone operation. Mounted remotely,
the ELC communicates to the analog module
through its communications port. The
ELC also lets you read parameters, set
parameters, use scale, offset, and
average values.
In addition to the expansion specialty
modules like analog in, out, Platinum
temperature, thermocouple, DeviceNet,
PROFIBUS, and simulator switch module;
can be added. The ELC-485APTR easily
connects the RS485 port of MVX drive,
controllers and other devices.
ELC software
Automation Controllers and HMI
• Display registers “in use” and modules attached to
the ELC
• Monitor runtime applications; force (except basic),
and enter/modify register values
• Wizards aid programming of remote I/O, standard
communications, high speed counters, pulse
outputs, ELC Link, positioning, interrupts, PIDs, and
extension module setup
ELCSoft, software
Graphic panels
ELC Graphic Panels are simple to program and easily connect
to ELC products. ELC graphic panels make modifying an
application quick and easy. ELC graphic panels also connect
to Cutler-Hammer® MVX drives, IQMODBUS meters and
many other devices. With over 30 objects that can be placed
anywhere on the display, these tough panels also communicate
with other major controllers. These graphic panels have
two serial ports which can be used simultaneously to
communicate. Transfer applications to or from these graphic
panels using the handy transfer module (ELC-GPXFERMOD).
Ten programmable functions keys provide easy to change
pages, input numeric values, enter alpha-numeric passwords,
set, reset and more. Create alarms, password protect, import
bitmaps, and use many different fonts.
ELC-GP02
ELC-GP04
Environmental Ratings Specifications Electrical/EMC ESD Immunity: 8 kV air discharge EFT Immunity:
Power Line: 2 kV
Digital I/O: 1 kV
Analog and Communication
I/O: 250 V Damped-Oscillatory Wave:
Power Line: 1 kV
Digital I/O: 1 kV RS Immunity: 26 MHz to 1 GHz, 10 V/m
Other Approvals Agency Certifications: UL 508, cUL, CE,
Class 1, Div 2
Transportation and Storage Temperature: -25 to 70°C
(-13 to 158°F)
Humidity: 5 to 95%
Operating
Temperature: 32 to 131°F (0 to 55°C)
Humidity: 50 to 95%
Power Supply Voltage:
ELC: 24 Vdc (-15 to 20%) with DC input reverse polarity protection
Expansion Unit: Supplied by the ELC
Power Consumption: 3 to 6 W
Insulation Resistance: >5 M @
500 Vdc, between all inputs/outputs
and earth Grounding: The diameter of the
grounding wire cannot be smaller than
the wire diameter of terminals L and
N (all ELC units should be grounded
directly to the ground pole) Vibration/Shock Resistance: Standard: IEC1131-2, IEC 68-2-6 (TEST Fc)/IEC1131-2 and
IEC 68-2-27 (TEST Ea) Approx. Weight: 0.158 kg (0.348 lb)
DC Input Point Electrical Input Type: DC (SINK or SOURCE) Input Current: 24 Vdc 5 mA Active Level:
OFF/ON: Above 16 Vdc
ON/OFF: Below 14.4 Vdc
Response Time: About 10 mS; an
adjustment range of 0 to 10,000 mS
could be selected through D1020
and D1021
3
POWER
POWER
POWER
POWER
RUN
RUN
RUN
RUN
ERROR
BAT.LOW
ERROR
BAT.LOW
ERROR
BAT.LOW
ERROR
BAT.LOW
RUN
RUN
RUN
RUN
STOP
STOP
STOP
STOP
ELC-PB14 Series
ELC-PB14
Series
Specifications (continued)
0
1
1
ELC-PC12 Series
ELC-PC12
Series
Maximum I/O: 256 (128 In / 128 out);
any number of modules
I/O Type:
ELC-PB14 Series:
14 (8 in/6 out, digital)
ELC-PC12 Series:
12 (8 in/4 out, digital)
ELC-PA10 Series:
10 (4 in/2 out, digital;
2 in/2 out, analog)
ELC-PH12NNDT:
12 (8 in/4 out, digital)
DC In Sink/Source: Yes
Execution Speed: Basic commands—
2 µ seconds min
Program Language: Boolean + ladder
logic + SFC
Program Capacity:
ELC-PB14 Series: 3792 Steps
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 7920 Steps
Data Memory Capacity (bits):
ELC-PB14 Series: 1280 Bits
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 4096 Bits
Data Memory Capacity (words):
ELC-PB14 Series: 744 Words
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 5000 Words
Index Registers:
ELC-PB14 Series: 2 Words
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 8 Words
File Memory Capacity:
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT Only: 1600 Words
4
0
ELC-PA10 Series
ELC-PA10
Series
Commands:
ELC-PB14 Series: 32 Basic/
107 advanced
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 32 Basic/
168 advanced
Floating Point: Yes
SFC Commands:
ELC-PB14 Series: 128 Steps
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 1024 Steps
Timers:
ELC-PB14 Series: 128 (1 to 100 ms)
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 256 (1 to 100 ms)
Counters:
ELC-PB14 Series: 128 (16 bit/
32 bit/up/down)
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 250 (16 bit/
32 bit/up/down)
High Speed Counters:
ELC-PB14 Series: 1 (14 modes)
10 K maximum
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 1 (14 modes) 20 kHz for PA/PC; 100 kHz for PH
Pulse Output:
ELC-PB14 Series: 2 channels
10 kHz maximum
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 2 channels, 40 kHz maximum for PC/PA, 100 kHz for PH
Master Control Loop:
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT Only: 8 Loops
ELC-PH12NNDT
ELC-PH12NNDT
Subroutines:
ELC-PB14 Series: 64 subroutines
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 256 subroutines
Interrupts:
ELC-PB14 Series: 6
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT: 15 (external/time base/HS CNTR /comm)
Real-time Clock/Calendar:
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT Only: Built-in
Specialty Expansions Modules:
8 (analog in/analog out/TC/RTD/PT);
modules do not count in total I/O
Serial Ports: 2 (one RS232, one RS485)
Remote I/O:
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT Only: With 16 other devices
Run Time Editing:
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT Only: Yes, also includes PB
Run/Stop Switch:
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT Only: Yes, also includes PB
Removable Terminal Strips:
ELC-PC12 Series, ELC-PA10 Series, ELC-PH12NNDT Only: Yes, also includes PB
Special Features:
ELC-PC12 Series: 2 potentiometers
ELC-PA10 Series: Two 7-segment displays
ELC-PH12NNDT: 2 potentiometers
Automation Controllers and HMI
Style 1
Style 2
ELC EXPANSION MODULES
Style 1
Style 2
INPUTSOUTPUTS
MODEL TYPE
STYLE
Points Type Points
Type ELC-EX08NNAN
AC IN 1
8
120 Vac
0
—
ELC-EX08NNDN
DC IN 1
8DC Sink or Source 0
—
ELC-EX08NNNR
Relay OUT 1
0
—
8
Relay
ELC-EX08NNDT
IN/OUT Combo 2
4DC Sink or Source 4 Transistor
ELC-EX08NNNT
Transistor OUT 1
0
—
8 Transistor
ELC-EX06NNNI High Current Relay OUT 2
0
—
6 Relay (6 A)
ELC-EX08NNDR
IN/OUT Combo 2
4DC Sink or Source 4
Relay
ELC-EX16NNDR
IN/OUT Combo 2
8DC Sink or Source 8
Relay
ELC-EX16NNDT
IN/OUT Combo 2
8DC Sink or Source 8 Transistor
3
ON
0
1
1 2 3 4
DIP
DR1
DR0
IN1
IN0
ELC-COPBDP
ELC-CODNET
Style 2
Style 3
Style 4
Style 5
Style 2
Style 3
Style 4
Style 5
6
COM2
1
2
0
x10
4
5
COM1
3
2
0
X7
1
x10
6
9
NODE ADDRESS
6
8
x160
5
7
ELC-EX08NNSN
5
8
X5
4
X6
3
4
7
X4
x161
ELC-EX485APTR
NS
X2
X3
2
MS
NET
X1
1
POWER
POWER
X0
9
IN
ON
0
7
Style 1
Style 1
ELC specialty MODULES
Style 6 with
ELC-ACCOVER
Style 6, with
ELC-ACCOVER
INPUTSOUTPUTS
MODEL TYPE
POWER STYLE
Points Type Points
Type
ELC-AN02NANN Analog OUT 1
0 -20 mA~20 mA 2 (12 bits) 0 to 20 mA,
4 to 20 mA
0 to 10V,
ELC-AN04NANN Analog OUT 2
0 -10V ~ +10V 4 (12 bits)
2 to 10V
mA,
ELC-AN06AANN Analog Combo 2
4 ±10V, ±20 mA 2 (12 bits) 0 0toto2010V
24 Vdc
4
ELC-AN04ANNN
Analog IN
2
(V = 14 bits, ±10V, ±20 mA 0
I = 11 bits)
4
ELC-PT04ANNN
PT100 2
(V = 14 bits
PT100 0
—
I = 13 bits) ELC-TC04ANNN Thermocouple 2
4 J, K, R, S, T 0
ELC-EX08NNSN Switch Input 24 Vdc 3
8
Switch 0
ELC-COPBDP
PROFIBUS DP 24 Vdc 4
32
Digital 32 Digital
ELC-CODNET
DeviceNet 24 Vdc 5
32
Digital 32
Digital
ELC-485APTR
RS485 N/A 6
0
—
0
—
Easy Connect
5
To Order Visit omega.com/elc_plc for Pricing and Details
INPUT
OUTPUT
Model No.
Description
AC
DCanalogrelaytransistoranalog
ELC-PB14NNDR 14 I/O PB Series
8
6
ELC-PB14NNDT 14 I/O PB Series
8
6
ELC-PC12NNAR 12 I/O PC Series
8
4
ELC-PC12NNDR
12 I/O PC Series
8
4
ELC-PH12NNDT 12 I/O PH Series 8 4
ELC-PA10AADR
10 I/O PA Series
4
2
2
2
Digital I/O Expansion Modules
INPUT
OUTPUT
Model No.
ELC-EX06NNNI ELC-EX08NNAN ELC-EX08NNDN ELC-EX08NNNR ELC-EX08NNDR ELC-EX16NNDR ELC-EX08NNDT ELC-EX08NNNT ELC-EX16NNDT ELC-EX08NNSN Analog I/O Modules
Model No.
ELC-AN04ANNN ELC-AN02NANN ELC-AN04NANN ELC-AN06AANN ELC-TC04ANNN ELC-PT04ANNN Accessories
Model No.
ELC-CODNET
ELC-COPBDP
ELC-MC01
ELC-ACPGMXFR
ELC-GP02
ELC-GP04
ELC-GPXFERMOD
ELC-PS01
ELC-PS02
ELCSOFT
ELCSOFTGP
ELC-CBPCELC1
ELC-CBPCELC3
Description
6 I/O expansion
8 I/O expansion
8 I/O expansion
8 I/O expansion
8 I/O expansion
16 I/O expansion
8 I/O expansion
8 I/O expansion
16 I/O expansion
8 I/O expansion
Description
Analog inanalog out
4 I/O analog in 4
2 I/O analog out 2
4 I/O analog out 4
6 I/O analog in/out 4
2
4 I/O thermocouple J, K, R, S, T 4
4 I/O platinum RTD, PT100 4
Description
ELC expansion module for DeviceNet e
ELC expansion module for ProfibusDP slave
ELC motion control for 1 axis, use with ELC-PHNNDT
Program transfer module for ELC controllers
ELC graphics panel, monochrome, 160x32 pixels, 10 keys
ELC graphics panel, monochrome, 128x64 pixels, 10 keys
ELC graphics panel transfer module
ELC power supply, 24 W, 1 A
ELC power supply, 48 W, 2 A
ELC programming software for ELC controllers
ELC programming software for ELC graphics panels
Cable to connect a PC or a GP unit to ELC, 1 m (3.3’) (DB9 pin female to 8 pin DIN)
Cable to connect a PC or a GP unit to ELC, 3 m (9.8’) (DB9 pin female to 8 pin DIN)
Ordering Example: ELC-PB14NNDR, ELCSOFT.
6
TYPE
AC
DCrelaytransistor
6 A outputs
6
AC in 8
DC in 8
Relay out 8
in/out combo 4
4
in/out combo 8
8
in/out combo 4
4
Transistor out 8
in/out combo 8
8
Switch in 8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
