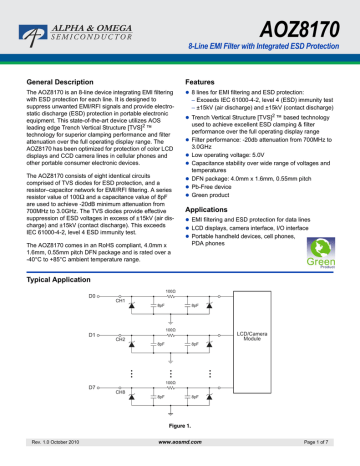

AOZ8170
8-Line EMI Filter with Integrated ESD Protection
General Description
Features
The AOZ8170 is an 8-line device integrating EMI filtering
with ESD protection for each line. It is designed to
suppress unwanted EMI/RFI signals and provide electrostatic discharge (ESD) protection in portable electronic
equipment. This state-of-the-art device utilizes AOS
leading edge Trench Vertical Structure [TVS]2 ™
technology for superior clamping performance and filter
attenuation over the full operating display range. The
AOZ8170 has been optimized for protection of color LCD
displays and CCD camera lines in cellular phones and
other portable consumer electronic devices.
z 8 lines for EMI filtering and ESD protection:
The AOZ8170 consists of eight identical circuits
comprised of TVS diodes for ESD protection, and a
resistor–capacitor network for EMI/RFI filtering. A series
resistor value of 100Ω and a capacitance value of 8pF
are used to achieve -20dB minimum attenuation from
700MHz to 3.0GHz. The TVS diodes provide effective
suppression of ESD voltages in excess of ±15kV (air discharge) and ±15kV (contact discharge). This exceeds
IEC 61000-4-2, level 4 ESD immunity test.
z
– Exceeds IEC 61000-4-2, level 4 (ESD) immunity test
– ±15kV (air discharge) and ±15kV (contact discharge)
z Trench Vertical Structure [TVS]2 ™ based technology
z
z
z
z
z
used to achieve excellent ESD clamping & filter
performance over the full operating display range
Filter performance: -20db attenuation from 700MHz to
3.0GHz
Low operating voltage: 5.0V
Capacitance stability over wide range of voltages and
temperatures
DFN package: 4.0mm x 1.6mm, 0.55mm pitch
Pb-Free device
Green product
Applications
z EMI filtering and ESD protection for data lines
z LCD displays, camera interface, I/O interface
z Portable handheld devices, cell phones,
The AOZ8170 comes in an RoHS compliant, 4.0mm x
1.6mm, 0.55mm pitch DFN package and is rated over a
-40°C to +85°C ambient temperature range.
PDA phones
Typical Application
D0
100Ω
CH1
8pF
8pF
100Ω
D1
D7
CH2
8pF
LCD/Camera
Module
8pF
100Ω
CH8
8pF
8pF
Figure 1.
Rev. 1.0 October 2010
www.aosmd.com
Page 1 of 7
AOZ8170
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8170DT
-40°C to +85°C
TDFN-16
Green Product
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/web/quality/rohs_compliant.jsp for additional information.
Pin Configuration
1
15
2
Exposed Pad (GND)
16
14
13
12
11
11
1616
22
1515
33
1414
44
1313
55
1212
66
1111
77
1010
88
99
3
4
5
6
10
7
9
8
TDFN-16
(Bottom View)
TopView
View
Top
Pin Description
Rev. 1.0 October 2010
Pin Number
Pin Name
Pin Function
1,16
CH 1
Channel 1 Connections
2, 15
CH 2
Channel 2 Connections
3, 14
CH 3
Channel 3 Connections
4, 13
CH 4
Channel 4 Connections
5, 12
CH 5
Channel 5 Connections
6, 11
CH 6
Channel 6 Connections
7, 10
CH 7
Channel 7 Connections
8, 9
CH 8
Channel 8 Connections
Exposed Pad
GND
Common Ground Connection
www.aosmd.com
Page 2 of 7
AOZ8170
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter
Rating
Storage Temperature (TS)
-65°C to +150°C
ESD Rating per IEC61000-4-2, contact
ESD Rating per IEC61000-4-2, air
(1)
±15kV
(1)
±15kV
ESD Rating per Human Body Model(2)
±30kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100pF, RDischarge = 1.5kΩ.
Electrical Characteristics
TA = 25°C unless otherwise specified.
Symbol
VRWM
VBR
IR
VCL
RCH
CCH
fC
Parameter
Reverse Working Voltage
Conditions
Max.
Units
5.0
V
8
V
0.1
µA
ILOAD = 1A, positive
ILOAD = 1A, negative clamp(5)(8)
9.0
-2.5
V
ILOAD = 5A, positive clamp(5)(8)
ILOAD = 5A, negative clamp(5)(8)
11.5
-3.5
ILOAD = 12A, positive clamp(5)(8)
ILOAD = 12A, negative clamp(5)(8)
14.0
-5.0
1mA(4)
IT =
Reverse Leakage Current
VRWM = 3.3V
Total Series Resistance
Typ.
(3)
Reverse Breakdown
Voltage
Signal Clamp Voltage
Min.
6
7
clamp(5)(8)
IR = 20mA
Ground(6)(7)(8)
90
100
110
Ω
7
8
9
pF
Channel Capacitance
Input to
Cut-off Frequency
Measured with 50Ω source and 50Ω load
termination
220
MHz
Attenuation from 700MHz
to 3.0GHz
VR = 0V Measured with 50Ω source and 50Ω
load termination
-20
dB
Notes:
3. The working peak reverse voltage, VRWM, should be equal to or greater than the DC or continuous peak operating voltage level.
4. VBR is measured at the pulse test current IT.
5. Measurements performed using a 100ns Transmission Line Pulse (TLP) system.
6. Total capacitance is equal to 2 x CCH.
7. Measured at 25°C, VR = 2.5V, f = 1.0MHz.
8. Guaranteed by design.
Rev. 1.0 October 2010
www.aosmd.com
Page 3 of 7
AOZ8170
Typical Performance Characteristics
Insertion Loss Characteristics
Crosstalk (I/O-I/O) vs. Frequency
0
0
-5
-20
-10
Insertion Loss (dB)
S21 (db)
-15
-20
-25
-30
-35
-40
-40
-60
-80
-100
-45
-50
-120
1
10
100
1000
10000
1
10
Frequency (MHz)
Clamping Voltage vs. Peak Pulse Current
(tperiod = 100ns, tr = 1ns)
1000
10000
Forward Voltage vs. Forward Current
(tperiod = 100ns, tr = 1ns)
6
16
Clamping Voltage, Vcl (V)
100
Frequency (MHz)
5
14
4
12
3
10
2
8
1
0
6
0
2
4
6
8
10
0
12
2
4
6
8
10
12
Forward Current (A)
Peak Pulse Current, Ipp (A)
Typical Resistance vs. Temperature
110
Resistance (Ω)
105
100
95
90
-45
-25
-5
5
25
45
65
85
Temparature (°C)
Rev. 1.0 October 2010
www.aosmd.com
Page 4 of 7
AOZ8170
Package Dimensions, TDFN 4 x 1.6
D
D1
b
E1
E
L
e
Pin 1 Marking
TOP VIEW
Pin #1 ID
Chamfer 0.2 x 45°
BOTTOM VIEW
A
c
A1
SIDE VIEW
Dimensions in millimeters
RECOMMENDED LAND PATTERN
3.30
0.25
0.45
1.35
Symbols
A
A1
b
c
D
E
D1
E1
e
L
Min.
0.50
0.00
0.20
Nom. Max.
0.55
0.60
—
0.05
0.25
0.30
0.152 REF.
3.95
4.00
4.05
1.55
1.60
1.65
3.15
3.20
3.25
0.40
0.45
0.50
0.50 BSC
0.25
0.30
0.35
Dimensions in inches
Symbols
A
A1
b
c
D
E
D1
E1
e
L
Min.
Nom. Max.
0.020 0.022 0.024
0.000
—
0.002
0.008 0.010 0.012
0.006 REF.
0.156 0.157 0.159
0.061 0.063 0.065
0.124 0.126 0.128
0.016 0.018 0.020
0.020 BSC
0.010 0.012 0.014
0.675
0.25
0.50
0.35
UNIT: mm
Note:
1. Controlling dimension is millimeter. Converted inch dimensions are not necessarily exact.
Rev. 1.0 October 2010
www.aosmd.com
Page 5 of 7
AOZ8170
Tape and Reel Dimensions, TDFN 4 x 1.6
Carrier Tape
P2
P1
B
D1
D0
E1
K0
R0.3 Max.
E2
E
B0
5° Max
A0
P0
T
B
Feeding Direction
Unit: mm
Package
DFN
4x1.6
A0
2.00
±0.1
B0
4.40
±0.1
K0
0.95
±0.1
D0
ø1.50
+0.1/-0
D1
ø1.00
+0.1/-0
E
12.00
±0.3
E1
1.75
±0.10
Reel
E2
5.50
±0.1
P0
4.00
±0.10
P1
4.00
±0.10
P2
2.00
±0.10
T
0.30
±0.05
W1
S
R
K
M
N
H
Unit: mm
Tape Size Reel Size
12mm
ø330
M
ø330.00
±0.30/-4.00
N
55.00
±0.40
W1
12.4
+2.0/-0
H
13.00
±0.20
S
2.20
±0.20
K
10.60
±0.20
R
—
Leader / Trailer
& Orientation
Trailer Tape
300mm min.
Rev. 1.0 October 2010
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm min.
Page 6 of 7
AOZ8170
Part Marking
H1F
Assembly Lot Code
Week and Year Code
Part Number Code
Alpha & Omega Semiconductor reserves the right to make changes to this data sheet at any time without
notice.
LIFE SUPPORT POLICY
ALPHA & OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body or (b) support or sustain life, and (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of
the user.
Rev. 1.0 October 2010
2. A critical component in any component of a life
support, device, or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.aosmd.com
Page 7 of 7
