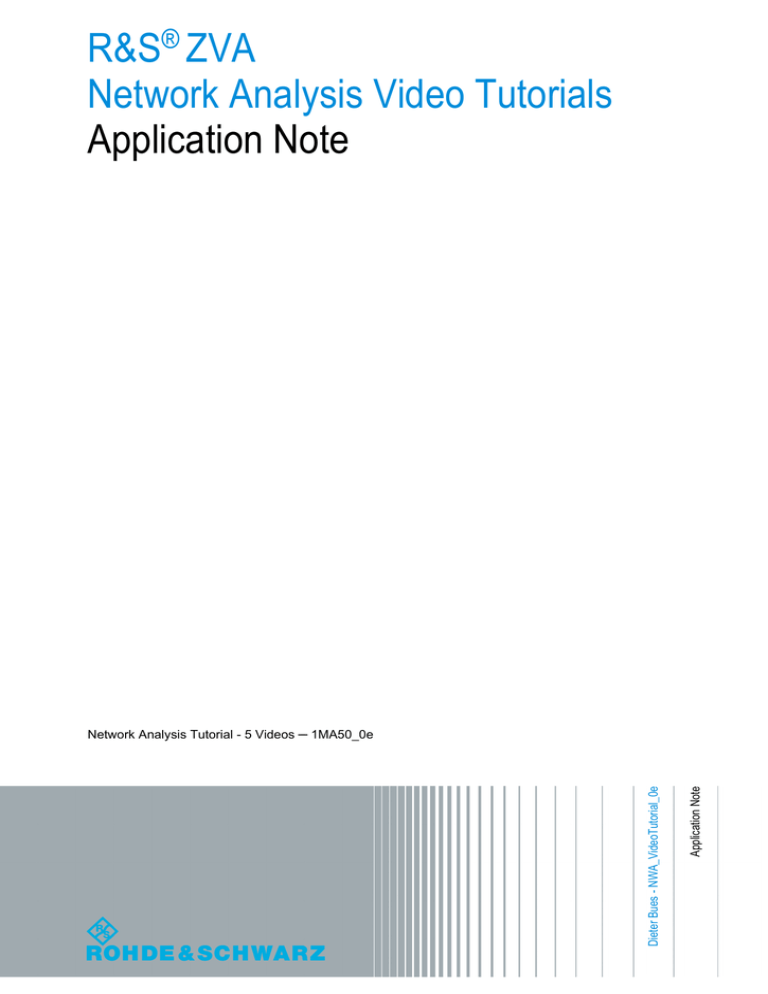

1MA50, Application Note

1MA50, Application Note
R&S® ZVA
Network Analysis Video Tutorials
Application Note
Application Note
Dieter Bues - NWA_VideoTutorial_0e
Network Analysis Tutorial - 5 Videos ─ 1MA50_0e
Contents
R&S® ZVA
Contents
1 Motivation............................................................................................... 3
2 Contents and Playing Time................................................................... 4
3 Video Location and Usage.................................................................... 5
4 References..............................................................................................6
Application Note Network Analysis Tutorial - 5 Videos ─ 1MA50_0e
2
Motivation
R&S® ZVA
1 Motivation
Welcome to this introductory video show about the R&S® ZVA family of network analyzers. Network analysis is sometimes considered to be cumbersome and difficult to
understand, a very offputting reputation for newcomers to network analyzers. To help
you look at network analyzers in a different light, we have created this video series. We
have intentionally refrained from explaining any theory in depth. Rather, we want to
show you how to operate our analyzers for simple and useful applications.
As well as just watching this video show, you can also use it as a guide and try yourself. All the operational steps shown only require a standard RF power amplifier which
should be available in almost every lab. The procedures shown in this video are
designed to be independent from each other. So you can choose whether you go
through the complete show from the beginning to the end, or just pick out the procedures of special interest to you. So, before we get properly started, we hope you enjoy
this video show and much success in becoming familiar with network analysis in general, and our R&S products in particular. Start now with selecting and watching one of
the videos.
Application Note Network Analysis Tutorial - 5 Videos ─ 1MA50_0e
3
Contents and Playing Time
R&S® ZVA
2 Contents and Playing Time
Following table summarizes the video contents. There are five entries according to the
five videos available. Each entry consists of a bold printed headline which provides
title, playing time and filename . The five files can be directly downloaded from this
internet location. In the grey shaded areas below the headlines a small summary is
given for each video.
Application Note Network Analysis Tutorial - 5 Videos ─ 1MA50_0e
4
Video Location and Usage
R&S® ZVA
Access via R&S homepage
3 Video Location and Usage
3.1 Access via R&S homepage
Goto "www.rohde-schwarz.com/appnote/1ma50" and download the videos along with
the Application Note at hand.
3.2 Access via YouTube
YouTube access as shown below :
[1] GUI-Intro and Help System
http://youtu.be/gqVa_wg9234
[2] Calibration
http://youtu.be/RxwfMKhS4S0
[3] Filter Tests
http://http://youtu.be/nB6LhBNRw7k
[4] Amplifier - Gain and Matching
http://http://youtu.be/6B7tS-Mj3BU
[5] Amplifier - Large Signal Operation
http://http://youtu.be/0mvX1ds7AiY
3.3 How to use the videos on portable devices
Regarding resolution the videos are prepared to be watched on small screens, for
instance on iPod or smartphones. This is possible because of the intense zoom
approach when showing even small objects.
Following text gives a guideline how to get and playback the videos on an iPod:
** Download the five MP4 files from R&S Intranet to your local PC
** Connect iPod to USB and open "iTunes"-software
** Within iTunes select menue item "Files Add files to Mediathek" (or similar)
** Select the five MP4-files using the file selection window within iTunes and press
'open'
** Either pull the files from the Mediathek-Window to the iPod-Device symbol using ...
... the mouse or start "synchronize iPod with Mediathek"
** Pull off the iPod from USB and play the videos offline
Application Note Network Analysis Tutorial - 5 Videos ─ 1MA50_0e
5
References
R&S® ZVA
4 References
[1] R&S® ZVA Vector Network Analyzer, High performance up to 110 GHz with up to
four test ports, Product Brochure, 10.00, Aug. 2012, PD 5213.5680.12, available from
http://www.rohde-schwarz.com, search topic "ZVA"
[2] Microwave and beyond, (PDF-)Poster English, PD 3606.7582.82, 01.00, Oct.
2012, awailable from http://www.rohde-schwarz.com, search topic "Microwave and
beyond"
[3] Zohrabian R., 2013, VNA Calibrations, Speed Up Multiport, Microwaves & RF, July
2013, pg. 76
[4] R&S® ZVA / R&S ®ZVB / R&S® ZVT, Vector Network Analyzers Operating Manual,
2013, 1145.1084.12 - 21, available from http://www.rohde-schwarz.com, search topic
"ZVA"
[5] Signal integrity - time domain skew between two differential lines using R&S®
ZVA , video series, available from http://youtu.be/LPEErfTvrOU
[6] Naseef, Minihold, Bednorz, 2013, "Testing S-Parameters on Pulsed Radar Power
Amplifier Modules", R&S Application Note Nr. 126, available from
http://www.rohde-schwarz.com/appnote/1ma126, video available for download
Application Note Network Analysis Tutorial - 5 Videos ─ 1MA50_0e
