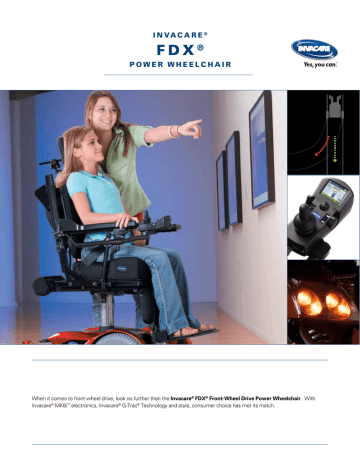

I n va c a r e ®
FDX®
Power Wheelchair
When it comes to front-wheel drive, look no further than the Invacare® FDX® Front-Wheel Drive Power Wheelchair. With
Invacare® MK6i™ electronics, Invacare® G-Trac® Technology and style, consumer choice has met its match.
Features
Invacare Core Technologies
Available with front and rear running lights, giving each chair
a unique and contemporary feel
Comes standard with Invacare® G-Trac™ Technology which
provides precise tracking for imprecise environments
Individual footplates come standard with 2" of width
adjustability on both manual and powered center mount
options
Invacare® MK6i™ Electronics are the benchmark in innovative
technology
Motion Concepts power positioning systems can be
interfaced with the Invacare FDX power base. Contact
Motion Concepts for more information at 888-433-6818
The LNX Power Center Mount Legrest option features a
naturally moving articulating design
Transport Ready Option (TRRO) available*
HCPCS Code: K0848, K0856, K0861
1
2
Invacare Corporation
www.invacare.com
3
USA
One Invacare Way
Elyria, Ohio
44035- 4190
(800) 333- 6900
1. Invacare G-Trac Technology
2. Invacare ® MK6i™ Electronics
3. Motion Concepts Powered Positioning System Compatibility
®
Model #
™
Overall Seat Dimensions** Dimensions *TRRO includes four factory-installed brackets and wheelchair anchored pelvic belt. TRRO has
been crash-tested in accordance with ANSI/RESNA WC Vol 1. As of this date, the Department
of Transportation has not approved any tie-down systems for transportation of a user while in
a wheelchair, in a moving vehicle of any type. It is Invacare's position that users of wheelchairs
should be transferred into appropriate seating in vehicles for transportation and use be made
of the restraints available by the auto industry. Invacare cannot and does not recommend any
wheelchair transportation systems.
Seat-to-Floor
Height
Drive Wheels
Ground Clearance
Turning Radius
FDX, FDX-CG,
42.5" L
12"x22"
15.75"-19.75"
14"
3"
28"
FDX-MCG26.75" W
Incline
9°
MPH
Total Weight
Weight
Motor Capacity
Max
Battery Speed
Battery
Range Limited
Warranty
Up to 300 lb.
2-Pole
5 mph
Group 34
Up To
5 Years
372 lb.
14.5 Miles
Base Frame
3 Years
**Rehab seat and 90° manual centermount
Seat Frame
Do not operate on roads, streets or highways
1 Year Electronics/
Motor/Gearbox
All references to HCPCS codes: Providers are responsible for determining the appropriate billing
codes when submitting claims
to the Medicare program, and should consult an attorney or other advisor to discuss specific situations in further detail.
Canada
570 Matheson Blvd. E.,
Unit 8
Mississauga, Ontario
L4Z 4G4 Canada
(800) 668-5324
©2012
Invacare Corporation.
All rights reserved.
Trademarks are identified
by the symbols ™ and
®. All trademarks are
owned by or licensed
to Invacare Corporation
unless otherwise noted.
Specifications are subject
to change without
notification.
Form No. 09-048
Rev. 09/12
120334
