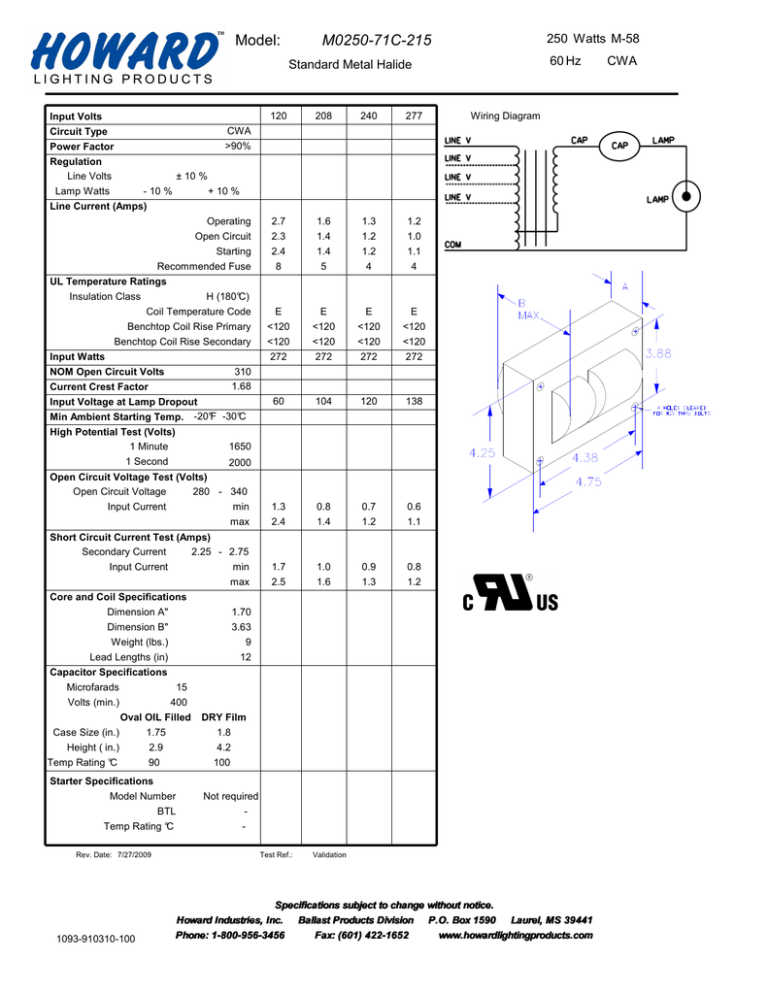

M0250-71C-215 Model: M-58 250

M0250-71C-215 Model: M-58 250
Model:
250 Watts M-58
M0250-71C-215
60 Hz
Standard Metal Halide
Input Volts
Circuit Type
CWA
Power Factor
>90%
Regulation
Line Volts
120
208
240
277
Wiring Diagram
± 10 %
Lamp Watts
- 10 %
+ 10 %
Line Current (Amps)
Operating
2.7
1.6
1.3
1.2
Open Circuit
2.3
1.4
1.2
1.0
Starting
2.4
1.4
1.2
1.1
8
5
4
4
Recommended Fuse
UL Temperature Ratings
Insulation Class
H (180°C)
Coil Temperature Code
E
E
E
E
Benchtop Coil Rise Primary
<120
<120
<120
<120
Benchtop Coil Rise Secondary
<120
<120
<120
<120
272
272
272
272
60
104
120
138
min
1.3
0.8
0.7
0.6
max
2.4
1.4
1.2
1.1
min
1.7
1.0
0.9
0.8
max
2.5
1.6
1.3
1.2
Input Watts
310
1.68
NOM Open Circuit Volts
Current Crest Factor
Input Voltage at Lamp Dropout
Min Ambient Starting Temp. -20°F -30°C
High Potential Test (Volts)
1 Minute
1650
1 Second
2000
Open Circuit Voltage Test (Volts)
280 - 340
Open Circuit Voltage
Input Current
Short Circuit Current Test (Amps)
Secondary Current
2.25 - 2.75
Input Current
Core and Coil Specifications
Dimension A"
1.70
Dimension B"
3.63
Weight (lbs.)
9
Lead Lengths (in)
12
Capacitor Specifications
Microfarads
15
Volts (min.)
400
Case Size (in.)
Oval OIL Filled
1.75
Height ( in.)
Temp Rating °C
DRY Film
1.8
2.9
4.2
90
100
Starter Specifications
Model Number
Not required
BTL
-
Temp Rating °C
-
Rev. Date: 7/27/2009
1093-910310-100
Test Ref.:
Validation
Specifications subject to change without notice.
Howard Industries, Inc.
Ballast Products Division P.O. Box 1590
Laurel, MS 39441
www.howardlightingproducts.com
Phone: 1-800-956-3456
Fax: (601) 422-1652
CWA
