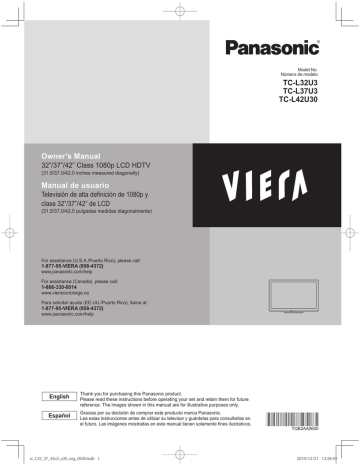

Model No.
Número de modelo
TC-L32U3
TC-L37U3
TC-L42U30
Owner’s Manual
32”/37”/42” Class 1080p LCD HDTV
(31.5/37.0/42.0 inches measured diagonally)
Manual de usuario
Televisión de alta definición de 1080p y
clase 32”/37”/42” de LCD
(31,5/37,0/42,0 pulgadas medidas diagonalmente)
For assistance (U.S.A./Puerto Rico), please call:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
For assistance (Canada), please call:
1-866-330-0014
www.vieraconcierge.ca
Para solicitar ayuda (EE.UU./Puerto Rico), llame al:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
English
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future
reference. The images shown in this manual are for illustrative purposes only.
Español
Gracias por su decisión de comprar este producto marca Panasonic.
Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en
el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.
TQB2AA0600
tc_L32_37_42u3_u30_eng_0600.indb 1
2010/12/21 13:28:49
