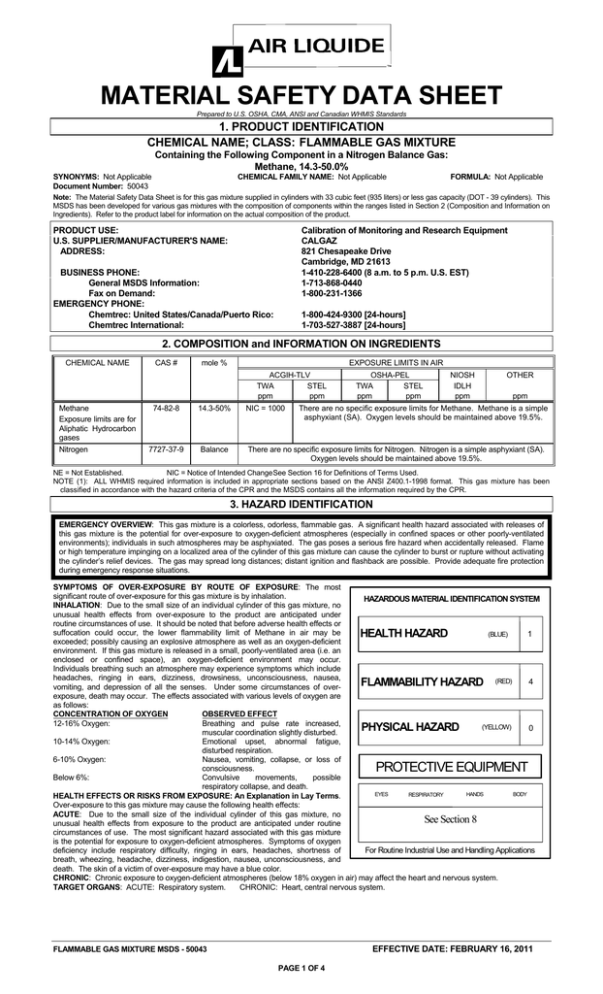

MATERIAL SAFETY DATA SHEET
Prepared to U.S. OSHA, CMA, ANSI and Canadian WHMIS Standards
1. PRODUCT IDENTIFICATION
CHEMICAL NAME; CLASS: FLAMMABLE GAS MIXTURE
Containing the Following Component in a Nitrogen Balance Gas:
Methane, 14.3-50.0%
SYNONYMS: Not Applicable
Document Number: 50043
CHEMICAL FAMILY NAME: Not Applicable
FORMULA: Not Applicable
Note: The Material Safety Data Sheet is for this gas mixture supplied in cylinders with 33 cubic feet (935 liters) or less gas capacity (DOT - 39 cylinders). This
MSDS has been developed for various gas mixtures with the composition of components within the ranges listed in Section 2 (Composition and Information on
Ingredients). Refer to the product label for information on the actual composition of the product.
PRODUCT USE:
U.S. SUPPLIER/MANUFACTURER'S NAME:
ADDRESS:
Calibration of Monitoring and Research Equipment
CALGAZ
821 Chesapeake Drive
Cambridge, MD 21613
1-410-228-6400 (8 a.m. to 5 p.m. U.S. EST)
1-713-868-0440
1-800-231-1366
BUSINESS PHONE:
General MSDS Information:
Fax on Demand:
EMERGENCY PHONE:
Chemtrec: United States/Canada/Puerto Rico:
Chemtrec International:
1-800-424-9300 [24-hours]
1-703-527-3887 [24-hours]
2. COMPOSITION and INFORMATION ON INGREDIENTS
CHEMICAL NAME
CAS #
mole %
EXPOSURE LIMITS IN AIR
ACGIH-TLV
TWA
STEL
ppm
ppm
Methane
Exposure limits are for
Aliphatic Hydrocarbon
gases
Nitrogen
74-82-8
14.3-50%
7727-37-9
Balance
NIC = 1000
OSHA-PEL
TWA
STEL
ppm
ppm
NIOSH
IDLH
ppm
OTHER
ppm
There are no specific exposure limits for Methane. Methane is a simple
asphyxiant (SA). Oxygen levels should be maintained above 19.5%.
There are no specific exposure limits for Nitrogen. Nitrogen is a simple asphyxiant (SA).
Oxygen levels should be maintained above 19.5%.
NE = Not Established.
NIC = Notice of Intended Change See Section 16 for Definitions of Terms Used.
NOTE (1): ALL WHMIS required information is included in appropriate sections based on the ANSI Z400.1-1998 format. This gas mixture has been
classified in accordance with the hazard criteria of the CPR and the MSDS contains all the information required by the CPR.
3. HAZARD IDENTIFICATION
EMERGENCY OVERVIEW: This gas mixture is a colorless, odorless, flammable gas. A significant health hazard associated with releases of
this gas mixture is the potential for over-exposure to oxygen-deficient atmospheres (especially in confined spaces or other poorly-ventilated
environments); individuals in such atmospheres may be asphyxiated. The gas poses a serious fire hazard when accidentally released. Flame
or high temperature impinging on a localized area of the cylinder of this gas mixture can cause the cylinder to burst or rupture without activating
the cylinder’s relief devices. The gas may spread long distances; distant ignition and flashback are possible. Provide adequate fire protection
during emergency response situations.
SYMPTOMS OF OVER-EXPOSURE BY ROUTE OF EXPOSURE: The most
significant route of over-exposure for this gas mixture is by inhalation.
HAZARDOUS MATERIAL IDENTIFICATION SYSTEM
INHALATION: Due to the small size of an individual cylinder of this gas mixture, no
unusual health effects from over-exposure to the product are anticipated under
routine circumstances of use. It should be noted that before adverse health effects or
suffocation could occur, the lower flammability limit of Methane in air may be
(BLUE)
1
HEALTH HAZARD
exceeded; possibly causing an explosive atmosphere as well as an oxygen-deficient
environment. If this gas mixture is released in a small, poorly-ventilated area (i.e. an
enclosed or confined space), an oxygen-deficient environment may occur.
Individuals breathing such an atmosphere may experience symptoms which include
headaches, ringing in ears, dizziness, drowsiness, unconsciousness, nausea,
FLAMMABILITY HAZARD (RED) 4
vomiting, and depression of all the senses. Under some circumstances of overexposure, death may occur. The effects associated with various levels of oxygen are
as follows:
OBSERVED EFFECT
CONCENTRATION OF OXYGEN
12-16% Oxygen:
Breathing and pulse rate increased,
(YELLOW)
PHYSICAL HAZARD
0
muscular coordination slightly disturbed.
10-14% Oxygen:
Emotional upset, abnormal fatigue,
disturbed respiration.
6-10% Oxygen:
Nausea, vomiting, collapse, or loss of
consciousness.
Below 6%:
Convulsive
movements,
possible
respiratory collapse, and death.
HANDS
EYES
BODY
RESPIRATORY
HEALTH EFFECTS OR RISKS FROM EXPOSURE: An Explanation in Lay Terms.
Over-exposure to this gas mixture may cause the following health effects:
ACUTE: Due to the small size of the individual cylinder of this gas mixture, no
See Section 8
unusual health effects from exposure to the product are anticipated under routine
circumstances of use. The most significant hazard associated with this gas mixture
is the potential for exposure to oxygen-deficient atmospheres. Symptoms of oxygen
For Routine Industrial Use and Handling Applications
deficiency include respiratory difficulty, ringing in ears, headaches, shortness of
breath, wheezing, headache, dizziness, indigestion, nausea, unconsciousness, and
death. The skin of a victim of over-exposure may have a blue color.
CHRONIC: Chronic exposure to oxygen-deficient atmospheres (below 18% oxygen in air) may affect the heart and nervous system.
TARGET ORGANS: ACUTE: Respiratory system.
CHRONIC: Heart, central nervous system.
PROTECTIVE EQUIPMENT
EFFECTIVE DATE: FEBRUARY 16, 2011
FLAMMABLE GAS MIXTURE MSDS - 50043
PAGE 1 OF 4
4. FIRST-AID MEASURES
RESCUERS SHOULD NOT ATTEMPT TO RETRIEVE VICTIMS OF OVER-EXPOSURE TO THIS GAS MIXTURE WITHOUT ADEQUATE
PERSONAL PROTECTIVE EQUIPMENT. At a minimum, Self-Contained Breathing Apparatus and Fire-Retardant Personal Protective
equipment should be worn. Adequate fire protection must be provided during rescue situations.
No unusual health effects are anticipated after exposure to this gas mixture, due to the small cylinder size. If any adverse symptom develops after
over-exposure to this gas mixture, remove victim(s) to fresh air as quickly as possible. Only trained personnel should administer supplemental
oxygen and/or cardio-pulmonary resuscitation if necessary. Victim(s) who experience any adverse effect after over-exposure to this gas mixture
must be taken for medical attention. Rescuers should be taken for medical attention if necessary. Take a copy of the label and the MSDS to
physician or other health professional with victim(s).
MEDICAL CONDITIONS AGGRAVATED BY EXPOSURE: Acute or chronic respiratory conditions may be aggravated by over-exposure to the
components of this gas mixture.
RECOMMENDATIONS TO PHYSICIANS: Administer oxygen, if necessary; treat symptoms and eliminate exposure.
5. FIRE-FIGHTING MEASURES
The following information is for Methane, the flammable component of this gas mixture.
FLASH POINT:: -187.7°C (-306°F)
NFPA RATING
AUTOIGNITION TEMPERATURE: 650°C (1202°F)
FLAMMABILITY
FLAMMABLE LIMITS (in air by volume, %):
5.0%
Lower (LEL):
15.0%
Upper (UEL):
The following information is for the gas mixture.
4
FIRE EXTINGUISHING MATERIALS: Extinguish fires of this gas mixture by shuttingoff the source of the gas. Use water spray to cool fire-exposed containers, structures,
0
1
HEALTH
REACTIVITY
and equipment.
UNUSUAL FIRE AND EXPLOSION HAZARDS: When involved in a fire, Methane
(the flammable component of this gas mixture) will ignite and decompose to produce
toxic gases including carbon monoxide and carbon dioxide.
DANGER! Fires impinging (direct flame) on the outside surface of unprotected
OTHER
cylinders of this gas mixture can be very dangerous. Exposure to fire could cause a
catastrophic failure of the cylinder releasing the contents into a fireball and explosion of
released gas. The resulting fire and explosion can result in severe equipment damage and personnel injury or death over a large area around the
cylinder. For massive fires in large areas, use unmanned hose holder or monitor nozzles; if this is not possible, withdraw from area and allow fire to
burn.
Explosion Sensitivity to Mechanical Impact: Not sensitive.
Explosion Sensitivity to Static Discharge: Static discharge may cause this gas mixture to ignite explosively, if released.
SPECIAL FIRE-FIGHTING PROCEDURES: Structural fire-fighters must wear Self-Contained Breathing Apparatus and full protective equipment.
Because of the potential for a fire, evacuation of non-emergency personnel is essential. If water is not available for cooling or protection of cylinder
exposures, evacuate the area. Refer to the North American Emergency Response Guidebook (Guide #115).
6. ACCIDENTAL RELEASE MEASURES
LEAK RESPONSE: Due to the small size and content of the cylinder, an accidental release of this gas mixture presents significantly less risk of
flammability. an oxygen-deficient environment, and other safety hazards than a similar release from a larger cylinder. However, as with any
chemical release, extreme caution must be used during emergency response procedures. In the event of a release in which the atmosphere is
unknown, and in which other chemicals are potentially involved, evacuate immediate area. Uncontrolled releases should be responded to by
trained personnel using pre-planned procedures. Proper protective equipment should be used. In case of a gas release, clear the affected area,
protect people, and respond with trained personnel.
Eliminate any possible sources of ignition, and provide maximum explosion-proof ventilation. If the gas is leaking from cylinder contact the supplier.
Adequate fire protection must be provided. Use only non-sparking tools and equipment during the response.
Monitor the surrounding area (and the original area of the release) for the flammable gas concentration and the level of Oxygen. Combustible gas
concentration must be below 10% of the LEL (5% Methane) prior to entry. Additionally, Oxygen levels must be above 19.5% before nonemergency personnel are allowed to re-enter area.
If leaking incidentally from the cylinder, contact your supplier.
THIS IS AN EXTREMELY FLAMMABLE GAS. Protection of all personnel and the area must be maintained.
7. HANDLING and USE
WORK PRACTICES AND HYGIENE PRACTICES: Be aware of any signs of dizziness or fatigue; exposures to fatal concentrations of this gas
mixture could occur without any significant warning symptoms, due to oxygen deficiency. Use non-sparking tools when working with this gas
mixture. Do not attempt to repair, adjust, or in any other way modify the cylinders containing this gas mixture. If there is a malfunction or another
type of operational problem, contact nearest distributor immediately.
STORAGE AND HANDLING PRACTICES: Cylinders should be firmly secured to prevent falling or being knocked-over. Cylinders must be
protected from the environment, and preferably kept at room temperature (approximately 21°C [70°F]). Cylinders should be stored in dry, wellventilated areas away from sources of heat, ignition and direct sunlight. Keep storage area clear of materials which can burn. Protect cylinders
against physical damage.
Cylinders should be separated from oxygen cylinders, or other oxidizers, by a minimum distance of 20 ft., or by a barrier of non-combustible
material at least 5 ft. high, having a fire-resistance rating of at least 0.5 hours. Isolate from other incompatible chemicals (refer to Section 10,
Stability and Reactivity).
Storage areas must meet national electrical codes for Class 1 Hazardous Areas. Post “No Smoking or Open Flames” signs in storage or use
areas. Consider installation of leak detection for combustible gas levels and alarm for storage and use areas. Have appropriate extinguishing
equipment in the storage area (i.e. sprinkler system, portable fire extinguishers).
Full and empty cylinders should be segregated. Use a first-in, first-out inventory system to prevent full containers from being stored for long periods
of time. These cylinders are not refillable. WARNING! Do not refill DOT 39 cylinders. To do so may cause personal injury or property
damage.
SPECIAL PRECAUTIONS FOR HANDLING GAS CYLINDERS: WARNING! Compressed gases can present significant safety hazards. During
cylinder use, use equipment designed for these specific cylinders. Ensure all lines and equipment are rated for proper service pressure.
PROTECTIVE PRACTICES DURING MAINTENANCE OF CONTAMINATED EQUIPMENT: Follow practices indicated in Section 6 (Accidental
Release Measures). Make certain application equipment is locked and tagged-out safely. Purge gas handling equipment with inert gas (i.e.
nitrogen) before attempting repairs. Always use product in areas where adequate ventilation is provided.
8. EXPOSURE CONTROLS - PERSONAL PROTECTION
VENTILATION AND ENGINEERING CONTROLS: No special ventilation systems or engineering controls are needed under normal
circumstances of use. As with all chemicals, use this gas mixture in well-ventilated areas. If this gas mixture is used in a poorly-ventilated area,
install automatic monitoring equipment to detect if the level of Methane exceeds 10% of the LEL (5%), as well as the concentration of Carbon
Dioxide and Oxygen in the atmosphere.
RESPIRATORY PROTECTION: No special respiratory protection is required under normal circumstances of use. Use supplied air respiratory
protection if the level of Carbon Dioxide exceeds exposure limits presented in Section 2 (Composition and Information of Ingredients) and Oxygen
levels are below 19.5%, or unknown, during emergency response to a release of this gas mixture. If respiratory protection is needed, use only
protection authorized in the U.S. Federal OSHA Standard (29 CFR 1910.134), applicable U.S. State regulations, or the Canadian CSA Standard
Z94.4-93 and applicable standards of Canadian Provinces. Oxygen levels below 19.16.33% are considered IDLH by OSHA. In such
atmospheres, use of a full-facepiece pressure/demand SCBA or a full facepiece, supplied air respirator with auxiliary self-contained air supply is
required under OSHA’s Respiratory Protection Standard (1910.134-1998).
EYE PROTECTION: Safety glasses. If necessary, refer to U.S. OSHA 29 CFR 1910.133 or appropriate Canadian Standards.
HAND PROTECTION: No special protection is needed under normal circumstances of use. If necessary, refer to U.S. OSHA 29 CFR 1910.138
or appropriate Standards of Canada.
BODY PROTECTION: No special protection is needed under normal circumstances of use. If a hazard of injury to the feet exists due to falling
objects, rolling objects, where objects may pierce the soles of the feet or where employee’s feet may be exposed to electrical hazards, use foot
protection, as described in U.S. OSHA 29 CFR 1910.136.
EFFECTIVE DATE: FEBRUARY 16, 2011
FLAMMABLE GAS MIXTURE MSDS - 50043
PAGE 2 OF 4
9. PHYSICAL and CHEMICAL PROPERTIES
The following information is for Methane, a main component of this gas mixture.
3
3
GAS DENSITY @ 60°F (15.6°C) and 1 atm:; 0.042 35 lb/ft (0.6784 kg/m )
BOILING POINT: -161°C (-258.7°F)
FREEZING/MELTING POINT (@ 10 psig): -296.5°F (-182°C)
SPECIFIC GRAVITY (air = 1) @ 70°F (21.1°C): 0.555
pH: Not applicable.
SOLUBILITY IN WATER vol/vol at 100°F (37.8°C): Very slight .
MOLECULAR WEIGHT: 16.042
EVAPORATION RATE (nBuAc = 1): Not applicable.
EXPANSION RATIO: Not applicable.
3
ODOR THRESHOLD: Not determined.
SPECIFIC VOLUME (ft /lb): 23.6
VAPOR PRESSURE @ 70°F (21.1°C) (psig): Not applicable.
COEFFICIENT WATER/OIL DISTRIBUTION: Not applicable.
The following information is for Nitrogen, the main component of this gas mixture.
3
3
GAS DENSITY @ 32°F (0°C) and 1 atm: .072 lbs/ ft (1.153 kg/m )
FREEZING/MELTING POINT @ 10 psig: -345.8°F (-210°C)
BOILING POINT: -320.4°F (-195.8°C)
SPECIFIC GRAVITY (air = 1) @ 70°F (21.1°C): 0.906
pH: Not applicable.
SOLUBILITY IN WATER vol/vol @ 32°F (0°C) and 1 atm: 0.023
MOLECULAR WEIGHT: 28.01
EVAPORATION RATE (nBuAc = 1): Not applicable.
EXPANSION RATIO: Not applicable.
3
VAPOR PRESSURE @ 70°F (21.1°C) (psig): Not applicable.
SPECIFIC VOLUME (ft /lb): 13.8
COEFFICIENT WATER/OIL DISTRIBUTION: Not applicable.
The following information is for the gas mixture.
APPEARANCE AND COLOR: This gas mixture is a colorless, odorless gas.
HOW TO DETECT THIS SUBSTANCE (warning properties): There are no unusual warning properties associated with a release of this gas
mixture. In terms of leak detection, fittings and joints can be painted with a soap solution to detect leaks, which will be indicated by a bubble
formation.
10. STABILITY and REACTIVITY
STABILITY: Normally stable in gaseous state.
DECOMPOSITION PRODUCTS: Methane, a component of this gas mixture, will thermally decompose in air to generate carbon monoxide and
carbon dioxide. The other components of this gas mixture do not decompose, per se, but may react with other compounds in the heat of a fire.
MATERIALS WITH WHICH SUBSTANCE IS INCOMPATIBLE: Methane, the flammable component of this gas mixture, is incompatible with
strong oxidizers (i.e. chlorine, bromine pentafluoride, oxygen difluoride, and nitrogen trifluoride). Titanium will burn in Nitrogen (a component of this
gas mixture). Lithium reacts slowly with Nitrogen at ambient temperatures.
HAZARDOUS POLYMERIZATION: Will not occur.
CONDITIONS TO AVOID: Contact with incompatible materials. Cylinders exposed to high temperatures or direct flame can rupture or burst.
11. TOXICOLOGICAL INFORMATION
TOXICITY DATA: The components of this gas mixture are both inert gases and have no toxicity data.
SUSPECTED CANCER AGENT: The components of this gas mixture are not found on the following lists: FEDERAL OSHA Z LIST, NTP,
CAL/OSHA, and IARC; therefore, are not considered to be, nor suspected to be, cancer-causing agents by these agencies.
IRRITANCY OF PRODUCT: Contact with rapidly expanding gases can be irritating to exposed skin and eyes.
SENSITIZATION TO THE PRODUCT: The components of this gas mixture are not known to cause human skin or respiratory sensitization.
REPRODUCTIVE TOXICITY INFORMATION: Listed below is information concerning the effects of this gas mixture and its components on the
human reproductive system.
Mutagenicity: The components of this gas mixture are not reported to cause mutagenic effects in humans.
Embryotoxicity: The components of this gas mixture are not reported to cause embryotoxic effects.
Teratogenicity: The components of this gas mixture are not reported to cause teratogenic effects in humans.
Reproductive Toxicity: The components of this gas mixture are not reported to cause adverse reproductive effects in humans.
A mutagen is a chemical which causes permanent changes to genetic material (DNA) such that the changes will propagate through generation
lines. An embryotoxin is a chemical which causes damage to a developing embryo (i.e. within the first eight weeks of pregnancy in humans), but
the damage does not propagate across generational lines. A teratogen is a chemical which causes damage to a developing fetus, but the damage
does not propagate across generational lines. A reproductive toxin is any substance which interferes in any way with the reproductive process.
BIOLOGICAL EXPOSURE INDICES (BEIs): Currently, Biological Exposure Indices (BEIs) have not been determined for the components of this
gas mixture.
12. ECOLOGICAL INFORMATION
ENVIRONMENTAL STABILITY: The components of this gas mixture occur naturally in the atmosphere. The gas will be dissipated rapidly in wellventilated areas. The following environmental data are applicable to the components of this gas mixture.
NITROGEN: Water Solubility = 2.4 volumes Nitrogen/100 volumes water at 0°C. 1.6 volumes Nitrogen/100 volumes water at 20°C.
EFFECT OF MATERIAL ON PLANTS or ANIMALS: No evidence is currently available on this gas mixture’s effects on plant and animal life.
EFFECT OF CHEMICAL ON AQUATIC LIFE: No evidence is currently available on the effects of this gas mixture on aquatic life.
13. DISPOSAL CONSIDERATIONS
PREPARING WASTES FOR DISPOSAL PREPARING WASTES FOR DISPOSAL: Waste disposal must be in accordance with appropriate
Federal, State, and local regulations. Cylinders with undesired residual product may be safely vented outdoors with the proper regulator. For
further information, refer to Section 16 (Other Information).
14. TRANSPORTATION INFORMATION
THIS GAS MIXTURE IS HAZARDOUS AS DEFINED BY 49 CFR 172.101 BY THE U.S. DEPARTMENT OF TRANSPORTATION.
PROPER SHIPPING NAME:
Compressed gases, Flammable, n.o.s. (Methane ,Nitrogen)
HAZARD CLASS NUMBER and DESCRIPTION: 2.1 (Flammable Gas)
UN IDENTIFICATION NUMBER:
UN 1954
PACKING GROUP:
Not applicable.
DOT LABEL(S) REQUIRED:
Flammable Gas
NORTH AMERICAN EMERGENCY RESPONSE GUIDEBOOK NUMBER (2000): 126
MARINE POLLUTANT: The components of this gas mixture are not classified by the DOT as Marine Pollutants (as defined by 49 CFR 172.101,
Appendix B).
SPECIAL SHIPPING INFORMATION: Cylinders should be transported in a secure position, in a well-ventilated vehicle. The transportation of
compressed gas cylinders in automobiles or in closed-body vehicles can present serious safety hazards. If transporting these cylinders in
vehicles, ensure these cylinders are not exposed to extremely high temperatures (as may occur in an enclosed vehicle on a hot day).
Additionally, the vehicle should be well-ventilated during transportation.
Note: DOT 39 Cylinders ship in a strong outer carton (outer package). Pertinent shipping information goes on the outside of the outer package.
DOT 39 Cylinders do not have transportation information on the cylinder itself.
TRANSPORT CANADA TRANSPORTATION OF DANGEROUS GOODS REGULATIONS: This gas is considered as Dangerous Goods, per
regulations of Transport Canada.
PROPER SHIPPING NAME:
Compressed gases, Flammable, n.o.s. (Methane ,Nitrogen)
HAZARD CLASS NUMBER and DESCRIPTION:
2.1 (Flammable Gas)
UN IDENTIFICATION NUMBER:
UN 1954
PACKING GROUP:
Not Applicable
HAZARD LABEL:
Class 2.1 (Flammable Gas)
SPECIAL PROVISIONS:
None
EXPLOSIVE LIMIT AND LIMITED QUANTITY INDEX:
0.12
ERAP INDEX:
None
PASSENGER CARRYING SHIP INDEX:
None
PASSENGER CARRYING ROAD VEHICLE OR PASSENGER CARRYING RAILWAY VEHICLE INDEX: 75
NORTH AMERICAN EMERGENCY RESPONSE GUIDEBOOK NUMBER (2000): 121
NOTE: Shipment of compressed gas cylinders via Public Passenger Road Vehicle is a violation of Canadian law (Transport Canada
Transportation of Dangerous Goods Act, 1992).
EFFECTIVE DATE: FEBRUARY 16, 2011
FLAMMABLE GAS MIXTURE MSDS - 50043
PAGE 3 OF 4
15. REGULATORY INFORMATION
ADDITIONAL U.S. REGULATIONS:
U.S. SARA REPORTING REQUIREMENTS: The components of this gas mixture is are not subject to the reporting requirements of Sections 302,
304, and 313 of Title III of the Superfund Amendments and Reauthorization Act.
U.S. SARA THRESHOLD PLANNING QUANTITY: There are no specific Threshold Planning Quantities for the components of this gas mixture.
The default Federal MSDS submission and inventory requirement filing threshold of 10,000 lb (4,540 kg) may apply, per 40 CFR 370.20.
U.S. TSCA INVENTORY STATUS: The components of this gas mixture are listed on the TSCA Inventory.
U.S. CERCLA REPORTABLE QUANTITY (RQ): Not applicable.
U.S. OTHER U.S. FEDERAL REGULATIONS:
• Methane is subject to the reporting requirements of Section 112(r) of the Clean Air Act. The Threshold Quantity for each of this gas is 10,000 lb
(4554 kg). Due to the small size of the cylinder for this mixture, this regulation should not apply.
• This gas mixture does not contain any Class I or Class II ozone depleting chemicals (40 CFR part 82).
• Nitrogen is not listed as a Regulated Substance, per 40 CFR, Part 68, of the Risk Management for Chemical Releases. Methane is listed
under this regulation in Table 3 as a Regulated Substance (Flammable Substance), in quantities of 10,000 lbs (4,554 kg) or greater. Due to the
small size of the cylinder for this mixture, this regulation should not apply.
U.S. STATE REGULATORY INFORMATION: The components of this gas mixture are covered under the following specific State regulations:
Alaska - Designated Toxic and Hazardous
Substances: Methane.
California - Permissible Exposure Limits for
Chemical
Contaminants:
Nitrogen,
Methane.
Florida - Substance List: No.
Illinois - Toxic Substance List: No.
Kansas - Section 302/313 List: No.
Massachusetts - Substance List: Methane.
Minnesota - List of Hazardous Substances:
Methane.
Missouri - Employer Information/Toxic
Substance List: Methane.
New Jersey - Right to Know Hazardous
Substance List: Nitrogen, Methane.
North Dakota - List of Hazardous Chemicals,
Reportable Quantities: No.
Pennsylvania - Hazardous Substance List:
Nitrogen, Methane.
Rhode Island - Hazardous Substance List:
Nitrogen, Methane.
Texas - Hazardous Substance List: No.
West Virginia - Hazardous Substance List:
No.
Wisconsin
Toxic
and
Hazardous
Substances: No.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT (PROPOSITION 65): No component of this gas mixture is on the
California Proposition 65 lists.
ADDITIONAL CANADIAN REGULATIONS:
CANADIAN DSL/NDSL INVENTORY STATUS: The components of this gas mixture are listed on the DSL Inventory.
CANADIAN ENVIRONMENTAL PROTECTION ACT (CEPA) PRIORITIES SUBSTANCES LISTS: The components of this gas mixture are not on
the CEPA Priorities Substances Lists.
CANADIAN WHMIS CLASSIFICATION: This gas mixture is categorized as a Controlled Product, Hazard Class A, as per the Controlled Product
Regulations.
16. OTHER INFORMATION
INFORMATION ABOUT DOT-39 NRC (Non-Refillable Cylinder) PRODUCTS
DOT 39 cylinders ship as hazardous materials when full. Once the cylinders are relieved of pressure (empty) they are not considered
hazardous material or waste. Residual gas in this type of cylinder is not an issue because toxic gas mixtures are prohibited. Calibration gas
mixtures typically packaged in these cylinders are Nonflammable n.o.s., UN 1956. A small percentage of calibration gases packaged in DOT
39 cylinders are flammable or oxidizing gas mixtures.
For disposal of used DOT-39 cylinders, it is acceptable to place them in a landfill if local laws permit. Their disposal is no different than that
employed with other DOT containers such as spray paint cans, household aerosols, or disposable cylinders of propane (for camping, torch
etc.). When feasible, we recommended recycling for scrap metal content. CALGAZ will do this for any customer that wishes to return
cylinders to us prepaid. All that is required is a phone call to make arrangements so we may anticipate arrival. Scrapping cylinders involves
some preparation before the metal dealer may accept them. We perform this operation as a service to valued customers who want to
participate.
MIXTURES: When two or more gases or liquefied gases are mixed, their hazardous properties may combine to create additional, unexpected
hazards. Obtain and evaluate the safety information for each component before you produce the mixture. Consult an Industrial Hygienist or
other trained person when you make your safety evaluation of the end product. Remember, gases and liquids have properties which can
cause serious injury or death.
Further information about the handling of compressed gases can be found in the following pamphlets published by: Compressed Gas
Association Inc. (CGA), 1725 Jefferson Davis Highway, Suite 1004, Arlington, VA 22202-4102. Telephone: (703) 412-0900.
P-1
AV-1
“Safe Handling of Compressed Gases in Containers”
“Safe Handling and Storage of Compressed Gases”
“Handbook of Compressed Gases”
This Material Safety Data Sheet is offered pursuant to OSHA’s Hazard Communication Standard, 29 CFR, 1910.1200. Other government regulations must be
reviewed for applicability to this gas mixture. To the best of CALGAZ knowledge, the information contained herein is reliable and accurate as of this date;
however, accuracy, suitability or completeness are not guaranteed and no warranties of any type, either express or implied, are provided. The information
contained herein relates only to this specific product. If this gas mixture is combined with other materials, all component properties must be considered. Data
may be changed from time to time. Be sure to consult the latest edition.
EFFECTIVE DATE: FEBRUARY 16, 2011
FLAMMABLE GAS MIXTURE MSDS - 50043
PAGE 4 OF 4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
