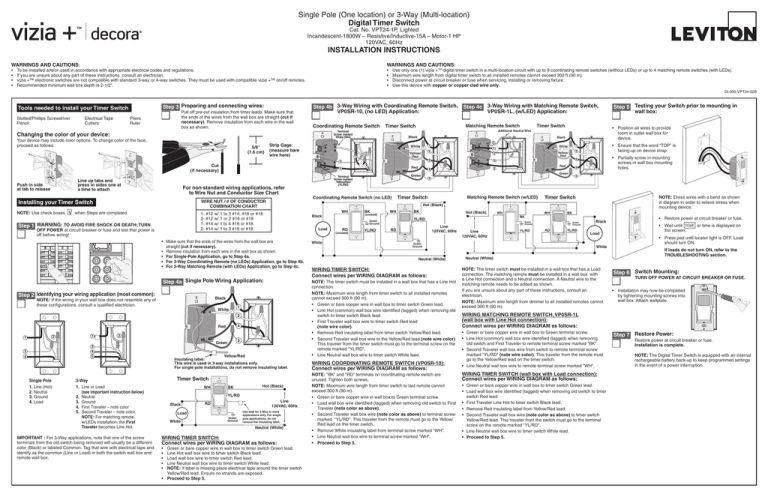

Ins VPT24
Single Pole (One location) or 3-Way (Multi-location)
Digital Timer Switch
Cat. No. VPT24-1P, Lighted
Incandescent-1800W – Resistive/Inductive-15A – Motor-1 HP
120VAC, 60Hz
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS:
•
•
•
•
WARNINGS AND CAUTIONS:
To be installed and/or used in accordance with appropriate electrical codes and regulations.
If you are unsure about any part of these instructions, consult an electrician.
vizia +™ electronic switches are not compatible with standard 3-way or 4-way switches. They must be used with compatible vizia +™ on/off remotes.
Recommended minimum wall box depth is 2-1/2".
• Use only one (1) vizia +TM digital timer switch in a multi-location circuit with up to 9 coordinating remote switches (without LEDs) or up to 4 matching remote switches (with LEDs).
• Maximum wire length from digital timer switch to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device with copper or copper clad wire only.
DI-000-VPT24-02B
Step 3 Preparing and connecting wires:
Tools needed to install your Timer Switch
Slotted/Phillips Screwdriver
Pencil
Electrical Tape
Cutters
Pliers
Ruler
Pull off pre-cut insulation from timer leads. Make sure that
the ends of the wires from the wall box are straight (cut if
necessary). Remove insulation from each wire in the wall
box as shown.
Step 4b 3-Way Wiring with Coordinating Remote Switch, Step 4c 3-Way Wiring with Matching Remote Switch,
VP0SR-10, (no LED) Application:
VP0SR-1L, (w/LED) Application:
Coordinating Remote Switch
Changing the color of your device:
Your device may include color options. To change color of the face,
proceed as follows:
Th
5/8"
(1.6 cm)
Strip Gage
(measure bare
wire here)
BK
A
Th
12 AM
12 AM
MENU
MENU
SET
SET
Line up tabs and
press in sides one at
a time to attach
Push in side
at tab to release
For non-standard wiring applications, refer
to Wire Nut and Conductor Size Chart
WIRE NUT / # OF CONDUCTOR
COMBINATION CHART
Installing your Timer Switch
NOTE: Use check boxes when Steps are completed.
OFF POWER at circuit breaker or fuse and test that power is
off before wiring!
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Black
White
2
1
1
2
3
4
Single Pole
1. Line (Hot)
2. Neutral
3. Ground
4. Load
Yellow/Red
Insulating label:
This wire is used in 3-way installations only.
For single pole installations, do not remove insulating label.
Timer Switch
3-Way
1. Line or Load
(see important instruction below)
2. Neutral
3. Ground
4. First Traveler – note color
5. Second Traveler – note color.
NOTE: For matching remote
w/LEDs installation, the First
Traveler becomes Line Hot.
IMPORTANT : For 3-Way applications, note that one of the screw
terminals from the old switch being removed will usually be a different
color (Black) or labeled Common. Tag that wire with electrical tape and
identify as the common (Line or Load) in both the switch wall box and
remote wall box.
2
3
Green
3
4
5
1
4
Red
WH
BK
YL/RD
Black
Load
White
RD
Green
Ground
Hot (Black)
Line
120VAC, 60Hz
Use lead for 3-Way or more
applications only. For single
pole applications, do not
remove the insulating label.
Neutral (White)
WIRING TIMER SWITCH:
Connect wires per WIRING DIAGRAM as follows:
•
•
•
•
•
Red
White
Yellow/
Red
4
5
3
YL/RD
4
Red
RD
5
3
Timer Switch
Matching Remote Switch (w/LED)
• Ensure that the word “TOP” is
facing up on device strap.
1
2
• Partially screw in mounting
screws in wall box mounting
holes.
5
4
Green
Green
Coordinating Remote Switch (no LED)
Load
Step 4a Single Pole Wiring Application:
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
5
Terminal
Screw marked
Yellow/Red
(YL/RD)
Black
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.
• For 3-Way Matching Remote (with LEDs) Application, go to Step 4c.
Step 2 Identifying your wiring application (most common):
4
2
1
2
Yellow/
Red
2
WH
3
Timer Switch
NOTE: Dress wires with a bend as shown
in diagram in order to relieve stress when
mounting device.
Hot (Black)
1- #12 w/ 1 to 3 #14, #16 or #18
2- #12 w/ 1 or 2 #16 or #18
1- #14 w/ 1 to 4 #16 or #18
2- #14 w/ 1 to 3 #16 or #18
Step 1 WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
RD
• Position all wires to provide
room in outlet wall box for
device.
Black
BK
1
White
1
YL/RD
Timer Switch
Black
3
Cut
(if necessary)
A
Matching Remote Switch
Additonal Neutral Wire
WH
12 PM
12 PM
Timer Switch
Terminal
Screw marked
White (WH)
Step 5 Testing your Switch prior to mounting in
wall box:
Green or bare copper wire in wall box to timer switch Green lead.
Line Hot wall box wire to timer switch Black lead.
Load wall box wire to timer switch Red lead.
Line Neutral wall box wire to timer switch White lead.
NOTE: If label is missing place electrical tape around the timer switch
Yellow/Red lead. Ensure no strands are exposed.
• Proceed to Step 5.
White
WH
BK
(unused)
WH
RD
YL/RD
Hot (Black)
YL/RD
Green
Ground
(unused)
BK
Line
120VAC, 60Hz
RD
WH
BK
WH
Green
Ground
Line
120VAC, 60Hz
YL/RD
BK
Green
Ground
RD
YL/RD
Green
Ground
Neutral (White)
WIRING TIMER SWITCH:
Connect wires per WIRING DIAGRAM as follows:
NOTE: The timer switch must be installed in a wall box that has a Line Hot
connection.
NOTE: Maximum wire length from timer switch to all installed remotes
cannot exceed 300 ft (90 m).
• Green or bare copper wire in wall box to timer switch Green lead.
• Line Hot (common) wall box wire identified (tagged) when removing old
switch to timer switch Black lead.
• First Traveler wall box wire to timer switch Red lead
(note wire color).
• Remove Red insulating label from timer switch Yellow/Red lead.
• Second Traveler wall box wire to the Yellow/Red lead (note wire color).
This traveler from the timer switch must go to the terminal screw on the
remote marked "YL/RD".
• Line Neutral wall box wire to timer switch White lead.
WIRING COORDINATING REMOTE SWITCH (VP0SR-10):
Connect wires per WIRING DIAGRAM as follows:
NOTE: "BK" and "RD" terminals on coordinating remote switch are
unused. Tighten both screws.
NOTE: Maximum wire length from timer switch to last remote cannot
exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to First
Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal screw
marked "YL/RD". This traveler from the remote must go to the Yellow/
Red lead on the timer switch.
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
• Restore power at circuit breaker or fuse.
Black
• Wait until or time is displayed on
the screen.
Load
• Press pad until locator light is OFF. Load
should turn ON.
White
If loads do not turn ON, refer to the
TROUBLESHOOTING section.
Neutral (White)
NOTE: The timer switch must be installed in a wall box that has a Load connection. The matching remote must be installed in a wall box with
a Line Hot connection and a Neutral connection. A Neutral wire to the
matching remote needs to be added as shown.
If you are unsure about any part of these instructions, consult an
electrician.
NOTE: Maximum wire length from dimmer to all installed remotes cannot
exceed 300 ft (90 m).
Step 6
Switch Mounting:
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
• Installation may now be completed
by tightening mounting screws into
wall box. Attach wallplate.
WIRING MATCHING REMOTE SWITCH, VP0SR-1L
(wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing old switch and First Traveler to remote terminal screw marked "BK".
• Second Traveler wall box wire from switch to remote terminal screw
marked "YL/RD" (note wire color). This traveler from the remote must
go to the Yellow/Red lead on the timer switch.
• Line Neutral wall box wire to remote terminal screw marked "WH".
WIRING TIMER SWITCH (wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to timer switch Green lead.
• Load wall box wire identified (tagged) when removing old switch to timer
switch Red lead.
• First Traveler Line Hot to timer switch Black lead.
• Remove Red insulating label from Yellow/Red lead.
• Second Traveler wall box wire (note color as above) to timer switch
Yellow/Red lead. This traveler from the switch must go to the terminal
screw on the remote marked "YL/RD".
• Line Neutral wall box wire to timer switch White lead.
• Proceed to Step 5.
Step 7 Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
NOTE: The Digital Timer Switch is equipped with an internal
rechargeable battery back-up to keep programmed settings
in the event of a power interruption.
OPERATION
SET
b)Press and hold followed
by
(Override) until
flashing and flashes (approximately 5 seconds).
SET
Press to
confirm device Reset.
ICON DEFINITIONS
Permanent override OFF (schedule at a glance not available)
Temporary override OFF (when flashing)
Permanent override ON (schedule at a glance not available)
Temporary override OFF (when flashing)
Sun down
Timer Mode
12 PM
DST
Event
Event number
A
P
MTWThFSaSu
Days of the week
Offset
Offset of
astronomic clock
12
Battery power
(No AC power)
AM
Sun up
Delete
Setting Timed
Events
Longitude/
Latitude
degrees
AM or PM
Timer schedule
at a glance
c) Product will go through a brief self test and then will begin
to flash. Choose
or
by using
or
until the
SET
selected mode appears and pressing to
confirm your choice. SET
• Use or to choose your longitude (W) and press to
confirm your choice.
d)Continue to the programming section for the Mode chosen.
• will be flashing to represent the offset time. Choose the
amount of time, if any, to turn the load ON/OFF before or after
Sunup and Sundown by pressing to add time to the Sunup/
Sundown time and use to subtract time from the Sunup/
SET
Sundown time. Press to
confirm your choice (up to 3 hours
and 59 minutes).
PROGRAMMING PRO MODE
1. Setting up the Time, Daylight Savings Time Option and the Date:
a)
will be flashing. Press
or
press SET to confirm your choice.
to select the hour and
b)
will be flashing. Press
or
press SET to confirm your choice.
to select the minutes and
c)A or P will be flashing. Press or to select A for AM or
SET
P for PM and press to
confirm your choice.
d) will be flashing. Set the daylight savings time mode to OFF
or AUTO (for automatic adjustment of daylight savings time)
by using or to choose daylight savings time option and
SET
press to
confirm your choice.
Programming Menus
A
A
DST
Pro Mode provides up to 50 ON/OFF events for any day or
combination of days, M-Su, M-F, or Sa-Su at desired fixed times or
self adjusting Sunup and Sundown times. In this mode self adjusting
Daylight Savings Time and random modes are also available.
Std Mode provides up to 3 ON/OFF events for M-Su, M-F, or Sa-Su
at desired fixed times only. Self adjusting Sunup and Sundown and
Daylight Savings Time are NOT available in Standard Mode.
To exit programming at any time press override button To program your device:
a) Perform a System Reset by gently lifting the VPT24 door from the
bottom of the push pad until an audible click is heard. The door will
stay open while you are programming the device:
SET
MENU
• Press until
PRG is in the lower left corner. Press to
enter the programming mode.
SET
• E
vent 1 will be flashing. Press to
choose this event or use SET
to move to the next event and press to
confirm your
event number choice.
12 PM
Event
12 AM
e) will be flashing. Use or to choose the year and
SET
press to
confirm your choice.
f) will be flashing. Use or to choose the month and
SET
press to
confirm your choice
g) will be flashing. Use or to choose the date
SET
and press to
confirm your choice. The day of week will
automatically adjust.
12 PM
2. Programming your Timer Options:
MTWThFSaSu
a) Setting Sunup, Sundown, desired Offset Time and Time Zone:
Sunup and Sundown are automatically adjusted using the
latitude and longitude coordinates of your location. To obtain these
coordinates go to www.leviton.com/VPT24 and click on Longitude/
Latitude Coordinates Lookup... Type in your home address and
press enter. Your latitude (N) and longitude (W) coordinates will
be shown on the screen. Write down only the 2 or 3 digit number.
Disregard a negative symbol (–) if it preceeds the number.
TIME ZONE CALCULATIONS
A
Th
12 AM
MENU
SET
Override button
© 2010 Leviton Mfg. Co., Inc.
Longitude
Time Zone
60° – 80°
Eastern
81° – 95°
Eastern, Central
96° – 110°
Central, Mountain
111° – 135°
Mountain, Pacific, Alaskan
136°-143°
Pacific, Alaskan, Hawaii-Aleutian
144°+
Alaskan, Hawaii-Aleutian
SET
• All days of the week will be flashing. Press to
choose all
days of the week or use or to scroll through M-F, SaSu, any single day or combination of days. NOTE: To choose a
SET
combination of days press after
each day you want and then
move on to the next day by pressing or . Continue to
scroll using
until PRG flashes.
Event
12 AM
• When done choosing the desired days PRG in the lower left
SET
corner will flash. Press to
confirm the chosen days and
continue on to choosing the event TURN ON TIME.
12 PM
Event
PROGRAMMING STANDARD MODE
To set the clock:
• will be flashing. Use or to choose the hours. Press to confirm your choice.
SET
A
• The minutes will be flashing. Use or to choose the minutes.
SET
Press to
confirm your choice.
• A for AM or P for PM will be flashing. Use or to choose the
SET
A or P. Press to
confirm your choice.
• The day of the week will be flashing. Use or to choose the
SET
day. Press to
confirm your choice.
To set ON/OFF Events:
SET
MENU
• Press until
PRG is in the lower left corner. Press to
enter the
programming mode.
SET
• Event 1 will be flashing. Press to
choose this event or use SET
to move to the next event and press to
confirm your event number
choice.
SET
• All days of the week will be flashing. Press to
choose all days of
the week or use or to scroll through M-F and Sa-Su. Press
SET
to confirm your days of the week choice and continue to program
the event ON TIME.
• At use or to choose for time, or to
SET
delete an existing program and press to
confirm your choice.
SET
• Use or to choose the hour and press to
confirm
SET
your choice. Do the same for minutes and press to
confirm your
choice. Continue to program the event OFF TIME.
SET
• At 6:00P press to
choose the OFF TIME or use
or
to
SET
choose to delete an existing program and press to
confirm
your choice.
12 AM
• At use or to choose for time, for
Sundown, for Sunup or to delete an existing
SET
program and press to
confirm your choice.
• If is chosen, use or to choose the hour and
SET
press to
confirm your choice. Do the same for minutes.
SET
• At 6:00P press to
choose a TURN OFF TIME or use
or to choose for Sundown, for Sunup
SET
or to delete an existing program and press to
confirm
your choice.
• If is chosen, use or to choose the hour and
SET
press to
confirm your choice. Do the same for minutes.
• Continue to set desired events in the same manner. When this
is done press to escape out of programming. If no buttons
are pressed after approximately 30 seconds the device will
automatically exit out of programming mode.
USE IN MULIT-LOCATION APPLICATIONS
When using a remote switch(es) with your vizia +TM 24 hour timer
you will be able to activate the temporary override or the permanent
override from the remote switch. To activate or deactivate the temporary
override press the push pad on the remote switch. To activate
permanent override press and hold the remote switch push pad. Either
of these actions will toggle the state of the load.
TROUBLESHOOTING
• L
ights flickering or intermittent power to load
- Load has a bad connection.
- Wires not secured firmly with wire connectors of timer switch or
terminal screws of remote.
• Load does not turn ON and Locator LED does not turn ON
- Circuit breaker or fuse has tripped.
- Load is burned out.
- Load Neutral connection is not wired.
• Remote does not operate lights
- Ensure that total wire length does not exceed 300 ft (90 m).
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.leviton.com
Covered by one or more US & Foreign
Patents and patents pending
All Rights Including Trade Dress Rights Reserved
• Degree of protection provided: IPX0
• Type of Action: 1CS
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is
subject to following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation of
the device.
This equipment has been tested and found to comply with the limits
for a Class B Digital Device, pursuant to Part 15 of the FCC Rules.
TIMER OVERRIDES
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
• Activate Temporary Override by pressing the push pad to toggle the
generates, uses, and can radiate radio frequency energy and, if not
load (ON to OFF or OFF to ON).
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
• Activate Permanent Override by pressing and holding the push pad
guarantee that interference will not occur in a particular installation. If
for several seconds to maintain the load in the current state (either ON
this equipment does cause harmful interference to radio or television
or OFF).
reception, which can be determined by turning the equipment OFF and
ON, the user is encouraged to try to correct the interference by one or
more of the following measures:
CHANGING SETTINGS
• Reorient or relocate the receiving Antenna.
MENU
• Press until
CLK appears at the bottom of the screen . Press • Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that
SET
to enter this mode. Adjust the clock using or and
to which the receiver is connected.
SET
pressing after
each setting.
• Consult the dealer or an experienced radio/tv technician for help.
• Continue to set desired events in the same manner. When you are
done press to escape out of programming. If no buttons are
pressed after approximately 30 seconds the device will automatically
exit out of programming mode.
Turning Random Mode ON/OFF (Pro Mode ONLY):
The time zones are limited to the North American Continent. The options
you are presented are determined via your longitude in the chart below:
12 PM
• will appear. The time zone closest to the coordinates you
SET
entered will flash. Press if
this is correct. If this is not correct
SET
use or to choose your time zone and press to
confirm your choice.
b)Setting ON/OFF Events:
DST
Backlit LCD display will light up when any button is pressed and will
extinguish 30 seconds after the last button press.
or Standard mode
OTE: Daylight Savings Time shall start at 2am on the second
N
Sunday of March (add one hour) and end at 2am on the first Sunday
of November (subtract one hour).
Timer Schedule at a Glance will allow you to quickly see your timers
ON/OFF settings for the day. The displayed segments represent the
time(s) your load will be on. The segment representing the current time
will be flashing.
Pro mode
MENU
• On your timer press until
SUN appears at the bottom of the
SET
screen and press to
confirm your choice.
SET
• Use or to choose your latitude (N) and press to
confirm your choice.
Decide which mode is best for your application:
Night time
PROGRAMMING GUIDE
Day time
Daylight
Savings Time
stops
This function will add or subtract anywhere from 1 to 20 minutes to each
selected ON and OFF time to create a random pattern.
FCC CAUTION
Any changes or modifications not expressly approved by Leviton
Manufacturing Co., Inc., could void the user's authority to operate the
equipment.
MENU
• Press until
RND appears at the bottom of the screen and press SET
to enter this mode.
• Use or to toggle between and and press SET
to confirm your choice.
DELETE ALL EVENTS
lf at any time you want to delete all of your programmed events, you can
perform a DELETE ALL EVENTS function:
a) Gently lift the VPT24 door from the bottom of the push pad until an
audible click is heard.
SET
b)Press and hold followed
by (Override) until
starts
flashing.
SET
c) Press to
confirm DELETE ALL EVENTS. All events will be
deleted from your device and the Timer Schedule at a Glance will
appear with only the current time segment flashing.
DI-000-VPT24-02B
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with
proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 201 North Service Road, Melville, New York 11747. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened,
abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for
a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
