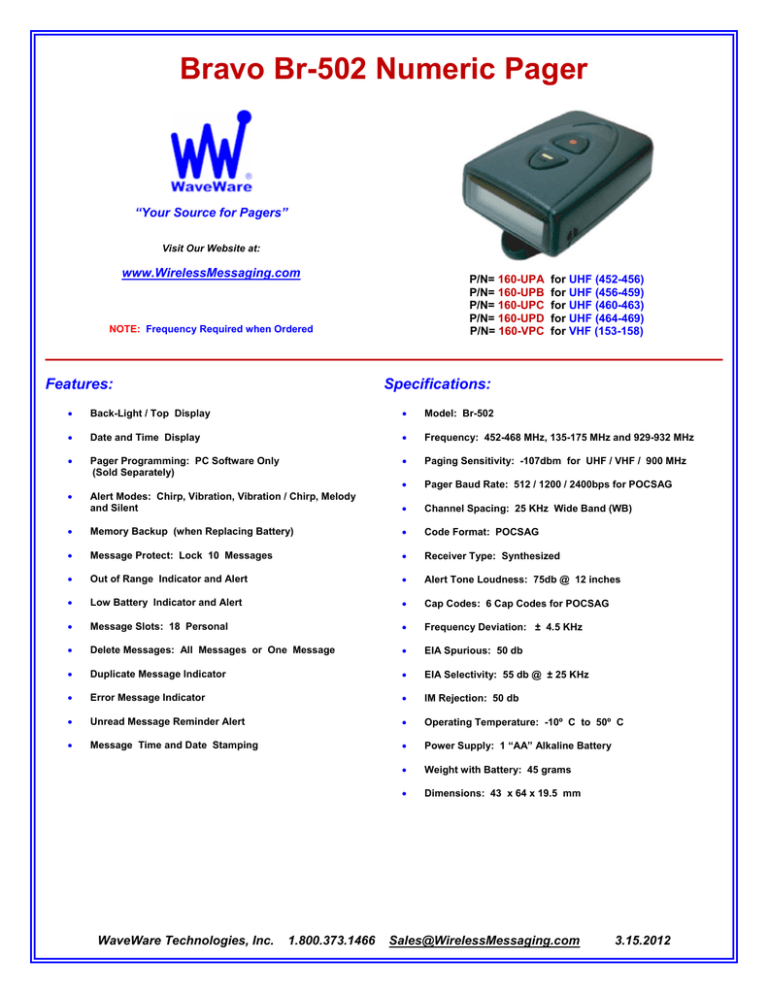

Bravo Br-502 Numeric Pager
“Your Source for Pagers”
Visit Our Website at:
www.WirelessMessaging.com
P/N= 160-UPA
P/N= 160-UPB
P/N= 160-UPC
P/N= 160-UPD
P/N= 160-VPC
NOTE: Frequency Required when Ordered
Features:
for UHF (452-456)
for UHF (456-459)
for UHF (460-463)
for UHF (464-469)
for VHF (153-158)
Specifications:

Back-Light / Top Display

Model: Br-502

Date and Time Display

Frequency: 452-468 MHz, 135-175 MHz and 929-932 MHz

Pager Programming: PC Software Only
(Sold Separately)

Paging Sensitivity: -107dbm for UHF / VHF / 900 MHz


Pager Baud Rate: 512 / 1200 / 2400bps for POCSAG
Alert Modes: Chirp, Vibration, Vibration / Chirp, Melody
and Silent

Channel Spacing: 25 KHz Wide Band (WB)

Memory Backup (when Replacing Battery)

Code Format: POCSAG

Message Protect: Lock 10 Messages

Receiver Type: Synthesized

Out of Range Indicator and Alert

Alert Tone Loudness: 75db @ 12 inches

Low Battery Indicator and Alert

Cap Codes: 6 Cap Codes for POCSAG

Message Slots: 18 Personal

Frequency Deviation: ± 4.5 KHz

Delete Messages: All Messages or One Message

EIA Spurious: 50 db

Duplicate Message Indicator

EIA Selectivity: 55 db @ ± 25 KHz

Error Message Indicator

IM Rejection: 50 db

Unread Message Reminder Alert

Operating Temperature: -10º C to 50º C

Message Time and Date Stamping

Power Supply: 1 “AA” Alkaline Battery

Weight with Battery: 45 grams

Dimensions: 43 x 64 x 19.5 mm
WaveWare Technologies, Inc.
1.800.373.1466
[email protected]
3.15.2012
