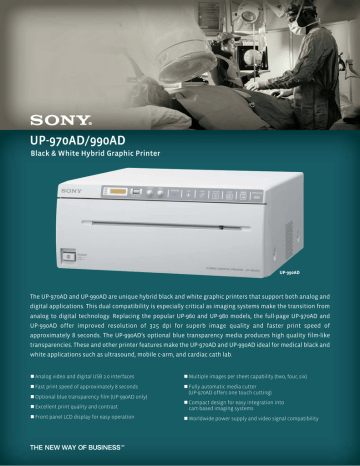

UP-970AD/990AD Black & White Hybrid Graphic Printer

UP-970AD/990AD Black & White Hybrid Graphic Printer
UP-970AD/990AD
Black & White Hybrid Graphic Printer
UP-990AD
The UP-970AD and UP-990AD are unique hybrid black and white graphic printers that support both analog and
digital applications. This dual compatibility is especially critical as imaging systems make the transition from
analog to digital technology. Replacing the popular UP-960 and UP-980 models, the full-page UP-970AD and
UP-990AD offer improved resolution of 325 dpi for superb image quality and faster print speed of
approximately 8 seconds. The UP-990AD’s optional blue transparency media produces high quality film-like
transparencies. These and other printer features make the UP-970AD and UP-990AD ideal for medical black and
white applications such as ultrasound, mobile c-arm, and cardiac cath lab.
Analog video and digital USB 2.0 interfaces
Multiple images per sheet capability (two, four, six)
Fast print speed of approximately 8 seconds
Fully automatic media cutter
(UP-970AD offers one touch cutting)
Optional blue transparency film (UP-990AD only)
Excellent print quality and contrast
Compact design for easy integration into
cart-based imaging systems
Front panel LCD display for easy operation
Worldwide power supply and video signal compatibility
UP-970AD/990AD
Specifications
Printing method
Thermal Head
Gradations
Printing Paper Size
Printing Time
Power Requirements
Dimensions
Weight
Safety Standards
Interface
Printer Driver Software
Optional Accessories
Thermal Graphic printing
325 dpi
256 gradations of gray scale
210mm width (Roll)
Approximately 8 seconds (in standard mode)
100V to 240V, 50/60Hz (Worldwide); 1.3 to 2.4A
Approximately 316mm x 132.5mm x 305mm (WHD)
Approximately 12.4" x 5.2" x 12.0" (WHD)
17 lbs. 10 oz.
UL60601-1 Listed, CSA C22.2 No. 601.1 GS, GM
UL1950 Listed, CSA C22.2 No. 950
Analog: video
Digital: USB 2.0
For Windows® XP/2000 only
Remote Control RM-91
UPP-210HD High Density
Thermosensitive Black & White Paper
UPP-210SE Standard
Thermosensitive Black & White Paper
UPT-210BL
Blue Thermal Transparency Film
UP-990AD Rear Panel
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/medical
©2006 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate. Sony is a trademark of Sony. Windows is a trademark of Microsoft. All images are simulated.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician or other appropriately licensed medical professional.
Caution: See product labeling for indications, contraindications, warnings, cautions and directions for use.
ME-UP970AD/990AD
