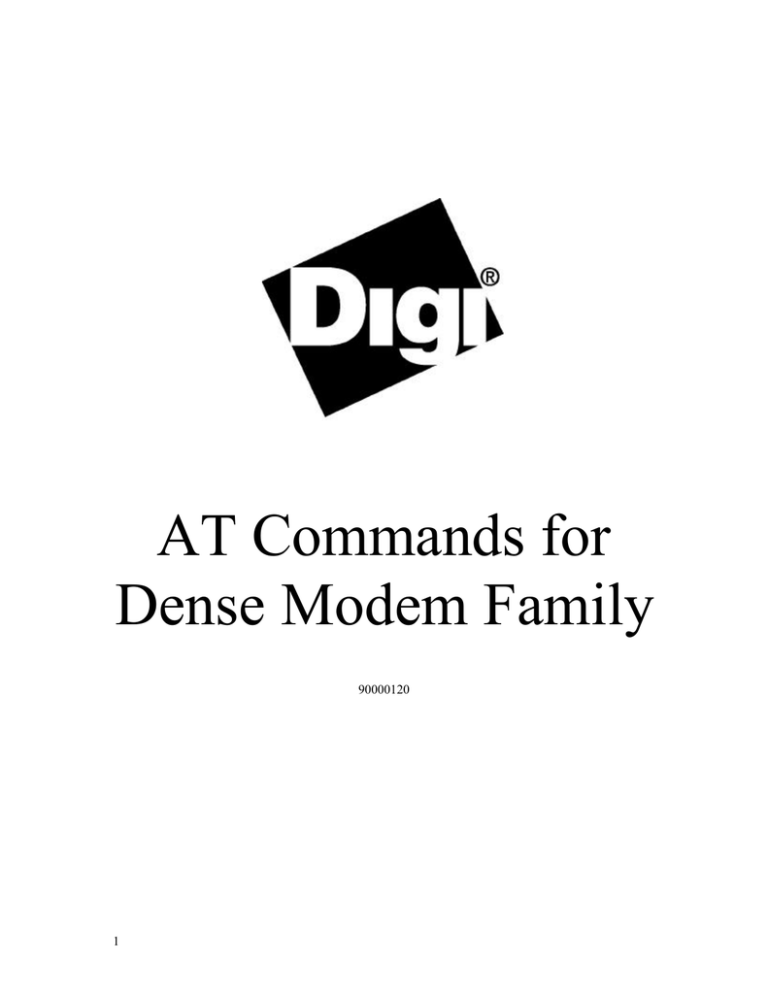

AT Commands for
Dense Modem Family
90000120
1
Software License Agreement
LICENSE. Digi grants to you only a non-assignable, nonexclusive and non-transferable license to use the software contained on this
media (herein after “Digi Software”) subject to the terms and conditions of this Software License Agreement. Your use will be limited
to an object code version of the Digi Software. Your use of the Digi Software will be limited to one computer. The license will
commence on the day you receive the Digi Software and will continue until this license is terminated by its own terms and conditions.
You may make one copy of the Digi Software, but only for archival or backup purposes, and if you do make that additional copy, you
agree to reproduce all copyright and other proprietary rights notices that appear on the Digi Software. You are granted only a limited
license to use the Digi Software, and Digi retains all right, title, interest and ownership in and to the Digi Software, which includes all
rights arising under the patent, copyright, trade secret or trademark laws of the United States or any foreign jurisdiction.
CONFIDENTIALITY. You understand and agree that the Digi Software contains valuable confidential and trade secret information
which is the extremely valuable property of Digi. You agree to expend all necessary efforts to ensure that the Digi Software is not
disclosed or made available to any third party or any employee or contractor that doesn’t have a need to know.
REVERSE ENGINEERING. YOU AGREE NOT TO DISASSEMBLE, DECOMPILE OR REVERSE ENGINEER THE DIGI
SOFTWARE UNDER ANY CIRCUMSTANCES .
WARRANTIES . Digi warrants only that: (a) the media upon which you receive DIGI Software will be free of defects in material and
workmanship for a period of ninety (90) days from your receipt of the DIGI Software; and (b) that if the DIGI Software is supplied to
you electronically, and there is an error in transmission, and you inform us of that error within ninety days of your receipt of the DIGI
Software, Digi will re-transmit the Software to you. You understand and agree that except as stated above, the DIGI Software is
supplied as is, and Digi expressly disclaims all other warranties, guarantees, or remedies whether express, implied or statutory,
including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose.
LIABILITY LIMITATIONS. Under no circumstances will Digi or any of its distributors or suppliers be liable for loss of data,
reprocurement costs, lost revenue or profits or any other special, incidental or consequential damages, even if those damages were
foreseeable or you have informed Digi of a potential liability. Digi’s total liability to you for damages for any reason shall not exceed
the price actually paid to Digi by you for the product associated with the Software.
TITLE AND OWNERSHIP. You acknowledge and agree that Digi retains all right, title and interest in and to the Software. You agree
to indemnify, defend and hold harmless Digi against any loss suffered or expenditure made by Digi arising from an assertion of an
interest in or title to the Digi Software by you and against any breach by you of any copyright, patent rights, or any other rights in the
Digi Software.
TERMINATION. You acknowledge and agree that Digi may terminate your license and use of the Digi Software without notice if, at
any time, you fail to comply with a material term or condition of this Software License Agreement. Immediately upon termination of
this license, you will return all copies of the Digi Software to Digi, together with all documentation, modifications and enhancements
thereto, or at Digi’s request, destroy all copies of the Digi Software documentation, modifications and enhancements in your
possession. You understand and agree that in the event of termination, Digi may use computer hardware, software or other methods to
render the Digi Software inoperable.
ASSIGNMENT. You may not assign this license without the prior written consent of Digi. Digi may assign the Digi Software to any
third party at its discretion, but will provide you with written notice in the event of such assignment.
CHOICE OF LAW AND VENUE. This Software License Agreement shall be governed and construed in accordance with the laws of
the State of Minnesota. Any controversy or claim arising out of or related to this license and/or your use of the Digi Software shall be
venued in Minnesota State District Court, County of Hennepin or the United States District Court for the District of Minnesota.
MAINTENANCE AND SUPPORT. Any software maintenance or support services provided to you by Digi, are provided at Digi’s
discretion, and Digi reserves the right to discontinue and/or commence charging fees for maintenance or support services at any time.
YOU ALSO UNDERSTAND AGREE THAT ANY MAINTENANCE OR SUPPORT SERVICES PROVIDED TO YOU BY DIGI
ARE PROVIDED AS IS, AND DIGI MAKES NO REPRESENTATIONS OR WARRANTIES WITH REGARD TO THOSE
SERVICES.
Proprietary Rights Notice
Digi, Digi International, the Digi logo and AccelePort are trademarks or registered trademarks of Digi
International Inc. in the United States and other countries. All other brand and product names are
trademarks or registered trademarks of their respective holders.
This manual is copyrighted material proprietary to Digi International Inc. Copying of this manual without
the express written consent of Digi International Inc. is prohibited and will be treated as copyright
infringement.
Copyright © 1999, 2000 Digi International Inc. All Rights Reserved. http://www.digi.com
Disclaimer
This manual may contain inaccurate or erroneous information. This manual is subject to change at any
time. This manual, including all information contained herein, is provided “as is” without warranty of any
kind, either express or implied, including, but not limited to, any implied warrantees of merchantability or
fitness for particular purpose. Digi International Inc. makes no representations, warranties, or commitments with regard to any data or information contained in this manual. If you rely on data or information
contained in this manual, such reliance is at your own risk .
ii
AT Commands for Dense Modem Family
Table of Contents
CHAPTER 1. INTRODUCTION..................................................................................................................... 1
OVERVIEW ...................................................................................................................................................... 1
CHAPTER 2. COMMAND SYNTAX............................................................................................................. 3
COMMAND SYNTAX AND GUIDELINES................................................................................................. 3
AT COMMAND GUIDELINES ...................................................................................................................... 3
CHAPTER 3. AT COMMAND SET............................................................................................................... 5
ABOUT AT COMMANDS.............................................................................................................................. 5
AT Command Format.................................................................................................................................... 5
Escape Code Sequence ................................................................................................................................. 5
AT COMMANDS ............................................................................................................................................. 6
A/ - Re-execute Command .............................................................................................................................6
AT= x - Write to Selected S-Register .............................................................................................................6
AT? - Read Selected S-Register .....................................................................................................................6
A - Answer ...................................................................................................................................................6
Bn - CCITT or Bell........................................................................................................................................7
Cn - Carrier Control.......................................................................................................................................7
Dn - Dial.......................................................................................................................................................7
En - Command Echo......................................................................................................................................9
Fn - Select Line Modulation...........................................................................................................................9
Hn - Disconnect (Hang-Up) ...........................................................................................................................9
In - Identification.........................................................................................................................................10
Ln - Speaker Volume ...................................................................................................................................10
Mn - Speaker Control...................................................................................................................................11
Nn - Automode Enable ................................................................................................................................11
On - Return to On-Line Data Mode ..............................................................................................................11
P - Set Pulse Dial Default.............................................................................................................................11
Qn - Quiet Results Codes Control.................................................................................................................12
Sn - Read/Write S-Register ..........................................................................................................................12
T - Set Tone Dial Default.............................................................................................................................12
Vn - Result Code Form................................................................................................................................12
Wn - Connect Message Control....................................................................................................................12
Xn - Extended Result Codes.........................................................................................................................13
Yn - Long Space Disconnect........................................................................................................................16
Zn - Soft Reset and Restore Profile ...............................................................................................................16
AT& Commands ..........................................................................................................................................16
&Cn - RLSD (DCD) Option.........................................................................................................................16
&Dn - DTR Option......................................................................................................................................16
&Fn - Restore Factory Configuration (Profile)..............................................................................................17
&Gn - Select Guard Tone.............................................................................................................................17
&Jn - Telephone Jack Control......................................................................................................................17
&Kn - Flow Control.....................................................................................................................................17
&Ln - Leased Line Operation.......................................................................................................................18
&Mn - Asynchronous/Synchronous Mode Selection .....................................................................................18
&Pn - Select Pulse Dial Make/Break Ratio ...................................................................................................18
&Qn - Sync/Async Mode .............................................................................................................................18
&Rn - RTS/CTS Option...............................................................................................................................19
&Sn - DSR Override....................................................................................................................................19
&Tn - Test and Diagnostics..........................................................................................................................20
&V - Display Current Configuration and Stored Profiles...............................................................................20
&V1 - Display Connection Statistics ............................................................................................................21
&V2 - Display Connection Statistics ............................................................................................................21
&V3 - Display Connection Statistics ............................................................................................................21
&V4 - Display Connection Statistics ............................................................................................................22
&V5 - Display Connection Statistics ............................................................................................................23
&Wn - Store Current Configuration..............................................................................................................23
iii
&Xn - Select Synchronous Clock Source......................................................................................................23
&Yn - Designate a Default Reset Profile ......................................................................................................23
&Zn=x - Store Telephone Number ...............................................................................................................24
AT% Commands ..........................................................................................................................................24
%En - Enable/Disable Line Quality Monitor and Auto-Retrain or Fallback/Fall Forward ...............................24
%T - PTT Testing Utilities...........................................................................................................................25
AT\ Commands ............................................................................................................................................27
\Kn - Break Control.....................................................................................................................................27
\Nn - Operating Mode ..................................................................................................................................28
\Vn - Single Line Connect Message Enable ..................................................................................................29
AT+ Commands...........................................................................................................................................29
+MS - Select Modulation.............................................................................................................................29
ERROR DETECTION AND DATA COMPRESSION COMMANDS......................................................34
AT% Commands ..........................................................................................................................................34
%C - Enable/Disable Data Compression.......................................................................................................34
AT\ Commands ............................................................................................................................................34
\An - Select Maximum MNP Block Size ......................................................................................................34
\Bn - Transmit Break to Remote ...................................................................................................................34
\Gn - Modem-to-Modem Flow Control (XON/XOFF)...................................................................................34
\Kn - Break Control.....................................................................................................................................35
\Nn - Operating Mode ..................................................................................................................................35
MNP 10 COMMANDS...................................................................................................................................37
*Hn - Link Negotiation Speed......................................................................................................................37
-Kn - MNP Extended Services .....................................................................................................................37
-Qn - Enable Fallback to V.22 bis/V.22........................................................................................................37
:E - Compromise Equalizer Enable Command ..............................................................................................38
3.5 W-CLASS COMMANDS.........................................................................................................................39
AT* Commands ...........................................................................................................................................39
*B - Display Blacklisted Numbers................................................................................................................39
*D - Display Delayed Numbers....................................................................................................................39
*NCn - Country Select.................................................................................................................................39
CALLER ID COMMANDS ...........................................................................................................................41
AT#CID Command ......................................................................................................................................41
#CIDn - Caller ID / DNIS ............................................................................................................................41
Inquiries......................................................................................................................................................41
Formatted Form Reporting...........................................................................................................................41
Example of Formatted Form Reporting.........................................................................................................42
Unformatted Form Reporting.......................................................................................................................42
Example of Unformatted Form Reporting.....................................................................................................42
DNIS Reporting...........................................................................................................................................43
Example of DNIS Reporting ........................................................................................................................43
AT#CID=10 .................................................................................................................................................43
AT+VCID=10..............................................................................................................................................43
AT+VRID=10 ..............................................................................................................................................43
AT COMMAND RESULT CODES ..............................................................................................................44
OK (0) ........................................................................................................................................................44
CONNECT (1) ............................................................................................................................................44
RING (2) .....................................................................................................................................................44
NO CARRIER (3) .......................................................................................................................................44
ERROR (4) .................................................................................................................................................44
CONNECT 1200 (5) ....................................................................................................................................44
NO DIALTONE (6) ....................................................................................................................................44
BUSY (7) ....................................................................................................................................................45
NO ANSWER (8)........................................................................................................................................45
CONNECT 0600 (9) ....................................................................................................................................45
CONNECT 2400 (10) ..................................................................................................................................45
CONNECT 4800 (11) ..................................................................................................................................45
CONNECT 9600 (12) ..................................................................................................................................45
CONNECT 7200 (13) ..................................................................................................................................45
CONNECT 12000 (14) ................................................................................................................................45
iv
AT Commands for Dense Modem Family
CONNECT 14400 (15) ................................................................................................................................46
CONNECT 19200 (16) ................................................................................................................................46
CONNECT 38400 (17) ................................................................................................................................46
CONNECT 57600 (18) ................................................................................................................................46
CONNECT 115200 (19) ..............................................................................................................................46
CONNECT 75TX/1200RX (22) ...................................................................................................................46
CONNECT 1200TX/75RX (23) ...................................................................................................................46
DELAYED (24) ..........................................................................................................................................46
BLACKLISTED (32)...................................................................................................................................46
FAX (33).....................................................................................................................................................46
DATA (35)..................................................................................................................................................46
CARRIER 300 (40) .....................................................................................................................................46
CARRIER 1200/75 (44)...............................................................................................................................47
CARRIER 75/1200 (45)...............................................................................................................................47
CARRIER 1200 (46)....................................................................................................................................47
CARRIER 2400 (47)....................................................................................................................................47
CARRIER 4800 (48)....................................................................................................................................47
CARRIER 7200 (49)....................................................................................................................................47
CARRIER 9600 (50)....................................................................................................................................47
CARRIER 12000 (51)..................................................................................................................................47
CARRIER 14400 (52)..................................................................................................................................47
CARRIER 16800 (53)..................................................................................................................................47
CARRIER 19200 (54)..................................................................................................................................47
CARRIER 21600 (55)..................................................................................................................................47
CARRIER 24000 (56)..................................................................................................................................47
CARRIER 26400 (57)..................................................................................................................................47
CARRIER 28800 (58)..................................................................................................................................48
CONNECT 16800 (59) ................................................................................................................................48
CONNECT 21600 (61) ................................................................................................................................48
CONNECT 24000 (62) ................................................................................................................................48
CONNECT 26400 (63) ................................................................................................................................48
CONNECT 28800 (64) ................................................................................................................................48
COMPRESSION: CLASS 5 (66) .................................................................................................................48
COMPRESSION: V.42 bis (67) ...................................................................................................................48
COMPRESSION: NONE (69)......................................................................................................................48
PROTOCOL: NONE (70) ............................................................................................................................48
PROTOCOL: LAPM (77) ............................................................................................................................48
CARRIER 31200 (78)..................................................................................................................................48
CARRIER 33600 (79)..................................................................................................................................48
PROTOCOL: ALT (80) ...............................................................................................................................48
PROTOCOL: ALT-CELLULAR (81) ..........................................................................................................49
CONNECT 33600 (84) ................................................................................................................................49
CONNECT 31200 (91) ................................................................................................................................49
CARRIER 32000 (150) ................................................................................................................................49
CARRIER 34000 (151) ................................................................................................................................49
CARRIER 36000 (152) ................................................................................................................................49
CARRIER 38000 (153) ................................................................................................................................49
CARRIER 40000 (154) ................................................................................................................................49
CARRIER 42000 (155) ................................................................................................................................49
CARRIER 44000 (156) ................................................................................................................................49
CARRIER 46000 (157) ................................................................................................................................49
CARRIER 48000 (158) ................................................................................................................................49
CARRIER 50000 (159) ................................................................................................................................49
CARRIER 52000 (160) ................................................................................................................................49
CARRIER 54000 (161) ................................................................................................................................50
CARRIER 56000 (162) ................................................................................................................................50
CONNECT 32000 (165) ..............................................................................................................................50
CONNECT 34000 (166) ..............................................................................................................................50
CONNECT 36000 (167) ..............................................................................................................................50
CONNECT 38000 (168) ..............................................................................................................................50
CONNECT 40000 (169) ..............................................................................................................................50
CONNECT 42000 (170) ..............................................................................................................................50
v
CONNECT 44000 (171) ..............................................................................................................................50
CONNECT 46000 (172) ..............................................................................................................................50
CONNECT 48000 (173) ..............................................................................................................................50
CONNECT 50000 (174) ..............................................................................................................................50
CONNECT 52000 (175) ..............................................................................................................................50
CONNECT 54000 (176) ..............................................................................................................................50
CONNECT 56000 (177) ..............................................................................................................................51
CONNECT 230400 (20) ..............................................................................................................................51
+FCERROR (+F4).......................................................................................................................................51
CHAPTER 4. S-REGISTERS.........................................................................................................................52
FACTORY DEFAULTS.................................................................................................................................52
S-REGISTER DEFINITIONS ........................................................................................................................54
S0 - Number of Rings to Auto-Answer.........................................................................................................54
S1 - Ring Counter........................................................................................................................................54
S2 - Escape Character..................................................................................................................................54
S3 - Carriage Return Character ....................................................................................................................54
S4 - Line Feed Character .............................................................................................................................54
S5 - Backspace Character ............................................................................................................................54
S6 - Wait Time for Dial Tone Before Blind Dialing, or After “W” Dial Modifier (W-Class Models) ..............54
S7 - Wait Time For Carrier After Dial, For Silence, or For Dial Tone After “W” Dial Modifier (US Models) .55
S8 - Pause Time For Dial Delay ...................................................................................................................55
S9 - Carrier Detect Response Time...............................................................................................................55
S10 - Lost Carrier To Hang Up Delay...........................................................................................................55
S11 - DTMF Tone Duration .........................................................................................................................55
S12 - Escape Prompt Delay (EPD) ...............................................................................................................55
S13 - Reserved ............................................................................................................................................56
S14 - General Bit Mapped Options Status .....................................................................................................56
S15 - Reserved ............................................................................................................................................57
S16 - General Bit Mapped Test Options Status .............................................................................................57
S17 - Reserved ............................................................................................................................................58
S18 - Test Timer..........................................................................................................................................58
S19 - AutoSync Bit Mapped Options ............................................................................................................58
S20 - AutoSync HDLC Address or BSC Sync Character...............................................................................59
S21 - V.24/General Bit Mapped Options Status ............................................................................................59
S22 - Speaker/Results Bit Mapped Options Status.........................................................................................60
S23 - General Bit Mapped Options Status .....................................................................................................60
S24 - Sleep Inactivity Timer.........................................................................................................................61
S25 - Delay To DTR....................................................................................................................................61
S26 - RTS to CTS Delay..............................................................................................................................61
S27 - Bit Mapped Options Status..................................................................................................................61
S28 - Bit Mapped Options Status..................................................................................................................62
S29 - Flash Dial Modifier Time....................................................................................................................62
S30 - Disconnect Inactivity Timer ................................................................................................................62
S31 - Bit Mapped Options Status..................................................................................................................62
S32 - XON Character ..................................................................................................................................64
S33 - XOFF Character .................................................................................................................................64
S34-S35 - Reserved.....................................................................................................................................64
S36 - LAPM Failure Control........................................................................................................................64
S37 - Desired Line Connection Speed...........................................................................................................64
S38 - Delay Before Forced Hang Up ............................................................................................................65
S39 - Flow Control Bit Mapped Options Status.............................................................................................66
S40 - General Bit Mapped Options Status .....................................................................................................66
S41 - General Bit Mapped Options Status .....................................................................................................66
S46 - Data Compression Control..................................................................................................................67
S48 - V.42 Negotiation Action .....................................................................................................................67
S82 - Break Handling Options......................................................................................................................67
S86 - Call Failure Reason Code....................................................................................................................67
S91 - PSTN Transmit Attenuation Level.......................................................................................................68
S92 - Fax Transmit Attenuation Level..........................................................................................................68
S95 - Extended Result Codes .......................................................................................................................68
S240 - B-Channel Subsequent Calls .............................................................................................................68
vi
AT Commands for Dense Modem Family
S241 - Bitmap Register................................................................................................................................68
S242 - B-channel Active/Previous Call.........................................................................................................69
S243 - Port Active/Previous Call..................................................................................................................69
CHAPTER 5. FAX CLASS 1 COMMANDS................................................................................................71
FAX I/O PROCESSING .................................................................................................................................71
DTE-to-Modem Transmit Data Stream .....................................................................................................71
Modem-to-DTE Receive Data Stream........................................................................................................71
Fax Mode Selection .....................................................................................................................................71
Fax Origination............................................................................................................................................71
Fax Answering ............................................................................................................................................71
Fax Control Transmission ..........................................................................................................................71
Fax Control Reception................................................................................................................................72
Fax Data Transmission ...............................................................................................................................72
Fax Data Reception.....................................................................................................................................73
COMMANDS..................................................................................................................................................74
+FCLASS=n - Select Service Class..............................................................................................................74
+F<command>? - Report Active Configuration ............................................................................................74
+F<command>=? - Report Operating Capabilities ........................................................................................74
+FAE=n - Data/Fax Auto Answer ................................................................................................................74
+FTS=n - Stop Transmission and Wait .........................................................................................................74
+FRS=n - Receive Silence ...........................................................................................................................74
+FTM=n - Transmit Data.............................................................................................................................75
+FRM=n - Receive Data ..............................................................................................................................75
+FTH=n - Transmit Data with HDLC Framing.............................................................................................75
+FRH=n - Receive Data with HDLC Framing ..............................................................................................76
EXAMPLES.....................................................................................................................................................77
CHAPTER 6. FAX CLASS 2 COMMANDS................................................................................................81
COMMAND SYNTAX AND GUIDELINES...............................................................................................81
DTE Commands ..........................................................................................................................................81
DTE Command Lines ..................................................................................................................................81
Facsimile Command Syntax.........................................................................................................................81
Serial Port Speed and Flow Control..........................................................................................................82
Data Stream Termination .............................................................................................................................82
DTE to DCE Streams...................................................................................................................................83
DCE to DTE Streams...................................................................................................................................83
Auto Answer.................................................................................................................................................83
Identification of T.30 Options.....................................................................................................................83
Session Status Reporting.............................................................................................................................83
Procedure Interrupt Negotiation ...................................................................................................................83
SERVICE CLASS 2 IDENTIFICATION AND SELECTION ....................................................................84
+FMFR?, Request Manufacturer Identification .......................................................................................84
+FMDL?, Identify Product Model.............................................................................................................84
+FREV?, Identify Product Revision ..........................................................................................................84
SERVICE CLASS 2 ACTION COMMANDS..............................................................................................85
ATD, Originate a Call.................................................................................................................................85
ATA, Answer a Call .....................................................................................................................................85
Manual Call Answer....................................................................................................................................85
Automatic Answer.......................................................................................................................................85
Connection as a Data Modem.......................................................................................................................86
+FDT, Data Transmission..........................................................................................................................86
Initiate Page Transmission ...........................................................................................................................86
Continue a Page ..........................................................................................................................................86
Phase C Data Framing..................................................................................................................................86
Phase C Data Format...................................................................................................................................86
<CAN>, Escape from Transmission .............................................................................................................86
+FET, Transmit Page Punctuation ............................................................................................................87
End a Page ..................................................................................................................................................88
vii
+FDR, Begin or Continue Phase C Receive Data....................................................................................89
Initiate Document Reception ........................................................................................................................89
Continue Document Reception.....................................................................................................................90
Phase C Data Framing..................................................................................................................................90
Phase C Data Format...................................................................................................................................90
<CAN>, Escape from Reception ..................................................................................................................90
+FK, Session Termination ..........................................................................................................................90
+FCIG, Set Polling ID................................................................................................................................91
+FLPL, Indicate a Document for Polling .................................................................................................91
+FSPL, Enable Polling...............................................................................................................................91
SERVICE CLASS 2 DCE RESPONSES.......................................................................................................93
+FCON, Facsimile Connection Response.................................................................................................93
+FDCS:, Report Current Session Capabilities.........................................................................................93
+FDIS:, Report Remote Station Capabilities............................................................................................93
+FCFR, Indicate Confirmation to Receive ...............................................................................................93
+FTSI:, Report the Transmit Station ID....................................................................................................93
+FCSI:, Report the Called Station ID .......................................................................................................93
+FPTS:, Receive Page Transfer Status .....................................................................................................94
+FET:, Post Page Message Response .......................................................................................................94
+FPTS:, Transmit Page Transfer Status ...................................................................................................94
+FHNG:, Call Termination with Status ....................................................................................................94
+FCIG:, Report the Polled Station ID.......................................................................................................95
+FDTC:, Report the Polled Station Capabilities......................................................................................95
+FPOLL, Indicate Polling Request ...........................................................................................................95
SERVICE CLASS 2 PARAMETERS............................................................................................................96
+FDCC, DCE Capabilities Parameters....................................................................................................96
+FDIS, Current Sessions Capabilities Parameters..................................................................................96
+FDCS, Current Session Results Parameters...........................................................................................96
+FLID=, Local ID String ...........................................................................................................................97
+FCR, Capability to Receive......................................................................................................................97
+FPTS=, Page Transfer Status ..................................................................................................................97
+FCQ, Copy Quality Checking ..................................................................................................................97
+FPHCTO, DTE Phase C Response Time-out .........................................................................................98
+FAXERR, T.30 Session Error Report ......................................................................................................98
+FBOR, Data Bit Order .............................................................................................................................98
+FAA, Answer Parameter ..........................................................................................................................98
+FBUF?, Buffer Size ..................................................................................................................................99
EXAMPLE SESSIONS...................................................................................................................................99
CHAPTER 7. FAX CLASS 2.0/2.1 OPTIONS AND MODEM EXTENSIONS...................................103
OPTIONAL F EATURES .....................................................................................................................................103
EXTENSIONS....................................................................................................................................................103
+FTD, Set Current Time and Date ..........................................................................................................103
+FPH, Page Header Generation .............................................................................................................104
DIGI E XTENSIONS ...........................................................................................................................................105
+FTD, Set Current Time and Date ..........................................................................................................105
+FPH. Page Header Generation............................................................................................................105
CHAPTER 8. NON-ROCKWELL-COMPATIBLE COMMANDS ......................................................107
AT| COMMANDS .............................................................................................................................................107
\G - Modem-to-Modem Flow Control (XON/XOFF)................................................................................... 107
AT~ COMMANDS............................................................................................................................................107
~V - Set HDLC Sync Framing.................................................................................................................... 107
AT* COMMANDS ............................................................................................................................................107
*PD .......................................................................................................................................................... 107
*s91 .......................................................................................................................................................... 107
viii
AT Commands for Dense Modem Family
AT+ C OMMANDS............................................................................................................................................108
+VRID+10................................................................................................................................................ 108
APPENDIX A. BASIC COMMANDS.........................................................................................................109
AT COMMANDS .........................................................................................................................................109
ECC COMMANDS.......................................................................................................................................113
MNP 10 COMMANDS.................................................................................................................................114
W-CLASS COMMANDS.............................................................................................................................115
CALLER ID COMMANDS .........................................................................................................................116
FAX CLASS 1...............................................................................................................................................117
FAX CLASS 2...............................................................................................................................................118
FAX CLASS 2.0............................................................................................................................................119
APPENDIX B. COMMON CONFIGURATION SETUP STRINGS.....................................................121
ix
CHAPTER 1. INTRODUCTION
OVERVIEW
This manual describes the AT commands for the following Digi modem products:
DataFire RAS PT1
DataFire RAS PT2
DataFire RAS PE1
DataFire RAS PE2
DataFire RAS B4U
DataFire RAS B4ST
AccelePort RAS A4
The commands in this manual are grouped into the following sections:
AT Commands
S-Registers
Fax Class 1 Commands
Fax Class 2 Commands
Fax Class 2.0 Commands
Fax Class 2.0 Modem Extensions
AT Command s for Dense Modem Family
1
2
AT Commands for Dense Modem Family
CHAPTER 2. COMMAND SYNTAX
COMMAND SYNTAX AND GUIDELINES
DTE Commands
The ISO 646 character set (CCITT T.50 International Alphabet 5, American Standard Code for Information Interchange)
is used for the issuance of commands and responses. Only the low-order 7 bits of each character are used for
commands or parameters; the high-order bit is ignored. Upper case characters are equivalent to lower case characters.
DTE Command Lines
A command line is a string of characters sent from a DTE to the DCE while the DCE is in a command state. Command
lines have a prefix, a body, and a terminator. They consist of:
prefix
The ASCII characters “AT” (065, 084) or “at” (097, 116).
body
A string of commands restricted to printable ASCII characters (032 - 126). Space characters (ASCII 032) and
control characters other than carriage return <CR> (default value = ASCII 013 = 0Dh, see register S3),
backspace <BS> (default value = ASCII 008 = 08h, see register S5), and cancel <ctrl-x> (ASCII 024 = 18h) in
the command string are ignored.
terminator
The default terminator is the <CR> character. Characters that precede the AT prefix are ignored.
AT COMMAND GUIDELINES
Modem operation is controlled by generic AT commands. These AT commands may be one of the following:
•
•
•
•
Basic AT (i.e., commands preceded by AT, AT&, AT%, AT*, AT\, AT), AT-, or AT#)
S-Register (e.g., S6=n)
Fax class 1 (e.g., +FTM)
Fax class 2 (e.g., +FDCS:) or voice (e.g., #VBS) commands.
The command syntax and operation guidelines governing each of these command categories are described in
subsequent sections.
Basic Command Syntax
Characters within the command line are parsed as commands with associated parameter values. The basic commands
consist of single ASCII characters, or single characters preceded by a prefix character, followed by a decimal parameter
(e.g., “&D1"). Missing decimal parameters are evaluated as 0.
Extended Command Syntax
The facsimile commands use extended syntax. They are preceded by the “+F” characters, and they are terminated by
the semicolon “:” character (ASCII 059) or by the <CR> that terminates the command line.
AT Command s for Dense Modem Family
3
4
AT Commands for Dense Modem Family
CHAPTER 3. AT COMMAND SET
ABOUT AT COMMANDS
The basic AT commands used to control modem operation are defined in this section. All these commands may not be
available in a specific product depending upon supported data rates and modes. The default values are typical of a fully
configured modem supporting all data rates and options. The actual default value is dependent upon modem firmware as
defined by the firmware release notes.
AT Command Format
A command line is a string of characters sent from a DTE to the modem (DCE) while the modem is in a command state.
A command line has a prefix, a body, and a terminator. Each command line (with the exception of the A/ command) must
begin with the character sequence AT and must be terminated by a carriage return. Commands entered in upper case or
lower case are accepted, but both the A and T must be of the same case, i.e., "AT" = ASCII 065, 084 or “at” = ASCII 097,
116. The body is a string of commands restricted to printable ASCII characters (032 - 126). Space characters (ASCII
032) and control characters other than CR (ASCII 013) and BS (ASCII 010) in the command string are ignored. The
default terminator is the ASCII <CR> character. Characters that precede the AT prefix are ignored. The command line
interpretation begins upon receipt of the carriage return character.
Characters within the command line are parsed as commands with associated parameter values. The basic commands
consist of single ASCII characters, or single characters preceded by a prefix character (e.g., “&"), followed by a decimal
parameter. Missing decimal parameters are evaluated as 0.
The modem supports the editing of command lines by recognizing a backspace character. When modem echo is
enabled, the modem responds to receipt of a backspace or delete by echoing a backspace character, a space character,
and another backspace. The hex value to be used for the backspace character is programmable through register S5.
Values equal to 0 or greater than 127, or the value which corresponds to the carriage return character, cannot be used
for the backspace character. This editing is not applicable to the AT header of a command. A command line may be
aborted at any time by entering < ctrl-x > (18h).
The AT sequence may be followed by any number of commands in sequence, except for commands such as Z, D, or A.
Commands following commands Z, D, or A on the same command line will be ignored. The maximum number of
characters on any command line is 39 (including "A" and "T"). If a syntax error is found anywhere in a command line
command, the remainder of the line will be ignored and the ERROR result code will be returned. Most commands
entered with parameters out of range will not be accepted and the ERROR response will be returned to the DTE.
Commands will only be accepted by the modem once the previous command has been fully executed, which is normally
indicated by the return of an appropriate result code. Execution of commands D and A, either as a result of a direct
command or a re-execute command, will be aborted if another character is entered before completion of the handshake.
Escape Code Sequence
When the modem has established a connection and has entered on-line data mode, it is possible to break into the data
transmission in order to issue further commands to the modem in an on-line command mode. This is achieved by the
DTE sending to the modem a sequence of three ASCII characters specified by register S2. The default character is '+'.
The maximum time allowed between receipt of the last character, of the three escape character sequence, from the DTE
and sending of the OK result code to the DTE is controlled by the S12 register.
AT Command s for Dense Modem Family
5
AT COMMANDS
The modem will respond to the commands detailed below. Parameters applicable to each command are listed with the
command description. The defaults shown for each command are those used in the factory profile 0.
A/ - Re-execute Command
The modem behaves as though the last command line had been re-sent by the DTE. "A/" will repeat all the commands in
the command buffer.
The principal application of this command is to place another call (using the Dial command) that failed to connect due to
a busy line, no answer, or a wrong number. This command must appear alone on a command line. This command
should not be terminated by a carriage return.
AT= x - Write to Selected S-Register
This command writes the value x to the currently selected S-Register. An S-Register can be selected by using the ATSn
command. All of the S-Registers will return the OK response if x is a number. Some registers may not be written due to
country specific PTT limitations.
Result Codes
OK
For all arguments.
AT? - Read Selected S-Register
This command reads and displays the selected S-Register. An S-Register can be selected by using the ATSn command.
Result Codes:
OK
For all arguments.
A - Answer
The modem will go off-hook and attempt to answer an incoming call if correct conditions are met. Upon successful
completion of answer handshake, the modem will go on-line in answer mode. This command may be affected by the
state of Line Current Sense, if enabled. (Most countries do not require Line Current Sense.) Operation is also dependent
upon +FCLASS command and country-specific requirements.
If +FCLASS=0 is selected, the modem will enter the connect state after exchanging carrier with the remote modem. If no
carrier is detected within a period specified in register S7, the modem hangs up. Any character entered during the
connect sequence will abort the connection attempt.
If +FCLASS=1 or 2 is selected, the modem will go off-hook in V.21 answer mode. It will generate the V.21 2100 Hz
answer tone for 3 ± 0.5 seconds and, following a delay of 70 ms, will proceed as if the +FTH=3 command were issued.
At any stage up to (but excluding) the +FTH=3 command state, any character will abort the communication. (See the
description of the +FTH command for details.)
6
AT Commands for Dense Modem Family
Bn - CCITT or Bell
When the modem is configured to allow either option, the modem will select Bell or CCITT modulation for a line speed
connection of 300 or 1200 bps according to the parameter supplied. Any other line speed will use a CCITT modulation
standard. The parameter value, if valid, is written to S27 bit 6. (Also, see ATFn command.)
B0
Selects CCITT operation at 300 or 1200 bps during Call Establishment and a subsequent
connection. (Default for W-class models.)
B1
Selects BELL operation at 300 or 1200 bps during Call Establishment and a subsequent
connection. (Default for US models.)
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
Cn - Carrier Control
This command is included for compatibility only, and has no effect other than returning a result code. The only valid
parameter is 1.
Result Codes:
OK
ERROR
n = 1.
Otherwise.
Dn - Dial
This command directs the modem to go on-line, dial according to the string entered and attempt to establish a
connection. If no dial string is supplied, the modem will go on-line and attempt the handshake in originate mode. In Wclass models, the action of going off-hook is affected by the status of the Line Current Sense input, if line current sensing
is enabled, and by the blacklist and delayed list.
Note: If the ATD command is issued before the S1 register has cleared, the modem will respond with the NO CARRIER
result code.
If +FCLASS=0 is selected, the modem will behave as a data modem and will attempt to connect to another data modem.
The modem will have up to the period of time specified by register S6 or S7 to wait for carrier and complete the
handshake. If this time expires before the modem can complete the handshake, the modem will go on-hook with the NO
CARRIER response. This command will be aborted in progress upon receipt of any DTE character before completion of
the handshake.
If +FCLASS=1 or 2 is selected, the modem will behave as a facsimile modem and attempt to connect to a facsimile
machine (or modem) by entering the HDLC V.21 channel 2 receive state (as if +FRH=3 had been issued). This command
will be aborted upon receipt of any DTE character if the modem has not finished dialing. In this case, the modem will go
on-hook and return to command mode after displaying the NO CARRIER message. If the modem has finished dialing, it
proceeds as if the +FRH=3 command has been issued. (Refer to the +FRH command to determine how the modem
behaves following this stage.)
Dial Modifiers. The valid dial string parameters are described below. Punctuation characters may be used for clarity, with
parentheses, hyphen, and spaces being ignored.
0-9
DTMF digits 0 to 9.
*
The 'star' digit (tone dialing only).
#
The 'gate' digit (tone dialing only).
A-D
DTMF digits A, B, C, and D. Some countries may prohibit sending of these digits during dialing.
L
Re-dial last number: the modem will re-dial the last valid telephone number. The L must be
immediately after the D with all the following characters ignored).
P
Select pulse dialing: pulse dial the numbers that follow until a "T" is encountered. Affects current and
subsequent dialing. Some countries prevent changing dialing modes after the first digit is dialed.
T
Select tone dialing: tone dial the numbers that follow until a "P" is encountered. Affects current and
subsequent dialing. Some countries prevent changing dialing modes after the first digit is dialed.
R
This command will be accepted, but not acted on.
S=n
Dial the number stored in the directory (n = 0 to 3). (See &Z.)
AT Command s for Dense Modem Family
7
W
Wait for dial tone: the modem will wait for dial tone before dialing the digits following "W". If dial tone
is not detected within the time specified by S7 (US) or S6 (W-class), the modem will abort the rest of
the sequence, return on-hook, and generate an error message.
@
Wait for silence: the modem will wait for at least 5 seconds of silence in the call progress frequency
band before continuing with the next dial string parameter. If the modem does not detect these 5
seconds of silence before the expiration of the call abort timer (S7), the modem will terminate the call
attempt with a NO ANSWER message. If busy detection is enabled, the modem may terminate the
call with the BUSY result code. If the answer tone arrives during execution of this parameter, the
modem handshakes.
&
Wait for the credit card dialing tone before continuing with the dial string. If the tone is not detected
within the time specified by S7 (US models) or S6 (W-class models), the modem will abort the rest of
the sequence, return on-hook, and generate an error message.
,
Dial pause: the modem will pause for a time specified by S8 before dialing the digits following ",".
;
Return to command state. Added to the end of a dial string, this causes the modem to return to the
command state after it processes the portion of the dial string preceding the ";". This allows the user
to issue additional AT commands while remaining off-hook. The additional AT commands may be
placed in the original command line following the ";" and/or may be entered on subsequent command
lines. The modem will enter call progress only after an additional dial command is issued without the
";" terminator. Use "H" to abort the dial in progress, and go back on-hook.
^
Toggles calling tone enable/disable: applicable to current dial attempt only.
()
Ignored: may be used to format the dial string.
-
Ignored: may be used to format the dial string.
<space> Ignored: may be used to format the dial string.
<i>
Invalid character: will be ignored.
>
If enabled by a country specific parameter, the modem will generate a grounding pulse on the
EARTH relay output.
8
AT Commands for Dense Modem Family
En - Command Echo
The modem enables or disables the echo of characters to the DTE according to the parameter supplied. The parameter
value, if valid, is written to S14 bit 1.
E0
E1
Disables command echo.
Enables command echo. (Default.)
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
Fn - Select Line Modulation
This command selects the line modulation according to the parameter supplied. The line modulation is fixed unless
Automode is selected. This command interacts with the S37 and the N command. The parameter value, if valid, is written
to S37 bits 0-4. To select line modulation, it is recommended that either the F command, or a combination of the S37 and
the N command, be used, but not both.
F0 Selects auto-detect mode. Sets N1 and sets S31 bit 1. In this mode, the modem configures for
automode operation. All connect speeds supported by the modem are possible according to the
remote modem's preference. The contents of S37 are ignored as is the sensed DTE speed.
F1
Selects V.21 or Bell 103 according to the B setting as the only acceptable line speed resulting in a
subsequent connection. Sets N0, sets S37 to 1, and clears S31 bit 1. This command is equivalent to
the command string: ATN0S37=1.
F2
Not supported.
F3
Selects V.23 as the only acceptable line modulation for a subsequent connection. Originator is at 75
bps and answerer is at 1200 bps. Sets N0, sets S37 to 7, and clears S31 bit 1. This command is
equivalent to the command string: ATN0S37=7.
F4
Selects V.22 1200 or Bell 212A according to the B command setting as the only acceptable line
speed for a subsequent connection. Sets N0, sets S37 to 5, and clears S31 bit 1. This command is
equivalent to the command string: ATN0S37=5.
F5
Selects V.22 bis as the only acceptable line modulation for a subsequent connection. Sets N0, sets
S37 to 6, and clears S31 bit 1. This command is equivalent to the command string: ATN0S37=6.
F6
Select V.32 bis 4800 or V.32 4800 as the only acceptable line modulation for a subsequent
connection. Sets N0, sets S37 to 8, and clears S31 bit 1. This command is equivalent to the
command string: ATN0S37=8.
F7
Selects V.32 bis 7200 as the only acceptable line modulation for a subsequent connection. Sets N0,
sets S37 to 12, and clears S31 bit 1. This command is equivalent to the command string:
ATN0S37=12.
F8
Selects V.32 bis 9600 or V.32 9600 as the only acceptable line modulations for a subsequent
connection. Sets N0, sets S37 to 9, and clears S31 bit 1. This command is equivalent to the
command string: ATN0S37=9.
F9
Selects V.32 bis 12000 as the only acceptable line modulation for a subsequent connection. Sets
N0, sets S37 to 10, and clears S31 bit 1. This command is equivalent to the command string:
ATN0S37=10.
F10
Selects V.32 bis 14400 as the only acceptable line modulation for a subsequent connection. Sets
N0, sets S37 to 11, and clears S31 bit 1. This command is equivalent to the command string:
ATN0S37=11.
Hn - Disconnect (Hang-Up)
This command initiates a hang up sequence.
This command may not be available for some countries due to PTT restrictions.
H0
The modem will release the line if the modem is currently on-line, and will terminate any test (AT&T)
that is in progress. Country specific, modulation specific, and error correction protocol specific (S38)
processing is handled outside of the H0 command.
H1
If on-hook, the modem will go off-hook and enter command mode. For US models, the modem will
remain off-hook. The modem will return on-hook after a period of time determined by S7.
Result Codes:
AT Command s for Dense Modem Family
9
OK
ERROR
n = 0 or 1.
Otherwise.
In - Identification
The modem reports to the DTE the requested result according to the command parameter.
I0
Reports product code. Example: Digi RAS modem 56000
I1
Reports 255.
I2
Reports "OK".
I3
Reports the firmware version (F), basic model (e.g.,k56), application code (A), and interface type
code (I) typically in the form VF.FFF-k56_AI. The application codes are: D = Desktop, L = Low Power
(PCMCIA). The interface type codes are: S = Serial, P = Parallel.
Example: V0.010-K56_DS
I4
Reports defined identifier string in ASCII format.
I5
Reports 02
I6
Reports modem data pump model and internal code revision.
“csc_revision/pump_revision”, where csc_revision is assigned the CSC revision number and
pump_revision is the DSP pump revision number.
I7
Reports the DAA code.
Examples: 000 for US or Canada, 016 for Japan, 033 for Belgium, 034 for Finland, 035 for France,
037 for Italy, 038 for Netherlands, 039 for Sweden, 040 for Switzerland, and 041 for UK.
I8
Error
I9
Reports the PnP identification string for the modem, in the format specifed by the Plug and Play
External COM Device Specification. Version 1.00, published 02/28/95 by Microsoft and Hayes.
The PnP Rev portion is in the optional ASCII format and is always “1.00”.
The EISA Mfr ID is “DBI”.
The 4 digit hexadecimal ASCII Product ID which is used is the PCI subsystem ID.
The 8 digit hexadecimal ASCII Product Serial Number is taken from the VPD. Note: a strtoul() is
performed on the VPD SN tag data.
The Class name is always “MODEM”.
The Compatible Device Ids is the null string.
The User name is defined by product name.
The Checksum is not completed and is always the two characters “__”.
Example :
(1.00DBI0060\12345678\MODEM\\AccelePort RAS A8__)
Result Codes:
OK
ERROR
n = 0 to 7 and 9.
Otherwise.
Ln - Speaker Volume
The modem sets the speaker volume control according to the parameter supplied. The parameter value, if valid, is
written to S22 bits 0 and 1.
L0
L1
L2
L3
Low volume.
Low volume. (Default.)
Medium volume.
High volume.
Result Codes:
OK
ERROR
10
n = 0 to 3.
Otherwise.
AT Commands for Dense Modem Family
Mn - Speaker Control
This command selects when the speaker will be on or off. The parameter value, if valid, is written to S22 bits 2 and 3.
M0
M1
M2
M3
Speaker is always off.
Speaker is on during call establishment, but off when receiving carrier. (Default.)
Speaker is always on.
Speaker is off when receiving carrier and during dialing, but on during answering.
Result Codes:
OK
ERROR
n = 0 to 3.
Otherwise.
Nn - Automode Enable
This command enables or disables automode detection. The parameter value, if valid, is written to S31 bit 1.
N0
Automode detection is disabled (equivalent to setting the +MS <automode> subparameter to 0). A
subsequent handshake will be conducted according to the contents of S37 or, if S37 is zero,
according to the most recently sensed DTE speed.
N1
Automode detection is enabled (equivalent to setting the +MS <automode> subparameter to 1). A
subsequent handshake will be conducted according the automode algorithm supported by the
modem, e.g., according to the contents of S37 or, if S37 is zero, starting at 28800 bps V.34. This
command is also equivalent to F0. (Default.)
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
Notes:
1.
The Nn and S37=x commands override the +MS command settings. When the N0 or N1 command is issued,
the +MS subparameters are updated to reflect the Nn and S37 values (see +MS command and S37 register).
For example:
N1S37=10 updates the +MS command subparameters to reflect +MS=10,1,300,12000
N0S37=10 updates the +MS command subparameters to reflect +MS=10,0,12000,12000
2.
Use of the +MS command is recommended instead of the Nn and S37=x commands. Nn and S37=x
commands are supported for compatibility with existing communication software.
On - Return to On-Line Data Mode
This command determines how the modem will enter the on-line data mode. If the modem is in the on-line command
mode, the modem enters the on-line data mode with or without a retrain. If the modem is in the off-line command mode
(no connection), ERROR is reported.
O0
Enters on-line data mode without a retrain. Handling is determined by the Call Establishment task.
Generally, if a connection exists, this command connects the DTE back to the remote modem after
an escape (+++).
O1
Enters on-line data mode with a retrain before returning to on-line data mode.
Result Codes:
OK
ERROR
n = 0 or 1 and a connection exists.
Otherwise or if not connected.
P - Set Pulse Dial Default
This command forces pulse dialing until the next T dial modifier or T command is received. Sets S14 bit 5.
As soon as a dial command is executed which explicitly specifies the dialing mode for that particular call (e.g., ATDT...),
this command is overridden so that all future dialing will be tone dialed. (See T command.)
This command may not be permitted in some countries.
Result Code:
OK
AT Command s for Dense Modem Family
11
Qn - Quiet Results Codes Control
The command enables or disables the sending of result codes to the DTE according to the parameter supplied. The
parameter value, if valid, is written to S14 bit 2.
Q0
Q1
Enables result codes to the DTE. (Default.)
Disables result codes to the DTE.
Result Codes:
OK
ERROR
n = 0 except is Q1 is set.
Otherwise.
Sn - Read/Write S-Register
The modem selects an S-Register, performs an S-Register read or write function, or reports the value of an S-Register.
n
Establishes S-Register n as the last register accessed.
n=v
Sets S-Register n to the value v.
n?
Reports the value of S-Register n.
The parameter n can be omitted, in which case the last S-Register accessed will be assumed. The S can be omitted for
AT= and AT?, in which case, the last S-Register accessed will be assumed.
For example:
ATS7
establishes S7 as the last accessed register.
AT=40
sets the contents of the last register accessed to 40.
ATS=20 sets the contents of the last register accessed to 20.
If the number "n" is beyond the range of the S-Registers available, the modem will return the ERROR message. The
value "v" is "MOD"ed with 256. If the result is outside the range permitted for a given S-Register, the values will still be
stored, but functionally the lower and higher limits will be observed. Input and output are always in decimal format. Note
that some S-Registers are read-only.
In some cases, writing to the S-Register will appear to be accepted but the value will not actually be written.
Due to country restrictions, some commands will be accepted, but the value may be limited and replaced by a maximum
or minimum value.
T - Set Tone Dial Default
This command forces DTMF dialing until the next P dial modifier or P command is received. The modem will set an SRegister bit to indicate that all subsequent dialing should be conducted in tone mode. Note that the DP command will
override this command. Clears S14 bit 5.
This command may not be permitted in some countries. (See P.)
Result Code:
OK
Vn - Result Code Form
This command selects the sending of short-form or long-form result codes to the DTE. The parameter, if valid, is written
to S14 bit 3.
V0
V1
Enables short-form (terse) result codes. Line feed is not issued before a short-form result code.
Enables long-form (verbose) result codes. (Default.)
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
Wn - Connect Message Control
This command controls the format of CONNECT messages. The parameter value, if valid, is written to S31 bits 2 and 3.
Note: The Wn command can be overridden by register S95 bits (see S95 description).
12
AT Commands for Dense Modem Family
W0
Upon connection, the modem reports only the DTE speed (e.g., CONNECT 19200). Subsequent
responses are disabled. (Default.)
W1
Upon connection, the modem reports the line speed, the error correction protocol, and the DTE
speed, respectively. Subsequent responses are disabled.
W2
Upon connection, the modem reports the DCE speed (e.g., CONNECT 14400). Subsequent
responses are disabled.
Result Codes:
OK
ERROR
n = 0, 1, or 2.
Otherwise.
Xn - Extended Result Codes
This command selects which subset of the result messages will be used by the modem to inform the DTE of the results
of commands.
Blind dialing is enabled or disabled by country parameters. If the user wishes to enforce dial tone detection, a "W" can be
placed in the dial string (see Dn- Dial). Note that the information below is based upon the default implementation of the X
results table. Table 3-1 indicates the messages which are enabled for each X value.
If the modem is in facsimile mode (+FCLASS=1 or 2), the only message sent to indicate a connection is CONNECT
without a speed indication.
X0
Disables monitoring of busy tones unless forced otherwise by country requirements; send only OK,
CONNECT, RING, NO CARRIER, ERROR, and NO ANSWER result codes. Blind dialing is
enabled/disabled by country parameters. If busy tone detection is enforced and busy tone is
detected, NO CARRIER will be reported. If dial tone detection is enforced or selected and dial tone is
not detected, NO CARRIER will be reported instead of NO DIAL TONE. The value 000b is written to
S22 bits 6, 5, and 4, respectively.
X1
Disables monitoring of busy tones unless forced otherwise by country requirements; send only OK,
CONNECT, RING, NO CARRIER, ERROR, NO ANSWER, and CONNECT XXXX (XXXX = rate).
Blind dialing enabled/disabled by country parameters. If busy tone detection is enforced and busy
tone is detected, NO CARRIER will be reported instead of BUSY. If dial tone detection is enforced or
selected and dial tone is not detected, NO CARRIER will be reported instead of NO DIAL TONE. The
value 100b is written to S22 bits 6, 5, and 4, respectively.
X2
Disables monitoring of busy tones unless forced otherwise by country requirements; send only OK,
CONNECT, RING, NO CARRIER, ERROR, NO DIALTONE, NO ANSWER, and CONNECT XXXX. If
busy tone detection is enforced and busy tone is detected, NO CARRIER will be reported instead of
BUSY. If dial tone detection is enforced or selected and dial tone is not detected, NO DIAL TONE will
be reported instead of NO CARRIER. The value 101b is written to S22 bits 6, 5, and 4, respectively.
X3
Enables monitoring of busy tones; send only OK, CONNECT, RING, NO CARRIER, ERROR, NO
ANSWER, and CONNECT XXXX. Blind dialing is enabled/disabled by country parameters. If dial
tone detection is enforced and dial tone is not detected, NO CARRIER will be reported. The value
110b is written to S22 bits 6, 5, and 4, respectively.
X4
Enables monitoring of busy tones; send all messages. The value 111b is written to S22 bits 6, 5, and
4, respectively. (Default.)
Result Codes:
OK
n = 0 to 4.
ERROR
Otherwise.
AT Command s for Dense Modem Family
13
Table 3-1. Result Codes
Short
Long Form
N Value in ATXn Command
1
2
3
4
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
32
33
35
40
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
61
62
14
OK
CONNECT
RING
NO CARRIER
ERROR
CONNECT 1200
NO DIALTONE
BUSY
NO ANSWER
CONNECT 0600
CONNECT 2400
CONNECT 4800
CONNECT 9600
CONNECT 7200
CONNECT 12000
CONNECT 14400
CONNECT 19200
CONNECT 38400
CONNECT 57600
CONNECT 115200
CONNECT 230400
CONNECT 75TX/1200RX
CONNECT 1200TX/75RX
DELAYED
BLACKLISTED
FAX
DATA
CARRIER 300
CARRIER 1200/75
CARRIER 75/1200
CARRIER 1200
CARRIER 2400
CARRIER 4800
CARRIER 7200
CARRIER 9600
CARRIER 12000
CARRIER 14400
CARRIER 16800
CARRIER 19200
CARRIER 21600
CARRIER 24000
CARRIER 26400
CARRIER 28800
CONNECT 16800
CONNECT 21600
CONNECT 24000
x
x
x
x
x
1
3
3
x
1
1
1
1
1
1
1
1
1
1
1
x
1
1
4
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
1
1
1
x
x
x
x
x
x
3
3
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
4
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
3
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
4
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
4
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
AT Commands for Dense Modem Family
3-12 1048
Table 3-1. Result Codes (Cont'd)
Short Form
Long Form
0
63
64
66
67
69
70
77
78
79
80
81
84
91
150
151
152
153
154
155
156
157
158
159
160
161
162
165
166
167
168
169
170
171
172
173
174
175
176
177
+F4
CONNECT 26400
CONNECT 28800
COMPRESSION: CLASS 5
COMPRESSION: V.42 bis
COMPRESSION: NONE
PROTOCOL: NONE
PROTOCOL: LAPM
CARRIER 31200
CARRIER 33600
PROTOCOL: ALT
PROTOCOL:ALT-CELLULAR
CONNECT 33600
CONNECT 31200
CARRIER 32000
CARRIER 34000
CARRIER 36000
CARRIER 38000
CARRIER 40000
CARRIER 42000
CARRIER 44000
CARRIER 46000
CARRIER 48000
CARRIER 50000
CARRIER 52000
CARRIER 54000
CARRIER 56000
CONNECT 32000
CONNECT 34000
CONNECT 36000
CONNECT 38000
CONNECT 40000
CONNECT 42000
CONNECT 44000
CONNECT 46000
CONNECT 48000
CONNECT 50000
CONNECT 52000
CONNECT 54000
CONNECT 56000
+FCERROR
1
1
x
x
x
x
x
x
x
x
x
1
1
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
n Value in ATXn Command
1
2
3
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Notes:
1.An 'x' in a column indicates that the message (either the long form if verbose, or the value only for short form) will
be generated when that particular value of 'n' (shown at the top of the column) has been selected by the use of
ATXn. If the column is blank, then no message will be generated for that x option. A numeral indicates which less
explicit message (verbose or short form) will be output for that X option. (Also, see Section 3.3).
AT Command s for Dense Modem Family
15
Yn - Long Space Disconnect
This command enables/disables the generation and response to long space disconnect. The parameter value, if valid, is
written to S21 bit 7.
Y0
Disables long space disconnect. (default.)
Y1
Enables long space disconnect. In non-error correction mode, the modem will send a long space of
four seconds prior to going on-hook. In non-error correction mode, the modem will respond to the
receipt of a long space (i.e., a break signal greater than 1.6 seconds) by going on-hook.
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
Zn - Soft Reset and Restore Profile
The modem performs a soft reset and restores (recalls) the configuration profile according to the parameter supplied. If
no parameter is specified, zero is assumed.
Z0
Soft reset and restore stored profile 0.
Z1
Soft reset and restore stored profile 1.
Result Codes:
OK
n = 0 or 1.
ERROR
Otherwise.
AT& Commands
&Cn - RLSD (DCD) Option
The modem controls the RLSD output in accordance with the parameter supplied. The parameter value, if valid, is written
to S21 bit 5.
&C0
&C1
RLSD remains ON at all times.
RLSD follows the state of the carrier. (Default.)
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
&Dn - DTR Option
This command interprets the ON to OFF transition of the DTR signal from the DTE in accordance with the parameter
supplied. The parameter value, if valid, is written to S21 bits 3 and 4. Also, see S25.
&D0 -
DTR drop is interpreted according to the current &Qn setting as follows:
&Q0, &Q5, &Q6 DTR is ignored (assumed ON). Allows operation with DTEs which do not
provide DTR.
&Q1, &Q4 DTR drop causes the modem to hang up. Auto-answer is not affected.
&Q2, &Q3 DTR drop causes the modem to hang up. Auto-answer is inhibited.
&D1
DTR drop is interpreted according to the current &Qn setting as follows:
&Q0, &Q1, &Q4, &Q5, &Q6 DTR drop is interpreted by the modem as if the asynchronous
escape sequence had been entered. The modem returns to asynchronous command state
without disconnecting.
&Q2, &Q3 DTR drop causes the modem to hang up. Auto-answer is inhibited.
&D2
DTR drop is interpreted according to the current &Qn setting as follows:
&Q0 through &Q6 DTR drop causes the modem to hang up. Auto-answer is inhibited.
(Default.)
&D3
16
DTR drop is interpreted according to the current &Qn setting as follows:
AT Commands for Dense Modem Family
&Q0, &Q1, &Q4, &Q5, &Q6 DTR drop causes the modem to perform a soft reset as if the
Z command were received. The &Y setting determines which profile is loaded.
&Q2, &Q3 DTR drop causes the modem to hang up. Auto-answer is inhibited.
If &Q5, &Q6, +FCLASS=1 or +FCLASS=2 is in effect, the action taken is the same as for &Q0.
Result Codes
OK
n = 0 to 3
&Fn - Restore Factory Configuration (Profile)
The modem loads the factory default configuration (profile). The factory defaults are identified for each command and in
the S-Register descriptions. A configuration (profile) consists of a subset of S-Registers.
&F0
Restore factory configuration 0.
&F1
Restore factory configuration 1.
Result Codes:
OK
ERROR
If the modem is connected.
&Gn - Select Guard Tone
The modem generates the guard tone selected by this command according to the parameter supplied (DPSK modulation
modes only). The parameter value, if valid, is written to S23 bits 6 and 7.
&G0
Disables guard tone.
&G1
Disables guard tone.
&G2
Selects 1800 Hz guard tone
This command may not be permitted in some countries.
Result Codes:
OK
ERROR
n = 0 to 2.
Otherwise.
&Jn - Telephone Jack Control
This command is included only for compatibility and performs no function except to load the S-Register. The parameter
value, if valid, is written S21 bit 1.
&J0
&J0 command. (Default.)
&J1
&J1 command.
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
&Kn - Flow Control
This command defines the DTE/DCE (terminal/modem) flow control mechanism. The parameter value, if valid, is written
to S39 bits 0, 1, and 2.
&K0
Disables flow control.
&K3
Enables RTS/CTS flow control. (Default for data modem modes.)
&K4
Enables XON/XOFF flow control.
&K5
Enables transparent XON/XOFF flow control.
&K6
Enables both RTS/CTS and XON/XOFF flow control. (Default for fax modem and voice modes.)
Result Codes:
OK
n = 0, 3, 4, 5, or 6.
AT Command s for Dense Modem Family
17
ERROR
Otherwise.
&Ln - Leased Line Operation
This command requests leased line or dial-up operation. This command is provided for compatibility only; no mode
change is performed, dial-up operation continues. The OK response is returned for a valid parameter, but no other action
is performed. The parameter value, if valid, is written to S27 bit 2.
&L0
Requests dial-up operation. Dial-up operation continues.
&L1
Leased-line operation. V.34 ITU standard mode.
&L2
Leased-line operation. V.34 non-standard mode (MultiTech, Microcom).
Result Codes:
OK
n = 0, 1 or 2.
ERROR
Otherwise.
&Mn - Asynchronous/Synchronous Mode Selection
This command determines the DTR operating mode. The modem treats the &M command as a subset of the &Q
command.
&M0
Selects direct asynchronous operation. Note that the command sequence &M0\N0 selects normal
buffered mode, but the command sequence \N0&M0 selects direct mode. This is because the \N0
command is analogous to the &Q6 command. The value 000b is written to S27 bits 3, 1, and 0,
respectively. (See &Q).
&M1
Selects synchronous connect mode with async off-line command mode. The value 001b is written to
S27 bits 3, 1, and 0, respectively. (Serial interface operation only.)
&M2
Selects synchronous connect mode with async off-line command mode. Same as &M1 except that
&M2 enables DTR dialing of directory slot 0. The modem will disconnect if DTR is OFF for more than
the period in S25 (in units of hundredths of a second): the data connection will be synchronous. The
value 010b is written to S27 bits 3, 1, and 0, respectively. (Serial interface operation only.)
&M3
Selects synchronous connect mode. This mode allows DTR to act as a talk/data switch. The call is
manually initiated while DTR is inactive. When DTR becomes active, the handshake proceeds in
originate or answer mode according to S14 bit 7. The value 011b is written to S27 bits 3, 1, and 0,
respectively. (Serial interface operation only.)
Result Codes:
OK
n = 0 to 3.
ERROR
Otherwise.
&Pn - Select Pulse Dial Make/Break Ratio
This command determines the make/break ratio used during pulse dialing. The default is country-dependent. The
parameter value, if valid, is written to S28 bits 3 and 4.
&P0
Selects 39%-61% make/break ratio at 10 pulses per second. (Default.)
&P1
Selects 33%-67% make/break ratio at 10 pulses per second.
&P2
Selects 39%-61% make/break ratio at 20 pulses per second.
&P3
Selects 33%-67% make/break ratio at 20 pulses per second.
Result Codes:
OK
n = 0 to 3.
ERROR
Otherwise.
&Qn - Sync/Async Mode
This command is an extension of the &M command and is used to control the connection modes permitted. It is used in
conjunction with S36 and S48. (Also, see \N.)
NOTE: When the &Q0 to &Q4 command is issued to select the mode, the subsequent connect message will report the
DCE speed regardless of the W command and S95 settings.
18
AT Commands for Dense Modem Family
&Q0
Selects direct asynchronous operation. The value 000b is written to S27 bits 3, 1, and 0,
respectively. See &M0.
&Q1
Selects synchronous connect mode with async off-line command mode. The value 001b is written to
S27 bits 3, 1, and 0, respectively. See &M1. (Serial interface operation only.)
&Q2
Selects synchronous connect mode with async off-line command mode and enables DTR dialing of
directory 0. The value 010b is written to S27 bits 3, 1, and 0, respectively. See &M2. (Serial interface
operation only.)
&Q3
Selects synchronous connect mode with async off-line command mode and enables DTR to act as
Talk/Data switch. The value 011b is written to S27 bits 3, 1, and 0, respectively. See &M3. (Serial
interface operation only.)
&Q4
Selects AutoSync operation. The value 100b is written to S27 bits 3, 1, and 0, respectively.
AutoSync operation, when used in conjunction with the Hayes Synchronous Interface (HSI)
capability in the DTE, provides synchronous communication capability from an asynchronous
terminal.
Starting AutoSync. Set registers S19, S20, and S25 to the desired values before selecting
AutoSync operation with &Q4. After the CONNECT message is issued, the modem waits the period
of time specified by S25 before examining DTR. If DTR is on, the modem enters the synchronous
operating state; if DTR is off, the modem terminates the line connection and returns to the
asynchronous command state.
Stopping AutoSync. AutoSync operation is stopped upon loss of carrier or the on-to-off transition
of DTR. Loss of carrier will cause the modem to return to the synchronous command state. An on-tooff transition of DTR will cause the modem to return to the asynchronous command state and either
not terminate the line connection (&D1 active) or terminate the line connection (any other &Dn
command active).
&Q5
The modem will try to negotiate an error-corrected link. The modem can be configured using S36 to
determine whether a failure will result in the modem returning on-hook or will result in fallback to an
asynchronous connection. The value 101b is written to S27 bits 3, 1, and 0, respectively. (Default.)
&Q6
Selects asynchronous operation in normal mode (speed buffering). The value 110b is written to S27
bits 3, 1, and 0, respectively.
&Q7
Effect is AT~V1=2\NO&RO, HDLC Sync framing, no error correction, CTS reflects tx ability.
&Q8
Effect is AT~V1=10\N0&R0, HDLC Sync framing, NRZI encoding, no error correction, CTS reflects tx
ability.
Result Codes:
OK
n = 0 to 8.
ERROR
Otherwise.
&Rn - RTS/CTS Option
This selects how the modem controls CTS. CTS operation is modified if hardware flow control is selected (see &K
command). The parameter value, if valid, is written to S21 bit 2.
&R0
CTS reflects the ability of the modem to transmit data. For example, CTS will drop during retrains. In
sync mode, CTS tracks the state of RTS; the RTS-to-CTS delay is defined by S26. In async mode,
CTS is normally ON and will turn OFF only if required by flow control.
&R1
CTS forced on (default). In sync mode, CTS is always ON (RTS transitions are ignored). tracks the
state of RTS. In async mode, CTS is normally ON and will turn OFF only if required by flow control.
&R2
CTS follows RTS.
Result Codes:
OK
n = 0 to 2.
ERROR
Otherwise.
&Sn - DSR Override
This command selects how the modem will control DSR. The parameter value, if valid, is written to S21 bit 6.
&S0
DSR will remain ON at all times. (Default.)
AT Command s for Dense Modem Family
19
&S1
DSR will become active after answer tone has been detected and inactive after the carrier has been
lost.
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
&Tn - Test and Diagnostics
The modem will perform selected test and diagnostic functions according to the parameter supplied. A test can be run
only when in an asynchronous operation in non-error-correction mode (normal or direct mode). To terminate a test in
progress, the escape sequence must be entered first, except for parameters 7 and 8 (see Section 3.1.3). If S18 is nonzero, a test will terminate automatically after the time specified by S18 and display the OK message. Note: For tests 3, 6,
and 7, a connection between the two modems must first be established.
&T0
Terminates test in progress. Clears S16.
&T1
Initiates local analog loopback, V.54 Loop 3. Sets S16 bit 0. If a connection exists when this
command is issued, the modem hangs up. The CONNECT XXXX message is displayed upon the
start of the test.
&T2
Returns ERROR.
&T3
Initiates local digital loopback, V.54 Loop 2. Sets S16 bit 2. If no connection exists, ERROR is
returned. Sets S16 bit 4 when the test is in progress.
&T4
Enables digital loopback acknowledgment for remote request, i.e., an RDL request from a remote
modem is allowed. Sets S23 bit 0.
&T5
Disables digital loopback acknowledgment for remote request, i.e., an RDL request from a remote
modem is denied. Clears S23 bit 0. (Default.)
&T6
Requests a remote digital loopback (RDL), V.54 Loop 2, without self test. If no connection exists,
ERROR is returned. Sets S16 bit 4 when the test is in progress. The CONNECT XXXX message is
displayed upon the start of the test.
&T7
Requests a remote digital loopback (RDL),V.54 Loop 2, with self test. (In self test, a test pattern is
looped back and checked by the modem.) If no connection exists, ERROR is returned. When the test
is terminated either via expiration of S18, or via the &T0 or H command, the number of detected
errors is reported to the DTE. Sets S16 bit 5 when the test is in progress.
&T8
Initiates local analog loopback, V.54 Loop 3, with self test. (In self test, a test pattern is looped back
and checked by the modem.) If a connection exists, the modem hangs up before the test is initiated.
When the test is terminated either via expiration of S18, or via the &T0 or H command, the number of
detected errors is reported to the DTE. Sets S16 bit 6 when the test is in progress. This command
may not be available in some countries due to PTT restrictions.
&V - Display Current Configuration and Stored Profiles
Reports the current (active) configuration, the stored (user) profiles, and the first four stored telephone numbers. The
stored profiles and telephone numbers are not displayed if the NVRAM is not installed or is not operational as detected
by the NVRAM test during reset processing.
Result Code:
OK
Example:
AT&V
ACTIVE PROFILE:
B0 E1 L1 M1 N1 QO T V1 W0 X4 Y0 &C0 &D0 &G2 &J0 &K3 &Q5 &R1 &S0 &T4 &X0 &Y0
S00:002 S01:000 S02:043 S03:013 S04:010 S05:008 S06:002 S07:030 S08:002 S09:006
S10:014 S11:255 S12:050 S18:000 S25:005 S26:001 S36:007 S37:000 S38:020 S46:138
S48:007 S95:000
STORED PROFILE 0:
B0 E1 L1 M1 N1 QO T V1 W0 X4 Y0 &C0 &D0 &G2 &J0 &K3 &Q5 &R1 &S0 &T4 &X0
S00:002 S02:043 S06:002 S07:030 S08:002 S09:006 S10:014 S11:095 S12:050 S18:000
S36:007 S37:000 S40:105 S41:003 S46:138 S95:000
STORED PROFILE 1:
B0 E1 L1 M1 N1 QO T V1 W0 X4 Y0 &C0 &D0 &G2 &J0 &K3 &Q5 &R1 &S0 &T4 &X0
S00:002 S02:043 S06:002 S07:030 S08:002 S09:006 S10:014 S11:095 S12:050 S18:000
S36:007 S37:000 S40:105 S41:003 S46:138 S95:000
20
AT Commands for Dense Modem Family
TELEPHONE NUMBERS:
0=
1=
2=
3=
OK
&V1 - Display Connection Statistics
This statistic is valid during a data call. If no data call is in progress, these commands report the statistics for the
previous data call.
TERMINATION REASON
LAST TX data rate
INITIAL TX data rate
HIGHEST TX data rate
LAST RX data rate
INITIAL RX data rate
HIGHEST RX data rate
Error correction PROTOCOL
Data COMPRESSION
Line QUALITY
Receive LEVEL
EQM Sum Value
RBS Pattern detected
Data Rate Dropped in kbps
Digital Pad Detected
Local Retrain Count
Remote Retrain Count
Local Renegotiate Count
Remote Renegotiate Count
V.8bis K56Flex
NONE
33600 BPS
33600 BPS
33600 BPS
33600 BPS
33600 BPS
33600 BPS
LAPM
V42bis
073
016
ffff
00
00
00
0000
0000
0000
0000
OK
&V2 - Display Connection Statistics
This statistic is valid during a data call. If no data call is in progress, these commands report the statistics for the
previous data call.
DATA PROTOCL TERMINATION REASON
DATA PROTOCL TERMINATION SUBREASON
OMC STATE
OMC TIME
OMC IDLE TIME
OMC CALL START TIME
OMC PROTOCL START TIME
RX HDLC FRAME COUNT
RX HDLC ERROR COUNT
TX FRAME COUNT
TX RETRANSMIT FRAME COUNT
RX FRAME COUNT
RX DUPLICATED FRAME COUNT
RX MISSING FRAME COUNT
RX RETRANSMIT FRAME COUNT
RX OVERFLOW FRAME COUNT
TX DATA COUNT
TX COMPRESSED DATA COUNT
RX DATA COUNT
RX COMPRESSED DATA COUNT
0000
0000
0008
280
0
2
19
356
0
3
0
0
0
0
0
0
3
12
0
0
OK
&V3 - Display Connection Statistics
This statistic is valid during a data call. If no data call is in progress, these commands report the statistics for the
previous data call.
Error correction PROTOCOL LAPM
Data COMPRESSION
V42bis
OK
AT Command s for Dense Modem Family
21
&V4 - Display Connection Statistics
This statistic is valid during a data call. If no data call is in progress, these commands report the statistics for the
previous data call.
MODULATION STATE
RDLB STATUS
22
0002
0000
AT Commands for Dense Modem Family
V8 CALL FUNCTION
V8 MODULATION MODES
V8 PROTOCOLS
V8 GSTN ACCESS
V8 VPCM AVAILIBILITY
c1
45
0a
8d
00
Result Codes
OK
n = 0 to 5
&V5 - Display Connection Statistics
This statistic is valid during a data call. If no data call is in progress, these commands report the statistics for the
previous data call.
SNR MSE
TX LEVEL dBm
RX LEVEL dBm
TX V.34 SYMBOL RATE
RX V.34 SYMBOL RATE
ROUND TRIP DELAY
b2cd
-12.965
-16.402
0000
0000
0015
OK
&Wn - Store Current Configuration
Saves the current (active) configuration (profile), including S-Registers, in one of the two user profiles in NVRAM as
denoted by the parameter value. This command will yield an ERROR message if the NVRAM is not installed or is not
operational as detected by the NVRAM test.
The current configuration is comprised of a list of storable parameters illustrated in the &V command. These settings are
restored to the active configuration upon receiving an Zn command or at power up (see &Yn command).
&W0
&W1
Store the current configuration as profile 0.
Store the current configuration as profile 1.
Result Codes:
OK
ERROR
n = 0 or 1.
Otherwise.
&Xn - Select Synchronous Clock Source
Selects the source of the transmit clock for the synchronous mode of operation. The parameter value, if valid, is written to
S27 bits 4 and 5.
In asynchronous mode, the transmit and receive clocks are turned OFF. In synchronous mode, the clocks are turned ON
with the frequency of 1200 Hz or faster corresponding to the speed that is selected for modem operation.
&X0
Selects internal timing. The modem generates the transmit clock signal and applies it to the TXCLK
output at the serial interface.
&X1
Selects external timing. The local DTE sources the transmit clock signal on the XTCLK input of the
serial interface. The modem applies this clock to the TXCLK output at the serial interface.
&X2
Selects slave receive timing. The modem derives the transmit clock signal from the incoming carrier
and applies it to the TXCLK output at the serial interface.
Result Codes:
OK
n = 0 to 2.
ERROR
Otherwise.
&Yn - Designate a Default Reset Profile
Selects which user profile will be used after a hard reset.
&Y0
&Y1
The modem will use profile 0.
The modem will use profile 1.
Result Codes:
OK
n = 0 to 1.
ERROR
If n > 1, or if NVRAM is not installed or is not operational.
AT Command s for Dense Modem Family
23
&Zn=x - Store Telephone Number
The modem can store up to four telephone numbers and each telephone number dial string can contain up to 34 digits.
&Zn=x
n = 0 to 3 and x = dial string. (Requires 256-byte NVRAM.)
Result Codes:
OK
ERROR
n = 0 - 3, and x = 0 - 34 digits.
If n > 3, x > 35 digits, or if NVRAM is not installed or is not operational.
AT% Commands
%En - Enable/Disable Line Quality Monitor and Auto-Retrain or Fallback/Fall
Forward
Controls whether or not the modem will automatically monitor the line quality and request a retrain (%E1) or fall back
when line quality is insufficient or fall forward when line quality is sufficient (%E2). The parameter value, if valid, is written
to S41 bits 2 and 6.
If enabled, the modem attempts to retrain for a maximum of 30 seconds.
%E0
Disable line quality monitor and auto-retrain.
%E1
Enable line quality monitor and auto-retrain.
%E2
Enable line quality monitor and fallback/fall forward. (Default.)
Result Codes:
OK
ERROR
24
n = 0, 1, or 2.
Otherwise.
AT Commands for Dense Modem Family
Fallback/Fall Forward. When %E2 is active, the modem monitors the line quality (EQM). When line quality is
insufficient, the modem will initiate a rate renegotiation to a lower speed within the V.34/V.32 bis/V.32 or V.32 bis/V.32
modulation speeds. The modem will keep falling back within the current modulation if necessary until the speed reaches
2400 bps (V.34) or 4800 bps (V.32). Below this rate, the modem will only do retrains if EQM thresholds are exceeded. If
the EQM is sufficient for at least one minute, the modem will initiate a rate renegotiation to a higher speed within the
current modulation speeds. The rate renegotiations will be done without a retrain if a V.32 bis connection is established.
Speeds attempted during fallback/fall forward are those shown to be available in the rate sequences exchanged during
the initial connection. Fallback/fall forward is available in error correction and normal modes, but not in direct mode or
synchronous mode with external clocks.
%T - PTT Testing Utilities
The AT%TTnn command facilitates PTT testing of signal levels by providing continuous signals regardless of whether the
modem is connected or not. The signal transmitted is in accordance with the parameter provided.
Following is a range of commands that allow the user to initiate a series of signals that are necessary for PTT approval.
The signals emitted include answer tone, modulation, carriers, and other pertinent signals. A test is initiated upon receipt
of AT%TTnn (where nn is a test number), and the test is aborted when any keyboard character is entered. The modem
will continuously transmit the tone or carrier according to the parameter supplied.
DTMF Tones
%TT00
%TT01
%TT02
%TT03
%TT04
%TT05
%TT06
%TT07
%TT08
%TT09
%TT0A
%TT0B
%TT0C
%TT0D
%TT0E
%TT0F
DTMF digit 0.
DTMF digit 1.
DTMF digit 2.
DTMF digit 3.
DTMF digit 4.
DTMF digit 5.
DTMF digit 6
DTMF digit 7.
DTMF digit 8.
DTMF digit 9.
DTMF digit *.
DTMF digit #.
DTMF digit A.
DTMF digit B.
DTMF digit C.
DTMF digit D.
Low Speed Modulations
%TT10
%TT11
%TT12
%TT13
%TT15
%TT16
%TT17
%TT18
%TT19
%TT1A
%TT1B
%TT1C
V.21 channel 1 (originate) mark symbol.
V.21 channel 2 (answer) mark symbol.
V.23 backward (originate) channel mark symbol.
V.23 forward (answer) channel mark symbol.
V.22 originate (call mark) signalling at 1200 bps.
V.22 bis originate (call mark) signalling at 2400 bps.
V.22 answer signalling (guard tone if PTT required).
V.22 bis answer signalling (guard tone if required).
V.21 channel 1 (originate) space symbol.
V.21 channel 2 (answer) space symbol.
V.23 backward (originate) channel space symbol.
V.23 forward (answer) channel space symbol.
V.32 Modulations
%TT20
%TT21
V.32 9600 bps.
V.32 bis 14400 bps.
Miscellaneous Tones
%TT30
%TT31
%TT32
%TT33
%TT34
%TT40
%TT41
%TT42
%TT43
%TT44
%TT45
%TT46
%TT47
%TT48
Silence (on-line), i.e., go off-hook
V.25 answer tone.
1800 Hz guard tone.
V.25 calling tone (1300 Hz).
Fax calling tone (1100 Hz).
FAX V.21 channel 2.
FAX V.27 ter 2400 bps.
FAX V.27 ter 4800 bps.
FAX V.29 7200 bps.
FAX V.29 9600 bps.
FAX V.17 7200 bps long train.
FAX V.17 7200 bps short train.
FAX V.17 9600 bps long train.
FAX V.17 9600 bps short train.
AT Command s for Dense Modem Family
25
%TT49
%TT4A
%TT4B
%TT4C
26
FAX
FAX
FAX
FAX
V.17 12000 bps long train.
V.17 12000 bps short train.
V.17 14400 bps long train.
V.17 14400 bps short train.
AT Commands for Dense Modem Family
V.34 Modulations The AT%TT command for selecting the V.34 modulations requires additional parameters.
The syntax is:
AT%TT6 rate, symbol, carrier, aux, preemp
rate
Data rate of 0-D for 2400 to 33600.
symbol
Symbol rate of 0-5.
carrier
Carrier frequency of 0 for low and 1 for high.
aux
Auxiliary channel. 0 for disabled and 1 for enabled.
preemp
Pre-emphasis of 0-A for 0 to 10 dB.
Example:
AT%TT6D,5,0,0,0
AT\ Commands
\Kn - Break Control
Controls the response of the modem to a break received from the DTE or the remote modem or the \B command
according to the parameter supplied. The parameter value, if valid, is written to S40 bits 3, 4, and 5.
The response is different in three separate states.
The first state is where the modem receives a break from the DTE when the modem is operating in data transfer mode:
\K0
Enter on-line command mode, no break sent to the remote modem.
\K1
Clear data buffers and send break to remote modem.
\K2
Same as 0.
\K3
Send break to remote modem immediately.
\K4
Same as 0.
\K5
Send break to remote modem in sequence with transmitted data. (Default.)
The second state is where the modem is in the on-line command state (waiting for AT commands) during a data
connection, and the \B is received in order to send a break to the remote modem:
\K0
Clear data buffers and send break to remote modem.
\K1
Clear data buffers and send break to remote modem. (Same as 0.)
\K2
Send break to remote modem immediately.
\K3
Send break to remote modem immediately. (Same as 2.)
\K4
Send break to remote modem in sequence with data.
\K5
Send break to remote modem in sequence with data. (Same as 4.) (Default.)
The third state is where a break is received from a remote modem during a non-error corrected connection:
\K0
Clears data buffers and sends break to the DTE.
\K1
Clears data buffers and sends break to the DTE. (Same as 0.)
\K2
Send a break immediately to DTE.
\K3
Send a break immediately to DTE. (Same as 2.)
\K4
Send a break in sequence with received data to DTE.
\K5
Send a break in sequence with received data to DTE. (Same as 4.) (Default.)
Result Codes:
OK
n = 0 to 5.
AT Command s for Dense Modem Family
27
ERROR
Otherwise.
\Nn - Operating Mode
This command controls the preferred error correcting mode to be negotiated in a subsequent data connection. This
command is affected by the OEM firmware configuration.
\N0
Selects normal speed buffered mode (disables error-correction mode). (Forces &Q6.)
\N1
Serial interface selected - Selects direct mode and is equivalent to &M0, &Q0 mode of
operation. (Forces &Q0.)
Parallel interface selected - Same as \N0.
\N2
Selects reliable (error-correction) mode. The modem will first attempt a LAPM connection and then
an MNP connection. Failure to make a reliable connection results in the modem hanging up. (Forces
&Q5, S36=4, and S48=7.)
\N3
Selects auto reliable mode. This operates the same as \N2 except failure to make a reliable
connection results in the modem falling back to the speed buffered normal mode. (Forces
&Q5,S36=7, and S48=7.)
\N4
Selects LAPM error-correction mode. Failure to make an LAPM error-correction connection results in
the modem hanging up. (Forces &Q5 and S48=0.) Note: The -K1 command can override the \N4
command.
\N5
Selects MNP error-correction mode. Failure to make an MNP error-correction connection results in
the modem hanging up. (Forces &Q5, S36=4, and S48=128.)
Result Codes:
OK
ERROR
28
n = 0 to 5.
Otherwise.
AT Commands for Dense Modem Family
\Vn - Single Line Connect Message Enable
The single line connect message format can be enabled or disabled by the \Vn command as follows:
\V0
Connect messages are controlled by the command settings X, W, and S95.
\V1
Connect messages are displayed in the single line format described below subject to thecommand
settings V (Verbose) and Q (Quiet). In Non-Verbose mode (V0), single line connect messages are
disabled and a single numeric result code is generated for CONNECT DTE.
When single line connect messages are enabled, there are no CARRIER, PROTOCOL, or COMPRESSION messages
apart from the fields described below.
The single line connect message format is:
CONNECT <DTE Speed></Modulation></Protocol></Compression></Line Speed>/<Voice and Data>
Where:
<DTE Speed =
DTE speed, e.g., 57600.
Modulation =
“V32” for V.32 or V.32bis modulations.
“V34” for V.34 modulations.
Note: Modulation is omitted for all other modulations.
Protocol =
“NONE” for no protocol.
“ALT” for Microcom Network Protocol.
“LAPM” for LAP-M protocol.
Compression =
“CLASS5” for Microcom MNP5 compression.
“V42BIS” for V.42bis compression.
Note: Compression is omitted if protocol is NONE.
Line Speed =
Asymmetric rates are displayed as /rate:TX/rate:RX, e.g., /1200 TX/75 RX.
Symmetric rates are displayed as a single DCE rate, e.g., 14400.
Voice and Data = Blank for Data mode only.
“SVD” for AudioSpan analog simultaneous audio/voice and data.
“DSVD” for G.729A or DigiTalk digital simultaneous voice and data.
Result Codes
OK
n = 0 or 1
AT+ Commands
+MS - Select Modulation
This extended-format command selects the modulation and, optionally, enables or disables automode, specifies the
lowest and highest connection rates, selects m-Law or A-Law codec type, and enables or disables robbed bit signaling
generation (server modem) or detection (client modem) using one to five subparameters. The command format is:
+MS= <mod> [,[<automode>][,[<min_rate>][,[<max_rate>][,[<x_law>][,[< rb_signaling>]]]]]]<CR>
Notes:
1.
For 14400 bps and lower speeds, the Nn command and S37 register can alternatively be used, in
which case the +MS subparameters will modified to reflect the Nn and S37=x settings. Use of the Nn
and S37=x commands is not recommended but is provided for compatibility with existing
communication software. (S37 is not updated by the +MS command.)
2.
Subparameters not entered (enter a comma only or <CR> to skip the last subparameter) remain at
their current values.
Reporting Selected Options
The modem can send a string of information to the DTE consisting of selected options using the following command:
+MS?
AT Command s for Dense Modem Family
29
The response is:
+MS: <mod>,<automode>,<min_rate>,<max_rate>,<x_law>,<rb_signaling>
For example,
+MS: 56,1,300,56000,0,0
+MS: 11,1,300,33600,0,0
+MS: 10,1,300,14400,0,0
Reporting Supported Options
The modem can send a string of information to the DTE consisting of supported options using the following command:
+MS=?
The response is:
+MS: (list of supported <mod> values), (list of supported <automode> values),(list of supported <min_rate> values),
(list of supported <max_rate> values), (list of supported <x_law> values), (list of supported <rb_signaling> values)
For example,
+MS: (0,1,2,3,9,10,11,56, 64,69),(0,1),(300-33600),(300-56000),(0,1),(0,1)
+MS: (0,1,2,3,9,10,11,64,69),(0,1),(300-33600),(300-33600),(0,1),(0,1)
+MS: (0,1,2,3,9,10,64,69),(0,1),(300-14400),(300-14400),(0,1),(0,1)
30
AT Commands for Dense Modem Family
Subparameter Definitions
•
<mod> = A decimal number which specifies the preferred modulation (automode enabled) or the modulation
(automode disabled) to use in originating or answering a connection. The options are:
<mod>
Modulation
Possible Rates (bps) 1
0
1
2
3
9
10
11
V.21
V.22
V.22 bis
V.23
V.32
V.32 bis
V.34
56
K56flex
62
V.90
64
69
Bell 103
Bell 212
300
1200
2400 or 1200
1200 See Note 2
9600 or 4800
14400, 12000, 9600, 7200, or 4800
33600, 31200, 28800, 26400, 24000, 21600, 19200,
16800, 14400, 12000, 9600, 7200, 4800, or 2400
56000, 54000, 52000, 50000, 48000, 46000, 44000,
42000, 40000, 38000, 36000, 34000, 32000
56000, 54000, 52000, 50000, 48000, 46000, 44000,
42000, 40000, 38000, 36000, 34000, 32000
300
1200
Notes:
•
1.
See optional <automode>, <min_rate>, and <max_rate> subparameters.
2.
For V.23, originating modes transmit at 75 bps and receive at 1200 bps; answering
modes transmit at 1200 bps and receive at 75 bps. The rate is always specified as
1200 bps.
The modem may also automatically switch to another modulation (automode), subject to the following constraints:
-
The modem may not be able to automatically switch from the current modulation (specified by
<mod>) to some other modulation. For example, there is no standard way to automode from Bell 103
to V.23.
The DTE may disable automode operation (see <automode> below).
The DTE may constrain the range of modulations available by specifying the lowest and highest
rates (see <min_rate> and <max_rate> below).
•
<automode> is an optional numeric value which enables or disables automatic modulation negotiation using V.8
bis/V.8 or V.32 bis Annex A. The options are:
<automode>
0
1
Option Selected
Automode disabled
Automode enabled using V.8 bis/V.8 or V.32 Annex A
Notes
Default
The default value is 1, which enables automode. Note, however, there are modulations for which there is no
automatic negotiation, e.g., Bell 212 (<mod> = 69).
For <automode> = 0 (automode disabled, i.e., fixed modulation):
-
If <max_rate> is within the rates supported by the selected modulation, the selected rate is that
specified by <max_rate>. For example:
+MS=10,0,1200,4800 selects V.32 bis 4800 bps fixed rate.
-
If <max_rate> is greater than the highest speed supported by the modulation specified by <mod>,
the starting rate is the highest rate supported by the selected modulation. For example:
+MS=10,0,2400,14400 selects V.32 bis 14400, 12000, 9600, 7200, or 4800 bps.
AT Command s for Dense Modem Family
31
-
To emulate issuance of the N0S37=x command sequence to select fixed mode operation, specify
the <max_rate> and <min_rate> both to be the (same) requested speed, and <mod> to be the
modulation for that speed. For example:
+MS=11,0,16800,16800 selects V.34 16800 bps fixed mode (no comparable S37 command).
+MS=10,0,12000,12000 selects V.32 bis 12000 bps fixed mode (same as N0S37=10).
For <automode> = 1 (automode enabled, i.e., automatically selected speed and modulation):
The modem connects at the highest possible rate in accordance with V.8 bis/V.8, or V.32 bis Annex A if V.8
bis/V.8 is not supported by the remote modem.
-
If <max_rate> is greater than the highest rate supported by the modulation specified by <mod>, the
modem automodes down from the highest rate of the selected modulation. For example:
+MS=10,1,1200,24000 selects automoding down from V.32 bis 14400 bps.
-
To emulate issuance of the N1S37=x sequence command, specify the modulation and the rate to
start automoding down from using <mod> and <max_rate>, respectively. Set <min_rate> to 300 to
allow automoding all the way down to V.21 300 bps. For example:
+MS=11,1,300,16800 selects automode starting at V.34 16800 bps (no comparable S37 command).
+MS=9,1,300,12000 selects automode starting at V.32 bis 12000 bps (same as N1S37=10).
•
<min_rate> is an optional number which specifies the lowest rate at which the modem may establish a connection.
The value is decimal coded, in units of bps, e.g., 2400 specifies the lowest rate to be 2400 bps. The default is 300
for 300 bps.
•
<max_rate> is an optional number which specifies the highest rate at which the modem may establish a connection.
The value is decimal coded, in units of bps, e.g., 14400 specifies the highest rate to be 14400 bps. The default is
28800 for 28800 bps.
•
<x_law> is an optional number which specifies the codec type. The options are:
0 = m-Law
1 = A-Law
Note that ATZ will reset the <x_law> selection to 0 (m-Law).
•
<rb_signaling> is an optional number which enables or disables robbed bit signaling generation in a server modem
or enables or disables robbed bit signaling detection in a client modem. The options are:
0 = Robbed bit signaling generation (server modem ) or detection (client modem) disabled (default)
1 = Robbed bit signaling generation (server modem ) or detection (client modem) enabled
Note that ATZ will reset the <rb_signaling> selection to 0 (disabled).
Result Codes:
OK
ERROR
Valid subparameter string
Otherwise.
AT+MS - Select Modulation
Default modulation
The default for the <mod> (modulation) parameter is 12 (V.90 and K56flex) on DataFire PTE RAS or DataFire RAS
4BU/ST.
V.90 digital client
V.90 client mode is now enabled by default on on DataFire PTE RAS or DataFire RAS 4BU/ST. See S register 241
to disable V.90 client on on DataFire PTE RAS or DataFire RAS 4BU/ST.
V.23 half-duplex
V.23 in 1200 baud half-duplex mode is an additional supported modulation that is selected when <mod> is 4. In this
mode, CD should be enabled, hardware flow control should be disabled, and RTS/CTS tracking should be enabled. A
typical initialization string for V.23 half-duplex is:
AT&C1&K0&R0+MS=4
To transmit in V.23 half-duplex mode, raise RTS and wait for CTS to rise (or just delay, say, 100 msecs). Then send your
data (remember to flush all buffers) and the drop RTS to return to receiving.
32
AT Commands for Dense Modem Family
AT Command s for Dense Modem Family
33
ERROR DETECTION AND DATA COMPRESSION COMMANDS
AT% Commands
%C - Enable/Disable Data Compression
Enables or disables data compression negotiation. The modem can only perform data compression on an error corrected
link. The parameter value, if valid, is written to S41 bits 0 and 1.
%C0
Disables data compression. Resets S46 bit 1.
%C1
Enables MNP 5 data compression negotiation. Resets S46 bit 1.
%C2
Enables V.42 bis data compression. Sets S46 bit 1.
%C3
Enables both V.42 bis and MNP 5 data compression. Sets S46 bit 1. (Default.)
Result Codes:
OK
n = 0, 1, 2, or 3.
ERROR
Otherwise.
AT\ Commands
\An - Select Maximum MNP Block Size
The modem will operate an MNP error corrected link using a maximum block size controlled by the parameter supplied.
The parameter value, if valid, is written to S40 bits 6 and 7.
\A0
\A1
\A2
\A3
64 characters.
128 characters. (Default.)
192 characters.
256 characters.
Result Codes:
OK
ERROR
n = 0 to 3.
Otherwise.
\Bn - Transmit Break to Remote
In non-error correction mode, the modem will transmit a break signal to the remote modem with a length in multiples of
100 ms according to parameter specified. If a number in excess of 9 is entered, 9 is used. The command works in
conjunction with the \K command.
In error correction mode, the modem will signal a break through the active error correction protocol, giving no indication
of the length.
\B1-\B9
Break length in 100 ms units. (Default = 3.) (Non-error corrected mode only.)
Result Codes:
OK
If connected in data modem mode.
NO CARRIER
If not connected or connected in fax modem mode.
Note: When the modem receives a break from the remote modem, break is passed to the DTE as follows: In non-error
correction mode direct, the break length is passed; in non-error correction mode normal and in error correction mode, a
300 ms break is passed.
\Gn - Modem-to-Modem Flow Control (XON/XOFF)
In non-error correction mode, the modem enables or disables the generation or recognition of modem-to-modem
XON/XOFF flow control according to the parameter supplied. The parameter value, if valid, is written to S41 bit 3.
34
AT Commands for Dense Modem Family
In error correction mode, the setting of modem-to-modem XON/XOFF flow control is ignored. However, the serial port
flow control settings (AT&K) remain active during a reliable link.
Due to the buffering system used in the modem, modem-to-modem flow control is normally disabled.
\G0
Disables modem-to-modem XON/XOFF flow control. (Default.)
\G1
Enables modem-to-modem XON/XOFF flow control.
Result Codes:
OK
n = 0 or 1.
ERROR
Otherwise.
\Kn - Break Control
Controls the response of the modem to a break received from the DTE or the remote modem or the \B command
according to the parameter supplied. The parameter value, if valid, is written to S40 bits 3, 4, and 5.
The response is different in three separate states.
The first state is where the modem receives a break from the DTE when the modem is operating in data transfer mode:
\K0
Enter on-line command mode, no break sent to the remote modem.
\K1
Clear data buffers and send break to remote modem.
\K2
Same as 0.
\K3
Send break to remote modem immediately.
\K4
Same as 0.
\K5
Send break to remote modem in sequence with transmitted data. (Default.)
The second case is where the modem is in the on-line command state (waiting for AT commands) during a data
connection, and the \B is received in order to send a break to the remote modem:
\K0
Clear data buffers and send break to remote modem.
\K1
Clear data buffers and send break to remote modem. (Same as 0.)
\K2
Send break to remote modem immediately.
\K3
Send break to remote modem immediately. (Same as 2.)
\K4
Send break to remote modem in sequence with data.
\K5
Send break to remote modem in sequence with data. (Same as 4.) (Default.)
The third case is where a break is received from a remote modem during a non-error corrected connection:
\K0
Clears data buffers and sends break to the DTE.
\K1
Clears data buffers and sends break to the DTE. (Same as 0.)
\K2
Send a break immediately to DTE.
\K3
Send a break immediately to DTE. (Same as 2.)
\K4
Send a break in sequence with received data to DTE.
\K5
Send a break in sequence with received data to DTE. (Same as 4.) (Default.)
Result Codes:
OK
n = 0 to 5.
ERROR
Otherwise .
\Nn - Operating Mode
This command controls the preferred error correcting mode to be negotiated in a subsequent data connection.
AT Command s for Dense Modem Family
35
\N0
Selects normal speed buffered mode (disables error-correction mode). (Forces &Q6.)
\N1
Serial interface selected - Selects direct mode and is equivalent to &M0, &Q0 mode of operation.
(Forces &Q0.)
Parallel interface selected - Same as \N0.
\N2
Selects reliable (error-correction) mode. The modem will first attempt a LAPM connection and then
an MNP connection. Failure to make a reliable connection results in the modem hanging up. (Forces
&Q5, S36=4, and S48=7.)
\N3
Selects auto reliable mode. This operates the same as \N2 except failure to make a reliable
connection results in the modem falling back to the speed buffered normal mode. (Forces &Q5,
S36=7, and S48=7.)
\N4
Selects LAPM error-correction mode. Failure to make an LAPM error-correction connection results in
the modem hanging up. (Forces &Q5 and S48=0.) Note: The -K1 command can override the \N4
command.
\N5
Selects MNP error-correction mode. Failure to make an MNP error-correction connection results in
the modem hanging up. (Forces &Q5, S36=4, and S48=128.)
Result Codes:
36
OK
n = 0 to 5.
ERROR
Otherwise.
AT Commands for Dense Modem Family
MNP 10 COMMANDS
*Hn - Link Negotiation Speed
This command is included only for compatibility and performs no function.
*H0
*H0 command.
*H1
*H1 command.
*H2
*H2 command.
Result Codes:
OK
n = 0 to 2.
ERROR
Otherwise.
-Kn - MNP Extended Services
Enables or disables conversion of a V.42 LAPM connection to an MNP 10 connection. The parameter value, if valid, is
written to S40 bits 0 and 1.
-K0
Disables V.42 LAPM to MNP 10 conversion. (Default.)
-K1
Enables V.42 LAPM to MNP 10 conversion.
-K2
Enables V.42 LAPM to MNP 10 conversion; inhibits MNP Extended Services initiation during V.42
LAPM answer mode detection phase.
Result Codes:
OK
n = 0 or 2.
ERROR
Otherwise.
-Qn - Enable Fallback to V.22 bis/V.22
This command is included only for compatibility and performs no function.
-Q0
-Q0 command.
-Q1
-Q1 command.
Result Codes:
OK
n = 0 or 1.
ERROR
Otherwise.
AT Command s for Dense Modem Family
37
:E - Compromise Equalizer Enable Command
This command is included only for compatibility and performs no function.
:E0
:E0 command.
:E1
:E1 command.
Result Codes:
38
OK
n = 0 or 1.
ERROR
Otherwise.
AT Commands for Dense Modem Family
3.5 W-CLASS COMMANDS
AT* Commands
*B - Display Blacklisted Numbers
This command requests the modem to return a list of blacklisted numbers to the DTE. The format of the response is
shown by the example below. Permanently forbidden numbers as defined by country requirements will not appear on this
list. If no numbers are blacklisted, only the OK result code is issued.
Example:
NO. - PHONE NUMBER
------ ------------------------------------------1;
2;
3;
4;
5;
4175537660
8288924961
3887278862
3124839442
6284664
OK
*D - Display Delayed Numbers
This command causes the modem to send a list of the delayed numbers together with the delay associated with each.
The modem will return a list of delayed telephone numbers as defined in the *B command. The format of the response is
shown by the example below (delay times are shown as hours:minutes:seconds). If no numbers are delayed, only the OK
result code is issued.
Example:
NO. - PHONE NUMBER –DELAY
------ ------------------------------------------1;
2;
3;
4;
5;
8264734660
7532634661
2587334662
7532651663
7459931664
2:00:00
2:00:00
0:02:00
0:03:25
0:01:45
OK
*NCn - Country Select
Up to four sets of country parameters may be stored in the EPROM. This command checks to see if the entered number
matches the country code of one of the countries stored in the EPROM. If found, the modem stores the location of that
country in NVRAM. Upon power up or a soft reset (Z command), the modem uses this location to load the parameters for
the corresponding country. The default value of zero is used if no NVRAM is installed or the NVRAM failed self test
during reset.
Note: Automatic DAA country code recognition is enabled by the *NC0 command (the 0 country code is reserved for this
function). Automatic DAA country code recognition is disabled by the *NCn command selecting any other valid country
code.
*NCn
Select country parameters corresponding to entered country code (n). The country codes are:
Country
Code (n)
Australia
Austria
Belgium
Bulgaria
Canada
China
Czech Republic
Denmark
Finland
France
Germany
Greece
Hong Kong
Hungary
40
1
2
27
20
41
19
3
4
5
6
17
42
23
AT Command s for Dense Modem Family
39
India
Ireland
Israel
Italy
Japan
Korea
Luxembourg
Mexico
Netherlands
New Zealand
Norway
Philippines
Poland
Portugal
Russia
Singapore
Slovac Republic
Spain
Sweden
Switzerland
Taiwan
United Kingdom
United States
30
7
18
8
43
44
9
21
10
48
11
43
24
12
25
47
26
13
14
15
46
16
22
Result Codes:
40
OK
If parameters corresponding to entered country code are present in EPROM.
ERROR
Otherwise.
AT Commands for Dense Modem Family
CALLER ID COMMANDS
AT#CID Command
#CIDn - Caller ID / DNIS
Enables or disables Caller ID.
#CID=0
Disables Caller ID. (Default.)
#CID=1
Enables Caller ID with formatted presentation to the DTE. The modem will present the data items in
a <Tag><Value> pair format. The expected pairs are data, time, caller code (telephone number), and
name.
#CID=2
Enables Caller ID with unformatted presentation to the DTE. The modem will present the entire
packet of information, excluding the leading U's, in ASCII printable hex numbers.
#CID=10 Enables DNIS reporting. The modem will present the information in between the first and
second RING.
Result Codes:
OK
n = 0, 1, 2, or 10.
ERROR
Otherwise.
Inquiries
#CID?
#CID=?
Retrieves the current Caller ID mode from the modem.
Returns the mode capabilities of the modem in a list with each element separated by commas.
Formatted Form Reporting
The modem presents the data in the <tag> = <value> pair format as described in the table below. Spaces are present on
both sides of the equal sign.
Tag
Description
DATE
DATE = MMDD where MM is the month number (01 to 12) and DD is the day number
(01..31).
TIME
TIME = HHMM where HH is the hour number (00 to 23) and MM is the minute number (00
to 59).
NMBR
NMBR = <number> or P or O where <number> is the telephone number of the caller,
where P indicates that the calling number information is not available since the originating
caller has requested private service, and where O indicates that the calling number
information is not available or out of service at the calling location.
NAME
NAME = <listing name> where <listing name> is the subscription name.
MESG
MESG = <data tag> <length of message> <data> <checksum> in printable ASCII hex
numbers. This tag indicates a data item not listed above. The message is only possible for
Multiple Message Format.
Notes:
1.
2.
The modem does not present any Caller ID information if the DCE detects a checksum error in the Caller ID packet.
In the event of an unrecognized data tag, the modem will present the data in ASCII hex numbers following the
MESG tag.
AT Command s for Dense Modem Family
41
Example of Formatted Form Reporting
The following example illustrates the standard Caller ID message packet.
RING
DATE = 0321
TIME = 1405
NMBR = 5045551234
NAME = A N OTHER
RING
RING
The following example illustrates the case where the tag of the packet is not recognized by the mdem.
RING
MESG = 060342424231
RING
RING
Unformatted Form Reporting
The modem presents all information and packet control information found in the message. The modem, however,
excludes the leading U's (channel seizure information) from the presentation. The packet is presented in ASCII printable
hex numbers, the modem does not insert spaces, or line feeds, for formatting between bytes or words of the packet.
The modem does not detect the checksum of the packet .
Example of Unformatted Form Reporting
RING
0412303332323234303539313435353132333435
RING
RING
42
AT Commands for Dense Modem Family
DNIS Reporting
The modem presents all information after the first ring and before the second. The information presented is ASCII
printable decimal numbers and characters. Format of the <calling number> is dependent on how the switch is
configured.
Example of DNIS Reporting
RING
NMBR = <calling number>
NDID = <calling number>
RING
RING
The following are Digi extensions that display ANI/DNIS information. Any ANI/DNIS information that is available from the
telco, and understood by the firmware, is always stored internally. The following commands control only the transmission
of this information to the DTE. The information stored remains valid and may be displayed at any time until the beginning
of the next call. These commands are all minor extensions of existing commands, because no standard existed to
display both called and calling numbers.
AT#CID=10
Modeled on the standard Rockwell caller-id output, this produces the following messages after the first RING.
NDID=["<NONE>" | <called party number>]
NMBR=["<NONE>" | <calling party number>]
Note: Unlike the Rockwell caller-id messages, the <tag>=<value> pair will always be emitted, even when the information
is not present. The value "<NONE>" will be used in these cases.
AT+VCID=10
The V.253 variant of the Rockwell AT#CID command. The output generated is identical.
AT+VRID=10
An extension of the standard V.253 command that produces, on demand, the same output as AT+VCID=10 does after
the first RING.
AT Command s for Dense Modem Family
43
AT COMMAND RESULT CODES
The modem responds to commands from the DTE and to activity on the line by signaling to the DTE in the form of result
codes. The result codes that the modem can send are described below.
Two forms of each result code are available: long-form, an English-like "verbose" response, and short-form, a data-like
numeric response (included in parentheses following the long-form). The long-form code is preceded and terminated by
the sequence < CR> < LF>. The short-form is terminated by < CR>, only with no preceding sequence.
If result messages are suppressed, nothing is returned to the DTE.
OK (0)
The OK code is returned by the modem to acknowledge execution of a command line.
CONNECT (1)
The modem will send this result code upon connecting when:
•
•
•
The line speed is 300 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
The DTE speed is 300 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting, or
The range of result code responses is restricted by the X command such that no speed reporting is
allowed.
RING (2)
The modem sends this result code when incoming ringing is detected on the line. What qualifies as a ring signal is
determined by country-dependent parameters.
NO CARRIER (3)
The modem sends this result code when attempting to establish a call if:
•
Ringback is detected and later ceases but no carrier is detected within the period of time determined by register S7,
or
•
No ringback is detected within the period of time determined by register S7.
This result code is also used when the modem auto-disconnects due to loss of carrier.
Under X0, if busy tone detection is enforced, this result code is used as a response to the detection of busy or circuit
busy. Under X0, if dial tone detection is enforced or selected, this result code is used to indicate that dial tone has not
been detected.
ERROR (4)
The modem returns this result code if the command line contains a syntax error or it is unable to execute a command
contained in the command line. It is issued if a command does not exist or if the parameter supplied is outside the
permitted range.
Under X0, X1, X2, and X3, this result is used instead of DELAYED and BLACKLISTED.
CONNECT 1200 (5)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 1200 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 1200 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
(Also, see the W command.)
NO DIALTONE (6)
For X2 and X4, the modem sends this result code if it has been instructed to wait for dial tone during dialing but none is
received.
44
AT Commands for Dense Modem Family
When cellular phone interface is selected, NO DIALTONE indicates that cellular service is not currently available.
BUSY (7)
For X3 and X4, if busy tone detection is enforced, the modem sends this result code when attempting to originate a call if
the busy (engaged) signal is detected on the line.
NO ANSWER (8)
The modem sends this result code when attempting to originate a call if a continuous ringback signal is detected on the
line until the expiration of the timer S7.
CONNECT 0600 (9)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 600 bps and the modem has been instructed to report the line speed to the DTE upon connecting,
or
•
The DTE speed is 600 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
CONNECT 2400 (10)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 2400 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 2400 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
CONNECT 4800 (11)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 4800 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 4800 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
CONNECT 9600 (12)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 9600 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 9600 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
CONNECT 7200 (13)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 7200 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 7200 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
CONNECT 12000 (14)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 12000 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 12000 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
AT Command s for Dense Modem Family
45
CONNECT 14400 (15)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 14400 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 14400 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
CONNECT 19200 (16)
For X1, X2, X3, and X4, the modem sends this result code when:
•
The line speed is 19200 bps and the modem has been instructed to report the line speed to the DTE upon
connecting, or
•
The DTE speed is 19200 bps and the modem has been instructed to report the DTE speed to the DTE upon
connecting.
CONNECT 38400 (17)
For X1, X2, X3, and X4, the modem sends this result code upon connecting when the DTE speed is 38400 bps and the
modem has been instructed to report the DTE speed to the DTE upon connecting.
CONNECT 57600 (18)
For X1, X2, X3, and X4, the modem sends this result code upon connecting when the DTE speed is 57600 bps and the
modem has been instructed to report the DTE speed to the DTE upon connecting.
CONNECT 115200 (19)
For X1, X2, X3, and X4, the modem sends this result code upon connecting when the DTE speed is 115200 bps and the
modem has been instructed to report the DTE speed to the DTE upon connecting.
CONNECT 75TX/1200RX (22)
For X1, X2, X3, and X4, the modem returns this result code upon establishing a V.23 originate connection when the
modem has been instructed to report the DCE speed upon connection.
CONNECT 1200TX/75RX (23)
For X1, X2, X3, and X4, the modem returns this result code upon establishing a V.23 answer connection when the
modem has been instructed to report the DCE speed upon connection.
DELAYED (24)
For X4, the modem returns this result code when a call fails to connect and the number dialed is considered 'delayed'
due to country blacklisting requirements.
BLACKLISTED (32)
For X4, the modem returns this result code when a call fails to connect and the number dialed is considered 'blacklisted'.
FAX (33)
The modem returns this result code when a fax modem connection is established in a facsimile mode.
DATA (35)
The modem returns this result code when a data modem connection is established in a facsimile mode.
CARRIER 300 (40)
The modem returns this result code when a 0-300 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
46
AT Commands for Dense Modem Family
CARRIER 1200/75 (44)
The modem sends this result code when the V.23 backward channel carrier has been detected on the line and carrier
reporting has been enabled. (See S95 and Xn.)
CARRIER 75/1200 (45)
The modem sends this result code when the V.23 forward channel carrier has been detected on the line and carrier
reporting has been enabled. (See S95 and Xn.)
CARRIER 1200 (46)
The modem sends this result code when a 1200 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 2400 (47)
The modem sends this result code when a 2400 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 4800 (48)
The modem sends this result code when a 4800 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 7200 (49)
The modem sends this result code when a 7200 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 9600 (50)
The modem sends this result code when a 9600 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 12000 (51)
The modem sends this result code when a 12000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 14400 (52)
The modem sends this result code when a 14400 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 16800 (53)
The modem sends this result code when a 16800 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 19200 (54)
The modem sends this result code when a 19200 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 21600 (55)
The modem sends this result code when a 21600 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 24000 (56)
The modem sends this result code when a 24000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 26400 (57)
The modem sends this result code when a 26400 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
AT Command s for Dense Modem Family
47
CARRIER 28800 (58)
The modem sends this result code when a 28800 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CONNECT 16800 (59)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 16800 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 21600 (61)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 21600 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 24000 (62)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 24000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 26400 (63)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 26400 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 28800 (64)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 28800 bps and the
modem has been instructed to report the DTE speed upon connecting.
COMPRESSION: CLASS 5 (66)
This message is sent to the DTE when the modem has connected in MNP Class 5 and COMPRESSION message
reporting has been enabled. (See S95 and Xn.)
COMPRESSION: V.42 bis (67)
This message is sent to the DTE when the modem has connected in V.42 bis and COMPRESSION message reporting
has been enabled. (See S95 and Xn.)
COMPRESSION: NONE (69)
This message is sent to the DTE when the modem has connected without data compression and COMPRESSION
message reporting has been enabled. (See S95 and Xn.)
PROTOCOL: NONE (70)
This message is sent to the DTE when the modem has connected without any form of error correction, and the
PROTOCOL message reporting has been enabled. (See S95 and Xn.)
PROTOCOL: LAPM (77)
This message is sent to the DTE when the modem has connected in the V.42 LAPM mode of error correction, and
PROTOCOL message reporting has been enabled. (See S95 and Xn.)
CARRIER 31200 (78)
The modem sends this result code when a 31200 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 33600 (79)
The modem sends this result code when a 33600 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
PROTOCOL: ALT (80)
This message is sent to the DTE when the modem has connected in the MNP mode of error correction, and PROTOCOL
message reporting has been enabled. (See S95 and Xn.)
48
AT Commands for Dense Modem Family
PROTOCOL: ALT-CELLULAR (81)
This message is sent to the DTE when the modem has connected in the MNP 10 mode and cellular power level
adjustment is enabled (")M1 or )M2").(See S95 and Xn.)
CONNECT 33600 (84)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 33600 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 31200 (91)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 31200 bps and the
modem has been instructed to report the DTE speed upon connecting.
CARRIER 32000 (150)
The modem sends this result code when a 32000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 34000 (151)
The modem sends this result code when a 34000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 36000 (152)
The modem sends this result code when a 36000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 38000 (153)
The modem sends this result code when a 38000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 40000 (154)
The modem sends this result code when a 40000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 42000 (155)
The modem sends this result code when a 42000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 44000 (156)
The modem sends this result code when a 44000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 46000 (157)
The modem sends this result code when a 46000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 48000 (158)
The modem sends this result code when a 48000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 50000 (159)
The modem sends this result code when a 50000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 52000 (160)
The modem sends this result code when a 52000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
AT Command s for Dense Modem Family
49
CARRIER 54000 (161)
The modem sends this result code when a 54000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CARRIER 56000 (162)
The modem sends this result code when a 56000 bps data rate has been detected on the line and carrier reporting has
been enabled. (See S95 and Xn.)
CONNECT 32000 (165)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 32000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 34000 (166)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 34000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 36000 (167)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 36000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 38000 (168)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 38000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 40000 (169)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 40000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 42000 (170)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 42000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 44000 (171)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 44000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 46000 (172)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 46000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 48000 (173)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 48000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 50000 (174)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 50000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 52000 (175)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 52000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 54000 (176)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 54000 bps and the
modem has been instructed to report the DTE speed upon connecting.
50
AT Commands for Dense Modem Family
CONNECT 56000 (177)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 56000 bps and the
modem has been instructed to report the DTE speed upon connecting.
CONNECT 230400 (20)
For X1, X2, X3, and X4, the modem returns this result code upon connecting when the DTE speed is 230400 bps and the
modem has been instructed to report the DTE speed upon connecting.
+FCERROR (+F4)
This message is sent to the DTE when high speed fax data (V.27, V.29, V.33, or V.17) is expected and a V.21 signal is
received.
AT Command s for Dense Modem Family
51
CHAPTER 4. S-REGISTERS
The S-Registers are summarized in Table 4-1 along with their default values; registers denoted with an '*' may be stored
in one of the two user profiles by entering the &Wn command. One of these profiles may be loaded at any time by using
the Zn command. Registers or register fields quoted as “reserved” are reserved for current or future use by the firmware,
or are permanently overridden by PTT limitations.
All bit-mapped registers are read-only. The appropriate AT command which controls the relevant bits in the S-Register
should be used to change the value.
FACTORY DEFAULTS
The factory default values are stored in ROM and are loaded into the active configuration at power up or by the ATZn
command. In addition, the designated default profile is subsequently loaded, and may change some of the factory default
values. The designated default profile can be changed by entering the &Yn command where n is one of the two possible
user profiles.
The defaults shown are those used in factory profiles zero and one.
The factory default values may be loaded at any time by entering the &Fn command.
52
AT Commands for Dense Modem Family
Table 4-1. S-Register Summary
Register
Function
S0
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S25
Rings to Auto-Answer
Ring Counter
Escape Character
Carriage Return Character
Line Feed Character
Backspace Character
Wait Time for Dial Tone
Wait Time for Carrier
Pause Time for Dial Delay Modifier
Carrier Detect Response Time
Carrier Loss Disconnect Time
DTMF Tone Duration
Escape Prompt Delay
Reserved
General Bit Mapped Options Status
Reserved
Test Mode Bit Mapped OptionsStatus (&T)
Reserved
Test Timer
AutoSync Options
AutoSync HDLC Address or BSC Sync
Character
V.24/General Bit Mapped Options Status
Speaker/Results Bit Mapped Options Status
General Bit Mapped Options Status
Sleep Inactivity Timer
Delay to DTR Off
Range
Units
0-255
0-255
0-255
0-127
0-127
0-32
2-255
1-255
0-255
1-255
1-255
50-255
0-255
-
Rings
Rings
ASCII
ASCII
ASCII
ASCII
s
s
s
0.1 s
0.1 s
0.001 s
0.02 s
-
0-255
0-255
-
-
-
*
*
*
*
*
*
*
*
*
*
0-255
0-255
s
-
s
s or
0.01 s
S26
RTS-to-CTS Delay
0-255
0.01 s
S27
General Bit Mapped Options Status
S28
General Bit-Mapped Options Status
S29
Flash Dial Modifier Time
0-255
10 ms
S30
Disconnect Inactivity Timer
0-255
10 s
S31
General Bit-Mapped Options Status
S32
XON Character
0-255
ASCII
S33
XOFF Character
0-255
ASCII
S34
S35 Reserved
S36
LAPM Failure Control
S37
Line Connection Speed
S38
Delay Before Forced Hangup
0-255
s
S39
Flow Control Bit Mapped Options Status
S40
General Bit-Mapped Options Status
S41
General Bit-Mapped Options Status
S42 - S45
Reserved
S46
Data Compression Control
S48
V.42 Negotiation Control
S82
LAPM Break Control
S86
Call Failure Reason Code
0-255
S91
PSTN Transmit Attenuation Level
0-15
dBm
S92
Fax Transmit Attenuation Level
0-15
dBm
S95
Result Code Messages Control
* Register value may be stored in one of two user profiles with the &W command.
AT Command s for Dense Modem Family
Saved
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
Default
0
0
43
13
10
8
2
50
2
6
14
95
50
138 (8Ah)
0
0
0
0
52 (34h)
117 (75h)
62 (3Dh)
0
5
1
73 (49h)
0
70
0
194 (C2h)
17 (11h)
19 (13h)
7
0
20
3
104 (68h)
195 (C3h)
138
7
128(40h)
10 (Country dependent)
10 (Country dependent)
0
53
S-REGISTER DEFINITIONS
S0 - Number of Rings to Auto-Answer
Sets the number of the rings required before the modem automatically answers a call. Setting this register to zero
disables auto-answer mode.
Range:
0-255 rings
Default:
0
S1 - Ring Counter
S1 is incremented each time the modem detects a ring signal on the telephone line. S1 is cleared if no rings occur over
an eight second interval.
Range:
0-255 rings
Default:
0
S2 - Escape Character
S2 holds the decimal value of the ASCII character used as the escape character. The default value corresponds to an
ASCII '+'. A value over 127 disables the escape process, i.e., no escape character will be recognized.
Range:
0-255, ASCII decimal
Default:
43 (+)
S3 - Carriage Return Character
Sets the command line and result code terminator character. Pertains to asynchronous operation only.
Range:
0-127, ASCII decimal
Default:
13 (Carriage Return)
S4 - Line Feed Character
Sets the character recognized as a line feed. Pertains to asynchronous operation only. The Line Feed control character
is output after the Carriage Return control character if verbose result codes are used.
Range:
0-127, ASCII decimal
Default:
10 (Line Feed)
S5 - Backspace Character
Sets the character recognized as a backspace. Pertains to asynchronous operation only. The modem will not recognize
the Backspace character if it is set to a value that is greater than 32 ASCII. This character can be used to edit a
command line. When the echo command is enabled, the modem echoes back to the local DTE the Backspace character,
an ASCII space character and a second Backspace character; this means a total of three characters are transmitted
each time the modem processes the Backspace character.
Range:
0-32, ASCII decimal
Default:
8 (Backspace)
S6 - Wait Time for Dial Tone Before Blind Dialing, or After “W” Dial Modifier (WClass Models)
Sets the length of time, in seconds, that the modem will wait before starting to dial after going off-hook when blind dialing.
This operation, however, may be affected by some ATX options according to country restrictions. The “Wait for Dial
Tone” call progress feature (W dial modifier in the dial string) will override the value in register S6.
For W-class models, S6 sets the length of time, in seconds, that the modem will wait for dial tone when encountering a
“W” dial modifier before returning NO DIAL TONE result code.
The modem always pauses for a minimum of 2 seconds, even if the value of S6 is less than 2 seconds.
Range:
54
2-255 seconds
AT Commands for Dense Modem Family
Default:
2
S7 - Wait Time For Carrier After Dial, For Silence, or For Dial Tone After “W” Dial
Modifier (US Models)
Sets the length of time, in seconds, that the modem will wait for carrier before hanging up. The timer is started when the
modem finishes dialing (originate), or 2 seconds after going off-hook (answer). In originate mode, the timer is reset upon
detection of answer tone if allowed by country restrictions.
Sets the length of time, in seconds, that modem will wait for silence when encountering the @ dial modifier before
continuing with the next dial string parameter.
For US models, S7 sets the length of time, in seconds, that the modem will wait for dial tone when encountering a “W”
dial modifier before continuing with the next dial string parameter.
Range:
1-255 seconds
Default:
50
S8 - Pause Time For Dial Delay
Sets the time, in seconds, that the modem must pause when the “,” dial modifier is encountered in the dial string.
Range:
0-255 seconds
Default:
2
S9 - Carrier Detect Response Time
Sets the time, in tenths of a second, that the carrier must be present before the modem considers it valid and turns on
RLSD. As this time is increased, there is less chance to detect a false carrier due to noise from the telephone line.
Range:
1-255 tenths of a second
Default:
6 (0.6 second)
S10 - Lost Carrier To Hang Up Delay
Sets the length of time, in tenths of a second, that the modem waits before hanging up after a loss of carrier. This allows
for a temporary carrier loss without causing the local modem to disconnect. When register S10 is set to 255, the modem
functions as if a carrier is always present.
The actual interval the modem waits before disconnecting is the value in register S10 minus the value in register S9.
Therefore, the S10 value must be greater than the S9 value or else the modem disconnects before it recognizes the
carrier.
Range:
1-255 tenths of a second
Default:
14 (1.4 seconds)
S11 - DTMF Tone Duration
Sets the duration of tones in DTMF dialing (US models only). This value has no effect on pulse dialing.
Range:
50-255 milliseconds
Default:
95 (95 milliseconds)
S12 - Escape Prompt Delay (EPD)
Defines the maximum period, in fiftieths of a second, allowed between receipt of the last character of the three escape
character sequence from the DTE and sending of the OK result code to the DTE. If any characters are detected during
this time, the OK will not be sent. Note that sending of the OK result code does not affect entry into command mode.
(See 3.1.3.)
Range:
0-255 1/50 of a second
Default:
50 (1 second)
AT Command s for Dense Modem Family
55
S13 - Reserved
S14 - General Bit Mapped Options Status
Indicates the status of command options.
Default:
138 (8Ah) (10001010b)
Bit 0
This bit is ignored.
Bit 1
Command echo (En)
Bit 2
Bit 3
Bit 4
56
0=
Disabled (E0)
1=
Enabled (E1) (Default.)
Quiet mode (Qn)
0=
Send result codes (Q0) (Default.)
1=
Do not send result codes (Q1)
Result codes (Vn)
0=
Numeric (V0)
1=
Verbose (V1) (Default.)
Reserved
AT Commands for Dense Modem Family
Bit 5
Tone (T)/Pulse (P)
0=
Tone (T) (Default.)
1=
Pulse (P)
Bit 6
Reserved
Bit 7
Originate/Answer
0=
Answer
1=
Originate (Default.)
S15 - Reserved
S16 - General Bit Mapped Test Options Status
Indicates the test in progress status.
Default:
0
Bit 0
Local analog loopback
0=
Disabled (Default.)
1=
Enabled (&T1)
Bit 1
Not used
Bit 2
Local digital loopback
Bit 3
Bit 4
Bit 5
0=
Disabled (Default.)
1=
Enabled (&T3)
Remote digital loopback (RDL) status
0=
Modem not in RDL (Default.)
1=
RDL in progress
RDL requested (AT&T6)
0=
RDL not requested (Default.)
1=
RDL requested (&T6)
RDL with self test
0=
Disabled (Default.)
1=
Enabled (&T7)
AT Command s for Dense Modem Family
57
Bit 6
Bit 7
Local analog loopback (LAL) with self test
0=
Disabled (Default.)
1=
Enabled (&T8)
Not used
S17 - Reserved
S18 - Test Timer
Sets the length of time, in seconds, that the modem conducts a test (commanded by &Tn) before returning to the
command mode. If this register value is zero, the test will not automatically terminate; the test must be terminated from
the command mode by issuing an &T0 or H command. When S18 is non-zero, the modem returns the OK message upon
test termination.
Range:
0-255 seconds
Default:
0
S19 - AutoSync Bit Mapped Options
Defines the options for AutoSync operation (see &Q4 command). S19 must be set to the desired value before &Q4 is
issued.
Default:
0
Bit 0
Reserved
Bit 1
BSC/HDLC format select
Bit 2
Bit 3
Bit 4
0=
BSC selected (Default.)
1=
HDLC selected
Address detection enable/disable
0=
Disabled (Default.)
1=
Enabled
NRZI/NRZ coding select
0=
NRZI (Default.)
1=
NRZ
Idle indicator select
0=
Mark idle (Default.)
1=
Flag or sync idle
Bits 5 – 7 Reserved
58
AT Commands for Dense Modem Family
S20 - AutoSync HDLC Address or BSC Sync Character
Defines the HDLC address (S19 bit 1 = 1) or BSC Sync Character (S19 bit 1 = 0) for AutoSync operation (see &Q4
command). S20 must be set to the desired value before &Q4 is issued.
Range:
0-255
Default:
0
S21 - V.24/General Bit Mapped Options Status
Indicates the status of command options.
Default:
52 (34h) (00110100b)
Bit 0
Set by &Jn command but ignored otherwise.
0=
&J0 (Default.)
1=
&J1
Bit 1
Reserved
Bit 2
CTS behavior (&Rn)
Bits 3-4
Bit 5
Bit 6
Bit 7
0=
CTS tracks RTS (&R0)
1=
CTS always on (&R1) (Default.)
DTR behavior (&Dn)
0=
&D0 selected
1=
&D1 selected
2=
&D2 selected (Default.)
3=
&D3 selected
RLSD (DCD) behavior (&Cn)
0=
&C0 selected
1=
&C1 selected (Default.)
DSR behavior (&Sn)
0=
&S0 selected (Default.)
1=
&S1 selected
Long space disconnect (Yn)
0=
Y0 (Default.)
1=
Y1
AT Command s for Dense Modem Family
59
S22 - Speaker/Results Bit Mapped Options Status
Indicates the status of command options.
Default:
117 (75h) (01110101b)
Bits 0-1
Bits 2-3
Bits 4-6
Bit 7
Speaker volume (Ln)
0=
Off (L0)
1=
Low (L1) (Default.)
2=
Medium (L2)
3=
High (L3)
Speaker control (Mn)
0=
Disabled (M0)
1=
Off on carrier (M1) (Default.)
2=
Always on (M2)
3=
On during handshake (M3)
Limit result codes (Xn)
0=
X0
4=
X1
5=
X2
6=
X3
7=
X4 (Default.)
Reserved
S23 - General Bit Mapped Options Status
Indicates the status of command options.
Default:
62 (3Dh) (00111110b)
Bit 0
Bits 1-3
Bits 4-5
60
Grant RDL
0=
RDL not allowed (&T5) (Default.)
1=
RDL allowed (&T4)
DTE Rate
0=
0 - 300 bps
1=
600 bps
2=
1200 bps
3=
2400 bps
4=
4800 bps
5=
9600 bps
6=
19200 bps
7=
38400 bps or higher (Default.)
Assumed DTE parity
0=
even
1=
not used
AT Commands for Dense Modem Family
Bits 6-7
2=
odd
3=
none (Default.)
Guard tone (& Gn)
0=
None (&G0) (Default.)
1=
None (&G1)
2=
1800 Hz (&G2)
S24 - Sleep Inactivity Timer
Sets the length of time, in seconds, that the modem will operate in normal mode with no detected telephone line or DTE
line activity before entering low-power sleep mode. The timer is reset upon any DTE line or telephone line activity. If the
S24 value is zero, neither DTE line nor telephone inactivity will cause the modem to enter the sleep mode.
Range:
0-255 seconds
Default:
0
S25 - Delay To DTR
Sets the length of time that the modem will ignore DTR for taking the action specified by &Dn. Its units are seconds for
synchronous modes and one hundredths of a second for other modes.
Range:
0-255 (1 second for synchronous modes 1; 0.01 second otherwise)
Default:
5
S26 - RTS to CTS Delay
Sets the time delay, in hundredths of a second, before the modem turns CTS ON after detecting an OFF-to-ON transition
on RTS when &R0 is commanded. Pertains to synchronous operation only.
Range:
0-255 hundredths of a second
Default:
1
S27 - Bit Mapped Options Status
Indicates the status of command options.
Default:
73 (49h) (01001001b)
Bits 0,1,3 Synchronous/asynchronous selection (&Mn/&Qn)
Bit 2
3
1
0
0
0
0
=
&M0 or &Q0
0
0
1
=
&M1 or &Q1
0
1
0
=
&M2 or &Q2
0
1
1
=
&M3 or &Q3
1
0
0
=
&Q4
1
0
1
=
&Q5 (Default.)
1
1
0
=
&Q6
Leased line control (&Ln)
0=
Dial up line (&L0) (Default.)
Bits 4 – 5 Internal clock select (&Xn)
0=
Internal clock (&X0) (Default.)
1=
External clock (&X1)
2=
Slave clock (&X2)
AT Command s for Dense Modem Family
61
Bit 6
CCITT/Bell mode select (Bn)
Bit 7 -
0=
CCITT mode (B0)
1=
Bell mode (B1) (Default.)
Reserved
S28 - Bit Mapped Options Status
Default:
0
Bits 0 – 1 Reserved
Bit 2
Reserved (always 0).
Bits 3 – 4 Pulse dialing (&Pn)
Bit 5-7
0=
39%-61% make/break ratio at 10 pulses per second (&P0) (Default.)
1=
33%-67% make/break ratio at 10 pulses per second (&P1)
2=
39%-61% make/break ratio at 20 pulses per second (&P2)
3=
33%-67% make/break ratio at 20 pulses per second (&P3)
Reserved
S29 - Flash Dial Modifier Time
Sets the length of time, in units of 10 ms, that the modem will go on-hook when it encounters the flash (!) dial modifier in
the dial string. The time can be limited as it is a country dependent parameter.
Range:
0-255 10 ms intervals
Default:
70 (700 ms)
S30 - Disconnect Inactivity Timer
Sets the length of time, in tens of seconds, that the modem will stay online before disconnecting when no data is sent or
received. In error-correction mode, any data transmitted or received will reset the timer. In other modes, any data
transmitted will reset the timer. The timer is inoperative in synchronous mode.
Range:
0-255 tens of seconds (0-2550 seconds)
Default:
0 (disabled)
S31 - Bit Mapped Options Status
Default:
194 (C2h) (11000010b)
Bit 0
Bit 1
Bits 2-3
Bits 4-5
Single line connect message enable/disable (\Vn)
0=
Messages controlled by S95, Wn and Vn (\V0) (Default)
1=
Single line connect message (\V1)
Auto line speed detection (Nn)
0=
Disabled (N0)
1=
Enabled (N1) (Default.)
Error correction progress messages (Wn)
0=
DTE speed only (W0) (Default)
1=
Full reporting (W1)
2=
DCE speed only (W2)
Caller ID (#CID)
0=
62
Caller ID disabled (#CID=0) (Default)
AT Commands for Dense Modem Family
Bits 6-7
1=
Short (formatted) Caller ID enabled (#CID=1)
2=
Long (unformatted) Caller ID enabled (#CID=2)
Reserved (Default = 11b)
AT Command s for Dense Modem Family
63
S32 - XON Character
Sets the value of the XON character.
Range:
0-255, ASCII decimal
Default:
17 (11h)
S33 - XOFF Character
Sets the value of the XOFF character.
Range:
0-255, ASCII decimal
Default:
19 (13h)
S34-S35 - Reserved
S36 - LAPM Failure Control
Default:
7 (00000111b)
Bits 0-2
Bits 3-7
This value indicates what should happen upon a LAPM failure. These fallback options are
initiated immediately upon connection if S48=128. If an invalid number is entered, the
number is accepted into the register, but S36 will act as if the default value has been
entered.
0=
Modem disconnects.
1=
Modem stays on-line and a Direct mode connection is established.
2=
Reserved.
3=
Modem stays on-line and a Normal mode connection is established.
4=
An MNP connection is attempted and if it fails, the modem disconnects.
5=
An MNP connection is attempted and if it fails, a Direct mode connection is
established.
6=
Reserved.
7=
An MNP connection is attempted and if it fails, a Normal mode
connection is established. (Default.)
Reserved
S37 - Desired Line Connection Speed
This register specifies the desired line connection speed.
Notes:
1.
When the Nn command is issued or the S37 register value is modified, the +MS command subparameters are
updated to reflect the speed and modulation specified by the S37 value (see +MS command). For example:
If N0 command is active, S37=10 updates the +MS command subparameters to reflect +MS=10,1,300,12000
If N1 command is active, S37=10 updates the +MS command subparameters to reflect
+MS=10,0,12000,12000
2.
S37 is not updated by the +MS command.
3.
Use of the +MS command is recommended instead of the Nn and S37=x commands. Nn and S37=x
commands are supported for compatibility with existing communication software.
Default:
0
Bits 0-4
64
Desired line connection speed. This is interlinked with the Fn command.
If an invalid number is entered, the number is accepted into the register, but S37 will act as
if the default value has been entered.
AT Commands for Dense Modem Family
Bits 5-7
0=
Attempt automode connection. If N0 is active, connection is attempted at the
most recently sensed DTE speed (+MS command settings are updated to the
appropriate values). If N1 is active, connection is attempted at the highest
possible speed (+MS settings are updated to 11,1,300,2880 to reflect V.34,
automode, 300 bps minimum speed, and 28800 bps maximum speed). (Default.)
1-3 =
Attempt to connect at 300 bps. F1 command.
4=
Reserved.
5=
Attempt to connect at V.22 1200 bps. F4 command.
6=
Attempt to connect at V.22 bis 2400 bps. F5 command.
7=
Attempt to connect at V.23.
8=
Attempt to connect at V.32 bis/V.32 4800 bps. F6 command.
9=
Attempt to connect at V.32 bis/V.32 9600 bps. F8 command.
10 =
Attempt to connect at V.32 bis 12000 bps. F9 command.
11 =
Attempt to connect at V.32 bis 14400 bps. F10 command.
12 =
Attempt to connect at V.32 bis 7200 bps. F7 command.
Reserved
S38 - Delay Before Forced Hang Up
This register specifies the delay between the modem's receipt of the H command to disconnect (or ON-to-OFF transition
of DTR if the modem is programmed to follow the signal), and the disconnect operation. It is applicable to error-correction
connection only. This register can be used to ensure that data in the modem buffer is sent before the modem
disconnects.
If S38 is set to a value between 0 and 254, the modem will wait that number of seconds for the remote modem to
acknowledge all data in the modem buffer before disconnecting. If time expires before all data is sent, the NO CARRIER
result code will be issued to indicate that data has been lost. If all data is transmitted prior to time-out, the response to the
H0 command will be OK.
AT Command s for Dense Modem Family
65
If S38 is set to 255, the modem does not time-out and continues to attempt to deliver data in the buffer until the
connection is lost or the data is delivered.
Range:
0-255 seconds
Default:
20
S39 - Flow Control Bit Mapped Options Status
Default:
3 (00000011b)
Bits 0-2
Bits 3-7
Status of command options
0=
No flow control
3=
RTS/CTS (&K3) (Default.)
4=
XON/XOFF (&K4)
5=
Transparent XON (&K5)
6=
Both methods (&K6)
Reserved
S40 - General Bit Mapped Options Status
Indicates the status of command options.
Default:
104 (68h) (01101000b)
Bits 0-1
MNP Extended Services (-Kn)
0=
Disable extended services (-K0) (Default)
1=
Enable extended services (-K1)
2=
Enable extended services (-K2)
Bit 2
Reserved
Bits 3-5
Break Handling (\Kn)
Bits 6-7
0=
\K0
1=
\K1
2=
\K2
3=
\K3
4=
\K4
5=
\K5 (Default.)
MNP block size (\An)
0=
64 chars (\A0)
1=
128 chars (\A1) (Default.)
2=
192 chars (\A2)
3=
256 chars (\A3)
S41 - General Bit Mapped Options Status
Indicates the status of command options.
Default:
195 (C3h) (11000011b)
Bits 0 –1
Compression selection (%Cn)
0=
66
Disabled (%C0)
AT Commands for Dense Modem Family
Bits 2, 6
1=
MNP 5 (%C1)
2=
V.42 bis (%C2)
3=
MNP 5 and V.42 bis (%C3) (Default.)
Auto retrain and fallback/fall forward (%En)
Bit 6
Bit 2
0
0
=
Retrain and fallback/fall forward disabled (%E0)
0
1
=
Retrain enabled (%E1)
1
0
=
Fallback/fall forward enabled (%E2) (Default.)
Bit 3
Reserved
Bits 4-5
Reserved
Bit 7
Reserved
S46 - Data Compression Control
Controls selection of compression. The following actions are executed for the given values:
Range:
136 or 138
Default:
138
S46=136
Execute error correction protocol with no compression.
S46=138
Execute error correction protocol with compression. (Default.)
S48 - V.42 Negotiation Action
The V.42 negotiation process determines the capabilities of the remote modem. However, when the capabilities of the
remote modem are known and negotiation is unnecessary, this process can be bypassed if so desired.
Range:
0, 7, or 128 If an invalid number is entered, it is accepted into the S-Register, but S48 will act as if
128 has been entered.
Default:
7
S48=0
Disable negotiation; bypass the detection and negotiation phases; and proceed with
LAPM.
S48=7
Enable negotiation. (Default.)
S48=128
Disable negotiation; bypass the detection and negotiation phases; and proceed at once
with the fallback action specified in S36. Can be used to force MNP.
S82 - Break Handling Options
S82 is for compatibility purposes only, changing this register will not have any affect.
S86 - Call Failure Reason Code
When the modem issues a NO CARRIER result code, a value is written to this S-Register to help determine the reason
for the failed connection. S86 records the first event that contributes to a NO CARRIER message. The cause codes are:
Range:
0, 4, 5, 9, 12, 13, or 14
Default:
S86=0
Normal disconnect, no error occurred.
S86=4
Loss of carrier.
S86=5
V.42 negotiation failed to detect an error-correction modem at the other end.
S86=9
The modems could not find a common protocol.
S86=12 Normal disconnect initiated by the remote modem.
S86=13
Remote modem does not respond after 10 re-transmissions of the same message.
AT Command s for Dense Modem Family
67
S86=14 Protocol violation.
S91 - PSTN Transmit Attenuation Level
Sets the transmit attenuation level from 0 to 15 dBm for the PSTN mode, resulting in a transmit level from 0 to -15 dBm,
In some countries, the transmit level may not be changed.
Range:
0 to 15 dBm (Corresponding to 0 to -15 dBm transmit level.)
Default:
10 (-10 dBm transmit level.)
S92 - Fax Transmit Attenuation Level
Sets the transmit attenuation level from 0 to 15 dBm for the fax mode, resulting in a transmit level from 0 to -15 dBm. In
some countries, the transmit level may not be changed.
Range:
0 to 15 dBm (Corresponding to 0 to -15 dBm transmit level.)
Default:
10 (-10 dBm transmit level.)
S95 - Extended Result Codes
The bits in this register can be set to override some of the Wn command options. A bit set to a 1 in this register will
enable the corresponding result code regardless of the Wn setting. Also, refer to Table 3-1.
Default:
0
Bit 0
CONNECT result code indicates DCE speed instead of DTE speed.
Bit 1
Append/ARQ to CONNECT XXXX result code in error-correction mode (XXXX = rate; see
Table 3-1).
Bit 2
Enable CARRIER XXXX result code (XXXX = rate; see Table 3-1.
Bit 3
Enable PROTOCOL XXXX result code (XXXX = protocol identifier; see Table 3-1).
Bit 4
Reserved.
Bit 5
Enable COMPRESSION result code (XXXX = compression type; see Table 3-1).
Bit 6
Reserved.
Bit 7
Reserved.
S240 - B-Channel Subsequent Calls
Specify which B-channel subsequent calls should use exclusively. Defaults to 0 which means "don't care". Valid ranges
are 0-2 for DataFire RAS 4BU/ST, 0-23 for DataFire RAS 23T1, 0-24 for channelized DataFire RAS 24T1, 0-30 for E1
DataFire RAS 30E1. See also S241 bit 4.
S241 - Bitmap Register
This is a bitmap register that controls several options. The default value of this register is 0 in CSC revisions 3.23 or
earlier, and 8 in CSC revisions 3.29K or later.
Bit
Number
0
1
2
Bit Mask
3
8
4
16
5
32
6
64
68
1
2
4
Description
Unused, set to zero
Unused, set to zero
0 = V.8bis and K56flex enabled
1 = V.8bis and K56flex disabled
0 = Digital (DataFire PTE RAS, DataFire RAS 4BU/ST) V.90 client disabled
1 = Digital (DataFire PTE RAS, DataFire RAS 4BU/ST) V.90 client enabled
0 = Normal operation
1 = Request a leased connection from the signaling subsystem. Set/cleared automatically by
AT&LL command, may be subsequently modified for testing purposes. If set, expect to set
S240 to the requested channel also.
0 = Normal operation
1 = Analog spoof mode for digital modems (DataFire PTE RAS, DataFire RAS 4BU/ST). Lie
during V.8/V.8bis about our capabilities. Pretend to have an analog connection to the phone
network. Most useful when combined with bit 3 == 1 (S241=40)
0 = Normal operation
AT Commands for Dense Modem Family
7
128
1 = Display call progress and disconnect messages for ISDN calls. 7
Unused, set to zero
S242 - B-channel Active/Previous Call
This read only register indicates the B-channel used for the active/previous call.
S243 - Port Active/Previous Call
This read only register indicates the port (aka "subnet", aka "snid") used for the active/previous call.
AT Command s for Dense Modem Family
69
70
AT Commands for Dense Modem Family
CHAPTER 5. FAX CLASS 1 COMMANDS
FAX I/O PROCESSING
The fax I/O interface supports asynchronous serial and parallel interfaces. The interface rate is 19200 bps. The character
format is 8 bits data, no parity, and 1 stop bit. Start and stop elements are removed from the transmit data and added to
the receive data. Both transmit and receive data are buffered. Flow control using XON/XOFF (DC1/DC3) or RTS/CTS is
provided.
Unique control character strings are identified, filtered, or reinserted into the I/O data stream. These control characters
and their resultant action are described below.
DTE-to-Modem Transmit Data Stream
Characters Detected
Action Taken
<DLE><data>
Delete <DLE><data> characters.
<DLE><ETX>
Recognize as a string terminator and take appropriate action.
<DLE><DLE>
Replace with single <DLE> character.
Modem-to-DTE Receive Data Stream
Characters Detected
Action Taken
<DLE>
Insert extra <DLE> ahead of <DLE>.
The modem also identifies the end of a frame by inserting <DLE><ETX> into the data stream after the FCS bytes.
Fax Mode Selection
Fax class 1 commands are identified in Table 5-1. Fax modes and rates are determined by the AT+F commands as
described in Section 5.2.i
Table 5-1. Fax Class 1 Commands
Command
+FCLASS=
Function
Service Class ID
Service Class
Fax Class 1 Commands
+FAE=n
+FTS=n
+FRS=n
+FTM=n
+FRM=n
+FTH=n
+FRH=n
Data/Fax Auto Answer
Stop Transmission and Wait
Receive Silence
Transmit Data
Receive Data
Transmit Data with HDLC Framing
Receive Data with HDLC Framing
Fax Origination
