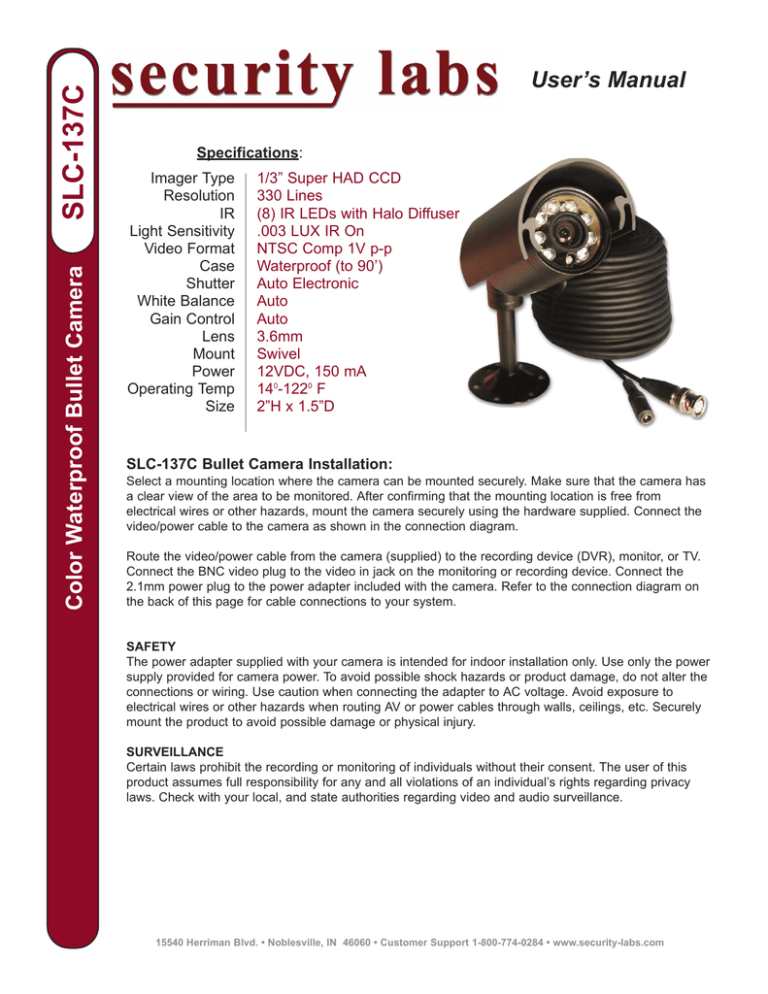

SLC-137C
Color Waterproof Bullet Camera
User’s Manual
Specifications:
Imager Type
Resolution
IR
Light Sensitivity
Video Format
Case
Shutter
White Balance
Gain Control
Lens
Mount
Power
Operating Temp
Size
1/3” Super HAD CCD
330 Lines
(8) IR LEDs with Halo Diffuser
.003 LUX IR On
NTSC Comp 1V p-p
Waterproof (to 90’)
Auto Electronic
Auto
Auto
3.6mm
Swivel
12VDC, 150 mA
140-1220 F
2”H x 1.5”D
SLC-137C Bullet Camera Installation:
Select a mounting location where the camera can be mounted securely. Make sure that the camera has
a clear view of the area to be monitored. After confirming that the mounting location is free from
electrical wires or other hazards, mount the camera securely using the hardware supplied. Connect the
video/power cable to the camera as shown in the connection diagram.
Route the video/power cable from the camera (supplied) to the recording device (DVR), monitor, or TV.
Connect the BNC video plug to the video in jack on the monitoring or recording device. Connect the
2.1mm power plug to the power adapter included with the camera. Refer to the connection diagram on
the back of this page for cable connections to your system.
SAFETY
The power adapter supplied with your camera is intended for indoor installation only. Use only the power
supply provided for camera power. To avoid possible shock hazards or product damage, do not alter the
connections or wiring. Use caution when connecting the adapter to AC voltage. Avoid exposure to
electrical wires or other hazards when routing AV or power cables through walls, ceilings, etc. Securely
mount the product to avoid possible damage or physical injury.
SURVEILLANCE
Certain laws prohibit the recording or monitoring of individuals without their consent. The user of this
product assumes full responsibility for any and all violations of an individual’s rights regarding privacy
laws. Check with your local, and state authorities regarding video and audio surveillance.
15540 Herriman Blvd. • Noblesville, IN 46060 • Customer Support 1-800-774-0284 • www.security-labs.com
Camera-Monitor Systems
Monitor or TV
50’ video/power cable
Camera
Camera video
Video
plug
Power
MONITOR
VIDEO
IN
MONITOR
AUDIO
IN
Power
supply
Power
plug
Camera-Recorder-Monitor Systems
Monitor or TV
Camera video
50’ video/power cable
Camera
MONITOR
VIDEO
IN
Power
MONITOR
AUDIO
IN
Power
supply
Power
plug
Video plug to
open video
input
Recorder back panel
VIDEO VIDEO VIDEO VIDEO
IN
IN
IN
IN
CH 1
CH 2 CH 3 CH 4
LAN-ETHERNET
MONITOR
VIDEO
OUT
AUDIO AUDIO
IN
OUT
POWER
Questions? Call Security Labs Toll Free Customer Support at 800-774-0284
