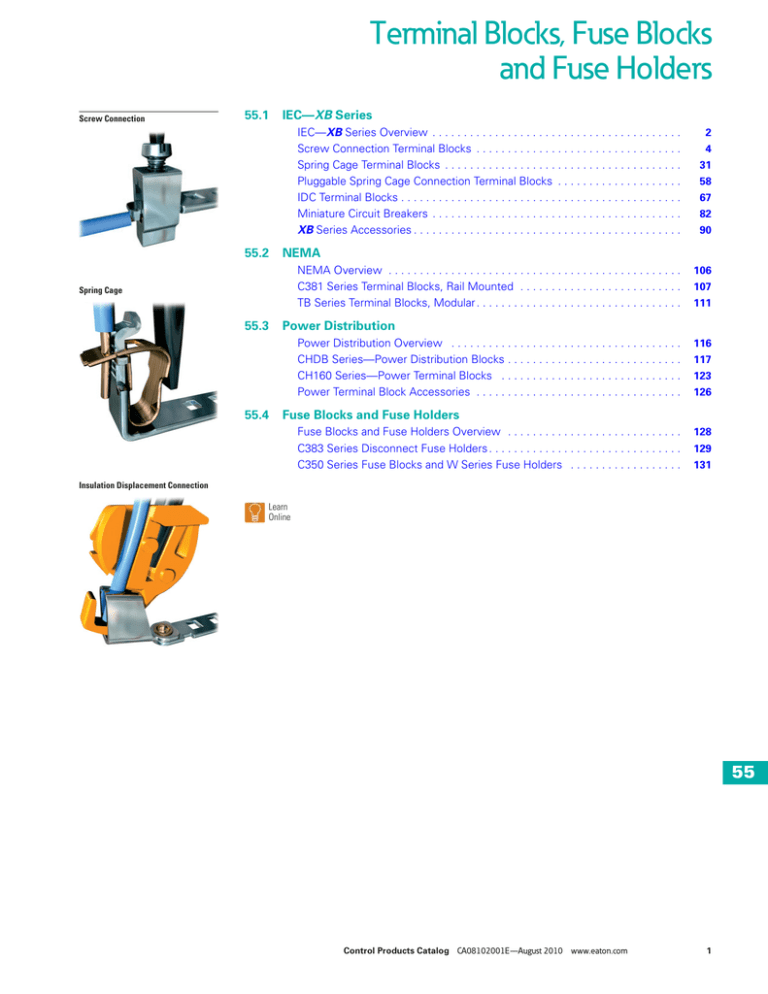

Terminal Blocks, Fuse Blocks
and Fuse Holders
Screw Connection
55.1
IEC—XB Series
IEC—XB Series Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screw Connection Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spring Cage Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pluggable Spring Cage Connection Terminal Blocks . . . . . . . . . . . . . . . . . . . .
IDC Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Miniature Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
XB Series Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55.2
Spring Cage
58
67
82
90
106
107
111
Power Distribution
Power Distribution Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHDB Series—Power Distribution Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CH160 Series—Power Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Terminal Block Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55.4
4
31
NEMA
NEMA Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C381 Series Terminal Blocks, Rail Mounted . . . . . . . . . . . . . . . . . . . . . . . . . .
TB Series Terminal Blocks, Modular . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55.3
2
116
117
123
126
Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C383 Series Disconnect Fuse Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C350 Series Fuse Blocks and W Series Fuse Holders . . . . . . . . . . . . . . . . . .
128
129
131
Insulation Displacement Connection
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Learn
Online
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
1
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
IEC—XB Series
Description
55
Page
IEC—XB Series
Screw Connection Terminal Blocks . . . . . . . . . . . . . . . .
Spring Cage Terminal Blocks . . . . . . . . . . . . . . . . . . . . .
Pluggable Spring Cage Connection
Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IDC Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Miniature Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . .
XB Series Accessories . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
4
31
58
67
82
90
55
55
55
55
55
IEC—XB Series Overview
55
Product Description
Features
The XB Series from Eaton
offers a complete terminal
block system with a universal
range of accessories.
Marking, bridging and testing
accessories are standardized
across the different
termination technologies—
reducing inventory and
logistics costs. The modular
terminal block design allows
for use of the different
terminal block types together
or individually, providing the
highest degree of flexibility.
Global acceptance—The XB
Series terminal blocks are
designed to worldwide
standards and meet the latest
international requirements.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Application Description
The metal portion of the XB
Series terminal blocks are
made from high-grade, straincrack and corrosion-proof
copper alloys. They won’t
experience any electrolytic
corrosion or rusting, even
when moisture is present.
The metal surfaces are
protected with a lead-free,
galvanic nickel or tin plating.
The good electrical
conductivity permits only a
low temperature rise. The
Polyamide 6.6 housings
allow for operating
temperatures up to 257°F
(125°C) and are certified for
inflammability Class V0 in
accordance with UL 94.
Flexible Plug-in bridge
system—All three
technologies (screw, spring
and IDC) use the same bridge
system, allowing for
individual potential
distribution and quickly
bridged connections among
the same terminal block type
or across different types. The
XB Series terminal blocks
have two bridge shafts
arranged in one line, making
flexible chain bridging and
skip bridging between nonadjacent terminal blocks
possible. Plug-in bridges are
available from 2 to 50
positions. Reducing bridges
are also available to connect a
larger terminal block to a
smaller one.
Standards and Certifications
Large surface area for
marking—All XB Series
terminal blocks have
generously sized surface
areas for labeling. This allows
for clearly labeled wiring that
results in reduced startup
time and simplifies activities
such as testing and
maintenance. There are
provisions for marking
individual terminal blocks and
end stops, strips of terminal
blocks, and large groups of
terminal blocks.
Standardized testing
system—All test plugs make
contact in one of the easily
accessible bridge shafts. A
2.3 mm diameter test plug is
available for individual
measuring wires. Modular
test plugs are also available
for more advanced testing.
55
55
2
Control Products Catalog CA08102001E—August 2010 www.eaton.com
●
●
●
●
UL® and cUL®
recognized—File No.
E67464
CE approved
LVD ●
EN 60947-7-1
●
EN 60947-7-2
●
EN 60998-2-3
●
EN 60352-4/A1
ATEX approval
(Eex e applications)
Note
Not all standards apply to all terminal
blocks. Contact Eaton for details.
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Technical Data and Specifications
55
IEC—XB Series
55
Description
Specification
Insulation material
Polyamide 6.6
Dielectric strength
600 kV/cm
Creep resistance
600 CTI
Internal insulation resistance
1012 ohms cm
Surface resistance
1010 ohms
Flammability rating
UL 94 V0
Continuous operating temperature
–40 to 257°F (–40 to 125°C)
55
55
55
55
55
Modular Terminal Blocks for Potentially Explosive Environments
The modular terminal blocks
The standard modular
are approved for fitting in
terminal blocks from Eaton
Zone 1, the Ex environment,
are approved for potentially
as well as Zone 2. Zone 1
explosive environments. In
fitting is conditional upon
addition to the usual
terminal blocks being used in
approvals, they also have
connection boxes approved
been approved by a testing
for EEx e type protection and
center authorized by the EU.
having the equivalent of at
No extra approval is required
least IP54 protection.
in Intrinsic Safety type
applications.
The EEx approved modular
terminal blocks can be
Modular terminal blocks on
divided into the following
www.eaton.com fulfill the
groups:
requirements for “Increased
Safety” protection type when
●
Screw connection
installation instructions are
terminal blocks
followed, and have a type
●
Spring-cage connection
examination certificate
terminal blocks
in accordance with the
●
Ex directive Ex-RL 94/9/EU.
Insulation Displacement
Connection terminal blocks
These test certificates are
●
Mini terminal blocks
recognized in all the EU
●
Terminal blocks for
member states and beyond.
specialized applications
55
More detailed information
on modular terminal
blocks in the EEx e area is
available on the Internet
at www.eaton.com for
downloading.
55
55
55
Here you will find the
following:
●
●
●
●
●
55
Technical data in accordance
with EN 50 019
Approved accessories
Important installation
instructions and mounting
diagrams
EU type examination
certificates
General information on
Ex protection
55
55
55
55
55
55
55
55
Identifications
Explosion protected electrical
equipment must be marked
so that the safety
characteristics are
identifiable. The identification
of electrical equipment is
described in the harmonized
standard EN 50014, as
shown in the following
example:
EN 50014
Standard Example
Description
Identification
Manufacturer or
trademark
Eaton
Type designation
XBUT25
Abbreviation of
explosion protection
Identification in Accordance
with ATEX-RL
Electrical equipment that is
certified in accordance with
the ATEX 100a guideline also
receives identification
describing the site for use.
ATEX
Guideline Example
55
Description
Identification
Manufacturing data
02.01.2004
Address of the
manufacturer
Duncan, SC
55
EEx e ll
Number of the
appointed dept.
344
55
Protection type
increased safety “e”
e
Common marking
Ex symbol
Equipment group
II
55
Equipment group
II
Category
2
Mark of the
testing body
KEMA
Use in gas and/or
dust atmospheres
GD
Approval number
05ATEX2158 U
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
3
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Screw Connection
Description
55
Page
Screw Connection Terminal Blocks
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
5
10
12
14
16
18
21
24
27
29
Drawings
Online
55
55
55
Screw Connection Terminal Blocks Overview
55
Product Description
Application Description
Features
The XBUT Series uses a
screw connection system
that is accepted worldwide
and is suitable in most
applications. The
maintenance-free connection
provides the reliability you
expect from Eaton.
Designed for applications with
high demands, the XBUT
Series screw terminal block
has a maintenance-free wire
connection. re-tightening of
the terminal screws is not
necessary to ensure proper
operation. The screw locking
technique prevents the
screws from backing out.
Copper wires can be clamped
without pre-treatment or
ferrules can be used for
splicing protection. Multiple
conductors can be connected
in the same clamping
mechanism, saving space.
●
55
55
55
55
55
55
55
55
●
●
●
●
●
●
Maintenance-free
connections
Global acceptance
Multi-conductor
connections
Flexible Plug-in bridge
system
Large surface area for
marking
Standardized testing
system
Metal parts made of tinplated copper alloy
55
55
55
55
55
55
55
55
55
55
4
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Standards and Certifications
●
●
●
●
UL and cUL recognized—
File No. E67464
CE approved
LVD :
●
EN 60947-7-1
●
EN 60947-7-2
●
EN 60998-2-3
●
EN 60352-4/A1
ATEX approval
(Eex e applications)
Note
Not all standards apply to all terminal
blocks. Contact Eaton for details.
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Single Level—Through-Feed
Description
Single Level—Through-Feed
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
55
55
6
7
9
9
10
12
14
16
18
21
24
27
29
55
55
55
55
55
55
55
55
55
Single Level—Through-Feed
55
Product Description
The XBUT terminal blocks
feature a compact design and
maintenance-free screw
connection. There is a double
bridge shaft providing
maximum flexibility.
The double bridge shaft can
accommodate individual
chain bridging and step-down
bridging from other terminal
blocks. There are numerous
options for accessories,
including those for testing
and marking. Terminal blocks
are available for wire crosssections ranging from
12 AWG (2.5 mm2) to
2/0 AWG (150 mm2).
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
5
55.1
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Product Selection
XBUT4
55
Screw Connection Single Level—Through-Feed
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
800/32/26–12
750/22/28/26–12
600/20/26–12
Color
Standard
Pack
Catalog
Number
Gray
50
XBUT25
Blue
50
XBUT25BU
Gray
50
XBUT4
Blue
50
XBUT4BU
Orange
50
XBUT4OR
Yellow
50
XBUT4YE
55
Red
50
XBUT4RD
White
50
XBUT4WH
55
Black
50
XBUT4BK
Green
50
XBUT4GN
Gray
50
XBUT6
Blue
50
XBUT6BU
Gray
50
XBUT10
55
Blue
50
XBUT10BU
Orange
50
XBUT10OR
55
Yellow
50
XBUT10YE
Red
50
XBUT10RD
Gray
50
XBUT16
Blue
50
XBUT16BU
Gray
50
XBUT35
Blue
50
XBUT35BU
55
6.2 mm
10 AWG/4 mm2
800/41/26–10
750/30/38/26–10
600/30/26–10
55
55
55
8.2 mm
8 AWG/6 mm2
800/57/24–8
750/40/50/24–8
600/50/24–8
55
10.2 mm
6 AWG/10 mm2
1000/76/20–6
750/54/69/20–6
600/65/20–6
55
55
12 mm
4 AWG/16 mm2
16 mm
0 AWG/35 mm2
1000/101/17–4
1000/150/15–0
—
—
55
Note
EU type—examination certificate number: KEMA 05ATEX2158 U.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
6
Control Products Catalog CA08102001E—August 2010 www.eaton.com
600/85/16–4
600/150/14–1/0
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Screw Connection Single Level—Through-Feed
55
Description
Color
Number of
Positions
Standard
Pack
XBUT25
Catalog
Number
XBUT4
Catalog
Number
XBUT6
Catalog
Number
XBUT10
Catalog
Number
XBUT16
Catalog
Number
XBUT35
Catalog
Number
End cover
Gray
—
10
XBACUT10
XBACUT10
XBACUT10
XBACUT10
XBACUT16
Partition plate
Gray
—
10
XBATUT10
XBATUT10
XBATUT10
XBATUT10
—
—
Plug-in bridge—
for cross connections
in the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS28
XBAFBS210
XBAFBS212
XBAFBS216
3
10
XBAFBS35
XBAFBS36
—
—
—
—
5
10
XBAFBS55
XBAFBS56
—
—
—
—
10
10
XBAFBS105
XBAFBS106
—
—
—
—
50
10
XBAFBS505
XBAFBS506
—
—
—
—
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
—
—
—
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ —
—
—
—
Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS8
—
—
—
Blank marker strip (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB8 XBMZB10 XBMZB12 XBMZB15 55
55
55
55
55
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
7
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
XBUT with Reducing Bridge
XBACPU25D12 XBACUT10
55
55
lmax
lmax
55
55
XBARBUT10ST
XBARBUT10
55
55
Central Input
One-Sided Input
55
XBUT10 XBUT25
55
XBPU25D12
55
55
55
55
Step-Down Bridge with Standard Feed-Through Terminal Blocks
Input
Terminal
Blocks
Cross-Section
XBUT10
6 AWG (10 mm2)
55
55
55
XBUT16
55
4 AWG (16 mm2)
Pick-Off
Terminal
Blocks
Cross-Section
AWG (mm2)
One-Sided
Input Imax
Central
Input Imax
Bridge
Catalog
Number
XBUT25
12 (2.5)
40
65
XBARBUT10
XBUT4
10 (4)
45
65
XBARBUT10
XBPT25
12 (2.5)
40
65
XBARBUT10ST
XBPT4
10 (4)
45
65
XBARBUT10ST
XBQT15
14 (1.5)
35
65
XBARBUT10ST
XBQT25
12 (2.5)
40
65
XBARBUT10ST
XBUT25
12 (2.5)
40
80
XBARBUT16
XBUT4
10 (4)
45
90
XBARBUT16
XBPT25
12 (2.5)
40
80
XBARBUT16ST
55
XBPT4
10 (4)
45
90
XBARBUT16ST
XBQT15
14 (1.5)
35
70
XBARBUT16ST
55
XBQT25
12 (2.5)
40
80
XBARBUT16ST
55
55
55
55
55
55
55
55
55
55
55
8
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Technical Data and Specifications
55
Screw Connection Single Level—Through-Feed
Description
XBUT25
XBUT4
XBUT6
XBUT10
XBUT16
XBUT35
Maximum load current in A/cross-section in mm2
32/4
41/6
57/10
76/16
101/25
150/50
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/II
III/I
III/I
III/I
III/I
III/I
0.25–2.5/0.25–2.5
0.25–4/0.25–4
0.25–6/0.25–6
0.5–10/0.5–10
1.0–16/1.0–16
1.5–35/1.5–35
55
55
Technical Data in Accordance with IEC
55
55
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
55
Multi-Conductor Connection
(same cross-section)
55
Solid/stranded in mm2
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
0.2–2.5/0.2–2.5
0.5–4/0.5–4
1.0–6/1.0–4
1.5–16/1.5–10
Stranded with ferrules without plastic sleeve in mm2
0.25–1.5
0.25–1.5
0.25–1.5
0.5–2.5
1.0–4
1.5–10
Stranded with twin ferrule with plastic sleeve in mm2
0.5–1.5
0.5–2.5
0.5–4
0.5–6
0.75–10
1.5–10
Stripping length in inches (mm)
0.35 (9)
0.35 (9)
0.39 (10)
0.39 (10)
0.39 (10)
0.63 (16)
Thread
M3
M3
M4
M4
M5
M6
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
13.3–15.9 (1.5–1.8)
13.3–15.9 (1.5–1.8)
22.1–26.6 (2.5–3)
28.3–32.7 (3.2–3.7)
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Screw Connection Single Level—Through-Feed
55
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
0.24 (6.2)
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
0.32 (8.2)
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT10
0.40 (10.2)
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT16
0.47 (12.0)
2.08 (52.8)
0.09 (2.2)
2.16 (54.8)
2.45 (62.3)
XBUT35
0.63 (16.0)
2.37 (60.2)
—
2.59 (65.7)
2.88 (73.2)
Catalog
Number
Width
XBUT25
0.20 (5.2)
XBUT4
XBUT6
55
55
55
55
55
Notes
XBUT35 has an enclosed design. The use of an end cover is not required.
For information on Printed Marking Tag Options, see Page 98.
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
9
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Single Level—Ground Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Single Level—Ground Blocks
55
Product Description
55
55
The ground terminal blocks
have the same shape and
pitch as the standard terminal
block, in a green-yellow
housing. They easily snap
onto the DIN rail to make a
reliable mechanical and
electrical contact that meets
all requirements of IEC 60947-7-2.
55
55
55
Product Selection
XBUT6PE
Screw Connection Single Level—Ground Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
5.2 mm
12 AWG/2.5 mm2
—/—/26–12
—/—/26–12
—/—/26–12
Green/Yellow 50
XBUT25PE
55
6.2 mm
10 AWG/4 mm2
—/—/26–10
—/—/26–10
—/—/26–10
Green/Yellow 50
XBUT4PE
8.2 mm
8 AWG/6 mm2
—/—/24–8
—/—/24–8
—/—/24–8
Green/Yellow 50
XBUT6PE
55
10.2 mm
6 AWG/10 mm2
—/76/20–6
—/54/69/20–6
—/—/20–6
Green/Yellow 50
XBUT10PE
12 mm
4 AWG/16 mm2
—/101/15–4
—
—/—/16–4
Green/Yellow 50
XBUT16PE
55
16 mm
2 AWG/35 mm2
—/125/15–2
—
—/—/14–1/0
Green/Yellow 50
XBUT35PE
55
Note
EU type—examination certificate number: KEMA 05ATEX2158 U.
55
55
55
55
55
55
55
55
55
10
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Standard
Pack
Catalog
Number
5
11
11
11
12
14
16
18
21
24
27
29
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Screw Connection Single Level—Ground Blocks
Description
Color
Number of
Positions
End cover
Gray
—
Standard
Pack
XBUT25PE
Catalog
Number
XBUT4PE
Catalog
Number
XBUT6PE
Catalog
Number
XBUT10PE
Catalog
umber
XBUT16PE
Catalog
Number
XBUT35PE
Catalog
Number
10
XBACUT10
XBACUT10
XBACUT10
XBACUT10
XBACUT16
55
55
55
Partition plate
—
—
10
XBATUT10
XBATUT10
XBATUT10
XBATUT10
—
—
Plug-in bridge—
for cross connections
in the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS28
XBAFBS210
XBAFBS212
XBAFBS212
3
10
XBAFBS35
XBAFBS36
—
—
—
—
5
10
XBAFBS55
XBAFBS56
—
—
—
—
10
10
XBAFBS105
XBAFBS106
—
—
—
—
50
10
XBAFBS505
XBAFBS506
—
—
—
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
—
—
—
Test adapter
—
55
55
55
55
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ —
—
—
—
Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS8
—
—
—
Blank marker strip (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB8 XBMZB10 XBMZB12 XBMZB15 55
55
Technical Data and Specifications
55
Screw Connection Single Level—Ground Blocks
XBUT25PE
XBUT4PE
XBUT6PE
XBUT10PE
XBUT16PE
XBUT35PE
55
Maximum load current in A/cross-section in mm2
—
—
—
76/16
101/25
125/50
55
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/II
III/I
III/I
III/I
III/I
III/I
0.25–2.5/0.25–2.5
0.25–4/0.25–4
0.25–6/0.25–6
0.5–10/0.5–10
1.0–16/1.0–16
1.5–35/1.5–35
Description
Technical Data in Accordance with IEC
55
55
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
55
Multi-Conductor Connection
(same cross-section)
55
Solid/stranded in mm2
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
0.2–2.5/0.2–2.5
0.5–4/0.5–4
1.0–6/1.0–4
1.5–16/1.5–10
Stranded with ferrules without plastic sleeve in mm2
0.25–1.5
0.25–1.5
0.25–1.5
0.5–2.5
1.0–4
1.5–10
Stranded with twin ferrule with plastic sleeve in mm2
0.5–1.5
0.5–2.5
0.5–4
0.5–6
0.75–10
1.5–10
Stripping length in inches (mm)
0.35 (9)
0.35 (9)
0.39 (10)
0.39 (10)
0.39 (10)
0.63 (16)
Thread
M3
M3
M4
M4
M5
M6
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
13.3–15.9 (1.5–1.8)
13.3–15.9 (1.5–1.8)
22.1–26.6 (2.5–3)
28.3–32.7 (3.2–3.7)
55
55
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
55
Screw Connection Single Level—Ground Blocks
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
0.20 (5.2)
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
0.24 (6.2)
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
1.85 (46.9)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
Catalog
Number
Width
XBUT25PE
XBUT4PE
XBUT6PE
0.32 (8.2)
XBUT10PE
0.40 (10.2)
XBUT16PE
0.47 (12.0)
2.08 (52.8)
0.09 (2.2)
2.16 (54.8)
2.45 (62.3)
XBUT35PE
0.63 (16.0)
2.37 (60.2)
—
2.59 (65.7)
2.88 (73.2)
55
55
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
XBUT35PE has an enclosed design. The use of an end cover is not required.
55
55
For additional accessories, see Page 90.
Control Products Catalog CA08102001E—August 2010 www.eaton.com
11
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Multi-Conductor Terminal Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Multi-Conductor Terminal Blocks
55
Product Description
55
55
55
The multi-conductor terminal
blocks offer a space-saving
alternative to standard feedthrough terminal blocks
allowing for high density
wiring. Often, three
55
Product Selection
55
XBUT25D12
55
55
The XBUT…D22 terminal
blocks allow four wires to be
connected to one potential—
and can therefore be used as
compact power distributors.
Screw Connection Multi-Conductor Terminal Blocks, Three-Wire
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
500/28/26–12
150/20/26–12
6.2 mm
55
connections have to be led
to one terminal block. The
XBUT…D12 terminal block
accomplishes this without
any additional terminal blocks
or bridging required.
10 AWG/4 mm2
500/39/26–10
150/30/26–10
Color
Standard
Pack
Catalog
Number
Gray
50
XBUT25D12
Blue
50
XBUT25D12BU
Gray
50
XBUT4D12
Blue
50
XBUT4D12BU
55
55
XBUT4D22
55
Screw Connection Multi-Conductor Terminal Blocks, Four-Wire
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
5.2 mm
12 AWG/2.5 mm2
500/28/26–12
150/20/26–12
Gray
50
XBUT25D22
Blue
50
XBUT25D22BU
6.2 mm
10 AWG/4 mm2
500/39/26–10
150/30/26–10
Gray
50
XBUT4D22
Blue
50
XBUT4D22BU
55
55
55
55
55
55
55
12
Control Products Catalog CA08102001E—August 2010 www.eaton.com
5
10
13
13
13
14
16
18
21
24
27
29
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Screw Connection Multi-Conductor Terminal Blocks
Description
Color
Number of
Positions
Standard
Pack
XBUT25D12
Catalog
Number
XBUT4D12
Catalog
Number
XBUT25D22
Catalog
Number
XBUT4D22
Catalog
Number
End cover
Gray
—
10
XBACUT4D12
XBACUT4D12
XBACUT4D22
XBACUT4D22
End cover segment
Gray
—
10
XBASUT4
XBASUT4
XBASUT4
XBASUT4
Partition plate
—
—
10
XBATUTD12
XBATUTD12
XBATUTD22
XBATUTD22
Plug-in bridge—for cross
connections in the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS36
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
XBAFBS105
XBAFBS106
50
10
XBAFBS505
XBAFBS506
XBAFBS505
XBAFBS506
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS5
XBATSPS6
10
Blank marker strip (strip of 10)
White
—
XBMZB5
XBMZB6
XBMZB5
XBMZB6
55
55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Screw Connection Multi-Conductor Terminal Blocks
55
Description
XBUT25D12
XBUT4D12
XBUT25D22
XBUT4D22
55
Maximum load current in A/cross-section in mm2
28/4
39/6
28/4
39/6
55
Rated surge voltage in kV/contamination class
6/3
6/3
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
0.25–2.5/0.25–2.5
0.25–4/0.25–4
0.25–2.5/0.25–2.5
0.25–4/0.25–4
Technical Data in Accordance with IEC
55
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
55
55
Multi-Conductor Connection
(same cross-section)
Solid/stranded in mm2
0.14–1.0/0.14–1.0
0.14–1.0/0.14–1.5
0.14–1.0/0.14–1.0
0.14–1/0.14–1.5
Stranded with ferrules without plastic sleeve in mm2
0.25–1.0
0.25–1.5
0.25–1.0
0.25–1.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5–1.0
0.5–1.0
0.5–1.0
0.5–1.0
Stripping length in inches (mm)
0.31 (8)
0.31 (8)
0.31 (8)
0.31 (8)
Thread
M3
M3
M3
M3
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Screw Connection Multi-Conductor Terminal Blocks
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
XBUT25D12
0.20 (5.2)
2.24 (56.8)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT4D12
0.24 (6.2)
2.24 (56.8)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT25D22
0.20 (5.2)
2.52 (64.1)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT4D22
0.24 (6.2)
2.52 (64.1)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
55
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
13
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Multi-Conductor Ground Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Multi-Conductor Ground Blocks
55
Product Description
55
55
The ground terminal blocks
have the same shape and
pitch as the standard terminal
block, in a green-yellow
housing. They easily snap
onto the DIN rail to make
a reliable mechanical and
electrical contact that
meets all requirements
of IEC 60-947-7-2.
55
55
Product Selection
55
XBUT4D12PE
55
55
Screw Connection Multi-Conductor Ground Blocks—Three-Wire
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
5.2 mm
12 AWG/2.5 mm2
—/—/26–12
—/—/26–12
Green/Yellow
50
XBUT25D12PE
6.2 mm
10 AWG/4 mm2
—/—/26–10
—/—/26–10
Green/Yellow
50
XBUT4D12PE
55
55
55
55
XBUT25D22PE
55
55
Screw Connection Multi-Conductor Ground Blocks—Four-Wire
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
5.2 mm
12 AWG/2.5 mm2
—/—/26–12
—/—/26–12
Green/Yellow
50
XBUT25D22PE
6.2 mm
10 AWG/4 mm2
—/—/26–10
—/—/26–10
Green/Yellow
50
XBUT4D22PE
55
55
55
55
55
14
Control Products Catalog CA08102001E—August 2010 www.eaton.com
5
10
12
15
15
15
16
18
21
24
27
29
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Screw Connection Multi-Conductor Ground Blocks
Description
Color
Number of
Positions
Standard
Pack
XBUT25D12PE
Catalog
Number
XBUT4D12PE
Catalog
Number
XBUT25D22PE
Catalog
Number
XBUT4D22PE
Catalog
Number
End cover
Gray
—
10
XBACUT4D12
XBACUT4D12
XBACUT4D22
XBACUT4D22
End cover segment
Gray
—
10
XBASUT4
XBASUT4
XBASUT4
XBASUT4
Partition plate
—
—
10
XBATUTD12
XBATUTD12
XBATUTD22
XBATUTD22
Plug-in bridge—for cross
connections in the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS36
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
XBAFBS105
XBAFBS106
50
10
XBAFBS505
XBAFBS506
XBAFBS505
XBAFBS506
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS5
XBATSPS6
10
Blank marker strip (strip of 10)
White
—
XBMZB5
XBMZB6
XBMZB5
XBMZB6
55
55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Screw Connection Multi-Conductor Ground Blocks
55
Description
XBUT25D12PE
XBUT4D12PE
XBUT25D22PE
XBUT4D22PE
55
Maximum load current in A/cross-section in mm2
—
—
—
—
55
Rated surge voltage in kV/contamination class
6/3
6/3
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
0.25–2.5/0.25–2.5
0.25–4/0.25–4
0.25–2.5/0.25–2.5
0.25–4/0.25–4
Technical Data in Accordance with IEC
55
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
55
55
Multi-Conductor Connection
(same cross-section)
Solid/stranded in mm2
0.14–1.0/0.14–1.0
0.14–1.0/0.14–1.5
0.14–1.0/0.14–1.0
0.14–1.0/0.14–1.5
Stranded with ferrules without plastic sleeve in mm2
0.25–1.0
0.25–1.5
0.25–1.0
0.25–1.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5–1.0
0.5–1.0
0.5–1
0.5–1
Stripping length in inches (mm)
0.31 (8)
0.31 (8)
0.31 (8)
0.31 (8)
Thread
M3
M3
M3
M3
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Screw Connection Multi-Connector Ground Blocks
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
XBUT25D12PE
0.20 (5.2)
2.24 (56.8)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT4D12PE
0.20 (5.2)
2.24 (56.8)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT25D22PE
0.20 (5.2)
2.52 (64.1)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBUT4D22PE
0.24 (6.2)
2.52 (64.1)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
55
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
15
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Double Level
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Double Level
55
Product Description
55
55
The potentials of the XBUTT
double-level terminal blocks
are on two levels to reduce
space requirements by 50%
over single-level terminal
blocks. The XBUTT Series
can be bridged on both levels
for maximum flexibility.
Marking can be provided at
each termination point.
55
55
Product Selection
55
XBUTT4
Screw Connection Double Level Blocks, XBUTT4
Terminal
Width
55
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
Screw Connection Double Level Blocks
55
6.2 mm
10 AWG/4 mm2
800/36/26–10
300/30/26–10
Gray
50
XBUTT4
Blue
50
XBUTT4BU
Red
50
XBUTT4RD
Gray
50
XBUTT4PV
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
—/—/26–10
Green/Yellow
50
XBUTT4PE
55
55
Screw Connection Double Level Block (terminal block with potential distribution between the levels)
6.2 mm
10 AWG/4 mm2
800/36/26–10
300/30/26–10
55
55
XBUTT4PE
Screw Connection Double Level Ground Block, XBUTT4PE
Terminal
Width
55
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
Screw Connection Double Level—Ground Blocks
55
6.2 mm
10 AWG/4 mm2
—/—/26–10
55
55
55
55
55
16
Control Products Catalog CA08102001E—August 2010 www.eaton.com
5
10
12
14
17
17
17
18
21
24
27
29
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Accessories
55
Screw Connection Terminal/Ground Blocks, Double Level
Description
Color
Number of
Positions
Standard
Pack
XBUTT4
Catalog
Number
XBUTT4PE
Catalog
Number
End cover
Gray
—
10
XBACUTT4
XBACUTT4
End cover segment
Gray
—
10
XBDPUTT4
XBDPUTT4
Partition plate
—
—
10
XBATUTT4
XBATUTT4
Plug-in bridge—for cross connections in
the bridge shaft
Red
2
10
XBAFBS26
XBAFBS26
3
10
XBAFBS36
XBAFBS36
5
10
XBAFBS56
XBAFBS56
10
10
XBAFBS106
XBAFBS106
50
10
XBAFBS506
XBAFBS506
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS6
XBATSPS6
10
Blank marker strip (strip of 10)
White
—
XBMZB6
XBMZB6
55
55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Screw Connection Double Level
55
Description
XBUTT4
XBUTT4PE
55
Maximum load current in A/cross-section in mm2
30/6
—/6
55
Rated surge voltage in kV/contamination class
8/3
6/3
Surge voltage category/insulating material group
III/I
III/I
0.25–4/0.25–4
0.25–4/0.25–4
Technical Data in Accordance with IEC
55
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
55
55
Multi-Conductor Connection
(same cross-section)
Solid/stranded in mm2
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
Stranded with ferrules without plastic sleeve in mm2
0.25–1.5
0.25–1.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5–2.5
0.5–2.5
Stripping length in inches (mm)
0.35 (9)
0.35 (9)
Thread
M3
M3
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Screw Connection Double Level
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
XBUTT4
0.24 (6.2)
2.75 (69.9)
0.09 (2.2)
2.56 (65.0)
2.85 (72.5)
XBUTT4PE
0.24 (6.2)
2.75 (69.9)
0.09 (2.2)
2.56 (65.0)
2.85 (72.5)
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
17
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Triple Level Sensor/Actuator
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Triple Level Sensor/Actuator
55
Product Description
55
55
55
55
The XB3UK sensor terminal
blocks reduce installation
time by terminating threewire devices such as
photoelectric and proximity
sensors in a single terminal
block. The XB3UK Series
accommodates a design
where the positive and
negative connections are
grouped so that only the
signal lines and one pair of
wires for the power supply
need to be wired between
the terminal box and the
control. The upper level
accommodates the markable
feed-through terminals for
the signal line. The two lower
terminal points can be
bridged. These are used for
the sensor power supply.
The positive and negative
potential can be fed into the
bridges with XB3UKF25. The
first sensor can also be
connected to this three-wire
feed-through block.
55
55
Product Selection
55
XB3UKA25
Screw Connection Triple Level Sensor/Actuator
Terminal
Width
55
Maximum
Wire Size
Connection Data
in V/A/AWG
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
250/26/24–12
—
300/15/30–14
Gray
50
XB3UKA25
300/15/30–14
Gray
50
XB3UKA25L24
Screw Connection Triple Level
55
6.2 mm
14 AWG/2.5 mm2
Screw Connection Triple Level with Red LED, 15–30 Vdc, 2.5–7.5A
55
6.2 mm
14 AWG/2.5 mm2
250/26/24–12
—
55
55
55
XB3UKF25
Screw Connection Triple Level Sensor/Actuator
Terminal
Width
55
Maximum
Wire Size
Connection Data
in V/A/AWG
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
—
250/30/24–12
300/15/30–14
Gray
50
XB3UKF25
Screw Connection Triple Level
55
6.2 mm
14 AWG/2.5 mm2
55
55
55
18
Control Products Catalog CA08102001E—August 2010 www.eaton.com
5
10
12
14
16
19
20
20
21
24
27
29
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
XB3UKA25PE
55.1
Screw Connection Triple Level Sensor/Actuator
Terminal
Width
Maximum
Wire Size
55
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
250/26/24–12
300/15/30–14
Gray
50
XB3UKA25PE
55
Gray
50
XB3UKA25PEL24
55
55
Screw Connection Triple Level
6.2 mm
14 AWG/2.5 mm2
Screw Connection Triple Level with Red LED, 15–30 Vdc, 2.5–7.5A
6.2 mm
14 AWG/2.5 mm2
250/26/24–12
300/15/30–14
55
XB3UKF25PE
55
Screw Connection Triple Level Sensor/Actuator
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
—
300/15/30–14
Gray
50
XB3UKF25PE
55
Screw Connection Triple Level
6.2 mm
14 AWG/2.5 mm2
55
55
55
55
Accessories
55
Screw Connection Triple Level Sensor/Actuator
Description
Insertion bridge
Insertion bridge
Blank marker strip (strip of 10)
Color
Number of
Positions
Standard
Pack
XB3UKA25
Catalog
Number
XB3UKF25
Catalog
Number
XB3UKA25PE
Catalog
Number
XB3UKF25PE
Catalog
Number
Blue
80
1
XBAEB80DIKB
XBAEB80DIKB
XBAEB80DIKB
XBAEB80DIKB
Red
80
1
XBAEB80DIKR
XBAEB80DIKR
XBAEB80DIKR
XBAEB80DIKR
Blue
10
10
XBAEB10DIKB
XBAEB10DIKB
XBAEB10DIKB
XBAEB10DIKB
Red
10
10
XBAEB10DIKR
XBAEB10DIKR
XBAEB10DIKR
XBAEB10DIKR
White
—
10
XBMZB6 XBMZB6 XBMZB6 XBMZB6 55
55
55
55
55
Notes
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
19
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Technical Data and Specifications
55
Screw Connection Triple Level Sensor/Actuator
55
Technical Data in Accordance with IEC
Description
XB3UKA25
XB3UKF25
XB3UKA25PE
XB3UKF25PE
Maximum load current in A/cross-section in mm2
26/2.5
30/4
26/2.5
26/2.5
55
Maximum cross section with insertion bridge solid/stranded in mm2
4/2.5
4/2.5
4/2.5
4/2.5
55
Rated surge voltage in kV/contamination class
4/3
4/3
4/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
0.25–2.5/0.25–2.5
0.25–2.5/0.25–2.5
0.25–2.5/0.25–2.5
0.25–2.5/0.25–2.5
55
55
55
55
55
55
55
55
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
Multi-Conductor Connection
(same cross-section)
Solid/stranded in mm2
0.2–1.0/0.2–1.0
0.2–1.0/0.2–1.0
0.2–1.0/0.2–1.0
0.2–1.0/0.2–1.0
Stranded with ferrules without plastic sleeve in mm2
0.25–1.0
0.25–1.0
0.25–1.0
0.25–1.0
Stranded with twin ferrule with plastic sleeve in mm2
0.5–1.0
0.5–1.0
0.5–1.0
0.5–1.0
Stripping length in inches (mm)
0.31 (8)
0.31 (8)
0.31 (8)
0.31 (8)
Thread
M3
M3
M3
M3
Torque in in-lb (Nm)
4.4–5.3 (0.5–0.6)
4.4–5.3 (0.5–0.6)
4.4–5.3 (0.5–0.6)
4.4–5.3 (0.5–0.6)
Wiring for Three-Level
Sensor Terminal Blocks
Wiring for Four-Level
Sensor Terminal Blocks
55
55
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Screw Connection Triple Level Sensor/Actuator
55
Catalog
Number
Width
Length
Height for—
35 x 7.5 in
35 x 15 in
55
XB3UKA25
0.24 (6.2)
2.17 (55.0)
2.15 (54.5)
2.44 (62.0)
XB3UKF25
0.24 (6.2)
2.85 (72.5)
2.15 (54.5)
2.44 (62.0)
55
XB3UKA25PE
0.24 (6.2)
2.46 (62.5)
2.76 (70.0)
3.05 (77.5)
XB3UKF25PE
0.24 (6.2)
3.25 (82.5)
2.76 (70.0)
3.05 (77.5)
55
55
55
55
55
55
20
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Fuse Terminal Blocks
Description
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
5
10
12
14
16
18
55
23
23
23
24
27
29
55
55
55
55
55
55
55
55
55
Fuse Terminal Blocks
55
Product Description
The UT Series fuse terminal
blocks come in two varieties—
lever type and cap. Each
performs two functions. They
act as a fuse carrier for most
common North American and
European fuses and they
allow for potential distribution
with the double bridge shaft.
The terminal blocks therefore
allow bypass routing of two
separate potentials next to
each other. This has the
advantage of a time-saving
potential infeed and a correct,
functional configuration of the
terminal strip. For signaling a
triggered fuse, fuse terminal
blocks with light indicators
are available (for both AC and
DC voltage).
55
55
55
55
Product Selection
55
XBUT4FBE
Screw Connection Fuse Terminal Blocks, for 5 x 20 mm Fuse
Terminal
Width
Maximum
Wire Size
55
IEC 60 947-7-3
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
/6.3/26–10
600/6.3/26–10
Black
50
XBUT4FBE
600/6.3/26–10
Black
50
XBUT4FBEL24
55
600/6.3/26–10
Black
50
XBUT4FBEL60
55
600/6.3/26–10
Black
50
XBUT4FBEL250
55
55
Fuse Terminal Blocks
6.2 mm
10 AWG/4 mm2
55
Fuse Terminal Blocks with LED 12–30V, 1–2.5 mA
6.2 mm
10 AWG/4 mm2
/6.3/26–10
Fuse Terminal Blocks with LED 30–60V, 0.8–2.0 mA
6.2 mm
10 AWG/4 mm2
/6.3/26–10
Fuse Terminal Blocks with LED 110–250V, 0.5–2.5 mA
6.2 mm
10 AWG/4 mm2
/6.3/26–10
55
Note
As disconnect terminal block 400V, as fuse terminal block 250V.
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
21
55.1
55
XBUT6FBN
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Screw Connection Fuse Terminal Blocks for 6.3 x 32 mm (1/4 in x 1–1/4 in) Fuse
Terminal
Width
55
Maximum
Wire Size
IEC 60 947-7-3
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
/10/24–8
400/10/24–8
Black
50
XBUT6FBN
400/10/24–8
Black
50
XBUT6FBNL24
400/10/24–8
Black
50
XBUT6FBNL60
400/10/24–8
Black
50
XBUT6FBNL250
Fuse Terminal Blocks
55
8.2 mm
8 AWG/6 mm2
Fuse Terminal Blocks with LED 12–30V, 1–2.5 mA
55
8.2 mm
8 AWG/6 mm2
/10/24–8
Fuse Terminal Blocks with LED 30–60V, 0.8–2.0 mA
55
8.2 mm
8 AWG/6 mm2
/10/24–8
Fuse Terminal Blocks with LED 110–250V, 0.5–2.5 mA
55
8.2 mm
8 AWG/6 mm2
/10/24–8
55
55
XBUK10FBCE
Screw Connection Fuse Terminal Blocks, XBUK10FBC
IEC 60 947-7-3
with Fuse in
V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
800/10/20–6
300/20/22–6
Black
50
XBUK10FBCE
300/20/22–6
Black
50
XBUK10FBCN
Black
50
XBUK10FBCEL24
Black
50
XBUK10FBCNL24
Black
50
XBUK10FBCEL250
Black
50
XBUK10FBCNL250
Terminal
Width
55
Fuse Terminal Blocks for 5 x 20 mm fuse
55
Fuse Terminal Blocks for 6.3 x 32 mm (1/4 in x 1–1/4 in) fuse
12 mm
12 mm
55
Maximum
Wire Size
IEC 60 947-7-3
as Disconnected
t.b. in V/A/AWG
55
6 AWG/16 mm2
6 AWG/16 mm2
//20–4
//20–4
800/10/20–6
Fuse Terminal Blocks with Light Indicator 15–30V, 1–2.5 mA, 5 x 20 mm
12 mm
55
6 AWG/16 mm2
//20–4
800/10/20–6
300/20/22–6
Fuse Terminal Blocks with Light Indicator 15–30V, 1–2.5 mA, 6.3 x 32 mm
55
12 mm
55
12 mm
6 AWG/16 mm2
//20–4
800/10/20–6
300/20/22–6
Fuse Terminal Blocks with Light Indicator 110–250V, 0.5–1.1A, 5 x 20 mm
6 AWG/16 mm2
//20–4
800/10/20–6
300/20/22–6
Fuse Terminal Blocks with Light Indicator 110–250V, 0.5–1.1A, 6.3 x 32 mm
55
12 mm
6 AWG/16 mm2
//20–4
800/10/20–6
300/20/22–6
55
Cartridge Fuse Inserts 5 x 20 mm Based on DIN EN 60 947-7-3: 2003-7
55
55
55
Terminal
Blocks
U (V)
Overload Protection
Individual Interconnected
Short-Circuit Protection Only
Individual Interconnected
Imax. (A)
XBUT4FBE
250
1.6W
4W
6.3
1.6W
2.5W
Notes
Max. power dissipation at 73.4°F (23°C) based on DIN EN 60 947-7-3: 2003-7.
When selecting cartridge fuse inserts, please ensure that the maximum power dissipation specified above
is not exceeded. Details can be obtained from the fuse suppliers.
If the fuse is defective, the downstream circuit is not off load.
55
55
As disconnect terminal block 500V, as fuse terminal block 400V.
55
55
55
55
55
55
55
55
22
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Accessories
55
Screw Connection Fuse Terminal Blocks
Description
Color
Number of
Positions
Standard
Pack
XBUT4FBE
Catalog
Number
XBUT6FBN
Catalog
Number
XBUK10FBCE
Catalog
Number
End cover
—
—
—
—
Plug-in bridge—for cross connections in
the bridge shaft
Red
2
10
XBAFBS26
XBAFBS28
—
3
10
XBAFBS36
XBAFBS38
—
5
10
XBAFBS56
XBAFBS58
—
10
10
XBAFBS106
XBAFBS108
—
50
10
XBAFBS506
XBAFBS508
—
Blank marker strip center labeling (strip of 10)
White
—
—
XBMZB5 XBMZB6 —
Blank marker strip external labeling (strip of 10)
White
—
—
XBMZB6 XBMZB8 —
Fixed bridge
—
2
10
—
—
XBAFBI212
Screw heads with insulating collar
—
10
10
—
—
XBAFBI1012
Blank marker strip (strip of 10)
White
—
10
—
—
XBMZB6 55
55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Screw Connection Fuse Terminal Blocks
Description
XBUT4FBE
XBUT4FBN
XBUK10FBCE
—
—
G/5 x 20/5 x 25/6.3 x 32
Maximum cross section with insertion bridge solid/stranded in mm2
6.3/6
10/10
10/10
Rated surge voltage in kV/contamination class
4/3
4/3
4/3
Surge voltage category/insulating material group
III/II
III/II
III/I
0.25–4/0.25–4
0.25–6/0.25–6
0.5–10/0.5–10
Solid/stranded in mm2
0.14–1.5/0.14–1.5
—
0.5–4/0.5–4
Stranded with ferrules without plastic sleeve in mm2
0.25–1.5
—
0.5–4
Stranded with twin ferrule with plastic sleeve in mm2
0.5–2.5
0.5–4
0.5–10
Stripping length in inches (mm)
0.35 (9)
0.39 (10)
0.43 (11)
Thread
M3
M4
M4
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
13.3–15.9 (1.5–1.8)
13.3–15.9 (1.5–1.8)
55
55
Technical Data in Accordance with IEC
Fuse type/dimensions in (mm)
55
55
Connection Capacity
Stranded with ferrule/with ferrule and plastic sleeve in mm2
55
55
Multi-Conductor Connection (same cross-section)
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Screw Connection Fuse Terminal Blocks
55
Catalog
Number
Width
Length
Height for—
35 x 7.5 in
35 x 15 in
32 in
XBUT4FBE
0.24 (6.2)
2.24 (56.8)
2.87 (73.0)
3.17 (80.5)
—
XBUT4FBN
0.32 (8.2)
2.24 (56.8)
2.87 (73.0)
3.17 (80.5)
—
XBUK10FBCE
0.47 (12.0)
2.44 (62.0)
2.32 (59.0)
2.62 (66.5)
2.52 (64.0)
55
55
55
Notes
XBUT4FBE and XBUT6FBN have an enclosed design. The use of an end cover is not required.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
23
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Disconnect and Component Terminal Blocks
Description
55
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Disconnect and Component Terminal Blocks
55
Product Description
55
55
55
55
55
55
The XB Series includes
application specific terminal
blocks like the XBUT4TG
disconnect block that
accommodates disconnect
component and fuse terminal
blocks. It can also be bridged
with standard terminal blocks
via the double bridge shaft.
The component plug XBPCO
serves to accommodate
different components such
as resistors or capacitors.
5 x 20 mm fuses can be
inserted into the fuse plug
XBPFU, also available with
light indication. The XBUT4MT
knife disconnect terminal
block features a compact
design and a high current
carrying capacity of 16A.
Versions with test socket
screws provide a test option
for 2.3 mm diameter test
plugs on both sides of the
disconnect point.
55
55
55
55
55
55
55
55
55
55
55
55
24
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Page
5
10
12
14
16
18
21
25
26
26
26
27
29
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Product Selection
XBUT4TG
Disconnect
55
Screw Connection Disconnect and Component Terminal Blocks
Terminal
Width
55
Connection Data
in V/A/AWG
UL-cUL Ratings
for Disconnect
in V/A/AWG
UL-cUL Ratings
for Disconnect
with Test Sockets
in V/A/AWG
500/16/26–10
600/16/26–10
300/16/26–10
Gray
50
XBUT4TG
500/16/26–10
600/16/26–10
300/16/26–10
Gray
50
XBUT4TGP
55
10 AWG/4 mm2
500/16/26–10
600/16/26–10
300/16/26–10
Gray
10
XBPCO
55
10 AWG/4 mm2
500/16/26–10
600/16/26–10
300/16/26–10
Black
10
XBPFU
55
300/16/26–10
Black
10
XBPFUL24
55
600/16/26–10
300/16/26–10
Black
10
XBPFUL250
600/16/26–10
300/16/26–10
Gray
50
XBUT4MT
300/16/26–10
Gray
50
XBUT4MTP
55
—
Gray
50
XBUKK4DIO
55
Maximum
Wire Size
Color
Standard
Pack
Catalog
Number
55
55
Screw Connection Disconnect
6.2 mm
10 AWG/4 mm2
55
Screw Connection Disconnect with Test Sockets
6.2 mm
10 AWG/4 mm2
Component Plug
6.2 mm
Fuse Plug
6.2 mm
Fuse Plug with Light Indicator for 12–30V, 1–2.5 mA
6.2 mm
10 AWG/4 mm2
500/16/26–10
600/16/26–10
Fuse Plug with Light Indicator for 110–250V, 0.5–2.5 mA
6.2 mm
10 AWG/4 mm2
500/16/26–10
55
55
Screw Connection Disconnect Knife Disconnect
6.2 mm
10 AWG/4 mm2
500/16/26–10
55
Screw Connection Disconnect Knife Disconnect with Test Sockets
6.2 mm
10 AWG/4 mm2
500/16/26–10
600/16/26–10
Screw Connection Terminal Blocks with Integrated Diodes
6.2 mm
XBTKT25 Thermal
Electric Voltage
12 AWG/4 mm2
500/32/24–10
600/30/26–10
55
Screw Connection Thermoelectric Voltage Terminal Blocks
Terminal
Width
Maximum
Wire Size
55
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
400/—/24–12
300/10/28–12
Gray
50
XBTKT25 (Type T)
400/—/24–12
300/10/28–12
Gray
50
XBTKJ25 (Type J)
55
400/—/24–12
300/10/28–12
Gray
50
XBTKE25 (Type E)
55
400/—/24–12
300/10/28–12
Gray
50
XBTKK25 (Type K)
55
400/—/24–12
300/10/28–12
Gray
50
XBTKR25 (Type R)
55
55
Copper/Constantan (CU/CUNI44)
10.4 mm
12 AWG/2.5 mm2
55
Iron/Constantan (FE/CUNI44)
10.4 mm
12 AWG/2.5 mm2
Nickel-Chrome/Constantan (NICR/CUNI44)
10.4 mm
12 AWG/2.5 mm2
Nickel-Chrome/Nickel (NICRNI)
10.4 mm
12 AWG/2.5 mm2
Copper/Copper Nickel (E-CU/A-CU)
10.4 mm
12 AWG/2.5 mm2
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
25
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Screw Connection Disconnect and Component Terminal Blocks
55
Description
Color
55
Plug-in bridge—for cross connections in
the bridge shaft
Red
Number of
Positions
Standard
Pack
XBUT4TG
Catalog
Number
XBUT4MT
Catalog
Number
XBUKK4DI0
Catalog
Number
XBTKT25
Catalog
Number
2
10
XBAFBS26
XBAFBS26
—
—
3
10
XBAFBS36
XBAFBS36
—
—
55
5
10
XBAFBS56
XBAFBS56
—
—
10
10
XBAFBS106
XBAFBS106
—
—
55
50
10
XBAFBS506
XBAFBS506
—
—
55
55
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
—
—
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ —
—
Modular test plug
—
—
10
XBATSDPPS6
XBATSDPPS6
—
—
Blank marker strip (strip of 10)
White
—
10
XBMZB6 XBMZB6 XBMZB6 XBMZB10 End cover
Gray
—
10
—
—
XBACUKK35
XBACTK4
Spacer cover
Gray
—
10
—
—
XBADGUKK35
—
55
Spacer plate
—
—
10
—
—
XBADPUKK35
—
Partition plate
—
—
—
—
—
—
XBATTK4
55
Fixed bridge
—
10
10
—
—
XBAFBI106
—
55
Technical Data and Specifications
55
Screw Connection Disconnect and Component Terminal Blocks
55
Technical Data in Accordance with IEC
55
55
55
55
55
55
55
Description
XBUT4TG
XBUT4MT
XBUKK4DI0
XBTK
—
Maximum load current in A/cross-section in mm2
16/6
16/6
32/4
Rated surge voltage in kV/contamination class
6/3
6/3
6/3
—
Surge voltage category/insulating material group
III/I
III/I
III/I
—
0.25–4/0.25–4
0.25–4/0.25–4
0.25–4/0.25–2.5
—
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
Multi-Conductor Connection
(same cross-section)
Solid/stranded in mm2
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
0.2–1.5/0.2–1.5
—
Stranded with ferrules without plastic sleeve in mm2
0.25–1.5
0.25–1.5
0.25–1.5
—
Stranded with twin ferrule with plastic sleeve in mm2
—
0.5–2.5
0.5–2.5
0.5–1.5
55
Stripping length in inches (mm)
0.35 (9)
0.35 (9)
0.31 (8)
0.28 (7)
Thread
M3
M3
M3
M3
55
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
55
55
55
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
Screw Connection Disconnect and Component Terminal Blocks
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
32 in
XBUT4TG
0.24 (6.2)
2.24 (56.8)
—
1.87 (47.5)
2.17 (55.0)
—
XBUT4MT
0.24 (6.2)
2.24 (56.8)
—
1.87 (47.5)
2.17 (55.0)
—
XBUKK4DI0
0.24 (6.2)
2.20 (56.0)
0.10 (2.5)
2.44 (62.0)
2.74 (69.5)
2.64 (67.0)
XBTK
0.20 (5.2)
1.81 (46.0)
0.04 (1.0)
1.57 (40.0)
1.87 (47.5)
1.77 (45.0)
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
For additional accessories, see Page 90.
26
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
High Current Blocks
Description
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
5
10
12
14
16
18
21
24
55
28
28
28
29
55
55
55
55
55
55
55
55
55
High Current Blocks
55
Product Description
Eaton’s XBUK high current
terminal blocks offer a
reliable connection via
the superior construction that
includes three-point centering
of the wire in the
prism-shaped sleeve base,
a fluted contact surface
for low contact resistance,
and screws secured with
spring-loaded elements.
The terminal blocks have
an enclosed housing made
from polyamide 6.6. Greenyellow ground terminal blocks
are also available.
55
55
55
55
Product Selection
XBUK150
55
Screw Connection High Current Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
20.0 mm
1/0/50 mm2
1000/150/1/0
750/135/1/0
600/150/1/0
Gray
10
XBUK50
Blue
10
XBUK50BU
Gray
10
XBUK150
31.0 mm
300 kcmil/150 mm2
1000/309/2–300
726/265/2–300
600/285/
2 AWG–300 kcmil
55
55
55
55
55
XBUK95PE
Screw Connection High Current Ground Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
25.0 mm
000 AWG/95 mm2
—/232/4–000
—/—/4–000
—/—/2–4/0
Green/Yellow 10
Standard
Pack
55
Catalog
Number
55
XBUK95PE
55
55
55
Note
U type—examination certificate number: KEMA 05ATEX2170 U (XBUK50), KEMA 05ATEX2171 U (XBUK150).
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
27
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Screw Connection High Current Blocks
55
Description
Number of
Positions
Color
Standard
Pack
XBUK50
Catalog
Number
XBUK150
Catalog
Number
XBUK95PE
Catalog
Number
55
Fixed bridge, screw heads with insulating color
—
2
10
XBAFBI220
—
—
Insertion bridge
—
2
10
—
XBAEB231
—
55
Blank marker strip external labeling (strip of 10)
White
—
10
XBMZB10 XBMZB10 XBMZB10 55
Technical Data and Specifications
55
Screw Connection High Current Blocks
55
55
55
55
55
55
55
Description
XBUK50
XBUK150
XBUK95PE
Technical Data in Accordance with IEC
Maximum load current in A/cross-section in mm2
150/50
309/150
232/95
Maximum cross-section with insertion bridge
solid/stranded in mm2
—/—
150/120
—/—
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
25–50/25–50
50–150/50–150
35–95/35–95
Connection Capacity
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
Multi-Conductor Connection
(same cross-section)
Solid/stranded in mm2
10–16/10–16
25–50/35–50
25–35/25–35
Stranded with ferrules without plastic sleeve in mm2
10–16
25–50
16–35
Stripping length in inches (mm)
0.94 (24)
1.57 (40)
1.18 (30)
55
Thread
M6
M10
M8
Terminal point—thread/torque in in-lb (Nm)
53–71 (6–8)
221–267 (25–30)
133–177 (15–20)
55
Fastening—thread/torque in in-lb (Nm)
53–71 (6–8)
221–267 (25–30)
133–177 (15–20)
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
55
Screw Connection High Current Blocks
55
Catalog
Number
Width
Length
Height for—
35 x 7.5 in
35 x 15 in
32 in
55
XBUK50
0.79 (20.0)
2.78 (70.5)
3.29 (83.5)
3.21 (81.5)
—
XBUK150
1.22 (31.0)
3.94 (100.0)
4.67 (118.5)
4.57 (116.0)
—
55
XBUK95PE
0.98 (25.0)
3.27 (83.0)
—
3.90 (99.0)
3.80 (96.5)
55
Notes
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
28
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Mini Screw Connection Terminal Blocks
Description
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Screw Connection
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
10
12
14
16
18
21
24
27
30
30
30
55
55
55
55
55
55
55
55
55
55
55
Mini Screw Connection
55
Product Description
The XB miniature terminal
blocks have a connection
cross-section from 2 mm2
through 4 mm2 and mount on
15 mm DIN rail. There is an
opening for bridging with a
fixed bridge in the center of
the terminal blocks. These
miniature terminal blocks also
offer the same accessories
that you would find with the
larger blocks—including
marking tags, end covers,
end stop and ground blocks.
55
55
55
Product Selection
XBMUK4
55
Mini Screw Connection Terminal Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
400/32/24–12
275/28/21/24–12
600/20/28–12
6.2 mm
10 AWG/4 mm2
500/41/24–10
—/—/—
600/10/26–10
Color
Standard
Pack
Catalog
Number
Gray
50
XBMUK25
Blue
50
XBMUK25BU
Gray
50
XBMUK4
Blue
50
XBMUK4BU
55
55
55
55
55
55
XBMUK25PE
Mini Screw Connection Ground Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-2
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
—/—/24–12
—/—/30–12
6.2 mm
10 AWG/2.4 mm2
—/—/24–10
—/—/26–14
55
Standard
Pack
Catalog
Number
Green/
Yellow
50
XBMUK25PE
55
Green/
Yellow
50
XBMUK4PE
55
Color
55
55
Note
EU type—examination certificate number: KEMA 05ATEX2169 U (XBMUK25).
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
29
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Mini Screw Connection Terminal/Ground Blocks
55
Number of
Positions
Standard
Pack
XBMUK25
Catalog
Number
XBMUK4
Catalog
Number
XBMUK25PE
Catalog
Number
XBMUK4PE
Catalog
Number
Description
Color
55
End cover
Gray
—
10
XBACMU254
XBACMU254
—
—
Blue
—
10
XBACMU254B
XBACMU254B
—
—
55
Partition plate
—
—
10
XBATMU254
XBATMU254
—
—
Fixed bridge
—
10
10
XBAFBR105N
—
—
—
55
Separating plate
—
—
10
XBATMPKK15
XBATMPKK15
—
—
Blank marker strip (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB5 XBMZB6 55
55
Technical Data and Specifications
55
Mini Spring Cage Terminal/Ground Blocks
55
Technical Data in Accordance with IEC
Description
XBMUK25
XBMUK4
XBMUK25PE
XBMUK4PE
32/4
41/6
—
—
55
Maximum load current in A/cross-section in mm2
Maximum cross-section with insertion bridge (solid/stranded)
2.5/2.5
4/4
—
—
55
Rated surge voltage in kV/contamination class
6/3
6/3
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
Stranded with ferrule with plastic sleeve in mm2
0.25–1.5
0.25–2.5
0.25–1.5
0.25–2.5
Stranded with ferrule without plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–2.5
0.25–4
Solid/stranded in mm2
0.2–1.0/0.2–1.5
0.2–1.5/0.2–1.5
0.2–1.0/0.2–1.5
0.2–1.5/0.2–1.5
Stranded with ferrule without plastic sleeve in mm2
0.25–1.5
0.25–1.5
0.25–1.5
0.25–1.5
Stranded with ferrule with plastic sleeve in mm2
0.5–1.0
0.5–2.5
0.5–1.5
0.5–2.5
Stripping length in Inches (mm)
0.31 (8)
0.31 (8)
0.31 (8)
0.31 (8)
Thread
M3
M3
M3
M3
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
4.4–5.3 (0.5–0.6)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
55
55
55
55
55
55
Connection Cross-Section
Multi-Conductor Connection (same cross-section)
55
55
55
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
Mini Spring Cage Terminal/Ground Blocks
Catalog
Number
Width
Length
Cover
Length
Height for—
15 in
XBMUK25
0.20 (5.2)
1.10 (28.0)
0.04 (1.0)
1.26 (32.0)
XBMUK4
0.24 (6.2)
1.10 (28.0)
0.04 (1.0)
1.26 (32.0)
XBMUK25PE
0.20 (5.2)
1.10 (28.0)
—
1.24 (31.5)
XBMUK4PE
0.24 (6.2)
1.10 (28.0)
—
1.26 (32.0)
Notes
For information on Printed Marking Tag Options, see Page 98.
For additional accessories, see Page 90.
55
55
55
55
30
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Spring Cage Connection
Description
Page
Spring Cage Terminal Blocks
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
32
37
39
42
44
46
48
51
54
56
55
55
55
55
55
55
Drawings
Online
55
55
55
Spring Cage Terminal Blocks Overview
Product Description
Application Description
Features
The XBPT Series incorporates
a spring cage connection
system proven in applications
that are sensitive to vibration.
The spring mechanism
always exerts the same
constant force on the wire,
resulting in a vibrationproof, gas-tight connection,
independent of the user.
The space-saving front
connection, with the wire
and screwdriver coming in
parallel from the same
direction, allows for simple
wiring in places where there
is little space available.
The connection point is
opened with a standard
screwdriver. After the wire
has been inserted into the
wire guide of the terminal
block, the screwdriver is
removed and the wire
automatically makes contact.
●
●
●
●
●
●
Vibration-resistance
Global acceptance
Multi-conductor
connections
Flexible Plug-in bridge
system
Large surface area for
marking
Standardized testing
system
Standards and Certifications
●
●
●
●
UL recognized—File No.
E67464
CE approved
LVD :
●
EN 60947-7-1
●
EN 60947-7-2
●
EN 60998-2-3
●
EN 60352-4/A1
ATEX approval
(Eex e applications)
55
55
55
55
55
55
55
55
Note
Not all standards apply to all terminal
blocks. Contact Eaton for details.
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
31
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Single Level—Through-Feed
Description
55
Single Level—Through-Feed
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Single Level—Through-Feed
55
Product Description
55
55
55
55
The space-saving design and
front entry design make the
XBPT Series ideal for control
systems where there is little
space. Even so, they offer
maximum connection
space, resulting in fast
wiring of stranded and
solid conductors with or
without ferrules.
XBPT terminal blocks are
available with cross-sections
from 2.5 mm2 up to 35 mm2.
The double bridge shaft can
accommodate individual
chain bridging and stepdown bridging from other
terminal blocks.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
32
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Page
34
36
36
37
39
42
44
46
48
51
54
56
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Product Selection
XBPT6
55
Spring Cage Connection Single Level—Through-Feed
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
800/31/28–12
550/25/21/24–12
600/20/26–12
6.2 mm
10 AWG/4 mm2
800/40/28–10
550/34/30/24–10
600/30/20–10
8.2 mm
8 AWG/6 mm2
800/52/24–8
550/45/36/20–8
600/50/20–8
10.2 mm
6 AWG/10 mm2
800/65/24–6
550/50/63/16–6
600/65/16–6
12 mm
4 AWG/16 mm2
800/90/24–4
550/65/82/16–4
600/50/16–4
16 mm
2 AWG/35 mm2
800/125/14–2
750/108/14–2
600/115/14–2
Color
Standard
Pack
Catalog
Number
Gray
50
XBPT25
Blue
50
XBPT25BU
White
50
XBPT25WH
Red
50
XBPT25RD
Black
50
XBPT25BK
Gray
50
XBPT4
Blue
50
XBPT4BU
Gray
50
XBPT6
Blue
50
XBPT6BU
Gray
50
XBPT10
Blue
50
XBPT10BU
Gray
50
XBPT16
Blue
50
XBPT16BU
Gray
50
XBPT35
Blue
50
XBPT35BU
55
55
55
55
55
55
55
55
55
55
55
Note
EU type—examination certificate number: KEMA 05ATEX2158 U.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
33
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Spring Cage Connection Single Level—Through-Feed, XBPT25, XBPT4 an d XBPT6
Standard
Pack
XBPT25
Catalog
Number
XBPT4
Catalog
Number
XBPT6
Catalog
Number
Description
Color
Number of
Positions
55
End cover
Gray
—
10
XBACPT25
XBACPT4
XBACPT6
Partition plate
Gray
—
10
XBATPT4
XBATPT4
XBATPT6
55
Plug-in bridge—for cross connections
in the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS28
3
10
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
50
10
XBAFBS505
XBAFBS506
55
55
55
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS8
Blank marker strip external labeling
White
—
10
XBMZBF5 XBMZBF6 XBMZF8 Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB8 Spring Cage Connection Single Level—Through-Feed, XBPT10, XBPT16 and XBPT35
55
55
55
55
55
55
55
Description
Color
Number of
Positions
Standard
Pack
XBPT10
Catalog
Number
XBPT16
Catalog
Number
XBPT35
Catalog
Number
End cover
Gray
—
10
XBACPT10
XBACPT16
Plug-in bridge—for cross connections in
the bridge shaft
Red
2
10
XBAFBS210
XBAFBS212 XBAFBS216 2.3 mm diameter test plug
—
—
10
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Blank marker strip external labeling
White
—
10
XBMZF10 XBMZBF12 XBMZBF15 Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB10 XBMZB12 XBMZB15 Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
XBPT35 has an enclosed design. The use of an end cover is not required.
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
55
55
55
55
34
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
XBPT with Reducing Bridge
55
XBPT6
55
XBACPT6
lmax
55
lmax
55
55
55
XBARBST6
55
55
Central Input
One-Sided Input
XBPT25
XBPT25
55
XBACPT25
55
Step-Down Bridge with Standard Feed-Through Terminal Blocks
Input
Terminal
Blocks
XBPT6
XBPT10
XBPT16
Cross-Section
Pick-Off
Terminal
Blocks
Cross-Section
AWG (mm2)
One-Sided
Input
Imax
Central
Input
Imax
Bridge
Catalog
Number
8 AWG (6 mm2)
XBPT25
12 (2.5)
40
56
XBARBST6
XBPT4
10 (4)
45
56
XBARBST6
XBQT15
14 (1.5)
35
56
XBARBST6
XBQT25
12 (2.5)
40
56
XBARBST6
6 AWG (10 mm2)
4 AWG (16 mm2)
XBPT25
12 (2.5)
40
65
XBARBST10
XBPT4
10 (4)
45
65
XBARBST10
XBQT15
14 (1.5)
35
65
XBARBST10
XBQT25
12 (2.5)
40
65
XBARBST10
XBPT25
12 (2.5)
40
80
XBARBST16
XBPT4
10 (4)
45
90
XBARBST16
XBQT15
14 (1.5)
35
70
XBARBST16
XBQT25
12 (2.5)
40
80
XBARBST16
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
35
55.1
55
55
55
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Technical Data and Specifications
Spring Cage Connection Single Level—Through-Feed
Description
XBPT25
XBPT4
XBPT6
XBPT10
XBPT16
XBPT35
Technical Data in Accordance with IEC
Maximum load current in A/cross-section in mm2
31/4
40/6
52/10
65/16
90/25
125/35
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
III/I
III/I
Connection Capacity
55
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–6
0.25–10
0.25–16
2.5–35
55
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–6
0.25–10
0.25–16
2.5–35
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5–1
0.5–1.5
1.5–2.5
1.5–4
2.5–10
0.39 (10)
0.39 (10)
0.47 (12)
0.71 (18)
0.71 (18)
0.98 (25)
55
55
Stripping length in inches (mm)
Dimensions
55
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Single Level—Through-Feed
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
55
XBPT25
0.20 (5.2)
1.91 (48.5)
0.09 (2.2)
1.45 (36.8)
1.73 (44.0)
XBPT4
0.24 (6.2)
2.20 (56.0)
0.09 (2.2)
1.45 (36.8)
1.73 (44.0)
55
XBPT6
0.32 (8.2)
2.74 (69.5)
0.09 (2.2)
1.71 (43.5)
2.01 (51.0)
XBPT10
0.39 (10.0)
2.81 (71.5)
0.09 (2.2)
1.99 (50.5)
2.30 (58.5)
XBPT16
0.47 (12.0)
3.15 (80.0)
0.09 (2.2)
2.01 (51.0)
2.30 (58.5)
3.94 (100.0)
2.32 (59.0)
2.62 (66.5)
55
55
55
XBPT35
0.63 (16.0)
Note
XBPT35 has an enclosed design. The use of an end cover is not required.
55
55
55
55
55
55
55
55
55
55
55
55
55
36
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Single Level—Ground Blocks
Description
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
38
38
38
39
42
44
46
48
51
54
56
55
55
55
55
55
55
55
55
55
55
Single Level—Ground Blocks
55
Product Description
55
The XBPT ground blocks are
the same shape as the feedthrough terminal blocks with
the same wide range of
cross-sections available.
They easily snap onto the
DIN rail to make a reliable
mechanical and electrical
contact that meets all
requirements of
IEC 60-947-7-2.
55
55
55
55
Product Selection
XBPT4PE
55
Spring Cage Connection Single Level—Ground Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-2
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
55
5.2 mm
12 AWG/2.5 mm2
—/—/28–12
—/—/24–12
—/—/26–12
Green/Yellow
50
XBPT25PE
6.2 mm
10 AWG/4 mm2
—/—/28–10
—/—/24–10
—/—/20–10
Green/Yellow
50
XBPT4PE
55
8.2 mm
8 AWG/6 mm2
—/—/24–8
—/—/20–8
—/—/20–8
Green/Yellow
50
XBPT6PE
10.2 mm
6 AWG/10 mm2
—/65/24–6
—/—/16–6
—/—/16–6
Green/Yellow
50
XBPT10PE
12 mm
4 AWG/16 mm2
—/90/24–4
—/—/16–4 —/—/16–4
Green/Yellow
25
XBPT16PE
16 mm
2 AWG/35 mm2
—/125/14–2
—/—/14–2 —/—/14–2
Green/Yellow
10
XBPT35PE
55
55
55
Notes
EU type—examination certificate number: KEMA 05ATEX2154 U (XBPT25PE), KEMA 05ATEX2155 U (XBPT4PE).
EU type—examination certificate number: KEMA 05ATEX2156 U.
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
37
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Spring Cage Connection Single Level Ground Blocks, XBPT25PE, XBPT4PE and XBPT6PE
Standard
Pack
XBPT25PE
Catalog
Number
XBPT4PE
Catalog
Number
XBPT6PE
Catalog
Number
Description
Color
Number of
Positions
55
End cover
Gray
—
10
XBACPT25
XBACPT4
XBACPT6
Blank marker strip external labeling
White
—
10
XBMZBF5 XBMZBF6 XBMZBF8 55
Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB8 XBPT16PE
Catalog
Number
XBPT35PE
Catalog
Number
55
55
Spring Cage Connection Single Level Ground Blocks, XBPT10PE, XBPT16PE and XBPT35PE
55
Number of
Positions
Standard
Pack
XBPT10PE
Catalog
Number
55
Description
Color
End cover
Gray
—
10
XBACPT10
XBACPT16
55
Plug-in bridge—for cross connections in
the bridge shaft
—
2
10
XBAFBS210
XBAFBS212
XBAFBS216
55
Blank marker strip external labeling
White
—
10
XBMZBF10 XBMZBF12 XBMZBF15 Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB10
XBMZB12
XBMZB15 55
55
Technical Data and Specifications
55
Spring Cage Connection Single Level Ground Blocks
55
55
55
55
55
55
55
Description
XBPT25PE
XBPT4PE
XBPT6PE
XBPT10PE
XBPT16PE
XBPT35PE
Technical Data in Accordance with IEC
Maximum load current in A/cross-section in mm2
—
—
—
65/16
90/25
125/35
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
III/I
III/I
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–6
0.25–10
0.25–16
2.5–35
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–6
0.25–10
0.25–16
2.5–35
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5–1
0.5–1.5
1.5–2.5
1.5–4
2.5–10
0.39 (10)
0.39 (10)
0.47 (12)
0.71 (18)
0.71 (18)
0.98 (25)
Connection Capacity
Stripping length in inches (mm)
Dimensions
55
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Single Level Ground Blocks
55
55
55
55
55
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
XBPT25PE
0.20 (5.2)
1.91 (48.5)
0.09 (2.2)
1.45 (36.8)
1.73 (44.0)
XBPT4PE
0.24 (6.2)
2.20 (56.0)
0.09 (2.2)
1.45 (36.8)
1.73 (44.0)
XBPT6PE
0.32 (8.2)
2.74 (69.5)
0.09 (2.2)
1.71 (43.5)
2.01 (51.0)
XBPT10PE
0.39 (10.0)
2.81 (71.5)
0.09 (2.2)
1.99 (50.5)
2.28 (58.0)
XBPT16PE
0.47 (12.0)
3.15 (80.0)
0.09 (2.2)
2.01 (51.0)
2.30 (58.5)
XBPT35PE
0.63 (16.0)
3.94 (100.0)
—
2.32 (59.0)
2.62 (66.5)
Notes
For information on Printed Marking Tag Options, see Page 98.
XBPT35PE has an enclosed design. The use of an end cover is not required.
For additional accessories, see Page 90.
55
55
38
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Multi-Conductor Terminal Blocks
Description
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
37
40
41
41
42
44
46
48
51
54
56
55
55
55
55
55
55
55
55
55
55
55
Multi-Conductor Terminal Blocks
55
Product Description
The multi-conductor terminal
blocks offer a space-saving
alternative to standard feedthrough terminal blocks,
allowing for high-density
wiring. Often, three
connections have to be led
to one terminal block. The
XBPT…D12 terminal block
accomplishes this without
any additional terminal blocks
or bridging required. The
XBPT…D22 terminal blocks
allow four wires to be
connected to one potential—
and can therefore be used as
compact power distributors.
There is also a version,
XBPT25D22U or XBPT4D22U,
with an interrupted bus bar in
the terminal center. This
makes two feed-through
terminal blocks available in
one level. One side of this
block can be bridged using
the standard Plug-in bridges.
Double marker carriers are
available for clear marking of
the feed-through levels.
55
55
55
55
55
Product Selection
XBPT4D12
55
Spring Cage Connection Multi-Conductor Terminal Blocks, Three-Wire
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
800/28/28–12
550/25/21/24–12
600/20/26–12
6.2 mm
10 AWG/4 mm2
800/40/28–10
550/34/29/24–10
600/30/20–10
55
Color
Standard
Pack
Catalog
Number
Gray
50
XBPT25D12
Blue
50
XBPT25D12BU
Gray
50
XBPT4D12
Blue
50
XBPT4D12BU
55
55
55
55
Note
EU type—examination certificate number: KEMA 05ATEX2154 U (XBPT25D12), KEMA 05ATEX2155 U (XBPT4D12).
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
39
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Spring Cage Connection Multi-Conductor Terminal Blocks, Four-Wire
XBPT25D22
Terminal
Width
55
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
800/28/28–12
550/24/21/24–12
600/20/26–12
Color
Standard
Pack
Catalog
Number
Spring Cage Multi-Conductor
55
5.2 mm
55
6.2 mm
55
12 AWG/2.5 mm2
10 AWG/4 mm2
800/40/28–10
550/34/25/24–10
600/30/20–10
Gray
50
XBPT25D22
Blue
50
XBPT25D22BU
Gray
50
XBPT4D22
Blue
50
XBPT4D22BU
Spring Cage Multi-Conductor with Interrupted Bus Bar
55
5.2 mm
12 AWG/2.5 mm2
800/28/28–12
550/24/21/24–12
600/20/26–12
Blue
50
XBPT25D22U
6.2 mm
10 AWG/4 mm2
800/40/28–10
550/34/25/24–10
600/30/20–10
Blue
50
XBPT4D22U
55
55
55
Accessories
Spring Cage Connection Multi-Conductor Terminal Blocks
55
Standard
Pack
XBPT25D12
Catalog
Number
XBPT4D12
Catalog
Number
XBPT25D22
Catalog
Number
XBPT4D22
Catalog
Number
Description
Color
Number of
Positions
End cover
Gray
—
10
XBACPT25D12
XBACPT4D12
XBACPT25D22
XBACPT4D22
55
End cover segment
Gray
—
10
XBASPT25
XBASPT4
XBASPT25
XBASPT4
Partition plate
—
—
10
XBATPTD12
XBATPTD12
XBATPTD22
XBATPTD22
55
Plug-in bridge—for cross connections in
the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS36
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
XBAFBS105
XBAFBS106
50
10
XBAFBS505
XBAFBS506
XBAFBS505
XBAFBS506
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ 55
Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS5
XBATSPS6
Blank marker strip external labeling
White
—
10
XBMZBF5 XBMZBF6 XBMZBF5 XBMZBF6 55
Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB5 XBMZB6 55
55
Notes
EU type—examination certificate number: KEMA 05ATEX2154 U (XBPT25D22), KEMA 05ATEX2155 (XBPT4D22).
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
55
55
40
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Technical Data and Specifications
55
Spring Cage Connection Multi-Conductor Terminal Blocks
Description
XBPT25D12
XBPT4D12
XBPT25D22
XBPT4D22
Maximum load current in A/cross-section in mm2
28/4
40/6
28/4
40/6
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–2.5
0.25–4
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–2.5
0.25–4
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5–1
0.5
0.5–1
0.39 (10)
0.39 (10)
0.39 (10)
0.39 (10)
55
55
Technical Data in Accordance with IEC
55
55
Connection Capacity
Stripping length in inches (mm)
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Multi-Conductor Terminal Blocks
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
XBPT25D12
0.20 (5.2)
2.38 (60.5)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT4D12
0.24 (6.2)
2.81 (71.5)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT25D22
0.20 (5.2)
2.83 (72.0)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT4D22
0.24 (6.2)
3.43 (87.0)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
41
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Multi-Conductor Terminal Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
32
37
39
43
43
43
44
46
48
51
54
56
55
55
55
Multi-Conductor Ground Blocks
55
Product Description
55
55
The ground terminal blocks
have the same shape and
pitch as the standard terminal
block, in a green-yellow
housing. They easily snap
onto the DIN rail to make
a reliable mechanical and
electrical contact that
meets all requirements
of IEC 60-947-7-2.
55
55
55
Product Selection
XBPT25D12PE
55
55
Spring Cage Connection Multi-Conductor Ground Blocks, Three-Wire
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-2
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
5.2 mm
12 AWG/2.5 mm2
—/—/28–12
—/—/24–12
—/—/26–12
Green/Yellow
50
XBPT25D12PE
6.2 mm
10 AWG/4 mm2
—/—/28–10
—/—/24–10
—/—/20–10
Green/Yellow
50
XBPT4D12PE
55
55
55
XBPT4D22PE
Spring Cage Connection Multi-Conductor Ground Blocks, Four-Wire
Maximum
Wire Size
IEC 60 947-7-2
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
5.2 mm
12 AWG/2.5 mm2
—/—/28–12
—/—/24–12
—/—/26–12
Green/Yellow
50
XBPT25D22PE
6.2 mm
10 AWG/4 mm2
—/—/28–10
—/—/24–10
—/—/20–10
Green/Yellow
50
XBPT4D22PE
Terminal
Width
55
55
55
55
Note
EU type—examination certificate number: KEMA 05ATEX2154 U (XBPT25D12PE), KEMA 05ATEX2155 U (XBPT4D12PE).
55
55
55
55
42
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Spring Cage Connection Multi-Conductor Ground Blocks
Description
Color
Number of
Positions
Standard
Pack
XBPT25D12PE
Catalog
Number
XBPT4D12PE
Catalog
Number
XBPT25D22PE
Catalog
Number
XBPT4D22PE
Catalog
Number
End cover
Gray
—
10
XBACPT25D12
XBACPT4D12
XBACPT25D22
XBACPT4D22
End cover segment
Gray
—
10
XBASPT25
XBASPT4
XBASPT25
XBASPT4
Blank marker strip external labeling
White
—
10
XBMZBF5 XBMZBF6 XBMZBF5 XBMZBF6 Blank marker strip center
labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB5 XBMZB6 55
55
55
55
55
Technical Data and Specifications
55
Spring Cage Connection Multi-Conductor Ground Blocks
55
Description
XBPT25D12PE
XBPT4D12PE
XBPT25D22PE
XBPT4D22PE
55
Maximum load current in A/cross-section in mm2
—
—
—
—
55
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–2.5
0.25–4
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–2.5
0.25–4
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5–1
0.5
0.5–1
0.39 (10)
0.39 (10)
0.39 (10)
0.39 (10)
Technical Data in Accordance with IEC
55
Connection Capacity
Stripping length in inches (mm)
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Multi-Conductor Ground Blocks
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
XBPT25D12PE
0.20 (5.2)
2.38 (60.5)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT4D12PE
0.24 (6.2)
2.81 (71.5)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT25D22PE
0.20 (5.2)
2.83 (72.0)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT4D22PE
0.24 (6.2)
3.43 (87.0)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
55
55
55
55
Notes
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
43
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Double Level Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
32
37
39
42
45
45
45
46
48
51
54
56
55
55
55
Double Level Blocks
55
Product Description
55
55
55
The potentials of the XB
double level terminal blocks
routed on two levels reduce
space requirements by 50%
compared with single level
terminal blocks.
55
Product Selection
55
XBPTT4
customization for each
application. The XBPTT25PV
and XBPTT4PV terminal
blocks have two
interconnected levels.
Equipotential bonding is
marked by an imprint on
the housing. These terminal
blocks can also be bridged and
used to construct compact
potential distributor blocks.
Spring Cage Connection Double Level Blocks
Terminal
Width
55
The XBPTT blocks can be
bridged on both levels with
the Plug-in bridge system and
labeling options are available
for each terminal point,
resulting in maximum
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
420/23/19/24–12
600/20/26–12
Color
Standard
Pack
Catalog
Number
Spring Cage Connection Double Level Blocks
55
5.2 mm
55
6.2 mm
12 AWG/2.5 mm2
10 AWG/4 mm2
500/26/28–12
500/32/28–10
420/32/27/24–10
300/30/20–10
55
Gray
50
XBPTT25
Blue
50
XBPTT25BU
Gray
50
XBPTT4
Blue
50
XBPTT4BU
Spring Cage Connection Double Level Blocks (terminal block with potential distribution between the levels)
55
55
55
XBPTT25PE
5.2 mm
112 AWG/2.5 mm2
500/26/28–12
420/23/19/24–12
600/20/26–12
Gray
50
XBPTT25PV
6.2 mm
10 AWG/4 mm2
500/32/28–10
420/32/27/24–10
300/30/20–10
Gray
50
XBPTT4PV
Spring Cage Connection Double Level Ground Blocks
55
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-2
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
55
5.2 mm
12 AWG/2.5 mm2
—/—/28–12
—/—/24–12
—/—/26–12
Green/Yellow
50
XBPTT25PE
6.2 mm
10 AWG/4 mm2
—/—/28–10
—/—/24–10
—/—/20–10
Green/Yellow
50
XBPTT4PE
55
55
Note
EU type—examination certificate number: KEMA 05ATEX2154 U (XBPTT25), KEMA 05ATEX2155 U (XBPTT4).
55
55
44
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Spring Cage Connection Double Level Blocks
Description
Color
Number of
Positions
Standard
Pack
XBPTT25
Catalog
Number
XBPTT4
Catalog
Number
XBPTT25PE
Catalog
Number
XBPTT4PE
Catalog
Number
End cover
Gray
—
10
XBACPTT25
XBACPTT4
XBACPTT25
XBACPTT4
Partition plate
—
—
10/50
XBATPTT4
XBATPTT4
—
—
Plug-in bridge—for cross connections in
the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS36
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
XBAFBS105
XBAFBS106
50
10
XBAFBS505
XBAFBS506
XBAFBS505
XBAFBS506
—
—
10
XBATSPAI4
XBATSPAI4
—
—
Modular test plug
—
—
10
XBATSPS5
XBATSPS6
—
—
Blank marker strip (strip of 10)
White
—
10
XBMZBF5 XBMZBF6 XBMZBF5 XBMZBF6 Test adapter
55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Spring Cage Connection Double Level Blocks
55
Description
XBPTT25
XBPTT4
XBPTT25PE
XBPTT4PE
55
55
Technical Data in Accordance with IEC
Maximum load current in A/cross-section in mm2
26/4
32/6
—
—
Rated surge voltage in kV/contamination class
6/3
6/3
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–2.5
0.25–4
55
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–4
0.25–2.5
0.25–4
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5–1
0.5
0.5–1
0.39 (10)
0.39 (10)
0.39 (10)
0.39 (10)
Connection Capacity
Stripping length in inches (mm)
55
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Double Level Blocks
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
0.20 (5.2)
2.66 (67.5)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
0.24 (6.2)
3.29 (83.5)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBPTT25PE
0.20 (5.2)
2.66 (67.5)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
XBPTT4PE
0.24 (6.2)
3.29 (83.5)
0.09 (2.2)
1.87 (47.5)
2.17 (55.0)
Catalog
Number
Width
XBPTT25
XBPTT4
55
55
55
55
Notes
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
45
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Triple Level Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Triple Level Blocks
55
Product Description
55
55
55
The spring cage triple level
terminal block incorporates
three feed-through levels
in a 5.2 mm wide housing.
This is ideal for high density
wiring, especially important
55
Product Selection
55
XBPTK25
55
55
55
when switchgear space is
restricted. There is a bridge
shaft on each level allowing
use of this block as a compact
potential distributor or as
a sensor terminal.
The XBPTK25PV has
all six terminal points
interconnected. All the
triple level blocks can be
labeled on each level.
Spring Cage Connection Triple Level Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
5.2 mm
12 AWG/2.5 mm2
500/28/28–12
600/20/26–12
Gray
50
XBPTK25
5.2 mm
12 AWG/2.5 mm2
500/28/28–12
600/20/26–12
Gray
50
XBPTK25PV Note
Terminal block with potential distribution between the levels.
55
55
55
55
55
55
55
55
55
55
46
Control Products Catalog CA08102001E—August 2010 www.eaton.com
32
37
39
42
44
47
47
47
48
51
54
56
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Spring Cage Connection Triple Level Blocks
Description
Color
Number of
Positions
Standard
Pack
XBPTK25
Catalog
Number
XBPTK25PV
Catalog
Number
End cover
Gray
—
10
XBACPT25K
XBACPT25K
Plug-in bridge—for cross connections in
the bridge shaft
Red
2
10
XBAFBS25
XBAFBS25
3
10
XBAFBS35
XBAFBS35
5
10
XBAFBS55
XBAFBS55
10
10
XBAFBS105
XBAFBS105
50
10
XBAFBS505
XBAFBS505
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
Modular test plug
—
—
10
XBATSPS5
XBATSPS5
Blank marker strip (strip of 10)
White
—
10
XBMZBF5 XBMZBF5 55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Spring Cage Connection Triple Level Blocks
Description
XBPTK25
XBPTK25PV
Maximum load current in A/cross-section in mm2
28/4
28/4
Rated surge voltage in kV/contamination class
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–2.5
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–2.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5
0.39 (10)
0.39 (10)
55
Technical Data in Accordance with IEC
55
55
55
Connection Capacity
Stripping length in inches (mm)
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Triple Level Blocks
55
Catalog
Number
Width
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
XBPTK25
0.20 (5.2)
3.92 (99.5)
0.09 (2.2)
2.28 (58.0)
2.58 (65.5)
XBPTK25PV
0.20 (5.2)
3.92 (99.5)
0.09 (2.2)
2.28 (58.0)
2.58 (65.5)
55
55
Notes
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
47
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Fuse Terminal Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Fuse Terminal Blocks
55
Product Description
55
55
The spring cage fuse terminal
blocks act as a fuse carrier for
5 x 20 mm or 6.3 x 32 mm
fuses. They also allow for
potential distribution with the
double bridge shaft. For
signaling a triggered fuse,
fuse terminal blocks with
light indicators are available
(for both AC and DC voltage).
55
55
55
Product Selection
XBPT4FBE
Spring Cage Connection Fuse Terminal Blocks, for 5 x 20 mm Fuse
55
Terminal
Width
55
Fuse Terminal Blocks
6.2 mm
55
Maximum
Wire Size
10 AWG/4 mm2
IEC 60 947-7-3
with Fuse
in V/A/AWG
IEC 60 947-7-3
as Disconnect
Terminal Blocks
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
//28–10
250/6.3/28–10
300/6.3/24–10
Black
50
XBPT4FBE
250/6.3/28–10
300/6.3/24–10
Black
50
XBPT4FBEL24
250/6.3/28–10
300/6.3/24–10
Black
50
XBPT4FBEL60
250/6.3/28–10
300/6.3/24–10
Black
50
XBPT4FBEL250
Fuse Terminal Blocks with LED 15–30V, 3.5–8.1A
6.2 mm
55
10 AWG/4 mm2
//28–10
Fuse Terminal Blocks with LED 30–60V, 0.8–2.0A
10 AWG/4 mm2
//28–10
55
6.2 mm
55
6.2 mm
55
Notes
The cartridge fuse holders should be selected according to the maximum power dissipation (self-heating) of the cartridge
fuse inserts. The thermal conditions in closed fuse holes should be checked according to the application and installation.
Higher ambient temperatures are an additional strain on fuse inserts. In applications of this kind, the shift of the rated
current should be taken into consideration accordingly.
Maximum power dissipation at 73.4°F (23°C) (in accordance with IEC 60 947-7-3).
When selecting cartridge fuse inserts, please ensure that the maximum power dissipation specified at right is not exceeded.
Details can be obtained from the fuse suppliers.
Cartridge Fuse Inserts 5 x 20 and 6.3 x 32 mm in accordance. with IEC 60 947-7-3.
Fuse Terminal Blocks with LED 110–250V, 0.5–1.0A
55
55
55
55
10 AWG/4 mm2
//28–10
The current is determined by the fuse used, the voltage by the selected light indicator. See Page 49.
55
55
48
Control Products Catalog CA08102001E—August 2010 www.eaton.com
32
37
39
42
44
46
49
50
50
51
54
56
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
XBPT4FBN
Spring Cage Connection Fuse Terminal Blocks, for 6.3 x 32 mm (1/4 in x 1–1/4 in) Fuse
Terminal
Width
Maximum
Wire Size
55
IEC 60 947-7-3
with Fuse
in V/A/AWG
IEC 60 947-7-3
as Disconnect
Terminal Blocks
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
400/10/28–10
400/10/28–10
300/10/24–10
Black
50
XBPT4FBN
400/10/28–10
300/10/24–10
Black
50
XBPT4FBNL24
55
300/10/24–10
Black
50
XBPT4FBNL250
55
55
55
Fuse Terminal Blocks
8.2 mm
10 AWG/4 mm2
55
Fuse Terminal Blocks with LED 12–30V, 1.0–2.5 mA
8.2 mm
10 AWG/4 mm2
400/10/28–10
Fuse Terminal Blocks with LED 110–250V, 0.5–2.5 mA
8.2 mm
10 AWG/4 mm2
400/10/28–10
400/10/28–10
55
Accessories
55
55
Spring Cage Connection Fuse Terminal Blocks
Description
Color
Number of
Positions
Standard
Pack
XBPT4FBE
Catalog
Number
XBPT4FBN
Catalog
Number
55
55
Partition plate
—
—
10
XBATPT4
XBATQTD12
Plug-in bridge—for cross connections in
the bridge shaft
Red
2
10
XBAFBS26
XBAFBS28
3
10
XBAFBS36
—
5
10
XBAFBS56
—
10
10
XBAFBS106
—
Blank marker strip external labeling
White
—
10
XBMZBF6 XBMZBF8 Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 55
55
55
55
Notes
The cartridge fuse holders should be selected according to the maximum power dissipation (self-heating) of the cartridge
fuse inserts. The thermal conditions in closed fuse holes should be checked according to the application and installation.
Higher ambient temperatures are an additional strain on fuse inserts. In applications of this kind, the shift of the rated
current should be taken into consideration accordingly.
Maximum power dissipation at 73.4°F (23°C) (in accordance with IEC 60 947-7-3).
When selecting cartridge fuse inserts, please ensure that the maximum power dissipation specified at right is not exceeded.
Details can be obtained from the fuse suppliers.
Cartridge Fuse Inserts 5 x 20 and 6.3 x 32 mm in accordance. with IEC 60 947-7-3.
55
55
55
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
49
55.1
55
55
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Technical Data and Specifications
Overload and Short-Circuit Protection
Terminal
Blocks
U (V)
Overload Protection
Individual
Interconnected
Short-Circuit Protection Only
Individual
Interconnected
Imax. (A)
XBPT4FBN
400
1.6W
1.6W
4W
2.5W
10.0
XBPT4FBE
250
1.6W
1.6W
4W
2.5W
6.3
55
Spring Cage Connection Fuse Terminal Blocks
55
Description
XBPT4FBE
XBPT4FBN
55
Technical Data in Accordance with IEC
Fuse type/dimensions in mm2
G/5 x 20
G/6.3 x 32
55
Maximum current with single arrangement in A
6.3
10
Maximum Power Dissipation
55
55
55
55
At 73.4°F (23°C) in accordance with IEC 60 947-7-3 in W
Rated surge voltage in kV/contamination class
4/3
6/3
Surge voltage category/insulating material group
III/I
III/I
Connection Capacity
Stranded with ferrule/with ferrule and plastic sleeve in mm2
0.25–4/0.25–4
0.25–4/0.25–4
Stranded with twin ferrule and plastic sleeve in mm2
0.5
0.5
0.39 (10)
0.39 (10)
Stripping length in inches (mm)
55
55
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
Spring Cage Connection Fuse Terminal Blocks
Catalog
Number
Width
Length
Height for—
35 x 7.5 in
35 x 15 in
XBPT4FBE
0.24 (6.2)
2.42 (61.5)
2.46 (62.5)
2.76 (70.0)
XBPT4FBN
0.32 (8.2)
3.01 (76.5)
2.72 (69.0)
3.01 (76.5)
Note
The current is determined by the fuse used, the voltage by the selected light indicator. See Page 49.
55
55
55
55
55
55
55
55
55
55
55
50
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Disconnect and Component Terminal Blocks
Description
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
37
39
42
44
46
48
52
53
53
54
56
55
55
55
55
55
55
55
55
55
55
55
Disconnect and Component Terminal Blocks
55
Product Description
diameter test plug. Potential
distribution is easily
accomplished with the Plugin bridges. There are front
connection spring cage
terminal blocks available for
multi-conductor connections
The XBPT knife disconnect
terminal blocks feature
narrow construction and high
current carrying capacity.
They also have a test
connection parallel to the
disconnect point for a 2.3 mm
in the smallest possible
space. The XBPT4TG
disconnect terminal block
accommodates component
plugs for resistors, diodes,
or capacitors, and fuse plugs
with or without indication.
55
55
55
55
Product Selection
55
XBPT25MT
Knife Disconnect
Disconnect and Component Terminal Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
55
55
Single Level Knife Disconnect
5.2 mm
12 AWG/2.5 mm2
400/16/28–12
600/16/26–12
Gray
50
XBPT25MT
6.2 mm
10 AWG/4 mm2
400/16/28–10
300/6.3/24–10
Gray
50
XBPT4MT
400/16/28–12
600/16/26–12
Gray
50
XBPT25D12MT
400/16/28–12
600/16/26–12
Gray
50
XBPT25D22MT
400/16/28–10
300/6.3/24–10
Gray
50
XBPT4TG
55
10 AWG/4 mm2
400/16/28–10
300/6.3/24–10
Gray
10
XBPCO
55
10 AWG/4 mm2
400/16/28–10
300/6.3/24–10
Black
10
XBPFU
55
300/6.3/24–10
Black
10
XBPFUL24
55
300/6.3/24–10
Black
10
XBPFUL250
55
Three-Wire Knife Disconnect
5.2 mm
12 AWG/2.5 mm2
55
55
Four-Wire Knife Disconnect
5.2 mm
12 AWG/2.5 mm2
55
Spring Cage Disconnect/Component Plug
6.2 mm
10 AWG/4 mm2
Component Plug
6.2 mm
Fuse Plug
6.2 mm
Fuse Plug with Light Indicator for 12–30V, 1–2.5 mA
6.2 mm
10 AWG/4 mm2
400/16/28–10
Fuse Plug with Light Indicator for 110–250V, 0.5–2.5 mA
6.2 mm
10 AWG/4 mm2
400/16/28–10
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
51
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Spring Cage Connection Disconnect and Component Terminal Blocks
Standard
Pack
XBPT25MT
Catalog
Number
XBPT25D12MT
Catalog
Number
XBPT25D22MT
Catalog
Number
XBPT4MT
Catalog
Number
XBPT4TG
Catalog
Number
Description
Color
Number of
Positions
55
End cover
Gray
—
10
XBACPT25D12
XBACPT25D22
XBACPT25D22MT
End cover segment
Gray
—
10
—
XBACPT25
XBACPT25
—
—
55
Partition plate
—
—
—
XBATPTD12
XBATPTD22
—
XBATPT4
XBATPT4
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
XBAFBS25
XBAFBS25
XBAFBS25
XBAFBS26
XBAFBS26
3
10
XBAFBS35
XBAFBS35
XBAFBS35
XBAFBS36
XBAFBS36
5
10
XBAFBS55
XBAFBS55
XBAFBS55
XBAFBS56
XBAFBS56
10
10
XBAFBS105
XBAFBS105
XBAFBS105
XBAFBS106
XBAFBS106
50
10
XBAFBS505
XBAFBS505
XBAFBS505
XBAFBS506
XBAFBS506
XBATSPAI4
XBATSPAI4
XBATSPAI4
XBATSPAI4
55
55
55
55
55
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS5
XBATSPS5
XBATSPS6
XBATSPS6
Blank marker strip external labeling
White
—
10
XBMZBF5 XBMZBF5 XBMZBF5 XBMZBF6 XBMZBF6 Blank marker strip center labeling
(strip of 10)
White
—
10
XBMZB5 XBMZB5 XBMZB5 XBMZB6 XBMZB6 Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
XBPT4MT and XBPT4TG have an enclosed design. The use of an end cover is not required.
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
52
Control Products Catalog CA08102001E—August 2010 www.eaton.com
XBATSMPS-_ XBATSMPS-_ Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Technical Data and Specifications
55
Spring Cage Connection Disconnect and Component Terminal Blocks,
XBPT25MT, XBPT25D12MT and XBPT25D22MT
Description
55
XBPT25MT
XBPT25D12MT
XBPT25D22MT
55
Maximum load current in A/cross-section in mm2
16/4
16/4
16/4
55
Rated surge voltage in kV/contamination class
6/3
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–2.5
0.25–2.5
55
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–2.5
0.25–2.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5
0.5
0.39 (10)
0.39 (10)
0.39 (10)
Technical Data in Accordance with IEC
Connection Capacity
Stripping length in inches (mm)
55
55
55
Spring Cage Connection Disconnect and Component Terminal Blocks,
XBPT25D12MT and XBPT4TG
Description
55
XBPT4MT
XBPT4TG
Maximum load current in A/cross-section in mm2
16/6
16/6
Rated surge voltage in kV/contamination class
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–4
0.25–4
55
Stranded with ferrules without plastic sleeve in mm2
0.25–4
0.25–4
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5
0.39 (10)
0.39 (10)
55
Technical Data in Accordance with IEC
55
Connection Capacity
Stripping length in inches (mm)
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Disconnect and Component Terminal Blocks
55
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
2.38 (60.5)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
0.20 (5.2)
2.83 (72.0)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
0.20 (5.2)
3.31 (84.0)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT4MT
0.24 (6.2)
2.42 (61.5)
—
1.44 (36.5)
1.73 (44.0)
XBPT4TG
0.24 (6.2)
2.42 (61.5)
—
1.44 (36.5)
1.73 (44.0)
Catalog
Number
Width
XBPT25MT
0.20 (5.2)
XBPT25D12MT
XBPT25D22MT
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
53
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Hybrid Terminal Blocks
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
32
37
39
42
44
46
48
51
55
55
55
56
55
55
55
Hybrid Terminal Blocks
55
Product Description
55
55
55
55
The XBPU spring cage hybrid
terminal blocks offer the best
of both worlds. One side
offers a spring cage
connection and the other side
offers the universal screw
connection. Use the spring
cage connection on the
internal (factory) control
cabinet side and the screw
connection on the end
customer (field) side. Ground
terminal blocks of the same
shape are also available.
Product Selection
55
55
XBPU25D12
55
55
Spring Cage Hybrid Terminal Blocks
Terminal
Width
Maximum
Wire Size
5.2 mm
12 AWG/
2.5 mm2
IEC 60 947-7-1 with …
Spring in
Screw in
V/A/AWG
V/A/AWG
IEC 60 947-7-2 with …
Spring in
Screw in
V/A/AWG
V/A/AWG
UL-cUL Ratings with …
Spring in
Screw in
V/A/AWG
V/A/AWG
Color
Std.
Pack
Catalog
Number
800/28/28–12
—
600/15/28–12
Gray
50
XBPU25D12
Color
Std.
Pack
Catalog
Number
50
XBPU25D12PE
800/28/26–14
—
600/15/26–12
55
55
55
XBPU25D12PE
Spring Cage Hybrid Ground Blocks
55
Terminal
Width
Maximum
Wire Size
55
5.2 mm
12 AWG/
2.5 mm2
IEC 60 947-7-1 with …
Spring in
Screw in
V/A/AWG
V/A/AWG
IEC 60 947-7-2 with …
Spring in
Screw in
V/A/AWG
V/A/AWG
UL-cUL Ratings with …
Spring in
Screw in
V/A/AWG
V/A/AWG
—
—/—/28–12
—/—/28–12
—
—/—/26–14
55
55
55
55
55
54
Control Products Catalog CA08102001E—August 2010 www.eaton.com
—/—/28–12
Green/
Yellow
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
Spring Cage Hybrid Terminal/Ground Blocks
Description
Color
Number of
Positions
Standard
Pack
XBPU25D12
Catalog
Number
XBPU25D12PE
Catalog
Number
End cover
Gray
—
10
XBACPU25D12
XBACPU25D12
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
XBAFBS25
XBAFBS25
3
10
XBAFBS35
XBAFBS35
5
10
XBAFBS55
XBAFBS55
10
10
XBAFBS105
XBAFBS105
50
10
XBAFBS505
XBAFBS505
Test adapter
—
—
10
XBATSPAI4
—
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ —
Modular test plug
—
—
10
XBATSPS5
—
Blank marker strip external labeling
White
—
10
XBMZBF5 XBMZBF5 Blank marker strip center labeling
(strip of 10)
White
—
10
XBMZB5 XBMZB5 55
55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Spring Cage Hybrid Blocks
55
Description
XBPU25D12
XBPU25D12PE
Maximum load current in A/cross-section in mm2
28/4
—
Rated surge voltage in kV/contamination class
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–2.5
55
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–2.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5–1
0.5–1
0.39 (10)
0.39 (10)
55
Technical Data in Accordance with IEC
55
Connection Capacity
Stripping length in inches (mm)
55
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
55
Spring Cage Hybrid Blocks
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
0.20 (5.2)
2.57 (65.3)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
0.20 (5.2)
2.57 (65.3)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
Catalog
Number
Width
XBPU25D12
XBPU25D12PE
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Mini Spring Cage
Description
55
Page
Single Level—Through-Feed . . . . . . . . . . . . . . . . . . . . . . . .
Single Level—Ground Blocks . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Multi-Conductor Ground Blocks . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Triple Level Sensor/Actuator . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
High Current Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini Spring Cage
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Mini Spring Cage
55
Product Description
55
55
The XB miniature terminal
blocks have a connection
cross-section from 1.5 mm2
through 4 mm2 and mount on
15 mm DIN rail. There is an
that you would find with the
larger blocks—including
marking tags, end covers,
end stop and ground blocks.
opening for bridging with a
fixed bridge in the center of
the terminal blocks. These
miniature terminal blocks also
offer the same accessories
55
55
Product Selection
55
XBMPK15
55
Mini Spring Cage Terminal Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
IEC 60 947-7-2
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
14 AWG/1.5 mm2
800/24/26–14
—
600/15/26–14
55
Color
Standard
Pack
Catalog
Number
Gray
50
XBMPK15
Blue
50
XBMPK15BU
Color
Standard
Pack
Catalog
Number
50
XBMPK15PE
55
55
55
XBMPK15PE
55
Mini Spring Cage Ground Blocks
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
IEC 60 947-7-2
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
14 AWG/1.5 mm2
—
—/—/26–14
—/—/26–14
55
Green/
Yellow
55
55
55
XBMPKK15
55
Mini Spring Cage Terminal Blocks—Double Level
Terminal
Width
Maximum
Wire Size
IEC 60 947-7-1
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
5.2 mm
14 AWG/1.5 mm2
500/20/26–14
600/15/26–14
Gray
50
XBMPKK15
55
55
56
Control Products Catalog CA08102001E—August 2010 www.eaton.com
5
10
12
14
16
18
21
24
27
57
57
57
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Accessories
55
Mini Spring Cage Terminal/Ground Blocks
Description
Color
Number of
Positions
Standard
Pack
XBMPK15
Catalog
Number
XBMPK15PE
Catalog
Number
XBMPKK15
Catalog
Number
End cover
Gray
—
10
XBACMPK15
XBACMPK15
XBACMPKK15
Fixed bridge
—
2
10
XBAFBR25N
—
XBAFBR25N
Separating plate
—
—
10
XBATMPKK15
—
XBATMPKK15
Blank marker strip
White
—
10
XBMZBF5 XBMZBF5 XBMZBF5 55
55
55
55
55
Technical Data and Specifications
55
Mini Spring Cage Terminal/Ground Blocks
Description
55
XBMPK15
XBMPK15PE
XBMPKK15
Maximum load current in A/cross-section in mm2
24/2.5
—
20/2.5
Rated surge voltage in kV/contamination class
8/3
8/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–1.5
0.25–1.5
0.25–1.5
55
Stranded with ferrule without plastic sleeve in mm2
0.25–1.5
0.25–1.5
0.25–1.5
Stranded with twin ferrule with plastic sleeve in mm2
—
—
—
0.35 (9)
0.35 (9)
0.35 (9)
55
Technical Data in Accordance with IEC
55
Connection Cross-Section
Stripping length in Inches (mm)
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Mini Spring Cage Terminal/Ground Blocks
55
Length
Cover
Length
Height for—
15 x 5.5 in
35 x 7.5 in
35 x 15 in
1.57 (40.0)
0.04 (1.1)
1.36 (34.5)
—
—
0.20 (5.2)
1.57 (40.0)
0.04 (1.1)
1.36 (34.5)
—
—
0.20 (5.2)
3.35 (85.0)
0.04 (1.1)
1.65 (42.0)
1.67 (42.5)
1.97 (50.0)
Catalog
Number
Width
XBMPK15
0.20 (5.2)
XBMPK15PE
XBMPKK15
55
55
55
Notes
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
57
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Pluggable Spring Cage Terminal Blocks
Description
55
Page
Pluggable Spring Cage Terminal Blocks
Connection Terminal Blocks . . . . . . . . . . . . . . . . . . . . . .
Connection Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Receptacles . . . . . . . . . . . . . . . . . . . . . . . .
Connection Accessories . . . . . . . . . . . . . . . . . . . . . . . .
55
55
59
62
64
66
Drawings
Online
55
55
55
55
55
55
55
Pluggable Spring Cage Terminal Blocks Overview
55
Product Description
Application Description
Features
The pluggable spring cage
connection terminal blocks
allow signal and power
wiring to be made pluggable.
This complete pluggable
system has a patented
spring that provides
maximum connection
space in a space-saving
design. The pluggable system
accommodates stranded
conductors with a nominal
cross-section of 2.5 mm2,
with or without ferrules.
For applications requiring
pluggable wiring up to a rated
current of 32A and a rated
voltage of 800V. The
integrated overspring meets
the most stringent vibration
requirements. Also ideal
where safety is a concern and
flexibility is required. The
basic terminal blocks and the
plugs are finger-safe, which
also means the supply
voltage can be input via either
the terminal blocks or the
plugs. With the XBAPSC
receptacles, plug-in contacts
can be accommodated safely
in cable ducts and distributor
shafts using minimal space.
A test hole can accommodate
a 2.3 mm diameter test plug
in each receptacle, providing
a practical solution. The
XBAPSP plugs are intended
for connecting one wire,
while the XBAPSPDB plugs
are designed to connect
two wires and provide an
optional bridge.
●
55
55
55
55
55
55
55
55
55
55
55
55
55
●
●
55
55
55
55
55
58
Standards and Certifications
Space-saving design
Powerful contact
Finger-safe
Control Products Catalog CA08102001E—August 2010 www.eaton.com
●
●
●
●
Pluggability
UL recognized—File No.
E67464
CE approved
LVD :
●
EN 60947-7-1
●
EN 60947-7-2
●
EN 60998-2-3
●
EN 60352-4/A1
ATEX approval
(Eex e applications)
Note
Not all standards apply to all terminal
blocks. Contact Eaton for details.
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Connection Terminal Blocks
Description
Page
Connection Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Receptacles . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
60
60
61
62
64
66
55
55
55
55
55
55
55
55
55
Connection Terminal Blocks
55
Product Description
Contact to the DIN rail is
made by simply snapping the
terminal block onto the rail.
These blocks act as the
stationary position of the
pluggable terminal blocks.
55
55
55
Product Selection
XBPT25P
55
Pluggable Spring Cage Connection Terminal Blocks
Terminal
Width
Maximum
Wire Size
IEC 61 984
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
12 AWG/2.5 mm2
500/24/28–12
300/20/26–12
Gray
50
XBPT25P
12 AWG/2.5 mm2
500/24/28–12
300/20/26–12
Gray
50
XBPT25PD12
55
Single Level
5.2 mm
55
55
Three-Wire
5.2 mm
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
59
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Pluggable Spring Cage Connection Terminal Blocks
Standard
Pack
XBPT25P
Catalog
Number
XBPT25PD12
Catalog
Number
Description
Color
Number of
Positions
55
End cover
Gray
—
10
XBACPT25
XBACPT25D12
End cover segment
Gray
—
10
—
XBASPT25
55
Partition plate
—
—
10
XBATPT4
XBATPTD12
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
XBAFBS25
XBAFBS25
3
10
XBAFBS35
XBAFBS35
5
10
XBAFBS55
XBAFBS55
10
10
XBAFBS105
XBAFBS105
50
10
XBAFBS505
XBAFBS505
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ 55
Modular test plug
—
—
10
XBATSPS5
XBATSPS5
Blank marker strip external labeling
White
—
10
XBMZBF5 XBMZBF5 Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB5 XBMZB5 55
55
55
Technical Data and Specifications
Pluggable Spring Cage Connection Terminal Blocks
Derating Curve for Pluggable Terminal Blocks
Description
XBPT25P and XBPT25PD12
XBPT25P
XBPT25PD12
Maximum load current in A/cross-section in mm2
24/4
24/4
Rated surge voltage in kV/contamination class
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–2.5
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–2.5
55
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5
0.39 (10)
0.39 (10)
55
55
55
Technical Data in Accordance with IEC
25
Connection Capacity
Stripping length in inches (mm)
55
55
20
2 pos.
15 pos.
15
10
5
0
55
55
5 pos.
10 pos.
Maximum Load Current – A
55
0
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
For additional accessories, see Page 90.
55
55
55
55
55
55
55
55
60
Control Products Catalog CA08102001E—August 2010 www.eaton.com
20
40
60
80
Ambient Temperature – °C
100
120
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Dimensions
Approximate Dimensions in Inches (mm)
55
Pluggable Spring Cage Connection Terminal Blocks—Without Plug
55
Catalog
Number
Width
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
XBPT25P
0.20 (5.2)
1.91 (48.5)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
XBPT25PD12
0.20 (5.2)
2.38 (60.5)
0.09 (2.2)
1.44 (36.5)
1.73 (44.0)
55
55
55
XBPT25P
55
1.99 (50.5)
55
55
55
2.42
(61.5)
55
55
55
55
55
XBPT25PD12
2.42 (61.5)
55
55
55
55
2.42
(61.5)
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
61
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Connection Plugs
Description
55
Page
Connection Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Connection Plugs
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Receptacles . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Connection Plugs
55
Product Description
55
55
Just like the basic terminal
blocks, the plugs also offer
the perfect solution for every
application. The XBAPSP25_
plugs are designed for
connecting one conductor.
The XBAPSPDB25_ plug is
designed for connecting two
conductors and provides an
additional bridging option.
55
55
Product Selection
55
XBAPSP25_
55
Spring Cage Connection Plugs, Single, Not Bridgeable
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
5.2 mm
12 AWG/2.5 mm2
500/24/28–12
300/20/26–12
Gray
Number of
Positions
Standard
Pack
Catalog
Number
1
25
XBAPSP251
2
25
XBAPSP252
3
25
XBAPSP253
4
25
XBAPSP254
55
5
25
XBAPSP255
6
25
XBAPSP256
55
7
25
XBAPSP257
8
25
XBAPSP258
9
25
XBAPSP259
10
25
XBAPSP2510
11
10
XBAPSP2511
12
10
XBAPSP2512
55
55
55
55
55
55
55
55
55
55
62
Control Products Catalog CA08102001E—August 2010 www.eaton.com
59
63
63
63
64
66
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
XBAPSPDB25_
Spring Cage Connection Plugs, Double, Bridgeable
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Number of
Positions
Standard
Pack
Catalog
Number
5.2 mm
12 AWG/2.5 mm2
500/24/28–12
300/20/26–12
Gray
1
25
XBAPSPDB251
2
25
XBAPSPDB252
3
25
XBAPSPDB253
4
25
XBAPSPDB254
5
25
XBAPSPDB255
6
25
XBAPSPDB256
7
25
XBAPSPDB257
8
25
XBAPSPDB258
9
25
XBAPSPDB259
10
25
XBAPSPDB2510
11
10
XBAPSPDB2511
12
10
XBAPSPDB2512
55
55
55
55
55
55
55
55
55
Accessories
55
Spring Cage Connection Plugs
55
Standard
Pack
XBAPSP25_
Catalog
Number
XBAPSPDB25_
Catalog
Number
Description
Color
Number of
Positions
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
—
XBAFBS25
3
10
—
XBAFBS35
5
10
—
XBAFBS55
10
10
—
XBAFBS105
Snap-lock fitting and strain relief
Orange
2
10
XBAPPRZ
XBAPPRZ
Snap-lock fitting
Orange
1
10
XBAPPR
XBAPPR
Orange
2
10
XBAPPR2
XBAPPR2
Strain relief
Blank marker strip
Black
2
10
XBAPPZ2
XBAPPDZ2
Black
4
10
XBAPPZ4
XBAPPDZ4
White
—
10
XBMZBF5 XBMZBF5 55
55
55
55
55
55
55
55
Technical Data and Specifications
55
Spring Cage Connection Plugs
Description
XBAPSP25_
XBAPSPDB25_
Maximum load current in A/cross-section in mm2
24/4
24/4
Rated surge voltage in kV/contamination class
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
0.25–2.5
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–2.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5
0.39 (10)
0.39 (10)
55
Technical Data in Accordance with IEC
55
55
55
Connection Capacity
Stripping length in inches (mm)
55
55
55
Dimensions
55
See Page 61 for dimensions.
55
Notes
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
Control Products Catalog CA08102001E—August 2010 www.eaton.com
63
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Connection Receptacles
Description
55
Page
Connection Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . .
Connection Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Receptacles
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Connection Receptacles
55
Product Description
55
55
With the XBAPSC25_,
Plug-in contacts can be
accommodated safely in
cable ducts and distributor
shafts without using much
space. The standard strain
reliefs can also be used.
Large-surface labeling makes
it possible to mark the
terminal points and the entire
receptacle. A test hole can
accommodate a 2.3 mm
diameter test plug in each
receptacle element, providing
a practical solution.
55
55
Product Selection
55
XBAPSC25_
55
Pluggable Spring Connection Receptacles
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
5.2 mm
12 AWG/2.5 mm2
500/24/28–12
300/20/26–12
Gray
Number of
Positions
Standard
Pack
Catalog
Number
2
25
XBAPSC252
3
25
XBAPSC253
55
4
25
XBAPSC254
5
25
XBAPSC255
55
6
25
XBAPSC256
7
25
XBAPSC257
8
25
XBAPSC258
9
25
XBAPSC259
10
25
XBAPSC2510
11
10
XBAPSC2511
12
10
XBAPSC2512
55
55
55
55
55
55
55
55
55
55
64
Control Products Catalog CA08102001E—August 2010 www.eaton.com
59
62
65
65
65
66
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Accessories
55
Pluggable Spring Connection Receptacles
Description
Color
Number of
Positions
Standard
Pack
XBAPSC25_
Catalog
Number
2.3 mm diameter test plug
Red
—
—
XBATSMPS-_ Strain relief
Black
2
10
XBAPPDZ2
Black
4
10
XBAPPDZ4
White
—
10
XBMZBF5 Blank marker strip
55
55
55
55
55
Technical Data and Specifications
55
Spring Cage Connection Plugs
Description
55
XBAPSP25_
55
Technical Data in Accordance with IEC
Maximum load current in A/cross-section in mm2
24/4
Rated surge voltage in kV/contamination class
6/3
Surge voltage category/insulating material group
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–2.5
Stranded with ferrules without plastic sleeve in mm2
55
0.25–2.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5
55
Connection Capacity
Stripping length in inches (mm)
55
0.39 (10)
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Spring Cage Connection Plugs
55
Catalog
Number
Width
Length
Cover
Length
Height
XBAPSP25_
0.20 (5.2)
1.46 (37.2)
0.09 (2.2)
0.71 (18.0)
55
55
Receptacle Widths
55
Catalog
Number
Width
Catalog
Number
Width
XBAPSC252
0.41 (10.4)
XBAPSC258
1.64 (41.6)
XBAPSC253
0.61 (15.6)
XBAPSC259
1.84 (46.8)
XBAPSC254
0.82 (20.8)
XBAPSC2510
2.05 (52.0)
XBAPSC255
1.02 (26.0)
XBAPSC2511
2.25 (57.2)
XBAPSC256
1.23 (31.2)
XBAPSC2512
2.46 (62.4)
XBAPSC257
1.43 (36.4)
55
55
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
65
55.1
55
55
55
55
55
IEC—XB Series
Connection Accessories
Product Description
The pluggable XBPT series
features an extensive range
of application-oriented
accessories. Strain reliefs are
available for the plugs and
can be snapped on at the
required points as an option.
The snap-lock fitting can be
used for all plug variants. It is
snapped into the outside of
the plug housing as an option
and hooks onto the terminal
block housing when the plug
is snapped on.
Product Selection
55
Pluggable Spring Cage Connection Accessories
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Description
XBAPPZ2
Strain relief for single plugs
Number of
Positions
Standard
Pack
Catalog
Number
2
10
XBAPPZ2
4
10
XBAPPZ4
2
10
XBAPPDZ2
4
10
XBAPPDZ4
55
55
55
XBAPPDZ4
Strain relief for double plugs and receptacles
55
55
XBAPPR2
Snap-lock fitting for plugs
55
1
10
XBAPPR
2
10
XBAPPR2
2
10
XBAPPRZ
55
55
XBAPPRZ
Snap-lock fitting and strain relief for plugs
55
55
55
Strain Relief
Snap-Lock Fitting
55
55
55
55
55
55
Optional Accessory Recommendations
55
55
55
Number of Positions
Receptacle
Strain Relief
2–4
XBAPPZ2
5–10
XBAPPZ4 or (2) XBAPPZ2
11–15
(2) XBAPPZ4 or (4) XBAPPZ2
55
55
66
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
IDC Terminal Blocks
Description
Page
IDC Terminal Blocks
Single Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
68
70
73
75
77
79
55
55
55
55
Drawings
Online
55
55
55
55
55
IDC (Insulation Displacement Connection) Terminal Blocks Overview
Product Description
The superior design of
Eaton’s Insulation
Displacement Connection
(IDC) technology terminal
blocks reduces wiring
installation time and labor,
especially in high-volume
applications. IDC terminal
blocks are suited for
applications in automated
equipment and machine
tools, packaging and material
handling machinery, railway/
mass transit systems, petrochemical, and any other
application requiring highvolume connections for lowvoltage control and signal
circuitry where labor cost
reduction and ease of
assembly is desired. These
terminal blocks are designed
for long-term use under
demanding conditions.
The XBQT Series allows for
wire to be connected without
any prior stripping. The quick
connection provides up to
60% reduction in wiring time.
One turn of a standard
screwdriver results in a
simple, fast and reliable
connection.
Application Description
Features
The XBQT is operated with a
standard screwdriver. The
switching states are clearly
signaled by engagement
points in the start and end
positions. Solid and stranded
wires of 0.25 to 2.5 mm2 can
be wired without the use of
ferrules. Stripping the wire is
not required—the wire's
insulation is cut open when it
is properly connected. The
wire is securely placed in the
end position where it makes
large-area, gas-tight contact.
Connections are made in
seconds!
●
●
●
●
●
55
Quick connection capability
Global acceptance
Flexible plug-in bridge
system
Large surface area for
marking
Standardized testing
system
Standards and Certifications
●
●
●
●
UL recognized—File No.
E67464
CE approved
LVD ●
EN 60947-7-1
●
EN 60947-7-2
●
EN 60998-2-3
●
EN 60352-4/A1
ATEX approval
(Eex e applications)
55
55
55
55
55
55
55
55
55
55
55
55
55
Note
Not all standards apply to all terminal
blocks. Contact Eaton for details.
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
67
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Single Level
Description
55
Page
Single Level
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Single Level
55
Product Description
55
55
55
55
The XBQT IDC terminal block
has the fastest connection
time in a compact design.
The space-saving front
connection design offers
additional space for wiring
between the cable ducts.
The double bridge shaft can
55
Product Selection
55
XBQT25
accommodate individual
chain bridging and step-down
bridging from other terminal
blocks. The XBQT ground
blocks are the same shape
as the feed-through terminal
blocks with the same wide
range of cross-sections
available. They easily snap
onto the DIN rail to make
a reliable mechanical and
electrical contact that
meets all requirements
of IEC 60-947-7-2.
IDC—Single Level Terminal Blocks
55
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
55
5.2 mm
16 AWG/1.5 mm2
800/17.5/24–16
550/16/24–16
600/10/24–16
55
6.2 mm
14 AWG/2.5 mm2
800/24/20–14
—
600/15/20–14
Color
Standard
Pack
Catalog
Number
Gray
50
XBQT15
Blue
50
XBQT15BU
Gray
50
XBQT25
Blue
50
XBQT25BU
Color
Standard
Pack
Catalog
Number
55
55
55
XBQT15PE
55
55
IDC—Single Level Terminal Ground Blocks
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
5.2 mm
16 AWG/1.5 mm2
—/—/24–16
—/—/24–16
—/—/24–16
Green/Yellow 50
XBQT15PE
6.2 mm
14 AWG/2.5 mm2
—/—/20–14
—
—/—/20–14
Green/Yellow 50
XBQT25PE
UL-cUL Ratings
in V/A/AWG
55
Note
EU type—examination certificate number: KEMA 05ATEX2157 U (XBQT15), KEMA 05ATEX2160 U (XBQT25).
55
55
55
68
Control Products Catalog CA08102001E—August 2010 www.eaton.com
69
69
69
70
73
75
77
79
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Accessories
55
IDC—Single Level Terminal/Ground Blocks
Description
Color
Number of
Positions
Standard
Pack
XBQT15
Catalog
Number
XBQT25
Catalog
Number
XBQT15PE
Catalog
Number
XBQT25PE
Catalog
Number
End cover
Gray
—
10
XBACQT15
XBACQT25
XBACQT15
XBACQT25
Partition plate
—
—
10
XBATQT25
XBATQT25
XBATQT25
XBATQT25
Plug-in bridge
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS36
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
XBAFBS105
XBAFBS106
55
55
55
55
55
55
50
10
XBAFBS505
XBAFBS506
XBAFBS505
XBAFBS506
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS5
XBATSPS6
Blank marker strip center
and external marking
White
—
10
XBMZBF5 XBMZBF6 XBMZBF5 XBMZBF6 55
Blank marker strip center
labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB5 XBMZB6 55
55
55
55
Technical Data and Specifications
55
IDC—Single Level Terminal/Ground Blocks
Description
XBQT15
XBQT25
XBQT15PE
XBQT25PE
55
Technical Data in Accordance with IEC
Maximum load current in A/cross-section in mm2
17.5/1.5
24/2.5
—
—
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
55
Core insulation
PVC/PE
PVC/PE
PVC/PE
PVC/PE
55
Single/multiple/fine strand in mm2
1.5
2.5
1.5
2.5
Halogen-free in mm2
1.5
2.5
1.5
2.5
55
Connection Cross-Section
Fine strand/superfine strand in AWG (mm2)
Repeated connections minimum 100 x in mm2
24–16 (0.25–0.34)
20–14 (—)
24–16 (0.25–0.34)
20–14 (—)
0.25–1.5
0.5–2.5
0.25–1.5
0.5–2.5
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
IDC—Single Level Terminal/Ground Blocks
55
Catalog
Number
Width
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
XBQT15
0.20 (5.2)
2.31 (58.8)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
XBQT25
0.24 (6.2)
2.46 (62.6)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
XBQT15PE
0.20 (5.2)
2.31 (58.8)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
XBQT25PE
0.24 (6.2)
2.46 (62.6)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
69
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Multi-Conductor
Description
55
Page
Single Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Multi-Conductor
55
Product Description
55
55
55
55
55
55
The XBQT IDC terminal block
has the fastest connection
time in a compact design.
The space-saving front
connection design offers
additional space for wiring
between the cable ducts.
The double bridge shaft can
accommodate individual
chain bridging and step-down
bridging from other terminal
blocks. The XBQT ground
blocks are the same shape
as the feed-through terminal
blocks with the same wide
range of cross-sections
available. They easily snap
onto the DIN rail to make
a reliable mechanical and
electrical contact that
meets all requirements
of IEC 60-947-7-2.
Product Selection
XBQT25D12
55
55
IDC—Multi-Conductor Terminal Blocks, Three-Wire
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
16 AWG/1.5 mm2
800/17.5/24–16
550/16/24–16
600/10/24–16
6.2 mm
14 AWG/2.5 mm2
800/24/20–14
—
600/15/20–14
55
55
XBQT15D22PE
Color
Standard
Pack
Catalog
Number
Gray
50
XBQT15D12
Blue
50
XBQT15D12BU
Gray
50
XBQT25D12
Blue
50
XBQT25D12BU
Color
Standard
Pack
Catalog
Number
IDC—Multi-Conductor Terminal Blocks, Four-Wire
55
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
55
5.2 mm
16 AWG/1.5 mm2
800/17.5/24–16
550/16/24–16
600/10/24–16
Gray
50
XBQT15D22
Blue
50
XBQT15D22BU
Standard
Pack
Catalog
Number
55
55
IDC—Multi-Conductor Terminal Blocks, Four-Wire Ground Blocks
55
55
55
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
5.2 mm
16 AWG/1.5 mm2
—/—/24–16
—/—/24–16
—/—/24–16
Green/Yellow 50
Note
EU type—examination certificate number: KEMA 05ATEX2157 U (XBQT15), KEMA 05ATEX2160 U (XBQT25).
55
70
Control Products Catalog CA08102001E—August 2010 www.eaton.com
XBQT15D22PE
68
71
72
72
73
75
77
79
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
XBQT15D12PE
IDC—Multi-Conductor Terminal Blocks, Three-Wire Ground Blocks
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
5.2 mm
16 AWG/1.5 mm2
—/—/24–16
—/—/24–16
—/—/24–16
Green/Yellow 50
XBQT15D12PE
6.2 mm
14 AWG/2.5 mm2
—/—/20–14
—
—/—/20–14
Green/Yellow 50
XBQT25D12PE
Standard
Pack
55
Catalog
Number
55
55
55
55
Accessories
55
IDC—Multi-Conductor Terminal Blocks
XBQT25D12
Catalog
Number
XBQT15D22
Catalog
Number
55
Description
Color
Number of
Positions
Standard
Pack
XBQT15D12
Catalog
Number
End cover
Gray
—
10
XBACQT15D12
XBACQT25D12
XBACQT15D22
End cover segment
Gray
—
10
XBASQT15
XBASQT25
XBASQT15
Partition plate
—
—
10
XBATQTD12
XBATQTD12
XBATQTD22
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
3
10
XBAFBS35
XBAFBS36
XBAFBS35
5
10
XBAFBS55
XBAFBS56
XBAFBS55
10
10
XBAFBS105
XBAFBS106
XBAFBS105
50
10
XBAFBS505
XBAFBS506
XBAFBS505
—
10
XBATSPAI4
XBATSPAI4
Test adapter
—
XBATSMPS-_
55
55
55
55
55
55
XBATSPAI4
XBATSMPS-_
2.3 mm diameter test plug
—
—
—
XBATSMPS-_
Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS5
Blank marker strip center
and external marking
White
—
10
XBMZBF5 XBMZBF6 XBMZBF5 55
Blank marker strip center
labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB5 55
55
55
IDC—Multi-Conductor Terminal/Ground Blocks
Description
Color
Number of
Positions
End cover
Gray
—
Standard
Pack
XBQT15D12PE
Catalog
Number
XBQT25D12PE
Catalog
Number
XBQT15D22PE
Catalog
Number
10
XBACQT15D12
XBACQT25D12
XBACQT15D22
End cover segment
Gray
—
10
XBASQT15
XBASQT25
XBASQT15
Partition plate
—
—
10
XBATQTD12
XBATQTD12
XBATQTD22
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
3
10
XBAFBS35
XBAFBS36
XBAFBS35
5
10
XBAFBS55
XBAFBS56
XBAFBS55
10
10
XBAFBS105
XBAFBS106
XBAFBS105
50
10
XBAFBS505
XBAFBS506
XBAFBS505
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS5
Blank marker strip center
and external marking
White
—
10
XBMZBF5 XBMZBF6 XBMZBF5 Blank marker strip center
labeling (strip of 10)
White
—
10
XBMZB5 XBMZB6 XBMZB5 55
55
55
55
55
55
55
55
55
55
Notes
EU type—examination certificate number: KEMA 05ATEX2157 U (XBQT15PE), KEMA 05ATEX2160 U (XBQT25PE).
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
55
For additional accessories, see Page 90.
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
71
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Technical Data and Specifications
55
IDC—Multi-Conductor Terminal Blocks
55
Technical Data in Accordance with IEC
55
55
55
55
55
Description
XBQT15D12
XBQT25D12
XBQT15D12PE
XBQT25D12PE
XBQT15D22
XBQT15D22PE
Maximum load current in A/cross-section in mm2
17.5/1.5
24/2.5
—
—
17.5/1.5
—
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
III/I
III/I
Connection Cross-Section
Core insulation
PVC/PE
PVC/PE
PVC/PE
PVC/PE
PVC/PE
PVC/PE
Single/multiple/fine strand in mm2
1.5
2.5
1.5
2.5
1.5
1.5
Halogen-free in mm2
1.5
2.5
1.5
2.5
1.5
1.5
Fine strand/superfine strand in AWG (mm2)
24–16 (0.25–0.34)
20–14 (—)
24–16 (0.25–0.34)
20–14 (—)
24–16 (0.25–0.34)
24–16 (0.25–0.34)
0.25–1.5
0.5–2.5
0.25–1.5
0.5–2.5
0.25–1.5
0.25–1.5
Repeated connections minimum 100 x in mm2
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
IDC—Multi-Conductor Terminal Blocks
55
Catalog
Number
Width
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
55
XBQT15D12
0.20 (5.2)
3.01 (76.4)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
XBQT25D12
0.24 (6.2)
3.25 (82.5)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
XBQT15D12PE
0.20 (5.2)
3.01 (76.4)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
XBQT25D12PE
0.20 (5.2)
3.25 (82.5)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
XBQT15D22
0.20 (5.2)
3.70 (94.0)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
XBQT15D22PE
0.20 (5.2)
3.70 (94.0)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
72
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Double Level
Description
Page
Single Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
70
74
74
74
75
77
79
55
55
55
55
55
55
55
55
55
55
55
Double Level
55
Product Description
The XBQTT IDC terminal
block has the fastest
connection time in a compact
design. The space-saving
front connection design
offers additional space for
wiring between the cable
ducts. The double bridge
shaft, found in each level, can
accommodate individual
chain bridging and step-down
bridging from other terminal
blocks. The XBQTT ground
blocks are the same shape as
the feed-through terminal
blocks with the same wide
range of cross-sections
available. They easily snap
onto the DIN rail to make a
reliable mechanical and
electrical contact that
meets all requirements of
IEC 60-947-7-2.
55
55
55
55
55
Product Selection
XBQTT15
55
IDC—Double Level Terminal Blocks
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
5.2 mm
16 AWG/1.5 mm2
800/17.5/24–16
420/15/24–16
600/10/24–16
Standard
Pack
Catalog
Number
55
Gray
50
XBQTT15
Blue
50
XBQTT15BU
55
Color
55
55
XBQTT15PE
55
IDC—Double Level Ground Blocks
Terminal
Width
Maximum
Wire Size
Connection Data
in V/A/AWG
EN 50 019 in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
6.2 mm
14 AWG/2.5 mm2
—/—/24–16
—/—/24–16
—/—/24–16
Green/Yellow 50
Standard
Pack
Catalog
Number
55
XBQTT15PE
55
55
55
Note
EU type—examination certificate number: KEMA 05ATEX2157 U (XBQT15), KEMA 05ATEX2160 U (XBQT25).
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
73
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
IDC—Double Level Terminal/Ground Blocks
Standard
Pack
XBQTT15
Catalog
Number
XBQTT15PE
Catalog
Number
Description
Color
Number of
Positions
55
End cover
Gray
—
10
XBACQTT15
XBACQTT15
Partition plate
—
—
10
XBATQTT15
XBATQTT15
55
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
XBAFBS25
XBAFBS25
3
10
XBAFBS35
XBAFBS35
5
10
XBAFBS55
XBAFBS55
10
10
XBAFBS105
XBAFBS105
20
10
XBAFBS505
XBAFBS505
55
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS5
Blank marker strip
White
—
10
XBMZBF5 XBMZBF5 55
55
55
55
55
55
Technical Data and Specifications
IDC—Double Level Terminal/Ground Blocks
Description
XBQTT15
XBQTT15PE
Maximum load current in A/cross-section in mm2
17.5/1.5
—
Rated surge voltage in kV/contamination class
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
Technical Data in Accordance with IEC
Connection Cross-Section
55
Core insulation
PVC/PE
PVC/PE
Single/multiple/fine strand in mm2
1.5
1.5
55
Halogen-free in mm2
1.5
1.5
Fine strand/superfine strand in AWG (mm2)
24–16 (0.25–0.34)
24–16 (0.25–0.34)
0.25–1.5
0.25–1.5
55
Repeated connections minimum 100 x in mm2
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
IDC—Double Level Terminal/Ground Blocks
55
Catalog
Number
Width
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
55
XBQTT15
0.20 (5.2)
3.92 (99.6)
0.09 (2.2)
1.96 (49.9)
2.26 (57.4)
XBQTT15PE
0.20 (5.2)
3.92 (99.6)
0.09 (2.2)
1.96 (49.9)
2.26 (57.4)
55
55
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
For additional accessories, see Page 90.
55
55
55
55
74
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Fuse Terminal Blocks
Description
Page
Single Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
70
73
76
76
76
77
79
55
55
55
55
55
55
55
55
55
55
55
Fuse Terminal Blocks
55
Product Description
The XBQT lever-type fuse
terminal blocks perform two
main functions. It is a carrier
for a 5 x 20 mm cartridge
fuse insert and can also
allow for potential distribution
via the double bridge shaft.
This means that two
potentials can be carried
separately alongside each
other. Versions with light
indication (AC and DC
voltage) are available to
signal a triggered fuse.
55
55
55
55
Product Selection
55
XBQT25FB
IDC—Fuse Terminal Blocks
Terminal
Width
Maximum
Wire Size
55
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
/6.3/20–14
300/15/20–14
Black
50
XBQT25FBE
300/15/20–14
Black
50
XBQT25FBEL24
55
300/15/20–14
Black
50
XBQT25FBEL60
55
300/15/20–14
Black
50
XBQT25FBEL250
55
55
IDC Fuse Terminal Blocks
6.2 mm
14 AWG/2.5 mm2
55
IDC Fuse Terminal Blocks with LED 12–30V, 1–2.5 mA
6.2 mm
14 AWG/2.5 mm2
/6.3/20–14
IDC Fuse Terminal Blocks with LED 30–60V, 0.8–2.0 mA
6.2 mm
14 AWG/2.5 mm2
/6.3/20–14
IDC Fuse Terminal Blocks with LED 110–250V, 0.5–2.5 mA
6.2 mm
14 AWG/2.5 mm2
/6.3/20–14
55
Note
As disconnect terminal block, 400V; as fuse terminal blocks 250V.
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
75
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
IDC—Fuse Terminal Blocks
55
Number of
Positions
Standard
Pack
XBQT25FBE
Catalog
Number
XBACQT25D12
Description
Color
55
End cover
Gray
—
10
Partition plate
—
—
10
XBATQTD12
55
Plug-in bridge—for cross connections
in the terminal center
Red
2
10
XBAFBS26
3
10
XBAFBS36
5
10
XBAFBS56
10
10
XBAFBS106
55
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
Blank marker strip center
and external marking
White
—
10
XBMZBF6 Blank marker strip lever labeling
White
—
10
XBMZB5 Blank marker strip center
labeling (strip of 10)
White
—
10
XBMZB6 55
55
55
55
55
55
Technical Data and Specifications
IDC—Fuse Terminal Blocks
Description
XBQT25FBE
Technical Data in Accordance with IEC
Maximum load current in A/cross-section in mm2
6.3/2.5
Rated surge voltage in kV/contamination class
4/3
Surge voltage category/insulating material group
III/I
Connection Cross-Section
55
Core insulation
PVC/PE
Single/multiple/fine strand in mm2
2.5
55
Halogen-free in mm2
2.5
Fine strand/superfine strand in AWG (mm2)
24–14 (—)
55
55
Repeated connections minimum 100 x in mm2
0.5–2.5
Dimensions
55
Approximate Dimensions in Inches (mm)
55
IDC—Fuse Terminal Blocks
55
Catalog
Number
Width
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
55
XBQT25FBE
0.24 (6.2)
3.25 (82.5)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
55
For additional accessories, see Page 90.
55
55
55
55
76
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Disconnect and Component Terminal Blocks
Description
Page
Single Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hybrid Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
70
73
75
78
78
78
79
55
55
55
55
55
55
55
55
55
55
55
Disconnect and Component Terminal Blocks
55
Product Description
can accommodate component
plugs for resistors or
capacitors and fuse plugs
for 5 x 20 mm fuses with or
without a light indicator for
signaling a triggered fuse.
The XB Series includes
application specific terminal
blocks like disconnect blocks.
The knife disconnect terminal
blocks (XBQT15MT) has a
fitted knife. The XBQT15TG
Both terminal blocks have
three bridge shafts—two in
the standard positions and
one on the other side of the
disconnect point.
55
55
55
55
Product Selection
XBQT15MT
Knife Disconnect
55
IDC—Disconnect and Component Terminal Blocks
Terminal
Width
Maximum
Wire Size
UL-cUL Ratings
for Disconnect
with Test Sockets
in V/A/AWG
Color
Standard
Pack
Catalog
Number
55
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
UL-cUL Ratings
for Disconnect
in V/A/AWG
400/16/24–16
600/10/24–16
—
—
Gray
50
XBQT15MT
55
Knife Disconnect
5.2 mm
16 AWG/1.5 mm2
55
Component Disconnect
55
5.2 mm
16 AWG/1.5 mm2
400/16/24–16
600/10/24–16
—
—
Gray
50
XBQT15TG
6.2 mm
14 AWG/2.5 mm2
400/16/20–14
300/10/20–14
—
—
Gray
50
XBQT25TG
55
10 AWG/4 mm2
500/16/26–10
—
600/16/26–10
300/16/26–10
Gray
10
XBPCO
55
10 AWG/4 mm2
500/16/26–10
—
600/16/26–10
300/16/26–10
Black
10
XBPFU
55
600/16/26–10
300/16/26–10
Black
10
XBPFUL24
600/16/26–10
300/16/26–10
Black
10
XBPFUL250
Component Plug
6.2 mm
Fuse Plug
6.2 mm
Fuse Plug with Light Indicator for 12–30V, 1–2.5 mA
6.2 mm
10 AWG/4 mm2
500/16/26–10
—
55
55
Fuse Plug with Light Indicator for 110–250V, 0.5–2.5 mA
6.2 mm
10 AWG/4 mm2
500/16/26–10
—
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
77
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
IDC—Disconnect and Component Terminal Blocks
Standard
Pack
XBQT15MT
Catalog
Number
XBQT15TG
Catalog
Number
XBQT25TG
Catalog
Number
Description
Color
Number of
Positions
55
End cover
Gray
—
10
XBACQT15D12
XBACQT15D12
XBACQT25D12
End cover segment
Gray
—
10
XBASQT15
XBASQT15
XBASQT25
55
Partition plate
—
—
10
XBATQTD12
XBATQTD12
XBATQTD12
Plug-in bridge
Red
2
10
XBAFBS25
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS105
XBAFBS106
55
55
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS5
XBATSPS5
Blank marker strip center and
external marking
White
—
10
XBMZBF5 XBMZBF5 XBMZBF6 Blank marker strip center labeling
(strip of 10)
White
—
10
XBMZB5 XBMZB5 XBMZB6 55
55
55
55
55
55
55
55
55
55
Technical Data and Specifications
IDC—Disconnect and Component Terminal Blocks
Description
XBQT15MT
XBQT15TG
XBQT25TG
Maximum load current in A/cross-section in mm2
16/1.5
16/1.5
16/2.5
Rated surge voltage in kV/contamination class
6/3
6/3
6/3
Surge voltage category/insulating material group
III/I
III/I
III/I
Technical Data in Accordance with IEC
Connection Cross-Section
Core insulation
PVC/PE
PVC/PE
PVC/PE
Single/multiple/fine strand in mm2
1.5
1.5
2.5
Halogen-free in mm2
1.5
1.5
2.5
Fine strand/superfine strand in AWG (mm2)
24–16 (0.25–0.34)
24–16 (0.25–0.34)
20–14 (—)
0.25–1.5
0.25–1.5
0.5–2.5
Repeated connections minimum 100 x in mm2
Dimensions
55
Approximate Dimensions in Inches (mm)
55
IDC—Disconnect and Component Terminal Blocks
55
Catalog
Number
Width
Length
Cover
Length
Height for—
35 x 7.5 in
35 x 15 in
55
XBQT15MT
0.20 (5.2)
3.01 (76.4)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
XBQT15TG
0.20 (5.2)
3.01 (76.4)
0.09 (2.2)
1.55 (39.3)
1.84 (46.8)
55
XBQT25TG
0.24 (6.2)
3.25 (82.5)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
78
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Hybrid Terminal Blocks
Description
Page
Single Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-Conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnect and Component Terminal Blocks . . . . . . . . . . .
Hybrid Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
70
73
75
77
80
81
81
55
55
55
55
55
55
55
55
55
55
55
Hybrid Terminal Blocks
55
Product Description
The XBQT hybrid terminal
blocks offer the best of both
worlds. One side offers the
time-saving advantage of our
insulation displacement
connection technology,
while the other side offers a
universal screw connection.
Use the IDC side on the
internal (factory) control
cabinet side and the screw
connection on the end
customer (field) side. Ground
terminal blocks of the same
shape are also available
55
55
55
Product Selection
XBQU25
55
IDC—Hybrid Terminal Blocks, Single Level
Terminal
Width
Maximum
Wire Size
IEC Screw
Connection
in V/A/AWG
IEC IDC
Connection
in V/A/AWG
UL-cUL Screw
Connection
in V/A/AWG
UL-cUL IDC
Connection
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
800/17.5/26–12
800/17.5/24–16
600/10/26–12
600/10/24–16
6.2 mm
10 AWG/4 mm2
800/24/26–10
800/24/20–14
600/15/26–10
600/15/20–14
55
Standard
Pack
Catalog
Number
55
Gray
50
XBQU15
Gray
50
XBQU25
55
Color
55
XBQU15D12
55
IDC—Hybrid Terminal Blocks, Three-Wire
Terminal
Width
Maximum
Wire Size
IEC Screw
Connection
in V/A/AWG
IEC IDC
Connection
in V/A/AWG
UL-cUL Screw
Connection
in V/A/AWG
UL-cUL IDC
Connection
in V/A/AWG
5.2 mm
12 AWG/2.5 mm2
800/17.5/26–12
800/17.5/24–16
800/10/26–12
800/10/24–16
6.2 mm
10 AWG/4 mm2
800/24/26–10
800/24/20–14
600/15/26–10
600/15/20–14
Color
Standard
Pack
Catalog
Number
Gray
50
XBQU15D12
Gray
50
XBQU25D12
55
55
55
55
XBQU25PE
55
IDC—Hybrid Terminal/Ground Blocks
Terminal
Width
Maximum
Wire Size
IEC Screw
Connection
in V/A/AWG
IEC IDC
Connection
in V/A/AWG
UL-cUL Screw
Connection
in V/A/AWG
UL-cUL IDC
Connection
in V/A/AWG
Color
Standard
Pack
Catalog
Number
55
5.2 mm
12 AWG/2.5 mm2
—/—/26–12
—/—/24–16
—/—/26–12
—/—/24–16
Gray
50
XBQU15PE
6.2 mm
10 AWG/4 mm2
—/—/26–10
—/—/20–14
—/—/26–10
—/—/20–14
Gray
50
XBQU25PE
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
79
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
IDC—Hybrid Terminal Blocks
Standard
Pack
XBQU15
Catalog
Number
XBQU25
Catalog
Number
XBQU15D12
Catalog
Number
XBQU25D12
Catalog
Number
Description
Color
Number of
Positions
55
End cover
Gray
—
10
XBACQU15
XBACQU25
XBACQU15D12
XBACQU25D12
End segment
Gray
—
10
—
—
XBASQT15
XBASQT25
55
Partition plate
—
—
10
XBATQT25
XBATQT25
XBATQTD12
XBATQTD12
Plug-in bridge—for cross
connections in the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS36
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
XBAFBS105
XBAFBS106
50
10
XBAFBS505
XBAFBS506
XBAFBS505
XBAFBS506
55
55
55
55
55
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS6
XBATSPS5
XBATSPS6
55
Blank marker strip center
and external marking
White
—
10
XBMZBF5 XBMZBF6 XBMZBF5 XBMZBF6 55
Blank marker strip center
labeling (strip of 10)
XBMZB5 XBMZB6 XBMZB5 XBMZB6 XBQU25PE
Catalog
Number
55
IDC—Hybrid Terminal/Ground Blocks
55
55
55
55
Standard
Pack
XBQU15PE
Catalog
Number
Description
Color
End cover
Gray
—
10
XBACQU15
XBACQU25
Partition plate
—
—
10
XBATQT25
XBATQT25
Plug-in bridge—for cross
connections in the bridge shaft
Red
2
10
XBAFBS25
XBAFBS26
3
10
XBAFBS35
XBAFBS36
5
10
XBAFBS55
XBAFBS56
10
10
XBAFBS105
XBAFBS106
50
10
XBAFBS505
XBAFBS506
—
10
XBATSPAI4
XBATSPAI4
XBATSMPS-_ 55
55
Number of
Positions
Test adapter
—
55
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ Modular test plug
—
—
10
XBATSPS5
XBATSPS6
55
Blank marker strip center
and external marking
White
—
10
XBMZBF5 XBMZBF6 55
Blank marker strip center
labeling (strip of 10)
XBMZB5 XBMZB6 55
Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
For additional accessories, see Page 90.
55
55
55
55
55
55
55
80
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Technical Data and Specifications
55
Screw Connection Single Level—Through-Feed
Description
XBQU15
XBQU25
XBQU15PE
XBQU25PE
XBQU15D12
XBQU25D12
Maximum load current in A/cross-section in mm2
17.5/1.5
24/2.5
—
—
17.5/1.5
24/2.5
Rated surge voltage in kV/contamination class
8/3
8/3
8/3
8/3
8/3
8/3
Surge voltage category/insulating material group
III/I
III/I
III/I
III/I
III/I
III/I
55
55
Technical Data in Accordance with IEC
55
55
Connection Cross-Section
Core insulation
PVC/PE
PVC/PE
PVC/PE
PVC/PE
PVC/PE
PVC/PE
Single/multiple/fine strand in mm2
1.5
2.5
1.5
2.5
1.5
2.5
Halogen-free in mm2
1.5
2.5
1.5
2.5
1.5
2.5
Fine strand/superfine strand in AWG (mm2)
24–16 (0.25–0.34)
20–14 (—)
24–16 (0.25–0.34)
20–14 (—)
24–16 (0.25–0.34)
20–14 (—)
0.25–1.5
0.5–2.5
0.25–1.5
0.5–2.5
0.25–1.5
0.5–2.5
0.25–2.5/0.25–2.5
0.25–4/0.25–4
0.25–2.5/0.25–2.5
0.25–4/0.25–4
0.25–2.5/0.25–2.5
0.25–4/0.25–4
Repeated connections minimum 100 x in mm2
55
55
55
Connection Capacity—Screw Connection
Stranded with ferrule/with ferrule and
plastic sleeve in mm2
55
55
Multi-Conductor Connection
(same cross-section)
Solid/stranded in mm2
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
0.14–1.5/0.14–1.5
Stranded with ferrules without plastic sleeve in mm2
0.25–1.5
0.25–1.5
0.25–1.5
0.25–1.5
0.25–1.5
0.25–1.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5–1.5
0.5–2.5
0.5–1.5
0.5–2.5
0.5–1.5
0.5–2.5
Stripping length in inches (mm)
0.35 (9)
0.35 (9)
0.35 (9)
0.35 (9)
0.35 (9)
0.35 (9)
Thread
M3
M3
M3
M3
M3
M3
Torque in in-lb (Nm)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
5.3–7.1 (0.6–0.8)
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Screw Connection Single Level—Through-Feed
55
Catalog
Number
Width
Length
Cover
Width
Height for—
35 x 7.5 in
35 x 15 in
XBQU15
0.20 (5.2)
2.31 (58.8)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
XBQU25
0.24 (6.2)
2.46 (62.6)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
XBQU15PE
0.20 (5.2)
2.31 (58.8)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
XBQU25PE
0.24 (6.2)
2.46 (62.6)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
XBQU15D12
0.20 (5.2)
3.01 (76.4)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
XBQU25D12
0.24 (6.2)
3.25 (82.5)
0.09 (2.2)
1.69 (42.8)
1.98 (50.3)
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
81
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Miniature Circuit Breakers
Description
55
Miniature Circuit Breakers
Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat-Type Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . .
Spring Cage Fuse Terminal Blocks . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Miniature Circuit Breakers Overview
55
Product Description
55
55
55
55
55
55
The new XB Series thermal
miniature circuit breaker
offers convenient overload
protection. This space-saving
single-pole circuit breaker,
available up to 10 amps,
can be inserted into a screw
connection fuse terminal
block, XBUK6FSI, or a spring
cage fuse terminal block,
XBPT4FSI, which is available
with or without light indication.
The XBATCP combines the
Standards and Certifications
reclosing capability of a circuit
breaker with the overload
protection of a fuse. The
integrated switching function
makes it possible to switch
the circuit breaker back on
immediately, guaranteeing
system availability. The
device can also be used for
switching purposes, as an
ON/OFF switch. The Plug-in
design allows for quick and
efficient replacement.
●
●
●
UL and cUL recognized
UL 1077—File No.
E301915
CE approved
55
55
55
55
55
55
55
55
55
55
55
55
82
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Page
83
86
88
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Contents
Circuit Breakers
Description
Circuit Breakers
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Time/Current Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat-Type Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . .
Spring Cage Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . .
Page
55
55
84
84
85
85
86
88
55
55
55
55
55
55
55
55
55
Circuit Breakers
55
Product Description
The thermal miniature circuit
breaker can be switched back
on again, has a compact
design, and is available
in 10 finely graded steps
for nominal currents from
0.1 to 10A.
55
55
55
Product Selection
XBAT
55
Thermal Miniature Circuit Breaker
Connection Data
in Vac/Vdc
250/65
Nominal
Current
Color
Standard
Pack
Catalog
Number
55
55
0.1A
Black
20
XBATCPT
0.25A
Black
20
XBATCPQ
0.5A
Black
20
XBATCPH
1.0A
Black
20
XBATCP1
2.0A
Black
20
XBATCP2
3.0A
Black
20
XBATCP3
4.0A
Black
20
XBATCP4
6.0A
Black
20
XBATCP6
8.0A
Black
20
XBATCP8
10.0A
Black
20
XBATCP10
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
83
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Accessories
55
Thermal Miniature Circuit Breaker
55
55
Description
Color
Number of
Positions
Standard
Pack
XBAT
Catalog
Number
Blank marker strip
White
—
10
XBMZBF5 Flat type terminal blocks
—
—
—
XBUK6FSI
55
XBUK6FSIL12
55
XBPT4FSI
XBUK6FSIL24
XBPT4FSIL12
55
XBPT4FSIL24
55
55
55
55
55
55
55
55
55
Technical Data and Specifications
Thermal Miniature Circuit Breaker
Description
XBAT
Technical Data in Accordance with IEC
Nominal voltage in Vac/Vdc
250/65
Nominal current in A
0.25–10
Ambient temperature
–4 to 140°F (–20 to 60°C)
Maximum Power Dissipation
Rated surge voltage in kV/contamination class
2.5/2
Surge voltage category/insulating material group
III/I
Switching Capacity
Cycles with 1 x IN (low-induction)
6000
Cycles with 1 x IN (induction)
3000
Cycles with 2 x IN (induction)
500
55
Switching Capacity I CN
55
Switching capacity (UL 1077) 250 Vac/65 Vdc
6 x IN/8 x IN
For nominal currents of 0.25–4A/6–10A
2000/200
55
55
Nominal Currents and Internal Resistances
Nominal
Current (A)
Internal
Resistance (3/4)
0.25
14
0.5
3.4
1.0
0.9
2.0
0.25
3.0
0.11
4.0
0.07
55
6.0
≤ 0.05
8.0
≤ 0.05
55
10.0
≤ 0.05
55
Note
For information on Printed Marking Tag Options, see Page 98.
55
55
55
55
55
55
55
84
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Time/Current Curve
55
Total Switch-Off Period for Nominal Current, 73.4°F (23°C)
0.25A - 4A
6A- 10A
55
Temperature Factor
1000
Response Time in Seconds
55
Note: When mounted in rows, the nominal current of
the devices can only be transmitted at 80% or must
be correspondingly over-dimensioned.
10,000
100
Ambient Temperature
Temperature Factor
–4°F (–20°C)
0.76
14°F (–10°C)
0.84
32°F (0°C)
0.91
73.4°F (23°C)
1.00
104°F (40°C)
1.08
122°F (50°C)
1.16
140°F (60°C)
1.24
55
55
55
55
55
55
55
10
55
55
55
1
55
55
0.1
0.8
1
2
3
4 5 6
Multiples of IN
8
10
55
20
55
Dimensions
55
Approximate Dimensions in Inches (mm)
XBUK6FSI with XBAT
XBPT4FSI with XBAT
2.52
(64)
0.96
(24.4)
55
3.41
(86.5)
0.32
(8.2)
0.96
(24.4)
0.32
(8.2)
55
55
55
1.75
(44.5)
55
3.39
(86.2)
55
55
1.93
(49)
2.03
(51.5)
1.73
(44)
55
1.72
(43.7)
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
85
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Flat-Type Fuse Terminal Blocks
Description
55
Page
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat-Type Fuse Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spring Cage Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Flat-Type Fuse Terminal Blocks
55
Product Description
55
55
The fuse terminal blocks can
be used as a basic terminal
blocks for the XBAT overload
miniature circuit breaker, see
Page 83.
55
55
Product Selection
55
XBUK6FSI
Screw Connection Flat-Type Fuse Terminal Blocks
Terminal
Width
55
Maximum
Wire Size
Connection Data
in V/A/AWG
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
250/—/24–8
300/30/26–8
Black
50
XBUK6FSI
300/30/26–8
Black
50
XBUK6FSIL12
300/30/26–8
Black
50
XBUK6FSIL24
Flat-Type Fuse Terminal Block
55
8.2 mm
8 AWG/6 mm2
Flat-Type Fuse Terminal Block with LED, Red 12 Vdc, 2.0 mA
55
8.2 mm
8 AWG/6 mm2
250/—/24–8
Flat-Type Fuse Terminal Block with LED, Red 24 Vdc, 2.0 mA
55
8.2 mm
8 AWG/6 mm2
250/—/24–8
55
55
Accessories
55
Flat-Type Fuse Terminal Blocks
55
55
55
Description
Color
Number of
Positions
Blank marker strip
White
—
Standard
Pack
XBUK6FSI
Catalog
Number
XBUK6FSIL_
Catalog
Number
10
XBMZB8 XBMZB8 Note
For information on Printed Marking Tag Options, see Page 98.
55
55
55
86
Control Products Catalog CA08102001E—August 2010 www.eaton.com
83
86
87
87
88
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Technical Data and Specifications
55
Flat-Type Fuse Terminal Blocks
Description
55
XBUK6FSI
XBUK6FSIL_
Fuse type ISO
C
C
Maximum current with single arrangement in A
30
30
55
Rated surge voltage in kV/contamination class
4/3
4/3
55
Surge voltage category/insulating material group
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–4
0.25–4
55
Stranded with ferrule without plastic sleeve in mm2
0.25–6
0.25–6
Stranded with twin ferrule with plastic sleeve in mm2
—
—
Solid/stranded in mm2
0.2–2.5/0.2–2.5
0.2–2.5/0.2–2.5
Stranded with ferrules without plastic sleeve in mm2
0.25–2.5
0.25–2.5
Stranded with twin ferrule with plastic sleeve in mm2
0.5–4.0
0.5–4.0
Stripping length in inches (mm)
0.39 (10)
0.39 (10)
Thread
M4
M4
Torque in in-lb (Nm)
13.3–14.2 (1.5–1.6)
13.3–14.2 (1.5–1.6)
55
Technical Data in Accordance with IEC
Maximum Power Dissipation
Connection Capacity
55
Multi-Conductor Connection
(same cross-section)
55
55
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Flat-Type Fuse Terminal Blocks
55
Catalog
Number
Width
Length
Height for—
32 in
35 x 7.5 in
35 x 15 in
XBUK6FSI
0.32 (8.2)
2.91 (74.0)
2.24 (57.0)
2.05 (52.0)
2.34 (59.5)
XBUK6FSIL12
0.32 (8.2)
2.91 (74.0)
2.24 (57.0)
2.05 (52.0)
2.34 (59.5)
XBUK6FSIL24
0.32 (8.2)
2.91 (74.0)
2.24 (57.0)
2.05 (52.0)
2.34 (59.5)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
87
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
Spring Cage Fuse Terminal Blocks
Description
55
Page
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat-Type Fuse Terminal Blocks . . . . . . . . . . . . . . . . . . . . . .
Spring Cage Fuse Terminal Blocks
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Spring Cage Fuse Terminal Blocks
55
Product Description
55
55
55
Flat-type fuses or the XBAT
miniature circuit breaker (see
Page 83) can be used as the
fuse element in these XBPT
Spring Cage Fuse Terminal
Blocks. Terminal blocks with
a light indicator are available
for quick error diagnosis.
Product Selection
55
Spring Cage Fuse Terminal Blocks
XBPT4FSI
55
Terminal
Width
55
Spring Cage Fuse Terminal Block
8.2 mm
55
8.2 mm
55
8.2 mm
55
10 AWG/4 mm2
10 AWG/4 mm2
55
55
55
55
UL-cUL Ratings
in V/A/AWG
Color
Standard
Pack
Catalog
Number
400/30/28–10
300/30/24–10
Black
50
XBPT4FSI
Black
50
XBPT4FSIL12
Black
50
XBPT4FSIL24
400/30/28–10
300/30/24–10
Spring Cage Fuse Terminal Block with LED, Red 24 Vdc, 2.0 mA
10 AWG/4 mm2
400/30/28–10
300/30/24–10
Accessories
Flat-Type Fuse Terminal Blocks
55
55
Connection Data
in V/A/AWG
Spring Cage Fuse Terminal Block with LED, Red 12 Vdc, 2.0 mA
55
55
Maximum
Wire Size
Standard
Pack
XBPT4FSI
Catalog
Number
XBPT4FSIL_
Catalog
Number
Description
Color
Number of
Positions
Test adapter
—
—
10
XBATSPAI4
XBATSPAI4
2.3 mm diameter test plug
—
—
—
XBATSMPS-_ XBATSMPS-_ Modular test plug
—
—
10
XBATSPS8
XBATSPS8
Blank marker strip center and external marking
White
—
10
XBMZBF8 XBMZBF8 Blank marker strip center labeling (strip of 10)
White
—
10
XBMZB8 XBMZB8 Notes
For ordering information, see Page 105.
For information on Printed Marking Tag Options, see Page 98.
55
88
Control Products Catalog CA08102001E—August 2010 www.eaton.com
83
86
88
89
89
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Technical Data and Specifications
55
Flat-Type Fuse Terminal Blocks
Description
55
XBPT4FSI
XBPT4FSIL_
Fuse type ISO
C
C
Maximum current with single arrangement in A
30
30
55
Rated surge voltage in kV/contamination class
6/3
6/3
55
Surge voltage category/insulating material group
III/I
III/I
55
Stranded with ferrule with plastic sleeve in mm2
0.25–4
0.25–4
55
Stranded with ferrule without plastic sleeve in mm2
0.25–4
0.25–4
Stranded with twin ferrule with plastic sleeve in mm2
0.5
0.5
0.39 (10)
0.39 (10)
55
Technical Data in Accordance with IEC
Maximum Power Dissipation
Connection Capacity
Stripping length in inches (mm)
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Flat-Type Fuse Terminal Blocks
55
Length
Height for—
35 x 7.5 in
35 x 15 in
3.41 (86.5)
1.71 (43.5)
2.01 (51.0)
0.32 (8.2)
3.41 (86.5)
1.71 (43.5)
2.01 (51.0)
0.32 (8.2)
3.41 (86.5)
1.71 (43.5)
2.01 (51.0)
Catalog
Number
Width
XBPT4FSI
0.32 (8.2)
XBPT4FSIL12
XBPT4FSIL24
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
89
55.1
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Contents
XB Series Accessories
Description
55
Page
XB Series Accessories
End Stops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
DIN Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Angled Mounting Brackets . . . . . . . . . . . . . . . . . . . . . . 93
Ferrules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Hand Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Marking Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Testing Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Separating Plates, Covers and Bridges . . . . . . . . . . . . . 105
55
55
55
55
55
55
55
55
55
XB Series Accessories Overview
55
End Stops
Angled Mounting Brackets
Hand Tools
Marking Accessories
The end stop provides an
anchor point at each end of
the rail assembly by attaching
directly to the DIN rail. A wide
range of end stop options are
available, including those that
mount with one or multiple
screws and those that do not
require screws for mounting.
End stops also have a
location for marking material
to be placed.
Angled mounting brackets
are used to mount DIN rail at
a more accessible angle for
wiring and troubleshooting.
Eaton offers an array of hand
tools to make it easier to work
with our terminal blocks. The
XBTCUTSTP tool is
recommended for cutting and
stripping PVC insulated wires.
The ergonomically shaped
crimping pliers, XBTCRMP66,
result in fatigue-free work by
spreading the manual force
equally between the six jaws.
The XBTDVR screwdrivers
have a rotating cap that
prevents user discomfort
even at high torques and
allows rapid rotation. The
ergonomically shaped handle
further aids the user’s
comfort. The blade is made
from CVM steel, hardened
and chrome-plated.
The marking system provides
logical and clear identification
of the modular terminal
blocks and interface modules.
The blank marker strip is
designed for marking terminal
blocks, equipment and
smaller modules with marker
grooves. The marker strip is
available in all common
pitches in printed and
unprinted versions.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
DIN Rail
Eaton offers ways for timesaving and secure mounting
of components needed for
electrical connections. DIN
rail provides the basis for the
inner design of the control
cabinet and ensures a firm
hold of the rail-mountable
components. Eaton offers a
wide range of standard DIN
rails sizes and materials,
solid or slotted. Or, contact
us about custom lengths of
pre-cut rail or ordering predrilled rail. The DIN rails are
designed in accordance with
the European standard
EN 60715.
Ferrules
Ferrules are available with or
without an insulating sleeve.
The plastic insulating sleeve
simplifies the fitting of the
conductor and the color
indicates the size of the
cross-section. The closer the
connections are, the more
reliable the insulation is and
the less likely the wires are to
splice. Twin ferrules are also
available allowing two wires
to be easily compressed in
one ferrule. Chain bridging,
frequently used in industry,
becomes easier with twin
ferrules.
55
55
55
55
90
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Testing Accessories
The range of test accessories
available includes different
test plugs, so that an
optimum solution can be
realized for every application.
In addition to pre-assembled
test plugs, plugs are also
available that can be
configured individually to
form test adapters.
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
End Stops
55
Product Selection
XBAES35AL
Universal End Stop (15 mm)
Aluminum End
Standard
Pack
Catalog
Number
Standard
Pack
Catalog
Number
Standard
Pack
Catalog
Number
55
50
XBAES15N
50
XBAES15C
10
XBAES35AL
55
Snap-On End Stop (35 mm)
Universal End Stop (35 mm)
Standard
Pack
Catalog
Number
Standard
Pack
Catalog
Number
50
XBAES35N
50
XBAES35T
50
XBAES35C
XBAES35C
XBAES35T
55
Snap-On End Stop (15 mm)
Snap-on end stops for 35 mm
and 15 mm DIN rails can
be fitted with blank marker
strips and adjustable terminal
strip markers, parking facility
for bridges and testing
accessories.
Snaps on, for end support of
50–240 mm terminal blocks,
labeling with XBMZB10.
55
55
55
Screwed on, labeling with
blank marker strips and
terminal strip markers.
55
55
Cross-Reference of Terminal Blocks Marking, End Stops
55
Catalog
Number
XBMKLM2
XBMGLMA
XBMUBE
XBAES35N
X
—
—
XBAES35T
—
X
X
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
Snap-On End Stop
XBAES35N
XBAES15N
0.98
(24.8)
0.87
(22)
1.91
(48.5)
1.38
(35)
Aluminum End Stop
55
XBAES35AL
55
2.32
(59)
0.20
(5.2)
55
55
1.73
(44)
0.89
(22.6)
55
55
0.20
(5)
55
0.39
(10)
55
55
Universal End Stop
XBAES35T
0.83
(21.2)
1.91
(48.6)
1.99
(50.5)
55
XBAES15C
XBAES35C
55
55
0.71
(18)
1.39
(35.3)
1.29
(32.8)
55
0.24 (6.1)
55
0.37 (9.5)
55
0.37 (9.5)
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
91
55.1
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
DIN Rails
Product Selection
35 x 7.5 mm x 2m
15 x 5.5 mm x 2m
55
Perforated and unperforated
DIN rails in accordance with
E 60715.
Standard
Pack
Standard
Pack
Catalog
Number
55
Features
Slotted
25
XBANS15P
●
55
●
55
●
55
●
●
High dimensional accuracy
Restricted tolerances
Double surface tempering,
galvanized and chromated
All 2m in length
Customization available
55
25
Catalog
Number
XBANS3575P
Solid
25
XBANS3575U
35 x 15 mm x 2m
Standard
Pack
25
55
25
Standard
Pack
Catalog
Number
35/7.5/2m
Catalog
Number
25
XBANS3575PL
35/58/2m
Slotted
55
Aluminum DIN Rails
(Perforated)
XBANS3515P
6
XBANS35PL
Solid
XBANS3515U
55
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
55
35 x 7.5 mm DIN Rail
0.04
(1)
55
55
35 x 15 mm DIN Rail
0.30
(7.5)
1.06 (27)
55
0.24
(6.2)
0.03
(0.8)
0.06
(1.5)
1.38 (35)
0.03 (0.8)
Rad.
15 x 5.5 mm x 2m DIN Rail
0.03 (0.8)
Rad.
0.59
(15)
15°
0.05 (1.25)
Rad.
1.06 (27)
55
0.41
(10.5)
0.59
(15)
0.79
(20)
0.98
(25)
55
55
55
55
55
55
55
55
92
0.02 (0.5)
Rad.
0.08
(2)
1.02
(26)
0.48
(12.2)
0.98
(25)
55
0.01 (0.2)
Rad.
2.28 (58)
1.89 (48)
0.95
(24)
1.38
(35)
0.17
(4.2)
0.59
(15)
55
0.59
(15)
0.22
(5.5)
0.05 (1.25)
Rad.
0.24
(6.2)
55
0.04
(1)
1.38 (35)
XBANS35PL Raised Rail
Control Products Catalog CA08102001E—August 2010 www.eaton.com
1.02
(26)
5.00
(127)
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Angled Mounting Brackets
55
Product Selection
The angled brackets enable
the DIN rail to be mounted
with a spacing or at an angle
of 30°.
Features
●
●
●
●
For mounting DIN rail at
30° angle
For use with M6 screw
Chromated steel
Provides better visibility
55
Angled Mounting Bracket
Standard
Pack
55
Catalog
Number
Height Inches (mm)
1.39 (35.4)
55
10
55
XBANBGS
Height Inches (mm)
1.81 (46)
10
55
XBANBGSH
55
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
XBANBGS
55
XBANBGSH
0.61
(15.4)
0.65
(16.5)
3.43
(87)
M6
Screw
55
3.31
(84)
M6
Screw
55
2.44
(62)
2.54
(64.5)
55
30°
30°
0.08
(2)
1.39
(35.4)
55
0.54
(13.7)
0.55
(14)
0.79
(20)
0.28 (7)
Dia.
0.08
(2)
1.81
(46)
0.79
(20)
55
0.28 (7)
Dia.
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
93
55.1
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Ferrules
Product Selection
55
Ferrules are offered in two
basic designs—an insulated
style available in models for
wire sizes 20 through 4 AWG
and a non-insulated type
available in models for wire
sizes 22 through 2 AWG.
55
Insulated
55
55
55
●
●
55
Note: UL Ratings do not typically
pertain to the use of Ferrules—
Ferrules are covered under
DIN VDE 0611.
Non-Insulated
Tube: soft electrolytic copper (E-CU), tin plated
Plastic sleeve: polypropylene
●
Long-term temperature 105°C
●
Short-term temperature 120°C
55
●
Tube: soft electrolytic copper (E-CU), tin plated
XBAF20
Insulated Ferrules
Non-Insulated Ferrules
Wire Size
AWG (mm2)
Standard
Pack Catalog
Number
20 (0.5)
100
XBAF20
Catalog
Number
18 (0.75)
100
XBAF21
Color Standard
Pack 18 (1)
100
XBAF23
20 (0.5)
White
100
XBAF1
16 (1.5)
100
XBAF24
18 (0.75)
Gray
100
XBAF3
14 (2.5)
100
XBAF25
18 (1)
Red
100
XBAF4
12 (4)
100
XBAF26
16 (1.5)
Black
100
XBAF6
10 (6)
100
XBAF27
14 (2.5)
Blue
100
XBAF9
8 (10)
100
XBAF28
55
14 (2.5)
Blue
100
XBAF10
6 (16)
100
XBAF29
12 (4)
Gray
100
XBAF11
55
12 (4)
Gray
100
XBAF12
10 (6)
Yellow
100
XBAF13
Special Applications
10 (6)
Yellow
100
XBAF14
55
8 (10)
Red
100
XBAF15
8 (10)
Red
100
XBAF16
The twin ferrules allow two
conductors to be compressed
practically in one ferrule.
55
6 (16)
Blue
100
XBAF17
6 (16)
Blue
100
XBAF18
4 (25)
Yellow
50
XBAF19
XBAF1
55
55
55
55
55
Wire Size
AWG (mm2)
XBAFT1
The colored coding of the
various cross sections
corresponds to DIN 46 228-4.
Non-Insulated Twin Ferrules
Wire Size
AWG (mm2)
Color Standard
Pack Catalog
Number
20 (0.5)
White
100
XBAFT1
18 (0.75)
Gray
100
XBAFT3
55
18 (1)
Red
100
XBAFT4
16 (1.5)
Black
100
XBAFT6
55
14 (2.5)
Blue
100
XBAFT9
12 (4)
Gray
100
XBAFT11
10 (6)
Yellow
100
XBAFT13
8 (10)
Red
100
XBAFT15
6 (16)
Blue
50
XBAFT18
55
55
55
55
55
Notes
The colored coding of the various cross-sections corresponds to DIN 46 228-4.
Standard pack is the number of ferrules that come in each bag. Must order in
multiples of standard pack.
Example: XBAF1—an order for 200 pieces will receive 2 bags of ferrules,
each with 100 pieces.
55
55
55
55
55
94
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Dimensions
Approximate Dimensions in Inches (mm)
55
Ferrules with Insulating Collar
55
55
L1
L2
S1
55
D1
D2
55
S2
55
Catalog
Number
Approximate Dimensions
D1
D2
L1
L2
S1
S2
XBAF1
0.04 (1.1)
0.10 (2.5)
0.55 (14.0)
0.31 (8.0)
0.006 (0.15)
0.010 (0.25)
XBAF3
0.05 (1.3)
0.11 (2.8)
0.55 (14.0)
0.31 (8.0)
0.006 (0.15)
0.010 (0.25)
XBAF4
0.06 (1.5)
0.12 (3.0)
0.55 (14.0)
0.31 (8.0)
0.006 (0.15)
0.012 (0.30)
XBAF6
0.07 (1.8)
0.13 (3.4)
0.55 (14.0)
0.31 (8.0)
0.006 (0.15)
0.012 (0.30)
XBAF9
0.09 (2.3)
0.17 (4.2)
0.55 (14.0)
0.31 (8.0)
0.006 (0.15)
0.012 (0.30)
XBAF10
0.09 (2.3)
0.17 (4.2)
0.94 (24.0)
0.71 (18.0)
0.006 (0.15)
0.012 (0.30)
XBAF11
0.11 (2.8)
0.19 (4.8)
0.67 (17.0)
0.39 (10.0)
0.008 (0.20)
0.012 (0.30)
XBAF12
0.11 (2.8)
0.19 (4.8)
1.02 (26.0)
0.71 (18.0)
0.008 (0.20)
0.012 (0.30)
XBAF13
0.14 (3.5)
0.24 (6.2)
0.79 (20.0)
0.47 (12.0)
0.008 (0.20)
0.012 (0.30)
XBAF14
0.14 (3.5)
0.24 (6.2)
1.02 (26.0)
0.71 (18.0)
0.008 (0.20)
0.012 (0.30)
XBAF15
0.18 (4.6)
0.30 (7.5)
0.87 (22.0)
0.47 (12.0)
0.008 (0.20)
0.012 (0.30)
XBAF16
0.18 (4.6)
0.30 (7.5)
1.10 (28.0)
0.71 (18.0)
0.008 (0.20)
0.012 (0.30)
XBAF17
0.23 (5.8)
0.35 (8.8)
0.94 (24.0)
0.47 (12.0)
0.008 (0.20)
0.016 (0.40)
XBAF18
0.23 (5.8)
0.35 (8.8)
1.10 (28.0)
0.71 (18.0)
0.008 (0.20)
0.016 (0.40)
XBAF19
0.29 (7.3)
0.43 (11.0)
1.26 (32.0)
0.71 (18.0)
0.008 (0.20)
0.020 (0.50)
55
55
55
55
55
55
55
55
55
55
55
Ferrules without Insulating Collar
55
L1
L2
55
D1
D2
55
S
55
Catalog
Number
Approximate Dimensions
D1
D2
L1
L2
S
XBAF20
0.04 (1.0)
0.08 (2.1)
0.24 (6.0)
0.21 (5.3)
0.006 (0.15)
XBAF21
0.05 (1.2)
0.09 (2.3)
0.24 (6.0)
0.21 (5.3)
0.006 (0.15)
XBAF23
0.06 (1.4)
0.10 (2.5)
0.24 (6.0)
0.21 (5.3)
0.006 (0.15)
XBAF24
0.07 (1.7)
0.11 (2.8)
0.28 (7.0)
0.24 (6.0)
0.006 (0.15)
XBAF25
0.09 (2.2)
0.13 (3.4)
0.28 (7.0)
0.24 (6.0)
0.006 (0.15)
XBAF26
0.11 (2.8)
0.16 (4.0)
0.35 (9.0)
0.31 (8.0)
0.008 (0.20)
XBAF27
0.14 (3.5)
0.19 (4.7)
0.47 (12.0)
0.35 (9.0)
0.008 (0.20)
XBAF28
0.18 (4.5)
0.23 (5.8)
0.47 (12.0)
0.43 (10.8)
0.008 (0.20)
XBAF29
0.23 (5.8)
0.30 (7.5)
0.47 (12.0)
0.41 (10.5)
0.008 (0.20)
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
95
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55
Approximate Dimensions in Inches (mm)
55
Twin Ferrules
L1
55
L2
55
D2
D1
55
55
55
S1
S2
Catalog
Number
Approximate Dimensions
D1
D2
L1
L2
S1
S2
XBAFT1
0.06 (1.5)
0.10 (2.5)
0.59 (15.0)
0.31 (8.0)
0.006 (0.15)
0.010 (0.25)
XBAFT3
0.07 (1.8)
0.11 (2.8)
0.59 (15.0)
0.31 (8.0)
0.006 (0.15)
0.010 (0.25)
XBAFT4
0.08 (2.1)
0.13 (3.4)
0.59 (15.0)
0.31 (8.0)
0.006 (0.15)
0.012 (0.30)
XBAFT6
0.09 (2.3)
0.14 (3.6)
0.63 (16.0)
0.31 (8.0)
0.006 (0.15)
0.012 (0.30)
55
XBAFT9
0.11 (2.9)
0.17 (4.2)
0.73 (18.5)
0.39 (10.0)
0.008 (0.20)
0.012 (0.30)
XBAFT11
0.15 (3.8)
0.19 (4.9)
0.91 (23.0)
0.47 (12.0)
0.008 (0.20)
0.012 (0.30)
55
XBAFT13
0.19 (4.9)
0.23 (5.9)
0.98 (25.0)
0.55 (14.0)
0.008 (0.20)
0.016 (0.40)
XBAFT15
0.26 (6.5)
0.28 (7.2)
1.02 (26.0)
0.55 (14.0)
0.008 (0.20)
0.016 (0.40)
XBAFT18
0.33 (8.5)
0.35 (8.8)
1.22 (31.0)
0.63 (16.0)
0.008 (0.20)
0.020 (0.50)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
96
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Hand Tools
55
Stripping Tools
55
Dimensions
Product Selection
Stripping Tools
55
Approximate Dimensions in Inches (mm)
Standard
Pack
Catalog
Number
1
XBTCUTSTP
Stripping Tools
Technical Data and Specifications
Conductor/Cable Stripping Range
Description
Specification
Conductor/cable
0.2–6 mm2/24–10 AWG
Wire cutter
6 mm2/10 AWG
55
Length
Stripping
Length
Weight
In lbs (g)
8.07 (205)
Up to 18 mm
0.44 (200)
55
55
55
55
55
55
Crimping Pliers
55
The crimping pliers deform the ferrules hexagonally.
For 0.25–6 mm2 ferrules in accordance with
DIN 46 228-1: 1992-08 and DIN 46 228-4: 1990-09.
Product Selection
Crimping Pliers
Standard
Pack
Catalog
Number
1
XBTCRMP66
Dimensions
55
Approximate Dimensions in Inches (mm)
Crimping Pliers
Length
Weight
In lbs (g)
6.85 (175)
0.79 (360)
55
55
55
55
Technical Data and Specifications
Areas of Application
55
Description
Specification
0.25–6 mm2
55
Conductor
Conductor
23–10 AWG
55
55
55
Slotted Screwdrivers
55
The crimping pliers deform the ferrules hexagonally.
For 0.25–6 mm2 ferrules in accordance with
DIN 46 228-1: 1992-08 and DIN 46 228-4: 1990-09.
55
55
Product Selection
Slotted Screwdrivers
Standard
Pack
55
Catalog
Number
55
3.5 mm
1
XBTDVR35
55
XBTDVR40
55
4.0 mm
1
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
97
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Printed Marking Tag Options
55
Horizontally Printed Marking Tags and Marking Directions
55
55
3
4
5
6
7
8
9
10
10
6
5
4
3
2
55
2
Marking Direction: Horizontal
1
55
1
9
55
8
Marking Accessories
7
55
Marking Direction: Vertical
55
55
55
Marking Tags for 5.2 mm Wide Terminal Blocks
Marking Tags for 6.2 mm Wide Terminal Blocks
Standard
Pack
Standard
Pack
Number
Sequence
Catalog
Number
Number
Sequence
Catalog
Number
ZB6 Tags Vertically Numbered
ZB5 Tags Vertically Numbered
10
1–10 XBMZB5V/1
10
1–10 XBMZB6V/1
10
11–20
XBMZB5V/11
10
11–20
XBMZB6V/11
10
21–30
XBMZB5V/21
10
21–30
XBMZB6V/21
10
31–40
XBMZB5V/31
10
31–40
XBMZB6V/31
10
41–50
XBMZB5V/41
10
41–50
XBMZB6V/41
55
10
51–60
XBMZB5V/51
10
51–60
XBMZB6V/51
10
61–70
XBMZB5V/61
10
61–70
XBMZB6V/61
55
10
71–80
XBMZB5V/71
10
71–80
XBMZB6V/71
10
81–90
XBMZB5V/81
10
81–90
XBMZB6V/81
10
91–100
XBMZB5V/91
10
91–100
XBMZB6V/91
55
55
55
55
55
ZBF5 Tags Vertically Numbered
ZBF6 Tags Vertically Numbered
10
1–10 XBMZBF5V/1
10
1–10 XBMZBF6V/1
55
10
11–20
XBMZBF5V/11
10
11–20
XBMZBF6V/11
10
21–30
XBMZBF5V/21
10
21–30
XBMZBF6V/21
55
10
31–40
XBMZBF5V/31
10
31–40
XBMZBF6V/31
10
41–50
XBMZBF5V/41
10
41–50
XBMZBF6V/41
10
51–60
XBMZBF5V/51
10
51–60
XBMZBF6V/51
55
10
61–70
XBMZBF5V/61
10
61–70
XBMZBF6V/61
10
71–80
XBMZBF5V/71
10
71–80
XBMZBF6V/71
55
10
81–90
XBMZBF5V/81
10
81–90
XBMZBF6V/81
10
91–100
XBMZBF5V/91
10
91–100
XBMZBF6V/91
55
55
Note
For text printed horizontally, change “V” in catalog number to “H.”
55
55
55
55
55
55
55
98
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Marking Tags for 8.2 mm Wide Terminal Blocks
Marking Tags for 12 mm Wide Terminal Blocks
Standard
Pack
Standard
Pack
Number
Sequence
Catalog
Number
Number
Sequence
55
Catalog
Number
55
ZB12 Tags Vertically Numbered
ZB8 Tags Vertically Numbered
10
1–10 XBMZB8V/1
10
1–10 XBMZB12V/1
10
11–20
XBMZB8V/11
10
11–20
XBMZB12V/11
10
21–30
XBMZB8V/21
10
21–30
XBMZB12V/21
55
10
31–40
XBMZB8V/31
ZBF12 Tags Vertically Numbered
10
41–50
XBMZB8V/41
10
1–10 XBMZBF12V/1
55
10
51–60
XBMZB6V/51
10
11–20
XBMZBF12V/11
10
61–70
XBMZB8V/61
10
21–30
XBMZBF12V/21
10
71–80
XBMZB8V/71
10
81–90
XBMZB8V/81
10
91–100
XBMZB8V/91
10
1–10 XBMZBF8V/1
10
11–20
XBMZBF8V/11
10
21–30
XBMZBF8V/21
10
31–40
XBMZBF8V/31
10
41–50
XBMZBF8V/41
10
51–60
XBMZBF8V/51
10
61–70
XBMZBF8V/61
10
71–80
XBMZBF8V/71
10
81–90
XBMZBF8V/81
10
91–100
XBMZBF8V/91
55
55
Marking Tags for 16 mm Wide Terminal Blocks
Standard
Pack
ZBF8 Tags Vertically Numbered
55
Number
Sequence
55
Catalog
Number
55
ZB15 Tags Vertically Numbered
55
10
1–10 XBMZB15V/1
10
11–20
XBMZB15V/11
10
21–30
XBMZB15V/21
55
55
ZBF15 Tags Vertically Numbered
10
1–10 XBMZBF15V/1
10
11–20
XBMZBF15V/11
10
21–30
XBMZBF15V/21
55
55
Note
For text printed horizontally, change “V” in catalog number to “H.”
55
55
Marking Tags for 10.2 mm Wide Terminal Blocks
Standard
Pack
Number
Sequence
Catalog
Number
55
ZB10 Tags Vertically Numbered
10
1–10 XBMZB10V/1
10
11–20
XBMZB10V/11
10
21–30
XBMZB10V/21
55
55
ZBF10 Tags Vertically Numbered
10
1–10 XBMZBF10V/1
10
11–20
XBMZBF10V/11
10
21–30
XBMZBF10V/21
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
99
55.1
55
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Pre-Printed Marking Tags
Terminal Blocks Marking Tags
The tags are made of white self-extinguishing polyamide 6.6 and the imprint is hot stamped
with rubproof black ink.
●
55
55
55
55
White marking strip
available preprinted. Strip
covers 10 terminals.
Marking 1 – 10, 11–20, up
to 991–999. Contact Eaton
for more options.
●
XBMZB5 or XBMZBF5
for terminal blocks
5.2 mm wide
●
●
●
XBMZB6 or XBMZBF6
for terminal blocks
6.2 mm wide
XBMZB8 or XBMZBF8
for terminal blocks
8.2 mm wide
XBMZB10 or
XBMZBF10 for terminal
blocks 10.2 mm wide
●
●
XBMZB12 or
XBMZBF12 for terminal
blocks 12 mm wide
XBMZB15 or
XBMZBF15 for terminal
blocks 16 mm wide
55
55
55
55
55
55
Marking Tag Sizes
Note: Marking Tag Sizes are for all catalog numbers starting with given prefix, EXCEPT FUSE TERMINAL Blocks.
Proper Marking Tag Size
XBMZB5
XBMZBF5
XBMZB6
XBMZBF6
XBMZB8
XBMZBF8
XBMZB10
XBMZBF10 XBMZB12 XBMZBF12 XBMZB15 XBMZBF15 XBMSSZB
XBUT25
XBPT25 XBUT4
XBPT4 XBUT6
XBPT6 XBUT10
XBPT10 XBPT16 XBPT16 XBUT35
XBPT35 XBMKLMZ
XBUT4FBE XBPTT25
XBUTT4
XBPTT4
XBPT6 XBPT4FBN XBUT16
—
—
—
XBPT35 —
—
XBUT6FBN XBPTK
XB3UKA
XBPT4FBE XBUK6
XBPT4FSI XBTK
—
—
—
—
—
—
XBPT25 XBPU25 XB3UKF
XBQT25 XBPT4FSI —
XBUK50
—
—
—
—
—
—
—
55
XBPT4FBE
XBAP …
XBUT4FBE
—
—
XBUK150
—
—
—
—
—
XBPU25 XBQT15 XBUT6FBN XBQU25 —
—
XBUK95
—
—
—
—
—
—
55
XBQT15 XBQTT15
XBUK10
—
—
—
XBPT10 —
—
—
—
—
—
XBQT25FBE XBQU15 XBUKK4
—
—
—
XBMKLMZ —
—
—
—
—
—
XBQU15 XBMPK15
XBPT4 —
—
—
—
—
—
—
—
—
—
XBMUK25
XBMPKK15
XBPT4FBN —
—
—
—
—
—
—
—
—
—
—
XBATCP…
XBQT25 —
—
—
—
—
—
—
—
—
—
55
—
—
XBQT25FBE —
—
—
—
—
—
—
—
—
—
—
—
XBQU25
—
—
—
—
—
—
—
—
—
—
55
—
—
XBMUK4
—
—
—
—
—
—
—
—
—
—
55
Notes
For center labeling.
For external labeling.
For center and outside labeling.
For lever labeling.
Two (2) XBMZB10 tags fit in one (1) XBMKLMZ.
55
55
55
55
XBQT25FBE
55
55
55
55
55
55
55
55
100
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
55.1
Marker Strips and Sheets (for use with XBAPLT2006K1 plotter)
The XB Series marking system provides logical and clear
identification of the modular terminal blocks and interface
modules.
55
55
Product Selection
XBMZB_
55
Marker Sheets (Strip of 10)
Marker Strips (Strip of 10)
Terminal
Width
Standard
Pack
XBMPZB_
Blank Strips
5.2 mm
Terminal
Width)
Catalog
Number
10
Stnd.
Pack
White
50
XBMPZB5
50
XBMPZB5BU
6.2 mm
10
XBMZB6
Blue
8.2 mm
10
XBMZB8
Red
50
XBMPZB5RD
50
XBMPZB5YE
50
XBMPZB5GN
10.2 mm
10
XBMZB10
Yellow
12 mm
10
XBMZB12
Green
16 mm
10
XBMZB15 6.2 mm
White
50
XBMPZB6
5.2 mm
10
XBMZBF5
Blue
50
XBMPZB6BU
6.2 mm
10
XBMZBF6
Red
50
XBMPZB6RD
8.2 mm
10
XBMZBF8
Yellow
50
XBMPZB6YE
Green
50
XBMPZB6GN
10
XBMZBF10
12 mm
10
XBMZBF12
16 mm
10
XBMZBF15
55
55
55
55
Marker Sheets (10 rows of 10)
Flat Strips
10.2 mm
55
Catalog
Number
Marker Sheets (10 rows of 12)
5.2 mm
XBMZB5
Color
XBMPZBF_
55
55
55
55
Flat Marker Sheets (10 rows of 10)
5.2 mm
White
10
XBMPZBF5
Orange
10
XBMPZBF5OG
White
10
XBMPZBF6
Orange
10
XBMPZBF6OG
White
10
XBMPZBF8
55
55
55
55
Label Sheets for Laser Printers
The XBM labels have been specially developed for laser printers
and have considerable advantages:
●
●
●
●
●
●
Can be printed on all commercially available laser printers
Or can use plotter or pen for printing
Good adhesive properties
A4 size
XBMKL25X12WH designed to fit XBGBS2512 group marker
XBMLMAL447 is perforated for terminal strip marker
XBMGLMA and is 44 x 7 mm
55
55
Product Selection
XBM_
55
Label Sheets
Standard
Pack
Catalog
Number
55
10
XBMKL25X12WH
10
XBMLMAL447
55
55
55
Note
All markers are strips of 10, except XBMZB15, which is a strip of 5.
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
101
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Terminal Block Group Marking
Terminal block groups are marked using marking labels that are
snapped into the marker strip groove of the terminal blocks. The
group is marked using either labels or insert markers.
Insert Markers for Laser Printers
One sheet = 56 labels. Lettering field is 40 x 17 mm.
55
Product Selection
XBMUBEL4017
55
XBGBS2512
55
55
Terminal Block Group Marking
55
Standard
Pack
Catalog
Number
100
XBGBS2512
Product Selection
Insert Markers for XBMUBE(D)
Standard
Pack
Catalog
Number
10
XBMUBEL4017
55
55
55
55
Terminal Strip Markers
Adjustable height for end bracket labeling.
55
Product Selection
55
Product Selection
Terminal Strip Markers
XBM_
Standard
Pack
55
Refillable Marker Pen
Refillable marker pen for manual labeling, line thickness
0.35 mm.
Catalog
Number
XBMXPEN
Standard
Pack
20 x 8 mm Wide
10
55
10
Catalog
Number
Pen
XBMKLM2
1
44 x 7 mm Wide
55
Terminal Strip Markers XBMXPEN
Ink Cartridge
XBMGLMA
1
XBMINK
55
55
Terminal Strip Marker Carriers
For labeling terminal groups, for mounting on DIN rail. Lettering
field is 40 x 17 mm.
Non-Refillable Marker Pen
For manual labeling, line thickness 0.5 mm.
55
Product Selection
Product Selection
55
XBMUB_
55
55
Terminal Strip Marker Carriers
XBMUBE
Non-Refillable Marker Pen
Standard
Pack
Catalog
Number
Standard
Pack
10
XBMUBE
1
10
XBMUBED
55
Catalog
Number
XBMBSTIFT
Note
See Page 101 for insert labels.
55
55
55
55
55
55
55
55
55
102
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Marking Plotter
The automatic Prepare Pen
function ensures optimum
marking results right from the
first character.
55
Pens can remain in the pen
station even for prolonged
intervals without drying out.
55
55
Custom Marking Tag System
This plotter system uses
Windows®-based software to
interface with a PC, allowing
custom printing on standard
terminal blocks marking tags.
These standard marking tags
provide circuit identification
for Eaton DIN rail mount
terminal blocks.
Features
●
●
●
●
●
Enter tag text directly into
EMARK software program
or import file from
AutoCAD or Excel®
Selectable font sizes, types
and colors including
common symbols for
circuit identification
(ground, , etc.)
Various text formatting
options including copy,
paste, increment functions,
text alignment, etc.
Durable templates allow
printing of four different
tag sizes at the same time
Automatic prepare pen
function for optimum
results
Technical Data and Specifications
55
Marking Plotter
55
Description
Specification
55
Plotter
Plotter type
Flatbed plotter
Maximum plotting surface
440 mm x 296 mm
Maximum material height
10.5 mm
Maximum plotting speed
40 cm/sec
Pen station
Four depots with double sealing
Drive
Two-phase impulse-driven motor
Interfaces
Parallel (Centronics)/USB Level 1.1
55
Command language
Based on HP-GL 7475A
55
Data buffer
16 MB
Addressable resolution
0.01 mm
Repeat accuracy
0.05 mm
Repeat accuracy on pen change
0.05 mm with optimum pen
55
55
55
Electronics
55
55
55
Power Supply
Power supply
Via separate power supply unit with
exchangeable mains feeder cable
Power supply unit input voltage
100–240 Vac/50–60 Hz
Power supply unit input current (maximum)
0.3A at 230V~
Power supply unit output voltage
24 Vdc
Power supply unit output current (maximum)
1.4A
55
55
55
55
Environmental conditions
Operation
50° to 95°F (10° to 35°C)
35% to 75% relative humidity
Storage
14° to 122°F (–10° to 50°C)
10% to 90% relative humidity
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
55
Marking Plotter
L
W
H
Approx. Weight
In Lbs (kg)
25.98 (660)
17.32 (440)
4.92 (125)
18 (8)
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
103
55.1
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Marking Plotter
55
Description
Standard
Pack
Catalog
Number
Plotter kit 1
XBAPLT2006K1
Pen station sealing set
1
XBMP1PENDEPOT
Plotter pen preparation plate
1
XBMP1PREPLATES
Template for marker strips
1
XBMP1MZB
Template for flat marker strips
1
XBMP1MZBF
Template for XBMPZB marker sheets
1
XBMP1MPZB
55
Template for XBMPZBF marker sheets
1
XBMP1MPZBF
Template for Weidmuller multicard sheet
1
XBMP1MCSF46
55
Template for Weidmuller multicard sheet universal
1
XBMP1MCU
Template for Entrelec sheets
1
XBMP1MRC
0.25 mm disposal pen
1
XBMDPEN25R
0.35 mm disposal pen
1
XBMDPEN35R
0.25 mm pen
1
XBMPEN25
55
0.35 mm pen
1
XBMPEN35
Ink Cartridge
2
XBMINK
55
Pen cleaning set
1
XBMRSET
Cleaning cartridges
2
XBMRMEKFC2
55
55
55
55
55
55
55
55
EMARK Software
Eaton’s EMARK software makes labeling your terminal blocks quick and simple.
You can import your data from ECHART, any other CAD/CAE program, or enter
text directly into EMARK. The software allows marking tags to be printed on the
PLT2006 plotter in a professional manner.
55
55
55
55
Note
Plotter kit includes PLT2006 plotter system with EMARK software and user manual, starter ink and cleaning
sets, and templates for marking all XBMZB and XBMZBF tags.
55
55
55
55
55
55
55
55
55
55
55
55
55
104
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
IEC—XB Series
Testing Accessories
Separating Plates, Covers and Bridges
Test Adapter
For 4 mm diameter test plug and 4 mm diameter safety test
plug. Makes contact in the bridge shaft.
Product Selection
XBATSPAI4
Test Adapter
Standard
Pack
Catalog
Number
1
XBATSPAI4
Modular Test Plugs
For individual assembly of test plug strips.
Product Selection
XBATS_
55.1
Modular Test Plugs
Standard
Pack
Catalog
Number
Test Plugs
10
XBATSPS5
10
XBATSPS6
10
XBATSPS8
XBATSDPPS5
10
XBATSDPPS6
10
XBATSDPPS8
55
55
Partition Plate
Protrudes over the terminal block and is used
to increase electrical clearance between
terminals. Also provides visual indications of
the functions of terminal blocks. For
example, terminal blocks between two
partition plates may provide an exact location
for test points.
55
End Cover Segment
Covers protruding terminal block segments
of three- and four-wire terminal blocks when
next to a two wire blocks. This ensures that
all is touch-proof and saves space over using
a standard end cover.
55
Jumper/Bridge
Provides the ability to electrically connect
terminal blocks. Non-adjacent blocks may be
bridged by snapping off the contact tabs of
the standard bridge. The reducing bridge
permits simple connection of terminal blocks
with different nominal cross-sections.
55
Note
See these accessories as listed with terminal blocks for more information.
Spacer Plate
10
55
End Cover
Used to cover an open end of terminal block
when changing sizes within an assembly
and/or for last terminal block in a row.
55
55
55
55
55
55
55
55
55
55
55
55
Test Plugs
Consisting of metal part for socket hole and insulating sleeve.
55
Product Selection
55
Test Plugs
Standard
Pack
XBATSMP_
XBATSMP_
55
Catalog
Number
55
2.3 mm
10
—
XBATSMPSMT
10
Blue
XBATSMPSIHBU
10
White
XBATSMPSIHWH
10
Red
XBATSMPSIHRD
10
Black
XBATSMPSIHBK
55
10
—
XBATSPSMT
55
10
Blue
XBATSPSIHBU
10
White
XBATSPSIHWH
10
Red
XBATSPSIHRD
10
Black
XBATSPSIHBK
55
55
4 mm
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
105
55.2
55
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
Contents
NEMA
Description
55
55
55
55
55
55
55
55
55
55
NEMA Overview
55
Product Description
Standards and Certifications
NEMA terminal blocks
provide a panel or DIN rail
mount block that can be
assembled from modular
pieces. These blocks
accommodate wire from
22 to 1/0 AWG and up to
175A and 600V.
●
55
55
55
55
Page
NEMA
C381 Series Terminal Blocks, Rail Mounted . . . . . . . . . 107
TB Series Terminal Blocks, Modular . . . . . . . . . . . . . . . . 111
UL File #E67464 and
#E56797
55
55
55
55
55
55
55
55
55
55
55
55
55
55
106
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
55.2
Contents
C381 Series Terminal Blocks, Rail Mounted
Description
Page
C381 Series Terminal Blocks, Rail Mounted
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TB Series Terminal Blocks, Modular . . . . . . . . . . . . . . . . . . .
55
55
108
109
109
110
110
111
55
55
55
55
55
55
55
55
55
C381 Series Terminal Blocks, Rail Mounted
Product Description
●
●
Standards and Certifications
600V
Snap-fit nylon sections
●
Control circuit blocks
●
Power circuit blocks
●
Fuse blocks
●
Switch blocks
●
●
Sections can be
interlocked in any quantity
and any mixture for direct
panel mounting or channel
mounting
Three terminal choices in
control circuit blocks, up to
32 circuits per foot
●
●
●
Power circuit blocks for
heavy-duty applications, up
to 16 circuits per foot
Fuse blocks accommodate
any 0.406 x 1.5 in (10.3 x
38.1 mm) ferrule type
cartridge fuse up to 30A
Switch blocks have
removable blade for extra
safety
●
UL File #E67464
55
55
55
55
55
55
A Typical Mixture of Control Circuit Blocks, Power Blocks, Switch and
Fuse Blocks in a Mounting Channel
C381TP
C381PE
C381PT
55
55
C381EF C381SB C381FB
55
C381CC
55
C381MC
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
107
55.2
55
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
Product Selection
When Ordering Specify
Catalog number and quantity,
which must be in a multiple
of the available minimum
standard package.
55
55
Control, Power, Switch and Fuse Blocks
55
55
Catalog number and quantity
of end sections also in
minimum quantity standard
package.
Examples:
●
200 Cat. No. C381ST
●
20 Cat. No. C381PT
●
100 Cat. No. C381CC
Description
AWG
Wire Size
Standard
Pack Catalog
Number
Control Circuit Terminal Blocks—Rated 50A
C381ST
Type ST (screw terminal)
22–14 AWG
100
C381ST
C381TP
Type TP (tubular pressure plt)
22–10
100
C381TP
C381TS
Type TS (tubular screw) end section
18–8
100
C381TS
C381ES
End section
—
25
C381ES
55
55
55
55
55
55
55
55
55
55
Power Circuit Terminal Blocks—Rated 155A
C381PT
Type PT (tubular screw)
10–1/0
10
C381PT
C381PE
End section
—
10
C381PE
55
55
55
55
55
Switch Blocks—Rated 15A and Fuse Blocks—Rated 30A
C381SB
Switch blocks
18–8
10
C381SB
C381FB
Fuse blocks
18–8
10
C381FB
C381EF
End section
—
10
C381EF
55
55
55
55
55
55
Notes
Available only in minimum quantity standard packages.
Must be ordered in standard package quantity or in multiples of these quantities.
55
55
108
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Example:
●
25 Cat. No. C381ES.
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
55.2
Accessories
C381 Series Terminal Blocks, Rail Mounted
55
Description
Standard
Pack Catalog
Number
Aluminum mounting channel—6 ft (1.8m) lengths
25
C381MC
Screw type channel clamp (one required each end) 100
C381VC
Spring type channel clamp (one required each end) 100
C381CC
Vinyl marking strip—3/8 in x 25 ft (9.5 mm x 7.6m) coil
1
C381MS
Marking paper—pressure sensitive—5/16 x 11-11/16 in (7.9 x 296.9 mm), 24 strips/sheet
5 sheets
C381MP
55
55
55
55
55
Marking strip retainer (one required/grouping)
For use on control circuit blocks
100
C381SR
For use on power circuit blocks
100
C381SP
Fanning strip—for type TP and/or TS
50
C381TF
Fanning strip—for type ST
50
C381SF
Terminal jumper (two-pole) 100
C381TJ
Ganging rod—1/8 in x 6 in (3.2 mm x 152.4 mm) 10
C381GR
55
55
55
55
55
Modifications
55
Pull Apart Terminal Blocks Description
AWG
Wire Size
Standard
Pack Catalog
Number
One-pole stationary section (tubular pressure plt)
22–10
100
C381PS
Three-pole movable section (tubular pressure plt)
22–10
12
C381PM
End section
—
25
C381ES
Polarizing plug (promotes alignment of poles) —
100
C381PP
55
55
55
55
Pull Apart Terminal Blocks
55
55
55
55
55
55
Illustrates: One–Three-Pole Movable Section,
Three–One-Pole Stationary Sections and One–End Piece
55
Notes
Available only in minimum quantity standard packages.
Must be ordered in standard package quantity or in multiples of these quantities.
C381CC is a snap-in, one time use disposable type. C381VC can be readjusted or reused as desired.
For use on adjacent Type TP and/or TS control circuit sections.
May be used on section covers or to gang fuse and/or switch blocks.
L shaped plug installs in end of stationary section, Catalog Number C381PS, and prevents incorrect installation of movable section, Catalog Number C381PM.
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
109
55.2
55
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
Technical Data and Specifications
55
Formulas for Calculating Blocks and Channel Lengths
N = Number of Blocks
55
C381 Series Terminal Blocks, Rail Mounted
55
Description
Blocks Length
Control blocks and pull apart blocks
0.762 + (0.375 x N)
55
Power circuit blocks
0.812 + (0.750 x N)
Fuse and switch blocks
0.812 + (0.755 x N)
55
Mounting channel (minimum channel length)
0.75 + blocks length
55
Dimensions
55
Approximate Dimensions in Inches (mm)
55
C381 Series Terminal Blocks, Rail Mounted
Terminal Block Mounting
Without Channel
55
Channel
Mounting
55
55
1.19
(30.2)
A
55
Mounting Channel in 6' (1.8m) Lengths,
Can Be Cut to Desired Length
55
55
55
55
55
B
Block
A
B
Control circuit blocks
1.25 (31.8)
1.55 (39.4)
Power circuit blocks
1.75 (44.5)
2.00 (50.8)
Fuse blocks
2.75 (69.9)
2.00 (50.8)
Switch blocks
2.75 (69.9)
2.00 (50.8)
Pull apart blocks
1.88 (47.8)
2.75 (69.9)
55
55
55
55
55
55
55
55
55
55
55
55
110
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
55.2
Contents
TB Series Terminal Blocks, Modular
Description
Page
C381 Series Terminal Blocks, Rail Mounted . . . . . . . . . . . .
TB Series Terminal Blocks, Modular
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
107
112
113
114
115
55
55
55
55
55
55
55
55
55
55
55
TB Series Terminal Blocks, Modular
Product Description
Features
TBA and TBD modular terminal
blocks are designed to
conserve space, while
allowing maximum flexibility
and ease of installation.
Available as one-, two- and
three-pole circuits, simple
and uniform installation is
possible because their
design is based on 5/8 in
(15.9 mm) modules. Standard
blocks are white nylon.
Blocks—Design Features
●
Compact design permits
mounting 48–600V or
90–300V terminals per foot
●
Fully shielded construction,
600V spacings
●
Nylon construction
provides anti-tracking and
impact resistance
●
TBA types are available
in rail mounted, base
mounted and power
distribution types
●
Terminal blocks easily snap
on or off mounting rails;
not necessary to disturb
adjacent units
●
No end pieces or backing
plates are needed when
rail mounting
●
A 12 circuit subminiature
blocks, rated 20A at 300V,
is available for “high
density” applications
●
Popular blocks are also
available in dual mount for
use with standard TBA or
35 mm DIN rails
Breathing Action
Clamping Collar
The unique design of the
clamping collar permits the
collar to breathe as the wire
expands and contracts,
maintaining a constant
and permanent clamping
pressure. This eliminates
loose connections resulting
from the gradual flattening
of conductors and joint
deterioration caused by
heating and cooling cycles.
Terminals—Design Features
●
Insulated walls of lug
guide wire into lug
●
Blocks are shipped
with clamping screw
backed out
●
Constant locking torque
keeps terminal screws in
position
●
Terminal screws are captive;
cannot be lost in shipment
or handling
●
Hardened stainless steel
clamping collar eliminates
stripped threads
●
Large opening in clamping
collar accommodates
oversized conductors;
smallest collar will accept
three 14 AWG stranded
conductors
Standards and Certifications
55
UL recognized: File No.
E56797
CE approved
55
●
●
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
111
55.2
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
55
Product Selection
55
TBA Modular Terminal Blocks
55
55
55
55
55
55
55
55
55
Rail and Base Mounted Terminal Blocks
Description
AWG
Wire Size
Number
of Poles
Ampacity
(per Circuit) Carton
Quantity TBA Rail
Catalog
Number
DIN Rail Catalog
Number
(2) 14–12
12
5A
100
TBDSM12 TBDSM12 Rail Mounted—600V
Subminiature blocks
55
Miniature blocks
22–10
4
30A
100
TBDV4
TBDV4
55
Standard blocks—screw terminals
with tang clamping collars
18–2
1
90A
100
—
TBDT1
55
55
55
55
High current blocks
Standard blocks—plug-in terminals
55
55
55
55
100
TBAT2
—
20
TBAT3-20
TBDT3-20
18–4
3
90A
100
TBDT70
TBDT70
14–2/0
3
175A
12
TBA100 —
3
40A
20
TBAP
—
3
70A
20
TBAP70
—
14–8
3
40A
20
TBAPL70
—
22–10
3
30A
100
TBAL30
—
8–4
3
115A
12
TBAL90
—
Disconnect blocks—for 1/4 in (6.4 mm) dia.
by 1–1-7/16 in (25.4–36.5 mm) fuse
22–8
1
30A
50
TBAD
—
Fuse blocks—for 13/32 in (10.3 mm) dia.
by 1-1/2 in (38.1 mm) fuse
22–8
1
50A
50
TBDTF
TBDTF
22–10
4
30A (600V)
90
TBBT4
—
Panel mount blocks
Base Mounted—600V
Miniature blocks—screw terminals
with tang clamping collars
Standard blocks—standard screw terminals
22–8
3
40A
80
TBABT3
—
Universal mounting blocks
8 maximum
4
50A 25
TBU4
—
8 maximum
6
50A 60
TBU6
—
8 maximum
8
50A 45
TBU8
—
8 maximum
12
50A 35
TBU12
—
55
55
40A
40A
22–8
55
55
2
3
18–4
55
55
22–8
22–8
Notes
Based on 50°C rise, test at 25°C ambient while using maximum wire size.
Must be ordered in standard package quantity or in multiples of these quantities.
Dual mounting blocks—mount on either TMR/TBA rail or 35 mm DIN rail.
May also be mounted on mini-DIN rail (15 mm). Catalog Number C383TS15.
May also be base mounted.
TBU Series = 60A with crimped wire.
55
55
55
112
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
55.2
Accessories
55
TB Series Terminal Blocks, Modular
Description
Length
Number
of Poles
Carton
Quantity Catalog
Number
55
55
Mounting Rail
Aluminum
55
12.5 (317.5)
—
25
TMR12
37.5 (952.5)
—
25
TMR37
72.0 (1828.8)
—
25
TBATR72
1m
—
20
MC382MA1-20
Miniature blocks—TBDV4 and TBBT4
6.0 (152.4)
—
50
TMS6
TBU Series—matte finish
7.5 (190.5)
—
25
TMSU
All other blocks
12.5 (317.5)
—
50
TMS
55
55
35 mm DIN—steel
55
55
Marking Strips
55
Jumpers
TBAT1 and TBAP70
—
2-pole
100
TJ1
TBAT2
—
2-pole
100
TJ2
TBAT3, TBABT3, TBAP and TBBP
—
2-pole
100
TJ3
TBDV4 and TBBT4
—
4-pole
100
TJ4
TBAD and TBATF
—
2-pole
100
TJ5
TBAL30
—
2-pole
100
TJ6
TBU
—
12-pole
10
TJ7
TBDT3
—
2-pole
100
TJ8
—
—
50
TAD
55
55
55
55
Miscellaneous
End piece for TBABT3 and TBBP
Lug shield for TBA100 and TBAL90
—
—
50
TAS
Fuse puller
—
—
50
TBP
Lighted fuse puller—blown fuse indication
—
—
25
TBLP
55
55
55
Notes
Length in inches (mm) except as noted.
Must be ordered in standard package quantity or in multiples of these quantities.
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
113
55.2
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
Technical Data and Specifications
TB Series Terminal Blocks, Modular
Description
Specification
55
Continuous temperature
212°F (100°C)
Tensile strength
10,000–12,000 psi
55
Impact resistance
2.0 ft-lb/in (arc)
Arc resistance
140 seconds
55
●
55
55
55
55
55
Chemical resistance to:
●
Acetone
●
Ammonia gas
●
Benzene
●
Gasoline
●
Mineral oil
●
Sodium bisulfate
●
Sodium chloride
●
Sodium nitrate
●
Water up to 50°C
Flashover Voltages
Catalog
Number
Vac rms, 60 Hz
Opposite
Polarity
To Ground
Recommended Terminal
Tightening Torque
Wire Size
Torque
20 lb-in
TBAT1
9100
6600
Up to 8 AWG
TBAT2
9600
7300
Up to 4 AWG
35 lb-in
TBAT3
8600
7300
Up to 2/0 AWG
50 lb-in
55
55
55
55
55
55
55
Temperature Rating
55
55
55
55
80
10
70
20
60
30
TBAT2
TBAL100
TBAT3
50
40
TBAT1
TBAL30
40
TBAL90
TBAM4
30
20
50
TBAP
40
TBAB70
60
80
100
120
140
160
Current in Amps
180
200
220
240
55
55
55
55
55
55
114
Control Products Catalog CA08102001E—August 2010 www.eaton.com
60
Temp. Rise in C∞
55
Ambient Temp. in C∞
55
55
Ratings based on 90°C total
temperature of a three-pole
block with each pole carrying
current and wired with
largest size conductors.
Ampere rating is based
on maximum allowable
temperature—ambient
temperature plus
temperature rise due
to current.
To find a current rating, place
a straight edge horizontally at
the value of anticipated
maximum internal panel
ambient (scale on the left),
and read the current rating for
the device on the bottom
scale. Example: at 60°C,
TBAT3 is rated 54 amperes.
55.2
Terminal Blocks, Fuse Blocks and Fuse Holders
NEMA
Dimensions
Approximate Dimensions in Inches (mm)
55
TB Series Terminal Blocks, Modular
55
1.09
(27.7)
0.88
(22.4)
1.88
(47.8)
0.63
(16)
1.23
(31.2)
55
0.63
(16)
1.23
(31.2)
3 Holes
0.09 (2.3) Dia.
0.33 (8.4) Deep
0.59
(15)
1.48
(37.6)
1.71
(43.4)
1
(25.4)
1.25
(31.8)
55
0.17 – 0.28
(4.3 – 7.1)
Clearance for
#8 Screw
TBDSM12
0.67 0.59
(17) (15)
55
1.38 (35.1)
1 (25.4)
2 (50.8)
2.4 (61)
55
55
1.25
(31.8)
55
1.86
(47.2)
55
1.78 (45.2)
TBBT4
TBAP70 & TBAPL70
1.25
(31.8)
0.63
(16)
1.3
(33)
1.25
(31.8)
55
1.19
(30.2)
1.75
(44.5)
TBDV4
55
1.88 (47.8)
1/4-28
Screw
55
TBDT1
1.53
(38.9)
1.25
(31.8)
0.63 (16)
3.13 (79.5)
TBAL90
1.23
(31.2)
1.69
(42.9)
#6-32
Screw
1.25
(31.8)
0.17 – 0.27
(4.3 – 6.9)
Clearance for
#8 Screw
Footlock
Cat. #TAD
1.25
(31.8)
55
2.47 (62.7)
TBABT3
0.31 (7.9)
TBAL30
0.66
(16.8)
12.5 – 37.5
(317.5 – 952.5)
0.25 (6.4)
TBAT3 & TBDT3
0.63 (16)
55
55
1.25 (31.8)
#10 Screw
Clearance
0.59
(15)
55
55
0.25 (6.4)
TMR12 & TMR37
1.25
(31.8)
3.13 (79.5)
55
0.19
(4.8)
1.3
(33)
TBAT2
55
1.33
(33.8)
1.25
(31.8)
1.3
(33)
55
55
1.31
(33.3)
1.53 (38.9)
1.86
(47.2)
1.75
(44.5)
B
0.63 (16)
1.25 (31.8)
TBA100
55
1.77 (45)
1.94 (49.3)
0.47 (11.9)
0.63
(16)
1.34
(34)
TBDT70
55
1.25
(31.8)
TBAP
1.88 (47.8)
55
0.13 (3.3)
0.63 (16)
72 (1828.8)
TBATR72
0.56
(14.2)
0.63 (16)
0.44 (11.2)
2
(50.8)
1.25
(31.8)
0.63 (16)
TBAD & TBDTF
55
2
(50.8)
1.5
(38.1)
55
55
#10 Screw
A
B
Clearance
3.75
2.87
TBU4 (95.3)
(72.9)
0.5
5
4.12
(12.7) TBU6
(127)
6.25
TBU8 (158.8)
8.75
TBU12 (222.3)
A
TBU4, TBU6, TBU8 & TBU12
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55
(104.6)
5.37
(136.4)
7.87
(199.9)
55
55
115
55.3
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Contents
Power Distribution Products
Description
55
Page
Power Distribution
CHDB Series—Power Distribution Blocks . . . . . . . . . . . 117
CH160 Series—Power Terminal Blocks . . . . . . . . . . . . . 123
Power Terminal Block Accessories . . . . . . . . . . . . . . . . 126
55
55
55
55
55
55
55
55
55
Power Distribution Overview
55
Product Selection Guide
Series
Current
Range
UL Certification
High Short
UL 508A Approved for Industrial Control Panels
Circuit Current
Rating
Branch Circuits
Feeder Circuits
CH162
115–175A
UL 1059 Recognized
No
Yes
No Yes
55
CH163
175–420A
UL 1059 Recognized
No
Yes
No Yes
CH165
620–840A
UL 1059 Recognized
No
Yes
No Yes
55
CHDB
175–570A
UL 1953 Listed
Yes
Yes
Yes
Yes
55
55
55
55
HVAC UL 1995
Notes
Refer to Page 118 to determine short circuit current ratings with fuses and Pages 119 and 120 to determine short circuit current ratings
in conjunction with specific Eaton circuit breakers.
Single-pole units, when installed with proper spacings, may meet requirements for UL 508A feeder circuits.
55
55
55
55
55
55
55
55
55
55
55
55
116
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
55.3
Contents
CHDB Series—Power Distribution Blocks, Enclosed and Open
Description
Page
CHDB Series—Power Distribution Blocks
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CH160 Series—Power Terminal Blocks . . . . . . . . . . . . . . .
Power Terminal Block Accessories . . . . . . . . . . . . . . . . . . .
55
55
118
118
121
123
126
55
55
55
55
55
55
55
55
55
CHDB Series—Power Distribution Blocks
Product Description
Eaton’s CHDB Series of
Power Distribution Blocks
was designed for high short
circuit current rating (SCCR)
applications up to 200,000
amperes. They are assembled
with the minimum spacing to
meet UL 1953 requirements
for feeder circuits in UL 508A
industrial control panels,
and provide significant
wiring flexibility.
Available in three-pole
open style and single-pole
enclosed style with a variety
of terminal arrangements
and current-carrying capability
up to 570 amperes.
Features and Benefits
Enclosed Style
●
IP20 finger-safe enclosure
●
600 Vac or Vdc (UL 1953),
690 Vac or Vdc
●
DIN rail or panel mount
●
Captive termination
screws prevent lost
screws
●
Single-pole, gang
mountable for multi-pole
applications
●
Tin plated Al connections
suitable for Cu conductors
●
Flammability, UL 94V-0
Standards and Certifications
Open Style
●
600 Vac or Vdc (UL 1953)
●
Panel mount
●
Three-pole open design for
easy wiring
●
Tin-plated Al connections
suitable for Cu conductors
●
Flammability, UL 94V-0
●
Available covers for
additional protection
(does not meet IP20)
●
●
●
●
UL Listed 1953, Guide
QPQS, File E256146
CSA Certified,
Class 6228-01, File 15364
(enclosed style)
CE Component
IEC 60947-7-1
(enclosed style)
IEC 60529, IP20 (fingersafe) under specific wiring
conditions (enclosed style)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
117
55.3
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Product Selection
55
CHDB Series—Power Distribution Blocks
55
Line Connection
Load Connection
2/0–#8 AWG
Amperes
Style
Poles
Catalog
Number
(4) #4–#14 AWG
175
Open
3
CHDB2203
2/0–#8 AWG
(6) #4–#14 AWG
175
Open
3
CHDB3213
55
300 kcmil–#4 AWG
(6) #4–#12 AWG
310
Open
3
CHDB3233
55
300 kcmil–#4 AWG
(12) #4–#14 AWG
310
Open
3
CHDB3703
55
300 kcmil–#4 AWG
CHDB2203 (Open)
Configuration
55
55
55
CHDB204F (Enclosed)
(6) #2–#12 AWG
310
Open
3
CHDB3713
(3) 1/0–#12 AWG
310
Open
3
CHDB3713
1
CHDB204F
2/0–#8 AWG
2/0–#8 AWG
175
Enclosed
500 kcmil–#6 AWG
(6) #2–#14 AWG
380
Enclosed 1
CHDB330F
300 kcmil–#4 AWG
(12) #4–#14 AWG
570
Enclosed 1
CHDB377F
55
55
55
55
55
Technical Data and Specifications
55
Power Terminal Block Short-Circuit Current Ratings (SCCR) with Fuses
55
55
Catalog
Number
Terminal Copper Conductors
Line
Load
CHDB2203
2/0–#8 AWG
55
55
55
CHDB3213
CHDB3233
2/0–#8 AWG
300 kcmil–#4 AWG
CHDB3703
300 kcmil–#4 AWG
55
55
55
CHDB3713
300 kcmil–#4 AWG
200
200
200
60
200
175
175
100
60
100
200
200
100
60
50
400
400
200
100
200
400
400
400
100
100
#4–#12 AWG
#4–#14 AWG
175
175
100
60
100
#4–#8 AWG
400
400
200
100
200
100
400
400
400
100
#4–#12 AWG
175
175
100
60
100
#4–#8 AWG
400
400
200
100
200
400
400
100
100
175
100
60
100
1/0–#6 AWG
400
400
200
100
200
400
400
400
100
100
100
175
175
100
60
CHDB204F
2/0–#8 AWG
2/0–#8 AWG
200
200
100
60
200
CHDB330F
500 kcmil–#6 AWG
#2–#6 AWG
400
400
200
100
200
#2–#14 AWG
CHDB377F
55
55
400
175
#4–#12 AWG
55
55
SCCR (kA)
#4–#12 AWG
#4–#14 AWG
55
RK-5
FRS-R/FRN-R
#4–#14 AWG
55
55
Maximum Fuse Class and Amperes
J
T
RK-1
LPJ
JJS/JJN
LPS-RK/LPN-RK
200
200
100
30
50
175
175
100
30
100
200
300 kcmil
#4–#8 AWG
600
600
400
200
300 kcmil–#4 AWG
#4 AWG
600
600
400
200
50
#4–#14 AWG
200
200
100
30
50
Note
Finger-safe.
118
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
55.3
Power Terminal Block Short-Circuit Ratings (SCCR) for UL 508A Applications with Circuit Breakers
Opening per Pole
55
Line
Conductors
Cu
Load
Conductors
Cu
SCCR @ 480V
(Load Side)
Eaton
Breaker
Available Breaker
Current Ratings
55
175
2/0–#8
#4–#10
#12
#14
18 kA
18 kA
14 kA
EGB125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
55
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
#4–#10
#12
#14
25 kA
22 kA
14 kA
EGE125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
Feeder Listed
Open PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
#4–#10
#12
#14
50 kA
22 kA
14 kA
EGS125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB2203
Feeder Listed
Open PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
#4–#10
#12
#14
65 kA
22 kA
14 kA
EGH125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB2203
Feeder Listed
Open PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
#4–#10
#12
#14
65 kA
22 kA
14 kA
EGC125 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB3213
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
175
2/0–#8
#4–#10
#12
#14
18 kA
18 kA
18 kA
EGB125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB3213
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
175
2/0–#8
#4–#10
#12
#14
25 kA
22 kA
18 kA
EGE125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB3213
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
175
2/0–#8
#4–#10
#12
#14
50 kA
22 kA
18 kA
EGS125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB3213
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
175
2/0–#8
#4–#10
#12
#14
65 kA
22 kA
18 kA
EGH125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB3213
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
175
2/0–#8
#4–#10
#12
#14
65 kA
22 kA
18 kA
EGC125 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB204F
Feeder Listed
Enclosed PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
2/0–#8
18 kA
EGB125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB204F
Feeder Listed
Enclosed PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
2/0–#8
25 kA
EGE125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB204F
Feeder Listed
Enclosed PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
2/0–#8
35 kA
EGS125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB204F
Feeder Listed
Enclosed PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
2/0–#8
65 kA
EGH125
15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB204F
Feeder Listed
Enclosed PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
175
2/0–#8
2/0–#8
65 kA
EGC125 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90,
100, 125
CHDB3233
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
25 kA
25 kA
14 kA
JGE250
70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3233
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
35 kA
35 kA
14 kA
JGS250
70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3233
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
65 kA
42 kA
14 kA
JGH250
70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3233
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
65 kA
42 kA
25 kA
JGC250 70, 90, 100, 125, 150,
175, 200, 225, 250
Catalog
Number
Description
Enclosure Size in
Inches (mm)
Current
Rating
CHDB2203
Feeder Listed
Open PDB
16.00 x 16.00 x 6.75
(406.4 x 406.4 x 171.5)
CHDB2203
Feeder Listed
Open PDB
CHDB2203
Line
Load
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Note
This breaker frame is marked current limiting and suitable for use as current limiting per UL 508A SB.4.3.2.
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
119
55.3
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Power Terminal Block Short-Circuit Ratings (SCCR) for UL 508A Applications with Circuit Breakers (continued)
Line
Conductors
Cu
Load
Conductors
Cu
SCCR at 480V
(Load Side)
Eaton
Breaker
Available Breaker
Current Ratings
310
350 kmil–#4
#4–#6
#8
#10
25 kA
25 kA
14 kA
JGE250
70, 90, 100, 125, 150,
175, 200, 225, 250
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
35 kA
35 kA
14 kA
JGS250
70, 90, 100, 125, 150,
175, 200, 225, 250
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
65 kA
42 kA
14 kA
JGH250
70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3703
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
65 kA
42 kA
25 kA
JGC250 70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3713
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
25 kA
25 kA
14 kA
JGE250
70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3713
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
35 kA
35 kA
14 kA
JGS250
70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3713
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
50 kA
42 kA
14 kA
JGH250
70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB3713
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
310
350 kmil–#4
#4–#6
#8
#10
65 kA
50 kA
25 kA
JGC250 70, 90, 100, 125, 150,
175, 200, 225, 250
CHDB330F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
380
500 kmil–#3
#2–#8
14 kA
LGE400
250, 300, 350, 400
CHDB330F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
380
500 kmil–#3
#2–#8
14 kA
LGS400
250, 300, 350, 400
CHDB330F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
380
500 kmil–#3
#2–#8
14 kA
LGH400
250, 300, 350, 400
55
CHDB330F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
380
500 kmil–#3
#2–#8
25 kA
LGC400 250, 300, 350, 400
55
CHDB377F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
570
(2) 300 kmil–#2
#4
#6
#8
30 kA
18 kA
14 kA
LGE600
250, 300, 350, 400,
500, 600
CHDB377F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
570
(2) 300 kmil–#2
#4
#6
#8
30 kA
18 kA
14 kA
LGS600
250, 300, 350, 400,
500, 600
CHDB377F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
570
(2) 300 kmil–#2
#4
#6
#8
30 kA
18 kA
14 kA
LGH600
250, 300, 350, 400,
500, 600
CHDB377F
Feeder Listed
Enclosed PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
570
(2) 300 kmil–#2
#4
#6
#8
42 kA
35 kA
14 kA
LGC600 250, 300, 350, 400,
500, 600
55
55
55
55
Opening per Pole
Catalog
Number
Description
Enclosure Size in
Inches (mm)
Current
Rating
CHDB3703
Feeder Listed
Open PDB
24.00 x 20.00 x 6.75
(609.6 x 508.0 x 171.5)
CHDB3703
Feeder Listed
Open PDB
CHDB3703
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Line
Load
55
55
Note
This breaker frame is marked current limiting and suitable for use as current limiting per UL 508A SB.4.3.2.
55
55
55
55
55
55
120
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.3
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Dimensions
55
Approximate Dimensions in Inches (mm)
CHDB2203
55
CHDB3713
4.25
(108.0)
2.13
(54.1)
11
12
11
6.30
(160.0)
3.70
(94.0)
12
11
55
55
12
55
2.88
(73.2)
5.50
(139.7)
21
22
21
22
21
55
55
22
55
CHDB3213
55
CHDB204F
5.19
(131.8)
3.32
(84.3)
55
Load
Side
1.03
(26.2)
Line
Side
55
55
2.92
(74.2)
4.00
(101.6)
55
3.73
(94.7)
55
55
55
CHDB3233
3.70
(94.0)
6.30
(160.0)
55
2.15
(54.6)
55
55
1.40
(35.6)
5.50
(139.7)
55
3.55
(90.2)
55
55
55
CHDB3703
55
6.30
(160.0)
3.70
(94.0)
55
55
55
5.50
(139.7)
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
121
55.3
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Approximate Dimensions in Inches (mm)
CHDB330F
CHDB377F
55
55
Load
Side
1.54 Line
(39.1) Side
55
55
3.82
(97.0)
55
4.66
(118.4)
Load
Side
1.86
(47.2)
3.82
(97.0)
4.66
(118.4)
55
55
55
55
2.87
(72.9)
2.93
(74.4)
55
55
55
1.40 (35.6)
4.49
(114.0)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
122
Control Products Catalog CA08102001E—August 2010 www.eaton.com
1.40 (35.6)
4.49
(114.0)
Line
Side
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
55.3
Contents
CH160 Series—Power Terminal Blocks
Description
CHDB Series—Power Distribution Blocks . . . . . . . . . . . . . .
CH160 Series—Power Terminal Blocks
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Terminal Block Accessories . . . . . . . . . . . . . . . . . . .
Page
117
124
125
125
126
55
55
55
55
55
55
55
55
55
55
55
CH160 Series—Power Terminal Blocks
Product Description
Features and Benefits
The CH160 Series of Power
Terminal Blocks are UL 1059
recognized power terminal
blocks for branch circuit
applications. All short circuit
current ratings (SCCR) are
10 kA per UL 508A Table
SB4.1. The blocks are
available in a wide variety
of wiring configurations,
providing excellent flexibility.
●
●
●
●
Ratings: To 840A, 600V
Materials
●
Molded material; black,
UL rated 94V-0
thermoplastic
Operating temperature:
302°F (150°C)
Optional cover:
See Page 125
55
Standards and Certifications
●
●
UL Recognized
CSA Certified
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
123
55.3
55
55
55
55
55
55
55
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Product Selection
When Ordering, Specify
●
Catalog number
●
Number of poles (up to three-pole available)
CH160 Power Terminal Blocks—CH162 Series
Connector Material
and Ampacity
Catalog
Number Line Connection
Load Connection
#2–#14 Cu/#8 Al
#2–#14 Cu/#8 Al
Al 115A
CH16200_
1/0–#14 Cu
1/0–#14 Cu
Cu 150A
CH16201_
2/0–#8 Cu/Al
2/0–#8 Cu/Al
Al 175A
CH16204_
2/0–#14 Cu/#8 Al
(4) #4–#14 Cu/#8 Al
Al 175A
CH16220_
Catalog
Number CH160 Power Terminal Blocks—CH163 Series
Line Connection
Load Connection
Connector Material
and Ampacity
250 kcmil-#6 Cu
250 kcmil-#6 Cu
Cu 255A
CH16301_
350 kcmil-#6 Cu/Al
350 kcmil-#6 Cu/Al
Al 310A
CH16303_
500 kcmil-#6 Cu/Al
500 kcmil-#6 Cu/Al
Al 380A
CH16306_
55
2/0–#14 Cu/Al
(6) #4–#14 Cu/#8 Al
Al 175A
CH16321_
350 kcmil-#6 Cu/Al
(6) #4–#14 Cu/#8 Al
Al 310A
CH16323_
55
(2) 2/0–#14 Cu/#8 Al
(6) #4–#14 Cu/#8 Al
Al 350A
CH16325_
500 kcmil-#6 Cu/Al
(6) #2–#14 Cu/#8 Al
Al 380A
CH16330_
55
350 kcmil-#6 Cu/Al
(3) #2–#14 Cu/#8 Al
Al 310A
CH16332_
55
(2) 1/0–#14 Cu/#8 Al
Al 310A
CH16332_
350 kcmil-#6 Cu/Al
(12) #4–#14 Cu/#8 Al
Al 310A
CH16370_
55
350 kcmil-#6 Cu/Al
(6) #2–#14 Cu/#8 Al
Al 310A
CH16371_
(3) 1/0–#14 Cu/#8 Al
Al 310A
CH16371_
55
350 kcmil-#6 Cu/Al
(21) #10–#14 Cu/#10 Al
Al 310A
CH16372_
350 kcmil-#6 Cu/Al
(3) 1/0–#14 Cu/#8 Al
Al 310A
CH16373_
(14) #10–#14 Cu/#8 Al
Al 310A
CH16373_
(12) #4–#14 Cu/#8 Al
Al 420A
CH16375_
(6) #2–#14 Cu/#8 Al
Al 420A
CH16376_
(3) 1/0–#14 Cu/#8 Al
Al 420A
CH16376_
Catalog
Number 55
55
55
55
600 kcmil-#2 Cu/Al
600 kcmil-#2 Cu/Al
55
55
55
55
55
55
55
55
CH160 Power Terminal Blocks—CH165 Series
Line Connection
Load Connection
Connector Material
and Ampacity
(2) 350 kcmil-4 Cu/Al
(2) 350 kcmil-4 Cu/Al
Al 620A
CH16500_
(2) 500 kcmil-#6 Cu/Al
(2) 500 kcmil-#6 Cu/Al
Al 760A
CH16504_
CH16528_
(2) 600 kcmil-#2 Cu/Al
(2) 500 kcmil-#6 Cu/Al
(4) 3/0–#8 Cu/Al
Al 840A
(4) #4–#14 Cu/#8 Al
Al 840A
CH16528_
(12) #4–#14 Cu/#8 Al
Al 760A
CH16530_
Note
Incomplete catalog number—add code suffix -1, -2, -3 for number of poles.
Example: For a 150A 1/0-#14 Cu to 1/0-#14 Cu three-pole PDB, order CH16201-3.
55
55
55
124
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.3
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Technical Data and Specifications
55
CH160 Power Terminal Blocks
55
Description
Specification
Ratings
To 840A, 600V
Materials
Molded material; black, UL rated 94V-0 thermoplastic
Operating temperature
302°F (150°C)
55
55
Note: For optional cover, see Power Terminal Block
Accessories, Page 126.
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
Series CH163
(Single-, Two- and Three-Pole Available)
Series CH162 and CH165
(Single-, Two- and Three-Pole Available)
A
B
55
A
D
G
B
G
F
F
E
E
C
55
D
H
55
55
55
C
E
E
55
55
0.20 (5.1) Dia. Hole with
0.40 (10.2) C'Bore
J
Mtg. Holes 0.21 x 0.41 (5.3 x 10.4)
C'Bore 0.42 x 0.62 x 0.12 Deep
(10.7 x 15.7 x 3.0 Deep)
J
55
55
CH160 Power Terminal Block Dimensions
C
Two-Pole
C
Three-Pole
55
Series
A
B
C
Single-Pole
D
E4
F
G
H
J
CH162
2.87 (72.9)
2.25 (57.2)
1.06 (26.9)
1.87 (47.5)
2.68 (68.1)
1.75 (44.5)
0.81 (20.6)
0.53 (13.5)
0.31 (7.9)
0.84 (21.3)
0.31 (7.9)
CH163
4.00 (101.6)
3.37 (85.6)
1.96 (49.8)
3.58 (90.9)
5.20 (132.1)
3.32 (84.3)
1.62 (41.1)
0.97 (24.6)
0.31 (7.9)
0.87 (22.1)
0.35 (8.9)
CH165
5.50 (139.7)
4.75 (120.7)
3.12 (79.2)
5.81 (147.6)
8.50 (215.9)
3.12 (79.2)
2.68 (68.1)
1.56 (39.6)
0.37 (9.4)
1.37 (34.8)
0.62 (15.7)
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
125
55.3
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
Contents
Power Terminal Block Accessories
Description
55
CHDB Series—Power Distribution Blocks . . . . . . . . . . . . .
CH160 Series—Power Terminal Blocks . . . . . . . . . . . . . . .
Power Terminal Block Accessories
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
55
55
55
55
55
55
55
55
Power Terminal Block Accessories
55
Product Description
Standards and Certifications
55
Protective Cover
●
Guards against accidental
contact
●
Clear with write-on surface
for field termination
identification
●
Available in single-, twoand three-pole
TB Series Power Blocks
●
Contact Eaton for the
latest UL 508A short circuit
ratings on terminal blocks
●
UL Recognized:
File No. E62622
●
CSA Certified:
File No. LR15364
55
55
55
55
55
55
Product Selection
55
When Ordering, Specify
●
Catalog number
55
CH163 Series Cover
55
Description
Catalog
Number
Single-pole cover
CHCPDB-1 Two-pole cover
CHCPDB-2 55
Three-pole cover
CHCPDB-3 55
TB Series Power Blocks
55
55
55
55
Line
Connection
Load
Connection
Catalog
Number
#300 kcmil-#6 Cu/Al
(6) #6–#14 Cu/#8Al
TBAN63
Note
Standard pack, five pieces.
55
55
126
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Page
117
123
127
127
Terminal Blocks, Fuse Blocks and Fuse Holders
Power Distribution
55.3
Technical Data and Specifications
55
TB Series Power Blocks
55
Description
Specification
Ratings
285A, 600V; UL/CSA
Materials
Molded material; black, UL rated 94V-2 thermoplastic
Operating temperature
257°F (125°C)
55
55
55
Dimensions
55
Approximate Dimensions in Inches (mm)
CH163 Series Cover
55
Supplied with
(4) #4 Thread-Cutting Screws
Assembled as Shown
55
55
55
55
4.14
(105.2)
55
55
CHCPDB-1 = 2.1 (53.3)
CHCPDB-2 = 3.72 (94.5)
CHCPDB-3 = 5.34 (135.6)
55
55
Textured
Surfaces
55
TB Series Power Blocks
4.93
(125.2)
55
1.68
(42.7)
55
0.5
(12.7)
55
55
2.12
(53.8)
0.2 x 0.37
(5.1 x 9.4)
Mtg. Slot
55
55
5.37
(136.4)
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
127
55.4
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders
Contents
Fuse Blocks and Fuse Holders
Description
55
55
55
55
55
55
55
55
55
55
Fuse Blocks and Fuse Holders Overview
55
Product Description
Application Description
Standards and Certifications
Available in compact finger
safe (C383) and an open
(C350) design. Eaton’s fuse
blocks and holders provide a
simple DIN mounting device
for protection in control
circuits.
Fuse holders and blocks
available for Class CC,
midget, H, M and R.
●
55
55
55
Page
Fuse Blocks and Fuse Holders
C383 Series Disconnect Fuse Holders . . . . . . . . . . . . . 129
C350 Series Fuse Blocks and W Series Fuse Holders . . 131
●
UL listed
CSA certified
(may not apply to all styles)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
128
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders
55.4
Contents
C383 Series Fuse Holders
Description
Page
C383 Series Disconnect Fuse Holders
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C350 Series Fuse Blocks and W Series Fuse Holders . . . . .
55
55
130
130
130
130
131
55
55
55
55
55
55
55
55
55
C383 Series Disconnect Fuse Holders
Product Description
Features
Eaton’s C383 Series
disconnect fuse holders
offer 600V fused circuit
protection and subsequently
“no load” switching.
●
These compact disconnects
are designed as components
in switchboards, panels and
control consoles where
positive and safe circuit
protection is required and
where space is at a premium.
●
●
The C383 fuse holders
mount directly on standard
TS35 DIN rails.
Standards and Certifications
“Finger-Safe” design—
Recessed termination
screws and a fuse
extraction door afford you
IP20 grade protection and
qualify as “finger-safe” per
IEC standards
Easy to adjust position on
rail—Simply unlatch the
DIN rail adapter, slide the
holder to desired position
and relock
Quick change of fuse—
A permanently attached
pivoting fuse door
simplifies and speeds fuse
extraction. No tools or
accessories needed
●
●
●
Class CC model is UL
listed and CSA certified for
branch circuit protection.
Midget models are UL
Recognized and CSA
certified for supplementary
and high-speed protection
Runs cool—The vented
design provides adequate
air flow around the holders
at all times
Self-extinguishing
UL 94-VO rated polyester
material
Rated voltage:
●
CSA/UL: 600 Vac/DC, 30A
●
IEC (midget only):
690 Vac, 32A
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
129
55.4
55
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders
Product Selection
Disconnect Fuse Holders
C383FH_
Description
Standard Pack
Catalog Number
12
C383FHCC
12
C383FHMD
Standard Pack
Catalog Number
For Class CC Fuse
55
Single-pole fuse holder
For Midget Fuse (1-1/2 in x 13/32 in)
55
Single-pole fuse holder
55
55
55
Accessories
Disconnect Fuse Holders
Description
55
Midget or Class CC Fuse Holder
Multi-pole connection links
100
C383MPCL
55
Multi-pole handle pins
100
C383MPHP
55
Accessory Details
55
55
55
C383MPCL
Multi-pole connection links
can be used to connect fuse
holders together for multipole applications. Use two
per connection.
C383MPHP
Handle pins can be used to
connect handles in multi-pole
applications.
55
Technical Data and Specifications
55
Disconnect Fuse Holders
55
55
55
Description
Specification
Housing
Polyester UL 94-VO rated
Color
White
Wire size
8–18 AWG Torque
22 lb-in (2.5 Nm)
Fuse size
0.41 x 1.5 in
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
CH163 Series Cover
3.13 (79.5)
55
0.70 (17.8)
1.40
(35.6)
2.80 (71.2)
2.10 (53.4)
2.40 (61.0)
55
55
55
1.77
(45.0)
3.07
(78.0)
55
0.13
(3.2)
55
1.69 (43.0)
55
55
Notes
For additional technical information, consult the Eaton web site or Customer Support Center.
UL recognizes both solid and stranded wire. Ferrules are not required. CSA requires ferrules on stranded wire to achieve approval.
55
130
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Terminal Blocks, Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders
55.4
Contents
C350 Series Fuse Blocks and W Series Fuse Holders
Description
Page
C383 Series Disconnect Fuse Holders . . . . . . . . . . . . . . . .
C350 Series Fuse Blocks and W Series Fuse Holders
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
129
132
133
133
133
55
55
55
55
55
55
55
55
55
55
55
C350 Series Fuse Blocks and W Series Fuse Holders
Product Description
Features
Fuse Blocks
These space-saving Type
C350 Fuse Blocks are UL
approved for motor loads and
are rated 600V, 30A.
Fuse Blocks
●
Mount to 35 mm flat
and 32 mm asymmetrical
DIN rails
●
600V, 30A rated captive
pressure plate terminals
with copper alloy fuse clips
●
Interlocking fuse blocks
permit single, double or
three-pole application—
reduce inventory
●
Class CC fuses have an
interrupting rating of
200,000A
●
Rejection feature prevents
insertion of fuses with
lower interrupting or
voltage ratings
Fuse Holders
●
Class H, M and R
Fuse Holders
●
Break-resistant: molded of
heat-stabilized nylon
●
Fuse clips: springreinforced for cool
operation
●
Fuse clip terminations:
one-piece construction
●
Universal mounting
dimensions, for easy
assembly and retrofit
●
Breathing action collar:
maintenance-free
●
Pressure wire connectors:
vibration resistant
Standards and Certifications
55
Contact Eaton for the latest
UL 508A short circuit ratings
on terminal blocks.
55
55
Fuse Blocks
●
UL listed
●
CSA certified
55
55
55
Fuse Holders
●
UL tested for OEM
subfeed applications
55
55
55
55
Fuse Blocks and Adapters
55
55
Cat. No. C350KD DIN Rail Adapter
55
55
55
Cat. No. C350BD3C61
Three-Pole with Adapter
(Mounted on DIN Rail)
55
55
Cat. No. C350B1C61
One-Pole Fuse Blocks
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
131
55.4
55
Terminal Blocks, Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders
Product Selection
Class CC Fuse Blocks
55
55
55
Type
Catalog
Number
Three-pole C350BD3C61
Single-pole
C350B1C61
DIN adapter
C350KD
55
55
Class R, Three-Pole
Fuse Holder
55
Fuse Holders—250V
Wire Termination
30A
Catalog
Number
Carton
Qty.
60A
Catalog
Number
10
W231HA
10
W261HA
5
W232HA
5
W262HA
3
5
W233HA
5
W263HA
1
10
WR231HA
—
—
2
—
—
—
—
3
5
WR233HA
1
WR263HA
Number
of Poles
Carton
Qty.
30A
Catalog
Number
Carton
Qty.
60A
Catalog
Number
1
10
W631HA
1
W661HA
2
5
W632HA
1
W662HA
3
1
W633HA
2
W663HA
1
10
WM631F
—
—
2
8
WM632F
—
—
3
6
WM633F
—
—
1
10
WM631G
—
—
2
8
WM632G
—
—
3
6
WM633G
—
—
1
10
WR631HA
—
—
2
5
WR632HA
—
—
3
5
WR633HA
5
WR663HA
1
—
—
—
—
2
1
WMR632F
—
—
3
6
WMR633F
—
—
1
10
WMR631G
—
—
3
6
WMR633G
—
—
WRR633G
—
—
Number
of Poles
Carton
Qty.
1
2
Class H Fuse Holders
55
Single collar (box lug)—
sized to ampere rating
55
55
Class R Fuse Holders
Single collar (box lug)—
sized to ampere rating
55
55
55
Fuse Holders—600V
55
Wire Termination
55
Class H Fuse Holders
Single collar (box lug)—
sized to ampere rating
55
55
Class M Fuse Holders
55
Combination of double quick-connect,
20A max., and binding head screw,
#10 max., Cu/Al
55
Combination of double quick-connect,
20A max., and pressure plate screw,
#10 max., Cu only
55
55
Class R Fuse Holders
55
Single collar (box lug)—
sized to ampere rating
55
Combination of double quick-connect,
20A max., and binding head screw,
#10 max., Cu/Al
55
55
Combination of double quick-connect,
20A max., and pressure plate screw,
#10 max., Cu only
55
55
Class R Fuse Holder, Type WRR Control Transformer Fuse Blocks
55
Combination of double quick-connect,
20A max., and pressure plate screw,
#14–#10 Cu only
55
3
6
Note
Three-pole device is supplied with DIN rail adapter.
55
132
Control Products Catalog CA08102001E—August 2010 www.eaton.com
55.4
Terminal Blocks, Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders
Accessories
55
Fuse Holder Accessories
Description
Catalog Number
Fuse puller
TBP
Lighted fuse puller (120 Vac)
TBLP
55
55
55
Technical Data and Specifications
55
Fuse Blocks
Description
Specification
Voltage rating
600V
Ampere rating
Pressure plate terminals rated for 30A
Dielectric strength
1200V maximum
55
55
55
Ambient temperature
221°F (105°C) maximum
Clip/terminals
Tin-plated copper alloy
Screw and captive pressure plate
Zinc-plated steel
Base
Thermoplastic UL 94VO flammability rating
DIN rail adapter
Thermoplastic UL 94VO flammability rating
55
55
55
Dimensions
Approximate Dimensions in Inches (mm)
55
Fuse Blocks
55
55
55
3.00
(76.2)
0.60
(15.2)
1.25
(31.8)
55
2.24
(56.9)
0.78
(19.8)
Catalog No. C350 Fuse Block
55
2.35 (59.7)
Three-Pole Width
Three-Pole Width
Catalog No. C350 Fuse Block
with DIN Rail Adapter
55
55
Fuse Holders
Class H & R
250V, 30A
Class M & R
600V, 30A
SinglePole
F
Dia.
A
TwoPole
A
ThreePole
A
SinglePole
C
B
D
D1
Class H & R
250V, 60A
600V, 30/60A
D1
F
Dia.
TwoPole
A
E
Class
Width A
SinglePole
TwoPole
ThreePole
Height
B
Depth
C
Mounting Holes
Two-Pole
D
D1
Three-Pole
D1
H, R
250V, 30A
1.00 (25.4)
2.00 (50.8)
3.00 (76.2)
3.13 (79.5)
1.56 (39.6)
0.38 (9.7)
1.25 (31.8)
2.50 (63.5)
250V, 60A
1.44 (36.6)
2.88 (73.2)
4.31 (109.5)
4.75 (120.7)
2.06 (52.3)
0.50 (12.7)
1.81 (46.0)
3.13 (79.5)
ThreePole
A
D
D1
B
E
D
55
55
D1
E
Diameter
F
Number of Mounting Holes
Single- TwoThreePole
Pole
Pole
—
0.22 (5.6)
2
2
2
1.25 (31.8)
0.22 (5.6)
2
4
4
600V, 30/60A 1.69 (42.9)
3.38 (85.9)
5.06 (128.5)
6.94 (176.3)
2.63 (66.8)
0.63 (16.0)
2.19 (55.6)
3.75 (95.3)
3.13 (79.5)
0.28 (7.1)
2
4
4
600V, 30A
1.63 (41.4)
2.41 (61.2)
3.00 (76.2)
1.28 (32.5)
0.38 (9.7)
0.75 (19.1)
1.50 (38.1)
—
0.17 (4.3)
2
2
2
0.84 (21.3)
55
C
E
D
Volts/
Amperes
M, R
A
55
55
55
55
55
55
55
55
Control Products Catalog CA08102001E—August 2010 www.eaton.com
133
55.4
Terminal Blocks, Fuse Blocks and Fuse Holders
Fuse Blocks and Fuse Holders
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
134
Control Products Catalog CA08102001E—August 2010 www.eaton.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
