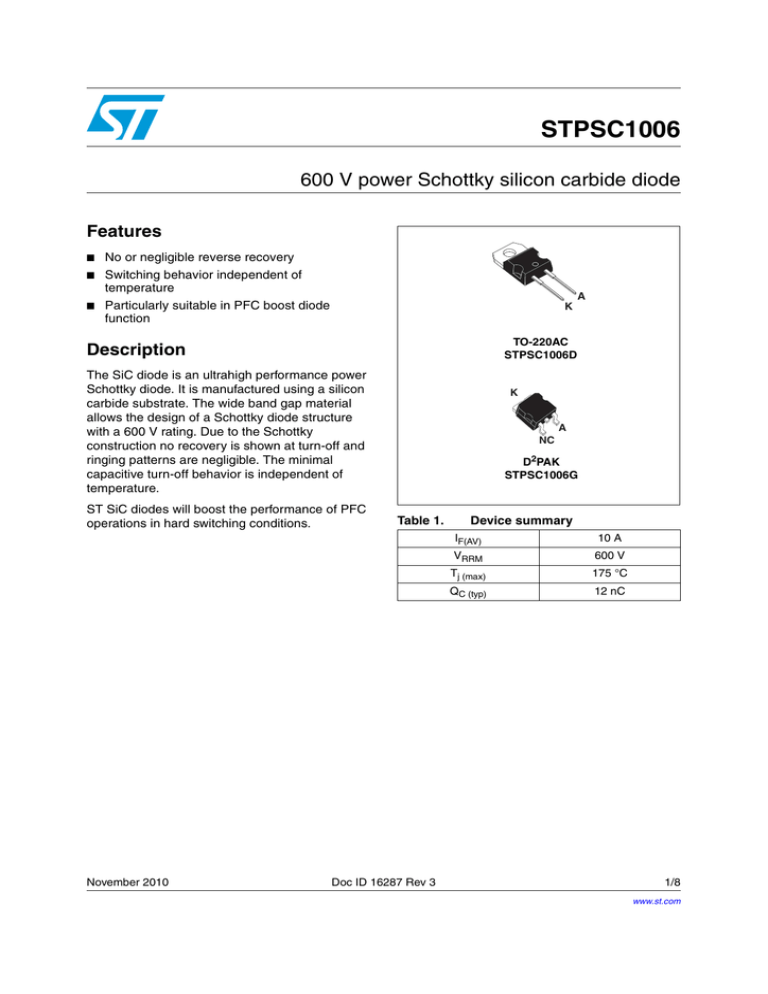

STPSC1006
600 V power Schottky silicon carbide diode
Features
■
No or negligible reverse recovery
■
Switching behavior independent of
temperature
■
Particularly suitable in PFC boost diode
function
A
K
TO-220AC
STPSC1006D
Description
The SiC diode is an ultrahigh performance power
Schottky diode. It is manufactured using a silicon
carbide substrate. The wide band gap material
allows the design of a Schottky diode structure
with a 600 V rating. Due to the Schottky
construction no recovery is shown at turn-off and
ringing patterns are negligible. The minimal
capacitive turn-off behavior is independent of
temperature.
ST SiC diodes will boost the performance of PFC
operations in hard switching conditions.
November 2010
K
A
NC
D2PAK
STPSC1006G
Table 1.
Doc ID 16287 Rev 3
Device summary
IF(AV)
10 A
VRRM
600 V
Tj (max)
175 °C
QC (typ)
12 nC
1/8
www.st.com
8
Characteristics
1
STPSC1006
Characteristics
Table 2.
Absolute ratings (limiting values at 25 °C unless otherwise specified)
Symbol
VRRM
IF(RMS)
Parameter
Value
Unit
Repetitive peak reverse voltage
600
V
Forward rms current
18
A
Average forward current
Tc = 115 °C, δ = 0.5
10
A
IFSM
Surge non repetitive forward
current
tp = 10 ms sinusoidal, Tc = 25 °C
tp = 10 ms sinusoidal, Tc = 125 °C
tp = 10 µs square, Tc = 25 °C
40
32
160
A
IFRM
Repetitive peak forward current
δ = 0.1, TC = 110 °C,
Tj = 150 °C
40
A
Tstg
Storage temperature range
-55 to +175
°C
Operating junction temperature
-40 to +175
°C
IF(AV)
Tj
Table 3.
Thermal resistance
Symbol
Rth(j-c)
Table 4.
Symbol
Parameter
Value
Unit
2
°C/W
Junction to case
Static electrical characteristics
Parameter
IR (1)
Reverse leakage
current
VF (2)
Forward voltage drop
Tests conditions
Tj = 25 °C
Tj = 150 °C
Tj = 25 °C
Tj = 150 °C
VR = VRRM
IF = 10 A
Min.
Typ.
Max.
-
30
150
-
210
1500
-
1.4
1.7
-
1.6
2.1
Unit
µA
V
1. tp = 10 ms, δ < 2%
2. tp = 500 µs, δ < 2%
To evaluate the conduction losses use the following equation:
P = 1.2 x IF(AV) + 0.09 x IF2(RMS)
Table 5.
Symbol
2/8
Other parameters
Parameter
Test conditions
Qc
Total capacitive charge
C
Total capacitance
Typ.
Unit
Vr = 400 V, IF = 10 A dIF/dt = -200 A/µs
Tj = 150 °C
12
nC
Vr = 0 V, Tc = 25 °C, F = 1 Mhz
650
Vr = 400 V, Tc = 25 °C, F = 1 Mhz
50
Doc ID 16287 Rev 3
pF
STPSC1006
Figure 1.
Characteristics
Forward voltage drop versus
forward current (typical values)
Figure 2.
IFM(A)
20
Reverse leakage current versus
reverse voltage applied
(maximum values)
IR(µA)
1.E+04
18
Tj=175 °C
1.E+03
16
14
Tj=25 °C
Tj=150 °C
Tj=150 °C
1.E+02
12
10
Tj=175 °C
8
1.E+01
6
4
1.E+00
Tj=25 °C
VFM(V)
2
0
VR(V)
1.E-01
0.0
0.5
Figure 3.
70
1.0
1.5
2.0
2.5
3.0
Peak forward current versus case
temperature
0
Figure 4.
IM(A)
100
150
200
250
300
350
400
450
500
550
600
Junction capacitance versus
reverse voltage applied
(typical values)
C(pF)
500
T
F=1 MHz
VOSC=30 mVRMS
Tj=25 °C
450
δ=0.1
60
50
δ=tp/T
tp
400
50
350
300
40
30
δ=0.3
250
δ=0.5
200
150
20
100
δ=1
10
δ=0.7
VR(V)
50
TC(°C)
0
0
0
25
50
75
100
125
150
175
1
Doc ID 16287 Rev 3
10
100
1000
3/8
Characteristics
Figure 5.
1.0
STPSC1006
Relative variation of thermal
impedance junction to case
versus pulse duration
Figure 6.
Non-repetitive peak surge forward
current versus pulse duration
(sinusoidal waveform)
IFSM(A)
Zth(j-c)/Rth(j-c)
1.E+03
0.9
0.8
0.7
1.E+02
Tc =25 °C
0.6
0.5
Tc =125 °C
0.4
1.E+01
0.3
0.2
0.1
tp(s)
Single pulse
tp(s)
0.0
1.E-05
Figure 7.
1.E-04
1.E-03
1.E-02
1.E-01
1.E+00
1.E+00
1.E+01
1.E-05
1.E-04
1.E-03
Total capacitive charge versus dIF/dt (typical values)
QC(nC)
18
IF=10A
VR=400 V
Tj=150 °C
16
14
12
10
8
6
4
dIF/dt(A/µs)
2
0
0
4/8
50
100
150
200
250
300
350
Doc ID 16287 Rev 3
400
450
500
1.E-02
1.E-01
1.E+00
STPSC1006
2
Package information
Package information
●
Epoxy meets UL94, V0
●
Cooling method: convection (C)
●
Recommended torque value: 0.4 to 0.6 N·m
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
Table 6.
TO-220AC dimensions
Dimensions
Ref.
A
H2
ØI
C
L5
Millimeters
Inches
Min.
Max.
Min.
Max.
A
4.40
4.60
0.173
0.181
C
1.23
1.32
0.048
0.051
D
2.40
2.72
0.094
0.107
E
0.49
0.70
0.019
0.027
F
0.61
0.88
0.024
0.034
F1
1.14
1.70
0.044
0.066
G
4.95
5.15
0.194
0.202
H2
10.00
10.40
0.393
0.409
L7
L6
L2
F1
D
L9
L2
L4
16.40 typ.
0.645 typ.
L4
13.00
14.00
0.511
0.551
L5
2.65
2.95
0.104
0.116
L6
15.25
15.75
0.600
0.620
L7
6.20
6.60
0.244
0.259
L9
3.50
3.93
0.137
0.154
F
M
E
G
M
Diam. I
Doc ID 16287 Rev 3
2.6 typ.
3.75
3.85
0.102 typ.
0.147
0.151
5/8
Package information
Table 7.
STPSC1006
D2PAK dimensions
Dimensions
Ref.
Millimeters
Inches
Min.
Max.
Min.
Max.
A
4.40
4.60
0.173
0.181
A1
2.49
2.69
0.098
0.106
A2
0.03
0.23
0.001
0.009
B
0.70
0.93
0.027
0.037
B2
1.14
1.70
0.045
0.067
C
0.45
0.60
0.017
0.024
C2
1.23
1.36
0.048
0.054
D
8.95
9.35
0.352
0.368
E
10.00
10.40
0.393
0.409
G
4.88
5.28
0.192
0.208
L
15.00
15.85
0.590
0.624
L2
1.27
1.40
0.050
0.055
L3
1.40
1.75
0.055
0.069
M
2.40
3.20
0.094
0.126
A
E
C2
L2
D
L
L3
A1
B2
R
C
B
G
A2
M
*
V2
* FLAT ZONE NO LESS THAN 2mm
R
V2
Figure 8.
0.40 typ.
0°
8°
Footprint (dimensions in mm)
16.90
10.30
5.08
1.30
8.90
6/8
Doc ID 16287 Rev 3
3.70
0.016 typ.
0°
8°
STPSC1006
3
Ordering information
Ordering information
Table 8.
Ordering information
Order code
Marking
Package
Weight
Base qty
Delivery mode
STPSC1006D
STPSC1006D
TO-220AC
1.86 g
50
Tube
1.48 g
1000
Tape and reel
STPSC1006G-TR
4
STPSC1006G
2
D PAK
Revision history
Table 9.
Document revision history
Date
Revision
Changes
24-Sep-2009
1
First issue.
16-Jun-2010
2
Added D2PAK package.
3-Nov-2010
3
Updated Table 8.
