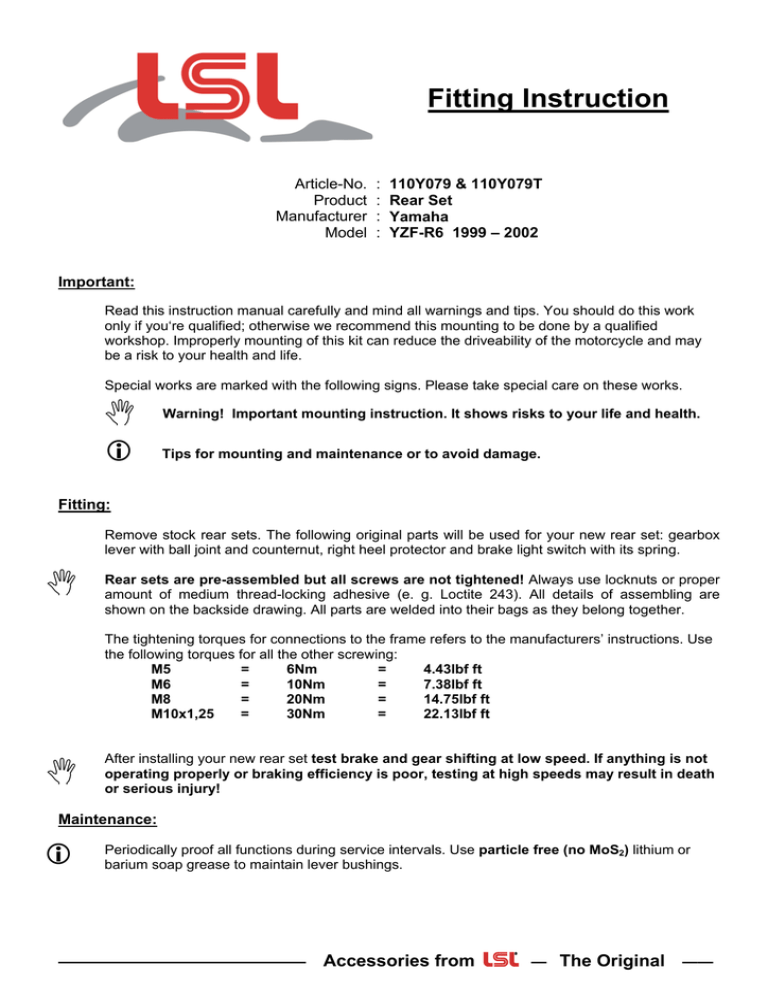

Fitting Instruction
Article-No.
Product
Manufacturer
Model
:
:
:
:
110Y079 & 110Y079T
Rear Set
Yamaha
YZF-R6 1999 – 2002
Important:
Read this instruction manual carefully and mind all warnings and tips. You should do this work
only if you‘re qualified; otherwise we recommend this mounting to be done by a qualified
workshop. Improperly mounting of this kit can reduce the driveability of the motorcycle and may
be a risk to your health and life.
Special works are marked with the following signs. Please take special care on these works.
1
Warning! Important mounting instruction. It shows risks to your life and health.
L
Tips for mounting and maintenance or to avoid damage.
Fitting:
Remove stock rear sets. The following original parts will be used for your new rear set: gearbox
lever with ball joint and counternut, right heel protector and brake light switch with its spring.
1
Rear sets are pre-assembled but all screws are not tightened! Always use locknuts or proper
amount of medium thread-locking adhesive (e. g. Loctite 243). All details of assembling are
shown on the backside drawing. All parts are welded into their bags as they belong together.
The tightening torques for connections to the frame refers to the manufacturers’ instructions. Use
the following torques for all the other screwing:
M5
=
6Nm
=
4.43lbf ft
M6
=
10Nm
=
7.38lbf ft
M8
=
20Nm
=
14.75lbf ft
M10x1,25
=
30Nm
=
22.13lbf ft
1
After installing your new rear set test brake and gear shifting at low speed. If anything is not
operating properly or braking efficiency is poor, testing at high speeds may result in death
or serious injury!
Maintenance:
L
Periodically proof all functions during service intervals. Use particle free (no MoS2) lithium or
barium soap grease to maintain lever bushings.
————————————————
