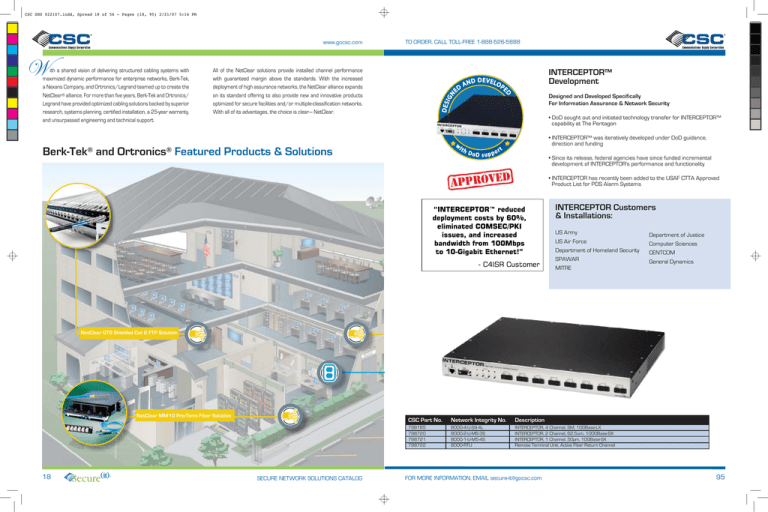

CSC SNS Cat Berk-Tek
CSC SNS 022107.indd, Spread 18 of 56 - Pages (18, 95) 2/21/07 5:14 PM
www.gocsc.com
W
ith a shared vision of delivering structured cabling systems with
maximized dynamic performance for enterprise networks, Berk-Tek,
a Nexans Company, and Ortronics/Legrand teamed up to create the
NetClear® alliance. For more than five years, Berk-Tek and Ortronics/
Legrand have provided optimized cabling solutions backed by superior
research, systems planning, certified installation, a 25-year warranty,
and unsurpassed engineering and technical support.
TO ORDER, CALL TOLL-FREE 1-888-526-5888
All of the NetClear solutions provide installed channel performance
with guaranteed margin above the standards. With the increased
deployment of high assurance networks, the NetClear alliance expands
on its standard offering to also provide new and innovative products
optimized for secure facilities and/or multiple-classification networks.
With all of its advantages, the choice is clear— NetClear.
INTERCEPTOR™
Development
Designed and Developed Specifically
For Information Assurance & Network Security
• DoD sought out and initiated technology transfer for INTERCEPTOR™
capability at The Pentagon
• INTERCEPTOR™ was iteratively developed under DoD guidance,
direction and funding
Berk-Tek® and Ortronics® Featured Products & Solutions
• Since its release, federal agencies have since funded incremental
development of INTERCEPTOR's performance and functionality
• INTERCEPTOR has recently been added to the USAF CTTA Approved
Product List for PDS Alarm Systems
INTERCEPTOR Customers
& Installations:
US Army
US Air Force
Department of Homeland Security
SPAWAR
MITRE
Department of Justice
Computer Sciences
CENTCOM
General Dynamics
NetClear GTS Shielded Cat 6 FTP Solution
NetClear MM10 Pre-Term Fiber Solution
18
SECURE NETWORK SOLUTIONS CATALOG
CSC Part No.
Network Integrity No.
Description
798185
798720
798721
798722
8000-4-U-S9-4L
8000-2-U-M6-3S
8000-1-U-M5-4S
8000-RTU
INTERCEPTOR, 4 Channel, SM, 10GBase-LX
INTERCEPTOR, 2 Channel, 62.5um, 1000Base-SX
INTERCEPTOR, 1 Channel, 50μm, 10GBase-SX
Remote Terminal Unit, Active Fiber Return Channel
FOR MORE INFORMATION, EMAIL [email protected]
95
CSC SNS 022107.indd, Spread 19 of 56 - Pages (94, 19) 2/21/07 5:14 PM
www.gocsc.com
TO ORDER, CALL TOLL-FREE 1-888-526-5888
INTERCEPTOR™ Cost Modeling
With the increased demand for SIPRNET and JWICS connectivity, many DoD services and federal agencies are
looking for ways to reduce the cost & complexity of secure network deployments—without compromising network
security or integrity. The analysis provided below highlights the cost savings potential when INTERCEPTOR™ is used
in place of (1) encryption, or (2) concrete encasement.
INTERCEPTOR™ vs. Encryption
$200,000
Equipment Cost
The chart to the right provides an incremental cost analysis
of encryption and Interceptor™ equipment based on the
number of building-to-building links required on an installation.
Assuming that only singlemode fiber is available,
INTERCEPTOR™ provides a 25-60% cost-savings over
encryption on singlemode fiber, and 50-80% savings on
multimode fiber. The more building links required, the greater
the savings.
$250,000
$150,000
RED/BLACK EQUIPMENT ROOM
$100,000
Mighty Mo® 6 Advanced Rack System
OptiMo® Rack-mount Fiber Cabinets
$50,000
$1
2
3
4
5
6
7
8
9
10
VOICE/DATA CABLING
Number of Bldg-to-Bldg Links
KG-175 Encryption
Interceptor (Centralized) - SM
Interceptor (Centralized) - MM
NetClear® MM10 Pre-Term Fiber Solution
NetClear GTS Shielded Cat 6 FTP Solution
Secure Premise Distribution Optical Cable
Adventum Indoor/Outdoor Cable
ArmorTek Interlocking Armor Cable
LANmark-10G Augmented Cat 6 UTP Cable
LANmark-1000 Cat 6 UTP Cable
LANmark-350 Cat 5e UTP Cable
INTERCEPTOR™
vs. Concrete Encasement
The charts below provide an incremental cost analysis of a secure
network deployment using either a concrete-encased duct bank
(Hardened Carrier) or a standard duct bank alarmed using
INTERCEPTOR™ (Alarmed Carrier). Because the total cost of
installation (per foot) of a concrete-encased duct bank varies
greatly with time and location, each chart provides comparative
costs against four different concrete-encased duct cost points
($25, $50, $75, and $100 per linear foot). As the number of OSP
building connections increase, so does the cost-savings and benefit
of using INTERCEPTOR™ as an Alarmed Carrier—especially in areas
where concrete is more costly to procure or install.
CONNECTIVITY
Secure Premise Distribution Optical Cable
OptiMo® Fiber Optic Adapter Panels
Mighty Mo Overhead Cable Pathway Bracket
Clarity® Cat 6 Jacks, Patch Panels
WORKSTATION ACCESS
Fib-or-Cop II Workstation
Fib-or-Cop II Workstation
94
SECURE NETWORK SOLUTIONS CATALOG
FOR MORE INFORMATION, EMAIL [email protected]
19
CSC SNS 022107.indd, Spread 20 of 56 - Pages (20, 93) 2/21/07 5:14 PM
www.gocsc.com
TO ORDER, CALL TOLL-FREE 1-888-526-5888
Featured Product
How the INTERCEPTOR™ Works
NetClear® MM10 Pre-Term Solution
INTERCEPTOR™ is a new addition to the network security toolbox —with new
technology specifically developed for Information Assurance applications.
INTERCEPTOR™ is extremely easy to install, and provides enhanced protection
for secure networks or C4ISR applications across any network.
NetClear MM10 pre-terminated fiber optic solutions feature
GIGAlite-10 and GIGAlite-10XB multimode fiber, guaranteed
to support 10 Gigabit Ethernet to industry-leading distances,
and Ortronics connectivity for industry-leading insertion loss
performance. They are engineered for high-speed performance
as part of high assurance network deployments and secure
facility construction.
NetClear cabling systems offer exceptional performance at
every level. The expertise of Berk-Tek in advanced cabling and
Ortronics in connectivity combine to create system solutions
second to none. You get perfectly matched components, optical
channel performance over distances exceeding specification
requirements, and the support of a proven, reliable partnership
ensuring a structured cabling system
that simply works better.
The NetClear MM10 fiber solution was developed to facilitate
advanced network requirements. NetClear MM10 offers
data-center, horizontal, backbone and campus fiber solutions
that guarantee performance and network longevity for the
most critical of applications. The NetClear MM10 solution is
supported by Berk-Tek GIGAlite -10 and –10XB optical fiber,
which provides superior performance for 10Gb/s applications
(at 850 nm).
Channel Components include:
• Berk-Tek Cable with GIGAlite-10, -10XB Fiber:
Pre-terminated cable assembly,
PD Series Premise Distribution Cable,
Adventum Series Indoor/Outdoor and OP Series.
• Ortronics® Connectivity: MTP Ribbon Backbone
Cable, OptiMo® Pre-Polished and Anaerobic
Field Installable Connectors, 615 Series Surface
Mount Fiber Cabinets, TracJack® or Series II®
Fiber Modules/Outlets, and OptiMo Fiber Optic
Patch and Interconnect Cords.
• As a Layer One device, INTERCEPTOR™ can be installed on either new or existing fiber optic cables.
• INTERCEPTOR™ equipment can be installed in one of two different architectures:
a. Centralized Architecture: INTERCEPTOR™ equipment installed in a single location, on just one end of the cable
b. Decentralized Architecture: INTERCEPTOR™ equipment installed is multiple locations, on both ends of the cable
(similar to a KG-175 installation)
• Once installed, INTERCEPTOR™ can be placed into a ‘learning’
mode where it will establish an optical signal baseline for the
specific cable it is installed to protect.
• With the baseline established, INTERCEPTOR™ uses anomaly
detection to continuously monitor the characteristics of the
optical signal for signs of tampering or intrusion
• Once an anamoly is detected, INTERCEPTOR™ can either issue
an alarm report using one of its many reporting features: SNMP,
Text Page, E-Mail, or Dry Contact interface
• If desired, INTERCEPTOR™ can also be configured to disrupt the optical
traffic until the disturbance can be investigated and resolved
INTERCEPTOR™ PDS Applications
When used as an Alarmed Carrier PDS, INTERCEPTOR™ can eliminate the need to encrypt information as well as significantly
reduce the cost & complexity of PDS installation(s). INTERCEPTOR™ also negates the need to conduct routine or daily Periodic Visual
Inspections (PVIs) in order to detect unauthorized or suspect activity. INTERCEPTOR™ provides 24x7 protection and coverage.
CSC Part No.
Berk-Tek Part No.
Description
772874
795552
773221
795553
788497
795554
795557
ICP002-EB3010/25
ICP004-XB3010/X5
PDR006-EB3010/25
PDR012-XB3010/X5
LTR0X024-EB3010/25
LTR12B048-XB3010/X5
BLKP72E74SSP100
795558
BPDP48X44SSD500
2-fiber Horizontal Interconnect with GIGAlite-10, Tight Buffer, Plenum, 50/125μm, 2000/500 EMB
4-fiber Horizontal Interconnect with GIGAlite-10XB Tight Buffer, Plenum, 50/125μm, 4900/500 EMB
6-fiber Premise Distribution with GIGAlite-10, Tight Buffer, Riser, 50/125μm, 2000/500 EMB
12-fiber Premise Distribution with GIGAlite-10XB Tight Buffer, Riser, 50/125μm, 4900/500 EMB
24-fiber Adventum Indoor/Outdoor with GIGAlite-10, Loose Tube-dry, Riser, 50/125μm, 2000/500 EMB
48-fiber Adventum with GIGAlite-10XB, Outdoor, Loose Tube-dry, Riser, 50/125μm, 4900/500 EMB
72-fiber Pre-terminated Adventum trunk cables with ArmorTek with GIGAlite-10, plenum with pulling eye, MTP
female with 39" break-out to LC/PC with duplex clip, 100', 50/125μm, 2000/500 EMB
48-fiber Pre-terminated Premises Distribution, trunk cables, Plenum, with GIGAlite-10XB, LC/PC with
duplex clip and 39" break-out to LC/PC, 500', 50/125μm, 4900/500 EMB
CSC Part No.
Ortronics Part No.
Description
796404*
796405*
780556
795345
711804
706730
795349
795350
751821
795992
OR-T0BPLAKF-JAAxxxM**
OR-T0BPLAMFJAAAxxxM**
OR-M2LCQ24-50E
OR-M2SCD12-50E
OR-205KAS9GB-50T
OR-205KAS9FB-50T
OR-205KAN9GB-MM
OR-205KAN9FB-MM
OR-626DF3BR-GGxxxM**
OR-626DF3BR-FFxxxM**
Momentum® 2, 48-fiber, pre-terminated ribbon cable, MTP to MTP, 50/125μm, 2000/500 EMB
Momentum 2, 72-fiber, pre-terminated ribbon cable, MTP to MTP, 50/125μm, 2000/500 EMB
Momentum 2, 24-fiber 1U cassette, 2 MTP, quad LC
Momentum 2, 12-fiber 1U cassette, 1 MTP, duplex SC
LC multimode, no epoxy/no polish field installable connector, zirconia ferrule, for tight buffer, 50μm
SC multimode, no epoxy/no polish field installable connector, zirconia ferrule, for tight buffer, 50μm
LC multimode, anaerobic termination, zirconia ferrule, for Adventum, multimode
SC multimode, anaerobic termination, zirconia ferrule, for Adventum, multimode
LC-LC 50μm LOMF patch cord
SC-SC 50μm LOMF patch cord
• 20-30% Cost Savings
• Reduce Deployment Time, Minimize Operational Impact
*CSC Part numbers show 50 meter lengths. Contact your local CSC representative for additional lengths.
**Replace “xxx” with length in meters
20
1) SCIF or Secure LAN Deployment: With its continuous monitoring, INTERCEPTOR™
can enable the installation of secure network cabling above the ceiling and out of view
as part of an Alarmed Carrier PDS. Installation is streamlined—requiring minimal
personnel. In contrast, a Hardened Carrier PDS would be constructed of EMT or Rigid
Metallic Conduit which would have to be installed below the ceiling and in plain view so
that the Periodic Visual Inspection could easily detect any attempts at tampering or
intrusion. Installation is much more complex and involved - requiring extensive
personnel to construct the conduit system.
SECURE NETWORK SOLUTIONS CATALOG
• (No Daily Visual Inspection)
• Ability to install fiber optic cables above ceiling/below floor
2) OSP SIPRNET Installation: Typically, unencrypted SIPRNET traffic is required to be
transmitted across fiber optic cables that are encased in concrete as an Hardened
Carrier PDS. With the increased deployment of SIPRNET and JWICS networks, concrete
encasement has become increasingly costly and disruptive to C4ISR facilities, military
installations, and high assurance networks. By using INTERCEPTOR™ as an Alarmed
Carrier PDS, cables can be installed in a standard cable conduit system—eliminating
the need for the concrete encasement and supporting higher bandwidth than if the
traffic was encrypted.
• 40-60% Cost Savings
• Deployment timeframe reduced by up to 50%
FOR MORE INFORMATION, EMAIL [email protected]
• Minimize Worksite Disruption
• Monitor & Protect Network Availability
93
CSC SNS 022107.indd, Spread 21 of 56 - Pages (92, 21) 2/21/07 5:14 PM
www.gocsc.com
TO ORDER, CALL TOLL-FREE 1-888-526-5888
Featured Product
INTERCEPTOR™ Fiber Security System
NetClear® GTS Shielded Cat 6 Solution
(Clarity + LANmark-6 FTP)
INTERCEPTOR™ monitors critical fiber optic networks for
signs of tampering or intrusion and provides unparalleled
protection for secure or high assurance fiber optic networks.
INTERCEPTOR™ exceeds the requirements of an Alarmed
Carrier PDS (per NSTISSSI 7003) and enables significant
cost savings and performance benefits as an alternative to
network encryption and/or hardened carrier PDS for SIPRNET
deployments.
ABSOLUTE PROTECTION
• INTERCEPTOR monitors fibers INSIDE of the cable requiring
protection—and can even monitor the actual fibers carrying
the sensitive traffic
MAXIMUM FLEXIBILITY
• INTERCEPTOR can protect ANY fiber optic network:
lit or dark, single mode or multimode, including
DWDM-based systems
UNCONSTRAINED BANDWIDTH
• INTERCEPTOR is purely a Layer One device that does not touch
or interfere with the secure data or information signal, and supports
network speeds up to and including 10Gbps.
Protected Distribution Systems Options:
Desired Attributes
Alarmed
Carrier
Hardened Carrier
Outside Building
Inside Building
(Concrete
(Rigid Metallic
Encasement)
Conduit)
Continuously
Viewed Carrier
Ability of intruder to gain undetected
access to PDS
Very
Difficult
Somewhat
Difficult
Very
Difficult
Not
Difficult
Reliability of Detection of tampering
or unauthorized access
High
Low
Low
Medium
Physical Deterrence to Tampering
or Intrusion
Medium
Medium
High
Low
Benefits include:
• Increased signal isolation prevents noise from entering system
• Guaranteed 10GBase-T support
• Lower bit errors resulting in increased network performance
Ease of Installation for New
SIPRNET Deployment
Easy
Difficult
Difficult
Somewhat
Difficult
Enables NIPRNET to
SIPRNET Migration
Yes
No
No
Yes
Portability
(Ability to Re-Deploy/Re-use)
High
Low
None
Moderate
Vulnerability to Insider Threat
Low
High
Low
Moderate
Requires visual inspection for
monitoring or detection
No
Yes
No
Yes
Protects the availability of the
network circuit
Yes
No
No
No
SECURE NETWORK SOLUTIONS CATALOG
The NetClear GTS full product offering includes:
• The LANmark-6 FTP Cable
• Clarity® 6 FTP TracJack modular jacks
and outlets
• Clarity 6 FTP Patch panels with
Clarity 6 TracJacks
• Clarity 6 FTP Patch cords
Features
• ETL verified to TIA/EIA-568-B.2 Category 6
• Fully supports IEEE 802.3an draft requirements
• Can be used with RJ-45 Style FTP connectivity
Berk-Tek LANmark-6 FTP 4-pair Category 6 Cable
CSC Part No.
INTERCEPTOR™ was developed to enhance the protection of secure networks and overcome the
inherent vulnerabilities with older Alarmed Carrier technology.
92
With NetClear structured cabling, going to 10 Gb/s
doesn’t mean compromise. The NetClear GTS system
was the first system to comply fully with the IEEE 802.3an
standard’s signal-to-noise ratio and alien crosstalk
specifications, for 10GBASE-T. NetClear GTS is
high performance without limits. The LANmark 6
FTP cables are Cat 6 cables with four twisted pairs
under a common foil shield, which offers performance
advantages over UTP. FTP virtually eliminates
noise from external sources, including alien crosstalk.
Another advantage of the NetClear GTS system is the
size of the horizontal cable itself. Berk-Tek’s LANmark 6
FTP cable is up to 10% smaller in diameter than round
10G UTP cable designs—allowing for more efficient
use of conduit space in SCIF and multiple-classification
networks. NetClear cabling systems offer exceptional
performance at every level for high assurance networks.
The expertise of Berk-Tek in advanced cabling and
Ortronics in designing connecting hardware combine
to create secure network solutions second to none.
With NetClear you get perfectly matched components,
plenty of headroom, and the support of a proven, reliable,
structured cabling system that simply works better.
Non-Plenum
704743
704745
704747
Plenum
704748
598186
704755
Berk-Tek Part No.
Pair/AWG
Jacket Color
Package
10070439
10074211
10074212
4/23
4/23
4/23
Grey
Red
Black
1000' Reel
1000' Reel
1000' Reel
Grey
Red
Black
1000' Reel
1000' Reel
1000' Reel
10057903
10063671
10063672
4/23
4/23
4/23
Ortronics Clarity® 6 FTP Category 6 Components
CSC Part No.
Ortronics Part No. Description
712229
712228
729131
729132
712230
729134
712231
OR-TJS600
OR-PHDTJS24
OR-MCS603-08
OR-MCS605-08
OR-MCS607-08
OR-MCS609-08
OR-MCS615-08
TracJack, Shielded, Cat 6, 180 degree exit, T568A/B
24-Port Panel for Shielded TracJacks
Patch Cord, Cat 6, FTP, Light Grey 3ft.
Patch Cord, Cat 6, FTP, Light Grey, 5ft
Patch Cord, Cat 6, FTP, Light Grey, 7ft
Patch Cord, Cat 6, FTP, Light Grey, 9ft
Patch Cord, Cat 6, FTP, Light Grey, 15ft
FOR MORE INFORMATION, EMAIL [email protected]
21
CSC SNS 022107.indd, Spread 22 of 56 - Pages (22, 91) 2/21/07 5:14 PM
www.gocsc.com
TO ORDER, CALL TOLL-FREE 1-888-526-5888
Featured Product
Fib-or-Cop II Workstation
WallSource Multiple Service Box
Provides expanded multimedia capacity, addressing the
increasing need for the fiber in secure network deployments.
The larger version of the Fib-or-Cop has the ability to mount six
TracJack® or three Series II® modules in the face, with a choice
of fiber (LC, SC, ST or MT-RJ) and/or copper (TracJack) exiting
from the bottom. The wide variety of connectors located in
the bottom positions can be further protected by an optional
snap-on shroud. Key features include high capacity multimedia
design, fully segregated design, innovative internal fiber and copper cable management and multiple label fields.
The Wiremold WallSource multiple service box enables
highly customizable power and communications connections
at a single point in the wall. Faceplates and connectivity inserts
fit virtually any configuration and can be used with
slide-in dividers to provide a mix of communications and
power, or a mixture of secure and non-secure communications
with separate chambers and conduit feeds.
CSC Part No.
Ortronics Part No.
Description
587853
587856
768768
773883
OR-62100041
OR-62100038
OR-62100050
OR-62100048
Base and Cover for TracJacks 5"x8"x1.9"
Bottom Shroud (package of 5)
6-LC duplex (12 fibers) multimode beige adapters
3-SC duplex (6 fibers) multimode beige adapters
Mighty Mo® 6 Advanced Rack System
Specifically designed for higher density cabling applications, such as high assurance networks, data
centers, and COOP sites. Innovative design features patented rear channels to securely route
distribution cables, and front-mounted vertical management cages to protect patch cords, while
allowing easy access for moves, adds and changes. System comprises cable management racks,
vertical cable management as well a horizontal cable management panel .
CSC Part No.
Ortronics Part No.
OptiMo® Rack Mount Fiber Cabinets
Rack mount fiber cabinets are available in patch, splice, or patch/splice versions, in 1U, 2U, 3U
and 4U sizes. Engineered to provide unsurpassed stability and control of backbone cables as they
enter the rear of the fiber cabinet, and feature expanded rear access providing easy installation
and maintenance. Cabinets are significantly deeper than competing solutions, providing more
space and enhanced features for managing optical fibers. In addition, the cabinets are designed
around the award winning 10.5" Mighty Mo 6 vertical channels resulting in improved cable
management and ensuring physical support of today's larger active electronics.
Ortronics Part No.
CSC Part No.
Wiremold No.
Description
798175
798177
798180
798182
798183
798184
WSX42-2
WSX42-4
WSX42-6
WSX07-2A
WSX07-4A
WSX07-6A
WallSource 2-Gang Box, Dividers, Mounting Brackets
WallSource 4-Gang Box, Dividers, Mounting Brackets
WallSource 6-Gang Box, Dividers, Mounting Brackets
Device Mounting Bracket and Trim Ring for 2-Gang WallSource
Device Mounting Bracket and Trim Ring for 4-Gang WallSource
Device Mounting Bracket and Trim Ring for 6-Gang WallSource
The Walker FloorSource Series from Wiremold / Legrand offers
a large selection of raised floor boxes that provide unparalleled functionality,
flexibility, accessibility, and capacity for raised floor applications in SCIF
or secured areas. Wiremold / Legrand provides four unique styles
of boxes plus an innovative round box which allow users a wide variety
of power and communication configurations.
• Locking tabs help secure box to floor panel.
This allows for quick and easy installation
• Units can be prewired for power - Prewired
units reduce labor costs for field installation
• Large multi-compartment boxes - Provides
adequate wiring capacity and easily isolates
power and communication services
• Boxes have several different depth profiles
• Flexible box designs - Allows the end-user to
configure services where they want and need them
• Listed by Underwriters Laboratories Inc.
to U.S. and Canadian safety standards
• Meets NEC Section 300-22(C) - for use
in air handling spaces and raised floor plenums
• Datacom connectivity options - Accepts industry
standard and proprietary devices
Description
759096
OR-FC01U-P
OptiMo FC Rack-Mount Patch Cabinets, 3 panels, 1U
765975
OR-FC02U-P
OptiMo FC Rack-Mount Patch Cabinets, 6 panels, 2U
768265
OR-FC03U-P
OptiMo FC Rack-Mount Patch Cabinets, 9 panels, 3U
768266
OR-FC04U-P
OptiMo FC Rack-Mount Patch Cabinets, 12 panels, 4U
Please contact your local CSC representative for more part numbers and product configuration information.
22
• Available fiber storage spool - Holds 18" [457mm]
of excess cables for future use
• Helps reduce installation time - Compared to installing
multiple boxes for power and communications, install
one WallSource box for quicker installation
• Datacom connectivity options - Accepts industry
standard and proprietary devices from a wide range
of manufacturers to provide a seamless and aesthetically
pleasing interface for voice, data, audio, and video
applications at the point of use
FloorSource™ Raised Floor Boxes
Description
704305
OR-MM6710
MM6 rack with 10.5" channel depth, 7 foot, 45 rack units
704321
OR-MM6VMD710
MM6 vertical manager with fingers and door, 10" x 13" x 7'
704434
OR-MM6HMF2RU
MM6 horizontal cable mgmt panel with fingers, cover, 2 rack units, 3.5" x 19"
Please contact your local CSC representative for more part numbers and product configuration information.
CSC Part No.
• Adjustable mounting brackets - Mount box in 1/2”, 5/8",
1" and 1 1/4" [12.7mm, 15.9mm, 25mm and 32mm]
wall-applications with these brackets
• Dividers - The field installed barriers provide shielding
to allow communications and power in one in-wall box
• Knockouts - Accommodates 1/2", 3/4", 1",
and 1 1/2" trade size openings
• Accommodates multiple services - Housing power
and communications services in one box eliminates
multiple drops and uneven faceplates on the wall
SECURE NETWORK SOLUTIONS CATALOG
FloorSource™ Raised Floor Boxes are available in a wide array of sizes, configurations,
and colors. Please contact [email protected] for assistance in configuring a specific
FloorSource solution to meet your needs.
FOR MORE INFORMATION, EMAIL [email protected]
91
CSC SNS 022107.indd, Spread 23 of 56 - Pages (90, 23) 2/21/07 5:14 PM
www.gocsc.com
W
TO ORDER, CALL TOLL-FREE 1-888-526-5888
Featured Product
hile Wiremold has designed the WSSR for secure applications, they have been manufacturing one of the most
extensive offering of cable pathway and management products for commercial applications since 1900. The next two
pages contains an overview of standard Wiremold products that are applicable for routing secure network cabling
inside of a SCIF or Controlled Access Area (CAA).
Berk-Tek’s Secure PDP Cable reduces the cost and complexity
of multiple-classification network deployment. The cable design
integrates separate classifications under a single plenum-rated
jacket, and can also be hardened with aluminum interlocking
armor. Each classification is isolated in separate sub-unit(s)
—each jacketed by uniquely colored, non-translucent,
plenum-rated coating.
Wiremold Uniduct One-Piece Latching Raceway:
The Uniduct Non-metallic Latching Raceway System is a one piece single
channel design, ideally suited to route and protect fiber optic, UTP, and and
other low-voltage (50V or less) cables in an easy to install and aesthetically
pleasing application. The 2800 and 2900 Fiber Optic (FO) fittings maintain
a 1 1/4” [32mm] bend radius and are the perfect solution for even the
most demanding cabling applications.
Features & Benefits
• One-piece design. Easy to handle and install.
• Easy open and snap-close latch. Installations, moves,
and changes are quick and easy.
• Durable, flexible hinge construction. Allows for repeated
openings and closings while maintaining product integrity
and aesthetics.
• Adhesive backing. Makes installation quick and easy.
• Fiber compliant fittings. Maintain 1 1/4" [32mm] bend
radius for UTP and fiber optic cable.
• Available in three low profiles, in both 6' & 8'
[1.8m & 2.4m] lengths. Allows for flexibility for cabling
requirements. Six- and eight-foot [1.83m and 2.4m]
lengths minimize cutting, cover clips, and scraps.
Secure Premise Distribution Optical
Fiber Plenum-rated Cable
By combining multiple classifications under a single jacket, the Secure PDP cable can reduce labor and installation costs
by as much as 50% by eliminating the need to install multiple cables to a zone box or workstation outlet.
• Made of durable impact-resistant PVC. Easy to cut and trim.
Full selection of fittings. Surface mount boxes and multiport
workstation outlets makes installations quick and easy.
• Available in three standard colors. Standard colors are ivory,
white, and fog white. Consult factory for custom colors.
Paintable using latex paint.
• Datacom connectivity options. Accepts industry standard
and proprietary devices from a wide range of manufacturers
to provide a seamless and aesthetically pleasing interface
for voice, data, audio, and video applications at the point of use.
CSC Part No.
Berk-Tek Part No.
Description
795604
BPDP48X44SSD500
48-Fiber Secure premise distribution pre-terminated trunk cable, plenum, with
GIGAlite-10XB multimode fiber, LC/PC with duplex clips and 39" breakout to LC/PC,
500', 50/125μm, 4900/500 RMB
ArmorTek™ Interlocking Armor Optical Cable
Products consist of fiber optic cables (tight buffered or loose tube cables)
encased with aluminum or steel spirally wrapped armor in an interlocking
configuration. ArmorTek can be used in all environments: indoor/outdoor,
backbone, between closets and fiber to the desk. Cost-effective solution for
applications where extra physical security is a concern.
CSC Part No.
Cat. No.
2700
2800
2900
A
B
3/8" [9.5mm]
1/2" [12.7mm]
3/4" [19.1mm]
3/4" [19.1mm]
1" [25mm]
1 1/2" [38mm]
Uniduct 2700, 2800, 2900 Series Latching Raceway Wire Fill Capacity Chart
CABLE
CATEGORY
TYPE
DESIGNATION
UNSHIELDED 4-pair, 24 AWG Cat 3
TWISTED PAIR 4-pair, 24 AWG Cat 5e
4-pair, 24 AWG Cat 6
4-pair, 24 AWG Cat 6a*
25-pair, 24 AWG
COAXIAL
RG6/U
ZipCord
FIBER
Round 4 Strand Fiber
Round 6 Strand Fiber
O.D.
Inches
0.190
0.210
0.250
0.354
0.410
0.270
0.118 X 0.236
0.187
0.256
[mm]
[4.8]
[5.3]
[6.3]
[8.9]
[10.4]
[6.9]
[3 x 6]
[4.8]
[6.5]
2700 RACEWAY
40% FILL
2
1
1
0
0
1
2
2
1
2800 RACEWAY
40% FILL
4
3
2
1
1
2
4
4
2
2900 RACEWAY
40% FILL
12
10
7
3
2
6
12
12
6
NOTE: Wire capacity is reduced to allow for proper conductor bend radius and maximum permissible heat rise.
*Category 6 augmented (6a) cable for 10 gigabit ethernet - max allowed cable diameter per addenda No. 11 ANSI TIA/EIA 568-B.2.
90
CSC Part No.
Wiremold No.
Description
710759
710534
497148
2700
2800
2900
Uniduct 2700, 1 piece, 0.75”W x 0.38”H x 72”L, Non-Metallic, White
Uniduct 2800, 1 piece,1”W x 0.5”H x 72”L, Non-Metallic, White
Uniduct 2900, 1 piece,1.5”W x 0.75”H x 72”L, Non-Metallic, White
SECURE NETWORK SOLUTIONS CATALOG
Berk-Tek Part No.
Description
795605
PDPK006-EB3010/25
Premise distribution plenum, 6 fibers, aluminum interlock armor, GIGAlite-10 50μm optical fiber
795606
LTPK012-EB3010/25
Adventum Indoor/Outdoor Plenum, 12 fibers, aluminum interlock armor, GIGAlite-10 50μm optical fiber
795607
PDPK12B048-EB3010/25
Premise Distribution Plenum, 48 fibers, aluminum interlock armor, GIGAlite-10 50μm optical fiber
Additional cable and fiber configurations available. Ask your local CSC representative for details.
Adventum™ Loose Tube Indoor/Outdoor Cable
Berk-Tek’s Adventum™ cable design bypasses the traditional transition
points required when bringing OSP cables indoors—eliminating the need for
redundant red/black equipment areas for secure connectivity in remote
buildings. This cable utilizes Berk-Tek’s unique DryGel™ water blocking
system, which replaces the messy gel fillers in the fiber tubes. Adventum™
cable is available in both riser- and plenum-rated jackets.
CSC Part No.
Berk-Tek Part No.
Description
795608
LTPOXO12-EB3010/25
795610
LTP12B048-EB3010/25
Plenum rated loose tube, 12 fibers, Dry Water blocked, indoor/outdoor GIGAlite-10,
50μm optical fiber (**standard loose tube configuration for 12F, 24F)
Plenum rated loose tube 48 fibers, Dry Water blocked, indoor/outdoor GIGAlite-10
50μm optical fiber tube
Additional cable and fiber configurations available. Ask your local CSC representative for details.
FOR MORE INFORMATION, EMAIL [email protected]
23
CSC SNS 022107.indd, Spread 24 of 56 - Pages (24, 89) 2/21/07 5:14 PM
www.gocsc.com
LANmark™ UTP Cables
TO ORDER, CALL TOLL-FREE 1-888-526-5888
Wiremold Secure Solutions Enclosures
LANmark-10G
Over the last few years, Wiremold has been manufacturing
secure enclosures for several OEM customers and has just began
to offer their products directly to customers. Wiremold Secure
Enclosures are manufactured from 16AWG Steel with welded
seams, no knock-outs, and no external hinges.
UTP cable that is capable of meeting the demanding requirements of 10 Gig
Ethernet (10GBASE-T) by reducing alien crosstalk, the dominant noise source
that affects 10GBASE-T performance. LANmark-10G meets the standard
requirements for Augmented Category 6 as defined in TIA/EIA-568-B.2-10.
CSC Part No.
Berk-Tek Part No.
Description
754963
758004
10095774
10097591
Blue 1000 Ft. reel, plenum rated
Blue 1000 Ft. reel, riser rated
Wiremold Secure Solutions has a wide range
of Secure Enclosures pre-designed to include:
LANmark™-1000
• Single and Multiple Workstation Lock Boxes
• Secure Access Points & Pull Boxes
• Secure Zone Box for Active Equipment (i.e. holds Workground switch + Interconnect hardware)
• Secure Equipment Enclsoure (i.e. dual-sided enclosure for High/Low separation)
Cat 6 verified UTP cable ideal for Gigabit Ethernet applications. LANmark-1000
is the first cable in the industry to set requirements for cable balance, which is
the key performance parameter affecting cable emissions and helps protect
the network from the effects of outside noise sources.
CSC Part No.
Berk-Tek Part No.
Description
130232
496518
10032094
10032455
Blue 1000 ft. Tek Pak Box, plenum rated
Blue 1000 ft. Tek Pak Box, riser rated
Other colors, lengths and packaging are available, contact your local CSC representative for more information.
Because of their agile manufacturing capability, Wiremold offers
several standard-size Secure Enclosures, but also has the capability to
manufacture an enclosure to meet any requirements. Wiremold can often
modify an existing design to meet new size requirements and provide
finished product within a 3-4 week time period.
LANmark-350™
LANmark-350 Premium Category 5e UTP cables are tested to 400 MHz with
guaranteed performance designed to exceed the TIA/EIA-568-B.2 Category 5e
and ISO/IEC 11801 Class D requirements. LANmark-350 is ideal for supporting
100 Mb/s Ethernet, today’s most common networking protocol.
CSC Part No.
Berk-Tek Part No.
Description
317433
320019
10032065
10032426
Blue 1000 ft. Tek Pak Box, plenum rated
Blue 1000 ft. Tek Pak Box, riser rated
Other colors, lengths and packaging are available, contact your local CSC representative for more information.
Clarity® Patch Panels (10G, Cat 6 and Cat 5e)
Patch panels that excel in performance while supporting ease of use and preferred
installation practices. Benefits include ensured component performance and a more
transparent mated union, angled panels direct cords more easily to vertical management,
support T568A and T568B installs, handle both larger Cat6 and Cat5e conductors, support
good cabling practice and maximize rack utilization.
Clarity 10G Connectivity
Clarity 10G connectivity represents another major technology advancement from Ortronics/Legrand by fully supporting the internal
and alien performance requirements of 10 Gigabit Ethernet. Clarity 10G components are ETL channel tested to TIA T568B.2-10
(Augmented Cat 6) and characterized out to 500 MHz and meet TIA 568B.2-10 (draft 5 Augmented Cat6) component specifications.
CSC Part No.
Ortronics Part No.
Description
754965
757930**
782718
704095
OR-TJ610
ORMC61xx-09*
OR-PHD610U48
OR-PHA66U48
TracJack® Clarity 10G (Standard color is fog white)
Modular Cord, white Clarity 10G
Clarity 10G, 48 port flat, high density, 6 port modules, T568 A/B 3.5" x 19"
Clarity 6, 48 port angled high density, T568A/B, 3.5" x 19"
CSC Part No.
Wiremold No.
Size
795839
WSSE-8-13-2
8W x 13H x 2D
Description
SECURE WORK STATION ACCESS ENCLOSURE - solid welded external seams
c/w removable hinged door, padlock hasp & painted textured Ivory
795843
WSSE-29-42-10
29W x 42H x 10D
SECURE ZONE BOX FOR ACTIVE EQUIPMENT - solid welded external seams
c/w internal & external ventilation louver panels, hinged door with internal sub
panel, available with sound dampening insulation, 2 shelf racks for adjustable
shelving, 3 point L-Handle with built in padlock hasp & painted textured Ivory
796468
WSSE-36-30-9
36W x 30H x 9D
SECURE ENCLOSURE - solid welded external seams c/w double removable
hinged doors, 3 point L-Handle with built in padlock hasp & painted textured
Ivory. Enclosure can be made available with internal divider for HIGH/LOW
Security, both sides would have separate locking mechanisms - shelf racks for
adjustable shelving or plywood sub panels.
796466
WSSE-60-48-16
60W x 48H x 16D
SECURE ENCLOSURE - solid welded external seams c/w exernal ventilation
louvers & internal vent panels, hinged doors with internal sub panels, c/w 3
point L-Handles with built in padlock hasp & painted textured Ivory. Enclosure
can be made available with internal divider for HIGH/LOW Security, both sides
would have separate locking mechanisms - shelf racks for adjustable shelving
or plywood sub panels.
Note: Product is available in over 100 different colors & finishes. Contact your local CSC representative for more information.
* Replace xx with length in ft (3, 5, 7, 9, 15, 25)
** CSC Part numbers shown for 3ft length. Please contact for additional lengths.
Please contact your local CSC representative for additional color options of jacks and cords, as well as a wide variety of Clarity® Patch Panels.
24
SECURE NETWORK SOLUTIONS CATALOG
FOR MORE INFORMATION, EMAIL [email protected]
89
CSC SNS 022107.indd, Spread 25 of 56 - Pages (88, 25) 2/21/07 5:14 PM
www.gocsc.com
Wiremold Secure Solutions 2x2 Channel
OptiMo® OFP Fiber Adapter Panels
OptiMo OFP series 6-pack adapter panels are used with our popular FC series
modular fiber cabinets, offering great flexibility in structured cabling design for SCIF
and high assurance networks. Available with LC, SC, ST, FC and MT-RJ adapters
for separation of classifications and feature options ideal for both singlemode and
multimode applications.
For many Protective Distribution System (PDS) deployments,
both aesthetics AND re-enterability or scalability is a key attribute.
However, for limited deployments or low-density areas where
re-enterability is not as critical, Wiremold Secure Solutions provides
the 2x2 channel solution—an epoxy-based, conduit solution that is
aesthetically-pleasing and more economical than a re-enterable raceway.
Wiremold Secure 2x2 Channel Fittings
Similar to the design and installation of standard EMT or rigid metallic conduit, the 2x2 Channel utilizes standard 45°, 90°,
and ‘T’ connectors to facilitate easy installation and routing in virtually and building or deployment scenario. The fittings
are attached to the 2x2 Channel by utilizing a high-strength epoxy that provides structural integrity and a means to detect
tampering and unauthorized access of the PDS system. The conduit system makes use of secure access points and pull
boxes—much like EMT—to facilitate cable installation and moves, adds, and changes.
In addition to being used as a complete PDS solution in and of itself, the 2x2 Secure Channel is also used to facilitate
workstation drop-offs from the Wiremold Secure Solutions Raceway (WSSR). Using the Secure Drop-Out Fitting, the 2x2
Channel can be routed from the WSSR to one or multiple workstations or access points. The Drop-Out Fitting also provides
for multiple levels of security by incorporating enhanced protection against overt and covert attacks—and enables the use
of DoD Security Seals if necessary.
CSC Part No.
Wiremold No.
Wiremold Secure™ Channel
796451
WSSR-2X2RW
2” Secure Channel (10’ sections)
CSC Part No.
Wiremold No.
Wiremold Secure™ Channel Fittings
796465
796462
796463
796452
796457
796453
796464
796281
WSSR-2X2TEE
WSSR-2X2E90
WSSR-2X2MB
WSSR-2X2C
WSSR-2X2EC
WSSR-2X2CA
WSSR-RED
WSSR-2X2DO
2” Secure Channel Tee fitting
2” Secure Channel 90 degree elbow fitting
2” Secure Channel mounting bracket
2” Secure Channel Coupling
2” Secure Channel End Cap
2” Secure Channel Conduit adaptor
Secure Raceway (1.75 x 4.75") to Secure Channel (2 x 2") Interface
WSSR Drop-Out Fitting
Wall Attachment Hardware
CSC Part No.
Description
Gypsum/Drywall
801972
Kit: 1/4" Bolts, 3" length and SnapToggle® Toggle Bolt Anchor, (3/8 to 2 1/2" wall thickness), 10 pk
Concrete/Solid Wall
801974
Alligator® Solid-Wall Anchor, 100 pk
801976
#12 x 3 1/4" Sheet Metal Screws, 100 pk
CSC Part No.
—
—
Description
1 1/4" Nylon Spacer for Wall Standoff, package of 10*
Touch Paint (Aerosol can) 1 can*
Please contact your local CSC representative for more information.
88
TO ORDER, CALL TOLL-FREE 1-888-526-5888
SECURE NETWORK SOLUTIONS CATALOG
CSC Part No.
Ortronics Part No.
Description
774339
764464
764800
765977
766287
OR-OFP-LCD12MB
OR-OFP-LCQ24MB
OR-OFP-SCD06MB
OR-OFP-SCD12MB
OR-OFP-SCD12AC
OptiMo Adapter Panels, 12-fiber, duplex LC, multimode
OptiMo Adapter Panels, 24-fiber, quad LC, multimode
OptiMo Adapter Panels, 6-fiber, duplex SC, multimode
OptiMo Adapter Panels, 12-fiber, duplex SC, multimode
OptiMo Adapter Panels, 12-fiber, duplex SC, singlemode
Mighty Mo® Overhead Cable Pathway Bracket
Mighty Mo overhead cable pathway brackets provide cable management
and an innovative mounting method for 19" rack mount copper and fiber
panels and cabinets. The pathway brackets allow horizontal connectivity
to be supported by the overhead pathway freeing up valuable rack or
cabinet space below. The Mighty Mo overhead cable brackets come with
everything needed to mount the bracket to the side of Homaco® runway
with 1-1/2" high stringers or any Cablofil® cable tray 2" or deeper.
Two Cablofil C 50 mounting brackets are included with the bracket.
The overhead cable brackets can be combined with any of the NetClear®
cabling systems to provide a complete secure network cabling solution.
CSC Part No.
Ortronics Part No.
Description
Capacity
781115
783134
OR-60401001
OR-60401015
2 rack units, 23.6" W x 7.4" H x 9" D
5 rack units, 23.6" W x 12.6" H x 9" D
90 lbs.
90 lbs.
Refer to your CSC Catalog for more information on Berk-Tek®
and Ortronics® products and solutions.
Ortronics
110 Frames 3-61
110 Termination System 1-114-115
66 Block Frames 3-62
Cable Management 3-66-69
Fiber Distribution Panels/Enclosures 2-116-119
Fiber Optic Patch Cords and Pittails 2-120-121
Jak-Paks 1-116
Ladder Rack and Accessories 3-93-94
Modular Faceplates, Jacks and Inserts 1-106-109
Modular Patch Cords 1-113
Momentum Fiber Pre-Terminated System 2-184
Multimedia Outlets 2-122-123
Patch Panels 1-110-112
PoE Injectors and Panels 10-34
Relay Racks and Accessories 3-49-64
Residential Solutions 11-10-15
Wall Mount Cabinets 3-65
Wireless Access Points 9-3
FOR MORE INFORMATION, EMAIL [email protected]
Berk-Tek
Category UTP Cables 1-9-16
Coaxial Cables 7-9
Fiber Optic Cables 2-4-10
Limited Combustible UTP 1-10-13, 16
Outside Plant Cable 6-1
Pre-Terminated Multi-Fiber Cables 2-179
25
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
