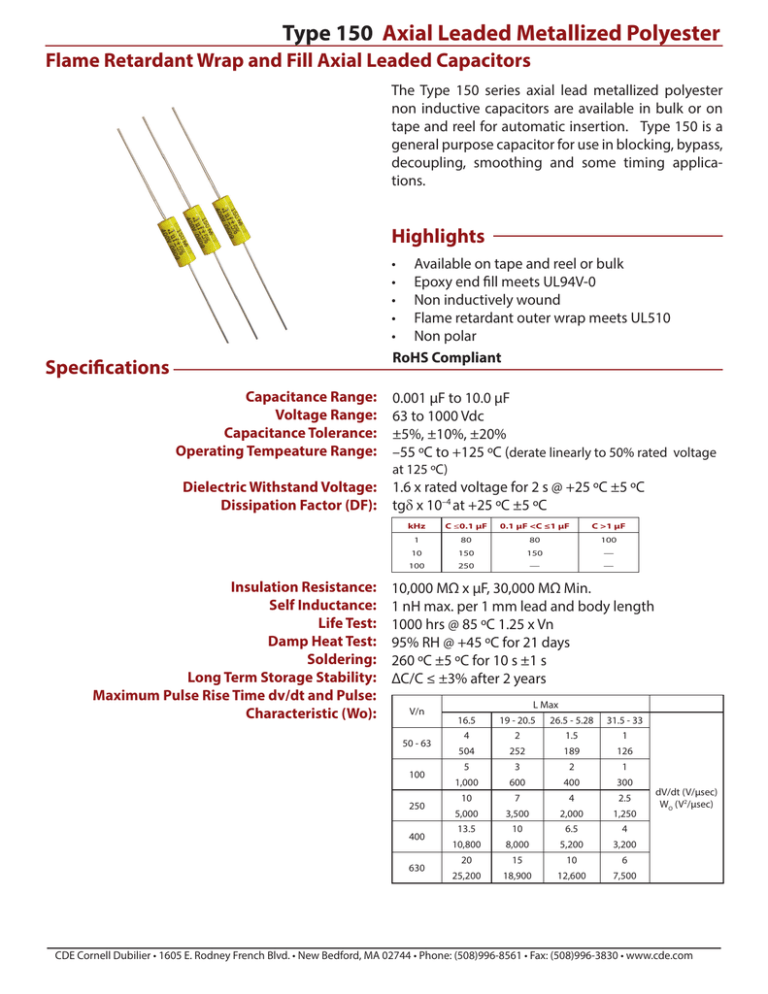

Type 150 Axial Leaded Metallized Polyester

Type 150 Axial Leaded Metallized Polyester
Type 150 Axial Leaded Metallized Polyester
Flame Retardant Wrap and Fill Axial Leaded Capacitors
The Type 150 series axial lead metallized polyester
non inductive capacitors are available in bulk or on
tape and reel for automatic insertion. Type 150 is a
general purpose capacitor for use in blocking, bypass,
decoupling, smoothing and some timing applications.
Highlights
• Available on tape and reel or bulk
• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar
RoHS Compliant
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Tempeature Range:
Dielectric Withstand Voltage:
Dissipation Factor (DF):
Insulation Resistance:
Self Inductance:
Life Test:
Damp Heat Test:
Soldering:
Long Term Storage Stability:
Maximum Pulse Rise Time dv/dt and Pulse:
Characteristic (Wo):
0.001 µF to 10.0 µF
63 to 1000 Vdc
±5%, ±10%, ±20%
–55 ºC to +125 ºC (derate linearly to 50% rated voltage
at 125 ºC)
1.6 x rated voltage for 2 s @ +25 ºC ±5 ºC
tgd x 10–4 at +25 ºC ±5 ºC
kHz
C ≤0.1 µF
0.1 µF <C ≤1 µF
C >1 µF
1
80
80
100
10
150
150
—
100
250
—
—
10,000 MΩ x µF, 30,000 MΩ Min.
1 nH max. per 1 mm lead and body length
1000 hrs @ 85 ºC 1.25 x Vn
95% RH @ +45 ºC for 21 days
260 ºC ±5 ºC for 10 s ±1 s
ΔC/C ≤ ±3% after 2 years
V/n
50 - 63
100
250
400
630
L Max
16.5
19 - 20.5
26.5 - 5.28
4
2
1.5
31.5 - 33
1
504
252
189
126
5
3
2
1
1,000
600
400
300
10
7
4
2.5
5,000
3,500
2,000
1,250
13.5
10
6.5
4
10,800
8,000
5,200
3,200
20
15
10
6
25,200
18,900
12,600
7,500
dV/dt (V/µsec)
WO (V2/µsec)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 150 Axial Leaded Metallized Polyester
Outline Drawing
Tape and Reel Specifications
L Max
Inches
Distance Between
Lead Spacing
(Body Lengty)
mm
Inches
mm
Reel Flanges
Inches
mm
Class
≤.433
≤11
2.06
52.4
3
75
1
.551 - .808
14 - 20.5
2.5
63.6
3.4
86
2
≥1.03
≥26
2.87
73
3.7
95
3
Ød ±.003
±0.076 mm
Tinned Copper Leads
^Add class number (1, 2, or 3) to catalog number to indicate tape and reel
Diameter
Quantity per Reel
Inches
mm
0.197
5
3,000
.236 thru .256
6.0 trhu 6.5
1,200
0.276
7
1,100
.315 thru .346
8 thru 8.5
800
.354 thru .413
9 thru 10.5
500
.433 thru .512
11 thru 13
300
.551 thru .571
14 thru 14.5
200
>.571
>14.5
Not available
1.58” ±0.2
(40 ±5 mm)
1.58” ±0.2
(40 ±5 mm)
L Max.
D
Max.
Ratings
Catalog
Cap
Part Number
(µF)
Inches Max
D
L
Millimeters Max
Ød
D
L
Ød
63 Vdc
150154*63AA^
0.150
0.197
0.433
0.024
5.0
11.0
0.6
Catalog
Cap
Inches Max
Millimeters Max
Part Number
(µF)
D
L
Ød
D
L
Ød
150274*100CB^
0.270
0.256
0.650
0.024
6.5
16.5
0.6
150334*100EB^
0.330
0.315
0.650
0.031
8.0
16.5
0.8
150154*63BB^
0.150
0.236
0.650
0.024
6.0
16.5
0.6
150394*100EB^
0.390
0.315
0.650
0.031
8.0
16.5
0.8
150184*63AA^
0.180
0.197
0.433
0.024
5.0
11.0
0.6
150474*100DC^
0.470
0.276
0.807
0.031
7.0
20.5
0.8
150184*63BB^
0.180
0.236
0.650
0.024
6.0
16.5
0.6
150564*100EC^
0.560
0.315
0.807
0.031
8.0
20.5
0.8
150224*63BB^
0.220
0.236
0.650
0.024
6.0
16.5
0.6
150684*100FC^
0.680
0.335
0.807
0.031
8.5
20.5
0.8
150274*63BB^
0.270
0.236
0.650
0.024
6.0
16.5
0.6
150824*100HC^
0.820
0.374
0.807
0.031
9.5
20.5
0.8
150334*63BB^
0.330
0.236
0.650
0.024
6.0
16.5
0.6
150105*100IC^
1.000
0.394
0.807
0.031
10.0
20.5
0.8
100 Vdc
150394*63CB^
0.390
0.256
0.650
0.024
6.5
16.5
0.6
150474*63DB^
0.470
0.276
0.650
0.024
7.0
16.5
0.6
150155*100IE^
1.500
0.394
1.102
0.031
10.0
28.0
0.8
150564*63DB^
0.560
0.276
0.650
0.024
7.0
16.5
0.6
150225*100LE^
2.200
0.453
1.102
0.031
11.5
28.0
0.8
150684*63DC^
0.680
0.276
0.807
0.024
7.0
20.5
0.6
150335*100PE^
3.300
0.531
1.102
0.031
13.5
28.0
0.8
150824*63EC^
0.820
0.315
0.807
0.031
8.0
20.5
0.8
150475*100RF^
4.700
0.591
1.299
0.031
15.0
33.0
0.8
150105*63EC^
1.000
0.315
0.807
0.031
8.0
20.5
0.8
150685*100WF^
6.800
0.689
1.299
0.031
17.5
33.0
0.8
150106*100YF^
10.000
0.807
1.299
0.031
20.5
33.0
0.8
0.024
5.0
11.0
0.6
150155*63HC^
1.500
0.374
0.807
0.031
9.5
20.5
0.8
150225*63HE^
2.200
0.374
1.102
0.031
9.5
28.0
0.8
150335*63KE^
3.300
0.433
1.102
0.031
11.0
28.0
0.8
250 Vdc
150123*250AA^
0.012
0.197
0.433
150475*63ME^
4.700
0.492
1.102
0.031
12.5
28.0
0.8
150123*250BB^
0.012
0.236
0.650
0.024
6.0
16.5
0.6
150685*63QF^
6.800
0.571
1.299
0.031
14.5
33.0
0.8
150153*250AA^
0.015
0.197
0.433
0.024
5.0
11.0
0.6
150106*63TF^
10.000
0.610
1.299
0.031
15.5
33.0
0.8
150153*250BB^
0.015
0.236
0.650
0.024
6.0
16.5
0.6
150183*250AA^
0.018
0.197
0.433
0.024
5.0
11.0
0.6
150683*100AA^
0.068
0.197
0.433
0.024
5.0
11.0
0.6
150183*250BB^
0.018
0.236
0.650
0.024
6.0
16.5
0.6
150683*100BB^
0.068
0.236
0.650
0.024
6.0
16.5
0.6
150223*250AA^
0.022
0.197
0.433
0.024
5.0
11.0
0.6
100 Vdc
150823*100AA^
0.082
0.197
0.433
0.024
5.0
11.0
0.6
150223*250BB^
0.022
0.236
0.650
0.024
6.0
16.5
0.6
150823*100BB^
0.082
0.236
0.650
0.024
6.0
16.5
0.6
150273*250AA^
0.027
0.197
0.433
0.024
5.0
11.0
0.6
150104*100AA^
0.100
0.197
0.433
0.024
5.0
11.0
0.6
150273*250BB^
0.027
0.236
0.650
0.024
6.0
16.5
0.6
150104*100BB^
0.100
0.236
0.650
0.024
6.0
16.5
0.6
* Indicates capacitance tolerance
150124*100BB^
0.120
0.236
0.650
0.024
6.0
16.5
0.6
J = ±5%, K = ±10%, M = ±20%
150154*100BB^
0.150
0.236
0.650
0.024
6.0
16.5
0.6
See tape & reel specifications to determine which class applies.
150184*100CB^
0.180
0.256
0.650
0.024
6.5
16.5
0.6
Part Number highlighted in yellow, available until stock is depleted.
150224*100CB^
0.220
0.256
0.650
0.024
6.5
16.5
0.6
Replacement part number with “BB” case size.
^If ordering tape and reel,
insert 1, 2, or 3.
Part Number highlighted in green - OBSOLETE
Part number highlighted in light yellow, available until stock is depleted, no replacement
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 150 Axial Leaded Metallized Polyester
Catalog
Cap
Part Number
(µF)
D
Inches Max
150333*250AA^
0.0330
150333*250BB^
Millimeters Max
Catalog
Cap
Part Number
(µF)
D
L
Ød
D
L
Ød
150683*400DC^
0.0680
0.276
0.807
0.024
7.0
20.5
0.6
150823*400EC^
0.0820
0.315
0.807
0.031
8.0
20.5
0.8
150104*400EC^
0.1000
0.315
0.807
0.031
8.0
20.5
0.8
0.6
150124*400EC^
0.1200
0.315
0.807
0.031
8.0
20.5
0.8
0.6
150154*400GC^
0.1500
0.354
0.807
0.031
9.0
20.5
0.8
11.0
0.6
150184*400EE^
0.1800
0.315
1.102
0.031
8.0
28.0
0.8
L
Ød
D
L
Ød
0.197
0.433
0.024
5.0
11.0
0.6
0.0330
0.236
0.650
0.024
6.0
16.5
0.6
150393*250AA^
0.0390
0.197
0.433
0.024
5.0
11.0
150393*250BB^
0.0390
0.236
0.650
0.024
6.0
16.5
150473*250AA^
0.0470
0.197
0.433
0.024
5.0
250 Vdc
Inches Max
Millimeters Max
150473*250BB^
0.0470
0.236
0.650
0.024
6.0
16.5
0.6
150224*400FE^
0.2200
0.335
1.102
0.031
8.5
28.0
0.8
150563*250AA^
0.0560
0.197
0.433
0.024
5.0
11.0
0.6
150274*400GE^
0.2700
0.354
1.102
0.031
9.0
28.0
0.8
150563*250BB^
0.0560
0.236
0.650
0.024
6.0
16.5
0.6
150334*400IE^
0.3300
0.394
1.102
0.031
10.0
28.0
0.8
150683*250BB^
0.0680
0.236
0.650
0.024
6.0
16.5
0.6
150394*400JE^
0.3900
0.413
1.102
0.031
10.5
28.0
0.8
150823*250BB^
0.0820
0.236
0.650
0.024
6.0
16.5
0.6
150474*400LF^
0.4700
0.453
1.299
0.031
11.5
33.0
0.8
150104*250CB^
0.1000
0.256
0.650
0.024
6.5
16.5
0.6
150564*400LF^
0.5600
0.453
1.299
0.031
11.5
33.0
0.8
150124*250DB^
0.1200
0.276
0.650
0.024
7.0
16.5
0.6
150684*400MF^
0.6800
0.492
1.299
0.031
12.5
33.0
0.8
150154*250EB^
0.1500
0.315
0.650
0.031
8.0
16.5
0.8
150824*400PF^
0.8200
0.531
1.299
0.031
13.5
33.0
0.8
150184*250EB^
0.1800
0.315
0.650
0.031
8.0
16.5
0.8
150105*400QF^
1.0000
0.571
1.299
0.031
14.5
33.0
0.8
150224*250FB^
0.2200
0.335
0.650
0.031
8.5
16.5
0.8
150155*400WF^
1.5000
0.689
1.299
0.031
17.5
33.0
0.8
150274*250EC^
0.2700
0.315
0.807
0.031
8.0
20.5
0.8
150225*400YF^
2.2000
0.807
1.299
0.031
20.5
33.0
0.8
150334*250FC^
0.3300
0.335
0.807
0.031
8.5
20.5
0.8
0.6
630 Vdc
150394*250GC^
0.3900
0.354
0.807
0.031
9.0
20.5
0.8
150102*630AA^
0.0010
0.197
0.433
0.024
5.0
11.0
150474*250HC^
0.4700
0.374
0.807
0.031
9.5
20.5
0.8
150102*630BB^
0.0010
0.236
0.650
0.024
6.0
16.5
0.6
150564*250IC^
0.5600
0.394
0.807
0.031
10.0
20.5
0.8
150122*630AA^
0.0012
0.197
0.433
0.024
5.0
11.0
0.6
150684*250GE^
0.6800
0.354
1.102
0.031
9.0
28.0
0.8
150122*630BB^
0.0012
0.236
0.650
0.024
6.0
16.5
0.6
150824*250HE^
0.8200
0.374
1.102
0.031
9.5
28.0
0.8
150152*630AA^
0.0015
0.197
0.433
0.024
5.5
11.0
0.6
150105*250JE^
1.0000
0.413
1.102
0.031
10.5
28.0
0.8
150152*630BB^
0.0015
0.236
0.650
0.024
6.0
16.5
0.6
150155*250ME^
1.5000
0.492
1.102
0.031
12.5
28.0
0.8
150182*630AA^
0.0018
0.197
0.433
0.024
5.5
11.0
0.6
150225*250PF^
2.2000
0.531
1.299
0.031
13.5
33.0
0.8
150182*630BB^
0.0018
0.236
0.650
0.024
6.0
16.5
0.6
150335*250TF^
3.3000
0.610
1.299
0.031
15.5
33.0
0.8
150222*630AA^
0.0022
0.197
0.433
0.024
5.5
11.0
0.6
150475*250XF^
4.7000
0.728
1.299
0.031
18.5
33.0
0.8
150222*630BB^
0.0022
0.236
0.650
0.024
6.0
16.5
0.6
150685*250ZF^
6.8000
0.845
1.299
0.031
21.5
33.0
0.8
150272*630AA^
0.0027
0.197
0.433
0.024
5.5
11.0
0.6
150272*630BB^
0.0027
0.236
0.650
0.024
6.0
16.5
0.6
400 Vdc
150822*400AA^
0.0082
0.197
0.433
0.024
5.0
11.0
0.6
150332*630AA^
0.0033
0.197
0.433
0.024
5.5
11.0
0.6
150822*400BB^
0.0082
0.236
0.650
0.024
6.0
16.5
0.6
150332*630BB^
0.0033
0.236
0.650
0.024
6.0
16.5
0.6
150103*400AA^
0.0100
0.197
0.433
0.024
5.0
11.0
0.6
150392*630AA^
0.0039
0.197
0.433
0.024
5.5
11.0
0.6
150103*400BB^
0.0100
0.236
0.650
0.024
6.0
16.5
0.6
150392*630BB^
0.0039
0.236
0.650
0.024
6.0
16.5
0.6
150123*400AA^
0.0120
0.197
0.433
0.024
5.0
11.0
0.6
150472*630AA^
0.0047
0.197
0.433
0.024
5.5
11.0
0.6
150123*400BB^
0.0120
0.236
0.650
0.024
6.0
16.5
0.6
150472*630BB^
0.0047
0.236
0.650
0.024
6.0
16.5
0.6
150153*400BB^
0.0150
0.236
0.650
0.024
6.0
16.5
0.6
150562*630AA^
0.0056
0.197
0.433
0.024
5.5
11.0
0.6
150183*400BB^
0.0180
0.236
0.650
0.024
6.0
16.5
0.6
150562*630BB^
0.0056
0.236
0.650
0.024
6.0
16.5
0.6
150223*400BB^
0.0220
0.236
0.650
0.024
6.0
16.5
0.6
* Indicates capacitance tolerance
150273*400BB^
0.0270
0.236
0.650
0.024
6.0
16.5
0.6
J = ±5%, K = ±10%, M = ±20%
150333*400BB^
0.0330
0.236
0.650
0.024
6.0
16.5
0.6
See tape & reel specifications to determine which class applies.
150393*400CB^
0.0390
0.256
0.650
0.024
6.5
16.5
0.6
Part Number highlighted in yellow, available until stock is depleted.
150473*400DB^
0.0470
0.276
0.650
0.024
7.0
16.5
0.6
Replacement part number with “BB” case size.
150563*400EB^
0.0560
0.315
0.650
0.024
8.0
16.5
0.6
Part Number highlighted in green - OBSOLETE
^If ordering tape and reel,
insert 1, 2, or 3.
Part number highlighted in light yellow, available until stock is depleted, no replacement
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 150 Axial Leaded Metallized Polyester
Catalog
Cap
Part Number
(µF)
Inches Max
D
L
Millimeters Max
Ød
D
L
Ød
Catalog
Cap
Part Number
(µF)
630 Vdc
Inches Max
D
Millimeters Max
L
Ød
D
L
Ød
1000 Vdc
150682*630AA^
0.0068
0.197
0.433
0.024
5.5
11.0
0.6
150102*1000CB^
0.0010
0.256
0.650
0.024
6.5
16.5
0.6
150682*630BB^
0.0068
0.236
0.650
0.024
6.0
16.5
0.6
150152*1000CB^
0.0015
0.256
0.650
0.024
6.5
16.5
0.6
150822*630BB^
0.0082
0.236
0.650
0.024
6.0
16.5
0.6
150222*1000CB^
0.0022
0.256
0.650
0.024
6.5
16.5
0.6
150103*630BB^
0.0100
0.236
0.650
0.024
6.0
16.5
0.6
150332*1000CB^
0.0033
0.256
0.650
0.024
6.5
16.5
0.6
150123*630BB^
0.0120
0.236
0.650
0.024
6.0
16.5
0.6
150472*1000DB^
0.0047
0.276
0.650
0.024
7.0
16.5
0.6
150153*630BB^
0.0150
0.236
0.650
0.024
6.0
16.5
0.6
150682*1000EB^
0.0068
0.315
0.650
0.031
8.0
16.5
0.8
150183*630CB^
0.0180
0.256
0.650
0.024
6.5
16.5
0.6
150103*1000DC^
0.0100
0.276
0.807
0.024
7.0
20.5
0.6
150223*630DB^
0.0220
0.276
0.650
0.024
7.0
16.5
0.6
150153*1000FC^
0.0150
0.335
0.807
0.031
8.5
20.5
0.8
150273*630CC^
0.0270
0.256
0.807
0.024
6.5
20.5
0.6
150223*1000HC^
0.0220
0.374
0.807
0.031
9.5
20.5
0.8
150333*630EC^
0.0330
0.315
0.807
0.031
8.0
20.5
0.8
150333*1000FE^
0.0330
0.335
1.102
0.031
8.5
28
0.8
150393*630EC^
0.0390
0.315
0.807
0.031
8.0
20.5
0.8
150473*1000HE^
0.0470
0.374
1.102
0.031
9.5
28
0.8
150473*630EC^
0.0470
0.315
0.807
0.031
8.0
20.5
0.8
150683*1000KE^
0.0680
0.433
1.102
0.031
11.0
28
0.8
150563*630FC^
0.0560
0.335
0.807
0.031
8.5
20.5
0.8
150104*1000NE^
0.1000
0.512
1.102
0.031
13.0
28
0.8
150683*630GC^
0.0680
0.354
0.807
0.031
9.0
20.5
0.8
150154*1000OF^
0.1500
0.551
1.299
0.031
14.0
33
0.8
150823*630HC^
0.0820
0.374
0.807
0.031
9.5
20.5
0.8
150224*1000WF^
0.2200
0.689
1.299
0.031
17.5
33
0.8
150104*630FE^
0.1000
0.335
1.102
0.031
8.5
28.0
0.8
150334*1000YF^
0.3300
0.807
1.299
0.031
20.5
33
0.8
150124*630GE^
0.1200
0.354
1.102
0.031
9.0
28.0
0.8
150474*1000Z1F^
0.4700
0.945
1.299
0.031
24.0
33
0.8
150154*630IE^
0.1500
0.394
1.102
0.031
10.0
28.0
0.8
150184*630JE^
0.1800
0.413
1.102
0.031
10.5
28.0
0.8
150224*630LE^
0.2200
0.453
1.102
0.031
11.5
28.0
0.8
* Indicates capacitance tolerance
150274*630ME^
0.2700
0.492
1.102
0.031
12.5
28.0
0.8
J = ±5%, K = ±10%, M = ±20%
150334*630NF^
0.3300
0.512
1.299
0.031
13.0
33.0
0.8
See tape & reel specifications to determine which class applies.
150394*630QF^
0.3900
0.571
1.299
0.031
14.5
33.0
0.8
Part Number highlighted in yellow, available until stock is depleted.
150474*630RF^
0.4700
0.591
1.299
0.031
15.0
33.0
0.8
Replacement part number with “BB” case size.
150564*630TF^
0.5600
0.610
1.299
0.031
15.5
33.0
0.8
Part Number highlighted in green - OBSOLETE
150684*630WF^
0.6800
0.689
1.299
0.031
17.5
33.0
0.8
150824*630XF^
0.8200
0.728
1.299
0.031
18.5
33.0
0.8
150105*630YF^
1.0000
0.807
1.299
0.031
20.5
33.0
0.8
^If ordering tape and reel,
insert 1, 2, or 3.
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and data (collectively, the
“Information”) in this datasheet or other publication are subject to change. The customer is responsible for checking, confirming and verifying the extent to which the Information contained in this datasheet or other publication is applicable to an order
at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without
any guarantee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability for certain
applications are based on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”)
has of operating conditions that such Cornell Dubilier company regards as typical for such applications, but are not intended
to constitute any guarantee, warranty or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning the suitability for a specific customer application, use,
storage, transportation, or operating environment. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this
Information or otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given gratis
(unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability for the advice given
or results obtained. Although Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the
design and manufacturing of its products, in light of the current state of the art, isolated component failures may still occur.
Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other
safeguards (such as installation of protective circuitry or redundancies or other appropriate protective measures) in order to
ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all
product-related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are
indicated in such warnings, cautions and notes, or that other safety measures may not be required.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
