TM

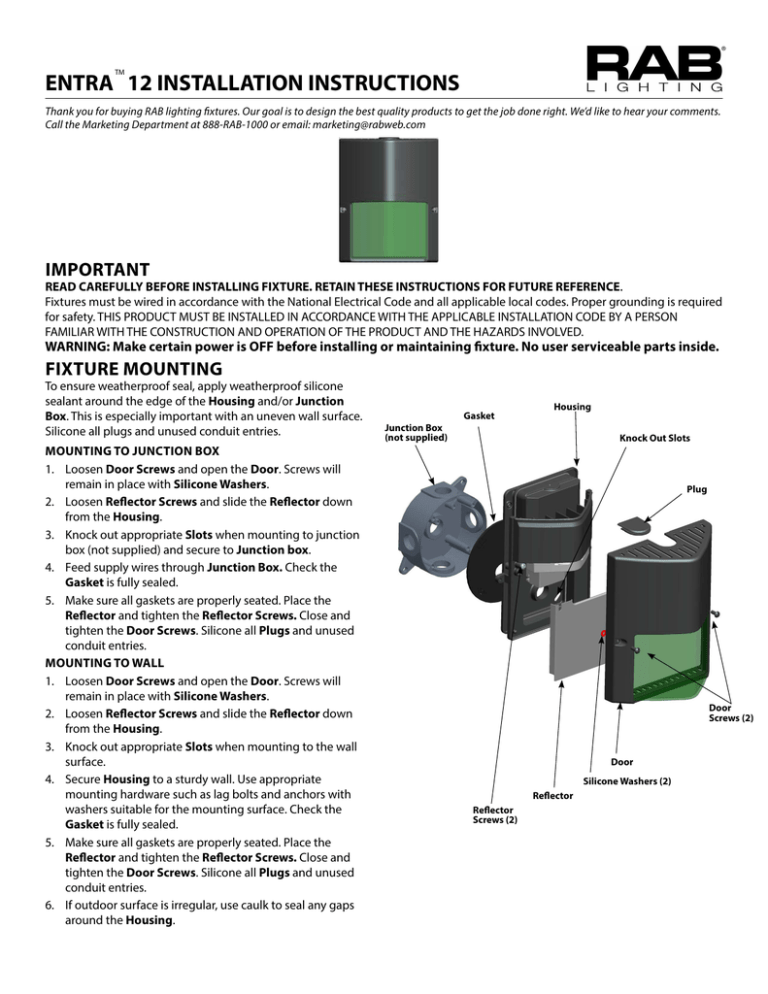

ENTRA 12 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [email protected]
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
FIXTURE MOUNTING
To ensure weatherproof seal, apply weatherproof silicone
sealant around the edge of the Housing and/or Junction
Box. This is especially important with an uneven wall surface.
Silicone all plugs and unused conduit entries.
MOUNTING TO JUNCTION BOX
1. Loosen Door Screws and open the Door. Screws will
remain in place with Silicone Washers.
2. Loosen Reflector Screws and slide the Reflector down
from the Housing.
3. Knock out appropriate Slots when mounting to junction
box (not supplied) and secure to Junction box.
4. Feed supply wires through Junction Box. Check the
Gasket is fully sealed.
5. Make sure all gaskets are properly seated. Place the
Reflector and tighten the Reflector Screws. Close and
tighten the Door Screws. Silicone all Plugs and unused
conduit entries.
MOUNTING TO WALL
1. Loosen Door Screws and open the Door. Screws will
remain in place with Silicone Washers.
2. Loosen Reflector Screws and slide the Reflector down
from the Housing.
3. Knock out appropriate Slots when mounting to the wall
surface.
4. Secure Housing to a sturdy wall. Use appropriate
mounting hardware such as lag bolts and anchors with
washers suitable for the mounting surface. Check the
Gasket is fully sealed.
5. Make sure all gaskets are properly seated. Place the
Reflector and tighten the Reflector Screws. Close and
tighten the Door Screws. Silicone all Plugs and unused
conduit entries.
6. If outdoor surface is irregular, use caulk to seal any gaps
around the Housing.
Junction Box
(not supplied)
Gasket
Housing
Knock Out Slots
Plug
Door
Screws (2)
Door
Silicone Washers (2)
Reflector
Reflector
Screws (2)
TM
ENTRA 12 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [email protected]
WIRING
CLEANING & MAINTENANCE
Universal voltage driver permits operation at 120V to 277VAC,
50 or 60 Hz except fixtures factory ordered with a (PC)
120V photocell or (/PC2) 277V photocell.
1. Connect the black fixture lead to the (+) LINE supply lead.
2. Connect the white fixture lead to the (-) COMMON supply
lead.
3. Connect the GROUND wire from fixture to supply ground.
CAUTION: Be sure fixture temperature is cool enough to
touch. Do not clean or maintain while fixture is
energized.
1. Clean lens & fixture with non-abrasive glass cleaning
solution.
2. Do not open fixture to clean the LED. Do not touch the
LED.
TROUBLESHOOTING
1. Check that the line voltage at fixture is correct. Refer to
wiring directions.
2. Is the fixture grounded properly?
Note: These instructions do not cover all details or variations in
equipment nor do they provide for every possible situation during
installation operation or maintenance.
ENTRA12 COOL
ENTRA12N NEUTRAL
ENTRA12Y WARM
Easy Installation & Product Help
©2014 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
ENTRA IN 0514 Rev.2
Tech Help Line
Call our experts 888 RAB-1000
rabweb.com
Visit our website for product info
email
Answered promptly [email protected]
