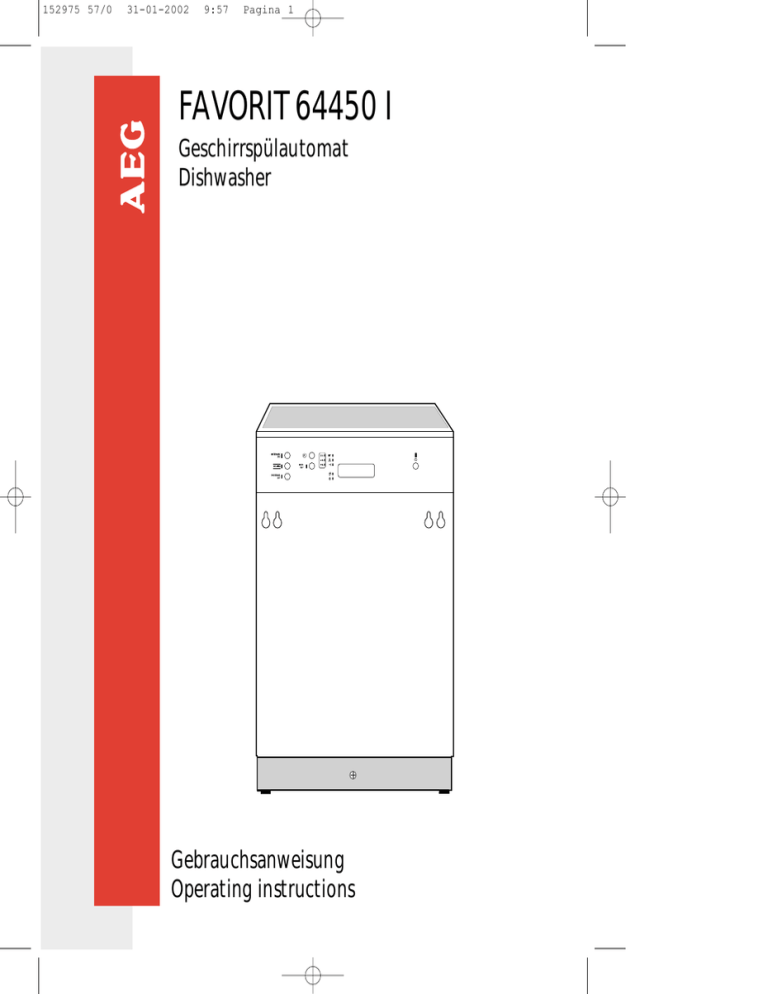

FAVORIT 64450 I
Geschirrspülautomat
Dishwasher
Gebrauchsanweisung
Operating instructions
152975 57/0
31-01-2002
9:58
Pagina 40
Dear customer!
Please read these user instructions carefully.
Above all please observe the safety instructions on the first few pages of
these user instructions! Please keep these user instructions for later reference.
Pass them on to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!, Caution!, Important!)
are used to highlight instructions that are important for your safety or for the
function of the appliance. It is imperative that these instructions are
observed.
Next to this symbol you receive additional information and practical tips on
using the appliance.
Tips and instructions for the economical and environmentally conscious use
of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see "What to do, if..." section.
If these instructions are insufficient, please contact your nearest customer
service centre.
In the case of technical problems, our customer service organisation is
available to provide you with assistance at any time.
40
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly...
152975 57/0
31-01-2002
9:58
Pagina 41
Contents
Safety instructions
42
Disposing of packaging and old machine
Disposing of the packaging
Disposing of your old machine
Economical and ecological dishwashing
44
44
44
45
Description of the appliance
The inside of the appliance
Control panel
46
46
47
Before using your dishwasher for the first time
Setting the water hardness range
Filling with special salt
The rinse aid
48
48
50
51
Loading cutlery and dishes
The lower basket
Cutlery basket
The upper basket
Adjusting the height of the upper basket
Use of detergent
Compact detergents with enzymes
53
54
54
55
56
57
57
Washing programmes
58
Operating instructions
60
Maintenance and cleaning
Internal and external cleaning
Cleaning the filters
63
63
63
What do do, if...
65
Customer service
67
Declaration of guarantee terms
68
Technical specifications
70
Hints for test centres
71
Connection instructions
Water supply connections
Water outlet connection
Extension hoses
Protection against flooding
Electrical connection
72
72
73
73
74
74
41
152975 57/0
31-01-2002
9:58
Pagina 42
Safety instructions
The safety of AEG electrical appliances conforms to accepted rules of technology and
the Appliance Safety Act. We as manufacturers, however, see ourselves as being
obliged to familiarise you with the following safety instructions.
Using your dishwasher for its intended purpose
●
Only use your dishwasher for machine washing of household crockery. If your
machine is misused or used for any purposes other than that for which it is
intended, the manufacturer cannot be held liable for any damage caused.
●
For safety reasons, you should not convert or modify your dishwasher in any way.
Before using your dishwasher for the first time
●
Check your dishwasher for any transport damage. Never connect a damaged
machine. If your dishwasher is damaged, you should contact your supplier.
●
Your dishwasher must be correctly installed and connected. Please read the
section on "Installation" to make sure you know all about this.
●
Before using your dishwasher for the first time, do not forget that the nominal
voltage and current type indicated on the rating plate of your machine must be
the same as the nominal voltage and current type at the installation site. The
necessary electrical fusing is also given on the rating plate.
Child safety
42
●
Packaging parts (e.g. foils, styrene foam) may be dangerous for children, who
could even be suffocated! You should therefore keep all packaging well away
from children.
●
Children may not recognise the dangers of improper use of electrical appliances.
You should therefore ensure proper supervision during operation and not allow
your children to play with your dishwasher.
●
Detergents may have a caustic effect on eyes, mouth and throat and may even
cause suffocation! Keep all detergents in a safe place out of children’s reach.
●
The water in your dishwasher should not be used for drinking. Detergent residues
may still be present in your machine. Make sure you do not splash these caustic
residues onto your skin or suffocate yourself! Keep children well away from your
dishwasher when its door is open.
152975 57/0
31-01-2002
9:58
Pagina 43
Your dishwasher in day-to-day use
●
Never operate your dishwasher if the electrical supply lead, supply or drainhose,
control panel, worktop or plinth are damaged.
●
If there is a fault, first turn the water tap off. Then switch off your machine and
pull the plug out of the socket. If there is a fixed connection, switch off or
unscrew the fuse(s).
●
Never pull the plug out of the socket by the cable - always hold the plug.
●
Dishwasher repairs should only be performed by trained personnel.
Improper repairs may seriously endanger the user. If your dishwasher needs to be
repaired, you should contact our service centre or your retailer.
●
Never place any solvents in your dishwasher or you may cause an explosion!
●
Do not rest or sit on the open door or the machine could tilt.
●
Before using special dishwasher salt, detergent or rinse-aid, make sure that the
manufacturer of these products expressly specifies their use in domestic
dishwashers.
●
Always turn off the water tap when your dishwasher is left unattended for any
length of time, e.g. when you are away on holiday.
●
Only transport the dishwasher in an upright position. Tipping it upside down
during transport could cause salty water to leak into the internal compartment
and lead to the formation of rust.
43
152975 57/0
31-01-2002
9:58
Pagina 44
Disposing of packaging and old machine
Disposing of the packaging
Our dishwashers require effective protective packaging in transit, though we always
confine ourselves to what is absolutely necessary.
Warning! Packaging parts (e.g. foils, styrene foam) may be dangerous
for children, who could even be suffocated! You should therefore
keep all packaging well away from children.
All packaging materials used are environmentally compatible and reusable.
The cardboard parts are produced from recycled paper, and the wood is untreated.
The plastics are marked as follows:
>PE<
for polyethylene, e.g. packaging foils.
>PS<
for polystyrene, e.g. padding (essentially CFC-Free).
>POM<
for polyoxymethylene, e.g. plastic clamps.
Give the packaging for reuse to your local recycling centre. Your municipal or local
authority will give you its address.
Disposing of your old machine
When your machine finally reaches the end of its life and you withdraw it from
service, you should render it unserviceable before having it disposed of.
Warning! Children at play could lock themselves in your machine
(and suffocate) or otherwise endanger their lives. Therefore pull out
the main plug and detach and discard the electrical supply lead.
Disable the door lock so that the door no longer closes.
Marking of plastic parts for graded recycling: all plastic parts in your machine are
marked with internationally standardised abbreviations (e.g. <PS> for polystyrene).
When your machine is disposed of, this enables plastic waste to be sorted into
individual types for environmentally conscious recycling.
Take your decommissioned machine to your local recycling centre or dealer, who will
take it back from you for a small handling charge.
44
152975 57/0
31-01-2002
9:58
Pagina 45
Economical and ecological dishwashing
●
Only connect the dishwasher to the hot water supply if your hot water is not
electrically heated.
●
Ensure that the water softener is correctly adjusted.
●
Do not pre-rinse under running water.
●
Select the wash programme to suit the nature and degree of the soiling on the
dishes.
●
Do not use more detergent, special salt or rinse aid than is recommended in these
operating instructions and by the manufacturer of the respective product.
45
152975 57/0
31-01-2002
9:58
Pagina 46
Description of the appliance
The inside of the appliance
1
9
2
8
3
7
4
6
5
IN97
1. Upper basket stop
2. Upper spray arm
3. Salt container
4. Detergent dispenser
5. Control panel
6. Rinse aid dispenser
7. Filters
8. Lower spray arm
9. Upper basket
46
152975 57/0
31-01-2002
9:58
Pagina 47
Control panel
1. Programme selection push buttons
2. Delay start push button
This option allows the start of the programme to be delayed by 3, 6 or 9 hours.
3. Indicator lights
Phase indicator lights
washing: illuminates when the washing phase is running
drying: illuminates when the drying phase is running
end of programme: illuminates when the washing programme has ended
Salt and rinse aid indicator lights
salt: illuminates when the salt has run out and the salt container requires
refilling.
rinse aid: illuminates when the rinse aid has run out and the rinse aid
container requires refilling.
4. Door handle
5. On/Off indicator light
6. On/Off push button
47
152975 57/0
31-01-2002
9:58
Pagina 48
Before using your dishwasher for the first time
1. Ensure that the electrical and water connections comply with the installation
instructions.
2. Remove all packaging from inside the appliance.
3. Set the water softener.
4. Pour 1 litre of water inside the salt container and then fill with salt.
5. Fill the rinse-aid dispenser.
Setting the water hardness range
The dishwasher is equipped with a water softener designed to remove minerals and
salts from the water supply, which would have a detrimental or adverse effect on the
operation of the appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in equivalent scales, German, French and PPM degrees.
The softener should be adjusted according to the hardness of the water in your area.
To ensure optimum regeneration of the water softener:
- the water softener must be adjusted to the local water hardness;
- the dishwasher salt container must always be filled with special salt.
Your local Water Authority can advise you on the hardness of the water in your area.
The dishwasher is factory set at level 3.
If this level is not suitable for your area the softener should be adjusted.
Water hardness
Level
°dH
°TH
(german degrees) (french degrees)
1
2
3
4
5
<4
4 - 18
19 - 29
30 - 40
41 - 50
<8
8 - 30
31 - 50
51 - 70
71 - 90
(parts per million)
Use
of salt
< 80
81 - 300
301 - 500
501 - 700
701 - 900
NO
YES
YES
YES
YES
PPM
If your water is level 1 it is already soft and therefore there is no
need to use salt.
With the setting of the water softener at level 1 the salt indicator
light on the control panel will always remain off.
Use salt from level 2 upwards.
48
152975 57/0
31-01-2002
9:58
Pagina 49
To select a different level be sure that the dishwasher is
off and then proceed as follows:
1. Press INTENSIV 70° and 30 MIN programme push buttons simultaneously.
2. While keeping the programme push
buttons INTENSIV 70° and 30 MIN
pressed switch on the dishwasher by
pressing the On/Off push button.
The On/Off indicator light comes on.
At the same time, also the indicator lights
of the INTENSIV 70° and 30 MIN push
buttons start flashing.
Press the INTENSIV 70° push button, the
indicator light of the 30 MIN push button
turns off, while the indicator light of the
INTENSIV 70° push button remains fixed
for about 5 seconds, after this it starts
flashing indicating the current level of the water softener.
The current level is indicated by the number of flashes made by the
INTENSIV 70° indicator light, that alternates 5 seconds off with a number of
flashes, this for about 60 seconds.
SO449
SO450
Example:
1 flash
2 flashes
3 flashes
4 flashes
5 flashes
=
=
=
=
=
level 1
level 2
level 3
level 4
level 5
3. To change the level, press the INTENSIV 70° programme push button.
Each time the push button is pressed the level changes.
Examples:
if the current level is 3, by pressing the INTENSIV 70° programme push button
once, level 4 is selected
if the current level is 5, by pressing the INTENSIV 70° programme push button
once, level 1 is selected
The INTENSIV 70° indicator light remains off for about 5 seconds after which it
starts flashing indicating the new level selected.
4. To memorise the new level, switch off the dishwasher by pressing the On/Off
push button.
49
152975 57/0
31-01-2002
9:58
Pagina 50
Filling with special salt
Caution! The packaging of dishwasher salt and detergents are often very similar. The
accidental filling of the salt compartment with detergent would ruin the water softener.
Each time you add salt, make sure the carton you have in your hand really is salt.
Only use salt specifically designed for use in dishwashers.
All other types of salt not specifically designed for use in a dishwasher,
especially table salt, will damage the water softener.
Only fill with salt just before starting one of the complete washing
programmes. This will prevent any grains of salt or salty water, which
may have been spilled, remaining on the bottom of the machine for
any period of time, which may cause corrosion.
To fill:
1. To fill with salt, unscrew the cap of the salt
container.
2. Pour 1 litre of water inside the container
(this is necessary only before filling with salt
for the first time).
3. Using the funnel provided, pour in the salt until
the container is full.
Do not worry if water overflows from the unit
when filling with salt, this is quite normal.
4. Replace the cap making sure that there is no
trace of salt on the screw thread or on the
gasket.
5. Screw on the cap tightly.
LE
SA LT
SA LZ
SA L
SE
SR14
When this has been done, all that is required is to periodically top up the container
with salt. You are reminded of this by the salt container indicator light on the
control panel which comes on when the salt has run out.
The salt indicator light on the control panel can remain illuminated for 2-6
hours after the salt has been replenished, assuming the dishwasher remains
switched on. If you are using salts that take longer to dissolve then this can
take longer. The function of the machine is not affected.
50
From level 2 upwards, if salt refilling is necessary, the salt indicator
light will illuminate only in setting mode and at the end of the
washing programme.
During the run of the programme it will remain off.
152975 57/0
31-01-2002
9:58
Pagina 51
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and
spot and streak free drying. The dispenser, which is positioned inside the door, holds
about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes,
depending upon the dosage setting.
Filling with rinse aid
1. Open the container by turning the lid (A)
anticlockwise.
2. Add the rinse aid until the container is
completely full.
The indicator (B) will be completely dark.
3. Top up the rinse aid when the rinse aid
indicator light on the control panel
illuminates.
BR01
Ensure that the lid is closed after every refill.
Do not put liquid detergent in the rinse aid
compartment. Clean up any rinse aid spilt during
filling with an absorbent cloth to avoid excess
foaming during the next wash.
BR03
If rinse aid refilling is necessary, the rinse aid indicator light will
illuminate only in setting mode and at the end of the washing
programme.
During the run of the programme it will remain off.
51
152975 57/0
31-01-2002
9:58
Pagina 52
It is possible to deactivate the rinse aid indicator light (see the following
instructions), By default the rinse aid indicator light is active.
To deactivate the rinse aid indicator light be sure that the
dishwasher is off and then proceed as follows:
1. Press INTENSIV 70° and 30 MIN programme push buttons simultaneously.
2. While keeping the programme push
buttons INTENSIV 70° and 30 MIN
pressed switch on the dishwasher by
pressing the On/Off push button.
The On/Off indicator light comes on.
At the same time, the indicator lights of
the INTENSIV 70° and 30 MIN
push buttons start flashing.
3. Press the 30 MIN push button, the
correspondent indicator light keeps
flashing while the indicator light of the
INTENSIV 70° push button turns off.
At the same time the indicator light
"end of programme" starts to flash.
SO449
SO451
4. Press the 30 MIN push button again,
the "end of programme" indicator light turns off, this means that the rinse aid
indicator light has been deactivated.
5. To memorise the operation, switch off the dishwasher by pressing the On/Off
push button.
To reactivate the rinse aid indicator light follow the same process until the "end of
programme" indicator light starts to flash.
Adjusting the dose
According to the finish and drying results obtained,
adjust the dose of rinse aid by means of the 6
position selector (C) (position 1 minimum dosage,
position 6 maximum dosage).
Increase the dose if there are drops of water or lime
spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the
dishes.
52
BR02
152975 57/0
31-01-2002
9:58
Pagina 53
Loading cutlery and dishes
Sponges, household cloths and any object that can absorb water may
not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
●
Cutlery with wooden, horn, china or
mother of pearl handles.
●
Plastic items that are not heat resistant.
●
Older cutlery with cement that is not
temperature resistant.
●
Bonded cutlery items or dishes.
●
Pewter or copper items.
●
Lead crystal glass.
●
Steel items subject to rusting.
●
Wooden platters.
●
Items made from synthetic fibres.
are of limited suitability:
●
Only wash stoneware in the dishwasher
if it is specifically marked as being
dishwasher-safe by the manufacturer.
●
Glazed patterns may fade if machine
washed frequently.
●
Silver and aluminium parts have a
tendency to discolour during washing.
Left-overs, e.g. egg white, egg yolk and
mustard often cause discolouring and
staining on silver. Therefore always
clean left-overs from silver immediately,
if it is not to be washed straight after
use.
●
Some types of glass can become dull
after a large number of washes.
Attention!
When buying new dishes, ensure that they are dishwasher proof.
Before placing dishes in the machine, remove any scraps of food, to avoid clogging
the filters and consequently reducing the performance.
Do not load very small items which can fall through the baskets.
Open the door and slide out the baskets.
53
152975 57/0
31-01-2002
9:58
Pagina 54
The lower basket
The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.
Serving dishes and large lids should be arranged around the edge of the basket,
ensuring that the upper spray arm can turn freely.
UI12
UI51
The two rear rows of prongs on the lower basket can be easily lowered to allow you
to load pots, pans and bowls.
To lower the prongs:
- Slightly pull them upward and let them drop down (see picture).
- To bring them back to the standing position, just pull them up again.
UI84
UI83
Cutlery basket
Long bladed knives stored in an upright position are a potential
hazard.
Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as knives.
Cutlery should be placed in the removable cutlery basket with the handles facing
downwards. If the handles protrude from the bottom of the basket, obstructing the
lower spray arm, load the cutlery with the handles facing downwards.
Mix spoons with other cutlery to prevent the from sticking together.
54
152975 57/0
31-01-2002
9:58
Pagina 55
Cutlery should be placed in the removable cutlery basket with the handles facing
downwards. If the handles protrude from the bottom of the basket, obstructing the
lower spray arm, load the cutlery with the handles facing downwards.
Mix spoons with other cutlery to prevent the from sticking together.
Silver cutlery tends to go black if mixed with steel cutlery. Place it in the cutlery
basket separate from the others.
To unload your dishwasher more easily, you can take the cutlery basket out of the
lower basket and unfold it. This makes it easier to remove small pieces of cutlery.
Important note! To prevent the full cutlery basket from inadvertently unfolding
when being taken out, place your hand right round the two-piece handle and hold it
firmly.
1. Place the cutlery basket on a firm support (table, worktop) and unfold both
handle parts.
2. After unfolding, fold back both handle parts.
UI20
UI25
The upper basket
The upper basket is designed for plates (dessert
plates, saucers, dinner plates up to 24 cm in
diameter), salad bowls, cups and glasses.
Glasses with long stems can be placed upside-down
in the cup-racks
The cup-rack on the left folds upwards to increase
your loading flexibility.
Arrange items on and underneath the cup racks so
US69
that water can reach all surfaces.
Light items (plastic bowls etc.) should be loaded in the upper basket and arranged so
they do not move.
Before closing the door, ensure that the spray arms can rotate freely.
55
152975 57/0
31-01-2002
9:58
Pagina 56
Adjusting the height of the upper basket
If washing very large plates (over 27 cm and up to 31 cm in diameter) you can load
them in the lower basket after moving the upper basket to the higher position.
To move to the higher position proceed as follows:
1. Move the front runner stops (A) of the
upper basket outward and slide the basket
out.
2. Refit the basket in the higher position and
replace the stops (A) in their original
position.
When the top basket is in the higher position it
RC01
will only take plates up to 20 cm in
diameter and you will not be able to use the cup racks.
After loading your machine always close the door, as an open door
can be a hazard.
56
152975 57/0
31-01-2002
9:58
Pagina 57
Use of detergent
Attention!
Only use detergents specifically designed for use in dishwashers.
If using powder detergents proceed as follows:
1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the recommended quantity given in the "Washing
programmes" chart. As all detergents are not the same, please pay attention also
to the instructions from the manufacturer of your brand.
3. Always close the lid.
4. If the programme has a prewash add a little amount of detergent over the lid of
the dispenser according to the recommended quantity given in the "Washing
programmes" chart.
DE02
DE17
If using detergent in tablets proceed as follows:
1. For all programmes; place 1 tablet inside the detergent dispenser.
2. Always close the lid.
3. For all programmes with prewash; place a portion of a further tablet on the lid of
the detergent dispenser.
At the end of any washing programme the lid is always open, ready for the next wash.
Remember that insufficient quantities of detergent will produce poor
washing results whereas an excessive amount of detergent does not
improve washing results and is also wasteful.
Using no more than correct amount of detergent also contributes to
reducing pollution.
Compact detergents with enzymes
In these compact powders the environmentally unfriendly components have been
replaced by natural enzymes and other more biodegradable substances.
The enzymes deploy their full dirt dissolving power at a temperature as low as 50°C.
By choosing the "50°C" programmes you can therefore achieve the same cleaning results
that would otherwise be achievable only with 65°C programmes and conventional
detergents.
57
152975 57/0
31-01-2002
9:58
Pagina 58
Washing programmes
Programme
Intensive 70°C
Heavy soil.
Crockery, cutlery,
pots and pans
Required push buttons
On/Off
+
INTENSIV 70°
* 30 Minutes
Fresh soil.
Crockery and cutlery
On/Off
+
30 MIN
** Normal 50°C
Normal soil.
Crockery and cutlery
On/Off
+
NORMAL 50°
Normal soil.
Crockery and cutlery
On/Off
+
ECO 50°
***
Eco 50°C
58
Type of soil
and
type of load
*
Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil) .
Characterised by a duration of about 30 minutes and a washing temperature of 60°C.
The time value is approximate and depends on the pressure and the temperature of the
water and also by the variations of the power supply.
This is the perfect daily programme, made to meet the needs of a family of 4 persons who
only wish to load breakfast and dinner crockery and cutlery.
**
In this programme the appliance is fitted with the special device SENSORLOGIC.
This device allows the dishwasher to automatically individuate if the baskets are full
loaded or not and consequently reduce the washing temperature and time duration of
the programme.
This allows to obtain a saving in energy and time.
***
Testing programme for EN 50242 (see "Hints for Test Centres"). This programme,
developed for the use of detergents with enzymes, allows to achieve, with reduced
consumption of energy the same cleaning results that would otherwise be obtained only
with the 65°C programmes and conventional detergents. To compensate the lower
temperature, the duration of the programme has been prolonged.
152975 57/0
31-01-2002
9:58
Pagina 59
Recommended
quantity of
detergent
Approximate values *
Water
Energy
consumption consumption
in litres
in kWh
Wash
Prewash
Programme
duration
in minutes
Hot prewash
Main wash up to 70°C
2 cold rinses
1 warm rinse
Turbo drying
15 g
10 g
94 ÷ 104
1.89
18
Main wash up to 60°C
1 warm rinse
20 g
/
25 ÷ 35
0.79
9
Cold prewash
Main wash up to 50°C
1 cold rinse
1 warm rinse
Turbo drying
20 g
5g
79 ÷ 89
0.99
14
Cold prewash
Main wash up to 50°C
1 cold rinse
1 warm rinse
Turbo drying
20 g
5g
121 ÷ 131
0.80
14
75 ÷ 85
0.91
14
Cycle description
Programme NORMAL 50°C
with SENSORLOGIC
*
The times and consumption are intended as a guide and depend on the pressure and
temperature of the water and also by the variations of the power supply.
59
152975 57/0
31-01-2002
9:58
Pagina 60
Operating instructions
1. Check the filters
Ensure they are clean and properly positioned (see "Maintenance and cleaning").
2. Press the On/Off push button
The On/Off indicator light will come on.
3. Check that there is rinse aid and salt
The corresponding indicator lights will illuminate if refilling is necessary.
4. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the saucepans, plates and cutlery in it.
Pull the upper basket out and arrange the plates, saucers, glasses and cups
etc. in it.
Slide the baskets back into the machine.
5. Ensure that the spray arms can rotate freely.
6. Add the detergent
Add the required amount of detergent into the dispenser according to the
dosage instructions in the "Washing programmes" chart.
Close the detergent dispenser lid.
7. Close the dishwasher door
8a. Setting and starting the programme without delay
start
Press the push button corresponding to the wanted programme: the indicator
light corresponding to the programme illuminates and the phase indicator
lights for that programme start flashing.
The start of the programme will occur after about 6 seconds from the last
pressure of a programme push button, in this time it is possible to change
programme simply pressing the push button of another programme.
Once the programme has started the phase indicator lights will turn off
except for the phase under way.
It is possible to interrupt the programme:
● opening the door
● pressing the On/Off (in this case all the indicator lights turn off)
60
Close the door again o press the On/Off, the programme will start from the
point in which it was interrupted.
152975 57/0
31-01-2002
9:58
Pagina 61
8b. Setting and starting the programme with delay start
The setting of the delay start occurs before selecting the programme.
Press the delay start push button and selected the desired time (3, 6 or 9
hours) until the indicator light corresponding to the chosen hours flashes.
Press the push button corresponding to the wanted programme: the indicator
light corresponding to the programme illuminates and the phase indicator
lights for that programme start flashing.
The start of the countdown will occur after about 6 seconds from the last
pressure of a programme push button.
The countdown will decrease with step of 3 hours and you are informed of
this by the indicator lights of the hours.
During the countdown the only indicator lights illuminate are the programme
light and the light of the number of hours to the start of the programme.
Once the delayed time has elapsed the programme will start automatically.
It is possible to stop a countdown in progress or before it starts, simply
pressing the delay start push button until the indicator lights of the
hours are off.
9. To cancel a programme in progress
A programme in progress can be cancelled at any time.
Press for about 3 seconds the push button of the running programme until all
indicator lights are off.
Only the On/Off indicator light will remain on once the programme has been
cancelled.
It is now possible to select a new washing programme.
10. At the end of the washing programme
The dishwasher will automatically stop and the phase indicator light end of
programme will come on.
The indicator light of the programme just ended will remain on.
The dishwasher has finished the programme only when the phase
indicator light end of programme is illuminated. If you do not wait for
the end of the programme it will not be possible to start a new
programme if first you do not cancel the previous.
(For the formalities how to cancel a programme see point 9)
If during the drying phase (drying indicator light illuminated) the
dishwasher door is opened or the On/Off push button is pressed, the
running programme is automatically cancelled.
In this case the machine returns to setting mode and it is possible to
select a new washing programme without cancelling the previous.
61
152975 57/0
31-01-2002
9:58
Pagina 62
Switch off the dishwasher by pressing the On/Off push button.
Open the door and wait a few minutes before removing the dishes; in this
way they will be cooler.
Empty the lower basket first and then the upper one; this will avoid water
dripping from the upper basket onto the dishes in the lower one.
Caution!
In general it is not advisable to open the door while the machine is
working; if the door is opened however, a safety device ensures that
the machine stops.
Caution!
Opening the door could let very hot steam escape: you risk being
scalded! Open the door with great care.
Do not open the door during the hot phase: this may cause hot water
escape.
62
152975 57/0
31-01-2002
9:58
Pagina 63
Maintenance and cleaning
Internal and external cleaning
Do not under any circumstances use furniture care products or
aggressive cleaners.
If necessary, clean the controls only with a soft cloth and pure warm water.
The spray arms do not need cleaning.
Occasionally check the internal containers, door seal and water inlet for soiling,
clean if necessary.
We recommend every 3 months to run a 65°C wash programme without dishes using
detergent.
Cleaning the filters
The filters in the base of the washing compartment are to large extent self-cleaning.
Nevertheless the filters should be checked and cleaned from time to time. Dirty
filters will degrade the washing result.
1. Open the door, remove the lower
basket.
2. The dishwasher filter system comprises
a coarse/fine filter, microfilter and a
flat filter.
Unlock the filter system using a handle
on the microfilter, and remove.
3. Turn the handle about 1/4 a turn
anticlockwise and remove.
MA15
4. Take hold of the coarse/fine filter (1/2)
by the handle with the hole and
remove from the microfilter (3).
5. Clean all filters thoroughly under
running water.
MA17
63
152975 57/0
31-01-2002
9:58
Pagina 64
6. Remove the flat filter (4) from the
base of the washing compartment and
clean both faces thoroughly.
7. Put the flat filter back in the base of
the washing compartment.
8. Place the coarse/fine filter in the
microfilter and press together.
MA16
4
9. Put the filter combination in place and
lock by turning the handle clockwise
to the stop.
During this process ensure that the flat
filter does not protrude above the base
of the washing compartment.
Under no circumstances must the dishwasher be used without filters.
64
152975 57/0
31-01-2002
9:58
Pagina 65
What to do, if...
Certain problems are due to lack of simple maintenance or oversights, which can be
solved easily without calling out an engineer.
The dishwasher is fitted with a number of alarm systems which can help you to
quickly determine the cause of any problems.
The dishwasher will not start or stops during operation. All push buttons are
inoperative except for the On/Off push button. The indicator light of the programme
under and one or more of the phase indicator lights (washing, drying, end of
programme) are flashing.
Press the On/Off push button to switch off the dishwasher and carry out the
following suggested corrective actions listed below.
Fault code
Possible cause
The water tap is closed.
....washing phase indicator
light is flashing
....drying phase indicator
light is flashing
....washing and drying
phase indicator lights are
flashing
....one or more phase
indicator lights are
flashing
Remedy
Open the water tap.
The mains water supply has
been cut off.
The inlet hose may be
squashed or bent.
Reposition correctly the
hose.
The drain hose may be
squashed or bent. The drain
hose extension is not
correct.
Reposition correctly the
drain hose. Follow the
instructions for connecting
to the waste.
The sink may be blocked.
Clear any blockages.
Protection against flooding
is active.
Close the water tap and
contact the Service Force
Centre.
General
Switch off the dishwasher.
Switch it back on and start
the programme.
if the alarm reappears, call
the Service Force Centre.
Once the checks have been carried out switch on the dishwasher and start a washing
programme, if the fault code reappears in the digital display, contact your local
Service Force Centre.
65
152975 57/0
31-01-2002
9:58
Pagina 66
Malfunction
....the programme does not
start
Possible cause
The plug is not properly
inserted in the power
socket.
Remedy
Insert the plug.
There is no current at the
socket.
....the machine is noisy
....the door is difficult to
close
The door is not properly
closed.
Close the door.
Dishes are rattling against
each other.
The spray arms are
knocking against the
dishes.
Load correctly crockery,
cutlery. pots and pans.
Refer to Loading cutlery
and dishes.
The dishwasher is not level
or not properly built-in.
Refer to Installation
instructions.
...the wash results are not satisfactory
Visible lime deposits or white film on the dishes
●
Check that the right level of the water softener is setted.
●
Check that there is salt.
The dishes are not quite dry
●
The rinse aid has run out or too little is being used.
The dishes are not clean
66
●
The baskets are too full.
●
The dishes have not been arranged properly.
●
The spray arms do not rotate because incorrect loading of the baskets.
●
The filters are clogged.
●
The filters are not in the correct position.
●
Not enough detergent has been used or it is unsuitable.
●
The detergent is old or has gone hard.
●
The salt container cap is not properly closed.
●
The washing programme is too gentle.
152975 57/0
31-01-2002
9:58
Pagina 67
Customer service
In the section "What to do, if...", we have listed the most important faults which you
can rectify yourself. Should you still wish to call our Service Centre for any of the
specified faults or because the appliance is being wrongly operated, the service
engineer's visit cannot be made free of charge even during the guarantee period.
Should you find no reference to a fault in the operating instructions, you should call
our Service Centre.
When making your call, quote the E-No. (product number) and F-No. (serial number)
indicated on the rating plate. It is located on the right inside edge of the door.
Mod.
..
No.
Prod.
......
......
..
Ser.
No.
......
...
E- NR ...... F-NR ......
To keep these numbers handy, we recommend you enter them here.
E-No .................................
F-No .................................
Your specifying these details enables the Service Centre to make precise
identification of the spare part required so that the appliance can be repaired at the
service engineer's first visit without your having to pay extra costs for repeated
journeys by the service engineer.
67
152975 57/0
31-01-2002
9:58
Pagina 68
Declaration of guarantee terms
Our appliances are produced with the greatest of care. However, a defect may still occur. Our
consumer services department will repair this upon request, either during or after the
guarantee period. The service life of the appliance will not, however, be reduced as a result.
This declaration of guarantee terms is based on European Union Directive 99/44/EC and the
provisions of the Civil Code. The statutory rights that the consumer has under this legislation
are not affected by this declaration of guarantee terms.
This declaration does not affect the vendor’s statutory warranty to the end user. The appliance
is guaranteed within the context of and in adherence with the following terms:
1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of
charge any defect that occurs within 24 months from the date the appliance is delivered
to the first end user.
These guarantee terms do not apply in the event of use for professional or equivalent
purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in
before the defect occurred. Defective parts are replaced or repaired. Parts replaced free of
charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention
immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing
the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous
ceramic), synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the
overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:
● a chemical or electrochemical reaction caused by water,
● abnormal environmental conditions in general,
● unsuitable operating conditions,
● contact with harsh substances.
8. The guarantee does not apply to defects due to transport which have occurred outside of
our responsibility. Nor will the guarantee cover those caused by inadequate installation or
assembly, lack of maintenance or failure to respect the assembly instructions or directions
for use.
9. Defects that result from repairs or measures carried out by people who are not qualified or
expert or defects that result from the addition of non-original accessories or spare parts
are not covered by the guarantee.
10. Appliances that are easy to transport may be delivered or sent to the consumer services
department. Home repairs are only anticipated for bulky appliances or built-in appliances.
11. If the appliances are built-in, built-under, fixed or suspended in such a way that removing
and replacing them in the place where they are fitted takes more than half an hour, the
costs that result therefrom will be charged for. Connected damage caused by these
removal and replacement operations will be the responsibility of the user.
68
152975 57/0
31-01-2002
9:58
Pagina 69
12. If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if
the repair costs are considered disproportionate, in agreement with the consumer, the
defective appliance may be replaced with another appliance of the same value.
In this event, we reserve the right to ask for a financial contribution calculated according
to the length of time it has been used.
13. A repair under guarantee does not mean that the normal guarantee period will be
extended nor that a new guarantee period begins.
14. We give a twelve month guarantee for repairs, limited to the same defect.
15. Except in the event where liability is legally imposed, this declaration of guarantee terms
excludes any compensation for damage outside the appliance for which the consumer
wishes to assert his rights. In the event of legally admitted liability, compensation will not
exceed the purchase price paid for the appliance.
These guarantee terms are only valid for appliances purchased and used in Belgium. For
exported appliances, the user must first make sure that they satisfy the technical conditions
(e.g.: voltage, frequency, installation instructions, type of gas, etc.) for the country concerned
and that they can withstand the local climatic and environmental conditions. For appliances
purchased abroad, the user must first ensure that they meet the qualifications required in
Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not
possible in all cases.
Our consumer services department is always at your disposal, even after the guarantee period
has expired.
Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 - 1502 LEMBEEK
Tel. 02.3630444
69
152975 57/0
31-01-2002
9:58
Pagina 70
Technical specifications
Dimensions
Width
Height
Max depth
Max depth with open door
Electrical connection
Motor rating during wash
Power of heating element
Overall power
Water supply pressure
Capacity
44.6 cm
81.8 - 87.8 cm
57.5 cm
111.4 cm
230 V - 50 Hz
200 W
2100 W
2300 W
Minimum
Maximum
50 kPa (0.5 bar)
800 kPa (8 bar)
9 place settings
This appliance complies with the following E.E.C. Directives:
- 73/23/CEE of 19/02/73 (Low Voltage Directive) and subsequent
modifications;
- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility Directive) and
subsequent modifications.
70
152975 57/0
31-01-2002
9:58
Pagina 71
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt container
and with rinse aid the rinse aid dispenser.
Test standard
EN 50242
Reference programme
- Eco 50°C
Load
9 standard place settings
Rinse aid selector
position 4
Detergent dosage
- 20 g in the dispenser
- 5 g on the dispenser lid
Arrangement
upper basket
Arrangement
cutlery basket
Arrangement
lower basket
71
152975 57/0
31-01-2002
9:58
Pagina 72
Connection instructions
Any electrical work required to install this appliance should be carried out by a
qualified electrician or competent person.
Any plumbing work required to install this appliance should be carried out by a
qualified plumber or competent person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a drain.
Water supply connections
●
Your dishwasher can be connected to either a hot (max. 60°) or cold water supply.
Never connect your dishwasher to open water appliances and continuous flow
heaters!
Nevertheless we advise you a cold water supply.
A hot water supply is not always efficient with very soiled crockery as it shortens the
washing programmes a lot.
The water pressure must be within the limits given in the technical specifications.
Your local Water Authority will advise you on the average mains pressure in your
area.
Avoid bends or kinks in the hose which could prevent or slow down the water supply.
If the machine is connected to new pipes or pipes which have not been used for a
long time, you should run the water for a few minutes before connecting the inlet
hose. This will prevent deposits of sand or rust clogging the inlet hose filter.
Do not use, for connection, old hoses which have been used in another
appliance.
Your dishwasher has been built in accordance with the valid regulations governing
water-consuming appliances and is equipped with safety devices which prevent used
water from flowing back into the drinking water mains.
●
72
152975 57/0
31-01-2002
9:58
Pagina 73
Water outlet connection
The end of the drain hose can be connected as follows:
1.To the sink outlet siphon, securing it if necessary with a clip.
2.To a wall outlet provided with vent-hole, minimum internal diameter 4 cm.
min 4 cm
2
min 30 cm
max 100 cm
Ø
18
Ø
21
1
CS13
The waste connection must be at a height of between 30 cm (minimum) and 100 cm
(maximum) from the floor.
It makes no difference which way the drain hose faces, either to the right or left of
the dishwasher.
Avoid bending or kinking the hose as this could prevent or slow down the discharge
of water.
Extension hoses
min 30 cm
max 100 cm
+ 2 m max
CS10
max 100 cm
Ø 18
Ø 21
The necessary extension hoses can be obtained from specialist shops or from our
technical assistance centres.
The extension hose must be no longer than 2 metres and its internal diameter must
be no smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used for connection to the waste
outlet must be no smaller than the diameter of the drain hose.
Arrange the extension hose horizontally along the floor and allow it to rise only
where it is to be connected to the drain.
73
152975 57/0
31-01-2002
9:58
Pagina 74
Protection against flooding
The machine is fitted with a device in the bottom of the machine to protect against
flooding.
The device will operate if there are any water leaks in the machine, however it will
only operate if the machine is on.
In case of malfunction, the "washing" and "drying" phase indicator lights start
flashing (see "What to do, if.....").
In this case turn off the water tap and call the Service Centre.
Electrical connection
Before plugging the appliance into the wall socket, make sure that:
1. The mains voltage corresponds to the voltage given in the technical specifications.
2. The meter, fuses, mains power supply and wall socket can all take the maximum
load required.
Make sure that the socket and plug are compatible without having to use any type
of adaptor. If necessary, have the domestic wiring system socket replaced.
Safety standards require the appliance to be earthed.
The Manufacturer accepts no liability for failure to observe the above
safety precautions.
74
152975 57/0
31-01-2002
9:58
Pagina 76
From the Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use.
More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and
lawn mowers) are sold each year to a value of approx. 14 billion USD in more than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
Änderungen vorbehalten
Subject to change without notice
D
GB
152975 57/0
Download PDF

advertising
