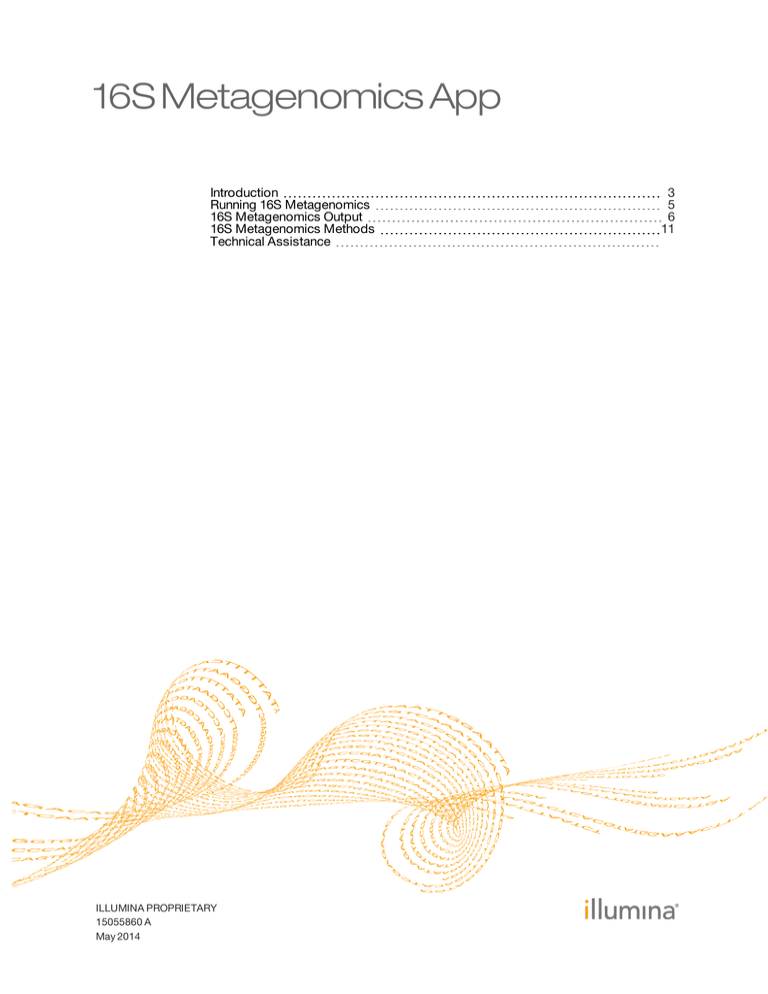

16S Metagenomics App
Introduction
Running 16S Metagenomics
16S Metagenomics Output
16S Metagenomics Methods
Technical Assistance
ILLUMINA PROPRIETARY
15055860 A
May 2014
3
5
6
11
This document and its contents are proprietary to Illumina, Inc. and its affiliates ("Illumina"), and are intended solely for the
contractual use of its customer in connection with the use of the product(s) described herein and for no other purpose. This
document and its contents shall not be used or distributed for any other purpose and/or otherwise communicated, disclosed,
or reproduced in any way whatsoever without the prior written consent of Illumina. Illumina does not convey any license
under its patent, trademark, copyright, or common-law rights nor similar rights of any third parties by this document.
The instructions in this document must be strictly and explicitly followed by qualified and properly trained personnel in order
to ensure the proper and safe use of the product(s) described herein. All of the contents of this document must be fully read
and understood prior to using such product(s).
FAILURE TO COMPLETELY READ AND EXPLICITLY FOLLOW ALL OF THE INSTRUCTIONS CONTAINED HEREIN
MAY RESULT IN DAMAGE TO THE PRODUCT(S), INJURY TO PERSONS, INCLUDING TO USERS OR OTHERS, AND
DAMAGE TO OTHER PROPERTY.
ILLUMINA DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE IMPROPER USE OF THE PRODUCT(S)
DESCRIBED HEREIN (INCLUDING PARTS THEREOF OR SOFTWARE) OR ANY USE OF SUCH PRODUCT(S) OUTSIDE
THE SCOPE OF THE EXPRESS WRITTEN LICENSES OR PERMISSIONS GRANTED BY ILLUMINA IN CONNECTION
WITH CUSTOMER'S ACQUISITION OF SUCH PRODUCT(S).
© 2014 Illumina, Inc. All rights reserved.
Illumina, IlluminaDx, 24sure, BaseSpace, BeadArray, BeadXpress, BlueFish, BlueFuse, BlueGnome, cBot, CSPro,
CytoChip, DASL, DesignStudio, Eco, GAIIx, Genetic Energy, Genome Analyzer, GenomeStudio, GoldenGate, HiScan,
HiSeq, HiSeq X, Infinium, iScan, iSelect, MiSeq, MiSeqDx, NeoPrep, Nextera, NextSeq, NuPCR, SeqMonitor, Solexa,
TruGenome, TruSeq, TruSight, Understand Your Genome, UYG, VeraCode, VeriSeq, the pumpkin orange color, and the
Genetic Energy streaming bases design are trademarks of Illumina, Inc. in the U.S. and/or other countries. All other names,
logos, and other trademarks are the property of their respective owners.
The BaseSpace app 16S Metagenomics analyzes DNA from amplicon sequencing of
prokaryotic 16S small subunit rRNA genes. Read classification is performed using a high
performance version of the RDP Naïve Bayes taxonomic classification algorithm.
Classification statistics are calculated – both by sample and in aggregate – and results
are summarized in interactive visualizations. Raw classification data are also available
for download.
The main output files generated by 16S Metagenomics are:
} Summary.csv files, containing summarized classification statistics for each sample.
} Txt.gz compressed files, containing per-read classifications for each sample.
} Aggregate_Counts.csv files, containing aggregate classification results by taxonomic
level across all samples.
In addition, there are per-sample and aggregate PDF and HTML reports, and XML
statistics files.
See 16S Metagenomics Methods on page 11 and 16S Metagenomics Output on page 6 for
more information.
Figure 1 16S Metagenomics App Workflow
Versions
The following module versions are used in the 16S Metagenomics app:
} Isis v2.5.35.6
} Illumina-curated version of May 2013 Greengenes taxonomic database
16S Metagenomics App User Guide
3
Introduction
Introduction
Current Limitations
Before running the 16S Metagenomics app, be aware of the following limitations:
} Illumina-curated version of May 2013 Greengenes taxonomic database only
} Read length of at least 100 bp
} Data set size fewer than 50 gigabases
} Classification up to the species level is supported; subtype classification is not
supported.
4
15055860 A
1
Navigate to the project or sample you want to analyze.
2
Click the Apps button and select 16S Metagenomics from the drop-down list.
3
If you see the End-User License Agreement and permissions, read them and click
Accept if you agree.
4
Fill in the required fields in the 16S Metagenomics input form:
a Analysis Name: Provide the analysis name. Default name is the app name with
the date and time the analysis was started.
b Save Results To: Select the project that stores the app results.
c Sample(s): Browse to the sample you want to analyze, and select the checkbox.
You can analyze multiple samples.
Figure 2 16S Metagenomics Input Form
5
Click Continue
The 16S Metagenomics app now starts analyzing your samples. The status of the app
session updates to show the app session progress. When completed, the status of the app
session is set to Complete, and you receive an email.
16S Metagenomics App User Guide
5
Running 16S Metagenomics
Running 16S Metagenomics
16S Metagenomics Output
This chapter describes the output of the 16S Metagenomics app. To go to the results, click
the Projects button, then the project, then the analysis.
Figure 3 16S Metagenomics Output Navigation Bar
When the analysis is completed, you can access your output through the left navigation
bar, which provides the following:
} Analysis Info: an overview of the app session settings. See Analysis Info on page 8
for a description.
} Output Files: access to the output files, organized by sample. See 16S Metagenomics
Output Files on page 9 for descriptions.
} Inputs: overview of input settings, see Inputs Overview on page 9.
} Aggregate Result: access to analysis metrics for the aggregate results. The Aggregate
Summary page is only displayed if multiple samples are analyzed. See Aggregate
Summary Page on page 6.
} Sample Pages: access to analysis reports for each sample. See Sample Summary Page
on page 7 for a description.
Aggregate Summary Page
The 16S Metagenomics App provides a comparison of all samples on the Aggregate
Summary page. You can view interactive charts showing comparisons of sample results,
or download aggregate result files.
Aggregate Results
The aggregate results section contains summary files for download. The PDF Aggregate
Summary Report contains tables showing the same information as in the BaseSpace
report. The CSV files contain the number of reads classified to each classification by
sample, organized by taxonomic level of the classifications.
Sample Information
The Sample Information table provides the Sample Number, Sample ID, and statistics
about genus-level classification rate and primary analysis for each sample.
6
15055860 A
Definition
Number reads PF
The total number of reads with an index sequence matching this sample
that passed quality filtering
% Reads PF Classified
to Genus
(# Reads with Genus-level classification) / (# Reads PF) * 100
Principal Coordinate Analysis (PCoA)
Principal coordinate analysis shows similarity between normalized relative abundance
of all samples. The PCoA is generated using Classical MDS on a Pearson covariance
distance matrix generated from per-sample normalized classification abundance vectors.
You can select the maximum level at which to compare samples by adjusting the
scrollbar above the chart. Points are labeled with a shortened version of the Sample ID,
you can mouse over any point to view the full Sample ID.
Hierarchical Clustering Dendrogram
The dendrogram shows a hierarchical clustering of samples based on genus-level
classifications. Mouse over the bar charts to view taxonomic labels.
Species Diversity Results
Statistic
Definition
Shannon Species
Diversity
The species-level Shannon diversity value for the sample (see
en.wikipedia.org/wiki/Shannon-Wiener_index for details)
Number of
species identified
The number of unique species classifications in the sample, only including
reads classified to the species level.
Sample Summary Page
The 16S Metagenomics App provides an overview of statistics per sample on the sample
pages. You can also download the Summary Report as a PDF.
Sample Results
The sample results section contains a PDF Summary Report that provides information
about the classification rate and top sample classifications by taxonomic level. The
sample results section also contains a CSV Classification Summary, which shows the
aggregate classification counts for the sample.
Sample Information
The Sample Information table provides basic primary analysis information for the
sample.
Statistic
Definition
Number
reads PF
The total number of reads with an index sequence matching this sample that
passed quality filtering
16S Metagenomics App User Guide
7
16S Metagenomics Output
Statistic
Classification Statistics
The Classification Statistics section provides information on the classification rate by
taxonomic level.
Statistic
Definition
Reads PF Classified to
Taxonomic Level
The total number of PF reads for this sample that were classified
at the given taxonomic level
% Reads PF Classified to
Taxonomic Level
(# Reads PF Classified to Taxonomic Level / # Reads PF) * 100
Sunburst Classification Chart
The sunburst chart presents statistics about the relative abundance and taxonomic
hierarchy of classifications in the sample.
Statistic
Definition
Total reads
# Reads PF
% Total reads
(# Reads PF Classified in taxonomic category / # Reads PF) * 100
% [parent
category] reads
(# Reads PF classified in taxonomic category / # Reads PF classified in parent
taxonomic category) * 100
Top 20 Classification Results by Taxonomic Level
The column chart shows a comparison of the relative abundance of classifications at
each taxonomic level, excluding reads unclassified at that taxonomic level.
Statistic
Definition
Total reads
# Reads PF
% Reads classified to
level
(# Reads PF Classified in taxonomic category / # Reads PF classified to
taxonomic level) * 100
% total reads
(# Reads PF classified in taxonomic category / # Reads PF) * 100
Analysis Info
This app provides an overview of the analysis on the Analysis Info page.
A brief description of the metrics is below.
8
Row
Definition
Name
Name of the app session.
Application
App that generated this analysis.
Date started
Date and time the app session started.
15055860 A
Definition
Date completed
Date and time the app session completed.
Duration
Duration of analysis.
Session Type
The number of nodes used.
Size
Total size of all output files.
Status
Status of the app session.
Log Files
Clicking the Log Files link at the bottom of the Analysis Info page provides access to 16S
Metagenomics app log files. Log files are located in a folder in the Output Files section.
} Output-AppSessionID.log: shows the raw console output from Isis and
ClassifyReads
} Spacedock-AppSessionID.log: shows console output from the SpaceDock and
BaseSpace communication and input/output file staging.
16S Metagenomics Status
For single or multiple samples, the status of the 16S Metagenomics app can have the
following values:
1
Initializing
2
PendingExecution
3
Running
4
Downloading Application Container
5
Launching Isis
6
Classifying Samples
7
Calculating Statistics
8
Creating Metagenomics Report
9
Uploading Results
10 Application completed successfully
Inputs Overview
The 16S Metagenomics app provides an overview of the input samples and settings that
were specified when setting up the 16S Metagenomics run.
16S Metagenomics Output Files
The output files link provides access to the output files. See the following topics for
descriptions.
Per-Sample output:
} Summary.csv on page 10
} Txt.gz on page 10
16S Metagenomics App User Guide
9
16S Metagenomics Output
Row
} Report.pdf on page 10
} Report.html on page 10
Aggregate output:
} MetagenomicsAggregateReport.html on page 10
} MetagenomicsAggregateReport.pdf on page 10
} Aggregate_Counts.csv on page 10
Summary.csv
The summary.csv files show summarized counts of how reads were classified in the
sample. Each unique classification is a row, and the number of hits and % of total hits
are recorded for each row. Partial classifications (e.g. where a Class-level classification
was made, but not an Order-level classification) have unclassified entries left blank.
Txt.gz
The txt.gz files provide raw classifier output. Entries in the file contain the following:
} A read identifier from the input FASTQ file.
} The classification assigned to the read with a confidence value in the range 0 to 1 for
each taxonomic level of the classification.
Report.pdf
The per-sample PDF reports contain summary information about the sample, similar to
the information presented in the BaseSpace per-sample report. All statistics have the
same definitions as in the BaseSpace per-sample report. The PDF report does not contain
the interactive visualizations.
Report.html
The per-sample HTML report contains the same information as presented in the
BaseSpace per-sample report. There are some formatting differences between the
BaseSpace and standalone versions; however the statistics and results are identical.
Aggregate_Counts.csv
The aggregate counts csv files provide per-level aggregate counts for all samples. The
files are split by taxonomic level, as indicated in the file name (e.g. Class_Level_
Aggregate_Counts.csv). Each row represents a unique classification that occurred in one or
more samples. Each sample is assigned a column, labeled with the sample ID in the
header row. Entries in the table represent the number of reads with the row classification
label in the column sample.
MetagenomicsAggregateReport.pdf
The aggregate PDF report contains the same statistics tables as presented in the
BaseSpace aggregate report. Definitions and values of the statistics are identical to the
statistics reported in the BaseSpace report. The aggregate PDF report does not contain
interactive visualizations.
MetagenomicsAggregateReport.html
The aggregate HTML report contains the same information as presented in the
BaseSpace aggregate report. There are some formatting differences between the BaseSpace
and standalone versions. The statistics and results are identical.
10
15055860 A
This chapter describes the methods that are used in the 16S Metagenomics app.
Read Classification
The classification step uses ClassifyReads, a high-performance implementation of the
Ribosomal Database Project (RDP) Classifier described in Wang Q. et al., 2007
(dx.doi.org/10.1128%2FAEM.00062-07). The original RDP classifier algorithm used 8-base
words due to implementation constraints. ClassifyReads uses more efficient data
structures and is able to use 32-base words – giving each word more specificity for each
species. Below, we provide information on the classification steps used in ClassifyReads.
Word-specific Priors
Let W = { w1, w2, …, wd } be the set of all possible 32-base words. From the corpus of N
sequences, let n(wi) be the number of sequences containing subsequence wi. The wordspecific prior estimate of the likelihood of observing word wi in a sequence over the
entire corpus can be calculated with the following formula:
Taxonomic Conditional Probabilities
In the original RDP classifier, classifications were performed to the genus level. In
ClassifyReads, we have extended this behavior to the species level. In the sections below,
we denote T to represent classifications at a given taxonomic level (genus, species, or
subtype). By default, we classify at the species level.
For species T with a training set consisting of M sequences, let m(wi) be the number of
sequences containing word wi. The conditional probability that a member of T contains
wi was estimated with the equation:
The joint probability of observing from species T a partial sequence, S, containing a set of
words, V = { v 1, v 2, …, v f } (V ⊆ W), was estimated as:
Naïve Bayesian Assignment
By Bayes’ theorem, the probability that an unknown query sequence, S, is a member of
species T is:
16S Metagenomics App User Guide
11
16S Metagenomics Methods
16S Metagenomics Methods
P(T) is the prior probability of a sequence being a member of T
P(S) is the overall probability of observing sequence S (from any species).
Assuming all species are equally probable (equal priors), the constant terms P(T) and P
(S) can be ignored. We classify the sequence as a member of the genus giving the highest
probability score.
Example
Here are the results from a typical classification (results are in log space):
Methanocaldococcaceae;MethanocaldococcusP(T|S) = -367.7
Methanococcaceae;MethanothermococcusP(T|S) = -2936
Thermofilaceaen;ThermofilumP(T|S) = -2963.2
The natural log-transformed probabilities are small due to product multiplication during
the joint probability calculation. The huge difference between the best hit and the second
best hit is notable. A difference of 3 would indicate 20× higher probability for the best hit.
Here the difference is 2568.3 (i.e. 2.5 × 101115 higher probability).
Removing Taxonomic Levels
If the difference between the two best hits is small: 0.05 in log space (within 1.6× higher
probability), we prune the taxonomic levels of the best hit until it is the same as the
second best hit.
For example, consider the following results:
Bacteria;Bacteroidetes;Bacteroidia;Bacteroidales;Prevotellaceae
;Prevotella;melaninogenica - P(T|S) = -200.00
Bacteria;Bacteroidetes;Bacteroidia;Bacteroidales;Prevotellaceae
;Prevotella;histicola - P(T|S) = -200.04
In this case, the difference between the top two hits is less than 0.05. Therefore we prune
the away the taxonomic levels from the bottom (species) to the top (kingdom) until both
hits are identical. In this case, we stop pruning when we reach the Prevotella (genus)
classification.
The pruning procedure reflects that we have strong evidence that the read comes from
the Prevotella genus, but that we do not have enough evidence to deduce which species.
The removal threshold (0.05) was determined by analyzing misclassifications during
loop-back classification of the Greengenes database.
Gaining Species Level Classification
ClassifyReads uses the full Greengenes database. Some of the entries in that database are
only classified down to the genus level, while other entries are classified down to the
species and subtype level. In some instances, the top results can look like this example:
Bacteria;Bacteroidetes;Bacteroidia;Bacteroidales;Prevotellaceae
;Prevotella; - P(T|S) = -200.000
Bacteria;Bacteroidetes;Bacteroidia;Bacteroidales;Prevotellaceae
;Prevotella;histicola - P(T|S) = -200.000
Bacteria;Firmicutes;Bacilli;Gemellales;Gemellaceae;Gemella;haem
olysans - P(T|S) = -1846
12
15055860 A
Classification Confidence
The RDP classifier used a bootstrapping method of randomly subsampling the words in
the sequence to determine the classification confidence.
In ClassifyReads, we no longer perform this bootstrapping procedure. This change is
primarily due to performance reasons (bootstrapping slowed the algorithm down by 20–
50×) and weak correlation between the resulting confidence estimate and the actual
classification accuracy.
At the moment, confidence is statically assigned based on the overall accuracy of our
classification algorithm at different taxonomic levels:
Taxonomic Level
Accuracy
Kingdom
100%
Phylum
100%
Class
100%
Order
99.98%
Family
99.97%
Genus
99.65%
Species
98.24%
Taxonomic Database
The taxonomic database used is an Illumina-curated version of the May 2013 release of
the Greengenes Consortium Database (greengenes.secondgenome.com/downloads).
Here are the current statistics for that database:
Taxonomic Level
# of classifications
Kingdoms
3
Phyla
33
Classes
74
Orders
148
Families
321
Genera
1086
Species
6466
16S Metagenomics App User Guide
13
16S Metagenomics Methods
In this case, the best hit is classified down to the genus level and the second best hit is
classified down to the species level. If the difference between the two best hits is near
identical (difference less than 0.001 in log space), we use the species level classification
instead.
To get taxonomies down to the species level, we used the Greengenes SQL database files
(gg_13_5.sql.gz). Specifically our database started off with everything contained in the
Greengenes clones, isolates, and symbionts tables. From there, we apply a set of filters:
1
Filter all entries where the 16S sequence length was below 1250 bp.
2
Filter all entries that had more than 50 wobble bases (i.e. M, R, W, S, Y, K, V, H, D, B,
N)
3
Filter all entries that were only partially classified (no classification for genus or
species)
The Greengenes database had a number of classifications placed in the wrong field. i.e.
improper genus or species names, placing clone or strain IDs in the species field, etc. We
developed a program to help identify and clean up these entries.
Ambiguous epithets and classifications (sp, aff, cf, genosp, genomosp) were removed,
because they effectively mean the same thing as an empty taxonomic level.
Listeria monocytogenes (GenBank entry X56153.1), Listeria innocua (GenBank entry
FJ774235.1), and PhiX (NCBI reference sequence: NC_001422) were added to the database
to support internal research projects.
Aggregate PCoA Chart
The principal coordinates analysis (PCoA) chart in the aggregate report is generated
using classical multidimensional scaling (MDS) on normalized classification vectors for
each sample. An overview of the steps of the algorithm is presented in this section.
Normalized Classification Matrix
A normalized classification matrix is created for a range of taxonomic levels. The first
matrix includes only kingdom classifications, the second includes kingdom and phylum,
and so on, until the full range of taxonomic levels is considered in the species-level
classification matrix. These ranges correspond to the user-selectable levels in the
aggregate report.
The set of classifications present within the current range of taxonomic levels across all
samples is collected. Then a label vector is created by placing each unique classification
at a unique index in the vector. Classifications for each sample within the current
taxonomic range are collected, and unclassified classifications are discarded. A
vector is created for each sample, which is the projection of the sample classifications
within the current taxonomic range onto the label vector of all non-empty classifications
at each index. Each sample vector is then L-1 normalized by multiplying every index by
the inverse of the sum of the sample vector.
The resulting vectors form a classification matrix, in which each row represents a unique
non-empty classification present within the current taxonomic range. Each column
represents one sample L-1 normalized projection of non-empty classifications onto this
space.
Pearson Correlation Distance Matrix
Pearson correlation is calculated for each pair of L-1 normalized sample classification
vectors. A distance matrix is then calculated as 1 – r, where r is the Pearson correlation
14
15055860 A
Classical MDS
Classical MDS is performed on the distance matrix output from the previous step. The
MDS is implemented as described in steep.inrialpes.fr/~Arnaud/indexation/mds03.pdf.
Aggregate Dendrogram Chart
A per-sample classification vector is created for each sample using the same method
described in Aggregate PCoA Chart on page 14. The difference is that the current
taxonomic range is defined as genus only (only genus-level, non-empty classifications
are considered). We then calculate a Pearson Correlation Distance Matrix, as described in
Pearson Correlation Distance Matrix on page 14. Finally, we use standard UPGMA
hierarchical clustering to generate the dendrogram.
16S Metagenomics App User Guide
15
16S Metagenomics Methods
measure between two samples normalized classification vectors.
Notes
For technical assistance, contact Illumina Technical Support.
Table 1 Illumina General Contact Information
Illumina Website
Email
www.illumina.com
[email protected]
Table 2 Illumina Customer Support Telephone Numbers
Region
Contact Number
Region
North America
1.800.809.4566
Italy
Austria
0800.296575
Netherlands
Belgium
0800.81102
Norway
Denmark
80882346
Spain
Finland
0800.918363
Sweden
France
0800.911850
Switzerland
Germany
0800.180.8994
United Kingdom
Ireland
1.800.812949
Other countries
Contact Number
800.874909
0800.0223859
800.16836
900.812168
020790181
0800.563118
0800.917.0041
+44.1799.534000
Safety Data Sheets
Safety data sheets (SDSs) are available on the Illumina website at
support.illumina.com/sds.ilmn.
Product Documentation
Product documentation in PDF is available for download from the Illumina website. Go
to support.illumina.com, select a product, then click Documentation & Literature.
16S Metagenomics App User Guide
Technical Assistance
Technical Assistance
Illumina
San Diego, California 92122 U.S.A.
+1.800.809.ILMN (4566)
+1.858.202.4566 (outside North America)
[email protected]
www.illumina.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
