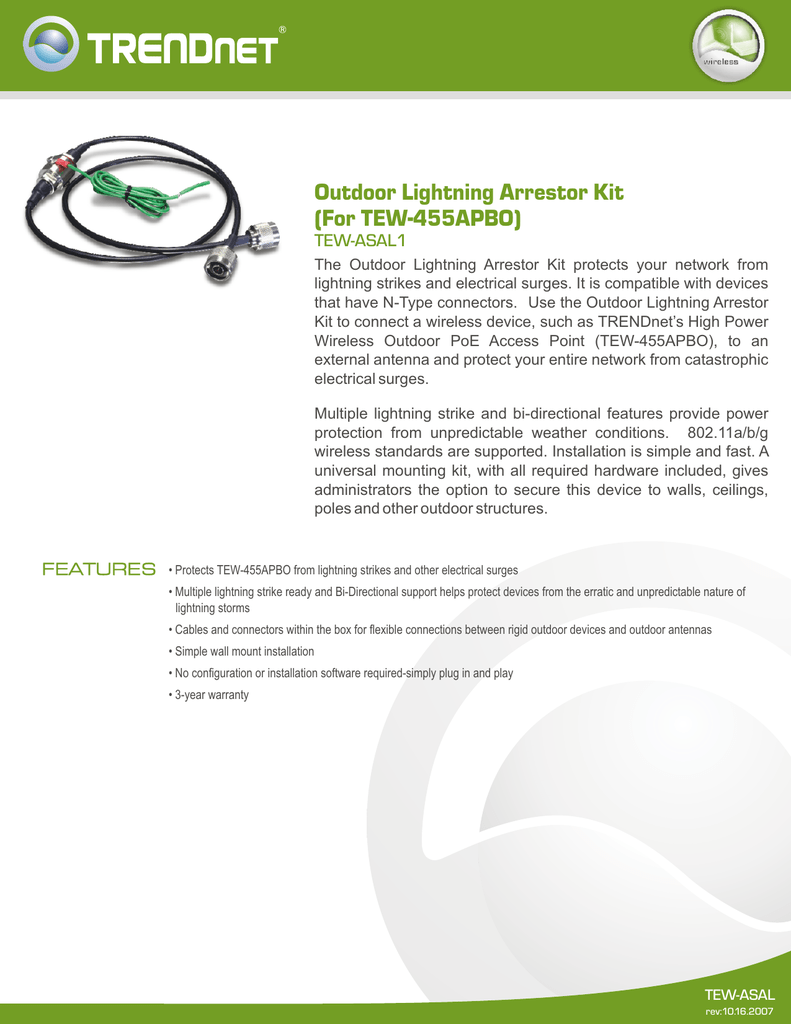

Trendnet TEW-ASAL1 Outdoor Lightning Arrestor Kit Datasheet

Outdoor Lightning Arrestor Kit
(For TEW-455APBO)
TEW-ASAL1
The Outdoor Lightning Arrestor Kit protects your network from
lightning strikes and electrical surges. It is compatible with devices
that have N-Type connectors. Use the Outdoor Lightning Arrestor
Kit to connect a wireless device, such as TRENDnet’s High Power
Wireless Outdoor PoE Access Point (TEW-455APBO), to an
external antenna and protect your entire network from catastrophic
electrical surges.
Multiple lightning strike and bi-directional features provide power
protection from unpredictable weather conditions. 802.11a/b/g
wireless standards are supported. Installation is simple and fast. A
universal mounting kit, with all required hardware included, gives
administrators the option to secure this device to walls, ceilings,
poles and other outdoor structures.
FEATURES
• Protects TEW-455APBO from lightning strikes and other electrical surges
• Multiple lightning strike ready and Bi-Directional support helps protect devices from the erratic and unpredictable nature of
lightning storms
• Cables and connectors within the box for flexible connections between rigid outdoor devices and outdoor antennas
• Simple wall mount installation
• No configuration or installation software required-simply plug in and play
• 3-year warranty
TEW-503PI (07-28-2005)
TEW-ASAL
rev:10.16.2007
Outdoor Lightning Arrestor Kit (For TEW-455APBO)
TEW-ASAL1
SPECIFICATIONS
Surge Arrestor
Electrical Specifications
Frequency Range
Tensile Strength
• DC ~ 3GHz
• 50Kg
VSWR
• 1.5:1 Max (DC-3GHz)
Insertion Loss
• 1.3dB Max (DC-3GHz)
DC Breakdown Voltage
• 90V + 20%
Impulse Discharge Voltage
• 5KA min (wave 8/20 ìs)
Impedance
• 50Ù
Insulation Resistance
• DC 50V > 10000MÙ
• 10KV min (wave 1.2/50 ìs)
Mechanical Specifications
Connector Interface
• N-Type male to N-Type male
Body Material
• Copper
Temperature
• - 20°C ~ 70°C (-4°F ~158°F)
Cable Length
• 42 inches (1.1meter)
Weight
• 230g (8oz)
• xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Grounding Wire Cable
Specification
Wire Cable
• 18 AWG
Rating Voltage
• 600V
Rating Temperature
• 105°C (221°F)
Conductor Resistance
• 6.64 MO/KFT 20°C
Insulation Resistance
Voltage Withstand Test
• 2.5 MO/KFT 20°C, in water
• 2 KV/min, in water
Extension Cable Spec
Inner Conductor (Solid BCCS)
Dielectric (Foam PE)
• 0.037 in. (0.94mm)
• 0.110 in (2.79mm)
Outer Conductor (Aluminum
Tape)
• 0.116 in (2.95mm)
Overall Braid (Tinned Copper)
Jacket (PE)
• 0.139 in (3.53mm)
• 0.195 in (4.95mm)
Bend Radius: Installation
• 0.5 in (12.7mm)
Bend Radius: Repeated
• 2.0 in (50.8mm)
Bending Moment
• 0.2 ft-Ib (0.27 N-m)
Weight
• 0.021 Ib/ft (0.03 kg/m)
Tensile Strength
• 40 Ib (18.2 kg)
Flat Plate Crush
• 15 Ib/in. (0.27 kg/mm)
Cut-off Frequency
• 41 GHz
Velocity of Propagation
• 80%
TEW-ASAL
rev:10.16.2007
Outdoor Lightning Arrestor Kit (For TEW-455APBO)
TEW-ASAL1
SPECIFICATIONS
Extension Cable Spec
Dielectric Constant
Time Delay
• 1.56
• 1.27 nS/ft (4.17 nS/m)
Impedance
Capacitance
• 50 ohms
• 25.4 pF/ft (80.3 pF/m)
Inductance
• 0.064 uH/ft (0.21 uH/m)
Shielding Effectiveness
• > 90 dB
DC Resistance (Inner Conductor)
• 7.6 ohms/1000ft (24.9 ohms/km)
DC Resistance (Outer Conductor)
• 4.9 ohms/1000ft (16.1 ohms/km)
Voltage Withstand
• 1000 Volts DC
Jacket Spark
• 3000 Volts RMS
Peak Power
• 2.5 KW
Storage Temperature range
• -70°~85° (-94°~ ~185°)
Operating Temperature range
• -40°~85° (-40°~ ~185°)
OUTDOOR ARRESTOR SOLUTION
PACKAGE CONTENTS
• TEW-ASAL1
9dBi High Power Wireless
Outdoor PoE Access Point
(TEW-455APBO)
Outdoor Lightning
Arrestor Kit
Ethernet
PoE
(TEW-ASAL1)
• Multi-language quick installation guide
• Grounding wire
• Weather proof tape
14 dBi Outdoor High-Gain
Directional Antenna
(TEW-OA14D)
10/100Mbps
Multi-Port Print Server
(TE100-P21)
PoE Power Adapter
Notebook with
PC Card
Workstation with
PCI Adapter
Printers
RELATED PRODUCTS
TEW-455APBO
19dBi High Power Outdoor PoE Access Point
TEW-AO14D
14 dBi Outdoor High-Gain Directional Antenna
TEW-AO19D
19 dBi Outdoor High-Gain Directional Antenna
TEW-AO08O
8dBi Outdoor Omni-Directional Antenna
TEW-AO10O
10dBi Outdoor Omni-Directional Antenna
