Bulletin E-90-BPI/RTD

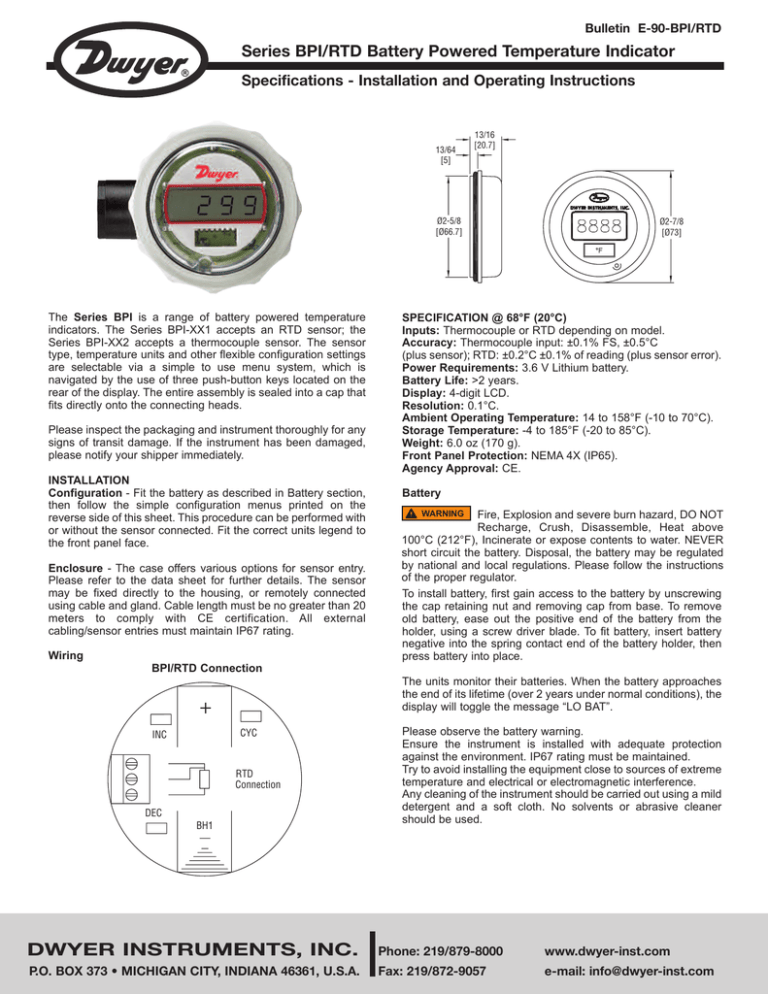

Series BPI/RTD Battery Powered Temperature Indicator
Specifications - Installation and Operating Instructions
13/64
[5]
13/16
[20.7]
Ø2-5/8
[Ø66.7]
The Series BPI is a range of battery powered temperature
indicators. The Series BPI-XX1 accepts an RTD sensor; the
Series BPI-XX2 accepts a thermocouple sensor. The sensor
type, temperature units and other flexible configuration settings
are selectable via a simple to use menu system, which is
navigated by the use of three push-button keys located on the
rear of the display. The entire assembly is sealed into a cap that
fits directly onto the connecting heads.
Please inspect the packaging and instrument thoroughly for any
signs of transit damage. If the instrument has been damaged,
please notify your shipper immediately.
INSTALLATION
Configuration - Fit the battery as described in Battery section,
then follow the simple configuration menus printed on the
reverse side of this sheet. This procedure can be performed with
or without the sensor connected. Fit the correct units legend to
the front panel face.
Enclosure - The case offers various options for sensor entry.
Please refer to the data sheet for further details. The sensor
may be fixed directly to the housing, or remotely connected
using cable and gland. Cable length must be no greater than 20
meters to comply with CE certification. All external
cabling/sensor entries must maintain IP67 rating.
Wiring
BPI/RTD Connection
SPECIFICATION @ 68°F (20°C)
Inputs: Thermocouple or RTD depending on model.
Accuracy: Thermocouple input: ±0.1% FS, ±0.5°C
(plus sensor); RTD: ±0.2°C ±0.1% of reading (plus sensor error).
Power Requirements: 3.6 V Lithium battery.
Battery Life: >2 years.
Display: 4-digit LCD.
Resolution: 0.1°C.
Ambient Operating Temperature: 14 to 158°F (-10 to 70°C).
Storage Temperature: -4 to 185°F (-20 to 85°C).
Weight: 6.0 oz (170 g).
Front Panel Protection: NEMA 4X (IP65).
Agency Approval: CE.
Battery
Fire, Explosion and severe burn hazard, DO NOT
Recharge, Crush, Disassemble, Heat above
100°C (212°F), Incinerate or expose contents to water. NEVER
short circuit the battery. Disposal, the battery may be regulated
by national and local regulations. Please follow the instructions
of the proper regulator.
To install battery, first gain access to the battery by unscrewing
the cap retaining nut and removing cap from base. To remove
old battery, ease out the positive end of the battery from the
holder, using a screw driver blade. To fit battery, insert battery
negative into the spring contact end of the battery holder, then
press battery into place.
WARNING
The units monitor their batteries. When the battery approaches
the end of its lifetime (over 2 years under normal conditions), the
display will toggle the message “LO BAT”.
+
CYC
INC
Ø2-7/8
[Ø73]
RTD
Connection
DEC
BH1
Please observe the battery warning.
Ensure the instrument is installed with adequate protection
against the environment. IP67 rating must be maintained.
Try to avoid installing the equipment close to sources of extreme
temperature and electrical or electromagnetic interference.
Any cleaning of the instrument should be carried out using a mild
detergent and a soft cloth. No solvents or abrasive cleaner
should be used.
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000
www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.
Fax: 219/872-9057
e-mail: [email protected]
MAINTENANCE
Apart from battery replacement this equipment requires no user
maintenance. If re-calibration is required please contact your
supplier for further information. Under certain circumstances, it
may be possible to re-calibrate the device while it is still out in an
application.
The Series BPI Battery Powered Temperature Indicator is not
field serviceable and should be returned if repair is needed (field
repair should not be attempted and may void warranty). Be sure
to include a brief description of the problem plus any relevant
application notes. Contact customer service to receive a return
goods authorization number before shipping.
SERIES BPI/RTD CONFIGURATION MENU GUIDE
There are three buttons, which the operator must
press in various combinations in order to configure
the device. These buttons are located on the
underside of the indicator’s circuit board. Viewed
from the front, the three buttons (CYCle
,
INCrement
and DECrement
INC
) are shown in the diagram
CYC
to the left. Pressing 2 buttons
simultaneously causes ENTer
DEC
or ESCape
actions.
When cycling around menu, the
title (e.g. TYPE, UNIT, etc.) is
displayed for a second, then the
menu entry is displayed ready for
editing. Then use INC/DEC to
move through entries in a list, or
to edit a real number.
