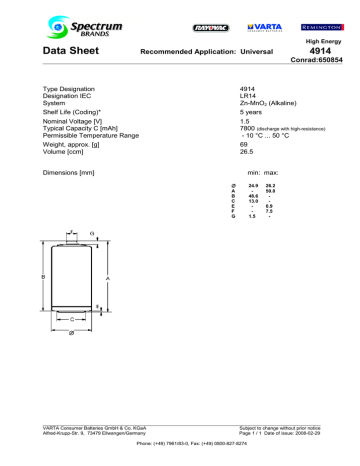

Data Sheet 4914 Recommended Application:  Universal
High Energy
Data Sheet
4914
Recommended Application: Universal
Conrad:650854
Type Designation
Designation IEC
System
4914
LR14
Zn-MnO2 (Alkaline)
Shelf Life (Coding)*
5 years
Nominal Voltage [V]
Typical Capacity C [mAh]
Permissible Temperature Range
1.5
7800 (discharge with high-resistance)
- 10 °C ... 50 °C
Weight, approx. [g]
Volume [ccm]
69
26.5
Dimensions [mm]
min: max:
24.9
48.6
13.0
1.5
∅
A
B
C
E
F
G
VARTA Consumer Batteries GmbH & Co. KGaA
Alfred-Krupp-Str. 9, 73479 Ellwangen/Germany
26.2
50.0
0.9
7.5
-
Subject to change without prior notice
Page 1 / 1 Date of issue: 2008-02-29
Phone: (+49) 7961/83-0, Fax: (+49) 0800-827-8274
