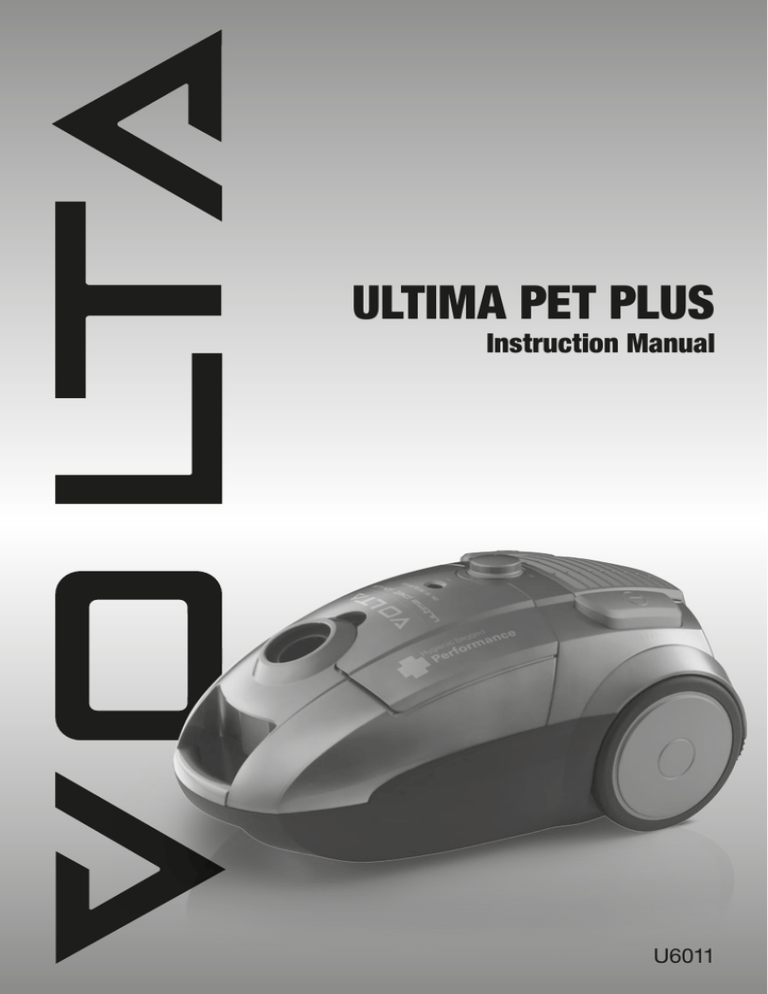

Ultima Pet Plus
Instruction Manual
U6011
IMPORTANT SAFETY INSTRUCTIONS
PARTS IDENTIFICATION
Ultima Pet Plus U6011
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
BEFORE USING (THIS APPLIANCE)
When using an electrical appliance basic
precautions should always be followed, including
the following. Before connecting the cleaner to
an electrical supply outlet, ensure that the voltage
marked on the rating plate (on the underside of
the cleaner) is correct for your electrical supply.
If it does not comply, do not use the cleaner prior
to contacting the manufacturer.
WARNING – To reduce the risk of fire, electric
shock, or injury:
1. Do not leave vacuum cleaner when
plugged in. Unplug from outlet when
not in use and before servicing.
2. To reduce the risk of electric shock, do not
use outdoors or on wet surfaces.
3. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should
be supervised to ensure that they do not play
with the appliance.
4. Use only as described in this manual. Use only
manufactures recommended attachments.
5. Do not use with damaged cord or plug. If
vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors,
or dropped in water, take it to a service centre before using.
6. Do not pull or carry on cord or use as a handle.
Do not close door on cord, or pull around
sharp edges or corners. Do not run vacuum
cleaner over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on the cord.
To unplug, grasp the plug, not the cord.
8. Do not handle the plug or vacuum cleaner
with wet hands.
9. Keep hair, loose clothing, fingers and all parts
of body away from openings and moving parts.
10. Turn all controls off before unplugging.
11. Do not use to pick up flammable or
combustible liquids, such as gasoline,
or use in areas where they may be present.
12. Do not pick up anything that is burning
or smoking, such as cigarettes, matches,
or hot ashes.
13. Do not use without dust bag and/or filter
in place.
14. Do not use extension cords or outlets with inadequate current carrying capacity.
15. We recommend you do not use your vacuum
on carpet cleaning foams, sharp or heavy
building materials or plaster dust. They could
damage or clog the dustbag and cause failures
to other key parts in your vacuum cleaner and
render your warranty invalid.
16. Store your cleaner indoors in a cool, dry area.
17. Unplug electrical appliances before
vacuuming them.
18. Please remove the plug from the socket outlet
before cleaning or maintaining this appliance.
19. If the power cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified person in order
to avoid a hazard.
SERVICE & REPAIR
It is dangerous to alter the specifications or modify
the product in any way. Under no circumstances
should you attempt to repair the cleaner yourself.
NB! To avoid injury and prevent damage to the
vacuum cleaner a defective cord must only be
replaced by an authorised service provider
approved by the manufacturer to avoid a hazard.
The vacuum cleaner should be serviced by an
authorised service provider and only genuine Volta
spare parts should be used.
Double Insulation
Your vacuum cleaner is double insulated. This
means that all external parts are electrically
insulated from the mains. This is done by placing
insulation barriers between the electrical and
mechanical components, making it unnecessary for
the cleaner to be earthed.
WARNING: On collection of proprietary carpet
conditioning powder, it is recommended that the
dust container is emptied and the cartridge filter
is cleaned after each use. Some of the preparations
contain substances which if left in the vacuum
cleaner for extended periods, could cause damage.
Many air fresheners, household deodorants, sprays
and polishes contain highly inflammable gas
propellants, because of this it is particularly
important that these products are used strictly
in accordance with the relevant manufacturers
instructions, it is essential that none of the above
products are sprayed directly into the vacuum
cleaner or any of the filters, hose assembly or
dust chamber.
1.
5
3
8
2
1
7
6
4
12
9
10
1.
2. 3. 4. 5. 6.
7. 11
8. Front over lid latch
9. Combination floor nozzle
10. Hard floor nozzle
11. Turbo pet hair nozzle
12. Dusting brush, Crevice nozzle,
Upholstery nozzle
Telescopic tube
Bent end handle
Flexible hose
Cable rewind pedal
Hose release buttons
Power control button /knob
On/off switch pedal
2.
ASSEMBLING THE VACUUM CLEANER
GETTING STARTED,
ASSEMBLING YOUR VOLTA
Always be sure to fully assemble the vacuum cleaner
before plugging it into the power outlet.
INSTRUCTIONS FOR USE / MAINTENANCE
Getting the best cleaning results
READY TO CLEAN
IMPORTANT MAINTENANCE TIPS
Your Volta is equipped with a number of different
nozzles and accessories. Read below to learn more.
Combination floor nozzle
1. Before using this appliance, unwind a sufficient
length of cable and insert the plug in to the power
outlet. A yellow mark on the power cable shows the
ideal cable length. Don’t extend the cable beyond
the red mark.
Your Volta is designed to provide efficient cleaning
performance. Be sure to follow the below simple steps
to ensure you get the best performance possible for
years to come.
2. Press the ON/OFF switch pedal to start
the appliance.
Always operate the cleaner with paper or cloth dust
bag installed. If you forget to attach the dust bag or
attach it in the wrong manner, the dust cover may
not close properly.
1. After removing the hose, open the front cover.
2. Raise the support of the bag to an upright position.
3. Remove the dust bag.
4.In case of paper bag. Replace the paper bag with
new when it is full or dust bag indicator shows red.
1.Insert flexible hose into the air intake duct on the top
of appliance. Press until it clicks into position.
To release the flexible hose, press firmly the two
release buttons on the hose sleeve and remove the
hose from the air intake duct.
Changing the bag
Ideal for cleaning both carpets and hard floor types.
When cleaning carpets, the brush strip should be in
the retracted position. Press the pedal on the top of
the nozzle. When cleaning hard floors, release the
pedal to lower the brush strip for soft cleaning.
Hard floor nozzle
Fitting the telescopic extension tube
and accessories
1. Fit the telescopic extension tube to the
bent end handle.
3. To rewind the power cable, press the rewind
pedal with one hand and guide the cable with
the other hand to ensure that it does not whip
causing damage.
Use the hard floor nozzle for larger hard floor
areas to ensure gentle, scratch free cleaning.
In case of cloth bag
Follow the above steps 1 - 3.
To open, slide the plastic clip off the bag
Empty bag and refit the plastic clip
Turbo nozzle
Note: The cloth bag may be washed in lukewarm water
and dried completely. It should not be washed
in washing machine.
4.Adjust the power control knob to regulate
the suction level as required.
2. Fit the floor nozzle to the telescopic
extension tube.
The turbo nozzle features an air driven brush roll which
makes it ideal for efficient cleaning of carpets, and is
particularly suited to removing pet hair.
Small accessories:
5.
6.
Crevice nozzle
Best used for cleaning in corners, between furniture
and tight spaces.
Upholstery nozzle
This nozzle is ideal for loose fabrics, curtains
and upholstery.
Dusting brush
For above floor cleaning of hard surfaces, such as
table tops, benches and shelves.
3.
4.
Close the cover by pressing down
until it is locked.
*Note: A cloth bag is not supplied with this product. To purchase a cloth bag, please return to the place of purchase or contact Electrolux on 1300 365 305 (Aus), 0508 730 730 (NZ).
MAINTENANCE
MAINTENANCE / TROUBLESHOOTING
CLEANING THE MOTOR FILTER
•
•
•
•
•
4. Air dry the filter for 24 hours , away from direct
sunlight before reusing it. If the filter appears
damaged it is recommended to replace with
a new filter. To purchase new filters contact
Electrolux customer service on 1300 365 305 (AUS)
or 0508 730 730 (NZ).
This filter should be cleaned at least twice a year
or when it becomes visibly dirty.
Always operate the cleaner with filter installed, otherwise reduced suction or motor damage
may result.
Disconnect from electrical outlet, before cleaning the filter.
Do not use a washing machine to rinse filter.
Do not use hair dryer to dry it.
PRECAUTIONARY MEASURES
If the suction air flow is blocked, you should switch off
the vacuum cleaner at once. First, clear the blockage
from the hose and/or telescopic extension tube before
you attempt to start the vacuum cleaner again.
1. Remove dust bag by pulling dust bag collar
frame upwards.
2. Pull the filter holder upwards.
3. Remove filter from holder.
4. Rinse filter in lukewarm water and dry the
filter completely.
5. Put back filter into the filter holder and refit.
1. Do not operate the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.
2. Before you insert the plug into the power socket, make sure your hands are dry.
CLEANING AND REPLACING THE HEPA FILTER
The HEPA filter should also be cleaned twice a year,
or when visibly dirty. This will help ensure the best
possible filtration from your Volta.
1. Open the rear hood of the vacuum cleaner and lift
out the HEPA filter.
3. Before you start using the vacuum cleaner,
please remove large or sharp objects from the
floor in order to prevent damage to the paper bag.
4. When you want to pull the plug from socket, please do this at the plug itself and not by the
electrical cable.
2. To clean the filter, cover it with a sheet of paper with
the frame facing up and tap it against a hard surface.
This will help to dislodge excessive dust and dirt
from the filter.
WARNING:
On collection of proprietary carpet conditioning
powders, plaster / concrete dust, it is recommended
that the dust bag is changed. Some of the preparations
contain substances which while
left in the vacuum cleaner for extended periods could
create damage.
Many air fresheners, household deodorants, sprays and
polishes contain highly inflammable gas propellants.
Because of this it is particularly important that these
products are used strictly in accordance with the
relevant manufacturers instructions. It is essential that
none of the above products are sprayed directly into
the vacuum cleaner or any of the filters, hose assembly
or dust chamber.
Trouble shooting and
customer information
You can perform your own troubleshooting
at home based on the checklist given below. However,
if the problem persists, please
contact Electrolux on 1300 365 305 (AUS) or
0508 730 730 (NZ)
PROBLEM
POSSIBLE CAUSES
CORRECTIONS
Vacuum cleaner does
not start.
Plug is not properly connected
to the socket.
Check the plug connection or try another socket.
Thermal protector activated due
to high temperature.
Press the On/Off button and wait 20-30 minutes
for the motor to cool down.
Dust bag is full.
Empty or replace the dust bag.
Filters are clogged.
Clean or replace filters.
Suction hose is blocked.
Clean the hose.
Nozzle is blocked.
Clean the nozzle.
Dust bag is full.
Empty or replace the dust bag.
Filters are clogged.
Clean or replace filters.
Hose is damaged or broken.
Change the hose.
Dust bag is full.
Empty or replace the dust bag.
Filters are clogged.
Clean or replace filters.
Filter indicator light
stays on.
Reduction of suction
capacity.
3. If necessary the HEPA filter can be rinsed under a
tap using lukewarm water. Always rinse the filter
with the frame facing down and never use cleaning
chemicals. Never scrub or brush the filter.
This vacuum cleaner is equipped with a cable and plug,
which rolls up on activation of the rewind pedal. If the
plug or cable is damaged, the plug and cable assembly
must be replaced by returning the product to your local
authorised Electrolux Service Provider in order to avoid
a hazard.
Over-heating.
5.
6.
KEEP THIS FOR YOUR RECORDS
To be completed by the Purchaser
Model
Serial No
Date of Purchase
Retailers Name
Retailers Address
City State
Attach Your Purchase Receipt Here
Electrolux Small Appliances
Electrolux Pty Ltd ACN 000 015 136
57 - 63 Fairchild Street, Heatherton, VIC 3202, Australia
Ph: (03) 8581 7300 Customer Service - Ph: 1300 365 305
www.electrolux.com.au
Electrolux Small Appliances
A division of Electrolux (NZ) Limited
3 - 5 Niall Burgess Road, Mt. Wellington, Auckland, New Zealand
Ph: (09) 9573 2220 Customer Service - Ph: 0508 730 730
www.electrolux.co.nz
*Some models may be limited in availability or be available from certain stores only. Not all models
and specifications are available at time of printing and not all models are available in NZ.
See your local Volta retailer or call the above phone numbers for further information if required.
*Due to the Electrolux policy of continual product development; specifications, colours and details of our
products and those mentioned in this manual are subject to change without notice.
Publication 07/2012
xxxxxxxxx
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
