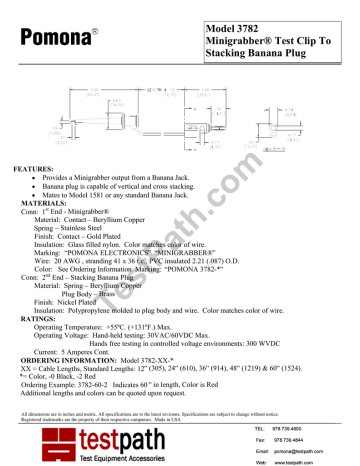

Model 3782
Minigrabber® Test Clip To
Stacking Banana Plug
Te
st
Pa
th
FEATURES:
Provides a Minigrabber output from a Banana Jack.
Banana plug is capable of vertical and cross stacking.
Mates to Model 1581 or any standard Banana Jack.
MATERIALS:
Conn: 1st End - Minigrabber®
Material: Contact Beryllium Copper
Spring Stainless Steel
Finish: Contact Gold Plated
Insulation: Glass filled nylon. Color matches color of wire.
Marking: POMONA ELECTRONICS MINIGRABBER®
Wire: 20 AWG , stranding 41 x 36 t.c., PVC insulated 2.21 (.087) O.D.
Color: See Ordering Information Marking: POMONA 3782-*
Conn: 2nd End Stacking Banana Plug
Material: Spring Beryllium Copper
Plug Body Brass
Finish: Nickel Plated
Insulation: Polypropylene molded to plug body and wire. Color matches color of wire.
RATINGS:
Operating Temperature: +55ºC. (+131ºF.) Max.
Operating Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 300 WVDC
Current: 5 Amperes Cont.
ORDERING INFORMATION: Model 3782-XX-*
XX = Cable Lengths, Standard Lengths: 12 (305), 24 (610), 36 (914), 48 (1219) & 60 (1524).
*= Color, -0 Black, -2 Red
Ordering Example: 3782-60-2 Indicates 60 in length, Color is Red
Additional lengths and colors can be quoted upon request.
All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
10/7/05 SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
Last saved by Fluke
W:\pomona\grponly\Carol Ross\D3782_1_04 Need Picture\D3782_1_04 Need Picture.doc
More drawings available at www.pomonaelectronics.com
Page 1 of 1
