Acer AcerPower 6000 User`s guide

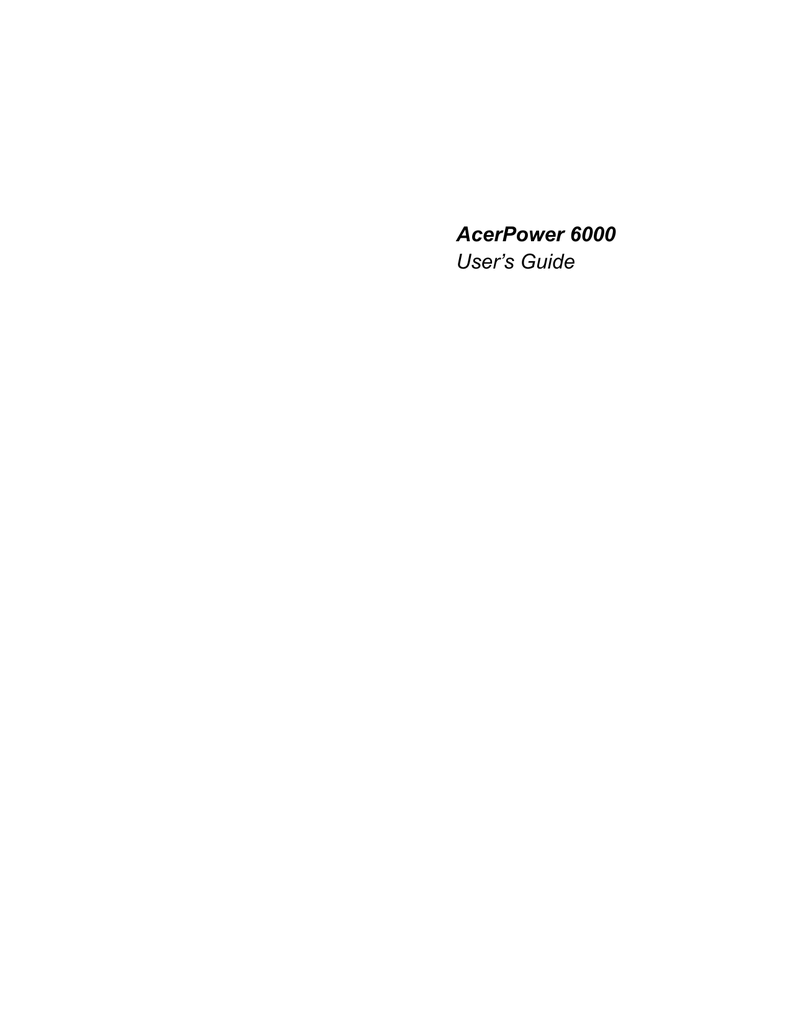

AcerPower 6000
User’s Guide
Document
History
Copyright
Notice
EDITION
PART NUMBER
First Edition
DATE
May 1998
Copyright © 1996, 1997, 1998 by Acer America Corporation. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of Acer America Corporation.
Programs Copyright © 1996, 1997, 1998 Acer America Corporation.
All rights reserved.
Printed in U.S.A
Trademarks
Acer and the Acer logo are registered trademarks of Acer Incorporated.
Intel is a registered trademark of Intel Corporation.
Windows, Windows NT, Windows 95, Windows 98, and DOS are registered trademarks of Microsoft
Corporation.
Other brand and product names are trademarks or registered trademarks of their respective holders.
Disclaimer
ii
Acer and its suppliers make no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaim any warranties of merchantability or fitness for a particular purpose.
Further, Acer reserves the right to revise this publication and to make changes from time to time in the
contents hereof without obligation to notify any person of such revisions or changes. Acer reserves the right
to make changes to the products described in this manual at any time and without notice.
AcerPower 6000 User’s Guide
Warranty/Limitation of Liability
Any software described in this manual is licensed "as is" and Acer and its suppliers disclaim any and
all warranties, express or implied, including but not limited to any warranty of non-infringement of
third party rights, merchantability or fitness for a particular purpose. Acer does not warrant that the
operation of the software will be uninterrupted or error free. Should the programs prove defective, the
buyer (and not Acer, its distributor, or its dealer) assumes the entire cost of all necessary service,
repair, and any incidental or consequential damages resulting from any defect in the software. Please
see the Acer Limited Product Warranty for details of Acer’s limited warranty on hardware products.
IN NO EVENT SHALL ACER BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES,
INCLUDING LOSS OF PROFITS OR DATA, EVEN IF ACER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Software License
Acer grants you a personal, non-transferable, non-exclusive license to use the software that
accompanies your computer system only on a single computer. You may not (a) make copies of the
software except for making one (1) backup copy of the software which will also be subject to this
license, (b) reverse engineer, decompile, disassemble, translate or create derivative works based upon
the software, (c) export or re-export the software to any person or destination which is not authorized
to receive them under the export control laws and regulations of the United States, (d) remove or alter
in any way the copyright notices, or other proprietary legends that were on the software as delivered
to you or (e) sublicense or otherwise make the software available to third parties. The software is the
property of Acer or Acer’s supplier and you do not have and shall not gain any proprietary interest in
the software (including any modifications or copies made by or for you) or any related intellectual
property rights. Additional restrictions may apply to certain software titles. Please refer to any
software licenses that accompany such software for details.
Join Us to Fight Against Piracy
The Acer Group has been implementing a policy to respect and protect legitimate intellectual property
rights. Acer firmly believes that only when each and every one of us abides by such policy, can this
industry provide quality service to the general public.
Acer has become a member of the Technology Committee of the Pacific Basin Economic Council which
is encouraging the protection and enforcement of legitimate intellectual property rights worldwide.
Moreover, in order to ensure quality service to all of our customers, Acer includes an operating system
in Acer computer systems which is duly licensed by the legitimate proprietors and produced with
quality.
Acer commits itself and urges all of its customers to join the fight against intellectual property piracy
wherever it may occur. Acer will pursue the enforcement of intellectual property rights and will strive
to fight against piracy.
iii
IMPORTANT SAFETY INSTRUCTIONS
1.
Read these instructions carefully. Save them for future reference.
2.
Follow all warnings and instructions marked on the product.
3.
Unplug this product from the wall outlet before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
4.
Do not use this product near water.
5.
Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
6.
Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it from
overheating, these openings must not be blocked or covered. This product
should never be placed near or over a radiator or heat register, or in a built-in
installation unless proper ventilation is provided.
7.
This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult your
dealer or local power company.
8.
This product is equipped with a 3-wire grounding-type plug, a plug having a
third (grounding) pin. This plug will only fit into a grounding-type power
outlet. This is a safety feature. If you are unable to insert the plug into the
outlet, contact your electrician to replace the outlet. Do not defeat the purpose
of the grounding-type plug.
9.
Do not allow anything to rest on the power cord. Do not locate this product
where persons will walk on the cord.
10. If an extension cord is used with this product, make sure that the total ampere
rating of the equipment plugged into the extension cord does not exceed the
extension cord ampere rating. Also, make sure that the total rating of all
products plugged into the wall outlet does not exceed 15 amperes.
iv
AcerPower 6000 User’s Guide
11. Never push objects of any kind into this product through cabinet slots as they
may touch dangerous voltage points or short out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the product.
12. Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing
to qualified service personnel.
13. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a.
When the power cord or plug is damaged or frayed
b.
If liquid has been spilled into the product
c.
If the product has been exposed to rain or water
d. If the product does not operate normally when the operating instructions
are followed. Adjust only those controls that are covered by the operating
instructions since improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal condition.
e.
If the product has been dropped or the cabinet has been damaged
f.
If the product exhibits a distinct change in performance, indicating a need
for service
v
14. Use only the proper type of power supply cord (provided in your
keyboard/manual accessories box) for this unit. It should be a detachable
type: UL listed/CSA certified, type SVT/SJT, rated 6A 125V minimum.
Maximum length is 15 feet (4.6 meters).
15. Replace battery with the same type as the product’s battery we recommend.
Use of another battery may present a risk of fire or explosion. Refer battery
replacement to a qualified technician.
The battery may explode if not handled properly.
Do not recharge, disassemble or dispose of in
fire. Keep away from children and dispose of
used battery promptly.
vi
AcerPower 6000 User’s Guide
FCC Class B Radio Frequency
Interference Statement
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
1.
Reorient or relocate the receiving antenna.
2.
Increase the separation between the equipment and receiver.
3.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
4.
Consult the dealer or an experienced radio/television technician for help.
Notice 1:
The changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Notice 2:
Shielded interface cables, if any, must be used in order to comply with the
emission limits.
vii
CD-ROM Safety Warning
DANGER
INVISIBLE RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
Caution on Lithium Batteries
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type recommended by the manufacturer. Discard used batteries
according to the manufacturer’s instructions.
viii
AcerPower 6000 User’s Guide
Table of Contents
Introduction
Overview .....................................................................................................................1
About This Manual ....................................................................................................2
Chapter 1 Getting Started
1.1 Preinstallation .................................................................................................1-1
1.1.1 Selecting a Site .....................................................................................1-1
1.1.2 Unpacking Components.....................................................................1-1
1.2 Features............................................................................................................1-2
1.2.1 Front Panel ...........................................................................................1-2
1.2.2 Rear Panel.............................................................................................1-3
1.3 Connecting System Components..................................................................1-4
1.3.1 Connecting the Keyboard ..................................................................1-4
1.3.2 Connecting the Monitor .....................................................................1-5
1.3.3 Connecting the Mouse........................................................................1-6
1.3.4 Connecting the Printer (Optional) ....................................................1-7
1.3.5 Complete System Connections ..........................................................1-8
1.3.6 Connecting Multimedia Components (Optional) ...........................1-9
1.3.7 Connecting the Fax/Modem (Optional) ........................................1-10
1.4 Turning On Your Computer .......................................................................1-11
1.5 Turning Off Your Computer .......................................................................1-11
1.6 Troubleshooting............................................................................................1-12
1.7 Error Messages..............................................................................................1-14
1.7.1 Software Error Messages..................................................................1-14
1.7.2 System Error Messages.....................................................................1-14
1.7.3 Correcting Error Conditions ............................................................1-17
ix
Chapter 2 System Board
2.1 Major Components .........................................................................................2-2
2.2 Layout ..............................................................................................................2-4
2.3 Jumpers and Connectors ...............................................................................2-5
2.3.1 Jumper and Connector Locations......................................................2-5
2.3.2 Jumper Settings ...................................................................................2-6
2.3.3 Onboard Connectors...........................................................................2-7
2.4 IDE Hard Disk Support .................................................................................2-8
2.5 Video Function................................................................................................2-9
2.6 Audio Function .............................................................................................2-11
2.7 USB .................................................................................................................2-12
2.8 Hardware Monitoring Function .................................................................2-12
2.9 Wake-on Ring-in Function ..........................................................................2-12
2.10 Wake-on LAN Function...............................................................................2-13
Chapter 3 BIOS Utility
3.1 Entering Setup.................................................................................................3-2
3.2 System Information ........................................................................................3-3
3.2.1 Processor...............................................................................................3-4
3.2.2 Processor Speed...................................................................................3-4
3.2.3 Internal Cache (CPU Cache) ..............................................................3-4
3.2.4 External Cache.....................................................................................3-4
3.2.5 Floppy Drive A ....................................................................................3-4
3.2.6 IDE Primary Channel Master ............................................................3-5
3.2.7 IDE Primary Channel Slave ...............................................................3-5
3.2.8 IDE Secondary Channel Master ........................................................3-5
3.2.9 IDE Secondary Channel Slave ...........................................................3-5
3.2.10 Total Memory ......................................................................................3-5
3.3 Product Information.......................................................................................3-6
x
AcerPower 6000 User’s Guide
3.3.1 Product Name......................................................................................3-7
3.3.2 System S/N ..........................................................................................3-7
3.3.3 Main Board ID .....................................................................................3-7
3.3.4 Main Board S/N..................................................................................3-7
3.3.5 System BIOS Version ..........................................................................3-7
3.3.6 DMI BIOS Version...............................................................................3-7
3.4 Disk Drives ......................................................................................................3-8
3.4.1 Floppy Drives ......................................................................................3-8
3.4.2 LS-120 drive as.....................................................................................3-9
3.4.3 IDE Drives ..........................................................................................3-10
3.5 Onboard Peripherals ....................................................................................3-14
3.5.1 Serial Port ...........................................................................................3-14
3.5.2 Parallel Port........................................................................................3-15
3.5.3 Onboard Device Settings..................................................................3-17
3.6 Power Management .....................................................................................3-19
3.6.1 Power Management Mode...............................................................3-19
3.6.2 Power Switch < 4 sec. .......................................................................3-20
3.6.3 System Wake-Up Event....................................................................3-20
3.7 Boot Options..................................................................................................3-21
3.7.1 Boot Sequence....................................................................................3-21
3.7.2 First Hard Disk Drive .......................................................................3-22
3.7.3 Primary Display Adapter.................................................................3-22
3.7.4 Fast Boot .............................................................................................3-22
3.7.5 Silent Boot ..........................................................................................3-22
3.7.6 Num Lock After Boot .......................................................................3-23
3.7.7 Memory Test ......................................................................................3-23
3.8 Date and Time...............................................................................................3-23
3.8.1 Date .....................................................................................................3-24
3.8.2 Time ....................................................................................................3-24
3.9 System Security.............................................................................................3-25
3.9.1 Setup Password .................................................................................3-25
xi
3.9.2 Power-on Password ..........................................................................3-28
3.9.3 Disk Drive Control ............................................................................3-29
3.10 Load Default Settings...................................................................................3-30
3.11 Abort Settings Change .................................................................................3-30
3.12 Exiting Setup .................................................................................................3-31
Chapter 4 Installing Optional Components
4.1 Installation Precautions..................................................................................4-1
4.1.1 ESD Precautions ..................................................................................4-1
4.1.2 Pre-installation Instructions...............................................................4-2
4.1.3 Post-installation Instructions .............................................................4-2
4.2 Removing and Replacing the Housing Cover ............................................4-3
4.2.1 Removing the Housing Cover ...........................................................4-3
4.2.2 Replacing the Housing Cover............................................................4-5
4.3 Installing and Removing Expansion Boards ...............................................4-6
4.3.1 Installing a PCI Card...........................................................................4-6
4.3.2 Installing ISA Cards............................................................................4-7
4.4 Installing Additional Memory ......................................................................4-8
4.4.1 Installing a DIMM .............................................................................4-10
4.4.2 Removing a DIMM ...........................................................................4-11
4.4.3 Reconfiguring the System ................................................................4-11
4.
Upgrading the CPU.....................................................................................4-12
4.5.1 Removing the Processor Card .........................................................4-12
4.5.2 Installing a Processor Card ..............................................................4-13
4.5.3 Installing the Celeron CPU ..............................................................4-17
4.6 Connecting USB Devices .............................................................................4-20
xii
AcerPower 6000 User’s Guide
List of Figures
1-1 Front Panel.......................................................................................................1-2
1-2 Rear Panel ........................................................................................................1-3
1-3 Connecting the Keyboard..............................................................................1-4
1-4 Connecting the Monitor.................................................................................1-5
1-5 Connecting the Mouse ...................................................................................1-6
1-6 Connecting the Parallel Printer.....................................................................1-7
1-7 Complete System Connections .....................................................................1-8
1-8 Connecting Multimedia Components..........................................................1-9
1-9 Connecting the Telephone Line and Handset to the Fax/Modem ........1-10
2-1 System Board Layout .....................................................................................2-4
2-2 Jumper and Connector Locations .................................................................2-5
4-1 Removing the ScrewsREMOVING THE SCREWS ....................................4-4
4-2 Removing the Housing Cover.......................................................................4-4
4-3 Replacing the Housing Cover .......................................................................4-5
4-4 Securing the Screws........................................................................................4-5
4-5 Installing a PCI Card ......................................................................................4-6
4-6 Installing an ISA Card....................................................................................4-8
4-7 Installing a DIMM ........................................................................................4-10
4-8 Removing a DIMM.......................................................................................4-11
4-9 Pressing the Latches .....................................................................................4-12
4-10 Removing a Processor Card ........................................................................4-13
4-11 Installing the Retention Mechanism...........................................................4-14
4-12 Removing the Taper Protector from the Fan Sink....................................4-14
4-13 Inserting the Clip Ends into the Processor Holes .....................................4-15
4-14 Locking the Metal Bracket...........................................................................4-15
4-15 Installing a Processor Card..........................................................................4-16
4-16 Locking the Processor ..................................................................................4-16
4-17 Connecting the Fan/Heatsink Cables........................................................4-17
xiii
4-18 Installing the Retention Mechanism...........................................................4-18
4-19 Attaching the Heatsink ................................................................................4-18
4-20 Installing the Celeron Processor .................................................................4-19
4-21 Connecting USB Devices .............................................................................4-20
List of Tables
1-1 System Error Messages ................................................................................1-15
2-1 Jumper Settings...............................................................................................2-6
2-2 Onboard Connectors ......................................................................................2-7
2-3 IDE Hard Disk Configuration.......................................................................2-8
2-4 Supported Video Resolutions .......................................................................2-9
3-1 Parallel Port Operation Mode Settings ......................................................3-16
3-2 Drive Control Settings..................................................................................3-29
4-1 Memory Configurations ................................................................................4-9
xiv
AcerPower 6000 User’s Guide
Conventions
The following conventions are used in this manual:
,
,
Represents the actual keys that you
have to press on the keyboard.
NOTE
Gives bits and pieces of additional
information related to the current
topic.
WARNING
Alerts you to any danger that might
result from doing or not doing
specific actions.
CAUTION
Suggests precautionary measures to
avoid potential hardware or
software problems.
IMPORTANT
Reminds you to take specific action
relevant to the accomplishment of
the procedure at hand.
TIP
Tells how to accomplish a procedure
with fewer steps through little
shortcuts.
xv
Introduction
Acer has been on the leading edge of microcomputer systems development for
both corporate and home computing needs for 20 years, as the OEM of choice for
many of the world’s leading computer companies. Acer is committed to meeting
the world’s demand for state-of-the-art computers  at the best prices.
Your AcerPower desktop configuration provides high-speed performance in a
small footprint  making it perfect for small offices or general business use.
The system board features the common functions offered by a high-performance
board. It has a power-management function that conforms to the power-saving
standards of the U.S. Environmental Protection Agency (EPA) Energy Star
program. It also supports Plug-and-Play features.
Overview
The AcerPower 6000 system supports Intel Pentium processors with MMX
(MultiMedia eXtensions) technology and the new Celeron processor. The Celeron
processor is Intel's Pentium II cost-down solution. It comes without a second-level
cache. It has two ISA and two PCI slots for future expansion. The system memory
is expandable to 256 MB via two onboard 168-pin DIMM (double in-line memory
module) sockets.
The system also features a 3-D video function with AGP (Accelerated Graphics
Port) support and a 3-D audio function.
Aside from the standard I/O (input/output) interfaces such as one serial port, one
parallel port, and PS/2 keyboard and mouse ports, the system also offers two USB
(Universal Serial Bus) ports, one VGA (Video Graphics Accelerator) port, one
Feature connector, one mono Microphone-in port, one stereo Line-in port, one
Line-out port, and one Game/MIDI (Musical Instrument Digital Interface) port.
Introduction
1
These additional ports are included to enable the system to accommodate
additional peripherals.
The system is fully compatible with MS-DOS V6.X, OS/2, SCO UNIX, Windows
NT, and Windows 95/98 operating systems.
About This Manual
This manual is divided into four chapters. A brief description of these chapters is
provided below.
Chapter 1
Getting Started
Describes the different parts of the system unit. It tells you how to select a site and
set up the basic system. It includes a simple troubleshooting section and a list of
system error messages with the corresponding corrective actions.
Chapter 2
System Board
Describes the system board and all its major components. It contains information
about the system board layout, jumper settings, jumper and connector locations
and functions.
Chapter 3
BIOS Utility
Explains the BIOS and tells how to configure the system by setting BIOS
parameters.
Chapter 4
Installing Optional Components
Describes how to remove and replace the system housing, and to install the
optional components into the housing. It gives brief instructions accompanied by
mechanical illustrations showing how to perform each described procedure.
2
AcerPower 6000 User’s Guide
Chapter 1
1.1
Getting Started
Preinstallation
The preinstallation process involves the following activities:
•
Selecting a site
•
Unpacking components
1.1.1
Selecting a Site
Consider the following when selecting a site for your computer:
•
Determine the best site for your system. Cable paths should not run near
equipment that might cause electromagnetic or radio frequency interference
such as radio transmitters, television sets, copy machines, or heating and air
conditioning equipment.
•
Route cables away from personnel and equipment traffic.
•
Avoid dusty areas and extremes of temperature and humidity.
1.1.2
Unpacking Components
Unpack the contents of each box carefully. Save all packing materials in case you
need to move or ship the system in the future.
Check that all items are present and in good condition.
immediately if anything is missing or damaged.
Contact your dealer
Chapter 1 - Getting Started
1-1
1.2
Features
The basic configuration consists of a system unit, a keyboard, a CD-ROM drive, a
diskette drive, a fixed disk drive and a mouse.
1.2.1
Front Panel
Figure 1-1 shows the system unit front panel.
1. Headphone/Earphone Port
8. System Activity LED
2. CD-ROM Tray
9. Power LED
3. Stop/Eject Button
10. Fixed Disk Drive LED
4. Skip/Forward Button
11. Power Button
5. CD-ROM LED
12. 3.5-inch Diskette Drive Eject Button
6. Increase Volume Button
13. 3.5-inch Diskette Drive
7. Decrease Volume Button
14. 3.5-inch Diskette Drive LED
Figure 1-1 Front Panel
1-2 AcerPower 6000 User’s Guide
1.2.2
Rear Panel
Figure 1-2 shows the system unit rear panel.
1. Fan
9. Parallel Port
2. System Main Power Switch
10. Monitor/VGA Port
3. Voltage Selector
11. Audio-out Port
4. System Power Socket
12. Audio-in Port
5. USB Ports
13. Game/MIDI Port
6. PS/2 Mouse Port
14. Microphone-in Port
7. PS/2 Keyboard Port
15. Add-on Card Brackets
8. Serial Port
Figure 1-2 Rear Panel
Chapter 1 - Getting Started
1-3
1.3
Connecting System Components
Do not turn on the power until you finish connecting the system components.
The following sections show how to connect each component to the system.
1.3.1
Connecting the Keyboard
Plug the keyboard cable into the keyboard socket on the rear panel. See Figure 1-3.
Figure 1-3 Connecting the Keyboard
1-4 AcerPower 6000 User’s Guide
1.3.2
Connecting the Monitor
Plug the monitor signal cable into the VGA connector on the rear panel.
Figure 1-4 Connecting the Monitor
Chapter 1 - Getting Started
1-5
1.3.3
Connecting the Mouse
Plug the mouse cable into the mouse connector on the rear panel.
Figure 1-5 Connecting the Mouse
1-6 AcerPower 6000 User’s Guide
1.3.4
Connecting the Printer (Optional)
If you have a parallel printer, connect it to the parallel port on the rear panel. See
Figure 1-6.
Figure 1-6 Connecting the Parallel Printer
If you have a serial printer or other serial
peripheral, connect it to the serial port
(COM1).
Chapter 1 - Getting Started
1-7
1.3.5
Complete System Connections
After connecting all the components, plug one end of the power supply cable into
the system power socket. Plug the other end of the power supply cable into a wall
outlet. Figure 1-7 shows the complete system connections.
Figure 1-7 Complete System Connections
1-8 AcerPower 6000 User’s Guide
1.3.6
Connecting Multimedia Components (Optional)
Your system also supports optional multimedia features. Connect multimedia
components as shown in Figure 1-8.
Figure 1-8 Connecting Multimedia Components
Chapter 1 - Getting Started
1-9
1.3.7
Connecting the Fax/Modem (Optional)
Your system also supports the optional fax/modem feature.
telephone line and handset as shown in Figure 1-9.
Connect the
Figure 1-9 Connecting the Telephone Line and Handset to the Fax/Modem
1-10 AcerPower 6000 User’s Guide
1.4
Turning On Your Computer
After you have connected all peripherals and cables, follow these steps to turn on
your computer:
1.
Turn on all peripherals connected to the system such as monitor, printer, fax,
speakers, etc.
2.
Locate the system main power switch on the back of the system unit and turn
it on.
3.
Press the power button located on the front of the system unit.
When the system finishes booting, the computer is now ready for use.
1.5
Turning Off Your Computer
1.
Turn off all peripherals connected to the system such as the monitor, printer,
fax, speakers, etc.
2.
Press the power button located on the front of the system unit for at least four
seconds. Quickly pressing the button puts the system in Suspend mode only.
You do not need to turn off the system main
power switch on the rear panel. Turn off the
system main power switch only:
•
•
if you will not use your system for a long
period of time.
if you need to open your system for
troubleshooting or upgrading purposes.
If the system main power switch is not available,
you must unplug the system.
Chapter 1 - Getting Started 1-11
1.6
Troubleshooting
If you encounter a hardware problem, review the following suggestions before
calling for service.
General Failure
•
Are all cables securely plugged in?
•
Are all system components and peripherals turned on?
•
Is the system main power switch on?
•
Is the power outlet burned out? You may check this by plugging in and
turning on some other piece of equipment.
•
Are any cables damaged? Are they properly routed and coiled? Entwined
cables may cause signal interference.
Front Panel Light Doesn't Work
•
Check inside the system unit and make sure that the front panel LED
connector is correctly plugged in (refer to section 2.3 Jumpers and Connectors).
"Garbage" or Nothing Appears on the Screen
•
Is the monitor turned on? Is the screen brightness adjusted properly?
Never open the monitor case. The CRT monitor
retains very high voltage levels, even after the
power is turned off. Refer all monitor service to
qualified service technicians.
1-12 AcerPower 6000 User’s Guide
Keyboard is Dead
•
Is the keyboard cable plugged in? Turn off the system unit and plug in the
keyboard.
Do not plug or unplug the keyboard while the
power is on.
Printer Doesn't Work
•
Is the printer power turned on?
•
Is the printer cable connected to the correct port (serial or parallel)? Is the pin
signal interface correct?
•
Are your application and the printer configured for the same operating values?
Be sure there is no conflict with any port on the add-on card.
•
Is the printer out of paper or jammed? Check the printer’s status indicator
lights.
•
Are the printer cables tangled? To prevent signal interference, neatly fold or
coil excess cable length.
Add-on Card Fails Intermittently
•
Do two add-on cards have conflicting addresses?
If You Receive an Error Message
•
Read the corrective actions in Table 1-1 in section 1.7.
Chapter 1 - Getting Started 1-13
1.7
Error Messages
In the event that you receive an error message, do not continue using the
computer. Note the message and take corrective action immediately. This section
describes the different types of error messages and suggests corrective measures.
There are two general types of error messages:
•
Software
•
System
1.7.1
Software Error Messages
Software error messages are returned by your operating system or application.
These messages typically appear after you boot the operating system or when you
run your applications. If you receive this type of message, consult your application
or operating system manual for help.
1.7.2
System Error Messages
A system error message indicates a problem with the computer itself. These
messages normally appear during the power-on self-test, before the operating
system prompt appears. Table 1-1 lists the system error messages.
1-14 AcerPower 6000 User’s Guide
Table 1-1
System Error Messages
Error Message
Corrective Action
Bad CMOS Battery
Replace battery. Contact your dealer.
CMOS Checksum
Error
Run Setup. See Chapter 3.
Floppy Drive
Controller Error
Check and connect the cable to the floppy
drive or controller.
Floppy Drive Error
Floppy may be bad. If not, check the
floppy drive and replace if necessary.
DRAM Configuration
Error
Check and modify DRAM configuration to
agree with Table 4-1.
Equipment
Configuration Error
Run Setup. See Chapter 3.
Hard Disk Controller
Error
Check and connect the cable to the hard
disk drive or controller.
Hard Disk 0 (1, 2, 3)
Auto Detection
Failed
Replace the hard disk drive controller.
Check the HDD cable connections and
CMOS setup configuration.
I/O Parity Error
Contact your dealer.
PS/2 Keyboard Error
or No Keyboard
Connected
Check and connect the keyboard to the
system unit.
PS/2 Keyboard
Interface Error
Contact your dealer.
Memory Error
Check DIMMs on the system board.
Contact your dealer.
Memory Size
Mismatch
Run Setup. See Chapter 3.
Chapter 1 - Getting Started 1-15
Table 1-1
System Error Messages (continued)
Error Message
Corrective Action
Onboard Serial 1 Conflict
Run Setup and disable Onboard Serial
1. See Chapter 3.
Onboard Serial 2 Conflict
Run Setup and disable Onboard Serial
2. See Chapter 3.
Onboard Parallel Port
Conflict
Run Setup and disable Onboard
Parallel Port. See Chapter 3.
PS/2 Pointing Device
Error
Check or connect the pointing device.
Contact your dealer.
PS/2 Pointing Device
Interface Error
Contact your dealer.
Press F1 key to continue
or Ctrl-Alt-Esc for Setup
Press
Press Esc to turn off NMI,
any key to reboot
Press
to disregard NMI error.
Press any key to reboot the system.
Protected Mode Test Fail
Contact your dealer.
RAM BIOS Error
Contact your dealer.
Real Time Clock Error
Run Setup. See Chapter 3.
Shadow RAM Fail
Contact your dealer.
System Memory Address
Error
Check DIMMs on system board or
contact your dealer.
1-16 AcerPower 6000 User’s Guide
or
.
1.7.3
Correcting Error Conditions
As a general rule, the "Press F1 to continue" error message is caused by a
configuration problem which can be easily corrected. An equipment malfunction
is more likely to cause a fatal error, i.e., an error that causes complete system
failure.
Here are some corrective measures for error conditions:
1.
Run Setup. You must know the correct configuration values for your system
before you enter Setup, which is why you should write these values down
when the system is correctly configured. An incorrect Setup configuration is a
major cause of power-on error messages, especially for a new system.
2.
Remove the system cover according to the directions in the system housing
installation guide. Check that the system board and any expansion boards are
set correctly.
3.
Check that all connectors and boards are secure. Consult the system housing
installation guide for assistance.
If you have purchased a new hard disk drive
and cannot access it, it may be because your
disk is not physically formatted. Physically
format the disk using the FDISK and
FORMAT commands.
If you follow the corrective steps above and still receive an error message, the
cause may be an equipment malfunction.
If you are sure that your configuration values are correct and your battery is in
good condition, the problem may lie in a damaged or defective chip. Contact an
authorized service center for assistance.
Chapter 1 - Getting Started 1-17
Chapter 2
System Board
This chapter describes the system board and all its major components, including:
•
Details about the system board layout
•
Jumper and connector locations and functions
•
Jumper settings
The V65MA system board supports the Intel Pentium II processor with MMX
(MultiMedia eXtensions) technology and the Celeron processor. The Pentium II
comes in a card design with 256- or 512-KB second-level cache already integrated.
The Celeron processor is Intel's Pentium II cost-down solution. It comes without
second-level cache. Both are capable of handling multimedia functions and
enhancing the performance of 32-bit applications.
The system memory is upgradable to 256 MB via the two onboard 168-pin DIMM
(Double In-line Memory Module) sockets. These sockets accommodate 8-, 16-, 32-,
64- and 128-MB DIMMs.
The board also incorporates a 3-D video controller with AGP (Accelerated
Graphics Port), 2- or 4-MB SGRAM (Synchronous Graphics Random Access
Memory), and a 3-D audio controller to fully support multimedia functions.
Onboard I/O (input/output) interfaces are comprised of a UART (Universal
Asynchronous Receiver-Transmitter) 16C550 serial port, a parallel port with SPP
(Standard Parallel Port)/ECP (Extended Capabilities Port)/EPP (Enhanced Parallel
Port) support, and PS/2 keyboard and mouse ports. Two USB (Universal Serial
Bus) ports, one VGA (Video Graphics Accelerator) port, one Feature connector, one
mono Microphone-in port, one stereo Line-in port, one Line-out port, and one
Game/MIDI (Musical Instrument Digital Interface) port are also added to the
board design to enable the system to support additional peripherals.
For expansion, the board comes with two ISA (Industry Standard Architecture)
slots and two PCI (Peripheral Component Interface) slots.
Chapter 2 - System Board
2-1
Special features such as PnP (Plug-and-Play) support, Power Management,
Wireless Communication, Hardware Monitoring, Wake-on Ring, and Wake-on
LAN (Local Area Network) functions are also supported. These functions are
individually discussed in this chapter.
The system is fully compatible with MS-DOS V6.X, OS/2, SCO UNIX, Windows
NT, and Windows 95/98 operating systems.
2.1
Major Components
The system board has the following major components:
•
A CPU (Central Processing Unit) connector that supports either of the
following:
•
Pentium II processor running at 266, 300, or 333 MHz
•
Celeron processor running at 266 MHz
•
Supports 256- or 512-KB PBSRAM (PBSRAM - Pipelined-burst Sychronous
Random Access Memory) second-level cache (incorporated in Pentium II) and
cacheless designs (0 KB for Convington processor)
•
Two DIMM sockets that accept 8-, 16-, 32-, 64-, and 128-MB Standard DRAMs,
with Parity Check or Error Correction Code (ECC) feature. These sockets
allow memory upgrade of up to 256 MB
•
PCI local bus IDE (Integrated Device Electronics) controller
•
3-D audio controller
•
AGP-compliant 3-D video graphics accelerator with 2- or 4-MB SGRAM
•
One Feature connector
•
One Wake-on LAN connector
•
One Modem ring-in connector
2-2 AcerPower 6000 User’s Guide
•
One Modem connector
•
One reserved IrDA (InfraRed Data Association) connector
•
Two PCI enhanced IDE interfaces that support up to four IDE devices
•
External ports
•
•
PS/2 keyboard and mouse ports
•
One buffered high-speed serial port
•
One SPP/ECP/EPP high-speed parallel port
•
Two USB ports
•
One standard VGA port
•
One mono Microphone-in port
•
One stereo Line-in port
•
One stereo Line-out port
•
One Game/MIDI port
Two ISA and two PCI slots (one PCI-/ISA-shared)
Chapter 2 - System Board
2-3
2.2
Layout
Figure 2-1 shows the locations of the major components on the system board.
8
7
3
1
4
5
9
6
10
13
11
14
12
1516
2
17
18
19
40
39
21
38 37
36
35
34 33 32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
USB ports
PS/2 mouse port
CPU card connector
Power connector
3-pin fan connector
2-pin fan connector
PCI, AGP, memory
controller
Battery
3-D AGP video controller
DIMM sockets
IDE1 connector
IDE2 connector
FDD connector
Power switch connector
Reset connector
25
31
16
17
18
19
20
21
22
23
24
25
26
27
30
29
2-4 AcerPower 6000 User’s Guide
22
23
26
28
Ultra I/O controller
IrDA connector
Wake-on LAN
connector
HDD LED connector
Modem ring-in
connector
3-pin power connector
Turbo/LAN LED
connector
System BIOS chip
PCI-to-ISA bridge
controller
Video memory
PCI slots
Figure 2-1 System Board Layout
24
20
27
28
29
30
31
32
33
34
35
36
37
38
39
40
ISA slots
Audio feature connector
3-D audio controller
CD line-in connector
Fax/modem connector
ATI multimedia feature
connector
Microphone-in port
Line-in port
Line-out port
Game/MIDI port
VGA port
COM1 port
Parallel port
PS/2 keyboard port
2.3
Jumpers and Connectors
2.3.1
Jumper and Connector Locations
Figure 2-2 shows the jumper and connector locations.
Figure 2-2 Jumper and Connector Locations
The shaded pin indicates pin 1.
Chapter 2 - System Board
2-5
2.3.2
Jumper Settings
To reconfigure the system, you need to set JP30 and SW1 switch jumpers. The
following table lists the possible jumper settings:
Table 2-1
Jumper Settings
Jumper
Setting
JP30
1-2
2-3
Function
VGA IRQ Assignment
*
Disabled
Enabled
SW1 Settings
Switch No.
Setting
Function
Password
1
On
Off
*
Bypass password
Check password
2
*
*
Reserved
3
4
5
6
On
Off
Off
Off
Off
On
On
Off
Off
On
Off
On
On
On
On
On
Default setting
Default setting
2-6 AcerPower 6000 User’s Guide
CPU Frequency (MHz)
233
266
300
333
2.3.3
Onboard Connectors
Table 2-2 lists the onboard connectors.
Table 2-2
Onboard Connectors
Connector
Function
CN1
20-pin power connector
CN2
USB ports
CN3
Upper: PS/2 mouse port
Lower: PS/2 keyboard port
CN4
Upper: Parallel port
Lower: VGA port (left)
COM1 port (right)
CN5
Primary IDE connector
CN6
Secondary IDE connector
CN7
Floppy disk drive connector
CN8
Upper: Game/MIDI port
Lower: (L-to-R)
Stereo line-out port
Stereo line-in port
Mono microphone-in port
CN9
ATI feature connector
CN10
Power switch connector
CN11
Reset connector
CN12/13
Fax/modem connector
CN14
CD line-in connector
CN15
IrDA connector (reserved)
Chapter 2 - System Board
2-7
Table 2-2
Onboard Connectors (continued)
Connector
Function
CN16
Wake-on LAN connector
CN17
Modem ring-in connector
CN18
HDD LED/message in connector
CN20
Audio connector
CN21
Turbo/LAN LED connector
CN22
3-pin power connector
FN1
3-pin fan connector
FN2
2-pin fan connector
JP2401
Thermal sensor connector
2.4
IDE Hard Disk Support
The board comes with an enhanced PCI IDE controller that supports PIO mode 4
and Ultra DMA (Direct Memory Access) mode data transfers. In addition, two PCI
IDE interfaces are mounted on the riser card to enable the system to support a
maximum of four IDE hard disks, or any other IDE devices. See Figure 2-2 for the
location of the IDE interfaces.
Connect the cables according to the IDE hard disk configuration in Table 2-3.
Follow the instructions in the housing installation manual on how to install a hard
disk in the system.
Table 2-3
IDE Hard Disk Configuration
IDE Connector
Master
Slave
IDE1 (CN5)
Hard disk 0
Hard disk 1
IDE2 (CN6)
Hard disk 2/
IDE CD-ROM drive
Hard disk 3
2-8 AcerPower 6000 User’s Guide
2.5
Video Function
The onboard video controller is capable not only of enhancing video display, but
supporting 3-D video applications as well. The video controller features the
Accelerated Graphics Port (AGP) design - the latest bus architecture that is
considered to be the best solution for 3-D applications. AGP offers greater
bandwidth; thus, it is capable of speeding up the VGA bus in order to meet the
requirement of 3-D applications.
The board may come with 2-MB or 4-MB video memory. Larger video memory
allows you to display higher resolutions and more colors.
The following table lists the video resolutions supported by the onboard VGA:
Table 2-4
Supported Video Resolutions
Resolution
bpp
Vertical Freq.
(Hz)
Horizontal
Freq. (KHz)
640 x 480
8/16/24/32
60
31.5
640 x 480
8/16/24/32
72
37.4
640 x 480
8/16/24/32
75
37.5
640 x 480
8/16/24/32
85
43.3
640 x 480
8/16/24/32
90
48.0
640 x 480
8/16/24/32
100
52.9
640 x 480
8/16/24/32
120
63.7
640 x 480
8/16/24/32
160
84.1
640 x 480
8/16/24/32
200
100.2
800 x 600
8/16/24/32
48
33.8
800 x 600
8/16/24/32
56
35.2
800 x 600
8/16/24/32
60
37.8
800 x 600
8/16/24/32
70
44.5
800 x 600
8/16/24/32
72
48.0
800 x 600
8/16/24/32
75
46.9
800 x 600
8/16/24/32
85
53.7
Chapter 2 - System Board
2-9
Table 2-4
Supported Video Resolutions (continued)
Resolution
bpp
Vertical Freq.
(Hz)
Horizontal
Freq. (KHz)
800 x 600
8/16/24/32
100
62.5
800 x 600
8/16/24/32
120
76.0
800 x 600
8/16/24
160
99.6
800 x 600
8/16
200
125.9
1024 x 768
8/16/24/32
43
35.5
1024 x 768
8/16/24/32
60
48.4
1024 x 768
8/16/24/32
70
56.5
1024 x 768
8/16/24/32
72
58.2
1024 x 768
8/16/24/32
75
60.0
1024 x 768
8/16/24/32
85
68.7
1024 x 768
8/16/24/32
90
76.2
1024 x 768
8/16/24/32
100
79.0
1024 x 768
8/16/24
120
96.7
1024 x 768
8/16
140
113.3
1024 x 768
8
150
120.6
1152 x 864
8/16/24/32
43
45.9
1152 x 864
8/16/24/32
47
44.9
1152 x 864
8/16/24/32
60
54.9
1152 x 864
8/16/24/32
70
66.1
1152 x 864
8/16/24/32
75
75.1
1152 x 864
8/16/24/32
80
76.4
1152 x 864
8/16/24
85
77.1
1152 x 864
8/16
100
90.2
1152 x 864
8/16
120
108.6
1280 x 1024
8/16/24
43
50.0
1280 x 1024
8/16/24
47
50.0
1280 x 1024
8/16/24
60
64.0
1280 x 1024
8/16/24
70
74.6
1280 x 1024
8/16/24
74
77.9
2-10 AcerPower 6000 User’s Guide
Table 2-4
Supported Video Resolutions (continued)
Resolution
bpp
Vertical Freq.
(Hz)
Horizontal
Freq. (KHz)
1280 x 1024
8/16/24
75
80.0
1280 x 1024
8/16
85
91.2
1280 x 1024
8/16
90
96.2
1280 x 1024
8/16
100
106.7
1600 x 1200
8/16
52
68.0
1600 x 1200
8/16
58
75.0
1600 x 1200
8/16
60
76.2
1600 x 1200
8/16
66
82.7
1600 x 1200
8/16
72
89.7
1600 x 1200
8/16
75
93.8
You may disable the onboard video function
in the BIOS Utility. For more details on
BIOS, see Chapter 3.
2.6
Audio Function
The board provides a complete 3-D audio solution via the onboard 3-D video
controller and the following audio connectors:
•
Mono microphone port
•
Stereo line-in port
•
Stereo line-out port
•
Game/MIDI port
•
CD-in connector
Chapter 2 - System Board 2-11
•
Modem connector
These connectors enable the system to accommodate external audio devices. For
instructions on how to connect the external audio devices, refer to section 1.3.6.
Connecting Multimedia Components.
2.7
USB
USB (Universal Serial Bus) is a new serial bus design that is capable of cascading
low-/medium-speed peripherals (less than 12 Mbps) such as a keyboard, mouse,
joystick, scanner, printer and modem/ISDN.
With USB, complex cable
connections at the back panel of your PC can be eliminated.
The board comes with two USB ports (CN2). See Figure 2-1 or Figure 2-2 for the
location of the ports.
2.8
Hardware Monitoring Function
The Hardware Monitoring function allows you to check the system resources,
either locally or in a computer network, by using software such as Intel LDCM
(LAN Desk Client Manager). Intel LDCM is a desktop management program that
offers the SMART (System Monitoring Analysis and Reporting Technology)
monitor function for checking local or network connected systems. In addition, it
also enables the PC products and applications to be OS (operating system)
independent.
To enable the Hardware Monitoring function, you need to install Intel LDCM.
Contact your dealer for information on the availability of the software. Refer to the
software documentation for more details on the Hardware Monitoring function.
2-12 AcerPower 6000 User’s Guide
2.9
Wake-on Ring-in Function
The Wake-on Ring-in function enables the system to resume from suspend mode
by monitoring the fax/modem (or any device of similar type) activities. Any
signal or activity detected from the Modem ring-in connector automatically returns
the system to normal operation. Refer to Figure 2-2 for the location of the Modem
ring-in connector (CN17) on the system board.
2.10 Wake-on LAN Function
The system supports the Wake-on LAN feature via the onboard Wake-on LAN
connector (CN16). This special feature allows the system to be activated via a
network. Common network functions, such as remote access, file sharing, etc. are
also supported.
Chapter 2 - System Board 2-13
Chapter 3
BIOS Utility
Most systems are already configured by the manufacturer or the dealer. There is
no need to run Setup when starting the computer unless you get a Run Setup
message.
The Setup program loads configuration values into the battery-backed nonvolatile
memory called CMOS RAM. This memory area is not part of the system RAM.
If you repeatedly receive Run Setup messages,
the battery may be bad. In this case, the system
cannot retain configuration values in CMOS. Ask
a qualified technician for assistance.
Before you run Setup, make sure that you have saved all open files. The system
reboots immediately after you exit Setup.
Chapter 3 - BIOS Utility
3-1
3.1
Entering Setup
To enter Setup, press the key combination
+
+
.
You must press
simultaneously
while the system is booting. This key combination
does not work during any other time.
The Setup Utility main menu then appears:
Setup Utility
•
•
•
•
•
•
•
•
System Information
Product Information
Disk Drives
Onboard Peripherals
Power Management
Boot Options
Date and Time
System Security
Load Default Settings
Abort Settings Change
↑↓ = Move highlight bar,
↵ = Select, Esc = Exit
The command line at the bottom of the menu tells you how to move within a
screen and from one screen to another.
•
To select an option, move the highlight bar by pressing
.
3-2 AcerPower 6000 User’s Guide
or
then press
•
Press
•
To change a parameter setting, press
found.
•
Press
press
to move to the next page or
to return to the previous page.
or
until the desired setting is
to return to the main menu. If you are already in the main menu,
again to exit Setup.
The parameters on the screens show default values. These values may not be the
same as those in your system.
The grayed items on the screens have fixed settings and are not user-configurable.
3.2
System Information
The following screen appears if you select System Information from the main
menu.
System Information
Page 1/1
Processor ........................... Pentium II
Processor Speed ..................... 333 MHz
Internal Cache (CPU Cache) .......... 32 KB, Enabled
External Cache ...................... 512 KB, Enabled
Floppy Drive A ...................... 1.44 MB, 3.5-inch
IDE Primary Channel Master .......... Hard Disk, 3909 MB
IDE Primary Channel Slave ........... None
IDE Secondary Channel Master ........ IDE CD-ROM
IDE Secondary Channel Slave ......... None
Total Memory ........................ 48 MB
1st Bank .......................... SDRAM, 16 MB
2nd Bank .......................... SDRAM, 32 MB
PgDn/PgUp = Move Screen, Esc = Back to Main Menu
Chapter 3 - BIOS Utility
3-3
The System Information menu shows the current basic configuration of your
system.
3.2.1
Processor
The Processor parameter specifies the type of processor currently installed in your
system. The system supports Pentium II and Celeron processors.
3.2.2
Processor Speed
The Processor Speed parameter specifies the speed of the processor currently
installed in your system.
3.2.3
Internal Cache (CPU Cache)
This parameter specifies the first-level or the internal memory (i.e., the memory
integrated into the CPU) size, and whether it is enabled or disabled.
3.2.4
External Cache
This parameter specifies the second-level cache memory size currently supported
by the system.
3.2.5
Floppy Drive A
This parameter specifies the system’s current floppy drive A settings.
information on how to configure the floppy drives, see section 3.4.1.
3-4 AcerPower 6000 User’s Guide
For
3.2.6
IDE Primary Channel Master
This parameter specifies the current configuration of the IDE device connected to
the master port of the primary IDE channel. For information on how to configure
the IDE devices, see section 3.4.3.
3.2.7
IDE Primary Channel Slave
This parameter specifies the current configuration of the IDE device connected to
the slave port of the primary IDE channel. For information on how to configure
the IDE devices, see section 3.4.3.
3.2.8
IDE Secondary Channel Master
This parameter specifies the current configuration of the IDE device connected to
the master port of the secondary IDE channel. For information on how to configure
the IDE devices, see section 3.4.3.
3.2.9
IDE Secondary Channel Slave
This parameter specifies the current configuration of the IDE device connected to
the slave port of the secondary IDE channel. For information on how to configure
the IDE devices, see section 3.4.3.
3.2.10 Total Memory
This parameter specifies the total amount of onboard memory. The memory size
is automatically detected by BIOS during the POST (Power-On Self Test). If you
install additional memory, the system automatically adjusts this parameter to
display the new memory size.
Chapter 3 - BIOS Utility
3-5
1st Bank
This parameter indicates the type of DRAM installed in the DIMM 1 socket. The
None setting indicates that there is no DRAM installed. For the location of the
DIMM sockets, refer to Figure 2-1.
2nd Bank
This parameter indicates the type of DRAM installed in the DIMM 2 socket. The
None setting indicates that there is no DRAM installed. For the location of the
DIMM sockets, refer to Figure 2-1.
3.3
Product Information
The screen below appears if you select Product Information from the main menu.
Product Information
Page 1/1
Product Name ...........................xxxxxxxxx
System S/N .............................xxxxxxxxx
Main Board ID ..........................xxxxxxxxx
Main Board S/N .........................xxxxxxxxx
System BIOS Version ....................vx.xx
DMI BIOS Version .......................x.x
Esc
=
Back to Main Menu
F1 = Help
The Product Information menu contains the general data about the system, such as
the product name, serial number, BIOS version, etc. This information is necessary
for troubleshooting (may be required when asking for technical support).
3-6 AcerPower 6000 User’s Guide
3.3.1
Product Name
This parameter specifies the official name of your system.
3.3.2
System S/N
This parameter specifies your system’s serial number.
3.3.3
Main Board ID
This parameter specifies your system board’s identification number.
3.3.4
Main Board S/N
This parameter specifies your system board’s serial number.
3.3.5
System BIOS Version
This parameter specifies the version of your system’s BIOS utility.
3.3.6
DMI BIOS Version
The Desktop Management Interface (DMI) BIOS allows you to check your system
hardware components without actually opening your system. Hardware checking
is done via software during start up. This parameter specifies the version of the
DMI BIOS utility installed in your system.
Chapter 3 - BIOS Utility
3-7
3.4
Disk Drives
Select Disk Drives from the main menu to configure the drives installed in your
system.
The following screen shows the Disk Drives menu:
Disk Drives
Page 1/1
Floppy Drive A ........... [xx-MB
Floppy Drive B ........... [xx-MB
xx-inch]
xx-inch]
LS-120 drive as ........... [ Normal ]
•
IDE Primary Channel Master
•
IDE Primary Channel Slave
•
IDE Secondary Channel Master
•
IDE Secondary Channel Slave
↑↓ = Move Highlight Bar
Esc = Exit
3.4.1
F1 = Help
→ ← = Change Setting,
Floppy Drives
To enter the configuration value for the first floppy drive (drive A), highlight the
Floppy Drive A parameter. Press
or
to view the options and select the
appropriate value.
Possible settings for the Floppy Drive parameters are:
•
[
•
[360 KB,
5.25-inch]
•
[1.2 MB,
5.25-inch]
None
]
3-8 AcerPower 6000 User’s Guide
•
[720 KB,
3.5-inch]
•
[1.44 MB,
3.5-inch]
•
[2.88 MB,
3.5-inch]
Follow the same procedure to configure floppy drive B. Choose None if you do not
have a second floppy drive.
3.4.2
LS-120 drive as
This parameter allows you not only to enable the LS-120 device installed in your
system, but also to specify the function of the device. The setting affects how BIOS
will detect the device.
Possible settings are:
•
Normal In this setting, BIOS does not support the LS-120 drive. The drive
needs the LS-120 device driver to operate.
•
Drive A BIOS recognizes the LS-120 drive as drive A. If a standard diskette
drive A exists, BIOS automatically identifies it as drive B. If a standard
diskette drive B exists, it automatically becomes inaccessible.
If two LS-120 drives exist, BIOS recognizes them as drive A and drive B,
respectively.
•
Drive B BIOS recognizes the LS-120 drive as drive B. If a standard diskette
drive B exists, it becomes inaccessible.
•
Hard Disk BIOS recognizes the LS-120 drive as a hard disk. In this setting,
format the LS-120 drive as any other hard disk and assign it a drive letter C, D,
E, and so on. See the documentation that came with the LS-120 drive for more
information.
Chapter 3 - BIOS Utility
3-9
3.4.3
IDE Drives
To configure the IDE drives connected to your system, select the parameter that
represents the channel and port where the desired hard disk to configure is
connected. The options are:
IDE Primary Channel Master
This parameter lets you configure the hard disk drive connected to the master port
of IDE channel 1.
IDE Primary Channel Slave
This parameter lets you configure the hard disk drive connected to the slave port
of IDE channel 1.
IDE Secondary Channel Master
This parameter lets you configure the hard disk drive connected to the master port
of IDE channel 2.
IDE Secondary Channel Slave
This parameter lets you configure the hard disk drive connected to the slave port
of IDE channel 2.
3-10 AcerPower 6000 User’s Guide
The following screen appears if you select any of the IDE Drive parameters:
IDE Primary/Secondary
Channel Master/Slave
Type ........................... [
Cylinder ..................... [
Head ......................... [
Sector ....................... [
Size ......................... [
Auto
XXXX
XXXX
XXXX
XXXX
Page 1/1
]
]
]
]
] MB
Hard Disk Size > 504MB ......... [ Auto ]
Hard Disk Block Mode ........... [ Auto ]
Advanced PIO Mode .............. [ Auto ]
Hard Disk 32 Bit Access ........ [Enabled]
DMA Transfer Mode .............. [ Auto ]
CD-ROM Drive DMA Mode .......... [Disabled]
↑↓ = Move Highlight Bar
Esc = Exit
F1 = Help
→ ← = Change Setting,
Type
This parameter lets you specify the type of hard disk installed in your system. If
you want BIOS to automatically configure your hard disk, select Auto. If you
know your hard disk type, you can enter the setting manually.
Setting this parameter also sets the Cylinder, Head, Sector, and Size parameters.
Cylinders
This parameter specifies your hard disk’s number of cylinders, and is
automatically set depending on your Type parameter setting.
Chapter 3 - BIOS Utility 3-11
Heads
This parameter specifies your hard disk’s number of heads, and is automatically
set depending on your Type parameter setting.
Sectors
This parameter specifies your hard disk’s number of sectors, and is automatically
set depending on your Type parameter setting.
Size
This parameter specifies the size of your hard disk, in MB.
Hard Disk Size > 504 MB
When set to Auto, the BIOS utility automatically detects if the installed hard disk
supports the function. If supported, it allows you to use a hard disk with a
capacity of more than 504 MB. This is made possible through the Logical Block
Address (LBA) mode translation. However, this enhanced IDE feature works only
under a DOS or Windows 3.x/95/98 environment. Other operating systems
require this parameter to be set to Disabled.
Hard Disk Block Mode
This function enhances disk performance depending on the hard disk in use. If
you set this parameter to Auto, the BIOS utility automatically detects if the
installed hard disk drive supports the Block Mode function. If supported, it allows
data transfer in block (multiple sectors) at a rate of 256 bytes per cycle. To
disregard the feature, change the setting to Disabled.
3-12 AcerPower 6000 User’s Guide
Advanced PIO Mode
When set to Auto, the BIOS utility automatically detects if the installed hard disk
supports the function. If supported, it allows for faster data recovery and
read/write timing that reduces hard disk activity time. This results in better hard
disk performance. To disregard the feature, change the setting to Disabled.
Hard Disk 32-bit Access
Enabling this parameter improves system performance by allowing the use of the
32-bit hard disk access. This enhanced IDE feature works only under DOS,
Windows 3.x/95/98, and Novell NetWare. If your software or hard disk does not
support this function, set this parameter to Disabled .
DMA Transfer Mode
The Ultra DMA and Multi-DMA modes enhance hard disk performance by
increasing the transfer rate. However, besides enabling these features in the BIOS
Setup, both the Ultra DMA and Multi-DMA modes require the DMA driver to be
loaded. By setting this parameter to Auto, BIOS automatically sets the appropriate
DMA mode for your hard disk.
CD-ROM Drive DMA Mode
Set this parameter to Enabled to enable the DMA mode for the CD-ROM drive.
This improves the system performance since it allows direct memory access to the
CD-ROM. To deactivate the function, set the parameter to Disabled .
Chapter 3 - BIOS Utility 3-13
3.5
Onboard Peripherals
The Onboard Peripherals allows you to configure the onboard devices. Selecting
this option from the main menu displays the following screen:
Onboard Peripherals
Page 1/1
Serial Port ........................ [Enabled ]
Base Address ..................... [2F8h]
IRQ .............................. [ 3 ]
Parallel Port .......................
Base Address .....................
IRQ ..............................
Operation Mode ...................
ECP DMA Channel ................
•
[Enabled ]
[378h]
[ 7 ]
[Standard]
[ - ]
Onboard Device Settings
↑↓ = Move Highlight Bar
Esc = Exit
3.5.1
F1 = Help
→ ← = Change Setting,
Serial Port
This parameter allows you to enable or disable the serial port.
Base Address
This function lets you set a logical base address for the serial port. The options are:
•
3F8h
•
2F8h
•
3E8h
•
2E8h
3-14 AcerPower 6000 User’s Guide
IRQ
This function lets you assign an interrupt for the serial port. The options are IRQ 3
and 10.
The Base Address and IRQ parameters are
configurable only if the Serial Port parameter is
enabled.
3.5.2
Parallel Port
This parameter allows you to enable or disable the parallel port.
Base Address
This function lets you set a logical base address for the parallel port. The options
are:
•
3BCh
•
378h
•
278h
IRQ
This function lets you assign an interrupt for the parallel port. The options are IRQ
5 and 7.
Chapter 3 - BIOS Utility 3-15
The Base Address and IRQ parameters are
configurable only if the Parallel Port is enabled.
If you install an add-on card that has a parallel port
whose address conflicts with the parallel port on
board, a warning message appears on the screen.
Check the parallel port address on the add-on card
and change the address to one that does not conflict.
Operation Mode
This item allows you to set the operation mode of the parallel port. Table 3-1 lists
the different operation modes.
Table 3-1
Parallel Port Operation Mode Settings
Setting
Function
Standard Parallel Port (SPP)
Allows normal speed one-way operation
Standard and Bidirectional
Allows normal speed operation in a twoway mode
Enhanced Parallel Port (EPP)
Allows bidirectional parallel port operation
at maximum speed
Extended Capabilities Port
(ECP)
Allows parallel port to operate in
bidirectional mode and at a speed higher
than the maximum data transfer rate
ECP DMA Channel
This item becomes active only if you select Extended Capabilities Port (ECP)
as the operation mode. It allows you to assign DMA channel 1 or DMA channel 3
for the ECP parallel port function (as required in Windows 95).
3-16 AcerPower 6000 User’s Guide
3.5.3
Onboard Device Settings
The Onboard Device Settings menu allows you to configure the device controllers
available onboard. Selecting this option from the Onboard Peripherals menu
displays the following screen:
Onboard Device Settings
Floppy Disk Controller ..............
IDE Controller ......................
PS/2 Mouse Controller ...............
USB Host Controller .................
USB Legacy Mode ...................
Onboard Audio Chip ..................
↑↓ = Move Highlight Bar
Esc = Exit
Page 1/1
[Enabled ]
[Both ]
[Enabled ]
[Enabled ]
[Disabled]
[Enabled ]
F1 = Help
→ ← = Change Setting,
Floppy Disk Controller
This parameter lets you enable or disable the onboard floppy disk controller.
IDE Controller
Set this parameter to Primary to enable only the primary IDE channel; Secondary
to enable only the secondary IDE channel; Both to enable both primary and
secondary IDE channels; or Disabled to disable the onboard IDE controllers.
PS/2 Mouse Controller
This parameter enables or disables the onboard PS/2 mouse controller.
Chapter 3 - BIOS Utility 3-17
USB Host Controller
This parameter lets you enable or disable the USB controller on board. When
enabled, it activates the USB function of the system. When disabled, it deactivates
the function.
USB Legacy Mode
This function, when enabled, lets you use a USB keyboard in a DOS environment.
Set this to Disabled to deactivate the USB keyboard function in DOS
environment. This parameter is configurable only if the USB Host Controller
parameter is enabled.
Onboard Audio Chip
This parameter lets you enable or disable the onboard audio controller. If you
installed an audio card into your system, you must disable this parameter for the
card to work properly.
3-18 AcerPower 6000 User’s Guide
3.6
Power Management
The Power Management menu lets you configure the system power-management
feature.
The following screen shows the Power Management parameters and their default
settings:
Power Management
Power Management Mode ..............
IDE Hard Disk Standby Timer ......
System Sleep Timer ...............
Sleep Mode .....................
Page 1/1
[Enabled ]
[10] Minute(s)
[10] Minute(s)
[Suspend]
Power Switch < 4 Sec. ............... [Suspend ]
System Wake-Up Event
Modem Ring Indicator .............. [Disabled]
↑↓ = Move Highlight Bar
Esc = Exit
3.6.1
F1 = Help
→ ← = Change Setting,
Power Management Mode
This parameter allows you to reduce power consumption. When this parameter is
set to Enabled, you can configure the IDE hard disk and system timers. Setting it
to Disabled deactivates the power-management feature and its timers.
IDE Hard Disk Standby Timer
This parameter allows the hard disk to enter standby mode after inactivity of 1 to
15 minutes, depending on your setting. When you access the hard disk again,
Chapter 3 - BIOS Utility 3-19
allow 3 to 5 seconds (depending on the hard disk) for the disk to return to normal
speed. Set this parameter to Off if your hard disk does not support this function.
System Sleep Timer
This parameter automatically puts the system to power-saving mode after a
specified period of inactivity. Any keyboard or mouse action, or any activity
detected from the IRQ channels resumes system operation.
Sleep Mode
This parameter lets you specify the power-saving mode that the system will enter
after a specified period of inactivity. The options are Standby or Suspend mode.
This parameter becomes configurable only if the System Sleep Timer is enabled.
Any keyboard or mouse action, or any enabled monitored activity occurring
through the IRQ channels resumes system operation.
3.6.2
Power Switch < 4 sec.
When set to Power Off, the system automatically turns off when the power
switch is pressed. When set to Suspend, the system enters the suspend mode.
3.6.3
System Wake-Up Event
This parameter lets you specify the activity that will resume the system to normal
operation.
Modem Ring Indicator
When Enabled, any fax/modem activity wakes the system from Sleep mode.
3-20 AcerPower 6000 User’s Guide
3.7
Boot Options
This option allows you to specify your preferred settings for bootup.
The following screen appears if you select Boot Options from the main menu:
Boot Options
Page 1/1
Boot Sequence
1st [CD-ROM]
2nd [Floppy Disk]
3rd [Hard Disk]
First Hard Disk Drive .................. [IDE]
Primary Display Adapter ................ [Onboard]
Fast Boot ..............................
Silent Boot ............................
Num Lock After Boot ....................
Memory Test ............................
↑↓ = Move Highlight Bar
Esc = Exit
3.7.1
[Auto ]
[Enabled ]
[Enabled ]
[Disabled]
F1 = Help
→ ← = Change Setting,
Boot Sequence
This parameter allows you to specify the boot search sequence. To change the
order of devices, simply press
or
.
3.7.2
First Hard Disk Drive
This parameter specifies whether the BIOS utility will boot from an IDE hard disk
drive or a SCSI hard disk drive. The system will automatically boot from an IDE
hard disk if your system does not have a SCSI hard disk drive. The default setting
is IDE.
Chapter 3 - BIOS Utility 3-21
3.7.3
Primary Display Adapter
Setting this parameter to Onboard enables the onboard video controller.
Normally, the onboard video controller is considered as the primary display
adapter. If you installed a video card into your system, set this parameter to Auto.
BIOS will automatically disable the onboard video controller and consider the
video card as the primary display adapter.
3.7.4
Fast Boot
Setting this parameter to Auto allows the system to boot faster by skipping some
POST routines. Select Disabled to return to the normal booting process.
3.7.5
Silent Boot
This parameter enables or disables the Silent Boot function. When set to Enabled,
BIOS is in graphical mode and displays only an identification logo during POST
and while booting. Then, the screen displays the operating system prompt (as in
DOS) or logo (as in Windows 95). If any error occurred while booting, the system
automatically switches to the text mode.
Even if your setting is Enabled, you may also switch to the text mode while
booting by pressing
after you hear a beep that indicates the activation of the
keyboard.
When set to Disabled, BIOS is in the conventional text mode where you see the
system initialization details on the screen.
3.7.6
Num Lock After Boot
This parameter allows you to activate the Num Lock function upon booting. The
default setting is Enabled.
3-22 AcerPower 6000 User’s Guide
3.7.7
Memory Test
When set to Enabled, this parameter allows the system to perform a RAM test
during the POST routine. When set to Disabled, the system detects only the
memory size and bypasses the test routine. The default setting is Disabled.
3.8
Date and Time
The following screen appears if you select the Date and Time option from the main
menu:
Date and Time
Date
Time
Page 1/1
..................... [WWW MM DD, YYYY]
..................... [HH:MM:SS]
↑↓ = Move Highlight Bar
Esc = Exit
F1 = Help
→ ← = Change Setting,
Chapter 3 - BIOS Utility 3-23
3.8.1
Date
Highlight the items on the Date parameter and press
following the weekday-month-day-year format.
or
to set the date
or
to set the time
Valid values for weekday, month, day, and year are:
•
Weekday
Sun, Mon, Tue, Wed, Thu, Fri, Sat
•
Month
1 to 12
•
Day
1 to 31
•
Year
1980 to 2099
3.8.2
Time
Highlight the items on the Time parameter and press
following the hour-minute-second format.
Valid values for hour, minute, and second are:
•
Hour
00 to 23
•
Minute
00 to 59
•
Second
00 to 59
3-24 AcerPower 6000 User’s Guide
3.9
System Security
The Setup program has a number of security features to prevent unauthorized
access to the system and its data.
The following screen appears if you select System Security from the main menu:
System Security
Page 1/1
Setup Password .................. [
Power-on Password ............... [
Operation Mode ............... [
None
None
Normal
]
]
]
Disk Drive Control
Floppy Drive ................. [
Hard Disk Drive .............. [
Normal
Normal
]
]
↑↓ = Move Highlight Bar
Esc = Exit
3.9.1
F1 = Help
→ ← = Change Setting,
Setup Password
The Setup Password prevents unauthorized access to the BIOS utility.
Setting a Password
1.
Make sure that switch 1 of SW1 is set to On (bypass password).
Chapter 3 - BIOS Utility 3-25
You cannot enter the BIOS utility if a Setup
password does not exist and switch 1 of SW1 is
set to Off (password check enabled).
By default, switch 1 of SW1 is set to On (bypass
password).
2.
Enter the BIOS utility and select System Security.
3.
Highlight the Setup Password parameter and press
screen appears:
or
. The following
Setup Password
Enter your new Password twice. Password
may be up to 7 characters long.
Enter Password .................. [XXXXXXX]
Enter Password again ............ [XXXXXXX]
Set or Change Password
4.
Type a password. The password may consist of up to seven characters. Then
press
.
Be very careful when typing your password
because the characters do not appear on the
screen.
5.
Retype the password then press
3-26 AcerPower 6000 User’s Guide
.
6.
After setting the password, highlight the Set or Change Password option.
7.
Press
to return to the System Security screen.
8.
Press
to return to the main menu.
9.
to exit the BIOS utility. A dialog box appears asking if you want to
Press
save the CMOS data.
10. Select Yes to save the changes and reboot the system.
11. After rebooting, turn off the system then open the housing.
12. Set switch 1 of SW1 to Off to enable the password function.
The next time you want to enter the BIOS utility, you must key-in your Setup
password.
Changing or Removing the Setup Password
Should you want to change your setup password, do the following:
1.
Enter the BIOS utility and select System Security.
2.
Highlight the Setup Password parameter and press
Password menu appears.
3.
From the Setup Password menu, highlight the Set or Change Password option.
4.
Enter a new password.
5.
Press
to return to the System Security screen.
6.
Press
to return to the main menu.
or
. The Setup
Chapter 3 - BIOS Utility 3-27
7.
Press
to exit the BIOS utility. A dialog box appears asking if you want to
save the CMOS data.
8.
Select Yes to save the changes.
To remove the password, simply select the Setup Password parameter from the
System Security menu and set it to None.
Bypassing the Setup Password
If you forget your setup password, you can bypass the password security feature
by hardware. Follow these steps to bypass the password:
1.
Turn off and unplug the system.
2.
Open the system housing and set switch 1 of SW1 to On to bypass the
password function.
3.
Turn on the system and enter the BIOS utility. This time, the system does not
require you to type in a password.
You can either change the existing Setup
password or remove it by selecting None. Refer to
the previous section for the procedure.
3.9.2
Power-on Password
The Power-on Password secures your system against unauthorized use. Once you
set this password, you have to type it whenever you boot the system. To set this
password, enter the BIOS utility, select System Security, then highlight the Poweron Password parameter. Follow the same procedure as in setting the Setup
password.
3-28 AcerPower 6000 User’s Guide
Make sure switch 1 of SW1 is set to Off to enable
the Power-on password.
Operation Mode
This function lets you enable or disable the password prompt display. When set to
Normal, the password prompt appears before system boot. When set to Keyboard
Lock, the password prompt does not appear; however, your system will not
respond to any keyboard or mouse input until you enter the correct password.
The default setting is Normal.
3.9.3
Disk Drive Control
The Disk Drive Control parameters allow you to protect the floppy drive and hard
disk data from being modified (possible under DOS mode only).
Table 3-2 lists the drive control settings and their corresponding functions.
Table 3-2
Drive Control Settings
Floppy Drive
Setting
Description
Normal
Floppy drive functions normally
Write Protect All Sectors
Disables the write function on all sectors
Write Protect Boot Sector
Disables the write function only on the boot sector
Hard Disk Drive
Setting
Description
Normal
Hard disk drive functions normally
Write Protect All Sectors
Disables the write function on all sectors
Write Protect Boot Sector
Disables the write function only on the boot sector
Chapter 3 - BIOS Utility 3-29
3.10 Load Default Settings
You need to reload the BIOS default settings every time you make changes to your
system hardware configuration (such as memory size, CPU type, hard disk type,
etc.); otherwise, BIOS will keep the previous CMOS settings. Selecting this option
displays the following dialog box:
Do you want to load default settings?
[Yes]
[No]
Choosing Yes enables BIOS to automatically detect the hardware changes that you
have made in your system. This option also allows you to restore the default
settings.
Choosing No returns you to the main menu without loading the default settings.
3.11 Abort Settings Change
Selecting the Abort Settings Change option from the main menu displays the
following dialog box:
Do you want to abort settings change?
[Yes]
[No]
Choosing Yes discards all the changes that you have made and reverts the
parameters to their previously saved settings.
3-30 AcerPower 6000 User’s Guide
Choosing No returns you to the main menu. BIOS retains all changes that you
have made.
3.12 Exiting Setup
To exit the BIOS utility, simply press
. The following dialog box appears:
Do you really want to exit SETUP?
[Yes]
[No]
Select Yes to exit Setup. Select No to return to the main menu. If you have made
changes in the parameter settings, the following dialog box appears:
Settings have been changed.
Do you want to save CMOS settings?
[Yes]
[No]
Select Yes to save your changes before you exit Setup. Select No to discard all
changes and exit Setup.
Chapter 3 - BIOS Utility 3-31
Chapter 4 Installing Optional
Components
4.1
Installation Precautions
Before you install any system component, we recommend that you read the
following sections. These sections contain important ESD precautions, pre- and
post installation instructions.
4.1.1
ESD Precautions
Electrostatic discharge (ESD) can damage your processor, disk drives, expansion
boards, and other components. Always observe the following precautions before
you install a system component:
1.
Do not remove a component from its protective packaging until you are ready
to install it.
2.
Wear a wrist grounding strap and attach it to a metal part of the system unit
before handling components. If a wrist strap is not available, maintain contact
with the system unit throughout any procedure requiring ESD protection.
Chapter 4 - Installing Optional Components
4-1
4.1.2
Pre-installation Instructions
Always observe the following before you install a system component:
1.
Turn off the system power and all the peripherals connected to the unit before
opening it. Read section 1.5 for information on how to properly turn off the
system.
2.
Open the system according to the instructions in the housing installation
manual.
3.
Follow the ESD precautions in section 4.1.1 before handling a system
component.
4.
Remove any expansion boards or peripherals that block access to the DIMM
sockets or CPU socket.
5.
See the following sections for specific instructions on the component you wish
to install.
Do not attempt the procedures described in
the following sections unless you are a
qualified service technician.
4.1.3
Post-installation Instructions
Observe the following after installing a system component:
1.
See to it that the components are installed according to the step-by-step
instructions in their respective sections.
2.
Make sure you have set all the required jumpers. See section 2.3.2 for the
correct jumper settings.
4-2 AcerPower 6000 User’s Guide
3.
Replace any expansion boards or peripherals that you removed earlier.
4.
Replace the system cover.
5.
Connect the necessary cables and turn on the system.
4.2
Removing and Replacing the Housing
Cover
Before you proceed, make sure that you
have turned off the system and all
peripherals connected to it. Read section
4.1.2 for pre-installation instructions.
This section tells you how to open the housing cover when you need to install
additional components inside the system unit.
4.2.1
Removing the Housing Cover
1.
Turn off power to the system unit and unplug all cables.
2.
Place the system unit on a flat, steady surface.
3.
Remove the four screws from the rear panel. Set the screws aside. You will
need them when replacing the housing cover.
Chapter 4 - Installing Optional Components
4-3
Figure 4-1 Removing the Screws
4.
Push the housing cover slightly backward as indicated in Figure 4-2.
5.
Pull the housing cover upward and remove it from the chassis.
Figure 4-2 Removing the Housing Cover
4-4 AcerPower 6000 User’s Guide
4.2.2
1.
Replacing the Housing Cover
Replace the housing cover as shown in Figure 4-3.
Figure 4-3 Replacing the Housing Cover
2.
Secure the housing cover with the necessary screws.
Figure 4-4 Securing the Screws
Chapter 4 - Installing Optional Components
4-5
4.3
Installing and Removing Expansion
Boards
4.3.1
Installing a PCI Card
To install a PCI card:
1.
Locate the PCI slot(s) on the slot board.
2.
Remove the bracket on the housing opposite to the empty PCI slot.
3.
Insert a PCI card into the slot. Make sure that the card is properly seated.
4.
Secure the card to the housing with a screw.
When you turn on the system, BIOS automatically detects and assigns resources to
the PCI devices.
Figure 4-5 Installing a PCI Card
4-6 AcerPower 6000 User’s Guide
4.3.2
Installing ISA Cards
Both PnP and non-PnP ISA cards require specific IRQs. When installing ISA cards,
make sure that the IRQs required by these cards are not previously assigned to PCI
devices to avoid resource conflicts.
Follow these steps when installing ISA cards:
1.
Remove all PnP cards installed in the system, if any.
2.
Install non-PnP ISA cards.
3.
Turn on the system.
4.
Use Windows 95 or ICU to manually assign the appropriate IRQs to the cards.
This ensures that BIOS will not use the resources assigned to the non-PnP ISA
cards.
BIOS detects and configures only PnP cards.
6.
Turn off the system.
7.
Locate the expansion slots and install the PnP ISA and PCI cards.
8.
Turn on the system. This time PnP BIOS automatically configures the PnP ISA
and PCI cards with the available resources.
Chapter 4 - Installing Optional Components
4-7
Figure 4-6 Installing an ISA Card
4.4
Installing Additional Memory
The system memory is upgradable to a maximum of 256 MB via two 168-pin
DIMM sockets on board. These DIMM sockets accept DRAMs with 8-, 16-, 32-, 64-,
and 128-MB capacities, 60 ns (nanoseconds) or less access time, and with ECC. See
Figure 2-1 for the location of the DIMM sockets. Section 4.4.1 tells how to install
DIMMs.
Table 4-1 lists possible memory configurations.
4-8 AcerPower 6000 User’s Guide
Table 4-1
Memory Configurations
DIMM1
DIMM2
Total Memory
8 MB
8 MB
16 MB
16 MB
32 MB
32 MB
64 MB
64 MB
128 MB
128 MB
8 MB
8 MB
16 MB
16 MB
32 MB
32 MB
64 MB
64 MB
128 MB
128 MB
8 MB
16 MB
24 MB
16 MB
32 MB
48 MB
32 MB
64 MB
96 MB
64 MB
128 MB
192 MB
8 MB
8 MB
16 MB
16 MB
16 MB
32 MB
32 MB
32 MB
64 MB
64 MB
64 MB
128 MB
128 MB
128 MB
256 MB
Chapter 4 - Installing Optional Components
4-9
4.4.1
Installing a DIMM
1.
Open the clips on the socket.
2.
Align the DIMM with the socket.
3.
Press the DIMM into the socket until the clips lock into the DIMM.
Figure 4-7 Installing a DIMM
The DIMM socket is slotted to ensure proper
installation. If you insert a DIMM but it does not fit
easily into the socket, you may have inserted it
incorrectly. Turn the DIMM around and try to insert
it again.
4-10 AcerPower 6000 User’s Guide
4.4.2
Removing a DIMM
1.
Press the holding clips on both sides of the socket outward to release the
DIMM.
2.
Gently pull the DIMM out of the socket.
Figure 4-8 Removing a DIMM
4.4.3
Reconfiguring the System
The system automatically detects the amount of memory installed. Run Setup to
view the new value for total system memory and make a note of it.
Chapter 4 - Installing Optional Components 4-11
4.5
Upgrading the CPU
The board supports a Pentium II processor or a Celeron processor. Both processors
come in a new enclosed packaging technology called S.E.C. (Single-Edge Contact)
cartridge. The only difference between the two is that the Pentium II processor
comes with 256-KB or 512-KB built-in second-level cache, while the Celeron
processor comes only with an internal cache. Both are capable of increasing the
performance of 32-bit software and multimedia applications.
4.5.1
Removing the Processor Card
Observe the ESD precautions when installing or
removing a system component. See section 4.1.1.
Before you can replace or upgrade your processor, you need to remove the
previously installed processor on the system board.
Follow these steps to remove the processor card:
1.
Press the latches on both sides of the processor to release it from the retention
mechanism. You will hear a click sound once the latch is released.
Figure 4-9 Pressing the Latches
4-12 AcerPower 6000 User’s Guide
2.
Pull the processor to totally detach it from the CPU connector.
Figure 4-10 Removing a Processor Card
4.5.2
Installing a Processor Card
Observe the ESD precautions when installing or
removing a system component. See section 4.1.1
Before you proceed, make sure that there is no processor installed in the CPU
connector.
Follow these steps to install a processor card:
1.
Place the retention mechanism over the CPU connector on the system board
and press it until it clicks into place.
Chapter 4 - Installing Optional Components 4-13
2.
Press the four rivets to secure the retention mechanism. Make sure all four
rivets are properly inserted into the holes on the system board.
Figure 4-11 Installing the Retention Mechanism
3.
Remove the processor card from its protective packaging. Make sure that the
latches on the sides of the module are not pressed.
4.
Remove the thermal tape protector at the back of the fan sink.
Figure 4-12 Removing the Tape Protector from the Fan Sink
5.
Insert the wide clip ends into the wide holes on the processor and the narrow
clip ends into the narrow holes.
4-14 AcerPower 6000 User’s Guide
Figure 4-13 Inserting the Clip Ends into the Processor Holes
6.
Using your fingers, push down the metal bracket until it clicks into the CPU
cartridge and then push the metal bracket’s handle to lock the metal bracket
into place.
Figure 4-14 Locking the Metal Bracket
7.
With the processor card golden fingers pointing downward, align the
processor to the posts of the retention mechanism.
8.
Lower the processor into to the CPU connector on the system board until the
golden fingers touch the connector.
Chapter 4 - Installing Optional Components 4-15
Figure 4-15 Installing a Processor Card
9.
Press down the processor until the golden fingers completely fit into the
connector and the latches on the sides lock the processor into place.
Figure 4-16 Locking the Processor
10. Connect the 3-pin and 2-pin fan/heatsink cables to FN1 and pins 3-4 of JP2401
on the system board, respectively.
4-16 AcerPower 6000 User’s Guide
Figure 4-17 Connecting the Fan/Heatsink Cables
The heatsink becomes very hot when the
system is on. NEVER touch the heatsink with
any metal or with your hands.
4.5.3
Installing the Celeron CPU
Observe the ESD precautions when installing or
removing a system component. See section 4.1.1
Before you proceed, make sure that there is no processor installed in the CPU
connector.
Follow these steps to install a Celeron processor:
1.
Place the retention mechanism over the CPU connector on the system board
and press it until it clicks into place.
Chapter 4 - Installing Optional Components 4-17
2.
Press the four rivets to secure the retention mechanism. Make sure all four
rivets are properly inserted into the holes on the system board.
Figure 4-18 Installing the Retention Mechanism
3.
Remove the Celeron processor from its protective packaging.
4.
Attach the heatsink on top of the Celeron processor.
5.
Align the fasteners underneath the processor card with the heatsink tabs.
6.
Press the heatsink and fasteners together to lock the heatsink.
Figure 4-19 Attaching the Heatsink
4-18 AcerPower 6000 User’s Guide
7.
Press down the processor until the golden fingers completely fit into the
connector.
8.
Snap the retention cover into place as shown in the figure below.
Figure 4-20 Installing the Celeron Processor
The heatsink becomes very hot when the
system is on. NEVER touch the heatsink with
any metal or with your hands.
Chapter 4 - Installing Optional Components 4-19
4.6
Connecting USB Devices
The USB ports on the rear panel enable the system to support additional serial
devices without using up your system resources.
To connect a USB device, simply plug the device cable into a USB port marked
on the rear panel. See the following figure:
Figure 4-21 Connecting USB Devices
Most USB devices have a built-in USB port which allows you to daisy-chain other
devices.
4-20 AcerPower 6000 User’s Guide
Index
A
abort changes
Advanced PIO Mode
AGP
audio controller
3-30
3-12
2-1
2-18
3-2
3-2
3-7
3-21
3-21
3-13
2-1
2-17
1-4, 1-8
1-10
1-4
1-5
1-6
1-9
1-7
3-16
3-2
3-31
F
3-22
3-17
3-4
H
hard disk 32-bit access
Hard Disk Block Mode
hard disk drive configuration
Hardware Monitoring function
HDD size>504MB
3-13
3-12
3-10
2-12
3-12
I
D
Date
Date and Time
Disk Drives
diskette drive configuration
display adapter
DMA Transfer Mode
ECP DMA
Enter setup
exit Setup
fast boot
floppy disk controller
floppy drive A
C
CD-ROM Drive DMA Mode
Celeron
installation
connecting components
fax/modem
keyboard
monitor
mouse
multimedia
printer
3-7
3-29
3-11
3-11
3-12
3-12
3-11
E
B
BIOS bottom command lines
BIOS main menu
BIOS version
Boot Options
boot sequence
DMI BIOS version
drive control settings
drive cylinder
drive head
drive sector
drive size
drive type
3-24
