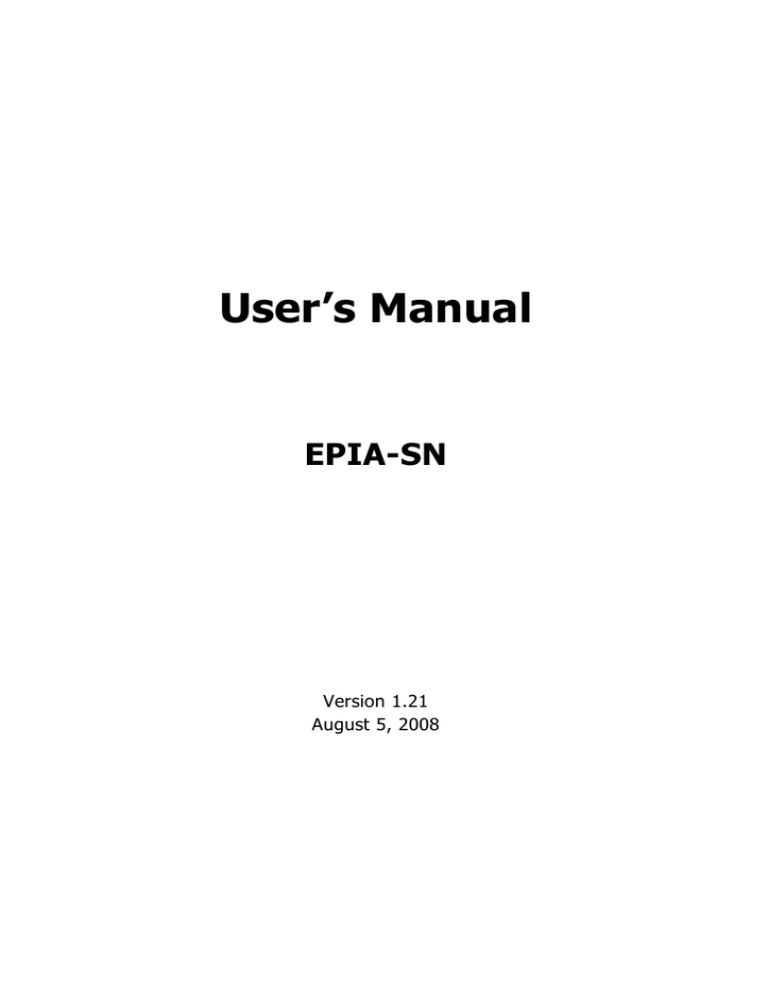

User’s Manual
EPIA-SN
Version 1.21
August 5, 2008
Copyright
Copyright © 2007-2008 VIA Technologies Incorporated. All rights reserved.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise without the prior written permission of VIA
Technologies, Incorporated.
Trademarks
All trademarks are the property of their respective holders. PS/2 is a registered trademark of
IBM Corporation.
Macrovision
Apparatus Claims of U.S. Patent Nos. 4,631,603; 4,819,098; 4,907,093; 5,315,448; 6,516,132
licensed for limited viewing uses only.
This product incorporates copyright protection
technology that is protected by certain U.S. patents and other intellectual property rights owned
by Macrovision and other rights owners. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Disclaimer
No license is granted, implied or otherwise, under any patent or patent rights of VIA
Technologies. VIA Technologies makes no warranties, implied or otherwise, in regard to this
document and to the products described in this document. The information provided in this
document is believed to be accurate and reliable as of the publication date of this document.
However, VIA Technologies assumes no responsibility for the use or misuse of the information
in this document and for any patent infringements that may arise from the use of this document.
The information and product specifications within this document are subject to change at any
time, without notice and without obligation to notify any person of such change.
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at his personal
expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the
emission limits.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Safety Instructions
1.
Always read the safety instructions carefully.
2.
Keep this User's Manual for future reference.
3.
Keep this equipment away from humidity.
4.
Lay this equipment on a reliable flat surface before setting it up.
5.
The openings on the enclosure are for air convection hence protects the equipment from
overheating. DO NOT COVER THE OPENINGS.
6.
Make sure the voltage of the power source and adjust properly 110/220V before connecting
the equipment to the power inlet.
7.
Place the power cord in such a way that people cannot step on it. Do not place anything
over the power cord.
8.
Always unplug the power cord before inserting any add-on card or module.
9.
All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening. Liquid can cause damage or electrical shock.
11. If any of the following situations arises, get the equipment checked by a service personnel:
•
The power cord or plug is damaged
•
Liquid has penetrated into the equipment
•
The equipment has been exposed to moisture
•
The equipment has not work well or you cannot get it work according to User's
Manual.
•
The equipment has dropped and damaged
•
If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, OR
IN A STORAGE TEMPERATURE ABOVE 60 oC (140 oF). THE EQUIPMENT MAY BE
DAMAGED.
Caution:
Only use the appropriate battery specified for this product.
Do not reuse, recharge, or reheat an old battery.
Do not attempt to force open the battery.
Do not discard used batteries with regular trash.
Discard used batteries according to local regulations.
BOX CONTENTS
One
One
One
One
One
VIA Mini-ITX Mainboard
ATA-133/100/66 IDE Ribbon Cable
Driver and Utilities CD
IO Bracket
Quick Installation Guide
i
TABLE OF CONTENTS
Box Contents ..................................................................................... i
Table of Contents...............................................................................ii
Chapter 1 ......................................................................................... 1
Specifications................................................................................. 1
Mainboard Specifications ................................................................ 2
Mainboard Layout .......................................................................... 4
Back Panel Layout .......................................................................... 6
Chapter 2 ......................................................................................... 7
Installation .................................................................................... 7
CPU............................................................................................... 8
Memory Module Installation ............................................................ 9
Connecting the Power Supply ........................................................10
Back Panel Ports ...........................................................................11
Connectors ...................................................................................13
Jumpers .......................................................................................21
Slots.............................................................................................25
Chapter 3 ........................................................................................27
BIOS Setup ...................................................................................27
Entering Setup ..............................................................................28
Control Keys .................................................................................29
Navigating the BIOS Menus ...........................................................30
Getting Help .................................................................................32
Main Menu....................................................................................33
Main (System Overview)................................................................35
Advanced (Advanced Settings).......................................................36
CPU Configuration .........................................................................38
IDE Configuration .........................................................................39
Primary IDE Master / IDE Slave .....................................................41
Super IO Configuration..................................................................44
Hardware Health Configuration ......................................................45
Hardware Health Configuration ......................................................45
ACPI Configuration........................................................................46
ii
General ACPI Configuration ...........................................................47
Advanced ACPI Configuration ........................................................48
Chipset ACPI Configuration ............................................................49
APM Configuration ........................................................................50
PCI Express Configuration .............................................................53
Remote Access Configuration.........................................................54
Trusted Computing........................................................................55
USB Configuration .........................................................................56
Advanced PCI/PnP Settings............................................................58
Boot Settings ................................................................................60
Boot Settings Configuration ...........................................................61
Security Settings ...........................................................................63
Advanced Chipset Settings.............................................................66
North Bridge VIA CN896 Configuration ...........................................67
AGP & P2P Bridge Configuration ....................................................68
OnChip IGP/VGA Configuration ......................................................69
South Bridge VIA VT8251 Configuration .........................................71
Exit Options ..................................................................................73
Chapter 4 ........................................................................................77
Driver Installation .........................................................................77
Driver Utilities ...............................................................................78
CD Content ...................................................................................80
iii
This page is intentionally left blank.
iv
CHAPTER 1
Specifications
The ultra-compact and highly integrated VIA EPIA-SN uses the MiniITX mainboard form-factor developed by VIA Technologies, Inc. as
part of the company’s open industry-wide total connectivity initiative.
The mainboard comes with a VIA Processor, boasting of ultra-low
power consumption, cool and quiet operation.
1
Chapter 1
MAINBOARD SPECIFICATIONS
CPU
•
VIA C7® 1.0GHz / 1.8GHz NanoBGA2 processor
Chipset
•
VIA CN896 North Bridge
•
VIA VT8251 South Bridge
Graphics
•
Integrated VIA Chrome9™ HC Integrated Graphics with 2D/3D and
Video Acceleration
Audio
•
VIA VT1708A High Definition Audio Codec
Memory
•
2 x DDR2 667/533 DIMM slot (up to 4 GB)
Expansion Slot
•
1 x 16-Lane PCI Express slot (Gen 1)
•
1 x 32-bit Mini-PCI slot
•
1 x UltraDMA 133/100/66 IDE port
IDE
Serial ATA
•
4 x S-ATA II connectors
LAN
•
VIA VT6103L 10/100 Mbps Fast Ethernet Controller
•
VIA VT6130 PCI Express Gigabit Ethernet Controller
Note:
System resources (such as BIOS, PCI, etc.) require physical memory
address locations that reduce available memory addresses above 3 GB.
This may result in less than 4 GB of memory being available to the
operating system and applications.
2
Back Panel I/O Ports
•
1 x PS2 Mouse port
•
1 x PS2 Keyboard port
•
1 x Serial port
•
2 x RJ45 LAN port
•
1 x VGA port
•
4 x USB 2.0 ports
•
3 x Audio jacks: Line-out, Line-in and MIC-in (Horizontal, Smart 5.1
supported)
Onboard I/O Connectors
•
1 x USB pin connector for 2 additional USB 2.0 ports
•
1 x LPC header
•
1 x SMBus pin connector
•
1 x Serial port pin connector (COM 2 5V/12V selectable)
•
1 x LVDS/DVI module connector (J2)
•
1 x CIR pin connector (switchable for KB/MS)
•
1 x SIR pin connector (IRDA 1.0)
•
1 x CF (Compact Flash) Type I connector (shared with IDE1)
•
1 x Front Panel pin connector
•
1 x Front –panel Audio pin connector for Line-out and MIC-in
•
1 x SPDIF out pin connector
•
1 x Digital I/O pin connector
•
2 x Fan connectors for CPU and System fans
•
1 x ATX power connector
Onboard TPM (Trust Platform Module)
•
Infineon SLB9635TT 1.2
BIOS
•
AMI BIOS with LPC 4/8Mbit flash memory capacity
Form Factor
•
Mini-ITX (6-layer)
•
17cm X 17cm
3
Chapter 1
MAINBOARD LAYOUT
4
5
Chapter 1
BACK P ANEL LAYOUT
6
CHAPTER 2
Installation
This chapter provides you with information about hardware
installation procedures. It is recommended to use a grounded wrist
strap before handling computer components. Electrostatic discharge
(ESD) can damage some components.
7
Chapter 2
CPU
The VIA EPIA-SN Mini-ITX mainboard can support VIA C7 1.0GHz / 1.8GHz
NanoBGA2 Processor. The VIA processor C7 1.8GHz requires a heatsink with
fan to provide sufficient cooling.
VT8251
CN896
VIA
C7 NanoBGA2
CPU Fan and System Fan: CPUFAN and SYSFAN
The CPUFAN (CPU fan) and SYSFAN (system fan) run on +12V and maintain
system cooling.
When connecting the wire to the connectors, always be
aware that the red wire (positive wire) should be connected to the +12V.
The black wire is Ground and should always be connected to GND.
CPUFAN
Pin
Signal
1
2
3
FANIO
+12V
GND
CPU FAN
3
2
1
VT8251
CN896
SYSFAN
Pin
Signal
1
2
3
FANIO
+12V
GND
SYS FAN
3
2
1
8
VIA
C7 NanoBGA2
Installation
MEMORY MODULE INSTALLATION
Memory Slot: DDR2 DIMM
The VIA EPIA-SN Mini-ITX mainboard provides two 240-DIMM slots for DDR2
667/533 SDRAM memory modules and supports memory sizes up to 4GB.
VT8251
CN896
VIA
C7 NanoBGA2
DDR2 DIMM slots
DDR2 SDRAM Module Installation Procedures
•
Locate the DIMM slot in the motherboard.
•
Unlock a DIMM slot by pressing the retaining clips outward.
•
Align a DIMM on the socket such that the notch on the DIMM
•
Firmly insert the DIMM into the slot until the retaining clips snap
matches the break on the slot.
back in place and the DIMM is properly seated.
Available DDR2 SDRAM Configurations
Refer to the table below for available DDR2 SDRAM configurations on the
mainboard.
Slot
Module Size
Total
DIMM1
64MB, 128MB, 256MB, 512MB, 1GB, 2GB
DIMM2
64MB, 128MB, 256MB, 512MB, 1GB, 2GB
Maximum supported system memory
9
64MB - 2GB
64MB - 2GB
64MB - 4GB
Chapter 2
CONNECTING THE POWER SUPPLY
The VIA EPIA-SN Mini-ITX mainboard supports a conventional ATX power
supply for the power system. Before inserting the power supply connector,
always make sure that all components are installed correctly to ensure that
no damage will be caused.
ATX 20-Pin Power Connector
To connect the power supply, make sure the power plug is inserted in the
proper orientation and the pins are aligned. Then push down the plug firmly
into the connector.
Pin
Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
+3.3V
+3.3V
GND
+5V
GND
+5V
GND
Power Good
+5V Standby
+12V
+3.3V
-12V
GND
Power Supply On
GND
GND
GND
-5V
+5V
+5V
VT8251
VIA
C7 NanoBGA2
CN896
ATXPWR
10
10
20
9
19
8
18
7
17
6
16
5
15
4
14
3
13
2
12
1
11
Installation
BACK P ANEL PORTS
The back panel has the following ports:
Mouse and Keyboard
The connector above is for a PS/2 mouse, and the one below is
for a PS/2 keyboard.
Serial port: COM
The 9-pin COM port is for pointing devices or other serial
devices.
VGA Port
The 15-pin female VGA connector can be used to connect
to any analog VGA monitor.
11
Chapter 2
RJ45 LAN Port and USB Connectors
The mainboard provides a standard RJ-45 (10/100
Ethernet PHY and PCIe Gigabit Ethernet) and USB
2.0 ports.
These ports allow connection to a Local
Area Network (LAN) through a network hub and USB
2.0 devices.
Audio Port
The Line-Out jack is for connecting to external
speakers or headphones.
The Line-In jack is for
connecting to an external audio device such as a CD
player, tape player, etc.
The Mic jack is for
connecting to a microphone.
Note:
The audio ports can be switched to Smart 5.1 6-channel audio output.
You can enable the function by clicking the “Vinyl Audio” icon on your
desktop after installing the audio driver.
After completing the previous installation, connect the speakers to the 3-jack
connectors on the back panel.
12
Installation
CONNECTORS
IDE Connector: IDE
The mainboard has an Ultra DMA 133/100/66 controller. You can connect up
to two IDE devices in any combination.
IDE
Pin
Signal
Pin
Signal
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
#IDE_RST
PD_7
PD_6
PD_5
PD_4
PD_3
PD_2
PD_1
PD_0
GND
#PD_REQ
#PD_IOW
#PD_IOR
#PD_RDY
#PD_ACK
PD_IRQ15
PD_A1
PD_A0
#PD_CS1
#HD_LED1
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
GND
PD_8
PD_9
PD_10
PD_11
PD_12
PD_13
PD_14
PD_15
NC
GND
GND
GND
PRIMARY
GND
NC
IDE_DMADET
PD_A2
#PD_CS3
GND
40
38
36
34
32
30
28
26
24
22
18
16
14
12
10
8
6
4
2
39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
VT8251
CN896
VIA
C7 NanoBGA2
If two drives are connected to a single cable, the jumper on the second drive
must be set to slave mode. Refer to the drive documentation supplied by the
vendor for the jumper settings.
13
Chapter 2
Serial ATA II Connectors: SATA1 up to SATA4
These next generation connectors support the right angle Serial ATA cables
for primary internal storage devices. The current Serial ATA interface allows
up to 300MB/s data transfer rate, faster than the standard parallel ATA with
133 MB/s (Ultra DMA).
VT8251
VIA
C7 NanoBGA2
CN896
SATA
4
2
3
1
USB Pin Connector: USB
The mainboard provides 4 USB pin connectors and one USB pin header
(allowing up to 2 additional USB2.0 ports). Therefore mainboard can support
up to 6 USB2.0 ports. These ports can be used to connect high-speed USB
interface peripherals such as USB HDD, digital cameras, MP3 players, printers,
and modems.
2
4
6 8 10 12
1
3
5 7 9 11
USB 4/5
Pin
Signal
Pin
Signal
1
3
5
7
9
11
VUSB4
USBD_T4USBD_T4+
GND
NC
GND
2
4
6
8
10
12
VUSB4
USBD_T5USBD_T5+
GND
W_LESS-LED
-RF_ON-GPO9
VT8251
CN896
14
VIA
C7 NanoBGA2
Installation
Case Connector: F_PANEL
The F_PANEL pin header allows you to connect the power switch, reset switch,
power LED, sleep LED, HDD LED and the case speaker.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
13
15
+5VDUAL
+5VDUAL
-PLED
+5V
NC
NC
SPEAK
Key
2
4
6
8
10
12
14
16
+5V
HD_LED
PW_BN
GND
RST_SW
GND
+5V
-SLEEP_LED
Power LED (-PLED)
The LED will light when the system is on. If the system is in S1 (POS - Power
On Suspend) or S3 (STR - Suspend To RAM) state, the LED will blink.
HDD LED (HD_LED)
HDD LED shows the activity of a hard disk drive. Avoid turning the power off when
the HDD LED is still on. Connect the HDD LED from the system case to this pin.
Power Switch (PW_BN)
Connect to a 2-pin power button switch. Pressing this button will turn the
system power on or off.
Speaker (SPEAK)
The speaker from the system case is connected to this pin.
Reset Switch (RST_SW)
The reset switch is used to reboot the system rather than turning the power
ON/OFF. Avoid rebooting the system, if the HDD is still working. Connect
the reset switch from the system case to this pin.
Sleep LED (SLEEP_LED)
The SLEEP LED is lit when the system is in the S1 (POW-Power On Suspend)
15
Chapter 2
Front Panel Audio Connector: F_AUDIO
This is an interface for the VIA front panel audio cable that allow convenient
connection and control of audio devices.
Pin
Signal
Pin
Signal
1
3
5
7
9
MIC2_IN_L
MIC2_IN_R
LIN2_OUT_R
FRONT_IO_SENSE
LIN2_OUT_L
2
4
6
8
10
AGND
GPI
MIC2_JD
NC
LIN2_JD
F_AUDIO
9 7 5 3 1
10 8 6 4 2
LPC Connector: JLPC1
This pin connector is for LPC devices.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
13
15
17
19
LAD1
-PCIRSTX
LAD0
LAD2
SERIRQ
-LDRQ1
+5V
+5V
GND
GND
2
4
6
8
10
12
14
16
18
20
LPCIF_33_CLK
GND
LPCIF_48_CLK
-LFRAME
LAD3
-EXTSMI
+3.3V
+3.3V
GND
NC
16
VT8251
CN896
VIA
C7 NanoBGA2
Installation
Digital I/O Connector: DIO1
General purpose input and output for POS systems.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
5V_DIO
GPO_1
GPO_4
GPO_6
GPO_7
GND
2
4
6
8
10
12
12V_DIO
GPI_12
GPI_13
GPI_14
GPI_8
GND
System Management Bus Connector: SMBus
This pin header allows you to connect SMBus (System Management Bus)
devices.
Devices communicate with a SMBus host and/or other SMBus
devices using the SMBus interface.
Pin
Signal
1
2
3
SMBCK
SMBDT
GND
17
Chapter 2
Fast IrDA Infrared Module Connector: SIR
This pin header is used to connect to an IrDA module.
The BIOS settings
must be configured to activate the IR function.
Pin
Signal
1
2
3
4
5
+5V
NC
IRRX
GND
IRTX
VT8251
SIR
1
CN896
VIA
C7 NanoBGA2
3
4
5
KBMS (or CIR) Connector: EXT_KBMS1
The mainboard provides a PS2 pin header to attach a PS2 keyboard and
mouse.
Pin
Signal
Pin
Signal
1
3
5
7
9
+5V
KB_CLK
EXT_KBCLK
MS_CLK
EXT_MSCLK
2
4
6
8
10
GND
KB_DATA
EXT_KBDATA
MS_DATA
EXT_MSDATA
Note:
When the pin header is not in use. Please short pin 3&5, pin 4&6, pin
7&9 and pin 8&10.
18
Installation
Serial Port Connector: COM2
COM2 pin header can be used to attach additional port for serial mouse or
other serial devices.
Pin
Signal
Pin
Signal
1
3
5
7
9
DCD
SOUT
GND
RTS
RI
2
4
6
8
10
SIN
DTR
DSR
CTS
Key
VT8251
VIA
C7 NanoBGA2
CN896
9
7 5 3 1
COM2
10 8 6 4 2
Digital Audio Connector: SPDIF1
This connector is for connecting the Sony Philips Digital Interface (S/PDIF)
bracket.
The S/PDIF output provides digital audio to external speakers or
compressed AC3 data to an external Dolby Digital Decoder. The feature is
available only with stereo system that has digital output function.
Pin
Signal
1
2
3
+5V
SPDIF_OOT
GND
19
Chapter 2
LVDS/DVI Panel Connector: J2
This connector works the interface to multi display devices. An additional
daughter cards is required for a certain display support. Daughter cards for
LVDS and DVI are currently available respectively.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
+12V
+12V
+12V
GND
+3.3V
+3.3V
NC
DVP2D0
DVP2D2
DVP2D4
GND
DVP2D6
DVP2D8
DVP2D10
GND
DVP2DE
DVP2VS
DVP2HS
GND
SPD1
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
+5V
+5V
+5V
GND
GND
NC
DVP2D1
DVP2D3
DVP2D5
GND
DVP2D9
DVP2D7
DVP2D11
GND
DVP2CLK
GND
ENVDD-2
ENVBLD-2
-PCIRSTX
SPCLK1
20
Installation
JUMPERS
The mainboard provides jumpers for setting some mainboard functions. This
section will explain how to change the settings of the mainboard functions
using the jumpers.
Clear CMOS Connector: CLEAR_CMOS
The onboard CMOS RAM stores system configuration data and has an
onboard battery power supply. To reset the CMOS settings, set the jumper
on pins 1 and 2 while the system is off. Return the jumper to pins 2 and 3
afterwards.
Setting the jumper while the system is on will damage the
mainboard.
Setting
1
2
3
Normal Operation
Clear CMOS setting
ON
OFF
ON
ON
OFF
ON
Caution:
Except when clearing the RTC RAM, never remove the cap on
CLEAR_CMOS jumper default position. Removing the cap will cause
system boot failure. Avoid clearing the CMOS while the system is on; it
will damage the mainboard.
21
Chapter 2
MS_CF_SEL
This jumper determines the working state of the CF connector. The default
value is Master.
Setting
1
2
3
Slave
Master
ON
OFF
ON
ON
OFF
ON
VT8251
MS_CF_SEL
Slave
CN896
1 2 3
VIA
C7 NanoBGA2
Master
1 2 3
Voltage Selector for the CF Connector: V_CF_SEL
This VCC selector jumper is to determine the input voltage of the CF
connector. The default value is +3.3V.
Setting
1
2
3
+3.3V
+5V
ON
OFF
ON
ON
OFF
ON
VT8251
V_CF_SEL
+3.3V
1 2 3
+5V
1 2 3
22
CN896
VIA
C7 NanoBGA2
Installation
Voltage Selector for COM Connectors: JCOMV2
This VCC selector is to determine the input voltage of each COM connector.
Setting
1
2
3
+5V
+12V
ON
OFF
ON
ON
OFF
ON
ROM Write Protection: WP
This jumper allows you to protect from flashing the BIOS.
Protection setting: pin1 = WP#, pin2 = GND, short 1-2.
23
ROM Write
Chapter 2
INTRUDER
This pin connector is for chassis intrusion switch connector. This is not
a default function supported by BIOS.
Pin
Signal
1
2
INTRUDER
GND
Wireless LED1: JWLESS-LED1
This pin connector is for the LED indicator of VIA VT6656 wireless LAN USB
module.
Pin
Signal
1
2
+3.3V
W_LESS_LED
VT8251
JWLESS-LED1
2 1
CN896
24
VIA
C7 NanoBGA2
Installation
SLOTS
Mini Peripheral Component Interconnect: MiniPCI
The MiniPCI slot allows you to insert a MiniPCI expansion card. First unplug
the power supply before adding or removing expansion cards.
Read the
documentation for the expansion card to see if any changes to the system are
necessary.
PCI Interrupt Request Routing
The IRQ (interrupt request line) are hardware lines over which devices can
send interrupt signals to the microprocessor. The “PCI & LAN” IRQ pins are
typically connected to the PCI bus INT A# ~ INT D# pins as follows:
MiniPCI Slot
Order 1
Order 2
Order 3
Order 4
INT B#
INT C#
INT D#
INT A#
25
Chapter 2
Compact Flash Type I Connector: CF
This CF connector allows you to connect to a passive 50-pin Type I adapter.
PCI Express: PCIe x16
The PCI Express slot allows you to insert a PCI Express x16 graphics
expansion card.
First unplug the power supply before adding or removing
expansion cards. Read the documentation for the expansion card to see if
any changes to the system are necessary.
26
CHAPTER 3
BIOS Setup
This chapter gives a detailed explanation of the BIOS setup functions.
27
Chapter 3
ENTERING SETUP
Power on the computer and press <Delete> during the beginning of the boot
sequence to enter the BIOS setup menu. If you missed the BIOS setup entry
point, you may restart the system and try again.
28
BIOS Setup
CONTROL KEYS
Keys
Description
Move to the previous item
Move to the next item
Move to the item in the left side
Move to the item in the right side
Select the item or field
Enter
Esc
Exit from sub-menu. And discard changes and exit
setup
Select the item or field
Tab
Increase the numeric value or make changes
-
Decrease the numeric value or make changes
F1
General help, only for Status Page Setup Menu and
Option Page Setup Menu
F8
Load the default CMOS value from Fail-Safe default
table
F7
F9
F10
Discard all changes
Load Optimized defaults
Save all the configuration changes and exit
29
Chapter 3
NAVIGATING THE BIOS MENUS
The main menu displays all the BIOS setup categories.
Use the Left/Right
and Up/Down arrow keys to select any item or sub-menu. Description of the
selected/highlighted category is displayed at the bottom of the screen.
30
BIOS Setup
An arrow symbol next to a field indicates that a sub-menu is available (see
figure below).
Press <Enter> to display the sub-menu.
menu, press <Esc>.
31
To exit the sub-
Chapter 3
GETTING HELP
The BIOS setup program provides a “General Help” screen. You can display
this screen from any menu/sub-menu by pressing <F1>.
The help screen
displays the keys for using and navigating the BIOS setup. Press <Esc> to
exit from sub-menu, and discard changes and exit setup.
32
BIOS Setup
MAIN MENU
The Main Menu contains six setup functions and one exit choice. Use the
“left/right” arrow keys to select the main menu categories and press the
“up/down” arrow keys to select items. Press “Enter” to accept or enter a submenu.
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
System Overview
AMIBIOS
Version
Build Date
ID
Chipset
Exit
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
: 001 (TEST)
: 08/08/07
: 1ADTQ001
Use [+] or [-] to
configure system
Time.
Processor
VIA C7 Processor 1000MHz
Speed
: 1000MHz
Count
:1
System Memory
Size
: 256MB
System Memory
System Date
[ 16: 22:03 ]
[ Wed 08/08/2007 ]
+Tab
F1
F10
ESC
Select Screen
Select Item
Change Field
Select Field
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Main (System Overview)
Use this menu to set basic system configurations.
Advanced (Advanced Settings)
Use this menu to configure your system and set the advanced BIOS features.
PCIPnP (Advanced PCI/PnP Settings)
Use this menu to set the PCI and PnP configurations.
Boot (Boot Settings)
Use this menu to set the boot setting configuration and device priority.
Security (Security Settings)
Use this menu to configure the security features.
33
Chapter 3
Chipset (Advanced Chipset Settings)
Use this menu to set specific chipset feature and optimize system
performance.
Exit (Exit Options)
Use this menu option to load BIOS default setting, save BIOS setting changes,
discard BIOS setting changes and exit setup.
34
BIOS Setup
MAIN (SYSTEM OVERVIEW)
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
System Overview
AMIBIOS
Version
Build Date
ID
Chipset
Exit
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
: 001 (TEST)
: 08/08/07
: 1ADTQ001
Use [+] or [-] to
configure system
Time.
Processor
VIA C7 Processor 1000MHz
Speed
: 1000MHz
Count
:1
System Memory
Size
: 256MB
System Memory
System Date
[ 16: 22:03 ]
[ Fri 08/08/2007 ]
+Tab
F1
F10
ESC
Select Screen
Select Item
Change Field
Select Field
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
AMIBIOS
Show the BIOS version, build date and ID.
Processor
Show the total number, type, speed of VIA processor used in the system.
System Memory
Total memory size used in the system.
System Time
The time format is [Hour : Minute : Second]
System Date
The date format is [Day, Month : Date Year]
35
Chapter 3
ADVANCED (ADVANCED SETTINGS)
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Advanced Settings
Chipset
Exit
Configure CPU.
WARNING: Setting wrong values in below sections may
cause system to malfunction.
CPU Configuration
IDE Configuration
Super IO Configuration
Hardware Health Configuration
ACPI Configuration
APM Configuration
PCI Express Configuration
Remote Access Configuration
Trusted Computing
USB Configuration
Enter
F1
F10
ESC
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
CPU Configuration
Configure the processor.
IDE Configuration
Configure the IDE (Integrated Drive Electronics) devices.
Super IO Configuration
Configure Super IO chipset.
Hardware Health Configuration
Configure/monitor the hardware health.
ACPI Configuration
Section for Advanced ACPI Configuration.
APM Configuration
Section for Advanced Power Management (AMP) Configuration.
PCI Express Configuration
Configure PCI Express.
36
BIOS Setup
Remote Access Configuration
Configure Remote Access.
Trusted Computing
Configure settings related to Trusted Computing innovations.
USB Configuration
Configure USB (Universal Serial Bus) supports.
37
Chapter 3
CPU CONFIGURATION
BIOS SETUP UTILITY
Advanced
If you want to install
Windows NT 4.0 you must
disable it.
Configure advanced CPU settings
Module Version : 3F.00
Manufacturer : VIA
VIA C7 Processor 1000 MHz
Frequency
: 1.00 GHz
FSB Speed
: 400 MHz
Cache L1
: 128 KB
Cache L2
: 128 KB
Ratio Actual Value : 10
CMPXCHG8B instruction support [ Enabled ]
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Items
Description
Manufacturer
The name of company manufacturer:
VIA Technologies Inc.
Type of Processor used:
VIA C7 1GHz
Processor speed: 1GHz
Front Side Bus speed: 400MHz
Processor Level 1 Cache
Processor Level 2 Cache
VIA C7 Processor 1000MHz
Frequency
FSB Speed
Cache L1
Cached L2
Ratio Actual Value
CMPXCHG8B instruction support
38
BIOS Setup
IDE CONFIGURATION
BIOS SETUP UTILITY
Advanced
IDE Configuration
Options
Parallel ATA IDE devices
Primary IDE Master
Primary IDE Slave
[ Not Detected ]
[ Not Detected ]
SATA Controller
SATA Option ROM
Hard Disk Write Protect
IDE Detect Time Out (Sec)
ATA(PI) 80 Pin Cable Detection
[ RAID ]
[ Enabled ]
[ Disabled ]
[ 35 ]
[ Host ]
IDE
RAID
AHCI
Enter
F1
F10
ESC
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
SATA Controller
Controls the features of the Serial ATA controller within the South Bridge.
Serial ATA is the latest generation of the ATA interface. Serial ATA hard
drives deliver transfer speeds of up to 300MB/sec.
Setting
Description
IDE
Supports two PATA hard disk drives. Disables RAID and AHCI
function.
Only SATA supports RAID and AHCI function
Enable the AHCI function such as Native Command Queuing and
Hot Plug function
RAID
AHCI
SATA Option ROM
Settings: [Disabled Enabled]
Hard Disk Write Protect
Protects the hard disk from copying and writing.
Settings: [Disabled, Enabled]
39
Chapter 3
IDE Detect Time Out (Sec)
Sets the time for the BIOS to delay the initialization of IDE devices. It enables
IDE devices to have more time to spin up before being initialized by the BIOS.
Settings: [0, 5, 10, 15, 20, 25, 30, 35]
Note:
Set it to default value 0 if you are not using old IDE devices.
ATA(PI) 80 Pin Cable Detection
This feature allows the IDE controller and IDE device to detect the type of
IDE cable that is being used.
Setting
Description
Host & Device
Host
Device
IDE controller and IDE device will detect the types of IDE cable used.
IDE controller will detect the types of IDE cable used.
IDE device will detect the types of IDE cable used.
40
BIOS Setup
PRIMARY IDE MASTER / IDE SLAVE
BIOS SETUP UTILITY
Advanced
Primary IDE Master
Device
Select the type of the
device connected to
the system.
: Not Detected
Type
LBA/Large Mode
Block (Multi-Sector Transfer)
PIO Mode
DMA Mode
S.M.A.R.T.
32Bit Data Transfer
[ Auto ]
[ Auto ]
[ Auto ]
[ Auto ]
[ Auto ]
[ Auto ]
[ Enabled ]
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Type
This setting use to select the type of Primary Master IDE drive connected to
the system. Select “Auto” to detect IDE drives automatically.
Settings: [Not Installed, Auto, CD/DVD, ARMD]
LBA/Large Mode
This setting allows to disable or enable(Auto) the LBA capacity.
Setting
Description
Disabled
Auto
Disables LBA Mode
Enables LBA Mode if the device supports it and the device is not
already formatted with LBA Mode disabled.
Block (Multi-Sector Transfer)
This setting allows you to set the numbers of sectors.
Setting
Description
Disabled
Auto
The data transfer from and to the device occurs one sector at a time.
The data transfer from and to the device occurs multiple sectors at a
time if the device supports it.
41
Chapter 3
PIO Mode
Set Programmed Input/Output Mode for the Master IDE drive.
Setting
Description
Auto
0
1
2
3
4
Auto-detect the maximum PIO mode supported by the IDE drives.
Use PIO mode 0 for the IDE drive
Use PIO mode 1 for the IDE drive
Use PIO mode 2 for the IDE drive
Use PIO mode 3 for the IDE drive
Use PIO mode 4 for the IDE drive
Note:
Normal setting should be set to “Auto.” To auto-detect the maximum
supported PIO mode.
DMA Mode
This setting use to select the Direct Memory Access (DMA) mode.
Setting
Description
Auto
SWDMAn
MWDMAn
UDMan
Auto detect
SingleWordDMAn
MultiWordDMAn
UltraDMAn
S.M.A.R.T.
This feature enables or disables the Self-Monitoring Analysis and Reporting
Technology (S.M.A.R.T.).
The S.M.A.R.T technology main function is to
monitor the storage devices (hard disk drives) health and status. It enables a
report for the possible problem and predicts future failure of storage devices.
Settings: [Auto, Disabled, Enabled]
Note:
Normally set to “Disabled”, to avoid decrease of system performance.
42
BIOS Setup
32 Bit Data Transfer
Enabling this setting allows for 32-bit data transfers between the processor
and the PCI bus.
Settings: [Disabled, Enabled]
Note:
Recommend set to “Enabled”, to increase of system performance.
43
Chapter 3
SUPER IO CONFIGURATION
BIOS SETUP UTILITY
Advanced
Configuration SCH3112 Super IO Chipset
Serial Port1 Address
Serial Port1 IRQ
Serial Port2 Address
Serial Port2 IRQ
WATCH-DOG
[ 3F8 ]
[3]
[ 2F8 ]
[3]
[ Disabled ]
Allows BIOS to Select
Serial Port1 Base
Addresses.
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Configure SCH3112 Super I/O Chipset
Items
Description
Serial Port 1 Address
Sets the base I/O port 1 address for the onboard serial port.
Settings: [Disabled, 3F8, 3E8, 2E8]
Sets the base I/O port 1 IRQ for the onboard serial port.
Settings: [3, 4, 10, 11]
Sets the base I/O port 2 address for the onboard serial port.
Settings:[2F8, 3E8, 2E8]
Sets the base I/O port 2 IRQ for the onboard serial port.
Settings: [3, 4, 10, 11]
Allows BIOS to select Watch-Dog support.
Settings: [Disabled, Enabled]
Serial Port 1 IRQ
Serial Port 2 Address
Serial Port 2 IRQ
Watch-Dog
44
BIOS Setup
HARDWARE HEALTH CONFIGURATION
BIOS SETUP UTILITY
Advanced
Hardware Health Configuration
H/W Health Function
PWM 1 Mode Setting
PWM 1 Ramp Rate
PWM 2 Mode Setting
PWM 2 Ramp Rate
[ Enabled ]
[ Fan Always On Full ]
[ 4.85 Hz ]
[ Fan Always On Full ]
[ 4.85 Hz ]
System-Fan (1) Speed
CPU-Fan (2) Speed
: N/A
: N/A
Vcore
+3.3Vin
+5Vin
+12Vin
: 0.992 V
: 3.282 V
: 4.974 V
: 12.048 V
Enables Hardware
Health Monitoring
Device.
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
The PC Health Status displays the current status of all of the monitored
hardware devices/components such as CPU voltages, temperatures and fan
speeds.
Items
Description
H/W Health Function
Enables Hardware Health Monitoring Device.
Settings: [Disabled, Enabled]
PWM Configuration Mode Setting.
Settings: [Auto Fan Mode, Fan Always On Full, Fan Disable
Mode, fan Manually Mode]
If enable, limits the amount of change in the PWM duty cycle
over a specified period of time.
Settings: [4.85Hz, 9.62Hz, 14.49Hz, 24.39Hz, 38.46Hz,
55.56Hz, 100Hz, 200Hz]
PWM Configuration Mode Setting.
Settings: [Auto Fan Mode, Fan Always On Full, Fan Disable
Mode, fan Manually Mode]
If enable, limits the amount of change in the PWM duty cycle
over a specified period of time.
Settings: [4.85Hz, 9.62Hz, 14.49Hz, 24.39Hz, 38.46Hz,
55.56Hz, 100Hz, 200Hz]
PWM 1 Mode Setting
PWM 1 Ramp Rate
PWM 2 Mode Setting
PWM 2 Ramp Rate
45
Chapter 3
ACPI CONFIGURATION
BIOS SETUP UTILITY
Advanced
ACPI Settings
General ACPI
Configuration settings
General ACPI Configuration
Advanced ACPI Configuration
Chipset Configuration
Enter
F1
F10
ESC
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
General ACPI Configuration
General Advanced Configuration and Power Interface (ACPI) configuration
setting and power management.
Advanced ACPI Configuration
Advanced configuration setting. Use this section to configure additional ACPI
option.
Chipset Configuration
Chipset Advanced Configuration and Power Interface (ACPI) related
configuration settings.
46
BIOS Setup
GENERAL ACPI CONFIGURATION
BIOS SETUP UTILITY
Advanced
Select the ACPI
state used for
System Suspend.
General ACPI Configuration
Suspend mode
Repost Video on S3 Resume
[ Auto ]
[ No ]
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Suspend Type
Select the ACPI state used for System Suspend.
Setting
Description
S1(POS)
S1/Power On Suspend (POS) is a low power state. In this state,
no system context (CPU or chipset) is lost and hardware
maintains all system contexts.
S3/Suspend To RAM (STR) is a power-down state. In this state,
power is supplied only to essential components such as main
memory and wakeup-capable devices. The system context is
saved to main memory, and context is restored from the
memory when a "wakeup" event occurs.
Depend on the OS to select S1 or S3.
S3(STR)
Auto
Repost Video on S3 Resume
Select whether to run VGA BIOS if resuming from S3 state.
Settings: [No, Yes]
47
Chapter 3
ADVANCED ACPI CONFIGURATION
BIOS SETUP UTILITY
Advanced
Advanced ACPI Configuration
ACPI Version Features
ACPI APIC support
AMI OEMB table
Headless mode
[ ACPI v1.0 ]
[ Enabled ]
[ Enabled ]
[ Disabled ]
Enable RSDP pointers
to 64-bit Fixed System
Description Tables.
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
ACPI Version Features
Enable RSDP pointers to 64-bit Fixed System Description Tables.
Settings: [ACPI v1.0, ACPI v2.0, ACPI v3.0]
ACPI APIC Features
Include ACPI APIC table pointer to RSDT pointer list.
Settings: [Disabled, Enabled]
AMI OEMB Table
Include OEMB table pointer to R(X)SDT pointer lists.
Settings: [Disabled, Enabled]
Headless Mode
Headless operation mode through ACPI.
Settings: [Disabled, Enabled]
48
BIOS Setup
CHIPSET ACPI CONFIGURATION
BIOS SETUP UTILITY
Advanced
USB Device Wakeup Function
[ Enabled ]
Options
Disabled
Enabled
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
USB Device Wakeup Function
Settings: [Disabled, Enabled]
49
Chapter 3
APM CONFIGURATION
BIOS SETUP UTILITY
Advanced
Power Management/APM
[ Enabled ]
Power Button Mode
Suspend Power Saving Type
Restore on AC/Power Loss
[ On/Off ]
[ C3 ]
[ Last State ]
Standby Time Out
Suspend Time Out
Hard Disk Time Out (Minute)
[ Disabled ]
[ Disabled ]
[ Disabled ]
Green PC Monitor Power State
Video Power Down Mode
Hard Disk Power Down Mode
[ Suspend ]
[ Suspend ]
[ Suspend ]
Advanced Monitor Events Controls
Display Activity
Monitor IRQ3
Monitor IRQ4
Monitor IRQ5
Monitor IRQ7
Monitor IRQ9
Monitor IRQ10
Monitor IRQ11
Monitor IRQ13
Monitor IRQ14
Monitor IRQ15
[ Ignore ]
[ Monitor ]
[ Ignore ]
[ Ignore ]
[ Ignore ]
[ Ignore ]
[ Ignore ]
[ Ignore ]
[ Ignore ]
[ Monitor ]
[ Ignore ]
Advanced Resume Events Controls
Resume On Ring
Resume On LAN
Resume On PME#
Resume On KBC
Wake-Up Key
Resume On PS/2 Mouse
Resume On RTC Alarm
[ Disabled ]
[ Disabled ]
[ Disabled ]
[ Disabled ]
[ Any Key ]
[ Disabled ]
[ Disabled ]
Options
Disabled
Enabled
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Power Management/APM
Settings: [Disabled, Enabled]
Power Button Mode
Settings: [On/Off, Standby, Suspend]
Suspend Power Saving Type
Settings: [C3, S1]
Restore on AC/Power Loss
Settings: [Power Off, Power On, Last State]
50
BIOS Setup
Standby Time Out
Settings: [Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 10 Min, 20 Min, 30 Min, 40
Min, 50 Min, 60 Min]
Suspend Time Out
Settings: [Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 10 Min, 20 Min, 30 Min, 40
Min, 50 Min, 60 Min]
Hard Disk Time Out (Minute)
Settings: [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15]
Green PC Monitor Power State
Settings: [Standby, Suspend, Off]
Video Power Down Mode
Settings: [Disabled, Standby, Suspend]
Hard Disk Power Down Mode
Settings: [Disabled, Standby, Suspend]
Advanced Monitor Events Controls
Items
Description
Display Activity
Monitor IRQ3
Monitor IRQ4
Monitor IRQ5
Monitor IRQ7
Monitor IRQ9
Monitor IRQ10
Monitor IRQ11
Monitor IRQ13
Monitor IRQ14
Monitor IRQ15
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
[Ignore,
[Ignore,
[Ignore,
[Ignore,
[Ignore,
[Ignore,
[Ignore,
[Ignore,
[Ignore,
[Ignore,
[Ignore,
51
Monitor]
Monitor]
Monitor]
Monitor]
Monitor]
Monitor]
Monitor]
Monitor]
Monitor]
Monitor]
Monitor]
Chapter 3
Advanced Resume Events Controls
Items
Description
Resume On Ring
Resume On LAN
Resume On PME#
Resume On KBC
Wake Up Key
Resume On PS/2 Mouse
Resume On RTC Alarm
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
Settings:
[Disabled, Enabled]
[Disabled, Enabled]
[Disabled, Enabled]
[Disabled S3, S3/S4/S5]
[Any Key]
[Disabled, Enabled]
[Disabled, Enabled]
52
BIOS Setup
PCI EXPRESS CONFIGURATION
Activate State Power-Management
Enable/Disable PCI Express L0s and L1 link power states.
Settings: [Disabled, Enabled]
53
Chapter 3
REMOTE ACCESS CONFIGURATION
BIOS SETUP UTILITY
Advanced
Configure Remote Access type and parameters
Remote Access
Select Remote Access
type.
[ Disabled ]
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Remote Access
Configure Remote Access type and parameters.
Settings: [Disabled, Enabled]
54
BIOS Setup
TRUSTED COMPUTING
BIOS SETUP UTILITY
Advanced
Enable/Disable TPM
TCG (TPM 1.1/1.2)
Trusted Computing
TCG/TPM SUPPORT
[ No ]
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
TCG/TPM Support
Settings: [No, Yes]
55
Chapter 3
USB CONFIGURATION
BIOS SETUP UTILITY
Advanced
Enables 1.1 USB
host controllers.
USB Configuration
Module Version – 2.24.2-13.4
USB Devices Enabled :
None
USB 1.1 Ports Configuration
USB 2.0 Ports Enable
Legacy USB Support
Port 64/60 Emulation
USB 2.0 Controller Mode
BIOS EHCI Hand-Off
[ USB 6 Ports ]
[ Enabled ]
[ Enabled ]
[ Disabled ]
[ HiSpeed ]
[ Enabled ]
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
USB 1.1 Ports Configuration
Enables 1.1 USB host controller.
Settings: [Disabled, USB 2 Ports, USB 4 Ports, USB 6 Ports]
USB 2.0 Ports Enable
Enable or disable Universal Serial Bus 2.0.
Settings: [Disabled, Enabled]
Legacy USB Support
This features allows the support of legacy USB devices such as mouse and
keyboard.
Setting
Description
Disabled
Enabled
Auto
Disables the legacy USB support
Enabled supports for legacy USB
Automatic managing of support for legacy USB devices.
56
BIOS Setup
Port 64/60 Emulation
This setting enables full legacy support for operating systems that do not
natively support USB.
Setting
Description
Disabled
Enabled
Emulate I/O ports 60h/64h
Not emulate I/O ports 60h/64h
USB 2.0 Controller Mode
Auto decide USB device operation mode.
Setting
Description
FullSpeed
HiSpeed
All of USB Device operated on full speed mode
If USB device was high speed device, then it operated on high
speed mode. If USB device was full/low speed device, then it
operated on full speed mode.
BIOS EHCI Hand-Off
Settings: [Disabled, Enabled]
57
Chapter 3
ADVANCED PCI/PNP SETTINGS
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Advanced PCI/PnP Settings
Chipset
Exit
Clear NVRAM during
System Boot.
WARNING: Setting wrong values in below sections
may cause system to malfunction.
Clear NVRAM
Plug & Play O/S
PCI Latency Timer
Allocate IRQ to PCI VGA
Palette Snooping
PCI IDE BusMaster
OffBoard PCI/ISA IDE Card
[ No ]
[ No ]
[ 64 ]
[ Yes ]
[ Disabled ]
[ Disabled ]
[ Auto ]
IRQ3
IRQ4
IRQ5
IRQ7
IRQ9
IRQ10
IRQ11
IRQ14
IRQ15
[ Available ]
[ Available ]
[ Available ]
[ Available ]
[ Available ]
[ Available ]
[ Available ]
[ Available ]
[ Available ]
DMA Channel 0
DMA Channel 1
DMA Channel 3
DMA Channel 5
DMA Channel 6
DMA Channel 7
[ Available ]
[ Available ]
[ Available ]
[ Available ]
[ Available ]
[ Available ]
Reserved Memory Size
[ Disabled ]
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Caution:
Setting a wrong value in section below may cause system malfunction.
Clear NVRAM
Clear Non-Volatile Random Access Memory(NVRAM) during system boot.
Settings: [No, Yes]
Plug & Play O/S
Setting
Description
No
Yes
Lets the BIOS configure all the devices in the system.
Lets the operating system configure Plug and Play (PnP) devices not
required for boot if your system has a Plug and Play operating system.
58
BIOS Setup
PCI Latency Timer
This setting is use to adjust the PCI clocks for PCI device latency timer.
Settings: [32, 64, 96, 128, 160, 192, 224, 248]
Allocate IRQ to PCI VGA
This setting allows you to assign IRQ to the VGA card.
Setting
Description
Yes
No
Assign IRQ to PCI VGA card if the card requests IRQ.
Does not assign IRQ to PCI VGA card even if card requests an IRQ.
Palette Snooping
Setting
Disabled
Enabled
Description
Informs the PCI devices that an ISA graphics device is installed in
the system so the card will function correctly.
PCI IDE BusMaster
Setting
Description
Disabled
Enabled
Does not use PCI busmastering.
BIOS uses PCI busmastering for reading/writing to IDE drives.
OffBoard PCI/ISA IDE Card
Set to the PCI slot number that is holding the card.
Settings: [Auto, PCI Slot1, PCI Slot2, PCI Slot3, PCI Slot4, PCI Slot4, PCI
Slots5, PCI Slots6]
IRQ3 / IRQ4 / IRQ5 / IRQ7 / IRQ9 / IRQ10 / IRQ11 / IRQ14 / IRQ15
Setting
Description
Available
Reserved
Specified IRQ is available to be use by PCI/PnP devices.
Specified IRQ is reserved for use by Legacy ISA devices.
DMA Channel 0 / 1 /3 /5 /6 / 7
Setting
Description
Available
Reserved
Specified DMA is available to be use by PCI/PnP devices.
Specified DMA is reserved for use by Legacy ISA devices.
Reserved Memory Size
Set the size of memory block to reserve for legacy ISA devices.
Settings: [Disabled, 16k, 32k, 64k]
59
Chapter 3
BOOT SETTINGS
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Boot Settings
Chipset
Exit
Configure Settings
during System Boot.
Boot Settings Configuration
Enter
F1
F10
ESC
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Boot Settings Configuration
Configure settings during System Boot.
60
BIOS Setup
BOOT SETTINGS CONFIGURATION
BIOS SETUP UTILITY
Boot
Boot Settings Configuration
Quick Boot
Quiet Boot
AddOn ROM Display Mode
Bootup Num-Lock
PS/2 Mouse Support
Wait For ‘F1’ If Error
Hit ‘DEL’ Message Display
Interrupt 19 Capture
[ Enabled ]
[ Enabled ]
[ Force BIOS ]
[ On ]
[ Auto ]
[ Enabled ]
[ Enabled ]
[ Disabled ]
Allows BIOS to skip
certain test while
booting. This will
decrease the time
needed to boot the
system.
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Quick Boot
This setting allows the BIOS to skip certain tests while booting. This will
decrease the time needed to boot the system.
Settings: [Disabled Enabled]
Quiet Boot
Allows the BIOS to show or hide the normal POST messages
Setting
Description
Disabled
Enabled
Displays normal POST messaged.
Displays OEM logo of POST message.
AddOn ROM Display Mode
Set display mode of Option ROM.
Settings: [Force BIOS, Keep Current]
Bootup-Num-Lock
Select Power-on state for Numlock.
Settings: [Off, On]
61
Chapter 3
PS/2 Mouse Support
Select support for PS/2 Mouse.
Settings: [Disabled, Enabled, Auto]
Wait For ‘F1’ If Error
Wait for “F1” key to be pressed of error occurs.
Setting
Description
Disabled
Enabled
When an error detected the BIOS will stop the boot sequence.
Even an error is detected the BIOS will not stop the boot sequence.
Hit ‘DEL’ Message Display
Press “DEL” to run Setup in POST.
Settings: [Disabled, Enabled]
Interrupt 19 Capture
Setting
Description
Disabled
Enabled
Will not be able to trap Interrupt 19.
Allows option ROM BIOS to trap Interrupt 19 during boot process.
62
BIOS Setup
SECURITY SETTINGS
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Security Settings
Chipset
Exit
Install or Change the
password.
Supervisor Password
User Password
: Not Installed
: Not Installed
Change Supervisor Password
Change User Password
Boot Sector Virus Protection
[ Disabled ]
Enter
F1
F10
ESC
Select Screen
Select Item
Change
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
63
Chapter 3
Change Supervisor Password
Install or Change the password.
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Security Settings
Chipset
Exit
Install or Change the
password.
Supervisor Password
User Password
: Not Installed
: Not Installed
Change Supervisor Password
Change User Password
Boot Sector Virus Protection
[ Disabled ]
Enter New Password
Enter
F1
F10
ESC
Select Screen
Select Item
Change
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Change User Password
Install or Change the password.
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Security Settings
Chipset
Exit
Install or Change the
password.
Supervisor Password
User Password
: Not Installed
: Not Installed
Change Supervisor Password
Change User Password
Boot Sector Virus Protection
[ Disabled ]
Enter New Password
Enter
F1
F10
ESC
Select Screen
Select Item
Change
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
64
BIOS Setup
This option is for setting a password for entering BIOS Setup.
When a
password has been set, a password prompt will be displayed whenever BIOS
Setup is run. This prevents an unauthorized person from changing any part
of your system configuration.
There are two types of passwords you can set. A supervisor password and
user password.
When a supervisor password is used, the BIOS Setup
program can be accessed and the BIOS settings can be changed. When a
user password is used, the BIOS Setup program can be accessed but the
BIOS settings cannot be changed.
To set the password, type the password (up to eight characters in length)
and press <Enter>.
The password typed now will clear any previously set
password from CMOS memory. The new password will need to be reentered
to be confirmed. To cancel the process press <Esc>.
To disable the password, press <Enter> when prompted to enter a new
password. A message will show up to confirm disabling the password. To
cancel the process press <Esc>.
Additionally, when a password is enabled, the BIOS can be set to request the
password each time the system is booted. This would prevent unauthorized
use of the system. See “Security Option” in the “Advanced BIOS Features”
section for more details.
Boot Sector Virus Protection
Setting
Description
Disabled
Enabled
Disabled the Boot Sector Virus protection.
Activate the Boot Sector Virus Protection to protect the system from
boot sector viruses.
65
Chapter 3
ADVANCED CHIPSET SETTINGS
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Advanced Chipset Settings
Chipset
Exit
Options for CN896
WARNING: Setting wrong values in below sections
may cause system to malfunction.
North Bridge VIA CN896 Configuration
South Bridge VIA VT8251 Configuration
Enter
F1
F10
ESC
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
North Bridge VIA CN896 Configuration
Options for VIA CN896 North Bridge.
South Bridge VIA VT8251 Configuration
Options for VIA VT8251 South Bridge.
66
BIOS Setup
NORTH BRIDGE VIA CN896 CONFIGURATION
BIOS SETUP UTILITY
Chipset
Options
North Bridge VIA CN896 Configuration
Top Performance
GFX & PCIE VGA Co-Exist
DBI Function
[ Disabled ]
[ Disabled ]
[ Enabled ]
Disabled
Enabled
AGP & P2P Bridge Configuration
OnChip IGP/VGA Configuration
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Caution:
Setting a wrong value in section below may cause system malfunction.
Top Performance
Settings: [Disabled, Enabled]
GFX & PCIE VGA Co-Exist
Settings: [Disabled, Enabled]
DBI Function
Setting
Description
Disabled
Enabled
Use DBI (Dynamic Bus Inversion) scheme
Does not use the DBI (Dynamic Bus Inversion) scheme
AGP & P2P Bridge Configuration
Options for AGP
OnChip IGP/VGA Configuration
Options for OnChip IGP
67
Chapter 3
AGP & P2P BRIDGE CONFIGURATION
BIOS SETUP UTILITY
Chipset
Options
AGP & P2P Bridge Configuration
Primary Graphics Adpater
AGP Aperture Size
[ PCI → PCIE → AGP ]
[ 128 MB ]
PCI → PCIE → AGP
AGP → PCIE → PCI
PCIE → AGP → PCI
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
Primary Graphics Adapter
This setting allows to select whether to boot the system using the PCI
Express graphics card, AGP graphics card or the PCI graphics card.
Settings: [PCI → PCIE → AGP, AGP → PCIE →PCI, PCIE →AGP →PCI]
AGP Aperture Size
This setting controls how much memory space can be allocated to AGP for
video purposes. The aperture is a portion of the PCI memory address range
dedicated to graphics memory address space.
Host cycles that hit the
aperture range are forwarded to the AGP without any translation.
Settings: [32MB, 64MB, 128MB, 256MB, 512MB, 1GB]
68
BIOS Setup
ONCHIP IGP/VGA CONFIGURATION
BIOS SETUP UTILITY
Chipset
Options
OnChip IGP/VGA Configuration
VGA Share Memory (Frame Buffer)
CPU Direct Access Frame Buffer
Select Display Device
Panel Type
Output Port
Dithering
[ 256MB ]
[ Enabled ]
[ CRT ]
[ 02 ]
[ DI0 ]
[ Disabled ]
64MB
128MB
256MB
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
VGA Share Memory (Frame Buffer)
This setting allows you to select the amount of system memory that is
allocated to the integrated graphics processor.
Settings: [64MB, 128MB, 256MB]
CPU Direct Access Frame Buffer
This setting allows you to control the CPU access to the section of system
memory use by integrated graphics processor.
Settings: [Disabled, Enabled]
Select Display Device
This setting refers to the type of display being used with the system.
Settings: [CRT, LCD, CRT+LCD]
Panel Type
This setting refers to the native resolution of the display being used with the
system.
Settings: [Key in a HEX number ranged between 0000~000F]
69
Chapter 3
Output Port
Settings: [DI0, DI1]
Dithering
Setting
Description
Disabled
Enabled
Image displayed on LCD will not dither.
Image displayed on LCD will dither.
70
BIOS Setup
SOUTH BRIDGE VIA VT8251 CONFIGURATION
BIOS SETUP UTILITY
Chipset
Options
South Bridge VIA VT8251 Configuration
10/100 LAN Controller
10/100 LAN Option ROM
Giga LAN Option ROM
LAN PME#
PCI Delay Transaction
HDAC Audio Controller
[ Enabled ]
[ Disabled ]
[ Disabled ]
[ Disabled ]
[ Enabled ]
[ Auto ]
Disabled
Enabled
+F1
F10
ESC
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
10/100 LAN Controller
This setting allows to enable or disable the onboard 10/100 LAN controller.
Settings: [Disabled, Enabled]
10/100 LAN Option ROM
Decide whether to invoke the boot ROM of the onboard 10/100 LAN chip.
Settings: [Disabled, Enabled]
Giga LAN Option ROM
Decide whether to invoke the boot ROM of the onboard Giga LAN chip.
Settings: [Disabled, Enabled]
LAN PME#
Settings: [Disabled, Enabled]
PCI Delay Transaction
Settings: [Disabled, Enabled]
71
Chapter 3
HDAC Audio Controller
Auto allows the mainboard to detect whether an audio device is used. If the
device is detected, the onboard VIA High Definition Audio Codec (VT1708A)
controller will be enabled; otherwise, it is disabled. Disable the controller if
another controller card is being used to connect to an audio device.
Setting
Description
Auto
Disabled
Enables onboard controller if audio device is detected
Turn off onboard controller to allow external controller
72
BIOS Setup
EXIT OPTIONS
Save Changes and Exit
Exit system setup after saving the changes.
Select “Ok” and press “Enter” to save any changes made and exit the program.
Select “Cancel” and press “Enter” will cancel the exit request.
73
Chapter 3
Discard Changes and Exit
Exit system setup without saving any changes.
Select “Ok” and press “Enter” to discards any changes and exit the program.
Select “Cancel” and press “Enter” will cancel the discard/exit request.
Discard Changes
Select “Ok” and press “Enter” to discards any changes.
Select “Cancel” and press “Enter” will cancel the discard/exit request.
74
BIOS Setup
Load Optimal Defaults
This option is for restoring all the default optimized BIOS settings. The
default optimized values are set by the mainboard manufacturer to provide a
stable system with optimized performance.
Select “Ok” and press “Enter” to load the defaults optimal BIOS values.
Select “Cancel” and press “Enter” will cancel the load optimal defaults request.
75
Chapter 3
Load Failsafe Defaults
Main
Advanced
PCIPnP
BIOS SETUP UTILITY
Boot
Security
Exit Options
Chipset
Exit
Load Failsafe Default
values for all the setup
questions.
Save Changes and Exit
Discard Changes and Exit
Discard Changes
F8 key can be used for
this operation.
Load Optimal Defaults
Load Failsafe Defaults
Load Failsafe Defaults?
[Ok]
[Cancel]
Enter
F1
F10
ESC
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
v02.61 (C) Copyright 1985-2006, American Megatrends, Inc.
This option is for restoring all the default fail-safe BIOS settings. These
values are set by the mainboard manufacturer to provide a stable system with
basic performance.
Select “Ok” and press “Enter” to loads the default fail-safe BIOS values.
Select “Cancel” and press “Enter” will cancel the load failsafe defaults request.
76
CHAPTER 4
Driver Installation
This chapter gives you brief descriptions of each mainboard driver and
application. You must install the VIA chipset drivers first before
installing other drivers such as audio or VGA drivers. The applications
will only function correctly if the necessary drivers are already
installed.
77
Chapter 4
DRIVER UTILITIES
Getting Started
The mainboard includes a Driver Utilities CD that contains the driver utilities
and software for enhancing the performance of the mainboard. If the CD is
missing from the retail box, please contact the local dealer for the CD.
Note:
The driver utilities and software are updated from time to time. The latest
updated versions are available at http://www.viaembedded.com/
78
Driver Installation
Running the Driver Utilities CD
To start using the CD, insert the CD into the CD-ROM or DVD-ROM drive.
The CD should run automatically after closing the CD-ROM or DVD-ROM drive.
The driver utilities and software menu screen should then appear on the
screen. If the CD does not run automatically, click on the “Start” button and
select “Run…” Then type: "D:\Setup.exe".
Note:
D: might not be the drive letter of the CD-ROM/DVD-ROM in your system.
79
Chapter 4
CD CONTENT
VIA 4in1 Drivers: Contains VIA ATAPI Vendor Support
Driver (enables the performance enhancing bus mastering
functions on ATA-capable Hard Disk Drives and ensures IDE
device compatibility), AGP VxD Driver (provides service routines
to your VGA driver and interface directly to hardware, providing
fast graphical access), IRQ Routing Miniport Driver (sets the
system's PCI IRQ routing sequence) and VIA INF Driver
(enables the VIA Power Management function).
VIA Graphics Driver: Enhances the onboard VIA graphic
chip.
VIA Audio Driver: Enhances the onboard VIA audio chip.
VIA USB 2.0 Driver: Enhances VIA USB 2.0 ports.
VIA LAN Driver: Enhances the onboard VIA VT6103L
10/100M LAN chip.
VIA GigaLAN Driver: Enhances the onboard optional VIA
VT6130 10/100/1000M LAN chip.
VIA RAID Driver: Support for RAID devices.
80
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
