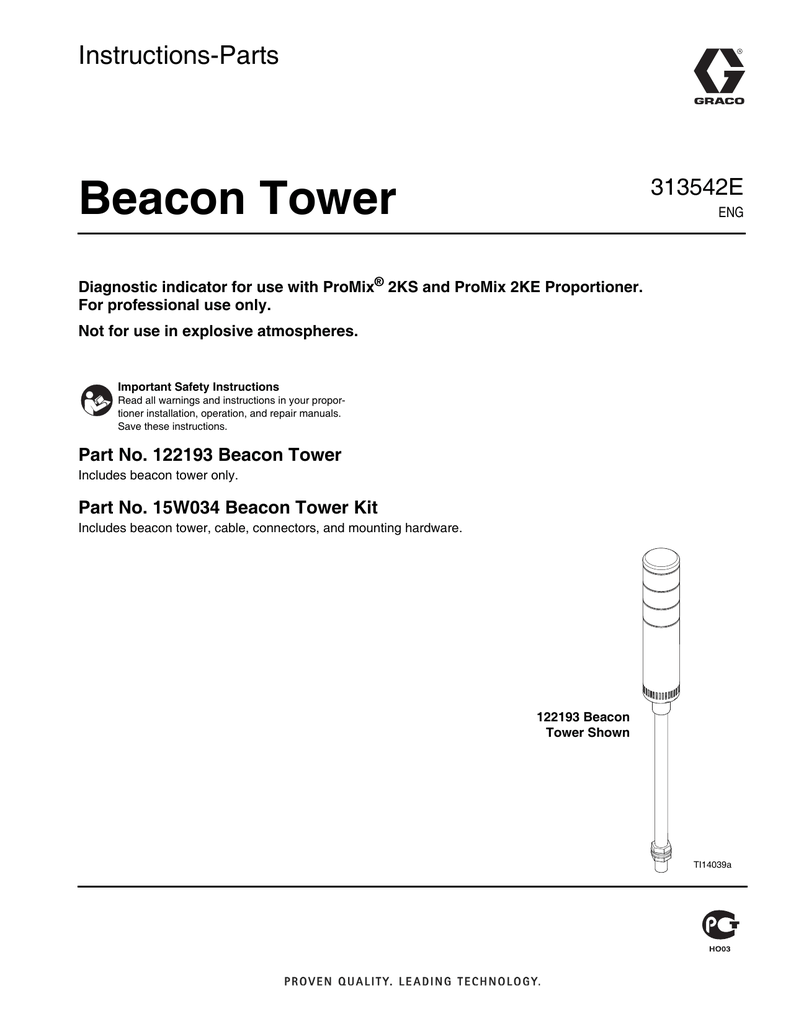

Graco 313542E - 15W034 Beacon Kit and 122193 Beacon Tower Instruction

Instructions-Parts
Beacon Tower
313542E
ENG
Diagnostic indicator for use with ProMix® 2KS and ProMix 2KE Proportioner.
For professional use only.
Not for use in explosive atmospheres.
Important Safety Instructions
Read all warnings and instructions in your proportioner installation, operation, and repair manuals.
Save these instructions.
Part No. 122193 Beacon Tower
Includes beacon tower only.
Part No. 15W034 Beacon Tower Kit
Includes beacon tower, cable, connectors, and mounting hardware.
122193 Beacon
Tower Shown
TI14039a
15W034 Beacon Tower Kit Installation
15W034 Beacon Tower Kit
Installation
NOTE: Kit 15W034 is for ProMix 2KS manual systems.
1. Remove the 3/4 in. (19 mm) knockout on top of the
EasyKey. Feed the wires through the hole and
secure the beacon (1) with jam nuts (N) on the
inside and outside of the box. See FIG. 1.
4. Connect orange, brown, and red wires to header (5)
pins 3, 4, and 5. See FIG. 6 on page 6.
5. To enable the optional audible alarm, connect sky
blue wire to pin 3 on header (5). See FIG. 6 on page
6. When enabled, it will sound for all system alarms.
6. When beacon wiring is completed, insulate the end
of each unused lead wire with insulation tape.
Beacon Signals
Flashing
Signal/
Audible Description
1
Amber
A system warning is active; verify alarm.
Red
A potlife alarm exists. System goes to
Standby.
Green
Not used.
Audible A system warning is active; verify alarm.
N
NOTE: See the ProMix 2KS operation manual for
details of the specific alarms.
TI14040a
FIG. 1: Install Beacon on
EasyKey™
2. See FIG. 4. Install the din rail (7) with two screws (8).
Install the header (5) on the din rail and connect the
cable (4) to J5 on the EasyKey display board.
3. Connect yellow and gray wires from beacon to the
power terminal. See FIG. 2.
+
-
INPUT AC
DC
OK
OUTPUT DC
Yellow
(Common)
N (-)
NC
NC
L (+)
Gray (+24V)
TI14041a
FIG. 2: Power Terminal Connections
2
313542E
122193 Beacon Tower Installation
122193 Beacon Tower Installation
Install on a ProMix 2KS
Install on a ProMix 2KE
NOTE: Beacon Tower 122193 is for ProMix 2KS automatic systems (ADxxxx or RDxxxx), or manual systems
with wire harness 15W023 installed.
1. Disconnect the existing alarm from pins 1 and 2 on
the terminal strip. See FIG. 3.
1. Remove the 3/4 in. (19 mm) knockout on top of the
EasyKey. Feed the wires through the hole and
secure the beacon (1) with jam nuts (N) on the
inside and outside of the box. See FIG. 1.
2. Mount the beacon near the control box and secure
with jam nuts. Feed the wires into the box.
3. Connect the gray wire from the beacon to pin 12 on
the terminal strip.
2. Connect yellow and gray wires from beacon to the
power terminal. See FIG. 2.
4. Connect the yellow wire from the beacon to pin 2 on
the terminal strip.
3. Connect orange, brown, and red wires to header
pins 6, 7, and 8. See FIG. 5 on page 6.
5. Connect either the orange or red wire to pin 1 on the
terminal strip.
4. To enable the optional audible alarm, connect sky
blue wire to pin 6 on header. See FIG. 5 on page 6.
When enabled, it will sound for all system alarms.
6. To enable the optional audible alarm, connect sky
blue wire to pin 1 on the terminal strip. When
enabled, it will sound for all system alarms.
5. When beacon wiring is completed, insulate the end
of each unused lead wire with insulation tape.
7. When beacon wiring is completed, insulate the end
of each unused lead wire with insulation tape.
Beacon Wires Schematic
12
14
ORANGE OR RED
GRAY
YELLOW
1 2
SKY BLUE
ti15730a
NOTE: Sky Blue wire is for
optional audible alarm.
FIG. 3. Beacon Connections in Control Box, ProMix 2KE
313542E
3
122193 Beacon Tower Installation
4
313542E
Parts
Parts
122193 Beacon Tower, includes item 1 only
15W034 Beacon Tower Kit, includes items 1-8
Qty
1
LIGHT TOWER, Part No. 122193
2
CONNECTOR, terminal, female
3
3
CONNECTOR, 10 position
1
4
WIRE HARNESS, 3 conductor with shield;
24 in. (0.6 m)
1
5
HEADER, 5 position, din rail mount
1
6
CONNECTOR, 5 position
1
7
DIN RAIL
1
8
SCREW, machine; 6-32 x 1/4 in. (6 mm)
2
OUTPUT DC
1
INPUT AC
Ref Description
1
Mount din rail (7) in these holes,
using two screws (8).
2, 3
TI12578a
6
Last Pin
TI14039a
5
Pin 1
Pin 2
4
TI14038a
FIG. 4: 15W034 Beacon Kit Parts
313542E
5
Wiring Diagrams
122193 Beacon Tower (for ProMix 2KS Automatic Systems)
Communications and I/O Harness 15W023 is included with Automatic Systems.
Connection points inside the dashed line are already made in the EasyKey.
POWER DISTRIBUTION
TERMINALS
1
- +
Wire Harness 15W023
DISPLAY BOARD
J5
1
2
3
4
5
6
7
8
9
10
FLOW CONTROL CAL. (BLK)
GUN TRIGGER (WHT)
DIGITAL IN COMMON (RED)
REMOTE STOP (GRN)
ALARM RESET (BRN)
ALARM OUTPUT (BLU)
DIGITAL OUTPUT COMMON (ORG)
POT LIFE (YEL)
FLOW RATE ANALOG IN (PUR)
FLOW RATE ANALOG COMMON (GRAY)
1
2
3
4
5
6
7
8
9
10
(+24) GRAY
(COM) YELLOW
ORANGE
BROWN
RED
SKY BLUE
ALARM
NOTE: Sky Blue wire is for
optional audible alarm.
FIG. 5: 122193 Beacon Tower Wiring Diagram
15W034 Beacon Tower Kit (for ProMix 2KS Manual Systems)
NOTE: Item 4 Wire Harness is included with Kit 15W034.
4
DISPLAY BOARD
J5
2
3
4
5
6
7
8
9
10
6
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
ALARM OUTPUT (BLK)
DIGITAL OUTPUT COMMON (WHT)
POT LIFE (RED)
NOT USED
NOT USED
5
POWER DISTRIBUTION
TERMINALS
1
-+
1
2
3
4
5
GND
LUG
(+24) GRAY
(COM) YELLOW
ORANGE
BROWN
RED
SKY BLUE
NOTE: Sky Blue wire is for
optional audible alarm.
FIG. 6: 15W034 Beacon Tower Kit Wiring Diagram
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 313542
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2009, Graco Inc. is registered to ISO 9001
www.graco.com
Revision E, July 2015
ALARM
