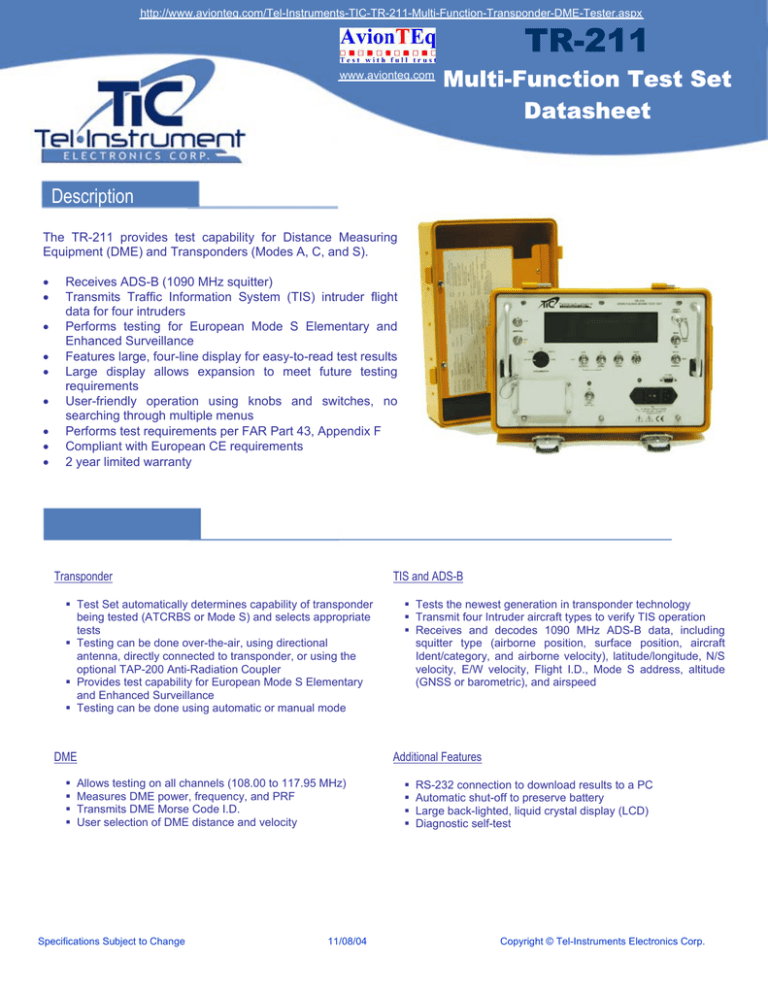

TR-211
www.avionteq.com
Multi-Function Test Set
Datasheet
Description
The TR-211 provides test capability for Distance Measuring
Equipment (DME) and Transponders (Modes A, C, and S).
•
•
•
•
•
•
•
•
•
Receives ADS-B (1090 MHz squitter)
Transmits Traffic Information System (TIS) intruder flight
data for four intruders
Performs testing for European Mode S Elementary and
Enhanced Surveillance
Features large, four-line display for easy-to-read test results
Large display allows expansion to meet future testing
requirements
User-friendly operation using knobs and switches, no
searching through multiple menus
Performs test requirements per FAR Part 43, Appendix F
Compliant with European CE requirements
2 year limited warranty
Features
TIS and ADS-B
Transponder
ƒ Test Set automatically determines capability of transponder
being tested (ATCRBS or Mode S) and selects appropriate
tests
ƒ Testing can be done over-the-air, using directional
antenna, directly connected to transponder, or using the
optional TAP-200 Anti-Radiation Coupler
ƒ Provides test capability for European Mode S Elementary
and Enhanced Surveillance
ƒ Testing can be done using automatic or manual mode
Additional Features
DME
ƒ
ƒ
ƒ
ƒ
Allows testing on all channels (108.00 to 117.95 MHz)
Measures DME power, frequency, and PRF
Transmits DME Morse Code I.D.
User selection of DME distance and velocity
Specifications Subject to Change
ƒ Tests the newest generation in transponder technology
ƒ Transmit four Intruder aircraft types to verify TIS operation
ƒ Receives and decodes 1090 MHz ADS-B data, including
squitter type (airborne position, surface position, aircraft
Ident/category, and airborne velocity), latitude/longitude, N/S
velocity, E/W velocity, Flight I.D., Mode S address, altitude
(GNSS or barometric), and airspeed
11/08/04
ƒ
ƒ
ƒ
ƒ
RS-232 connection to download results to a PC
Automatic shut-off to preserve battery
Large back-lighted, liquid crystal display (LCD)
Diagnostic self-test
Copyright © Tel-Instruments Electronics Corp.
TR-211
Transponder Specifications*
The TR-211 performs the following tests, based on the capabilities of the transponder:
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
Mode
de A - 4096 code, IDENT, percent reply, pulse spacing, pulse
width
Mode C - Altitude (feet and grey code), percent reply, pulse spacing,
pulse width
Side-lobe suppression (SLS)
Mode A/S and C/S All Call - Mode S address, percent reply
Mode A Only and Mode C Only
Mode S Surveillance I.D. (DF5) – Mode S address, percent reply,
flight status (Air, Ground, Alert, SPI), Mode S/Mode A 4096 code
compare (Automatic mode)
Mode S Surveillance Altitude (DF4) – Mode S altitude, percent reply,
Mode S/Mode C altitude compare (Automatic mode)
Mode S Surveillance Short (DF0) – Mode S address, vertical status
(Air, ground), percent reply, decoded country code, decoded tail
number (if applicable)
Mode S Comm. I.D. (UF5/DF21) – Mode S ID code, percent reply
Mode S Comm. Altitude (UF4DF20) – Mode S altitude, percent reply
Undesired replies (UF11) – Checks for reply to incorrect Mode S
interrogation
Acquisition squitter – Pass/Fail indication of squitter duration,
decoded Mode S address, interrogator code
Extended squitter – Pass/Fail indication of squitter duration, decoded
Mode S address
Max Airspeed – Decodes and displays maximum airspeed
Diversity – Displays Pass/Fail indication and measured value of RF
leakage through Mode S transponder antenna ports
Sensitivity (MTL) – Measures and displays MTL for Modes A, C, and
S
Measures and displays transponder power (dBm or watts), frequency,
and receiver sensitivity (dBm)
ƒ Decodes and displays Flight I.D.
ƒ Decodes and displays Mode S address in Octal and Hex
ƒ Mode S Enhanced Surveillance parameters, including Selected Altitude (BDS4);
Roll Angle, True Track Angle, Ground Speed, Track Angle Rate, and True
Airspeed (BDS5); Magnetic Heading, Indicated Airspeed, Mach #, Barometric
Altitude Rate, and Inertial Vertical Velocity (BDS6)
ƒ Receives and decodes 1090 MHz ADS-B data, including squitter type (airborne
position, surface position, aircraft identification/category, and airborne velocity),
latitude/longitude, N/S velocity, E/W velocity, Flight I.D., Mode S address, altitude
(GNSS or barometric), and airspeed
ƒ Transmits 1090 MHz ADS-B data for four intruder aircraft (airborne or surface
position)
ƒ Transmits TIS data for four intruder aircraft
Transmitter
Frequency
Power
Modes
1030 MHz + 100 KHz
> 4 dBm
A, C, S
Receiver
Frequency
Range
Accuracy
Range
Accuracy
Power
Sensitivity
Range
Accuracy
Reply Percent
Range
Accuracy
1086.5 to 1093.5 MHz
+ 200 KHz
47 to 64 dBm
+ 2 dB (direct connect)
+ 3 dB (radiated)
-50 to -87 dBm
+ 2 dB (direct connect)
+ 3 dB (radiated)
0 to 100%
+ 1%
DME Test Specifications*
The TR-211 provides test capability for DME by allowing operator to
select test parameters, including Channel (108.00 to 117.95 MHz) and
Velocity (120 to 1200 KTS.).
Transmitter
Frequency
Power
962 to 1213 MHz + 100 KHz
> 4 dBm
Receiver
Freq. Range
Freq. Accuracy
Sensitivity
Range
Channel Freq. + 3.5 MHz
+ 200 KHz
< -35 dBm
The TR-211 measures and displays DME PRF (scan rate), power, and
frequency. Also, the TR-211 transmits a Morse Code I.D.
Physical
Accessories
Packaging - MIL-PRF-28800, Style C
Size: 14.5x9.4x6.5 in. (36.8x23.9x16.5 cm.)
Weight: 20 lbs. (9.1 kg.)
Operating Temperature: -28 to +55 C
Battery Operation; 8 hours at 20% Duty Cycle
AC Operation/Charging: 100-240 VAC, 50-400 Hz
Directional antenna (Hand-held or mounted on side of case)
AC Power Cord
Direct Connect Cable
Directional Antenna Cable
Operators Manual
TAP-200 Anti-Radiation Coupler (Optional)
* Standard condition values
728 Garden St., Carlstadt, NJ USA Tel. +1 (201) 933-1600 Fax +1 (201) 933-7340
www.telinstrument.com
Specifications Subject to Change
11/08/04
Copyright © Tel-Instruments Electronics Corp.
