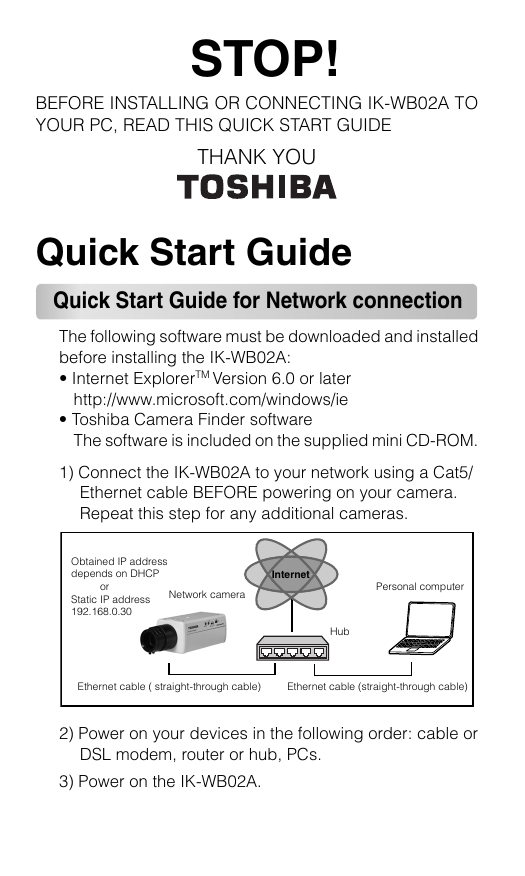

STOP!
BEFORE INSTALLING OR CONNECTING IK-WB02A TO
YOUR PC, READ THIS QUICK START GUIDE
THANK YOU
Quick Start Guide
Quick Start Guide for Network connection
The following software must be downloaded and installed
before installing the IK-WB02A:
• Internet ExplorerTM Version 6.0 or later
http://www.microsoft.com/windows/ie
• Toshiba Camera Finder software
The software is included on the supplied mini CD-ROM.
1) Connect the IK-WB02A to your network using a Cat5/
Ethernet cable BEFORE powering on your camera.
Repeat this step for any additional cameras.
Obtained IP address
depends on DHCP
or
Network camera
Static IP address
192.168.0.30
Internet
Personal computer
Hub
Ethernet cable ( straight-through cable)
Ethernet cable (straight-through cable)
2) Power on your devices in the following order: cable or
DSL modem, router or hub, PCs.
3) Power on the IK-WB02A.
Quick Start Guide (Cont.)
4) Run the Toshiba Camera Finder software to
automatically detect your cameras. Refer to the
Operations Manual for more details.
5) If the camera is not found, power off the camera and
repeat the above steps. (The camera takes
approximately 30 seconds to start.)
6) Click on User.
If you do not have a static IP address for your Internet
connection, Toshiba offers DDNS service that will allow
you to have an Internet address for your camera.
1) Register for Toshiba's DDNS service by clicking on
the link IK-WB02A settings under Configuration >
DDns Settings.
2) Follow the instructions to set up your account.
Quick Start Guide for Direct* PC connection
* A Cat5 Crossover cable is required.
The following software must be downloaded and installed
before installing the IK-WB02A:
• Internet ExplorerTM Version 6.0 or later
http://www.microsoft.com/windows/ie
• Toshiba Camera Finder software
The software is included on the supplied mini CD-ROM.
1) Connect the IK-WB02A to your PC using a Cat5
Crossover cable BEFORE powering on your camera.
Network camera
Static IP address
192.168.0.30
Personal computer
Static IP address
192.168.0.50
Ethernet cable ( crossover cable)
2
2) Change the IP address of your PC to Use the
following IP address:
IP address: 192.168.0.50
Subnet mask: 255.255.255.0
Refer to the Operations Manual for more information.
3) Power on the IK-WB02A.
4) Run the Toshiba Camera Finder software to
automatically detect your cameras. Refer to the
Operations Manual for more details.
5) If the camera is not found, power off the camera and
repeat the above steps. (The camera takes
approximately 30 seconds to start.)
6) Click on User.
If you do not have a static IP address for your Internet
connection, Toshiba offers DDNS service that will allow
you to have an Internet address for your camera.
1) Register for Toshiba's DDNS service by clicking on
the link IK-WB02A settings under Configuration >
DDNS Settings.
2) Follow the instructions to set up your account.
Changing the Login ID and Password
Be sure to change the default login ID and password. You
are able to change important information and settings of
the camera through the Administrator Login. To have
higher security, be sure to change your login ID and the
password. Also, set the access rights because if they are
not set, everybody who logs in will be regarded as an
administrator.
1) From the Configuration menu, click Admin.
3
Quick Start Guide (Cont.)
2) Enter “root” in the Current login ID field and “ikwb” in
the Current Password field.
3) Enter a new login ID in the New login ID field and a
new password in the New Password field and New
Password (Confirm) field.
4) Click the Change button.
5) Close the browser.
Setting the Access Rights
You can set a user ID and password to be requested when
accessing the network camera.
1) From the Configuration menu, click User.
2) Set “User authorization required” to ON.
3) Click the Set button.
• The user name and password input screen appears.
4) Enter the administrator ID and password in the user
name and password fields, and click the OK button.
5) Close the browser.
4
