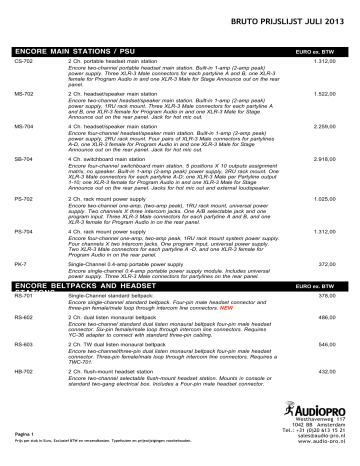

BRUTO PRIJSLIJST JULI 2013
BRUTO PRIJSLIJST JULI 2013
ENCORE MAIN STATIONS / PSU
EURO ex. BTW
CS-702
2 Ch. portable headset main station
Encore two-channel portable headset main station. Built-in 1-amp (2-amp peak)
power supply. Three XLR-3 Male connectors for each partyline A and B, one XLR-3
female for Program Audio in and one XLR-3 Male for Stage Announce out on the rear
panel.
1.312,00
MS-702
2 Ch. headset/speaker main station
Encore two-channel headset/speaker main station. Built-in 1-amp (2-amp peak)
power supply, 1RU rack mount. Three XLR-3 Male connectors for each partyline A
and B, one XLR-3 female for Program Audio in and one XLR-3 Male for Stage
Announce out on the rear panel. Jack for hot mic out.
1.522,00
MS-704
4 Ch. headset/speaker main station
Encore four-channel headset/speaker main station. Built-in 1-amp (2-amp peak)
power supply, 2RU rack mount. Four pairs of XLR-3 Male connectors for partylines
A-D, one XLR-3 female for Program Audio in and one XLR-3 Male for Stage
Announce out on the rear panel. Jack for hot mic out.
2.259,00
SB-704
4 Ch. switchboard main station
Encore four-channel switchboard main station. 5 positions X 10 outputs assignment
matrix, no speaker. Built-in 1-amp (2-amp peak) power supply, 2RU rack mount. One
XLR-3 Male connectors for each partyline A-D; one XLR-3 Male per Partyline output
1-10; one XLR-3 female for Program Audio in and one XLR-3 Male for Stage
Announce out on the rear panel. Jacks for hot mic out and external loudspeaker.
2.918,00
PS-702
2 Ch. rack mount power supply
Encore two-channel one-amp, (two-amp peak), 1RU rack mount, universal power
supply. Two channels X three intercom jacks. One A/B selectable jack and one
program input. Three XLR-3 Male connectors for each partyline A and B, and one
XLR-3 female for Program Audio in on the rear panel.
1.025,00
PS-704
4 Ch. rack mount power supply
Encore four-channel one-amp, two-amp peak, 1RU rack mount system power supply.
Four channels X two intercom jacks. One program input, universal power supply.
Two XLR-3 Male connectors for each partyline A -D, and one XLR-3 female for
Program Audio in on the rear panel.
1.312,00
PK-7
Single-Channel 0.4-amp portable power supply
Encore single-channel 0.4-amp portable power supply module. Includes universal
power supply. Three XLR-3 Male connectors for partylines on the rear panel.
ENCORE BELTPACKS AND HEADSET
STATIONS
RS-701
Single-Channel standard beltpack:
372,00
EURO ex. BTW
378,00
Encore single-channel standard beltpack. Four-pin male headset connector and
three-pin female/male loop through intercom line connectors. NEW
RS-602
2 Ch. dual listen monaural beltpack
Encore two-channel standard dual listen monaural beltpack four-pin male headset
connector. Six-pin female/male loop through intercom line connectors. Requires
YC-36 adapter to connect with standard three-pin cabling.
486,00
RS-603
2 Ch. TW dual listen monaural beltpack
Encore two-channel/three-pin dual listen monaural beltpack four-pin male headset
connector. Three-pin female/male loop through intercom line connectors. Requires a
TWC-701.
546,00
HB-702
2 Ch. flush-mount headset station
Encore two-channel selectable flush-mount headset station. Mounts in console or
standard two-gang electrical box. Includes a Four-pin male headset connector.
432,00
Pagina 1
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
HB-704
4 Ch. flush-mount headset station
Encore four-channel selectable flush-mount headset station. Mounts in console or
standard two-gang electrical box. Includes a Four-pin male headset connector.
RM-702
2 Ch. remote station rack mount
Encore two-channel 1RU remote station rack mount with internal speaker and ports
for gooseneck microphone and/or headset. Must be used in conjunction with a
power supply such as a PS-702 or MS-702.
1.306,00
RM-704
4 Ch. remote station rack mount
Encore four-channel 2RU remote station rack mount with internal speaker and ports
for gooseneck microphone and/or headset. Must be used in conjunction with a
power supply such as a PS-704 or MS-704.
1.588,00
KB-702
2 Ch. flush-mount headset/speaker station
Encore two-channel selectable flush-mount headset/speaker station. Mounts in
four-gang box, console, or V-Box accessory enclosure 21.6cm/8.25" X 11.4cm/4.5".
Includes a Four-pin male headset connector.
480,00
KB-702GM
2 Ch. flush-mount headset/speaker GN mic
Encore two-channel selectable flush-mount headset/speaker station, gooseneck
microphone jack and VOX. Mounts in four-gang box, console, or V-Box accessory
enclosure 21.6cm/8.25" X 11.4cm/4.5". Includes a Four-pin male headset
connector.
689,00
KB-701
Single-Channel flush-mount PTT speaker station
Encore single-channel half-duplex flush-mount push-to-talk speaker/microphone
station mounts In four-gang box, console, or accessory enclosure 21.6cm/8.25" x
11.4cm/4.5". Includes a Four-pin male headset connector.
480,00
V-BOX
Wedge shaped enclosure for KB stations
Encore portable wedge-shaped enclosure for angled or vertical mounting.
Desktop/wall-mount enclosure for KB-701, KB-702GM and KB-702 stations.
324,00
ENCORE SYSTEM INTERFACES
516,00
EURO ex. BTW
EF-701M
4-wire interface with call signal
Encore four-wire interface with call signal. Interfaces matrix to a single channel of
standard or TW party-line.
IF4W4
4 Ch., 4-wire interface
Encore four-channel 3/4-wire camera interface. 1RU rack mount provides four
discrete Clear-Com to 3-wire or 4-wire interface circuits. Can be used to connect to
four different two-wire partyline channels or a single partyline channel with four
4-wire connections.
1.354,00
TW-12C
CC/RTS system interface
Clear-Com/RTS system interface - 1RU rack mount. Interface a single intercom
channel. Clear-Com to Clear-Com or Clear-Com to RTS systems.
1.318,00
TW-47
2-way radio interface
Clear-Com/RTS two-way radio interface connects Clear-Com or RTS to most two-way
radios. A custom interface cable will be required and is not provided.
ENCORE IFB SYSTEM INTERFACES
917,00
624,00
EURO ex. BTW
PIC-4704
IFB central controller
Encore IFB main station 1RU rack mount. Requires MA-704/AX-704 controllers and
IC-25-6 cable or similar and power supply such as the PS-702.
1.336,00
MA-704
IFB control panel mic jack
Encore IFB control panel with 6.35mm/1/4" microphone jack, four individual talent
buttons and "All" talk button. For use with the PIC-4704. See the optional CEP-RK
console for rack mounting.
1.091,00
Pagina 2
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
AX-704
IFB expansion control panel
Encore IFB expansion control panel with four individual talent buttons. For use with
the PIC-4704 and MA-704. See the optional CEP-RK console for rack mounting.
791,00
TR-50
Monaural IFB talent receiver
Wired monaural IFB talent receiver 3.5mm/1/8" mini jack includes TS-1. Requires a
Clear-Com PSU. See also CC-010 earpiece.
214,00
CEP-RK
Rack kit for MA-704 and AX-704
1RU rack mount kit for MA-704 and AX-704 control panels. Holds up to three IFB
control panels.
154,00
TS-1
Monaural talent earphone
Monaural talent earphone. Monaural IFB talent earphone. Plugs into TR-50 and
wireless IFB receivers.
56,00
YC-66
Y adapter for IFB systems
Six-pin Y adapter for IFB systems. Two six-pin female connectors wired to one
six-pin male.
154,00
QUE-COM INTERCOM COMPONENTS
SMQ-1
Que-Com single-ear headset/beltpack
Que-Com double-ear headset/beltpack combination.
SP-3
3-way intercom line splitter
Three-way intercom line splitter. One three-pin female and three three-pin male
XLR-type connectors.
BROADCAST AUDIO PRODUCTS
AB-120
Commentator/translation console
On-air announcer box, no 4-wire interface, no 48V phantom power.
PROGRAMMABLE SOURCE-ASSIGNMENT
PANEL
RCS-2700
8x24 Ch. program station assignment panel
EURO ex. BTW
312,00
93,00
EURO ex. BTW
1.528,00
EURO ex. BTW
3.128,00
Eight 24-channel programmable station-assignment panel. Stores 14 presets and
expandable up to 15 sources and 72 destinations. Assigns 24 stations or groups to
one of eight party-line channels. 2RU rack mount. See also RCS-WIN software (free
of charge).
ENCORE SYSTEM ACCESSORIES
EURO ex. BTW
FL-7
Call signal flasher
Encore call signal flasher provides adjustable visual and/or audible indication of a
call signal.
WP-2
2 Ch. selectable intercom outlet
Encore channel selectable intercom outlet wall plate. Three-pin male connector and
channel select switch on a single-gang wall plate.
WP-6
2 Ch. 6-pin intercom outlet
Two-channel six-pin intercom outlet wall plate six-pin male connector on a
single-gang wall plate for RS-602.
105,00
YC-36
2 Ch. beltpack adapter
Three-pin to six-pin adapter combines two single-channel three-pin cables into a
single two-channel six-pin connector for use with RS-602 beltpacks.
117,00
TWC-701
TW adaptor module
Two-channel/three-pin XLR adapter module. Combines two intercom channels onto a
single three-pin cable for use with RS-603 beltpacks. Connect up to fifteen RS-603
beltpacks to TWC-701 output.
444,00
Pagina 3
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
438,00
75,00
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
MT-1
Isolator PCB for PL interface
Isolator circuit card for party-line intercom systems. Electrically isolates ground,
power and signaling between two systems.
252,00
GM-9
9 inch plug-in GN mic
22.9cm/9" plug-in gooseneck microphone for party-line stations, i-series and ICS
panels.
227,00
GM-18
18 inch plug-in GN mic
45.8cm/18" plug-in gooseneck microphone for party-line stations, i-series and ICS
panels.
239,00
HELIXNET DIGITAL NETWORKED
PARTYLINE HelixNet digital 4 Ch. main station
HMS-4X
EURO ex. BTW
4.907,00
HelixNet digital four-channel headset/speaker main station - supports up to 20
HBP-2X beltpacks. Three rear panel expansion bays accept up to three (optional)
interface modules. Uses optional 110/340 series gooseneck microphones.
High-contrast OLED display per channel.
HBP-2X
HelixNet digital 2 Ch. beltpack
HelixNet digital two-channel standard dual listen monaural beltpack with display and
four-pin male headset connector. Three-pin female/male loop through intercom line
connectors. High-contrast OLED display.
1.127,00
HLI-4W2
HelixNet 4-wire module
4-wire interface module. Dual channel 4-wire interface with transformer balancing.
1.073,00
HLI-2W2
HelixNet 2-wire module
2-wire Clear-Com/RTS dual party-line interface module. Does not power the
party-lines attached to HLI-2W2 modules. These require Encore master station
PSUs such as the PS-702 or MS-702 or RTS equivalent power supply.
1.229,00
HLI-ET2
HelixNet Ethernet module:
Ethernet interface module. Dual channel Ethernet for LAN connectivity.
659,00
HLI-FBS
HelixNet Fiber module:
Fiber interface module. SFP Fiber connector module
659,00
DIGITAL WIRELESS - HME DX
BASESTATIONS
(2.4GHZ)
CZ11400
MB100 base station
EURO ex. BTW
1.526,00
Base station with 115/230VAC power supply, 115VAC power cord, base battery
sled, 2 antennas, and manual
CZ11461
BS121 base station
Base station with HS-XLR4F Interface cable, 115/230VAC power supply, 115VAC
power cord, 2 antennas, and manual
1.952,00
CZ11398
BS200 base station
License-free base station with 115/230VAC power supply, 115VAC power cord, 2
antennas, and manual
3.795,00
CZ11516
BS210 base station
DX210 license-free base station w/2 antennas. 115/230 VAC power supply. Includes
115 VAC power cord and manual.
4.514,00
CZ11467
MB300ES base station
License-free base station with 115/230VAC power supply, 115VAC power cord, two
AA battery sleds, two antennas, interconnect cable, and manual
3.123,00
DIGITAL WIRELESS - HME DX COMM
CZ11360
BP200 beltpack + 2 BAT41, pouch
Beltpack with 2 BAT41 batteries, pouch
Pagina 4
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
EURO ex. BTW
802,00
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
CZ11392
WH200 wireless headset + 2 BAT41
All-In-One Wireless Headset with 2 BAT41 batteries, headstrap
CZ11517
BP210 beltpack + 2 BAT41, pouch
Two-Channel Belt pack with 2 BAT41 batteries and pouch. For use with the DX210
base station.
1.022,00
CZ11518
WH210 wireless headset + 2 BAT41
All-In-One Wireless Headset with 2 BAT41 batteries, headstrap. For use with the
DX210 base station.
1.017,00
CZ11408
BP300 beltpack + 1 BAT41, pouch
Beltpack with 1 BAT41 battery, and pouch
391,00
CZ11407
WH300 wireless headset + 1 BAT41
All-In-One Wireless Headset with 1 BAT41 battery, and headstrap
576,00
DIGITAL WIRELESS - HME DX HEADSETS
827,00
EURO ex. BTW
CZ11450
HS15 headset
Single muff noise-canceling headset, Electret mic, with Mini DIN connector.
188,00
CZ11451
HS15D headset
Double muff noise-canceling headset Electret mic, with Mini DIN connector
314,00
CZ11452
HS16 headset
Single muff lightweight headset with directional Electret mic. Mini DIN connector.
149,00
CZ11453
HSI6000 headset adapter
2.5mm Headset Adapter for BP200 Beltpack and BP300 Beltpack
86,00
CZ11454
HS4-3 earpiece and lapel mic
Earpiece & lapel (clip-on) Electret mic
88,00
G27245-1
MD-XLR4M adapter
Adapter Cable for use with Clear-Com 4-pin XLR4F terminated dynamic headset with
DX Mini DIN headset connector
86,00
G27256-1
MD-XLR4F adapter
Adapter Cable for using XLR4M terminated dynamic headset with DX Mini DIN
headset connector
86,00
G27267-1
MD-XLR5F adapter
Adapter Cable for using XLR5M terminated dynamic headset with DX Mini DIN
headset connector
86,00
DIGITAL WIRELESS - HME DX
ACCESSORIES
647G006
DX antenna splitter/combiner
EURO ex. BTW
122,00
2-Way Antenna Splitter/Combiner
G28066-1
RMK200 mounting kit
1RU Mounting Panel for base antennas, includes two 2' cables
G27009-1
DX 6' remote antenna kit 1,8m
Single 6 foot (1.8m) RP-TNC jack to RP-TNC plug cable with right angle bracket for
remote base antenna on DX base stations, two kits are required to remote both
antennas
90,00
G26671-1
DX 30' remote antenna kit 7,7m
Single 30 foot (7.7m) RP-TNC jack to RP-TNC plug cable with right angle bracket for
remote base antenna on DX base stations, two kits are required to remote both
antennas
129,00
Pagina 5
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
146,00
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
104034
BAT41 rechargeable battery
Battery, Li-ion rechargeable, for BP200/210/300 beltpacks and WH200/210/300.
CZ11378
AC40A 4-bay battery charger
Battery charger, 4-port quick charger w/adapter, 115/230 VAC, power cord for
BAT41 batteries.
DIGITAL WIRELESS - TEMPEST2400 (2.4
GHZ)
CM-244
Tempest2400 4 Ch. BaseStation
50,00
647,00
EURO ex. BTW
7.663,00
Tempest 2.4 GHz four-channel, full feature license-free Basestation. Including AC
power cord, USB cable, 6ft programming cable with ?" (3.5mm) straight mini-jack
connector, two whip antennas and T-desk software. Supports up to five wireless
BeltStations in normal mode and unlimited BeltStations in shared and split modes.
Seamless roaming capable.
CM-222
Tempest2400 2 Ch. BaseStation
Tempest 2.4 GHz two-channel, full feature license-free Basestation. Including AC
power cord, USB cable, 6ft programming cable with ?" (3.5mm) straight mini-jack
connector, one whip antenna and T-desk software. Supports up to five wireless
BeltStations in normal mode and unlimited BeltStations in shared and split modes.
Seamless roaming capable.
5.985,00
CB-222
Tempest2400 2 Ch. MasterBelt
Tempest 2.4 GHz 2 channel, dual-listen wireless Master Beltstation as a mobile
base station. Allows up to five Normal Mode (CP-222) BeltStations and unlimited
Shared Mode BeltStations, to connect to a single BeltStation which acts as base
station, 4-PIN male XLR, program port and USB connector. Comes with USB cable,
1/8" stereo mini programming cable, 2000mAh Li-Poly rechargeable battery and
multi-blade international wall charger. Does not require a base station to function
and will not pair with a base station.
3.170,00
CP-242
Tempest2400 4 Ch. BeltStation
Tempest 2.4 GHz four-channel, dual listen wireless BeltStation, four-pin male XLR,
program port and USB connector. Including Li-poly rechargeable battery and AC
USB wall charger. Seamless roaming capable.
2.559,00
CP-222
Tempest2400 2 Ch. BeltStation
Tempest 2.4 GHz two-channel, dual listen wireless BeltStation, four-pin male XLR,
program port and USB connector. Including Li-poly rechargeable battery and AC
USB wall charger. Seamless roaming capable.
2.031,00
CCT-RT
Tempest remote transceiver
Tempest 2.4 GHz Remote Antenna Transceiver. Power provided by Tempest 2400
base station via CAT-5 cable up to 457m/1500ft. Including 4.5m/15ft CAT-5 cable
and two whip antennas. Utilizing the remote transceiver disables the antennas at the
base.
2.511,00
CCT-RT-EX
Tempest 2400 Remote Antenna Line Extender
Extends distance of CCT-RT, and CCT-9RT, up to 3000 feet, can use 3 in parallel for
a maximum distance of 5000 ft, includes AC adapter.
1.181,00
SG-100
Tempest2400 ZSync dongle
Tempest ZSync dongle. For use with base stations with Radio version 1.18 or later.
Allows a zero synchronization reference to enable Nomad Seamless Roaming and to
improve performance of multi-Base systems in non-roaming applications. Includes
integrated 5VDC wall power supply.
474,00
Pagina 6
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
SG-120
Tempest2400 Parallel ZSync generator
Tempest parallel ZSync generator. For use with base stations with Radio version
1.18 or later. Allows a zero synchronization reference to enable Tempest2400
Seamless Roaming and to improve performance of multi-Base systems in
non-roaming applications. Provides 12 parallel ZSync feeds. Multiple Parallel ZSync
generators may be linked for larger system configuration. 1RU rack mount, Includes
AC power cord.
T-BC5A
Tempest 5-bay battery charger
Tempest five-bay battery charger for charging lithium-polymer batteries outside of
the BeltStation.
893,00
T-LP1
Tempest Li-Poly battery
Lithium polymer battery for Tempest BeltStations.
119,00
DIGITAL WIRELESS - FREESPEAK (1.9GHZ)
FREESPEAK-BASE FreeSpeak 1.89 GHz digital wireless base station
2.990,00
EURO ex. BTW
13.162,00
FreeSpeak Digital license-free wireless base station. Supports up to 20 Beltpacks
and 10 antennas. (Two antennas can connect to the base station directly or up to
10 antennas can be connected by using two x PD2203 splitters) The base station
has connections for two party-lines and four 4-wires plus a dedicated SA output and
dedicated program audio input.
FS-BP
FreeSpeak digital wireless beltpack
Digital wireless beltpack including two talk and listen keys with integral crosspoint
level rotary controls and answerback/menu key. LED level and call signalization and
LCD menu. Including XLR-4M headset connector, PC set-up and DC charging
connections, protective case, belt clips, shoulder strap, rechargeable batteries,
battery sled and single AC charger.
1.864,00
PD2201
FreeSpeak active antenna
Active antenna, one supports up to five beltpacks. More antennas needed if
roaming or more beltpack support is required. Including PSU.
1.666,00
PD2203
FreeSpeak antenna splitter
Antenna splitter box. Provides five antenna feeds from one antenna port on the
FreeSpeak/CellCom-base station or FreeSpeak/CellCom Integra rear card. Including
PSU.
2.672,00
DIGITAL WIRELESS - FREESPEAK
ACCESSORIES
740112+BAT
FreeSpeak beltpack battery pack
EURO ex. BTW
60,00
Spare battery pack including 4 AA rechargeable batteries.
CEL-FS-CHRGR
FreeSpeak 5-way battery clip charger
FreeSpeak/CellCom battery clip charger. The units houses and charges five battery
clips.
ANALOG UHF - HME PRO850 BELTPACKS
683,00
EURO ex. BTW
CZ11427-91
BP850 2 Ch. beltpack, band 9/1
BP850 Single or dual channel beltpack with battery sled and antennas, TX Band 9:
632-650MHz. For use with the BS850 base station, Band 1. For dual band operation
you must order Dual Receiver Module
1.351,00
CZ11427-A1
BP850 2 Ch. beltpack, band A/2
BP850 Single or dual channel beltpack with battery sled and antennas, TX Band A:
650-668MHz. For use with the BS850 base station, Band 2. For dual band operation
you must order Dual Receiver Module
1.351,00
Pagina 7
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
CZ11427-C1
BP850 2 Ch. beltpack, band C/4
BP850 Single or dual channel beltpack with battery sled and antennas, TX Band C:
686-704MHz. For use with the BS850 base station, Band 4. For dual band operation
you must order Dual Receiver Module
1.351,00
CZ11427-92
BP850 2 Ch. beltpack, dual talk/listen, band 9/1
BP850 Two-Channel dual band beltpack with battery sled and antennas, TX Band 9:
632-650MHz. For use with the BS850 base station, Band 1. Dual band receiver
module installed.
1.766,00
CZ11427-A2
BP850 2 Ch. beltpack, dual talk/listen, band A/2
BP850 Two-Channel dual band beltpack with battery sled and antennas, TX Band A:
650-668MHz. For use with the BS850 base station, Band 2. Dual band receiver
module installed.
1.766,00
CZ11427-C2
BP850 2 Ch. beltpack, dual talk/listen, band C/4
BP850 Two-Channel dual band beltpack with battery sled and antennas, TX Band C:
686-704MHz. For use with the BS850 base station, Band 4. Dual band receiver
module installed.
1.766,00
ANALOG UHF - HME PRO850
BASESTATIONS
CZ11424-5124
BS850 base station w/ 2 transmitters, band 1
EURO ex. BTW
5.795,00
BS850 Two-Channel base station with 2 Transmitter 4 Receiver power supply, power
cord, antennas, Transmit Band: 1 (488-506MHz)
CZ11424-5224
BS850 base station w/ 2 transmitters, band 2
BS850 Two-Channel base station with 2 Transmitter 4 Receiver power supply, power
cord, antennas, Transmit Band: 2 (506-524MHz)
5.795,00
CZ11424-5424
BS850 base station w / 2 transmitters, band 4
BS850 Two-Channel base station with 2 Transmitter 4 Receiver power supply, power
cord, antennas, Transmit Band: 4 (542-560MHz)
5.795,00
CZ11424-5114
BS850 base station w/ 1 transmitter, band 1
BS850 Single-Channel base station with 1 Transmitter 4 Receiver power supply,
power cord, antennas, Transmit Band: 1 (488-506MHz)
4.270,00
CZ11424-5214
BS850 base station w/ 1 transmitter, band 2
BS850 Single-Channel base station with 1 Transmitter 4 Receiver power supply,
power cord, antennas, Transmit Band: 2 (506-524MHz)
4.270,00
CZ11424-5414
BS850 base station w/ 1 transmitter, band 4
BS850 Single-Channel base station with 1 Transmitter 4 Receiver power supply,
power cord, antennas, Transmit Band: 4 (542-560MHz)
4.270,00
ANALOG UHF - HME PRO850 HEADSETS
EURO ex. BTW
CZ11458
HS15 Single-muff headset, 4F
Single Muff Noise canceling Headset with 4-pin female connector for use with HME
PRO850 or traditional Clear-Com connectors
222,00
CZ11459
HS15D Dual-muff Headset, 4F
Double Muff Noise canceling Headset with 4-pin female connector for use with HME
PRO850 or traditional Clear-Com connectors
311,00
ANALOG UHF - HME PRO850
ACCESSORIES
G24589-1
RAK850 remote kit
EURO ex. BTW
136,00
Ground Plane Adapter for one BS850 base station antenna with 30' of cable
G28077-1
RMK850 mounting kit
1RU panel for mounting BS850 base station antennas, with 2' of cable
Pagina 8
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
126,00
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
G27021-1
BAT850 NiMH battery
7.2V 2100mAH NiMH rechargeable battery for BP850 beltpack, MB100 base station,
MB300ES base station and WS200 Speaker Station
80,00
G27021-1
BAT850 NiMH battery
7.2V 2100mAH NiMH rechargeable battery for BP850 beltpack, MB100 base station,
MB300ES base station and WS200 Speaker Station
80,00
CZ11484
AC850A charger 4-bay
4 Port charger for BAT850 batteries, power supply, cord and manual
ANALOG UHF - WBS BASE STATIONS
1.078,00
EURO ex. BTW
WBS-670/A2
Single-Channel wireless UHF base station, band A2
Single-channel frequency-agile UHF wireless intercom base station band A2. Tx:
518-536 MHz Rx: 632-650 MHz.
5.506,00
WBS-670/B4
Single-Channel wireless UHF base station, band B4
Single-channel frequency-agile UHF wireless intercom base station band B4. Tx:
536-554 MHz Rx: 668-686 MHz.
5.506,00
WBS-680/A2
2 Ch. wireless UHF base station, band A2
Two-channel frequency-agile UHF wireless intercom base station band A2. Tx:
518-536 MHz Rx: 632-650 MHz.
7.153,00
WBS-680/B4
2 Ch. wireless UHF base station, band B4
Two-channel frequency-agile UHF wireless intercom base station band B4. Tx:
536-554 MHz Rx: 668-686 MHz.
7.153,00
WBS-680/E88
2 Ch. wireless UHF base station, band E88
Two-channel frequency-agile UHF wireless intercom base station band E88. Tx:
590-608 MHz Rx: 470-488 MHz.
7.153,00
ANALOG UHF - WBS TRANSCEIVER
BELTPACKS Single-Channel wireless UHF transceiver, band A2
WTR-670/A2
EURO ex. BTW
1.792,00
Single-channel frequency-agile UHF wireless intercom beltpack. Tx: 632-650 MHz
Rx: 518-536 MHz.
WTR-670/B4
Single-Channel wireless UHF transceiver, band B4
Single-channel frequency-agile UHF wireless intercom beltpack. Tx: 668-686 MHz
Rx: 536-554 MHz.
1.792,00
WTR-680/A2
2 Ch. wireless UHF transceiver, band A2
Two-channel frequency-agile UHF wireless intercom beltpack. Tx: 632-650 MHz Rx:
518-536 MHz.
2.271,00
WTR-680/B4
2 Ch. wireless UHF transceiver, band B4
Two-channel frequency-agile UHF wireless intercom beltpack. Tx: 536-554 MHz Rx:
668-686 MHz.
2.271,00
WTR-680/E88
2 Ch. wireless UHF transceiver, band E88
Two-channel frequency-agile UHF wireless intercom beltpack. Tx: 470-488 MHz Rx:
590-608 MHz.
2.271,00
ANALOG UHF - WBS ACCESSORIES
WTR-BAT
Rechargeable battery pack WTR-670/680
Rechargeable battery pack for WTR-670 or WTR-680 beltpack.
WTR4C-E
4-bay charger for WTR-BAT
50/60Hz power supply including Euro AC connector battery charger for four
WTR-BAT rechargeable batteries, 220V and four WTR-BAT rechargeable batteries.
Pagina 9
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
EURO ex. BTW
167,00
1.906,00
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
BRUTO PRIJSLIJST JULI 2013
HEADSETS AND ACCESSORIES
EURO ex. BTW
CC-300-X4
Single-ear standard HS XLR-4F
Single enclosed ear headset with superior audio quality and on/ off switch in
gooseneck microphone boom, includes HS-ES ear sock and headset bag - field
removable four-pin female XLR for standard Clear-Com connection.
348,00
CC-400-X4
Double-ear standard HS XLR-4F
Double enclosed ear headset with superior audio quality and on/ off switch in
gooseneck microphone boom includes HS-ES ear socks and headset bag- field
removable four-pin female XLR for standard Clear-Com connection.
414,00
CC-010A
IFB Ear Set (mini-jack)
IFB Ear Set Includes Audio Driver, Coiled Acoustic Ear tube with Clothing Clip, 5 Ft
(1.5m) cable with ?" (3.5mm) Straight Mini-jack Connector. Replaces CC-010.
90,00
CC-25
Single-ear light headset (mini-jack)
Single open ear lightweight around-the-ear mounted headset. Including 2.5mm/0.1"
mini-jack for use with RS-600-Series Beltpacks only.
184,00
CC-26K-X4
Single-ear light headset XLR-4F
Single open ear lightweight headset - four-pin female XLR for standard Clear-Com
connection.
239,00
CC-27
Wrap-around light headset XLR-4F
Single ear bud, wrap around rear worn headset - four-pin female XLR for standard
Clear-Com connection.
178,00
CC-40
Single-ear economy headset XLR-4F
Single enclosed ear economy headset - four-pin female XLR for standard Clear-Com
connection. Optional earsock covers (ES-1) are recommended.
191,00
CC-60
Double-ear economy headset XLR-4F
Double enclosed ear economy headset - four-pin female XLR for standard Clear-Com
connection. Optional earsock covers (ES-1) are recommended.
227,00
PT-7
Push-to-talk handheld mic XLR-4F
Push-to-talk handheld microphone - four-pin female XLR for standard Clear-Com
connection.
148,00
HS-6
Telephone-style handset XLR-4F
Telephone-style handset with coiled cord and push to talk button on telephone
handset- four-pin female XLR for standard Clear-Com connection.
172,00
Pagina 10
Prijs per stuk in Euro, Exclusief BTW en verzendkosten. Typefouten en prijswijzigingen voorbehouden.
Westhavenweg 117
1042 BB Amsterdam
Tel.: +31 (0)20 613 15 21
[email protected]
www.audio-pro.nl
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
