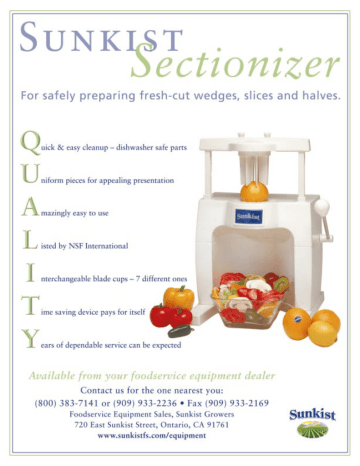

Read the manufacturer's brochure

Read the manufacturer's brochure
Part
Number Description
S-1.
S-2.
S-3.
S-4.
S-5.
S-6.
S-7.
S-8.
S-8D.
S-9.
S-10.
S-11.
S-12.
S-13.
S-14.
S-23.
S-24.
S-25.
S-26.
S-27.
S-28.
S-29.
S-30.
S-31.
S-32.
S-33.
S-34.
S-35.
Foot Pad (set of 6)
Base Assembly
Blade Cup w/cover (6 wedge)
Blade Cup w/cover (6 slice) (fits part S-10 only)
Blade Cup w/cover (4 wedge)
Wedger Cup cover
(sold w/ S-3, S-5, S-29, S-30, S-32, S-35)
Slicer Cup cover (sold w/ S-4)
Outer Shell
Pin & Thread Assembly
Plunger Wedger
(fits parts S-3, S-5, S-29, S-30, S-35)
Plunger Slicer fits part S-4 only
Crossbar Assembly
Back Screw #8 x 1⁄2” (set of 8)
Back Cover
Spring Pin (set of 2)
Gears & Shaft Set
Base Side Screw 6-32 x 11⁄2” (Set of 10)
Plastic Shaft Cover
Handle
Knob
Bottom Screw #8 x 11⁄2” (set of 4)
Blade Cup w/cover (8 wedge)
Blade Cup w/cover (3-in-1)
Plastic Production Stand (see below)
Apple Corer Cup (fits S-33 only)
Apple Plunger (fits S-32 only)
Apple Corer Set
Blade Cup w/cover (single)
Complete
Sectionizer
Model #
Blade
Cup
Style
Sectionizer
Parts Information
Effective date April 1, 2003
Description
S-101
4 Wedge
4 evenly spaced and cut wedges.
S-102
6 Wedge
6 evenly spaced and cut wedges.
S-103
6 Slice
6 slices 5/16” thick.
Must use plunger #10.
S-104
8 Wedge
8 evenly spaced and cut wedges.
Specifications
Safe...Listed by NSF International® .
Overall Dimensions . . . . . . . . . . . . .151⁄2” high, 151⁄4” wide, 131⁄8” deep
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 pounds
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 pounds
Cube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.32
Carton Size . . . . . . . . . . . . . . . . . . . . . . . .171⁄2” L x 131⁄2” W x 171⁄2” H
Plastic Production Stand (Optional)
Part Number S-31
2 halves scored in 3 wedges each
(for school foodservice).
S-105
3-in-1
S-106
Apple Model
6 evenly spaced and cut wedges
with center core removed.
Must use plunger # 33.
S-107
Single
Cuts fruit in half.
A sturdy plastic stand that allows serving pans (not included) to pass
under the sectionizer for greater production flexibility.
Overall Dimensions . . . . . . . . . . . . . . . . . . . . . . .53⁄4” high, 141⁄2” wide
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 pounds, 3 oz.
8086 Revised 01-05
SUNKIST and design are trademarks of © 2005 Sunkist Growers, Inc., Sherman Oaks, CA 91423, USA
