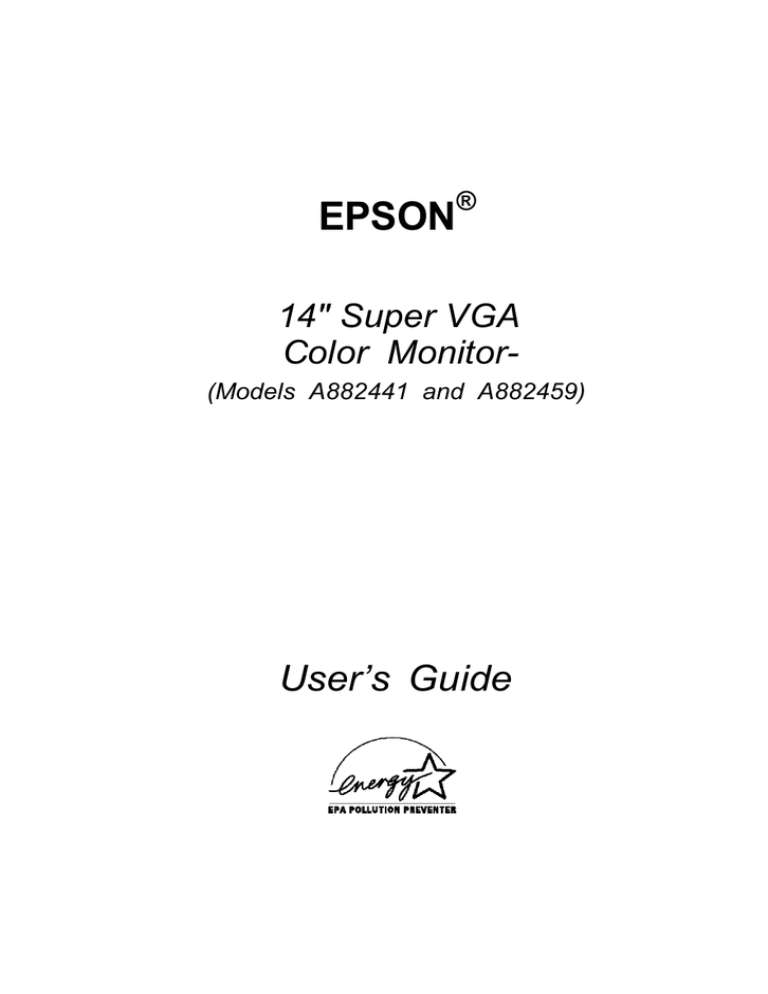

EPSON

®

14" Super VGA

Color Monitor-

(Models A882441 and A882459)

User’s Guide

FCC COMPLIANCE STATEMENT

FOR AMERICAN USERS

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: q

Reorient or relocate the receiving antenna q

Increase the separation between the equipment and receiver.

q

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

q

Consult the dealer or an experienced radio/ TV technician for help

NOTICE

(1) Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

(2) Shielded interface cables and AC power cord must be used in order to comply with the emission limits.

FOR CANADIAN USERS

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian

Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.

IMPORTANT NOTICE

DISCLAIMER OF WARRANTY

Epson America makes no representations or warranties, either express or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties ofmerchantability and fitness for a particular purpose or for any indirect, special, or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so this exclusion may not apply to you.

COPYRIGHT NOTICE

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Epson

America, Inc. No patent liability is assumed with respect to the use of information contained herein. Nor is any liability assumed for damages resulting from the use of the information contained herein. Further, this publication and features described herein are subject to change without notice.

TRADEMARKS

EPSON is a registered trademark of Seiko Epson Corporation

EPSON Connection is a service mark of Epson America, Inc.

General notice: Other product names used herein are for identification purposes only and may be trademarks of their respective companies.

The Energy Star emblem does not represent EPA endorsement of any product or service

Copyright © 1995 by Epson America, Inc.

Torrance, California, USA ii

400508100

7/ 95

Important Safety Instructions

Although this monitor is designed to assure your safety, improper use can cause electric shock or fire hazard. In order not to defeat the safeguards incorporated in the monitor, observe the following safety instructions:

1.

2.

4.

5.

6.

3.

7.

8.

Read all of these instructions and save them for later reference.

Follow all warnings and instructions in this manual and marked on the monitor.

The monitor contains shock hazard potential. Do not attempt to open or remove any covers, and do not attempt to service the monitor yourself.

Refer all servicing to authorized service personnel.

Never push objects of any kind into the monitor through cabinet slots.

Do not expose the monitor to liquids, such as rain or spills.

Do not place the monitor on an unstable cart, stand, or table, and be careful not to drop it.

Do not place the monitor near a heating appliance or in direct sunlight.

Intense heat can damage the monitor’s circuitry.

Slots and openings on the top, sides, and back of the cabinet are provided for ventilation; do not block or cover these openings. Do not place the monitor in a built-in insulator, such as a bookcase, unless proper ventilation is provided.

9.

10

Power supply voltages outside the monitor’s specified line voltage range may harm the monitor. The monitor should be operated from the type of power source indicated on the rear panel marking label.

Make sure the combined amperage rating for all products plugged into the wall outlet used for the monitor does not exceed the amperage rating of the wall outlet.

11 Use only the power cord supplied with the monitor. If you must use another power cord, make sure it meets the applicable standards

(UL/ CSA).

12 Do not overload the computer inlet and extension cords as this can result in fire or electric shock.

13. Be careful not to damage the power cord or plug iii

14. Do not allow anything to rest on the power cord. Do not place a cord where it may be stepped on.

15. Do not replace the video interface cable with a non-shielded cable

16. Unplug the monitor from the computer and the wall outlet before cleaning. Use a damp cloth for cleaning.

17. Excessive brightness for long periods may permanently imprint an image on the screen.

18. To avoid picture distortion or color disturbance, do not put devices that generate magnetism (such as telephones, televisions, speakers, or magnetic screwdrivers) near the monitor.

19. When the monitor will not be used for a long period of time, turn it off by pressing the power button. (Always wait at least five seconds before you turn it back on.)

20. Unplug the monitor from the computer and the wall outlet and refer servicing to authorized service personnel under the following conditions:

A.

If the power cord or plug is damaged

B.

If the monitor has come into contact with any liquids, such as rain or spills.

C.

If the monitor does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions; improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

D.

If the monitor has been dropped or the cabinet or glass faceplate has been damaged.

E.

If the monitor exhibits a distinct change in performance.

iv

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Energy Star Compliant . . . . . . . . . . . . . . . . . . . . .

1

Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . .

Electronic Support Services . . . . . . . . . . . . . . . . . .

3

Unpacking the Monitor . . . . . . . . . . . . . . . . . . . . . . .

Setting Up the Monitor . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Tilt and Swivel Base . . . . . . . . . . . . .

Selecting a Location for the Monitor . . . . . . . . . . . . . . .

4

7

Connecting the Monitor to Your Computer . . . . . . . . . . . .

Turning On the Monitor . . . . . . . . . . . . . . . . . . . . . .

Accessing the Monitor Controls . . . . . . . . . . . . . . . . .

10

Adjusting the Monitor Controls . . . . . . . . . . . . . . . . .

Cleaning the Monitor . . . . . . . . . . . . . . . . . . . . . . .

7

9

10

12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

4

5

1

2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

v i i

Introduction

Your EPSON

®

Super VGA Color Monitor (models A882441 and

A882459) is compatible with all IBM

®

8514A, VGA, and Super

VGA modes from 30 to 50 KHz. It offers the following features: o

14-inch, analog color CRT display with non-glare surface and a 13.2-inch viewing area o

High-resolution display of up to 1024 x 768 pixels, non-interlaced o

Six user-adjustable controls: brightness, contrast, horizontal centering, horizontal size, vertical centering, and vertical size o

Universal power supply with automatic line voltage selection between 100 and 240 volts o

Energy Star compliant o

Tilt and swivel base.

This manual describes how to set up and use the monitor. It also provides troubleshooting information and specifications.

Energy Star Compliant

Your EPSON monitor complies with the U.S. Environmental

Protection Agency’s Energy Star program, which promotes the manufacture of energy-efficient printers, computers, and monitors. If your computer is Energy Star compliant, the

EPSON Super VGA Color Monitor automatically enters a low-power, standby mode when the computer stops sending input signals to the monitor. The power indicator at the front right of the monitor turns amber when the monitor is in this low-power state.

14" Super VGA Color Monitor 1

The EPA estimates that if all desktop computers, monitors, printers, and other peripheral devices met Energy Star standards, energy cost savings would exceed $1 billion annually and carbon monoxide emissions would be reduced by

20 million tons.

The Energy Star emblem does not represent EPA endorsement of any product or service.

Where to Get Help

If you purchased your monitor outside the United States, contact an EPSON representative at the nearest marketing location for support and service. International marketing locations are listed at the back of this manual.

If you purchased your monitor in the United States or Canada,

EPSON provides customer support and service through a network of Authorized EPSON Customer Care Centers.

EPSON also provides the following services when you dial

(800) 9224911: o Technical assistance with the installation, configuration, and operation of EPSON products o Assistance in locating your nearest Authorized EPSON

Reseller or Service Center o Customer Relations o EPSON Technical information library fax service o Product literature on current and new products.

You can purchase printed manuals, accessories, or parts for

EPSON products from EPSON Accessories at (800) 873-7766

(U.S. sales only). In Canada, call (800) BUY-EPSON.

2 14" Super VGA Color Monitor

Electronic Support Services

If you have a modem, the fastest way to access helpful tips, specifications, drivers, application notes, DIP switch or jumper settings, and bulletins for EPSON products is through the online services below.

EPSON bulletin board service

You can call the EPSON Bulletin Board Service (BBS) at

(310) 782-4531. No membership is required. Make sure your communications software is set to 8 data bits with no stop bit, 1 parity bit, and a modem speed up to 28.8 Kbps. See the documentation that came with your communications software for more information.

CompuServe

®

online support

CompuServe members can call the Epson America Forum on

CompuServe. If you are already a member, simply type GO

EPSON at the menu prompt to reach the Forum.

If you are not currently a member, you are eligible for a free introductory membership as an owner of an EPSON product

This membership entitles you to: o An introductory $15 credit on CompuServe o Your own user ID and password o A complimentary subscription to CompuServe Magazine,

CompuServe’s monthly publication.

To take advantage of this offer, call (800) 848-8199 in the United

States and Canada and ask for representative #529. In other countries, call the following U.S. telephone number:

(614) 529-1611, or your local CompuServe access number.

14" Super VGA Color Monitor 3

Unpacking the Monitor

When you unpack your monitor, make sure you have these items : o EPSON 14" Super VGA Color Monitor o AC power cord (to connect the monitor to a wall outlet) o Tilt and swivel base o Warranty card o Registration card.

If anything is missing or damaged, contact your EPSON representative immediately.

Be sure to keep the monitor’s original box and packing materials in case you need to transport the monitor later.

Setting Up the Monitor

This section describes how to attach the tilt and swivel base, select a location for the monitor, and connect it to your computer.

4 14" Super VGA Color Monitor

Attaching the Tilt and Swivel Base

Before you attach the tilt and swivel base, cover your work area with a blanket or foam pad to avoid scratching the monitor.

Then follow these steps:

1.

Carefully set the monitor face down on the padding so the bottom of the monitor is facing you.

2.

Locate the four sets of hooks on the top portion of the base.

3.

Hold the base so the hooks are turned down and position the base next to the bottom of the monitor.

14" Super VGA Color Monitor 5

4.

Insert the hooks into the slots on the monitor.

5.

Slide the base toward the front clicks into position.

of the monitor until the base

6.

Carefully turn the monitor over so it rests on its base

Note

Always remove the tilt and swivel base before packing and transporting the monitor. To remove the base, disconnect the power cord from the electrical outlet and disconnect the video interface cable from the back of the computer.

Carefully set the monitor face down on a padded surface.

With the bottom of the monitor toward you, press down on the release tab and lift the base to remove the hooks from the slots.

6 14" Super VGA Color Monitor

Selecting a Location for the Monitor

Follow these guidelines when you select a location for the monitor: o Read the safety instructions at the beginning of this manual.

o Use a large, sturdy desk that can support the weight of the computer, monitor, and any peripheral devices. The desk should also provide ample space to hold your equipment and work materials.

o For your comfort, it is best to place the monitor directly in front of you and sit about an arm’s length away from it.

o To minimize glare and reduce eye fatigue, position the monitor so that sunlight, desk lamps, or overhead lights do not shine directly on the screen.

o For comfortable viewing, the top of the screen should be slightly below eye level when you are sitting in front of the monitor. Your line of sight to the screen should be about

10° to 20° below the horizontal.

Connecting the Monitor to Your Computer

Before you connect the monitor to your computer, make sure your computer and video adapter are set up to use with the monitor. If necessary, install an appropriate video adapter card in your computer and set any DIP switches or jumpers on the card to match the monitor. You may also need to change jumper settings inside the computer. See your computer or video adapter card manual for instructions.

14" Super VGA Color Monitor 7

Follow these steps to connect the monitor to your computer:

1.

Make sure the monitor, computer, and any peripheral devices are turned off.

2.

Turn the monitor around so its back is facing you.

3.

Plug the end of the video cable into the video connector on the back of the computer and tighten the two screws on the cable connector.

4.

Plug one end of the power cord into the monitor’s AC receptacle. Plug the other end into a properly grounded wall outlet.

The monitor contains a universal power supply, so you can connect it to any wall outlet supplying between 100 and

240 volts.

5.

Turn the monitor around so the screen faces you and use the tilt and swivel base to adjust the position of the screen for comfortable viewing.

8 14" Super VGA Color Monitor

Turning

On the Monitor

Turn on the monitor by pressing the power button located at the front right of the monitor. Then turn on the computer. After a few seconds, an image appears on the screen.

The power indicator is green when you first turn on the monitor and when the monitor is in the full-power state. When the monitor is in the low-power state, the power indicator is amber.

14" Super VGA Color Monitor 9

Accessing the Monitor Controls

The image control box contains the image controls for the monitor. It is located at the bottom left of the monitor. To access the controls, you need to open the control box cover. Place your finger at the left side of the cover and pull it gently forward until the cover opens.

Adjusting the Monitor Controls

The controls on the front of the monitor allow you to adjust the display to suit your preferences. The brightness and contrast controls at the bottom right of the screen adjust the screen to make it clear and easy to read.

10 14" Super VGA Color Monitor

The following table summarizes the functions of the monitor’s controls.

Control

Vertical center

Icon

Vertical size

Horizontal center

Horizontal size

Contrast

Brightness

Power button

Function

Centers the image vertically. Turn the control clockwise to move the image up: turn it counterclockwise to move the image down.

Adjusts the vertical size of the image. Turn the control clockwise to increase the height: turn it counterclockwise to decrease the height.

Centers the image horizontally. Turn the control clockwise to move the image to the right: turn it counterclockwise to move the image to the left.

Adjusts the width of the image. Turn the control clockwise to increase the width: turn it counterclockwise to decrease the width.

Adjusts the contrast (the degree of difference between the lightest and darkest parts of the display). Turn the control clockwise to increase the contrast: turn it counterclockwise to decrease the contrast.

Adjusts the brightness of the image. Turn the control clockwise to increase the brightness: turn it counterclockwise to decrease the brightness.

Turns the monitor on and off.

14" Super VGA Color Monitor 11

Cleaning the Monitor

To keep the monitor operating at its best, it is important to clean it regularly. Follow these steps:

1.

Turn off the monitor and unplug the power cord from the wall outlet. Also disconnect the video interface cable from the computer.

2.

Use a damp, lint-free cloth to wipe the monitor casing; do not use a wet cloth.

3.

To clean the screen, spray a household glass cleaner on a cloth; then wipe the screen.

Caution

To avoid electric shock, do not spray cleaner directly on the monitor. Do not use solvents, abrasives, or aerosol cleaners to clean the monitor; they can discolor the casing or damage the anti-glare surface of the screen.

Troubleshooting

This section gives solutions to monitor problems you might encounter. If these procedures do not solve the problem, see page 2 for information on where to get help.

The power indicator light does not light.

1.

The monitor’s power may not be on. Press the power button.

2.

The power cord might be unplugged or not fully connected.

Make sure the power cord is properly connected to both the monitor and the electrical outlet.

12 14" Super VGA Color Monitor

3.

The electrical outlet may not be functional. Test the outlet by plugging in a lamp or other device.

The power indicator is on, but there is no image on the screen.

1.

Make sure the computer is turned on.

2.

Make sure the video interface cable is properly connected to the monitor and the video interface on the computer. See

“Connecting the Monitor to Your Computer” on page 7.

3.

Adjust the contrast and brightness controls. See page 11.

4.

The input signals may be outside the monitor’s horizontal and vertical frequency ranges (30-50 KHz horizontal and

50-90 Hz vertical). Make sure the input signals are within the specified ranges.

5.

Make sure your computer’s DIP switches, jumpers, and setup program settings match the monitor’s settings. If you are using a video card, make sure any DIP switches or jumpers on the card are set properly. See your computer or video adapter card manual for instructions.

6.

Make sure your application program settings are correctly set for the monitor.

The power indicator is amber.

1.

The monitor may be in power management mode. Press any computer key or move the mouse to return to normal mode.

2.

Make sure the video interface cable is properly connected to the computer’s video interface. See “Connecting the

Monitor to Your Computer” on page 7.

14" Super VGA Color Monitor 13

3.

The input signals may be outside the monitor’s horizontal and vertical frequency ranges (30 to 50 KHz horizontal and

50 to 90 Hz vertical). Make sure the input signals are within the specified ranges.

4.

Make sure your computer’s video adapter is set up for use with the monitor and that any DIP switches or jumpers in the computer or on a video adapter card are set properly.

See your computer or video adapter card manual for instructions.

The image is not centered or if locks in place on the screen.

Adjust the H-center and V-center controls on the front of the monitor as described on page 11.

The image is too big or too small for the screen.

Adjust the H-size and V-size controls on the front of the monitor as described on page 11.

The image is scrambled.

The input signals may be outside the monitor’s horizontal and vertical frequency ranges (30-50 KHz horizontal and 50-90 Hz vertical). Make sure the input signals are within the specified ranges.

14 14" Super VGA Color Monitor

Specifications

Model Number

CRT

Size

Viewing area

Resolution

Display area

Deflection angle

Dot pitch

Surface

Misconvergence

A882441, A882459

14 inches (356 mm) diagonal

13.2 inches (335 mm) diagonal

1024 x 768, non-interlaced

9.6 x 7.3 inches (245 x 185 mm)

90°

0.28 mm

Non-glare tinted

0.35/0.45 mm

Video and Synchronization Signals

Video Analog

Bandwidth 65 MHz

Signal cable

Horizontal frequency

Vertical frequency

15-pin, D-sub connector

30 to 50 KHz

50 to 90 Hz

14" Super VGA Color Monitor 15

Pin

4

5

6

7

8

1

2

3

D-type connectorpin assignments

Signal

Red

Green

Blue

Ground

Self test

Red return

Green return

Blue return

Pin

9

10

11

12

13

14

15

Signal

Not connected

Digital GND

Ground

Not connected

H-sync

V-sync

Not connected

Scanning Modes

Resolution

640 x 350

640 x 400

640 x 480

800 x 600

1024 x 768

* Interlaced

Power Supply

Input voltage

Vertical frequency

70 Hz

70 Hz

60/72/75 Hz

56/60/72/75 Hz interlaced/60 Hz

100-240 VAC, 50/60 Hz, 0.8 A at 120 VAC

1 6 14" Super VGA Color Monitor

Display Power Management

Environment Requirements

Operating t e m p e r a t u r e

40° F to 85° F (5° C to 35° C)

H u m i d i t y 8% to 80% noncondensing

Safety Standards

UL, CSA, FCC-B, DHHS

Physical Characteristics

Net weight 25 lb (11.3 Kg)

Width

Height

Depth

14 inches (356 mm)

15.3 inches (387 mm)

15.9 inches (403 mm)

14" Super VGA Color Monitor 1 7

Epson America (USA)

EPSON Connection

Tel: (800) 922-8911

EPSON Accessories

Tel: (800) 873-7766

Fax: (310) 782-4401

Epson America, Inc.

20770 Madrona Avenue

Torrance, CA 90509-2842

Tel: (310) 782-0770

Epson America (lnternational)

Epson Latin America

Miami, FL, USA

Tel: (305) 265-0092

Fax: (305) 265-0097

Epson Argentina, S.A.

Buenos Aires, Argentina

Tel: (541) 322-6898

Fax: (541) 322-9725

Epson Chile, S.A.

Santiago, Chile

Tel: (562) 232-8966

Fax: (562) 233-3197

Epson Costa Rica, S.A.

San Jose, Costa Rica

Tel: (506) 234-6666

Fax: (506) 225-5709

Epson Mexico, S.A. De C.V.

Mexico, D.F., Mexico

Tel: (525) 395-9944

Hotline: (91800) 50326

Fax: (525) 395-9499

Epson Do Brasil

São Paulo, SP Brazil

Tel: (5511) 536-0300

Fax: (5511) 536-9200

Epson Venezuela, S.A

Caracas, Venezuela

Tel: (582) 241-0433

Fax: (582) 241-4561

Epson Canada Limited

Willowdale, Ontario, Canada

Tel: (416) 498-9955

Fax: (416) 498-4574

EPSON International Marketing Locations

Epson Deutschland GmbH

Zülpicher Straße 6,

40549 Düsseldorf 11

Germany

Tel: (49) (211) 56030

Telex: (41) (211) 504-7787

Epson Iberica, S.A.

Avda. de Roma 18-26

08290 Cerdanyola del valles

Barcelona, Spain

Tel: (34) (3) 582-1500

Fax: (34) (3) 582-1555

Telex: 50129

Epson Hong Kong Ltd.

Rooms 4706-10, 47th Floor

China Resources Building

26 Harbour Road

Wanchai, Hong Kong

Tel: (852) 585-4600

Fax: (852) 827-4346

Telex: 65542 EPSCO HX

Epson Electronics Trading Ltd.

Taiwan Branch l0F, No. 287, Nanking E. Road,

Sec. 3, Taipei, Taiwan R.O.C.

Tel: 886-2-717-7360

Free phone: 886-080-211172

Fax: 886-2-712-9164

Telex: 785-24444

Epson (U.K.) Ltd.

Business Management Dept. (PC)

Campus 100, Maylands Avenue

Hemel Hempstead, Hertfordshire,

HP2 7EZ, UK

Tel: (44) (442) 227-355

Free phone: linkline 0800 289622

Fax: (44) (442) 227-427

Telex: 51-824767

Epson France S.A.

B.P. 320, 68 Bis Rue Marjolin

92305 Levallois-Perret Cedex

France

Tel: (33) (1) 4087-3737

Telex: (42) 610657

Fax: (33) (1) 4737-2240

Epson Italia s.p.a.

V.le F.lli Casiraghi, 427

20099 Sesto, S. Giovanni

Milano, Italy

Tel: (39) (2) 26233

Fax: (39) (2) 244-0750

Telex: 315132

Epson Australia Pty. Ltd.

l/ 70 Gibbes Street

Chatswood 2067 NSW

Australia

Tel: (61) (2) 415-9000

Fax: (61) (2) 417-0077

Telex: 71-75052

Epson Singapore Pte. Ltd.

No. 1 Raffles Place #26-00,

Oub Centre, Singapore 0104

Tel: (65) 533-0477

Fax: (65) 533-8119

Telex: 87-39536

Distributors

South America

SISCO

São Paulo, SP Brazil

Tel: (5511) 549-4846

Fax: (5511) 549-4571

McSilver, S.A.

Bogota, Colombia

Tel: (571) 270-4303

Fax: (571) 230-9205

C.I.L.D.S.E.

Quito, Ecuador

Tel: (593) 2-54-3418

Fax: (593) 2-55-4780

A.J. Vierci & CIA

Asuncion, Paraguay

Tel: (595) 21-449-220

Fax: (595) 21-449-514

Infocenter

Asuncion, Paraguay

Tel: (595) 21-49-862

Fax: (595) 214-49514

Peru Mercantil, S.A.

Lima, Peru

Tel: (5114) 62-2566

Fax: (5114) 61-8256

Siser Ltda.

La Paz, Bolivia

Tel: (591-2) 34-32-45

Fax: (591-2) 35-92-68

Merisel Columbia

Bogota, Columbia

Tel: (571) 257-7800

Fax: (571) 610-0674

Ace Computers & Electronics

Georgetown, Guyana

Tel: (592) 25-65-48

Fax: (592) 26-39-67

Alvimer S.R.L. Trading Inc.

Ciudad Del Este, Paraguay

Tel: (595) 61-60234

Fax: (595) 61-60566

Control De Procesos Informaticos

Lima, Peru

Tel: (5114) 42-3973

Fax: (5114) 35-5017

Interfase S.A.

Montevideo, Uruguay

Tel: (598) (2) 49-4600

Fax: (598) (2) 49-3040

Caribbean

Caribbean Computer Systems, Ltd.

Bridgetown, Barbados

Tel: (809) 429-7050

Fax: (809) 427-6509

Computer Business Systems

Kingston, Jamaica

Tel: (809) 925-8600

Fax: (809) 925-8115

Boolchand Pessomal N.V.

Curacao, Netherlands Antilles

Tel: (599) 961-2262

Fax: (599) 961-4345

Computer Gallery

Hato Rey, Puerto Rico

Tel: (809) 753-0500

Fax: (809) 753-0552

Micro International, S.A.

IMCON Limited

Santo Domingo, Republica Dominicana Castries, St. Lucia, West Indies

Tel: (809) 533-8110

Fax: (809) 535-3218

Tel: (809) 452-6130

Fax: (809) 452-3883

Complete Computer Systems

Port-of-Spain, Trinidad

Tel: (809) 625-1204

Fax: (809) 623-5426

Da Costas Limited

Bridgetown, Barbados

Tel: (809) 427-5854

Fax: (809) 436-9870

WTG/ APTEC Systems Limited

Kingston, Jamaica

Tel: (809) 929-9250

Fax: (809) 929-8296

Central America

Equipos Electronicos Valdez y Cia

San Salvador, El Salvador

Tel: (503) 23-73-43

Fax: (503) 24-53-82

Servicio Integral De Computacion, S.A.

Guatemala, Guatemala

Tel: (502-2) 31-11-70

Fax: (502-2) 32-52-22

Micro-Tec

Managua, Nicaragua

Tel: (505-2) 66-27-15

Fax: (505-2) 66-27-58

PS2000

Guatemala, Guatemala

Tel: (502-2) 31-1129

Fax: (502-2) 31-2449

CODASA

Tegucigalpa, Honduras

Tel: (504) 33-5685

Fax: (504) 58-0255

Sonitel, C.A.

Panama, Republica De Panama

Tel: (507) 63-98-00

Fax: (507) 63-98-15

advertisement

Related manuals

Frequently Answers and Questions

What is the display size and viewing area of the EPSON A882441 monitor?
The EPSON A882441 monitor has a 14-inch analog color CRT display with a non-glare surface and a 13.2-inch viewing area.
What is the maximum resolution supported by the EPSON A882441 monitor?
The EPSON A882441 monitor supports a high-resolution display of up to 1024 x 768 pixels, non-interlaced.
How many user-adjustable controls does the EPSON A882441 monitor have?
The EPSON A882441 monitor has six user-adjustable controls: brightness, contrast, horizontal centering, horizontal size, vertical centering, and vertical size.
What is the power supply range of the EPSON A882441 monitor?
The EPSON A882441 monitor has a universal power supply with automatic line voltage selection between 100 and 240 volts.
Is the EPSON A882441 monitor Energy Star compliant?
Yes, the EPSON A882441 monitor complies with the U.S. Environmental Protection Agency’s Energy Star program, promoting energy-efficient devices.
What is the feature of the tilt and swivel base on the EPSON A882441 monitor?
The EPSON A882441 monitor has a tilt and swivel base, allowing you to adjust the position of the monitor for optimal viewing comfort.
