Pomona
®
FEATURES:
• Mates to Model #2269 or any standard double
banana jack.
• Binding post cross hole allows attachment of pin
tip plugs.
• Shorting bar is completely encapsulated in clear
Polypropylene.
MATERIALS:
Upper Conn.:
Binding Post Body: Brass, per QQ-B-626
Alloy 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2,
200/300 microinches.
Insulation: Polycarbonate molded to collar.
Color: See ordering information.
Shorting Bar:
Material: Brass, per QQ-B-613, Composition
Finish: Nickel plated per QQ-N-290, Class 2,

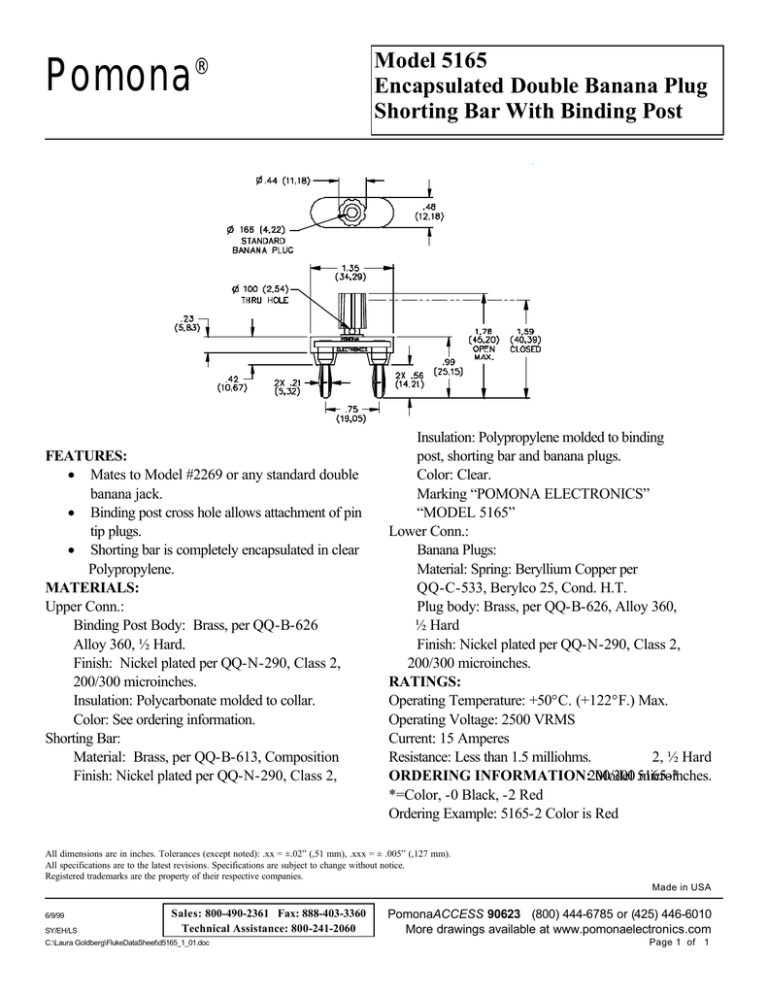

Model 5165
Encapsulated Double Banana Plug
Shorting Bar With Binding Post
Insulation: Polypropylene molded to binding
post, shorting bar and banana plugs.
Color: Clear.
Marking “POMONA ELECTRONICS”
“MODEL 5165”
Lower Conn.:
Banana Plugs:
Material: Spring: Beryllium Copper per
QQ-C-533, Berylco 25, Cond. H.T.
Plug body: Brass, per QQ-B-626, Alloy 360,
½ Hard
Finish: Nickel plated per QQ-N-290, Class 2,
200/300 microinches.
RATINGS:
Operating Temperature: +50°C. (+122°F.) Max.
Operating Voltage: 2500 VRMS
Current: 15 Amperes
Resistance: Less than 1.5 milliohms.
2, ½ Hard
ORDERING INFORMATION:200/300
Model 5165-*
microinches.
*=Color, -0 Black, -2 Red
Ordering Example: 5165-2 Color is Red
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
C:\Laura Goldberg\FlukeDataSheet\d5165_1_01.doc
PomonaACCESS 90623 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
